Microsoft Entra Join の Before / After

Last updated at Posted at 2023-11-26

はじめに

Microsoft Entra Join を実施する前と、した後で デバイス や クラウドの管理画面 での表示が どう変わるのかについて、情報をまとめました。

Microsoft Entra Join については、以下の記事で説明していますので、参照してください。
（Microsoft Entra Join について）
　https://qiita.com/carol0226/items/8c2bbc0f480913eaeed4
（Microsoft Entra Join の手順 - Win10）
　https://qiita.com/carol0226/items/eba166a0a4b2e7df3a92
（Microsoft Entra Join の手順 - Win11）
　https://qiita.com/carol0226/items/74efd0c2cce7fc42e110

1. Azure Portal の 表示

テナント内で、"参加済み" となっているデバイスの一覧を確認できます。

（確認方法）

  1. Azure Portal に サインインする
  2. "Microsoft Entra ID" の 機能を開く
  3. テナントの概要ページで「デバイス」を選択する
  4. デバイスの概要ページで「すべてのデバイス」を選択する

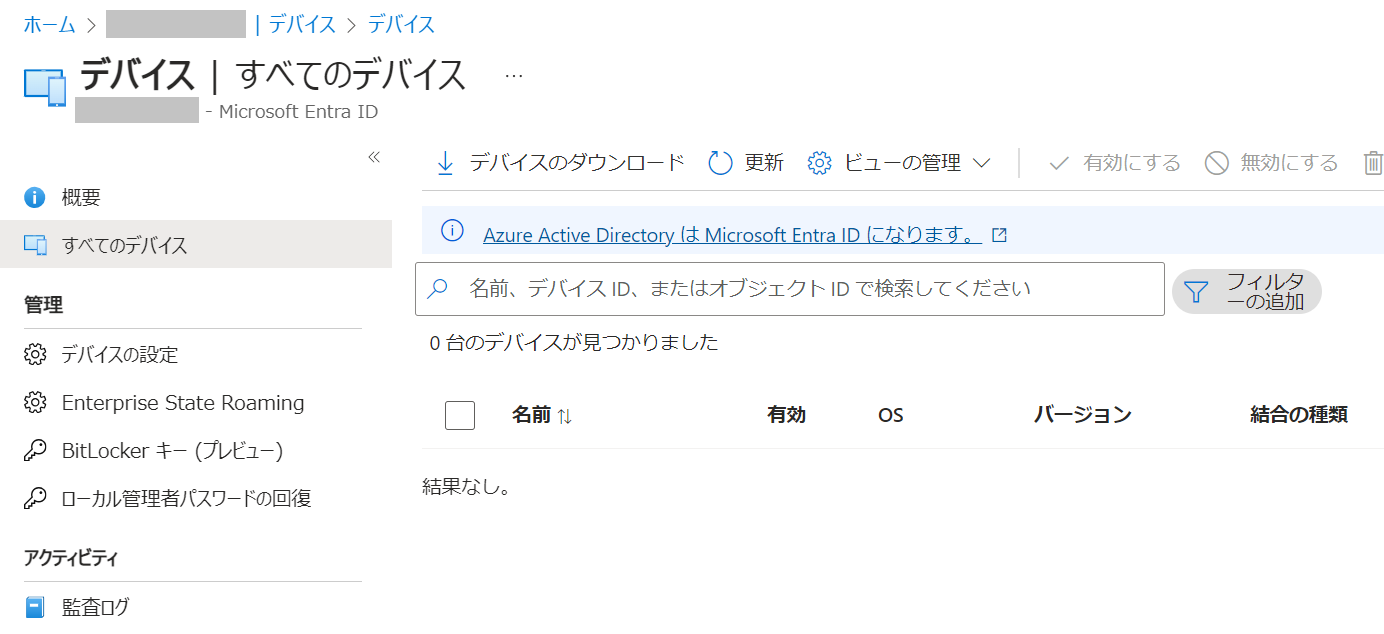

Before

デバイスはありません。

After

Win10 と Win11 という 2台 の デバイス が "参加済み" の状態

2. デバイス の "参加済み" 状態 (GUI)

（確認方法）

  1. デバイス に サインインする
  2. 「スタートボタン」を右クリックして、「設定」を開く
  3. 設定アプリ上 から「アカウント」を開く
  4. アカウントの画面から「職場または学校へのアクセス」を開く

Windows 10

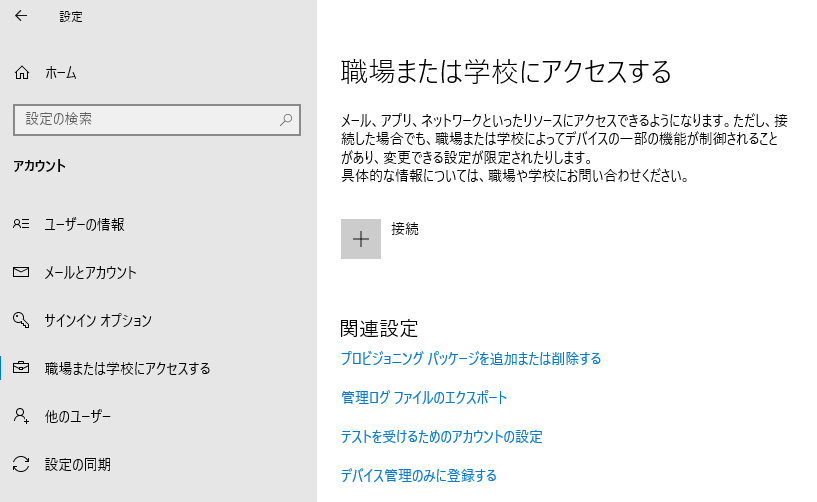

Before

"参加" 前の状態です。

After 1

"参加済み" になった直後（再起動の前）

After 2

"参加済み" になり、デバイスを再起動して テナントユーザーで サインイン を実施

Windows 11

Before

"参加" 前の状態です。

After 1

"参加済み" になった直後（再起動の前）

After 2

"参加済み" になり、デバイスを再起動して テナントユーザーで サインイン を実施

3. デバイス の "参加済み" 状態：dsregcmd コマンド

（確認方法）

  1. デバイス に サインインする
  2. コマンドプロンプトを開く
  3. "dsregcmd /status" を実行する

結果一覧

章 項目 Before After 1 After 2
Device State AzureAdJoined
EnterpriseJoined
DomainJoined		 NO
NO
NO		 YES
NO
NO		 YES
NO
NO
Device Details － 章が追加
Tenant Details － 章が追加
User State NgcSet
WorkplaceJoined
WamDefaultSet		 NO
NO
NO		 NO
NO
NO		 NO
NO
YES
SSO State AzureAdPrt
AzureAdPrtA～
EnterprisePrt
EnterprisePrt～
OnPremTgt
CloudTgt
KerbTopLeve～		 NO
NO
NO
NO
無い
無い
無い		 NO
空欄
NO
空欄
無い
無い
無い		 YES
URL情報
NO
空欄
NO
YES
値が表示
Diagnostic Data AadRecovery～
Executing Ac～
KeySignTest
DisplayNam～
OsVersionUp～
HostNameU～
Last HostNa～		 NO
アカウント
PASSED
YES
YES
YES
NONE		 NO
アカウント
PASSED
YES
YES
YES
NONE
IE Proxy
Config
for Current User		 Auto Detect～
Auto-Con URL
Proxy Server～
Proxy Bypass～		 YES
　
　
　		 YES
　
　
　		 YES
　
　
　
WinHttp Default
Proxy Config		 Access Type DIRECT DIRECT DIRECT
Ngc Prerequisite
Check		 IsDeviceJoined
IsUserAzureAD
PolicyEnabled
PostLogonE～
DeviceEligible
SessionIsNot～
CertEnrollment
PreReqResult		 NO
NO
NO
YES
NO
NO
none
WillNot～		 YES
NO
NO
YES
NO
NO
none
WillNot～		 YES
YES
YES
YES
NO
NO
none
WillNot～

結果詳細

Before

"参加" 前 の状態です。

"Device State" の "AzureAdJoined" の 値 が "NO" になっています。

PS C:\Users\nogushu> dsregcmd /status

+----------------------------------------------------------------------+
| Device State                                                         |
+----------------------------------------------------------------------+

             AzureAdJoined : NO
          EnterpriseJoined : NO
              DomainJoined : NO
               Device Name : Win10

+----------------------------------------------------------------------+
| User State                                                           |
+----------------------------------------------------------------------+

                    NgcSet : NO
           WorkplaceJoined : NO
             WamDefaultSet : NO

+----------------------------------------------------------------------+
| SSO State                                                            |
+----------------------------------------------------------------------+

                AzureAdPrt : NO
       AzureAdPrtAuthority : NO
             EnterprisePrt : NO
    EnterprisePrtAuthority : NO

+----------------------------------------------------------------------+
| IE Proxy Config for Current User                                     |
+----------------------------------------------------------------------+

      Auto Detect Settings : YES
    Auto-Configuration URL :
         Proxy Server List :
         Proxy Bypass List :

+----------------------------------------------------------------------+
| WinHttp Default Proxy Config                                         |
+----------------------------------------------------------------------+

               Access Type : DIRECT

+----------------------------------------------------------------------+
| Ngc Prerequisite Check                                               |
+----------------------------------------------------------------------+

            IsDeviceJoined : NO
             IsUserAzureAD : NO
             PolicyEnabled : NO
          PostLogonEnabled : YES
            DeviceEligible : NO
        SessionIsNotRemote : NO
            CertEnrollment : none
              PreReqResult : WillNotProvision

For more information, please visit https://www.microsoft.com/aadjerrors

After1

"参加済み" になった直後（再起動の前）

"Device State" の "AzureAdJoined" の 値 が "YES" に変わりました。
そのほかに "Device Details" と "Tenant Details" が追加されました。

PS C:\Users\nogushu> dsregcmd /status

+----------------------------------------------------------------------+
| Device State                                                         |
+----------------------------------------------------------------------+

             AzureAdJoined : YES
          EnterpriseJoined : NO
              DomainJoined : NO
               Device Name : Win10

+----------------------------------------------------------------------+
| Device Details                                                       |
+----------------------------------------------------------------------+

                  DeviceId : eadd81ba-xxxx-xxxx-xxxx-62axxxxefe15
                Thumbprint : ACCB4EXXXXXXXXXXA72F6ADXXXXXXXXXX208AE10
 DeviceCertificateValidity : [ 2023-11-25 01:13:55.000 UTC -- 2033-11-25 01:43:55.000 UTC ]
            KeyContainerId : 069d9016-xxxx-xxxx-xxxx-1aee4475fb04
               KeyProvider : Microsoft Software Key Storage Provider
              TpmProtected : NO
          DeviceAuthStatus : SUCCESS

+----------------------------------------------------------------------+
| Tenant Details                                                       |
+----------------------------------------------------------------------+

                TenantName :
                  TenantId : 010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65
                       Idp : login.windows.net
               AuthCodeUrl : https://login.microsoftonline.com/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65/oauth2/authorize
            AccessTokenUrl : https://login.microsoftonline.com/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65/oauth2/token
                    MdmUrl :
                 MdmTouUrl :
          MdmComplianceUrl :
               SettingsUrl :
            JoinSrvVersion : 2.0
                JoinSrvUrl : https://enterpriseregistration.windows.net/EnrollmentServer/device/
                 JoinSrvId : urn:ms-drs:enterpriseregistration.windows.net
             KeySrvVersion : 1.0
                 KeySrvUrl : https://enterpriseregistration.windows.net/EnrollmentServer/key/
                  KeySrvId : urn:ms-drs:enterpriseregistration.windows.net
        WebAuthNSrvVersion : 1.0
            WebAuthNSrvUrl : https://enterpriseregistration.windows.net/webauthn/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65/
             WebAuthNSrvId : urn:ms-drs:enterpriseregistration.windows.net
    DeviceManagementSrvVer : 1.0
    DeviceManagementSrvUrl : https://enterpriseregistration.windows.net/manage/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65/
     DeviceManagementSrvId : urn:ms-drs:enterpriseregistration.windows.net

+----------------------------------------------------------------------+
| User State                                                           |
+----------------------------------------------------------------------+

                    NgcSet : NO
           WorkplaceJoined : NO
             WamDefaultSet : NO

+----------------------------------------------------------------------+
| SSO State                                                            |
+----------------------------------------------------------------------+

                AzureAdPrt : NO
       AzureAdPrtAuthority :
             EnterprisePrt : NO
    EnterprisePrtAuthority :

+----------------------------------------------------------------------+
| Diagnostic Data                                                      |
+----------------------------------------------------------------------+

        AadRecoveryEnabled : NO
    Executing Account Name : Win10\nogushu
               KeySignTest : PASSED

        DisplayNameUpdated : YES
          OsVersionUpdated : YES
           HostNameUpdated : YES

      Last HostName Update : NONE

+----------------------------------------------------------------------+
| IE Proxy Config for Current User                                     |
+----------------------------------------------------------------------+

      Auto Detect Settings : YES
    Auto-Configuration URL :
         Proxy Server List :
         Proxy Bypass List :

+----------------------------------------------------------------------+
| WinHttp Default Proxy Config                                         |
+----------------------------------------------------------------------+

               Access Type : DIRECT

+----------------------------------------------------------------------+
| Ngc Prerequisite Check                                               |
+----------------------------------------------------------------------+

            IsDeviceJoined : YES
             IsUserAzureAD : NO
             PolicyEnabled : NO
          PostLogonEnabled : YES
            DeviceEligible : NO
        SessionIsNotRemote : NO
            CertEnrollment : none
              PreReqResult : WillNotProvision

For more information, please visit https://www.microsoft.com/aadjerrors

After 2

"参加済み" になり、デバイスを再起動して テナントユーザーで サインイン を実施

PS C:\Windows\system32> dsregcmd /status

+----------------------------------------------------------------------+
| Device State                                                         |
+----------------------------------------------------------------------+

             AzureAdJoined : YES
          EnterpriseJoined : NO
              DomainJoined : NO
               Device Name : Win10

+----------------------------------------------------------------------+
| Device Details                                                       |
+----------------------------------------------------------------------+

                  DeviceId : 010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65
                Thumbprint : ACCB4EXXXXXXXXXXA72F6ADXXXXXXXXXX208AE10
 DeviceCertificateValidity : [ 2023-11-25 01:13:55.000 UTC -- 2033-11-25 01:43:55.000 UTC ]
            KeyContainerId : 069d9016-xxxx-xxxx-xxxx-1aexxxx5fb04
               KeyProvider : Microsoft Software Key Storage Provider
              TpmProtected : NO
          DeviceAuthStatus : SUCCESS

+----------------------------------------------------------------------+
| Tenant Details                                                       |
+----------------------------------------------------------------------+

                TenantName :
                  TenantId : 010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65
                       Idp : login.windows.net
               AuthCodeUrl : https://login.microsoftonline.com/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65/oauth2/authorize
            AccessTokenUrl : https://login.microsoftonline.com/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65/oauth2/token
                    MdmUrl :
                 MdmTouUrl :
          MdmComplianceUrl :
               SettingsUrl :
            JoinSrvVersion : 2.0
                JoinSrvUrl : https://enterpriseregistration.windows.net/EnrollmentServer/device/
                 JoinSrvId : urn:ms-drs:enterpriseregistration.windows.net
             KeySrvVersion : 1.0
                 KeySrvUrl : https://enterpriseregistration.windows.net/EnrollmentServer/key/
                  KeySrvId : urn:ms-drs:enterpriseregistration.windows.net
        WebAuthNSrvVersion : 1.0
            WebAuthNSrvUrl : https://enterpriseregistration.windows.net/webauthn/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65/
             WebAuthNSrvId : urn:ms-drs:enterpriseregistration.windows.net
    DeviceManagementSrvVer : 1.0
    DeviceManagementSrvUrl : https://enterpriseregistration.windows.net/manage/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65/
     DeviceManagementSrvId : urn:ms-drs:enterpriseregistration.windows.net

+----------------------------------------------------------------------+
| User State                                                           |
+----------------------------------------------------------------------+

                    NgcSet : NO
           WorkplaceJoined : NO
             WamDefaultSet : YES
       WamDefaultAuthority : organizations
              WamDefaultId : https://login.microsoft.com
            WamDefaultGUID : {B16898C6-xxxx-xxxx-xxxx-64DxxxxA8520} (AzureAd)

+----------------------------------------------------------------------+
| SSO State                                                            |
+----------------------------------------------------------------------+

                AzureAdPrt : YES
      AzureAdPrtUpdateTime : 2023-11-25 02:23:11.000 UTC
      AzureAdPrtExpiryTime : 2023-12-09 02:23:10.000 UTC
       AzureAdPrtAuthority : https://login.microsoftonline.com/010d28ee-xxxx-xxxx-xxxx-9a7xxxx3dc65
             EnterprisePrt : NO
    EnterprisePrtAuthority :
                 OnPremTgt : NO
                  CloudTgt : YES
         KerbTopLevelNames : .windows.net,.windows.net:1433,.windows.net:3342,.azure.net,.azure.net:1433,.azure.net:3342

+----------------------------------------------------------------------+
| Diagnostic Data                                                      |
+----------------------------------------------------------------------+

        AadRecoveryEnabled : NO
    Executing Account Name : AzureAD\AvdAdmin, avdadmin@carol226.com
               KeySignTest : PASSED

        DisplayNameUpdated : YES
          OsVersionUpdated : YES
           HostNameUpdated : YES

      Last HostName Update : NONE

+----------------------------------------------------------------------+
| IE Proxy Config for Current User                                     |
+----------------------------------------------------------------------+

      Auto Detect Settings : YES
    Auto-Configuration URL :
         Proxy Server List :
         Proxy Bypass List :

+----------------------------------------------------------------------+
| WinHttp Default Proxy Config                                         |
+----------------------------------------------------------------------+

               Access Type : DIRECT

+----------------------------------------------------------------------+
| Ngc Prerequisite Check                                               |
+----------------------------------------------------------------------+

            IsDeviceJoined : YES
             IsUserAzureAD : YES
             PolicyEnabled : YES
          PostLogonEnabled : YES
            DeviceEligible : NO
        SessionIsNotRemote : NO
            CertEnrollment : none
              PreReqResult : WillNotProvision

For more information, please visit https://www.microsoft.com/aadjerrors
