(改)16ビット漢字キャラクタージェネレータを作れるから作る(ST7735S)(Arduino UNO))

Last updated at 2024-06-28Posted at 2024-06-28

x 過去ログをみょ
x フォントの整備
x VGSZeroを勝手に応援

16ビット漢字変換



      //↓開始　16ビット漢字のメイン処理
      ch = st_p[y >> 4][x >> 4] - ' ';     //キャラクターRAMから漢字を求める
      //座標と漢字からキャラクターパターンを求める
      a = pgm_read_word_near( ch_data7 + (y & 0x0f ) + (ch * 16) ) << ( x & 0x0f);
      a = a & 0x8000;
      //↑終了

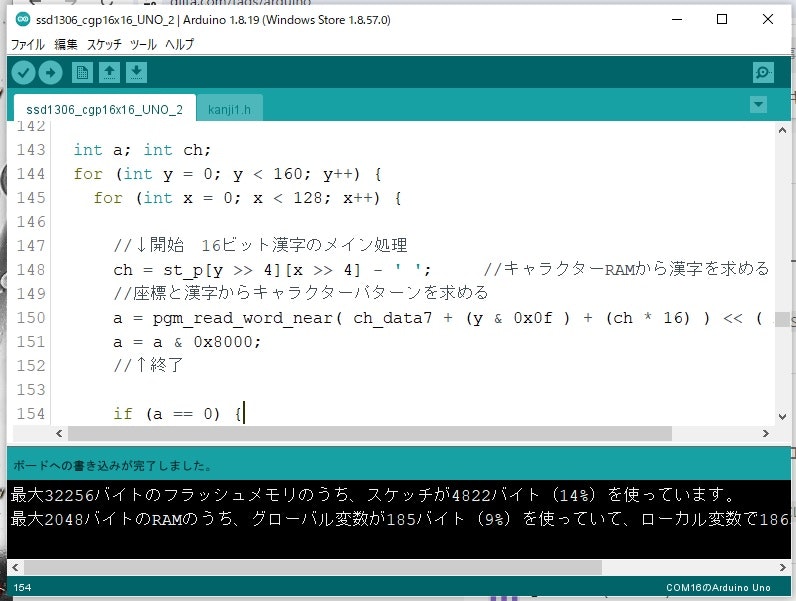

//ssd1306_cgp16x16_UNO_2


//インクルド
#include <Arduino.h>
#include <avr/pgmspace.h>
#include "kanji1.h"


//定義
//GPIO
#define GPIO_RESET_P  2 //RESET=1
#define GPIO_RS_P    17 //RS=0 (A3)
#define GPIO_WR_P     3 //WR=1
#define GPIO_RD_P    16 //RD=1 (A2)

//8bitのGPIOの設定
int DBx[8] = {4, 15, 5, 14, 6, 9, 7, 8};

// GPIO A4 I2Cで使用済み
// GPIO A5 I2Cで使用済み

#define GPIO1(s) digitalWrite(GPIO_RESET_P , s)  //RESET
#define GPIO2(s) digitalWrite(GPIO_RS_P    , s)  //A0
#define GPIO3(s) digitalWrite(GPIO_WR_P    , s)  //WR
#define GPIO4(s) digitalWrite(GPIO_RD_P    , s)  //RD

//全体のカラー
int s_color = 0xFFFF; //ハイホワイト


//パラレルポートにデータをセットする。
void GPIO_8BIT(int s)
{

  //8bitのGPIOのセット
  for (int ee = 0; ee < 8; ee++) {
    digitalWrite(DBx[ee], (s >> ee) & 0x01); //DB7
  }//for ee

} //GPIO_8BIT

//コマンドの書き込み
void LCD_Write_CMD(int a)
{
  GPIO2(0); //A0=0;
  GPIO_8BIT(a);//P1=a; data
  GPIO3(0);//WRB=0;
  GPIO3(1);//WRB=1;
} //LCD_Write_CMD


//データ書き込み
void LCD_Write_Data(int a)
{
  GPIO2(1);//A0=1;
  GPIO_8BIT(a);//P1=a; data
  GPIO3(0);//WRB=0;
  GPIO3(1);//WRB=1;
} //LCD_Write_Data


//液晶の初期化処理
void ATM0177B5_ST7735S_Init(void)
{

  //----------  ST7735S Reset Sequence  --------//

  GPIO1(1);//LCD_RESET=1;

  delay(1); //Delay 1ms

  GPIO1(0);//LCD_RESET=0;

  delay(1); //Delay 1ms

  GPIO1(1);//LCD_RESET=1;

  delay(120); //Delay 120ms

  //----------  ST7735S Reset Sequence  --------//


  LCD_Write_CMD(0x01);//SOFTWARE RESET
  delay(50);

  LCD_Write_CMD(0x11);//SLEEP OUT
  delay(200);

  LCD_Write_CMD(0x29);//display on
  delay(100);

  LCD_Write_CMD(0x3a);//Interface pixel format
  LCD_Write_Data(0x05);//16bit mode
  delay(100);

  LCD_Write_CMD(0x36);//RGB-RGR format
  LCD_Write_Data(0x08);//RGB mode
  delay(100);

} //ATM0177B5_ST7735S_Init


//全体のカラーの変更
void set_color(int color) {

  s_color = color;

}//set_color

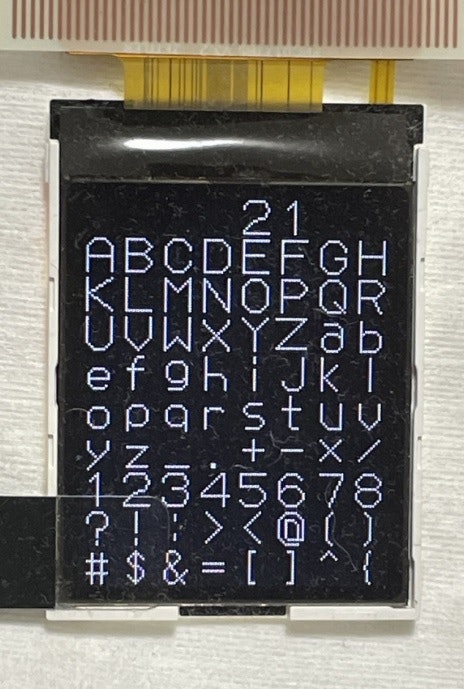

unsigned char st_p[10][16] = {
  //  1    2    3    4    5    6    7    8
  {' ', ' ', ' ', ' ', '2', '1', ' ', ' ',  }, //1
  {'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H',  }, //2
  {'K', 'L', 'M', 'N', 'O', 'P', 'Q', 'R',  }, //3
  {'U', 'V', 'W', 'X', 'Y', 'Z', 'a', 'b',  }, //4
  {'e', 'f', 'g', 'h', 'i', 'j', 'k', 'l',  }, //5

  {'o', 'p', 'q', 'r', 's', 't', 'u', 'v',  }, //6
  {'y', 'z', '_', '.', '+', '-', '*', '/',  }, //7
  {'1', '2', '3', '4', '5', '6', '7', '8',  }, //8
  {'?', '!', ':', '>', '<', '@', '(', ')',  }, //9
  {'#', '$', '&', '=', '[', ']', '^', '{',  }  //10
};


//パターンRAMの内容を液晶に転送
void p_ram_refresh() {

  //カラーの上位と下位と一時
  int color_h;
  int color_l;
  int color_vel;

  //画面の書き込み開始
  LCD_Write_CMD(0x2C); //memory write
  GPIO2(1);//A0=1;
  delay(2);


  int a; int ch;
  for (int y = 0; y < 160; y++) {
    for (int x = 0; x < 128; x++) {

      //↓開始　16ビット漢字のメイン処理
      ch = st_p[y >> 4][x >> 4] - ' ';     //キャラクターRAMから漢字を求める
      //座標と漢字からキャラクターパターンを求める
      a = pgm_read_word_near( ch_data7 + (y & 0x0f ) + (ch * 16) ) << ( x & 0x0f);
      a = a & 0x8000;
      //↑終了

      if (a == 0) {
        color_vel = 0x0000;
      } else {
        color_vel = 0xffff;
      }
      color_h = (color_vel >> 8) & 0xff;
      color_l =  color_vel       & 0xff;

      GPIO_8BIT( color_h );//P1=a; data
      GPIO3(0);//WRB=0;
      GPIO3(1);//WRB=1;

      GPIO_8BIT( color_l );//P1=a; data
      GPIO3(0);//WRB=0;
      GPIO3(1);//WRB=1;

    }//for x
  }//for y

}//p_ram_refresh


//リフレッシュ(画像の再表示)
void refresh() {

  p_ram_refresh();//パターンRAMの反映

}//refresh


//初期化
void setup() {

  //ポートのモード設定
  //アウトプットモード
  pinMode(GPIO_RESET_P, OUTPUT); //REST
  pinMode(GPIO_RS_P,    OUTPUT); //RS
  pinMode(GPIO_WR_P,    OUTPUT); //WR
  pinMode(GPIO_RD_P,    OUTPUT); //RD

  //8bit分OUTPUTにする
  for (int ee = 0; ee < 8; ee++) {
    pinMode(DBx[ee], OUTPUT);
  }//for ee

  //ポートの初期化
  GPIO4(1);//RD=1
  GPIO3(0);//WR=0
  GPIO2(0);//RS=0
  GPIO1(1);//RESET=1

  delay(500); //0.5秒待つ

  //液晶の初期化処理
  ATM0177B5_ST7735S_Init();

} //setup


//メインループ
void loop() {

  refresh(); //画面の再表示

  delay(3000); //3秒待つ debug

} //loop

kanji1.h





//漢字ROM
const int ch_data7[] PROGMEM = {


0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, //' '
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,
0x0000, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, //!
0x0100, 0x0100, 0x0000, 0x0000, 0x0100, 0x0100, 0x0100, 0x0000,

0x0000, 0x0120, 0x0240, 0x0480, 0x0900, 0x0000, 0x0000, 0x0000, // "
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,
0x0000, 0x0000, 0x0440, 0x0440, 0x0440, 0x1ff0, 0x0440, 0x0440, // #
0x0440, 0x0440, 0x1ff0, 0x0440, 0x0440, 0x0440, 0x0440, 0x0000,
0x0000, 0x0100, 0x0380, 0x0540, 0x0920, 0x0900, 0x0500, 0x0380, // $
0x0140, 0x0120, 0x0120, 0x0920, 0x0540, 0x0380, 0x0100, 0x0000,

0x0000, 0x0000, 0x0000, 0x1810, 0x1820, 0x0040, 0x0080, 0x0100, // %
0x0200, 0x0400, 0x0830, 0x1030, 0x0000, 0x0000, 0x0000, 0x0000,

0x0000, 0x0700, 0x0880, 0x0840, 0x0840, 0x0880, 0x0500, 0x0600, // &
0x0a00, 0x1108, 0x1090, 0x10a0, 0x1040, 0x08a0, 0x0710, 0x0000,
0x0000, 0x0300, 0x0300, 0x0100, 0x0200, 0x0000, 0x0000, 0x0000, // '
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,

0x0000, 0x0080, 0x0100, 0x0200, 0x0200, 0x0200, 0x0200, 0x0200, //(
0x0200, 0x0200, 0x0200, 0x0200, 0x0200, 0x0100, 0x0080, 0x0000,
0x0000, 0x0200, 0x0100, 0x0080, 0x0080, 0x0080, 0x0080, 0x0080, //)
0x0080, 0x0080, 0x0080, 0x0080, 0x0080, 0x0100, 0x0200, 0x0000,
0x0000, 0x0000, 0x0000, 0x1010, 0x0820, 0x0440, 0x0280, 0x0100, //*
0x0280, 0x0440, 0x0820, 0x1010, 0x0000, 0x0000, 0x0000, 0x0000,
0x0000, 0x0000, 0x0000, 0x0100, 0x0100, 0x0100, 0x0100, 0x1ff0, //+
0x0100, 0x0100, 0x0100, 0x0100, 0x0000, 0x0000, 0x0000, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, //,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0180, 0x0180, 0x0200,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1ff0, //-
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, //.
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0300, 0x0300, 0x0000,
0x0000, 0x0000, 0x0000, 0x0010, 0x0020, 0x0040, 0x0080, 0x0100, // /
0x0200, 0x0400, 0x0800, 0x1000, 0x0000, 0x0000, 0x0000, 0x0000,

0x0000, 0x07c0, 0x0820, 0x1010, 0x2008, 0x3008, 0x2808, 0x2608, //0
0x2108, 0x20c8, 0x2028, 0x2018, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x0100, 0x0300, 0x0500, 0x0900, 0x0100, 0x0100, 0x0100, //1
0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000,
0x0000, 0x0fe0, 0x1010, 0x2010, 0x2008, 0x0008, 0x0010, 0x0010, //2
0x00e0, 0x0300, 0x0400, 0x0800, 0x1000, 0x2000, 0x3ff8, 0x0000,
0x0000, 0x0fe0, 0x1010, 0x2010, 0x2008, 0x0008, 0x0010, 0x03e0, //3
0x0010, 0x0008, 0x0008, 0x2008, 0x2010, 0x1010, 0x0fe0, 0x0000,
0x0000, 0x0030, 0x0050, 0x0090, 0x0110, 0x0210, 0x0410, 0x0810, //4
0x1010, 0x2010, 0x3ffc, 0x0010, 0x0010, 0x0010, 0x0010, 0x0000,
0x0000, 0x3ff8, 0x2000, 0x2000, 0x2000, 0x2000, 0x3fc0, 0x0020, //5
0x0010, 0x0008, 0x0008, 0x0008, 0x2010, 0x1020, 0x0fc0, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2000, 0x2000, 0x27c0, 0x2820, //6
0x3010, 0x2008, 0x2008, 0x2008, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x1ff8, 0x0008, 0x0008, 0x0010, 0x0010, 0x0020, 0x0020, //7
0x0040, 0x0040, 0x0040, 0x0080, 0x0080, 0x0100, 0x0100, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2008, 0x2008, 0x1010, 0x0fe0, //8
0x1010, 0x2008, 0x2008, 0x2008, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2008, 0x2008, 0x2008, 0x1018, //9
0x0828, 0x07c8, 0x0008, 0x0008, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x0000, 0x0100, 0x0100, 0x0100, 0x0000, 0x0000, 0x0000, //:
0x0000, 0x0000, 0x0100, 0x0100, 0x0100, 0x0000, 0x0000, 0x0000,

0x0000, 0x0000, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000, 0x0000, // ;
0x0000, 0x0100, 0x0100, 0x0100, 0x0100, 0x0200, 0x0400, 0x0000,

0x0000, 0x0020, 0x0040, 0x0080, 0x0100, 0x0200, 0x0400, 0x0800, //<
0x0400, 0x0200, 0x0100, 0x0080, 0x0040, 0x0020, 0x0000, 0x0000,

0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1ff0, 0x0000, // =
0x0000, 0x1ff0, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,

0x0000, 0x0800, 0x0400, 0x0200, 0x0100, 0x0080, 0x0040, 0x0020, //>
0x0040, 0x0080, 0x0100, 0x0200, 0x0400, 0x0800, 0x0000, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x1010, 0x1010, 0x0010, 0x0020, //?
0x01c0, 0x0100, 0x0100, 0x0100, 0x0000, 0x0100, 0x0100, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2788, 0x2448, 0x2428, 0x2428, //@
0x2428, 0x2428, 0x2428, 0x2428, 0x13f8, 0x0800, 0x07e0, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2008, 0x2008, 0x2008, 0x2008, //A
0x3ff8, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x0000,
0x0000, 0x3fc0, 0x2020, 0x2010, 0x2008, 0x2010, 0x2020, 0x3fc0, //B
0x2020, 0x2010, 0x2008, 0x2008, 0x2010, 0x2020, 0x3fc0, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2008, 0x2008, 0x2000, 0x2000, //C
0x2000, 0x2000, 0x2008, 0x2008, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x3fc0, 0x2020, 0x2010, 0x2008, 0x2008, 0x2008, 0x2008, //D
0x2008, 0x2008, 0x2008, 0x2008, 0x2010, 0x2020, 0x3fc0, 0x0000,
0x0000, 0x3ff8, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x3fe0, //E
0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x3ff8, 0x0000,
0x0000, 0x3ff8, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x3fe0, //F
0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2008, 0x2008, 0x2000, 0x2000, //G
0x20f8, 0x2008, 0x2008, 0x2008, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x3ff8, //H
0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x0000,
0x0000, 0x1ff0, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, //I
0x0100, 0x0100, 0x0100, 0x0100, 0x1ff0, 0x0000, 0x0000, 0x0000,
0x0008, 0x0008, 0x0008, 0x0008, 0x0008, 0x0008, 0x0008, 0x0008, //J
0x0008, 0x2008, 0x2008, 0x2008, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x2008, 0x2030, 0x2040, 0x2180, 0x2200, 0x2c00, 0x3000, //K
0x2800, 0x2600, 0x2100, 0x2080, 0x2060, 0x2010, 0x2008, 0x0000,
0x0000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, //L
0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x3ff8, 0x0000,
0x0000, 0x2008, 0x3018, 0x2828, 0x2448, 0x2288, 0x2108, 0x2008, //M
0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x0000,
0x0000, 0x2008, 0x3008, 0x2808, 0x2808, 0x2408, 0x2208, 0x2108, //N
0x2108, 0x2088, 0x2048, 0x2028, 0x2028, 0x2018, 0x2008, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2008, 0x2008, 0x2008, 0x2008, //O
0x2008, 0x2008, 0x2008, 0x2008, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x3fc0, 0x2020, 0x2010, 0x2008, 0x2008, 0x2010, 0x2020, //P
0x3fc0, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x2000, 0x0000,
0x0000, 0x07c0, 0x0820, 0x1010, 0x2008, 0x2008, 0x2008, 0x2008, //Q
0x2008, 0x2008, 0x2088, 0x2048, 0x1028, 0x0810, 0x07e8, 0x0000,
0x0000, 0x3fc0, 0x2020, 0x2010, 0x2008, 0x2008, 0x2010, 0x2020, //R
0x3fc0, 0x2080, 0x2040, 0x2040, 0x2020, 0x2020, 0x2010, 0x0000,
0x0000, 0x0fe0, 0x1010, 0x2000, 0x2000, 0x2000, 0x1000, 0x0fe0, //S
0x0010, 0x0008, 0x0008, 0x0008, 0x1008, 0x0810, 0x07e0, 0x0000,
0x0000, 0x3ff8, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, //T
0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000,
0x0000, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, //U
0x2008, 0x2008, 0x2008, 0x2008, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, //V
0x2008, 0x2008, 0x1010, 0x0820, 0x0440, 0x0280, 0x0100, 0x0000,
0x0000, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, 0x2008, //W
0x2008, 0x2108, 0x2288, 0x2448, 0x2828, 0x3018, 0x2008, 0x0000,
0x0000, 0x0000, 0x2008, 0x2008, 0x1010, 0x0820, 0x0440, 0x0280, //X
0x0100, 0x0280, 0x0440, 0x0820, 0x1010, 0x2008, 0x2008, 0x0000,
0x0000, 0x2008, 0x1010, 0x0820, 0x0440, 0x0280, 0x0100, 0x0100, //Y
0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000,
0x0000, 0xfff8, 0x0010, 0x0020, 0x0040, 0x0080, 0x0100, 0x0200, //Z
0x0400, 0x0800, 0x1000, 0x2000, 0x4000, 0xfff8, 0x0000, 0x0000,

0x0000, 0x0380, 0x0200, 0x0200, 0x0200, 0x0200, 0x0200, 0x0200, // [
0x0200, 0x0200, 0x0200, 0x0200, 0x0200, 0x0200, 0x0380, 0x0000,
0x0000, 0x1010, 0x0820, 0x0440, 0x0280, 0x0100, 0x0100, 0x0fe0, // ￥
0x0100, 0x0100, 0x0fe0, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000,
0x0000, 0x0380, 0x0080, 0x0080, 0x0080, 0x0080, 0x0080, 0x0080, // ]
0x0080, 0x0080, 0x0080, 0x0080, 0x0080, 0x0080, 0x0380, 0x0000,
0x0000, 0x0100, 0x0280, 0x0440, 0x0820, 0x0000, 0x0000, 0x0000, // ^
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,

0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, //_
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1ff8, 0x0000,

0x0000, 0x0400, 0x0200, 0x0100, 0x0080, 0x0040, 0x0000, 0x0000, // `
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,

0x0000, 0x0000, 0x0000, 0x0fc0, 0x0020, 0x0010, 0x0010, 0x07d0, //a
0x0830, 0x1010, 0x1010, 0x1010, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x0000, 0x1000, 0x1000, 0x1000, 0x1000, 0x17c0, 0x1820, //b
0x1010, 0x1010, 0x1010, 0x1010, 0x1010, 0x1020, 0x1fc0, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x07c0, 0x0820, //c
0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0820, 0x07c0, 0x0000,
0x0000, 0x0000, 0x0010, 0x0010, 0x0010, 0x0010, 0x07d0, 0x0830, //d
0x1010, 0x1010, 0x1010, 0x1010, 0x1010, 0x0810, 0x07f0, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x07c0, 0x0820, //e
0x1010, 0x1010, 0x1ff0, 0x1000, 0x1000, 0x0820, 0x07c0, 0x0000,
0x0000, 0x01c0, 0x0200, 0x0200, 0x0400, 0x0400, 0x1fc0, 0x0400, //f
0x0400, 0x0400, 0x0400, 0x0400, 0x0400, 0x0400, 0x0400, 0x0000,
0x0000, 0x0000, 0x0000, 0x07c0, 0x0820, 0x1010, 0x1010, 0x1010, //g
0x1010, 0x1010, 0x0830, 0x07d0, 0x0010, 0x0020, 0x0fc0, 0x0000,
0x0000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, //h
0x1fc0, 0x1020, 0x1010, 0x1010, 0x1010, 0x1010, 0x1010, 0x0000,
0x0000, 0x0100, 0x0100, 0x0100, 0x0000, 0x0000, 0x0100, 0x0100, //i
0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000,
0x0000, 0x0010, 0x0010, 0x0010, 0x0010, 0x0010, 0x0010, 0x0010, //j
0x0010, 0x0010, 0x0010, 0x1010, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x1000, 0x1000, 0x1000, 0x1040, 0x1080, 0x1100, 0x1200, //k
0x1400, 0x1800, 0x1400, 0x1200, 0x1100, 0x1080, 0x1040, 0x0000,
0x0000, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, //l
0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x3fe0, 0x2110, //m
0x2108, 0x2108, 0x2108, 0x2108, 0x2108, 0x2108, 0x2108, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1fc0, 0x1020, //n
0x1010, 0x1010, 0x1010, 0x1010, 0x1010, 0x1010, 0x1010, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x07c0, 0x0820, //o
0x1010, 0x1010, 0x1010, 0x1010, 0x1010, 0x0820, 0x07c0, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x07c0, 0x0820, 0x1010, //p
0x1010, 0x1010, 0x1010, 0x1010, 0x1820, 0x17c0, 0x1000, 0x1000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x07c0, 0x0820, 0x1010, //q
0x1010, 0x1010, 0x1010, 0x1010, 0x0830, 0x07d0, 0x0010, 0x0010,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x17c0, 0x1820, //r
0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x1000, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x07e0, 0x0800, 0x1000, 0x1000, //s
0x0800, 0x07c0, 0x0020, 0x0010, 0x0010, 0x0020, 0x0fc0, 0x0000,
0x0000, 0x0200, 0x0200, 0x0200, 0x0200, 0x0200, 0x1fe0, 0x0200, //t
0x0200, 0x0200, 0x0200, 0x0200, 0x0200, 0x0200, 0x01c0, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x1010, 0x1010, 0x1010, 0x1010, //u
0x1010, 0x1010, 0x1010, 0x1010, 0x0810, 0x0410, 0x03f0, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x1010, 0x1010, 0x1010, 0x1010, //v
0x1010, 0x1010, 0x1010, 0x0820, 0x0440, 0x0280, 0x0100, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x2008, 0x2008, 0x2008, 0x2008, //w
0x2008, 0x2108, 0x2288, 0x2448, 0x2828, 0x3018, 0x2008, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x2008, 0x1010, 0x0820, 0x0440, //x
0x0280, 0x0100, 0x0280, 0x0440, 0x0820, 0x1010, 0x2008, 0x0000,
0x0000, 0x0000, 0x0000, 0x0000, 0x1010, 0x1010, 0x1010, 0x1010, //y
0x0820, 0x0440, 0x0280, 0x0100, 0x0200, 0x0400, 0x0800, 0x1000,
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x1ff0, 0x0020, //z
0x0040, 0x0080, 0x0100, 0x0200, 0x0400, 0x0800, 0x1ff0, 0x0000,

0x0000, 0x0080, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0200, // {
0x0200, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0080, 0x0000,
0x0000, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000, // |
0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0000,
0x0000, 0x0200, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0080, // }
0x0080, 0x0100, 0x0100, 0x0100, 0x0100, 0x0100, 0x0200, 0x0000,
0x0000, 0x0220, 0x0540, 0x0880, 0x0000, 0x0000, 0x0000, 0x0000, // ~
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000,
0x0000, 0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc, //■
0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc, 0x3ffc


};

You get articles that match your needs
You can efficiently read back useful information
You can use dark theme

What you can do with signing up
