「デカ文字」OLED温度計を作って遊ぶ(32x32)(2桁)(SSD1306)(MCP9701)(STM32C011J4M7)(ターゲットリセット)

Last updated at Posted at 2024-02-17

x MCP9701-E/TO 販売コード 103199

x 過去ログを見よ
x 「Arduino」関連を見てください

x PA13を使います。
x 自己責任の意味がわかる人がお読みください。
x 間違った操作を行うと二度と書き込めなくなります。
x ターゲットリセットを接続してください。
x 非常用として「3秒ルール」があり、起動後、3秒以内に接続してください。
x Arduinoのタブの使い方がわかる人
x SSD1306のアドレスは、3c固定

目的
OLEDのテスト

結果

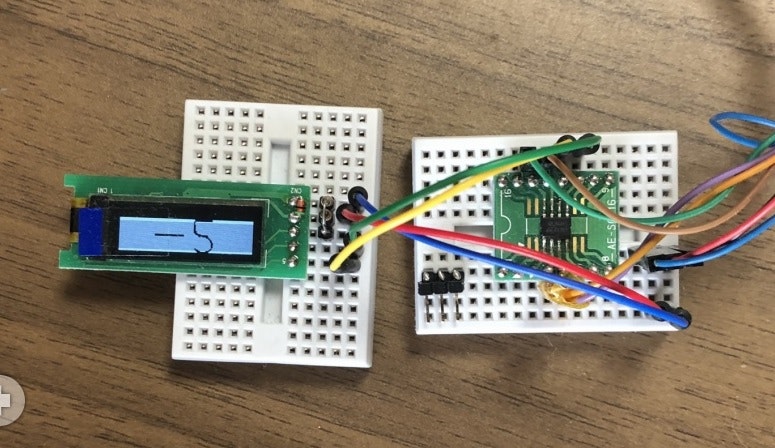

イメージ

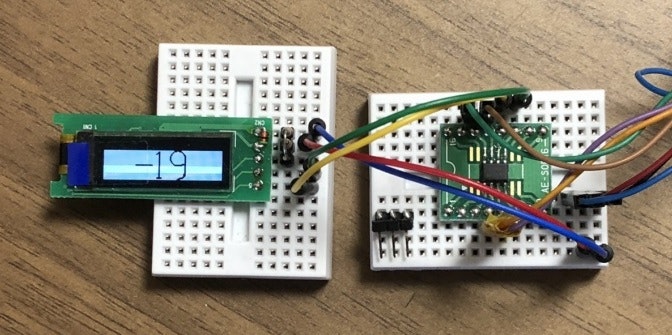

イメージ


プログラム




//有機ELのSSD1306で「デカ文字」キャラクターを描画
//秋月のOLEDとアイテンドウの売り切れ?OLEDのアドレスは3C
//SSD1306_128x32_MCP9701_23C_1


//ヘッダー
#include <Arduino.h>
#include <Wire.h>
#include "f32x32_0_9_A.h"


//定義1
#define MAX_PAGE                   (7)
#define MAX_COL                    (127)

#define COMMAND_MODE               0x80 // continuation bit is set!
#define DATA_MODE                  0x40

#define SET_COLUMN_ADDRESS         0x21 // takes two bytes, start address and end address of display data RAM
#define SET_PAGE_ADDRESS           0x22 // takes two bytes, start address and end address of display data RAM

#define SET_MEMORY_ADDRESSING_MODE 0x20 // takes one byte as given above
#define HORIZONTAL_ADDRESSING_MODE 0x00

//定義2
char ss[] =  {
  "#9#9#9#8#7#7#6#5#5#4#3#3"
  "#2#1#1#0-9-9-8-7-7-6-5-5"
  "-4-3-3-2-2-1-1 0 1 1 2 2"
  " 3 4 4 5 6 6 7 8 8 91010"
  "111212131414151616171818"
  "192020212222232424252626"
  "272828293030313232333434"
  "353636373838394040414242"
  "434444454546474748494950"
  "50#0#0#0#0#0#0#0#0#0#0#0"
  "#0#0#0#0#0#0#0#0"
};


//I2Cに配列を転送する
void write_s(uint8_t *str1, uint8_t len1) {

  Wire.beginTransmission(  0x3c  );

  for (int ii = 0; ii < len1; ii++) {

    //一文字出力
    Wire.write(*str1 ++);

  }//for

  Wire.endTransmission();

}//write_s


//セットページアドレス
void setPageAddress(uint8_t start, uint8_t end)
{
  uint8_t databytes[6] = {COMMAND_MODE, SET_PAGE_ADDRESS, COMMAND_MODE, start, COMMAND_MODE, end};
  write_s(databytes, 6);
}//setPageAddress


//セットカラムアクセス
void setColumnAddress(uint8_t start, uint8_t end)
{
  uint8_t databytes[6] = {COMMAND_MODE, SET_COLUMN_ADDRESS, COMMAND_MODE, start, COMMAND_MODE, end};
  write_s(databytes, 6);
}//setColumnAddress


//セットメモリーアドレシングモード
void setMemoryAddressingMode()
{
  uint8_t databytes[4] = {COMMAND_MODE, SET_MEMORY_ADDRESSING_MODE, COMMAND_MODE, HORIZONTAL_ADDRESSING_MODE};
  write_s(databytes, 4);
}//setMemoryAddressingMode


uint8_t buff_a[((128 / 8) * 64)]; //バッファー
//memset(buff_a, 0, ((128 / 8) * 64) ); //バッファーのクリア


//バッファのクリア
void clearDisplay(void) {
  memset(buff_a, 0, (128 / 8) * 64);
}//clearDisplay


int start_x = 0; //xの開始位置
int start_y = 0; //yの開始位置


//デカ文字を1文字書く
void BIG_char(char char_i) {

  //BIG_char('<'); ' '
  //BIG_char(':'); -1
  //BIG_char(';'); -
  //BIG_char('<'); ' '

  if( char_i == ' ' ) {
    char_i = '<'; //' '
  } else if(char_i == '#') {
    char_i = ':'; //'-1'
  } else if(char_i == '-') {
    char_i = ';'; //'-'
  }

  char_i = char_i - '0';


  //int char_i = 0;   //キャラクター番号
  //int start_x = 20; //xの開始位置
  //int start_y = 10; //yの開始位置
  int dot_1;        //ドットのオン、オフ
  //キャラクターを描画
  for (int x = 0; x < (32); x++) {
    for (int y = 0; y <  32; y++) {

      dot_1 =
        ( databytes[ (y * ((32) / 8)) + (x / 8 ) + (char_i * ((32) * 32 / 8)) ] >> (7 - (x & 7)) ) & 0x01;
      if (dot_1 != 0) {
        buff_a[(start_x + x) + ((start_y + (y*2)) / 8) * (128)] |= (1 << ((start_y + (y*2)) & 7));
      }

    }//for y
  }//for x

  start_x = start_x + (32);

}//BIG_char


// テキストの開始位置を設定
void setCursor(int x, int y) {
  start_x = x; //xの開始位置
  start_y = y; //yの開始位置
}//setCursor


//文字列の表示 nana_seg
void ns_printf(char *str1) {
  //文字の中身がゼロか
  while (*str1) {

    //一文字出力
    BIG_char( *str1 ++ );

  } //while
}//ns_printf


//再表示
void display(void) {
  //範囲の設定
  setPageAddress(0, MAX_PAGE);  // all pages
  setColumnAddress(0, MAX_COL); // all columns

  //128x64の再描画
  uint8_t databytes_d[2] = {DATA_MODE, 0x00};
  for (int icount = 0; icount < ((128 / 8) * 64); icount++) {
    databytes_d[1] = buff_a[icount];
    write_s(databytes_d, 2);
  }//for icount
}//display


//SSD1306の初期化
void display_begin(void) {
  //I2Cのポートの変更
  Wire.setSDA(19); //PA10
  Wire.setSCL(18); //PA9

  //I2Cの初期化
  Wire.begin(); //C011
  delay(200);

  //SSD1306の初期化スペル(魔法)
  //0x80,0x8d,0x80,0x14,0x80,0xAF
  write_s( (uint8_t*) "\200\215\200\024\200\257", 6);
  delay(100);

  //セットメモリーアドレシングモード
  setMemoryAddressingMode();
}//display_begin

//初期化
void setup() {

  delay(3000); //not Delete (絶対消すな)(消しちゃィゃーん)

  //SSD1306の初期化
  display_begin();

  //ピンの初期化 PA13
  pinMode(PA13, INPUT);

}//setup


//メインループ
void loop() {

  //バッファのクリア
  clearDisplay();

  // テキストの開始位置を設定
  setCursor(0,0);

  //アナログ値の読み込み
  int s = analogRead(PA13); //7PIN センサーの読み取り値

  //int s=250; //20  debug
  //int s=0;   //-19 debug
  //int s=90;  //-5  debug

  //温度の表示
  BIG_char(' ');
  BIG_char(ss[ (s&0x1FC)>>1   ]); //10の桁
  BIG_char(ss[((s&0x1FC)>>1)+1]); // 1の桁
  BIG_char(' ');

  //デカ文字を表示
  //ns_printf("1234");
  //ns_printf("4321");

  //再表示
  display();

  delay(1000); //1秒待つ

}//loop

f32x32_0_9_A.h

f32x32_0_9_A.h





// ビットマップデータ
// 'soiya1', 128x640px
static const unsigned char PROGMEM databytes[] = {

// 'f32x32_0_9', 32x320px
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x8f, 0xf8, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xff, 0xf0, 0x3f, 0xff, 0xff, 0xe0, 0x3f, 0xff, 0xff, 0xce, 0x7f, 0xff, 0xff, 0x9e, 0x7f, 0xff,
  0xff, 0xbe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xe0, 0x07, 0xff, 0xff, 0xc0, 0x03, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xff, 0x7f, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0xff,
  0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xf3, 0xff, 0xff, 0xf8, 0x07, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xcf, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff,
  0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xff, 0x7f, 0xff, 0xff, 0xff, 0x1f, 0xe0, 0x7f, 0xff, 0x80, 0x00, 0x7f,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0xff,
  0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xf3, 0xff, 0xff, 0xf0, 0x07, 0xff,
  0xff, 0xf0, 0x07, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xfc, 0xff,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f,
  0xff, 0xff, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xff, 0x3f, 0xff, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x8f, 0xfc, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xc3, 0xff, 0xff, 0xff, 0xc7, 0xff, 0xff, 0xff, 0x8f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfc, 0x3f, 0xff, 0xff, 0xfc, 0xff, 0xff,
  0xff, 0xf0, 0xff, 0xff, 0xff, 0xe1, 0x9f, 0xff, 0xff, 0xc3, 0x9f, 0xff, 0xff, 0x87, 0x9f, 0xff,
  0xff, 0x1f, 0x9f, 0xff, 0xff, 0x3f, 0x9f, 0xff, 0xfe, 0x3f, 0x9f, 0xff, 0xfe, 0x7f, 0x9f, 0xff,
  0xfe, 0x7f, 0x1f, 0x7f, 0xfe, 0x00, 0x00, 0x7f, 0xfe, 0x00, 0x00, 0x7f, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x9f, 0xff,
  0xff, 0x00, 0x00, 0x7f, 0xff, 0x00, 0x00, 0x7f, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0xff, 0xff, 0xff,
  0xfe, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff,
  0xfe, 0x3f, 0xff, 0xff, 0xff, 0x1f, 0xff, 0xff, 0xff, 0x83, 0xff, 0xff, 0xff, 0xe0, 0x07, 0xff,
  0xff, 0xf2, 0x07, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xf9, 0xff, 0xff, 0xff, 0xfc, 0xff,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f,
  0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x3f, 0xff, 0xff, 0xff, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x8f, 0xfc, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x00, 0x07, 0xff,
  0xfe, 0x00, 0x03, 0xff, 0xfe, 0x1f, 0xf3, 0xff, 0xfe, 0x3f, 0xf9, 0xff, 0xfe, 0x7f, 0xfc, 0xff,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xff, 0x3f, 0xff, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x8f, 0xfc, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xfc, 0x00, 0x00, 0xff, 0xfc, 0x00, 0x00, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfc, 0x7f,
  0xff, 0xff, 0xfc, 0xff, 0xff, 0xff, 0xf8, 0xff, 0xff, 0xff, 0xf0, 0xff, 0xff, 0xff, 0xe3, 0xff,
  0xff, 0xff, 0xc3, 0xff, 0xff, 0xff, 0xcf, 0xff, 0xff, 0xff, 0x9f, 0xff, 0xff, 0xff, 0x3f, 0xff,
  0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xf8, 0xff, 0xff, 0xff, 0xf0, 0xff, 0xff,
  0xff, 0xe1, 0xff, 0xff, 0xff, 0xe3, 0xff, 0xff, 0xff, 0xc3, 0xff, 0xff, 0xff, 0x8f, 0xff, 0xff,
  0xff, 0x0f, 0xff, 0xff, 0xff, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x1f, 0xff, 0xff,
  0xfe, 0x1f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff,
  0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x3f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0xff, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x9f, 0xf9, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0xe0, 0x07, 0xff,
  0xff, 0xf0, 0x07, 0xff, 0xff, 0xe3, 0xe3, 0xff, 0xff, 0xcf, 0xf9, 0xff, 0xff, 0x9f, 0xfc, 0xff,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f,
  0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x3f, 0xff, 0x3f, 0xff, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x8f, 0xfc, 0xff, 0xff, 0xc3, 0xe1, 0xff, 0xff, 0xe0, 0x03, 0xff,
  0xff, 0xf0, 0x0f, 0xff, 0xff, 0xe1, 0x87, 0xff, 0xff, 0xcf, 0xf3, 0xff, 0xff, 0x9f, 0xf9, 0xff,
  0xff, 0x3f, 0xfc, 0xff, 0xff, 0x3f, 0xfc, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f,
  0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xfe, 0x7f, 0xff, 0x3f, 0xfe, 0x7f,
  0xff, 0x3f, 0xfe, 0x7f, 0xff, 0x9f, 0xfe, 0x7f, 0xff, 0xcf, 0xf0, 0x7f, 0xff, 0xe0, 0x00, 0x7f,
  0xff, 0xf0, 0x06, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfe, 0x7f,
  0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xfc, 0x7f, 0xff, 0xff, 0xfc, 0x7f,
  0xff, 0xff, 0xf8, 0xff, 0xff, 0xff, 0xc1, 0xff, 0xff, 0xff, 0x03, 0xff, 0xff, 0xfe, 0x1f, 0xff,




// 'q_-1_1', 32x32px '-1'    <= ':'


  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xc7, 0xff, 0xff, 0xff, 0x87,
  0xff, 0xff, 0xff, 0x27, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7,
  0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7,
  0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xc0, 0x00, 0x07, 0xe7,
  0xc0, 0x00, 0x07, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7,
  0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7,
  0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0xe7,
  0xff, 0xff, 0xff, 0xe7, 0xff, 0xff, 0xff, 0x81, 0xff, 0xff, 0xff, 0x81, 0xff, 0xff, 0xff, 0xff,



// 'q_-_1', 32x32px  '-'   <= ';'


  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x03,
  0xc0, 0x00, 0x00, 0x03, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,



// 'q_SP_1', 32x32px ' '    <= '<'


  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,


// 'q_c2_1', 32x32px '.'     <= '='


  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfc, 0x3f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff,


// 'q_c1_1', 32x32px ':'     <= '>'


  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfc, 0x3f, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x7f, 0xff, 0xff, 0xfc, 0x3f, 0xff, 0xff, 0xfe, 0x7f, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff,
  0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff






};
0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
