[Unity3D] セーブシステム

Posted at

1, Scriptフォルダを作成し、SavingSystemとSavingWrapperスクリプトを作成する

2, 各スクリプトに下記コードを書く

SavingWrapper
using UnityEngine;

namespace RPG.Saving
{
    public class SavingWrapper : MonoBehaviour
    {
        const string defaultSaveFile = "save";

        private void Update()
        {
            if (Input.GetKeyDown(KeyCode.S))
            {
                GetComponent<SavingSystem>().Save(defaultSaveFile);
            }
            if (Input.GetKeyDown(KeyCode.L))
            {
                GetComponent<SavingSystem>().Load(defaultSaveFile);
            }
        }
    }
}
SavingSystem
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace RPG.Saving
{
    public class SavingSystem : MonoBehaviour
    {
        public void Save(string saveFile)
        {
            print("Saving to " + saveFile);
        }

        public void Load(string saveFile)
        {
            print("Load to " + saveFile);
        }
    }
}

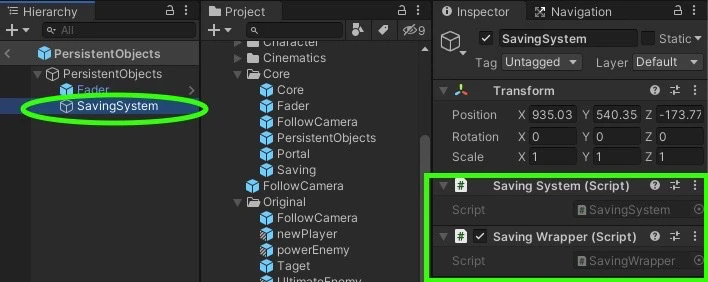

3, PersistentObjectsにSavingSystemオブジェクトを作成し、各スクリプトをコンポーネントする

セーブファイルを作成できるようにする

1, 下記スクリプトを追加する

SavingSystem
using System.Collections;
using System.Collections.Generic;
using System.IO;
using UnityEngine;

namespace RPG.Saving
{
    public class SavingSystem : MonoBehaviour
    {
        public void Save(string saveFile)
        {
            print("Saving to " + GetPathFromSaveFile(saveFile)); //変更
        }

        public void Load(string saveFile)
        {
            print("Load to " + GetPathFromSaveFile(saveFile)); //変更
        }

        //追加
        private string GetPathFromSaveFile(string saveFile)
        {
            return Path.Combine(Application.persistentDataPath, saveFile + ".sav");
        }
    }
}

セーブとロードを実行する

1, 下記スクリプトを記述する

SavingSystem
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Text;
using UnityEngine;

namespace RPG.Saving
{
    public class SavingSystem : MonoBehaviour
    {
        public void Save(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Saving to " + path);
            using (FileStream stream = File.Open(path, FileMode.Create))
            {
                Transform playertransform = GetPlayerTransform();
                byte[] buffer = SerializeVector(playertransform.position);
                stream.Write(buffer, 0, buffer.Length);
            }
        }

        public void Load(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Loading from " + path);
            using (FileStream stream = File.Open(path, FileMode.Open))
            {
                byte[] buffer = new byte[stream.Length];
                stream.Read(buffer, 0, buffer.Length);

                Transform playertransform = GetPlayerTransform();
                playertransform.position = DeserializeVector(buffer);
            }
        }

        private Transform GetPlayerTransform()
        {
            return GameObject.FindWithTag("Player").transform;
        }

        private byte[] SerializeVector(Vector3 vector)
        {
            byte[] vectorBytes = new byte[3 * 4];
            BitConverter.GetBytes(vector.x).CopyTo(vectorBytes, 0);
            BitConverter.GetBytes(vector.y).CopyTo(vectorBytes, 4);
            BitConverter.GetBytes(vector.z).CopyTo(vectorBytes, 8);
            return vectorBytes;
        }

        private Vector3 DeserializeVector(byte[] buffer)
        {
            Vector3 result = new Vector3();
            result.x = BitConverter.ToSingle(buffer, 0);
            result.y = BitConverter.ToSingle(buffer, 4);
            result.z = BitConverter.ToSingle(buffer, 8);
            return result;
        }

        private string GetPathFromSaveFile(string saveFile)
        {
            return Path.Combine(Application.persistentDataPath, saveFile + ".sav");
        }
    }
}

シリアライズのための BinaryFormatter

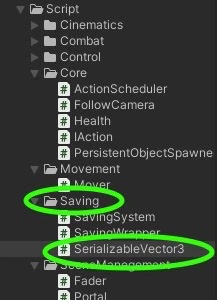

1, SerializableVector3.csを作成する

2, 各スクリプトに下記コードを記述する

SavingSystem
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Runtime.Serialization.Formatters.Binary;
using System.Text;
using UnityEngine;

namespace RPG.Saving
{
    public class SavingSystem : MonoBehaviour
    {
        public void Save(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Saving to " + path);
            using (FileStream stream = File.Open(path, FileMode.Create))
            {
                Transform playerTransform = GetPlayerTransform();
                BinaryFormatter formatter = new BinaryFormatter();
                SerializableVector3 position = new SerializableVector3(playerTransform.position);
                formatter.Serialize(stream, position);
            }
        }

        public void Load(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Loading from " + path);
            using (FileStream stream = File.Open(path, FileMode.Open))
            {
                Transform playerTransform = GetPlayerTransform();
                BinaryFormatter formatter = new BinaryFormatter();
                SerializableVector3 position = (SerializableVector3)formatter.Deserialize(stream);
                playerTransform.position = position.ToVector();
            }
        }

        private Transform GetPlayerTransform()
        {
            return GameObject.FindWithTag("Player").transform;
        }

        private byte[] SerializeVector(Vector3 vector)
        {
            byte[] vectorBytes = new byte[3 * 4];
            BitConverter.GetBytes(vector.x).CopyTo(vectorBytes, 0);
            BitConverter.GetBytes(vector.y).CopyTo(vectorBytes, 4);
            BitConverter.GetBytes(vector.z).CopyTo(vectorBytes, 8);
            return vectorBytes;
        }

        private Vector3 DeserializeVector(byte[] buffer)
        {
            Vector3 result = new Vector3();
            result.x = BitConverter.ToSingle(buffer, 0);
            result.y = BitConverter.ToSingle(buffer, 4);
            result.z = BitConverter.ToSingle(buffer, 8);
            return result;
        }

        private string GetPathFromSaveFile(string saveFile)
        {
            return Path.Combine(Application.persistentDataPath, saveFile + ".sav");
        }
    }
}
SerializableVector3
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace RPG.Saving
{
    [System.Serializable]
    public class SerializableVector3
    {
        float x, y, z;

        public SerializableVector3(Vector3 vector)
        {
            x = vector.x;
            y = vector.y;
            z = vector.z;
        }

        public Vector3 ToVector()
        {
            return new Vector3(x, y, z);
        }
    }
}

SaveableEntityの作成

1, SaveableEntityスクリプトを作成する

2,各スクリプトに下記コードを記述する

SavingSystem
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Runtime.Serialization.Formatters.Binary;
using System.Text;
using UnityEngine;

namespace RPG.Saving
{
    public class SavingSystem : MonoBehaviour
    {
        public void Save(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Saving to " + path);
            using (FileStream stream = File.Open(path, FileMode.Create))
            {
                BinaryFormatter formatter = new BinaryFormatter();
                formatter.Serialize(stream, CaptureState());
            }
        }

        public void Load(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Loading from " + path);
            using (FileStream stream = File.Open(path, FileMode.Open))
            {
                BinaryFormatter formatter = new BinaryFormatter();
                RestoreState(formatter.Deserialize(stream));
            }
        }

        private object CaptureState()
        {
            Dictionary<string, object> state = new Dictionary<string, object>();
            foreach (SaveableEntity saveable in FindObjectsOfType<SaveableEntity>())
            {
                state[saveable.GetUniqueIdentifier()] = saveable.CaptureState();
            }
            return state;
        }

        private void RestoreState(object state)
        {
            Dictionary<string, object> stateDict = (Dictionary<string, object>)state;
            foreach (SaveableEntity saveable in FindObjectsOfType<SaveableEntity>())
            {
                saveable.RestoreState(stateDict[saveable.GetUniqueIdentifier()]);
            }
        }

        private string GetPathFromSaveFile(string saveFile)
        {
            return Path.Combine(Application.persistentDataPath, saveFile + ".sav");
        }
    }
}
SaveableEntity
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace RPG.Saving
{
    public class SaveableEntity : MonoBehaviour
    {
        public string GetUniqueIdentifier()
        {
            return "";
        }

        public object CaptureState()
        {
            print("Capturing state for " + GetUniqueIdentifier());
            return null;
        }

        public void RestoreState(object state)
        {
            print("Restoring state for " + GetUniqueIdentifier());
        }
    }
}

UUIDs生成

1, 下記スクリプトの追加

SaveableEntity
using System.Collections;
using System.Collections.Generic;
using UnityEngine;

namespace RPG.Saving
{
    [ExecuteAlways]
    public class SaveableEntity : MonoBehaviour
    {
        [SerializeField] string uniqueIdentifier = "";

        public string GetUniqueIdentifier()
        {
            return uniqueIdentifier;
        }

        public object CaptureState()
        {
            print("Capturing state for " + GetUniqueIdentifier());
            return null;
        }

        public void RestoreState(object state)
        {
            print("Restoring state for " + GetUniqueIdentifier());
        }

        private void Update()
        {
            if (Application.IsPlaying(gameObject)) return;

            print("Editing");
        }
    }
}

SerializedFieldsの編集

1, 下記スクリプトを追加

SaveableEntity
using System.Collections;
using System.Collections.Generic;
using UnityEditor;
using UnityEngine;

namespace RPG.Saving
{
    [ExecuteAlways]
    public class SaveableEntity : MonoBehaviour
    {
        [SerializeField] string uniqueIdentifier = "";

        public string GetUniqueIdentifier()
        {
            return uniqueIdentifier;
        }

        public object CaptureState()
        {
            print("Capturing state for " + GetUniqueIdentifier());
            return null;
        }

        public void RestoreState(object state)
        {
            print("Restoring state for " + GetUniqueIdentifier());
        }

        private void Update()
        {
            if (Application.IsPlaying(gameObject)) return;
            if (string.IsNullOrEmpty(gameObject.scene.path)) return;

            SerializedObject serializedObject = new SerializedObject(this);
            SerializedProperty property = serializedObject.FindProperty("uniqueIdentifier");

            if (string.IsNullOrEmpty(property.stringValue))
            {
                property.stringValue = System.Guid.NewGuid().ToString();
                serializedObject.ApplyModifiedProperties();
            }
        }
    }
}

SaveableEntitiesでのシリアライズ

1, 下記のコードを追加

SaveableEntity
using System.Collections;
using System.Collections.Generic;
using RPG.Core; //追加
using UnityEditor;
using UnityEngine;
using UnityEngine.AI;

namespace RPG.Saving
{
    [ExecuteAlways]
    public class SaveableEntity : MonoBehaviour
    {
        [SerializeField] string uniqueIdentifier = "";

        public string GetUniqueIdentifier()
        {
            return uniqueIdentifier;
        }

        public object CaptureState()
        {
            return new SerializableVector3(transform.position); //追加
        }

        public void RestoreState(object state)
        {
            SerializableVector3 position = (SerializableVector3)state; //追加
            GetComponent<NavMeshAgent>().enabled = false; //追加
            transform.position = position.ToVector(); //追加
            GetComponent<NavMeshAgent>().enabled = true; //追加
            GetComponent<ActionScheduler>().CancelCurrentAction(); //追加
        }

        private void Update()
        {
            if (Application.IsPlaying(gameObject)) return;
            if (string.IsNullOrEmpty(gameObject.scene.path)) return;

            SerializedObject serializedObject = new SerializedObject(this);
            SerializedProperty property = serializedObject.FindProperty("uniqueIdentifier");

            if (string.IsNullOrEmpty(property.stringValue))
            {
                property.stringValue = System.Guid.NewGuid().ToString();
                serializedObject.ApplyModifiedProperties();
            }
        }
    }
}

複数シーン保存①

1, 下記コードを追加

SavingSystem
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Runtime.Serialization.Formatters.Binary;
using System.Text;
using UnityEngine;

namespace RPG.Saving
{
    public class SavingSystem : MonoBehaviour
    {
        public void Save(string saveFile)
        {
            SaveFile(saveFile, CaptureState());
        }

        public void Load(string saveFile)
        {
            RestoreState(LoadFile(saveFile));
        }

        private Dictionary<string, object> LoadFile(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Loading from " + path);
            using (FileStream stream = File.Open(path, FileMode.Open))
            {
                BinaryFormatter formatter = new BinaryFormatter();
                return (Dictionary<string, object>) formatter.Deserialize(stream);
            }
        }

        private void SaveFile(string saveFile, object state)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Saving to " + path);
            using (FileStream stream = File.Open(path, FileMode.Create))
            {
                BinaryFormatter formatter = new BinaryFormatter();
                formatter.Serialize(stream, state);
            }
        }

        private Dictionary<string, object> CaptureState()
        {
            Dictionary<string, object> state = new Dictionary<string, object>();
            foreach (SaveableEntity saveable in FindObjectsOfType<SaveableEntity>())
            {
                state[saveable.GetUniqueIdentifier()] = saveable.CaptureState();
            }
            return state;
        }

        private void RestoreState(Dictionary<string, object> state)
        {
            foreach (SaveableEntity saveable in FindObjectsOfType<SaveableEntity>())
            {
                saveable.RestoreState(state[saveable.GetUniqueIdentifier()]);
            }
        }

        private string GetPathFromSaveFile(string saveFile)
        {
            return Path.Combine(Application.persistentDataPath, saveFile + ".sav");
        }
    }
}

複数シーン保存②

1, 下記コードを追加する

SavingSystem
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Runtime.Serialization.Formatters.Binary;
using System.Text;
using UnityEngine;

namespace RPG.Saving
{
    public class SavingSystem : MonoBehaviour
    {
        public void Save(string saveFile)
        {
            Dictionary<string, object> state = LoadFile(saveFile); //追加
            CaptureState(state); //追加
            SaveFile(saveFile, state); //変更
        }

        public void Load(string saveFile)
        {
            RestoreState(LoadFile(saveFile));
        }

        private Dictionary<string, object> LoadFile(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);
            //追加
            if (!File.Exists(path))
            {
                return new Dictionary<string, object>();
            }
            using (FileStream stream = File.Open(path, FileMode.Open))
            {
                BinaryFormatter formatter = new BinaryFormatter();
                return (Dictionary<string, object>)formatter.Deserialize(stream);
            }
        }

        private void SaveFile(string saveFile, object state)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Saving to " + path);
            using (FileStream stream = File.Open(path, FileMode.Create))
            {
                BinaryFormatter formatter = new BinaryFormatter();
                formatter.Serialize(stream, state);
            }
        }

        private void CaptureState(Dictionary<string, object> state) //変更
        {
            foreach (SaveableEntity saveable in FindObjectsOfType<SaveableEntity>())
            {
                state[saveable.GetUniqueIdentifier()] = saveable.CaptureState();
            }
        }

        private void RestoreState(Dictionary<string, object> state)
        {
            foreach (SaveableEntity saveable in FindObjectsOfType<SaveableEntity>())
            {
                string id = saveable.GetUniqueIdentifier(); //変更
                //追加
                if (state.ContainsKey(id))
                {
                    saveable.RestoreState(state[id]);
                }
            }
        }

        private string GetPathFromSaveFile(string saveFile)
        {
            return Path.Combine(Application.persistentDataPath, saveFile + ".sav");
        }
    }
}

シーン間のチェックポイント

1, 各スクリプトに各コードの記述

Portal
using System;
using System.Collections;
using RPG.Saving; //追加
using UnityEngine;
using UnityEngine.AI;
using UnityEngine.SceneManagement;
namespace RPG.SceneManagement
{
    public class Portal : MonoBehaviour
    {
        enum DestinationIdentifier
        {
            A, B, C, D, E
        }
        [SerializeField] int sceneToLoad = -1;
        [SerializeField] Transform spawnPoint;
        [SerializeField] DestinationIdentifier destination;
        [SerializeField] float fadeOutTime = 1f;
        [SerializeField] float fadeInTime = 2f;
        [SerializeField] float fadeWaitTime = 0.5f;

        //private void Start()
        //{
        //    transform.parent = null;
        //    DontDestroyOnLoad(gameObject);
        //}

        private void OnTriggerEnter(Collider other)
        {
            if (other.tag == "Player")
            {
                StartCoroutine(Transition());
            }
        }

        private IEnumerator Transition()
        {
            if (sceneToLoad < 0)
            {
                Debug.LogError("Scene to load not set.");
                yield break;
            }

            transform.parent = null;
            DontDestroyOnLoad(gameObject);

            Fader fader = FindObjectOfType<Fader>();
            SavingWrapper savingWrapper = FindObjectOfType<SavingWrapper>(); //追加

            yield return fader.FadeOut(fadeOutTime);

            savingWrapper.Save(); //追加

            yield return SceneManager.LoadSceneAsync(sceneToLoad);

            savingWrapper.Load(); //追加

            Portal otherPortal = GetOtherPortal();
            UpdatePlayer(otherPortal);



            yield return new WaitForSeconds(fadeWaitTime);
            yield return fader.FadeIn(fadeInTime);

            Destroy(gameObject);
        }

        private void UpdatePlayer(Portal otherPortal)
        {
            GameObject player = GameObject.FindWithTag("Player");
            player.GetComponent<NavMeshAgent>().enabled = false; //追加
            player.GetComponent<NavMeshAgent>().Warp(otherPortal.spawnPoint.position);
            player.transform.rotation = otherPortal.spawnPoint.rotation;
            player.GetComponent<NavMeshAgent>().enabled = true; //追加
        }
        private Portal GetOtherPortal()
        {
            foreach (Portal portal in FindObjectsOfType<Portal>())
            {
                if (portal == this) continue;
                if (portal.destination != destination) continue;
                return portal;
            }
            return null;
        }
    }
}
SavingWrapper
using UnityEngine;

namespace RPG.Saving
{
    public class SavingWrapper : MonoBehaviour
    {
        const string defaultSaveFile = "save";

        private void Start()
        {
            Load();
        }

        private void Update()
        {
            if (Input.GetKeyDown(KeyCode.S))
            {
                Save();
            }
            if (Input.GetKeyDown(KeyCode.L))
            {
                Load();
            }
        }

        public void Load()
        {
            GetComponent<SavingSystem>().Load(defaultSaveFile);
        }

        public void Save()
        {
            GetComponent<SavingSystem>().Save(defaultSaveFile);
        }
    }
}

ISaveableコンポーネント

1,各スクリプトに下記コードを記述する

SaveableEntity
using System.Collections;
using System.Collections.Generic;
using RPG.Core;
using UnityEditor;
using UnityEngine;
using UnityEngine.AI;

namespace RPG.Saving
{
    [ExecuteAlways]
    public class SaveableEntity : MonoBehaviour
    {
        [SerializeField] string uniqueIdentifier = "";

        public string GetUniqueIdentifier()
        {
            return uniqueIdentifier;
        }

        public object CaptureState()
        {
            Dictionary<string, object> state = new Dictionary<string, object>();
            foreach (ISaveable saveable in GetComponents<ISaveable>())
            {
                state[saveable.GetType().ToString()] = saveable.CaptureState();
            }
            return state;
        }

        public void RestoreState(object state)
        {
            Dictionary<string, object> stateDict = (Dictionary<string, object>)state;
            foreach (ISaveable saveable in GetComponents<ISaveable>())
            {
                string typeString = saveable.GetType().ToString();
                if (stateDict.ContainsKey(typeString))
                {
                    saveable.RestoreState(stateDict[typeString]);
                }
            }
        }

        private void Update()
        {
            if (Application.IsPlaying(gameObject)) return;
            if (string.IsNullOrEmpty(gameObject.scene.path)) return;

            SerializedObject serializedObject = new SerializedObject(this);
            SerializedProperty property = serializedObject.FindProperty("uniqueIdentifier");

            if (string.IsNullOrEmpty(property.stringValue))
            {
                property.stringValue = System.Guid.NewGuid().ToString();
                serializedObject.ApplyModifiedProperties();
            }
        }
    }
}
Mover
using System.Collections;
using System.Collections.Generic;
using RPG.Core;
using UnityEngine;
using UnityEngine.AI;
using RPG.Saving;

namespace RPG.Movement
{
    public class Mover : MonoBehaviour, IAction, ISaveable
    {
        [SerializeField] Transform target;
        [SerializeField] float maxSpeed = 6f;

        NavMeshAgent navMeshAgent;
        Health health;

        private void Start()
        {
            navMeshAgent = GetComponent<NavMeshAgent>();

            health = GetComponent<Health>();
        }

        void Update()
        {
            navMeshAgent.enabled = !health.IsDead();

            UpdateAnimator();
        }

        public void StartMoveAction(Vector3 destination, float speedFraction)
        {
            GetComponent<ActionScheduler>().StartAction(this);
            MoveTo(destination, speedFraction);
        }

        public void MoveTo(Vector3 destination, float speedFraction)
        {
            navMeshAgent.destination = destination;
            navMeshAgent.speed = maxSpeed * Mathf.Clamp01(speedFraction);
            navMeshAgent.isStopped = false;
        }

        public void Cancel()
        {
            navMeshAgent.isStopped = true;
        }

        private void UpdateAnimator()
        {
            Vector3 velocity = navMeshAgent.velocity;
            Vector3 localVelocity = transform.InverseTransformDirection(velocity);
            float speed = localVelocity.z;
            GetComponent<Animator>().SetFloat("fowardSpeed", speed);
        }

        public object CaptureState()
        {
            return new SerializableVector3(transform.position);
        }

        public void RestoreState(object state)
        {
            SerializableVector3 position = (SerializableVector3)state;
            GetComponent<NavMeshAgent>().enabled = false;
            transform.position = position.ToVector();
            GetComponent<NavMeshAgent>().enabled = true;
            GetComponent<ActionScheduler>().CancelCurrentAction();
        }
    }
}
ISaveable
namespace RPG.Saving
{
    public interface ISaveable
    {
        object CaptureState();
        void RestoreState(object state);
    }
}

UUIDの重複排除

1, 下記コードを追加する

SaveableEntity
using System;
using System.Collections;
using System.Collections.Generic;
using RPG.Core;
using UnityEditor;
using UnityEngine;
using UnityEngine.AI;

namespace RPG.Saving
{
    [ExecuteAlways]
    public class SaveableEntity : MonoBehaviour
    {
        [SerializeField] string uniqueIdentifier = "";
        static Dictionary<string, SaveableEntity> globalLookup = new Dictionary<string, SaveableEntity>(); //追加

        public string GetUniqueIdentifier()
        {
            return uniqueIdentifier;
        }

        public object CaptureState()
        {
            Dictionary<string, object> state = new Dictionary<string, object>();
            foreach (ISaveable saveable in GetComponents<ISaveable>())
            {
                state[saveable.GetType().ToString()] = saveable.CaptureState();
            }
            return state;
        }

        public void RestoreState(object state)
        {
            Dictionary<string, object> stateDict = (Dictionary<string, object>)state;
            foreach (ISaveable saveable in GetComponents<ISaveable>())
            {
                string typeString = saveable.GetType().ToString();
                if (stateDict.ContainsKey(typeString))
                {
                    saveable.RestoreState(stateDict[typeString]);
                }
            }
        }

        private void Update()
        {
            if (Application.IsPlaying(gameObject)) return;
            if (string.IsNullOrEmpty(gameObject.scene.path)) return;

            SerializedObject serializedObject = new SerializedObject(this);
            SerializedProperty property = serializedObject.FindProperty("uniqueIdentifier");

            if (string.IsNullOrEmpty(property.stringValue) || !IsUnique(property.stringValue)) //追加
            {
                property.stringValue = System.Guid.NewGuid().ToString();
                serializedObject.ApplyModifiedProperties();
            }

            globalLookup[property.stringValue] = this; //追加
        }

        //追加
        private bool IsUnique(string candidate)
        {
            if (!globalLookup.ContainsKey(candidate)) return true;

            if (globalLookup[candidate] == this) return true;

            if (globalLookup[candidate] == null)
            {
                globalLookup.Remove(candidate);
                return true;
            }

            if (globalLookup[candidate].GetUniqueIdentifier() != candidate)
            {
                globalLookup.Remove(candidate);
                return true;
            }

            return false;
        }
    }
}

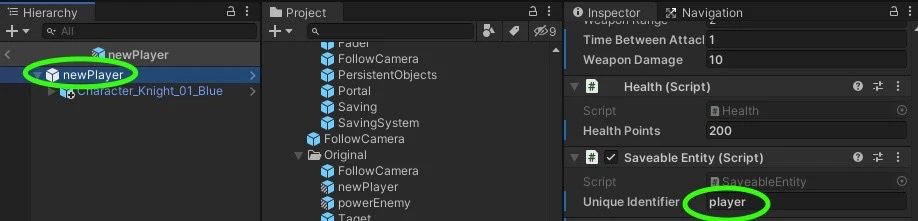

2, PlayerプレハブのUnique Identifierをplayerに変更する。（その他シーンがある場合はそちらのPlayerもplayerに変更する）

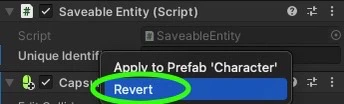

3, 右クリックしRevertする

Healthポイントの保存

1, 下記コードを追加

Health
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using RPG.Saving;

namespace RPG.Core
{
    public class Health : MonoBehaviour, ISaveable
    {
        [SerializeField] float healthPoints = 100f;

        bool isDead = false;
        public bool IsDead()
        {
            return isDead;
        }
        public void TakeDamage(float damage)
        {
            healthPoints = Mathf.Max(healthPoints - damage, 0);
            if (healthPoints == 0)
            {
                Die();
            }
        }
        private void Die()
        {
            if (isDead) return;
            isDead = true;
            GetComponent<Animator>().SetTrigger("die");
            GetComponent<ActionScheduler>().CancelCurrentAction();
        }

        public object CaptureState()
        {
            return healthPoints;
        }

        public void RestoreState(object state)
        {
            healthPoints = (float)state;

            if (healthPoints <= 0)
            {
                Die();
            }
        }
    }
}
SaveableEntity
using System;
using System.Collections;
using System.Collections.Generic;
using RPG.Core;
using UnityEditor;
using UnityEngine;
using UnityEngine.AI;

namespace RPG.Saving
{
    [ExecuteAlways]
    public class SaveableEntity : MonoBehaviour
    {
        [SerializeField] string uniqueIdentifier = "";
        static Dictionary<string, SaveableEntity> globalLookup = new Dictionary<string, SaveableEntity>(); //追加

        public string GetUniqueIdentifier()
        {
            return uniqueIdentifier;
        }

        public object CaptureState()
        {
            Dictionary<string, object> state = new Dictionary<string, object>();
            foreach (ISaveable saveable in GetComponents<ISaveable>())
            {
                state[saveable.GetType().ToString()] = saveable.CaptureState();
            }
            return state;
        }

        public void RestoreState(object state)
        {
            Dictionary<string, object> stateDict = (Dictionary<string, object>)state;
            foreach (ISaveable saveable in GetComponents<ISaveable>())
            {
                string typeString = saveable.GetType().ToString();
                if (stateDict.ContainsKey(typeString))
                {
                    saveable.RestoreState(stateDict[typeString]);
                }
            }
        }

#if UNITY_EDITOR
        private void Update()
        {
            if (Application.IsPlaying(gameObject)) return;
            if (string.IsNullOrEmpty(gameObject.scene.path)) return;

            SerializedObject serializedObject = new SerializedObject(this);
            SerializedProperty property = serializedObject.FindProperty("uniqueIdentifier");

            if (string.IsNullOrEmpty(property.stringValue) || !IsUnique(property.stringValue)) //追加
            {
                property.stringValue = System.Guid.NewGuid().ToString();
                serializedObject.ApplyModifiedProperties();
            }

            globalLookup[property.stringValue] = this;
        }
#endif

        private bool IsUnique(string candidate)
        {
            if (!globalLookup.ContainsKey(candidate)) return true;

            if (globalLookup[candidate] == this) return true;

            if (globalLookup[candidate] == null)
            {
                globalLookup.Remove(candidate);
                return true;
            }

            if (globalLookup[candidate].GetUniqueIdentifier() != candidate)
            {
                globalLookup.Remove(candidate);
                return true;
            }

            return false;
        }
    }
}

ラストシーンのリロード

1,各スクリプトに下記コードを記述する

SavingWrapper
using System.Collections; //追加
using UnityEngine;

namespace RPG.Saving
{
    public class SavingWrapper : MonoBehaviour
    {
        const string defaultSaveFile = "save";

        //変更
        private IEnumerator Start()
        {
            yield return GetComponent<SavingSystem>().LoadLastScene(defaultSaveFile);
        }

        private void Update()
        {
            if (Input.GetKeyDown(KeyCode.S))
            {
                Save();
            }
            if (Input.GetKeyDown(KeyCode.L))
            {
                Load();
            }
        }

        public void Load()
        {
            GetComponent<SavingSystem>().Load(defaultSaveFile);
        }

        public void Save()
        {
            GetComponent<SavingSystem>().Save(defaultSaveFile);
        }
    }
}
SavingSystem
using System;
using System.Collections;
using System.Collections.Generic;
using System.IO;
using System.Runtime.Serialization.Formatters.Binary;
using System.Text;
using UnityEngine;
using UnityEngine.SceneManagement; //追加

namespace RPG.Saving
{
    public class SavingSystem : MonoBehaviour
    {
        //追加
        public IEnumerator LoadLastScene(string saveFile)
        {
            Dictionary<string, object> state = LoadFile(saveFile);
            if (state.ContainsKey("lastSceneBuildIndex"))
            {
                int buildIndex = (int)state["lastSceneBuildIndex"];
                if (buildIndex != SceneManager.GetActiveScene().buildIndex)
                {
                    yield return SceneManager.LoadSceneAsync(buildIndex);
                }
            }
            RestoreState(state);
        }

        public void Save(string saveFile)
        {
            Dictionary<string, object> state = LoadFile(saveFile);
            CaptureState(state);
            SaveFile(saveFile, state);
        }

        public void Load(string saveFile)
        {
            RestoreState(LoadFile(saveFile));
        }

        private Dictionary<string, object> LoadFile(string saveFile)
        {
            string path = GetPathFromSaveFile(saveFile);

            if (!File.Exists(path))
            {
                return new Dictionary<string, object>();
            }
            using (FileStream stream = File.Open(path, FileMode.Open))
            {
                BinaryFormatter formatter = new BinaryFormatter();
                return (Dictionary<string, object>)formatter.Deserialize(stream);
            }
        }

        private void SaveFile(string saveFile, object state)
        {
            string path = GetPathFromSaveFile(saveFile);
            print("Saving to " + path);
            using (FileStream stream = File.Open(path, FileMode.Create))
            {
                BinaryFormatter formatter = new BinaryFormatter();
                formatter.Serialize(stream, state);
            }
        }

        private void CaptureState(Dictionary<string, object> state)
        {
            foreach (SaveableEntity saveable in FindObjectsOfType<SaveableEntity>())
            {
                state[saveable.GetUniqueIdentifier()] = saveable.CaptureState();
            }

            state["lastSceneBuildIndex"] = SceneManager.GetActiveScene().buildIndex; //追加
        }

        private void RestoreState(Dictionary<string, object> state)
        {
            foreach (SaveableEntity saveable in FindObjectsOfType<SaveableEntity>())
            {
                string id = saveable.GetUniqueIdentifier();

                if (state.ContainsKey(id))
                {
                    saveable.RestoreState(state[id]);
                }
            }
        }

        private string GetPathFromSaveFile(string saveFile)
        {
            return Path.Combine(Application.persistentDataPath, saveFile + ".sav");
        }
    }
}
Portal
using System;
using System.Collections;
using RPG.Saving;
using UnityEngine;
using UnityEngine.AI;
using UnityEngine.SceneManagement;
namespace RPG.SceneManagement
{
    public class Portal : MonoBehaviour
    {
        enum DestinationIdentifier
        {
            A, B, C, D, E
        }
        [SerializeField] int sceneToLoad = -1;
        [SerializeField] Transform spawnPoint;
        [SerializeField] DestinationIdentifier destination;
        [SerializeField] float fadeOutTime = 1f;
        [SerializeField] float fadeInTime = 2f;
        [SerializeField] float fadeWaitTime = 0.5f;

        //private void Start()
        //{
        //    transform.parent = null;
        //    DontDestroyOnLoad(gameObject);
        //}

        private void OnTriggerEnter(Collider other)
        {
            if (other.tag == "Player")
            {
                StartCoroutine(Transition());
            }
        }

        private IEnumerator Transition()
        {
            if (sceneToLoad < 0)
            {
                Debug.LogError("Scene to load not set.");
                yield break;
            }

            transform.parent = null;
            DontDestroyOnLoad(gameObject);

            Fader fader = FindObjectOfType<Fader>();
            SavingWrapper savingWrapper = FindObjectOfType<SavingWrapper>();

            yield return fader.FadeOut(fadeOutTime);

            savingWrapper.Save();

            yield return SceneManager.LoadSceneAsync(sceneToLoad);

            savingWrapper.Load();

            Portal otherPortal = GetOtherPortal();
            UpdatePlayer(otherPortal);

            savingWrapper.Save(); //追加

            yield return new WaitForSeconds(fadeWaitTime);
            yield return fader.FadeIn(fadeInTime);

            Destroy(gameObject);
        }

        private void UpdatePlayer(Portal otherPortal)
        {
            GameObject player = GameObject.FindWithTag("Player");
            player.GetComponent<NavMeshAgent>().enabled = false;
            player.GetComponent<NavMeshAgent>().Warp(otherPortal.spawnPoint.position);
            player.transform.rotation = otherPortal.spawnPoint.rotation;
            player.GetComponent<NavMeshAgent>().enabled = true;
        }
        private Portal GetOtherPortal()
        {
            foreach (Portal portal in FindObjectsOfType<Portal>())
            {
                if (portal == this) continue;
                if (portal.destination != destination) continue;
                return portal;
            }
            return null;
        }
    }
}

シーンロード前にフェードする

1, 各スクリプトに下記コードを記述する

Fader
using System.Collections;
using UnityEngine;
namespace RPG.SceneManagement
{
    public class Fader : MonoBehaviour
    {
        CanvasGroup canvasGroup;

        private void Awake()
        {
            canvasGroup = GetComponent<CanvasGroup>();
        }

        //追加
        public void FadeOutImmediate()
        {
            canvasGroup.alpha = 1;
        }

        public IEnumerator FadeOut(float time)
        {
            while (canvasGroup.alpha < 1)
            {
                canvasGroup.alpha += Time.deltaTime / time;
                yield return null;
            }
        }
        public IEnumerator FadeIn(float time)
        {
            while (canvasGroup.alpha > 0)
            {
                canvasGroup.alpha -= Time.deltaTime / time;
                yield return null;
            }
        }
    }
}
SavingWrapper
using System.Collections;
using RPG.Saving;
using UnityEngine;

namespace RPG.SceneManagement
{
    public class SavingWrapper : MonoBehaviour
    {
        const string defaultSaveFile = "save";

        [SerializeField] float fadeInTime = 0.2f;

        private IEnumerator Start()
        {
            Fader fader = FindObjectOfType<Fader>();

            fader.FadeOutImmediate();
            yield return GetComponent<SavingSystem>().LoadLastScene(defaultSaveFile);
            yield return fader.FadeIn(fadeInTime);
        }

        private void Update()
        {
            if (Input.GetKeyDown(KeyCode.S))
            {
                Save();
            }
            if (Input.GetKeyDown(KeyCode.L))
            {
                Load();
            }
        }

        public void Load()
        {
            GetComponent<SavingSystem>().Load(defaultSaveFile);
        }

        public void Save()
        {
            GetComponent<SavingSystem>().Save(defaultSaveFile);
        }
    }
}
1
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
1
1
