はじめに
今回はWebの画面で動く、オウム返しチャットボットをnode.js expressで作成します。
これを土台として、次回と次々回で以下のことをやっていきたいと思っています。
次回:
エクセルをナレッジベースとしたQ&A機能追加
次々回:
Herokuにデプロイして、Google Analytics(これが一番やりたい)と連携して
質問分析とメンテナンス
完成品はこちらからご確認いただけます
https://ponkotsueasychatbot.herokuapp.com/
参考にしたUIのソースコード
https://codepen.io/sajadhsm/pen/odaBdd
いざ、作成
ベースを作成する
nodeアプリの作成
npm init --y
今回~次々回までに必要なライブラリを設定
npm install dotenv express ejs xlsx elasticlunr date-utils --save
説明
ライブラリ | 用途 | 備考 |
---|---|---|
dotenv | 設定ファイルの読み込みに必要 | |
express | サーバサイドJavascriptの実行環境として活用 | |
ejs | サーバサイドで作成した情報を画面表示するのに活用 | |
xlsx | エクセルファイルの読み込みに必要 | 次回活用 |
elasticlunr | 全文検索に活用 | 次回活用 |
date-utils | サーバサイドで日付処理を行うのに必要 |
index.jsを作成
index.jsのソースコード(クリックして展開)
// ******************************************************************//
// 初期設定関連
// ******************************************************************//
var express = require("express");
var app = express();
require('date-utils');
require('dotenv').config();
app.set("view engine", "ejs");
app.use('/static', express.static('public'));
//////////////////////////////////////////////////////
// 初期表示 『 / 』にアクセスしたときの処理
app.get('/', function (req, res,next) {
(async () => {
// 現在時間の取得
var dt = new Date();
var nowTime = dt.toFormat("HH24:MI");
// 画面を表示する
res.render("index", {
title: process.env.APPLICATION_TITLE,
nowTime: nowTime,
userName: process.env.USER_NAME,
botName: process.env.BOT_NAME,
sorry_message: process.env.SORRY_MESSAGE,
bot1stMessage: process.env.BOT_1ST_MESSAGE});
})().catch(next);
});
//////////////////////////////////////////////////////
// メッセージを受け取ったときにオウム返しする
app.get('/sendMsg', function (req, res,next) {
(async () => {
// 入力されたメッセージ
var originalKeyword = req.query.keyword;
// ここでオウム返しを実装
res.send(originalKeyword + "って本当ですか?");
})().catch(next);
});
//////////////////////////////////////////////////////
// サーバ起動
app.listen(process.env.PORT, "0.0.0.0", function() {
console.log("server starting on " + process.env.PORT);
});
index.ejsを作成
index.ejsのソースコード(クリックして展開)
<!DOCTYPE html>
<html lang="ja">
<head>
<meta charset="UTF-8">
<title><%= title %></title>
</head>
<body>
<section class="msger">
<!-- チャットウィンドウのヘッダ -->
<header class="msger-header">
<div class="msger-header-title">
<i class="fas fa-comment-alt"></i> <%= title %>
</div>
<div class="msger-header-options">
<span><i class="fas fa-cog"></i></span>
</div>
</header>
<!-- チャットウィンドウのメイン部分 -->
<main class="msger-chat">
<div class="msg left-msg">
<div
class="msg-img"
style="background-image: url(/static/image/neko.jpg)">
</div>
<div class="msg-bubble">
<div class="msg-info">
<div class="msg-info-name"><%= botName %></div>
<div class="msg-info-time"><%= nowTime %></div>
</div>
<div class="msg-text">
<%= bot1stMessage %>
</div>
</div>
</div>
</main>
<!-- メッセージ送信フォーム -->
<form class="msger-inputarea">
<input type="text" class="msger-input" placeholder="メッセージを入力してください">
<button type="submit" class="msger-send-btn">送信</button>
</form>
</section>
<!-- メッセージ送信スクリプト -->
<script>
const msgerForm = get(".msger-inputarea");
const msgerInput = get(".msger-input");
const msgerChat = get(".msger-chat");
// アイコン
const BOT_IMG = "/static/image/neko.jpg";
const PERSON_IMG = "/static/image/you.jpg";
// 名前
const BOT_NAME = "<%= botName %>";
const PERSON_NAME = "<%= userName %>";
// メッセージ送信時の処理
msgerForm.addEventListener("submit", event => {
event.preventDefault();
const msgText = msgerInput.value;
if (!msgText) return;
appendMessage(PERSON_NAME, PERSON_IMG, "right", msgText);
msgerInput.value = "";
// API送信
var url = "/sendMsg?keyword="+msgText;
var request = new XMLHttpRequest();
request.open('GET', url, true);
request.responseType = 'text';
// APIメッセージ取得時の処理
request.onload = function () {
var msgText = this.response;
setTimeout(() => {
appendMessage(BOT_NAME, BOT_IMG, "left", msgText);
}, 900);
};
// APIメッセージ送信
request.send();
});
// メッセージウィンドウ更新処理
function appendMessage(name, img, side, text) {
const msgHTML = `
<div class="msg ${side}-msg">
<div class="msg-img" style="background-image: url(${img})"></div>
<div class="msg-bubble">
<div class="msg-info">
<div class="msg-info-name">${name}</div>
<div class="msg-info-time">${formatDate(new Date())}</div>
</div>
<div class="msg-text">${text}</div>
</div>
</div>
`;
msgerChat.insertAdjacentHTML("beforeend", msgHTML);
msgerChat.scrollTop += 500;
}
function get(selector, root = document) {
return root.querySelector(selector);
}
function formatDate(date) {
const h = "0" + date.getHours();
const m = "0" + date.getMinutes();
return `${h.slice(-2)}:${m.slice(-2)}`;
}
</script>
<!--スタイル-->
<style type="text/css">
:root {
--body-bg: linear-gradient(135deg, #f5f7fa 0%, #c3cfe2 100%);
--msger-bg: #fff;
--border: 2px solid #ddd;
--left-msg-bg: #ececec;
--right-msg-bg: #579ffb;
}
html {
box-sizing: border-box;
}
*,
*:before,
*:after {
margin: 0;
padding: 0;
box-sizing: inherit;
}
body {
display: flex;
justify-content: center;
align-items: center;
height: 100vh;
background-image: var(--body-bg);
font-family: Helvetica, sans-serif;
}
.msger {
display: flex;
flex-flow: column wrap;
justify-content: space-between;
width: 100%;
max-width: 867px;
margin: 25px 10px;
height: calc(100% - 50px);
border: var(--border);
border-radius: 5px;
background: var(--msger-bg);
box-shadow: 0 15px 15px -5px rgba(0, 0, 0, 0.2);
}
.msger-header {
display: flex;
justify-content: space-between;
padding: 10px;
border-bottom: var(--border);
background: #eee;
color: #666;
}
.msger-chat {
flex: 1;
overflow-y: auto;
padding: 10px;
}
.msger-chat::-webkit-scrollbar {
width: 6px;
}
.msger-chat::-webkit-scrollbar-track {
background: #ddd;
}
.msger-chat::-webkit-scrollbar-thumb {
background: #bdbdbd;
}
.msg {
display: flex;
align-items: flex-end;
margin-bottom: 10px;
}
.msg:last-of-type {
margin: 0;
}
.msg-img {
width: 50px;
height: 50px;
margin-right: 10px;
background: #ddd;
background-repeat: no-repeat;
background-position: center;
background-size: cover;
border-radius: 50%;
}
.msg-bubble {
max-width: 450px;
padding: 15px;
border-radius: 15px;
background: var(--left-msg-bg);
}
.msg-info {
display: flex;
justify-content: space-between;
align-items: center;
margin-bottom: 10px;
}
.msg-info-name {
margin-right: 10px;
font-weight: bold;
}
.msg-info-time {
font-size: 0.85em;
}
.left-msg .msg-bubble {
border-bottom-left-radius: 0;
}
.right-msg {
flex-direction: row-reverse;
}
.right-msg .msg-bubble {
background: var(--right-msg-bg);
color: #fff;
border-bottom-right-radius: 0;
}
.right-msg .msg-img {
margin: 0 0 0 10px;
}
.msger-inputarea {
display: flex;
padding: 10px;
border-top: var(--border);
background: #eee;
}
.msger-inputarea * {
padding: 10px;
border: none;
border-radius: 3px;
font-size: 1em;
}
.msger-input {
flex: 1;
background: #ddd;
}
.msger-send-btn {
margin-left: 10px;
background: rgb(0, 196, 65);
color: #fff;
font-weight: bold;
cursor: pointer;
transition: background 0.23s;
}
.msger-send-btn:hover {
background: rgb(0, 180, 50);
}
.msger-chat {
background-color: #fcfcfe;
background-image: url("/static/image/bkimg.jpg");
}
</style>
</body>
</html>
.envを作成
.envのソースコード(クリックして展開)
# アプリの公開ポート番号
PORT=8085
# 回答がないとき
SORRY_MESSAGE=すみません。わかりませんでした。
# アプリケーションのタイトル
APPLICATION_TITLE=ぽんこつ猫ちゃんオウム返し
# ユーザー名
USER_NAME=You
# ボット名
BOT_NAME=ぽんこつ猫ちゃん
# ボットの初回メッセージ
BOT_1ST_MESSAGE=こんにちは。どんなことでも僕に相談してくださいね😄
package.jsonのscriptsに『"start": "node index.js",』を追加
package.jsonのscriptsに『"start": "node index.js",』を追加(参考ファイルをクリックして展開)
{
"name": "test",
"version": "1.0.0",
"description": "",
"main": "index.js",
"scripts": {
"start": "node index.js",
"test": "echo \"Error: no test specified\" && exit 1"
},
"keywords": [],
"author": "",
"license": "ISC",
"dependencies": {
"date-utils": "^1.2.21",
"dotenv": "^8.2.0",
"ejs": "^2.7.1",
"elasticlunr": "^0.9.5",
"express": "^4.17.1",
"xlsx": "^0.16.9"
}
}
public/imageに画像ファイルを配置
動作確認してみる
npm start

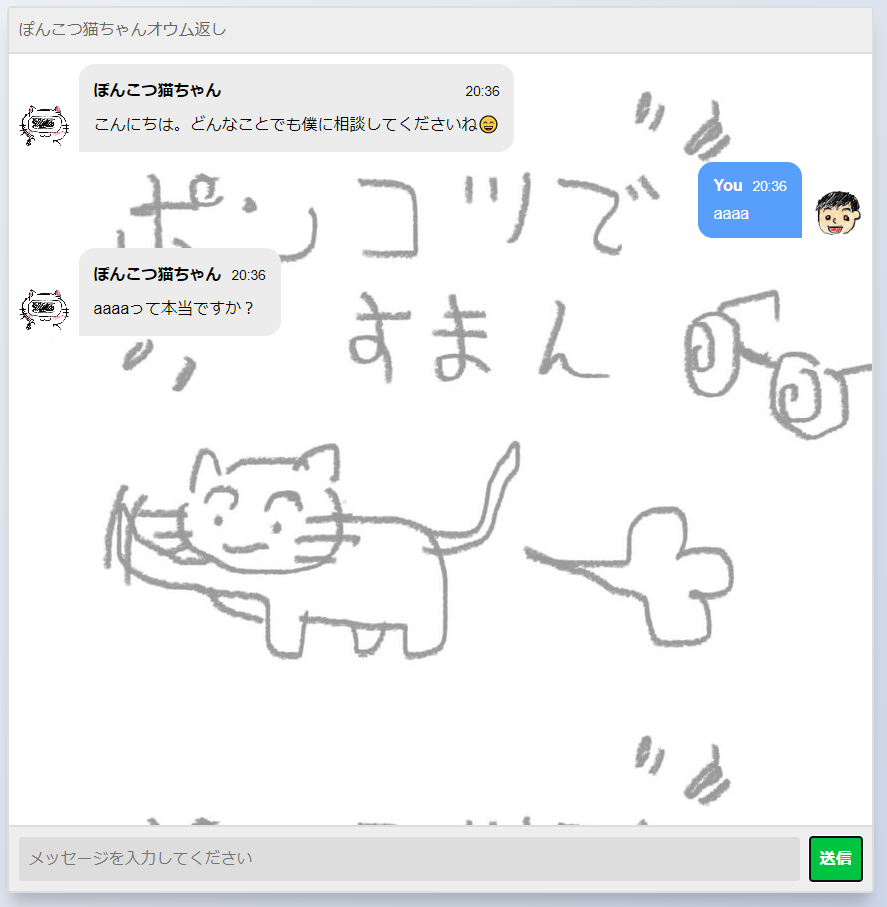

『http://localhost:8085/』にアクセスして、動作確認してみます。
投げかけたメッセージに対して、『<メッセージ>って本当ですか?』とオウム返しされるはずです。
herokuにデプロイする
※ponkotsueasychatbotの部分はこのアプリの独自の名前
$ heroku login
Create a new Git repository
Initialize a git repository in a new or existing directory
$ cd my-project/
$ git init
$ heroku git:remote -a ponkotsueasychatbot
Deploy your application
Commit your code to the repository and deploy it to Heroku using Git.
$ git add .
$ git commit -am "make it better"
$ git push heroku master

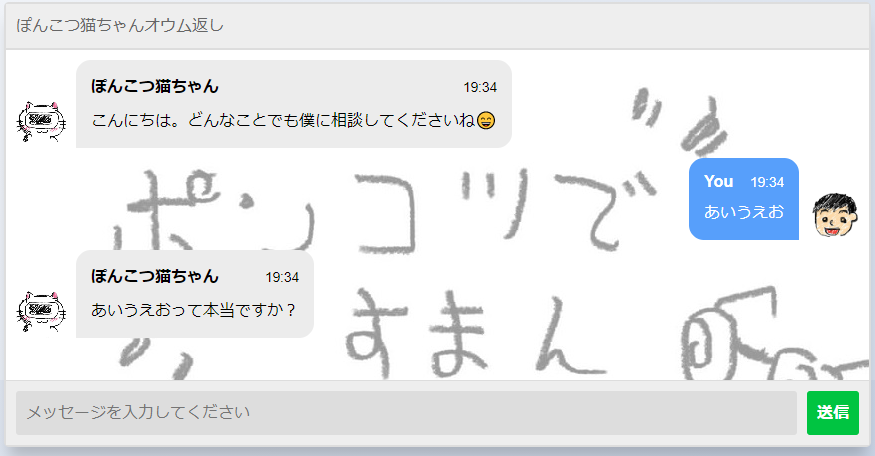

herokuでの動作確認
こちらのURLから確認できます
https://ponkotsueasychatbot.herokuapp.com/
