搭建前端页面框架

Last updated at Posted at 2025-01-09

搭建前端页面框架

⭐搭建后台基本框架
⭐配置导航菜单
⭐配置标题和LOGO

一：搭建管理页面头部

<template>
    <div>
        <!-- 头部区域 -->
        <div style="height: 60px;background-color: #3c7fff;display: flex;align-items: center">
            <div style="width: 200px;display: flex;align-items: center;padding-left: 15px">
                <img style="width: 40px" src="@/assets/tb.png" alt="">
                <span style="font-size: 24px;color: white;margin-left: 5px">后台管理系统</span>
            </div>
            <div style="flex: 1"></div>
            <div style="width: fit-content;display: flex;align-items: center;padding-right: 10px">
                <img src="https://cube.elemecdn.com/3/7c/3ea6beec64369c2642b92c6726f1epng.png" alt=""
                    style="width: 40px;height: 40px">
                <span style="color: white;margin-left: 5px">丽丽猫</span>
            </div>
        </div>
    </div>
</template>

<script setup>
</script>

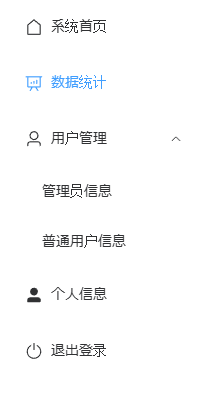

二：搭建管理页面下部-左侧导航菜单栏

        <!-- 下面区域 -->
        <div style="display: flex">
            <!-- 左侧导航菜单栏 -->
            <div style="width: 200px;border-right: 1px solid #ddd;min-height: calc(100vh-60px)">
                <el-menu router :default-active="currentPath" :default-openeds="['1']" style="border: 0">
                    <el-menu-item index="/manager/home">
                        <el-icon>
                            <House />
                        </el-icon>
                        系统首页
                    </el-menu-item>
                    <el-menu-item index="/manager/data">
                        <el-icon>
                            <DataAnalysis />
                        </el-icon>
                        数据统计
                    </el-menu-item>
                    <el-sub-menu index="1">
                        <template #title>
                            <el-icon>
                                <User />
                            </el-icon>
                            <span>用户管理</span>
                        </template>
                        <el-menu-item>管理员信息</el-menu-item>
                        <el-menu-item>普通用户信息</el-menu-item>
                    </el-sub-menu>
                    <el-menu-item index="/manager/home">
                        <el-icon>
                            <UserFilled />
                        </el-icon>
                        个人信息
                    </el-menu-item>
                    <el-menu-item index="/manager/home">
                        <el-icon>
                            <SwitchButton />
                        </el-icon>
                        退出登录
                    </el-menu-item>
                </el-menu>
            </div>
            <!-- 右侧主体区域 -->
        </div>
    </div>
</template>

<script setup>
import { DataAnalysis, InfoFilled, SwitchButton, User } from '@element-plus/icons-vue';
</script>


三：搭建管理页面下部-右侧主体区域

<!-- 右侧主体区域 -->
    <div style="flex: 1;width: 0;background-color: #f5f7ff;padding: 10px">
         <RouterView/>
    </div>

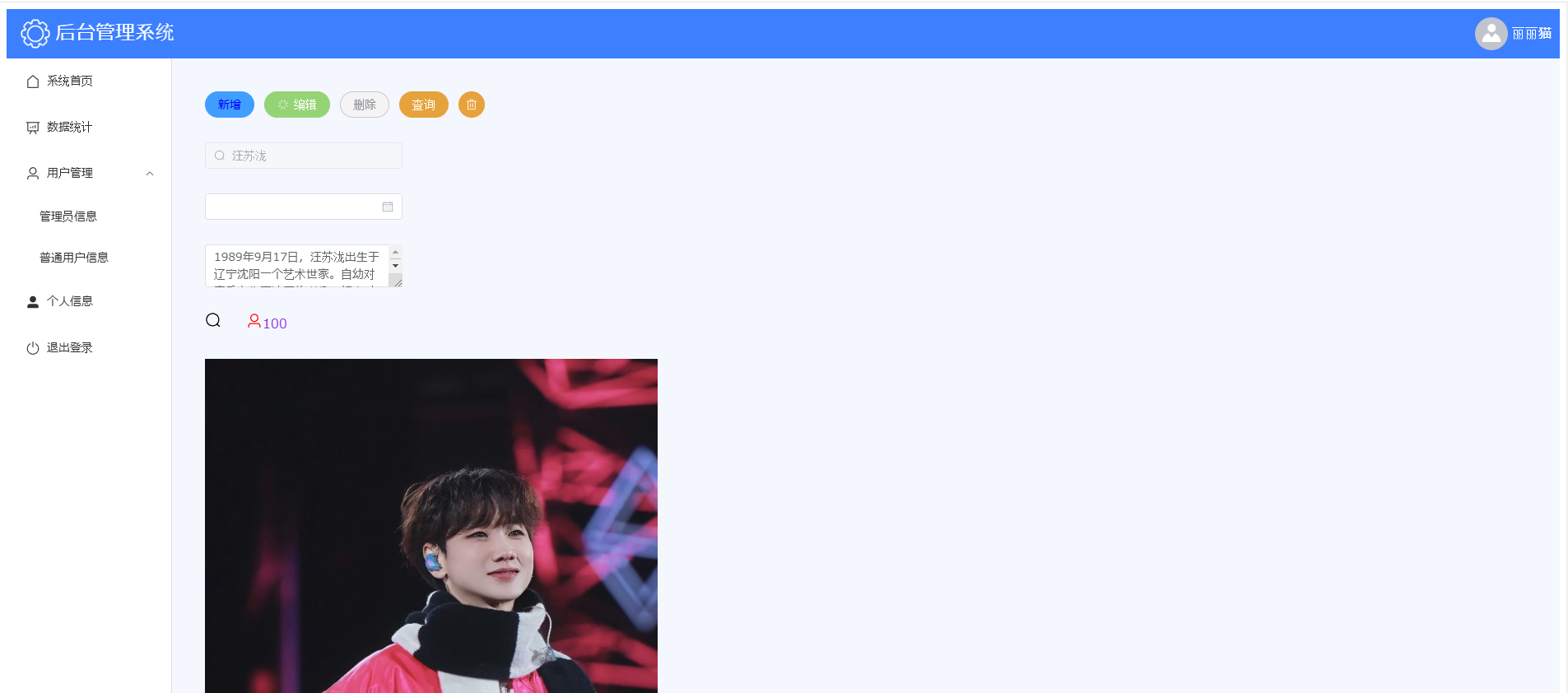

四：管理页面全部代码-manager

<template>
    <div>
        <!-- 头部区域 -->
        <div style="height: 60px;background-color: #3c7fff;display: flex;align-items: center">
            <div style="width: 200px;display: flex;align-items: center;padding-left: 15px">
                <img style="width: 40px" src="@/assets/tb.png" alt="">
                <span style="font-size: 24px;color: white;margin-left: 5px">后台管理系统</span>
            </div>
            <div style="flex: 1"></div>
            <div style="width: fit-content;display: flex;align-items: center;padding-right: 10px">
                <img src="https://cube.elemecdn.com/3/7c/3ea6beec64369c2642b92c6726f1epng.png" alt=""
                    style="width: 40px;height: 40px">
                <span style="color: white;margin-left: 5px">丽丽猫</span>
            </div>
        </div>
        <!-- 下面区域 -->
        <div style="display: flex">
            <!-- 左侧导航菜单栏 -->
            <div style="width: 200px;border-right: 1px solid #ddd;min-height: calc(100vh-60px)">
                <el-menu router :default-active="currentPath" :default-openeds="['1']" style="border: 0">
                    <el-menu-item index="/manager/home">
                        <el-icon>
                            <House />
                        </el-icon>
                        系统首页
                    </el-menu-item>
                    <el-menu-item index="/manager/data">
                        <el-icon>
                            <DataAnalysis />
                        </el-icon>
                        数据统计
                    </el-menu-item>
                    <el-sub-menu index="1">
                        <template #title>
                            <el-icon>
                                <User />
                            </el-icon>
                            <span>用户管理</span>
                        </template>
                        <el-menu-item>管理员信息</el-menu-item>
                        <el-menu-item>普通用户信息</el-menu-item>
                    </el-sub-menu>
                    <el-menu-item index="/manager/home">
                        <el-icon>
                            <UserFilled />
                        </el-icon>
                        个人信息
                    </el-menu-item>
                    <el-menu-item index="/manager/home">
                        <el-icon>
                            <SwitchButton />
                        </el-icon>
                        退出登录
                    </el-menu-item>
                </el-menu>
            </div>
            <!-- 右侧主体区域 -->
            <div style="flex: 1;width: 0;background-color: #f5f7ff;padding: 10px">
                <RouterView />
            </div>
        </div>
    </div>
</template>

<script setup>
import { DataAnalysis, InfoFilled, SwitchButton, User } from '@element-plus/icons-vue';
</script>

<style scoped>
.el-menu .is-active {
    background-color: #e6ecf7 !important;
}
</style>

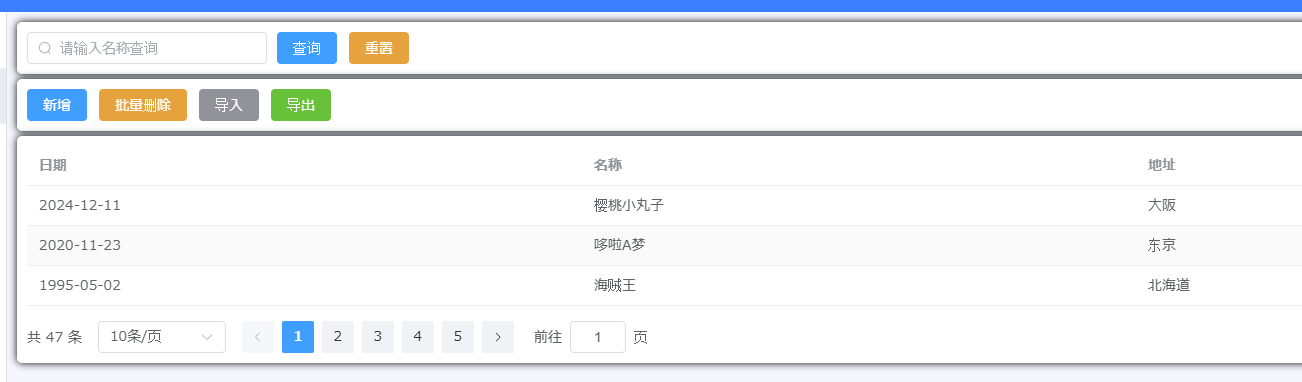

五：重新编写Data页面

<template>
    <div>
        <div class="card" style="margin-bottom: 5px">
            <el-input style="width: 240px;margin-right: 10px" v-model="data.name" placeholder="请输入名称查询"
                prefix-icon="Search"></el-input>
            <el-button type="primary">查询</el-button>
            <el-button type="warning">重置</el-button>
        </div>
        <div class="card" style="margin-bottom: 5px">
            <el-button type="primary">新增</el-button>
            <el-button type="warning">批量删除</el-button>
            <el-button type="info">导入</el-button>
            <el-button type="success">导出</el-button>
        </div>
        <div class="card" style="margin-bottom: 5px">
            <el-table :data="data.tableData" stripe>
                <el-table-column label="日期" prop="date" />
                <el-table-column label="名称" prop="name" />
                <el-table-column label="地址" prop="address" />
            </el-table>
            <div style="margin-top: 15px">
                <el-pagination v-model:current-page="data.pageNum" v-model:page-size="data.pageSize"
                    :page-sizes="[5, 10, 15, 20]" background layout="total,sizes,prev,pager,next,jumper"
                    :total="data.total" />
            </div>
        </div>
    </div>
</template>

<script setup>
import { reactive } from 'vue';
import { Search } from '@element-plus/icons-vue';
const data = reactive({
    name: null,
    tableData: [
        { id: 1, date: '2024-12-11', name: '樱桃小丸子', address: '大阪' },
        { id: 2, date: '2020-11-23', name: '哆啦A梦', address: '东京' },
        { id: 3, date: '1995-05-02', name: '海贼王', address: '北海道' },
    ],
    pageNum: 1,
    pageSize: 10,
    total: 47
})
</script>

<style scoped>
.card {
    background-color: white;
    padding: 10px;
    border-radius: 5px;
    box-shadow: 0 0 8px rgba(0, 0, 0, 12);
}
</style>


六： CSS 样式表(#global.css)

定义了 HTML 页面中 body 和 .card 两个部分的样式

body{
    margin: 0;
    padding: 0;
    font-size: 14px;
    color: #333;
}

.card{
    background-color: white;
    padding: 10px;
    border-radius: 5px;
    box-shadow: 0 0 8px rgba(0, 0 0, 12);
}

七：路由

import { createRouter, createWebHistory } from 'vue-router'

const router = createRouter({
  history: createWebHistory(import.meta.env.BASE_URL),
  routes: [
    {path: '/', redirect: '/test'},
    {path: '/manager', component:() => import('../views/Manager.vue'),children:[
      {path: 'home', name: 'home',meta:{title:'主页'},component:() => import('../views/Home.vue')},
      {path: 'data', name: 'data', meta:{title:'数据展示页面'},component:() => import('../views/Data.vue')},
    ]},
    {path: '/404', name: '404', meta:{title:'404找不到页面'},component:() => import('../views/404.vue')},
    {path: '/:pathMatch(.*)', redirect:'/404'}
  ]
})

router.beforeEach((to,from,next) => {
   document.title = to.meta.title
   next()  // 必须调用这个函数才能实现跳转
})

export default router
