@EarthSimilarityIndex(EarthSimilarityIndex 地球類似性指標)

MSYS2 で OpenCV.js をビルドする / How to build OpenCV.js on MSYS2

Last updated at Posted at 2019-10-31

#　無　保　証　で　す / Use this article at your own risk
当方執筆の技術情報に関するライセンス、免責事項、禁止事項

This article is licensed under Creative Commons — Attribution 4.0 International — CC BY 4.0
Creative Commons — Attribution 4.0 International — CC BY 4.0

概要 / Summary

やっと MSYS2 上で OpenCV.js のビルドに成功したのです。すごいでしょう。

I've finally built OpenCV.js on MSYS2! YEAAAAH!

環境 / Environment

Emscripten の設定 / Setup Emscripten

MSYS サブシステムから / on MSYS Subsystem

on_MSYS_Subsystem
# Install build dependencies of OpenCV.js
pacman -Syuu
pacman -S base-devel msys2-devel mingw-w64-x86_64-toolchain mingw-w64-x86_64-cmake mingw-w64-x86_64-python2 mingw-w64-x86_64-python3 git

# install nano and nano syntax highlighting if needed
pacman -S nano nano-syntax-highlighting-git
cat /usr/share/nano-syntax-highlighting/nanorc.sample | xargs -0 echo >> ~/.nanorc

  • 構築依存に git を書き忘れていました。ごめんね。

  • Sorry I've forgot the package "git". You need to install git on your MSYS2.

気をつけて / CAUTION

ccache が入っていると OpenCV.js のビルドプロセスがコケます。

Do NOT install any "ccache" packages, or You'll fail your building process of OpenCV.js.

on_MSYS_Subsystem
# remove ccache
pacman -R ccache
pacman -R mingw-w64-i686-ccache
pacman -R mingw-w64-x86_64-ccache

MinGW64 サブシステムから / on MinGW64 Subsystem

作業ディレクトリを作成する / Making working directory

on_MinGW64_Subsystem
cd
mkdir -p Downloads/Emscripten
cd Downloads/Emscripten

# Get the emsdk repo
git clone https://github.com/emscripten-core/emsdk.git

# Enter that directory
cd emsdk

# Fetch the latest version of the emsdk (not needed the first time you clone)
git pull

出典 / quoted from

Download and install — Emscripten 1.38.47 documentation
https://emscripten.org/docs/getting_started/downloads.html

PowerShell から / on PowerShell

新規に PowerShell を開き、以下のコマンドを実行します。

Open new PowerShell window, and run below commands.

on_PowerShell
cd C:\msys64\home\$env:USERNAME\Downloads\Emscripten\emsdk
.\emsdk.ps1 install latest
exit

  • セキュリティ警告が出る場合は Execution Policy を適宜変更して下さい。

  • If you've got a security warning, you may need to change the execution policy of PowerShell.

関連文献 / related documents

Set-ExecutionPolicy - Microsoft Docs - google 翻訳
https://translate.google.co.jp/translate?sl=en&tl=ja&u=https%3A%2F%2Fdocs.microsoft.com%2Fen-us%2Fpowershell%2Fmodule%2Fmicrosoft.powershell.security%2Fset-executionpolicy%3Fview%3Dpowershell-6

Set-ExecutionPolicy - Microsoft Docs
https://docs.microsoft.com/en-us/powershell/module/microsoft.powershell.security/set-executionpolicy?view=powershell-6

MinGW64 サブシステムから / on MinGW64 Subsystem

Mintty（MinGW64 サブシステム）に戻り、以下のコマンドを実行します。

Return on Mintty (MinGW64 Subsystem), and run below commands.

on_MinGW64_Subsystem
# Make the "latest" SDK "active" for the current user. (writes ~/.emscripten file)
./emsdk activate latest

出典 / quoted from

Download and install — Emscripten 1.38.47 documentation
https://emscripten.org/docs/getting_started/downloads.html

OpenCV.js のビルド / Building OpenCV.js on MinGW64 Subsystem of MSYS2

次は OpenCV.js のビルドです。

Now, It's the time to build OpenCV.js, Yeaaah!

OpenCV（4.1.2）のソースのダウンロード / Downloading the source code archive of OpenCV (4.1.2)

on_MinGW64_Subsystem
# Make working directory
mkdir -p $HOME/Downloads/OpenCV
cd $HOME/Downloads/OpenCV
OPENCV_VERSION=4.1.2
curl -LO https://github.com/opencv/opencv/archive/$OPENCV_VERSION.tar.gz
tar zxf $OPENCV_VERSION.tar.gz
cd opencv-$OPENCV_VERSION
unset OPENCV_VERSION

platforms/js/build_js.py の書き換え / Rewriting platforms/js/build_js.py

cmake のオプションの記述領域に "-GMSYS Makefiles", の行を書き加え、あわせて make を mingw32-make に書き換えます。

Add the line "-GMSYS Makefiles", to the definition area of cmake options and replace the item make to mingw32-make

on_MinGW64_Subsystem
nano platforms/js/build_js.py

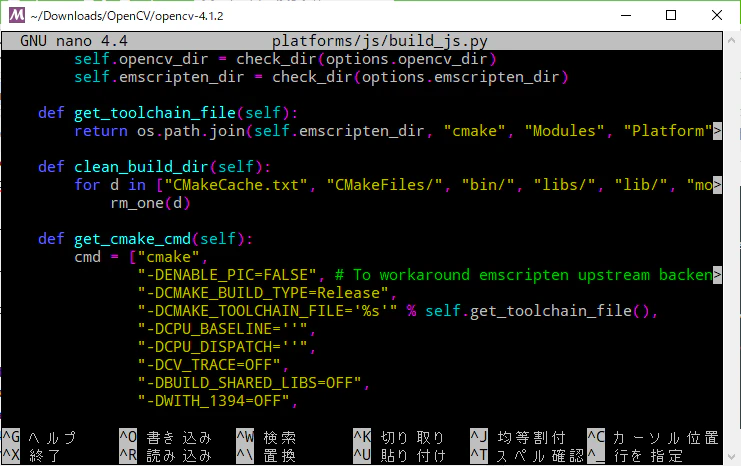

2019-10-31 (5).png

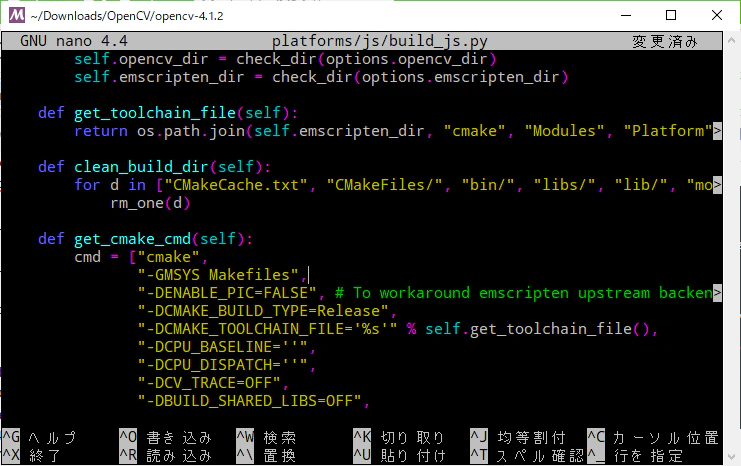

2019-10-31 (6).png

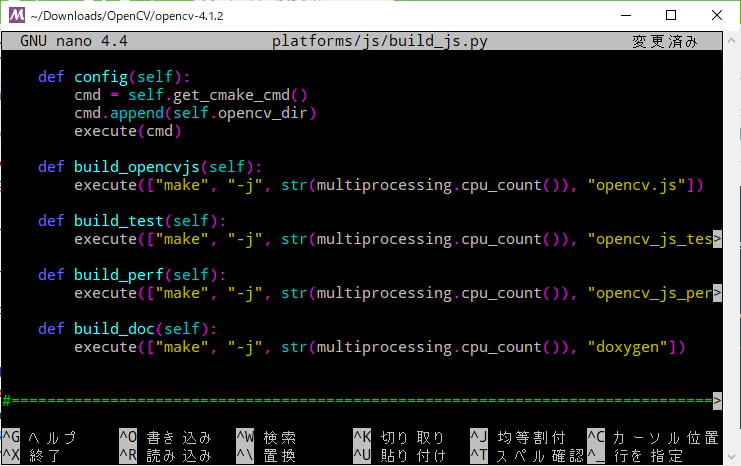

2019-10-31 (7).png

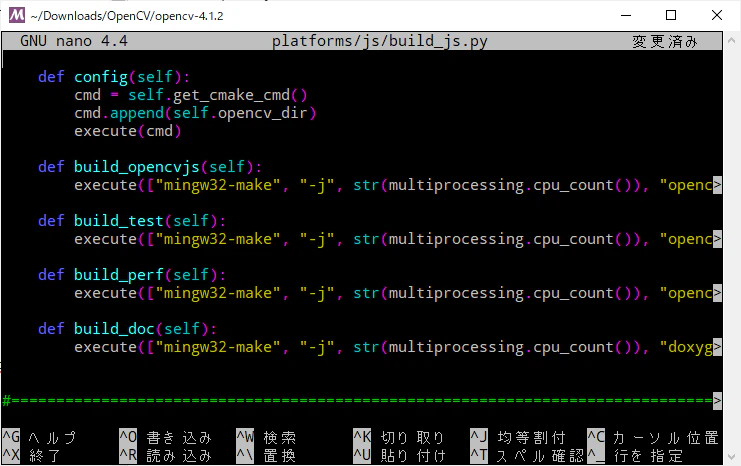

2019-10-31 (9).png

  • notepad platforms/js/build_js.py 等とすることで、nano に代えてメモ帳で build_js.py を開くことが出来ます。

  • You can rewrite build_js.py by using notepad instead of nano. Like this, notepad platforms/js/build_js.py

参考文献 / references

MSYS Makefiles — CMake 3.16.0-rc2 Documentation
https://cmake.org/cmake/help/latest/generator/MSYS%20Makefiles.html

c - How to compile makefile using MinGW? - Stack Overflow
https://stackoverflow.com/questions/11772602/how-to-compile-makefile-using-mingw

FAQ | MinGW
http://www.mingw.org/wiki/FAQ

cmake \--help
$ cmake --help
Usage

  cmake [options] <path-to-source>
  cmake [options] <path-to-existing-build>
  cmake [options] -S <path-to-source> -B <path-to-build>

Specify a source directory to (re-)generate a build system for it in the
current working directory.  Specify an existing build directory to
re-generate its build system.

Options
  -S <path-to-source>          = Explicitly specify a source directory.
  -B <path-to-build>           = Explicitly specify a build directory.
  -C <initial-cache>           = Pre-load a script to populate the cache.
  -D <var>[:<type>]=<value>    = Create or update a cmake cache entry.
  -U <globbing_expr>           = Remove matching entries from CMake cache.
  -G <generator-name>          = Specify a build system generator.
  -T <toolset-name>            = Specify toolset name if supported by
                                 generator.
  -A <platform-name>           = Specify platform name if supported by
                                 generator.
  -Wdev                        = Enable developer warnings.
  -Wno-dev                     = Suppress developer warnings.
  -Werror=dev                  = Make developer warnings errors.
  -Wno-error=dev               = Make developer warnings not errors.
  -Wdeprecated                 = Enable deprecation warnings.
  -Wno-deprecated              = Suppress deprecation warnings.
  -Werror=deprecated           = Make deprecated macro and function warnings
                                 errors.
  -Wno-error=deprecated        = Make deprecated macro and function warnings
                                 not errors.
  -E                           = CMake command mode.
  -L[A][H]                     = List non-advanced cached variables.
  --build <dir>                = Build a CMake-generated project binary tree.
  --install <dir>              = Install a CMake-generated project binary
                                 tree.
  --open <dir>                 = Open generated project in the associated
                                 application.
  -N                           = View mode only.
  -P <file>                    = Process script mode.
  --find-package               = Run in pkg-config like mode.
  --graphviz=[file]            = Generate graphviz of dependencies, see
                                 CMakeGraphVizOptions.cmake for more.
  --system-information [file]  = Dump information about this system.
  --loglevel=<ERROR|WARNING|NOTICE|STATUS|VERBOSE|DEBUG|TRACE>
                               = Set the verbosity of messages from CMake
                                 files.
  --debug-trycompile           = Do not delete the try_compile build tree.
                                 Only useful on one try_compile at a time.
  --debug-output               = Put cmake in a debug mode.
  --trace                      = Put cmake in trace mode.
  --trace-expand               = Put cmake in trace mode with variable
                                 expansion.
  --trace-source=<file>        = Trace only this CMake file/module.  Multiple
                                 options allowed.
  --warn-uninitialized         = Warn about uninitialized values.
  --warn-unused-vars           = Warn about unused variables.
  --no-warn-unused-cli         = Don't warn about command line options.
  --check-system-vars          = Find problems with variable usage in system
                                 files.
  --help,-help,-usage,-h,-H,/? = Print usage information and exit.
  --version,-version,/V [<f>]  = Print version number and exit.
  --help-full [<f>]            = Print all help manuals and exit.
  --help-manual <man> [<f>]    = Print one help manual and exit.
  --help-manual-list [<f>]     = List help manuals available and exit.
  --help-command <cmd> [<f>]   = Print help for one command and exit.
  --help-command-list [<f>]    = List commands with help available and exit.
  --help-commands [<f>]        = Print cmake-commands manual and exit.
  --help-module <mod> [<f>]    = Print help for one module and exit.
  --help-module-list [<f>]     = List modules with help available and exit.
  --help-modules [<f>]         = Print cmake-modules manual and exit.
  --help-policy <cmp> [<f>]    = Print help for one policy and exit.
  --help-policy-list [<f>]     = List policies with help available and exit.
  --help-policies [<f>]        = Print cmake-policies manual and exit.
  --help-property <prop> [<f>] = Print help for one property and exit.
  --help-property-list [<f>]   = List properties with help available and
                                 exit.
  --help-properties [<f>]      = Print cmake-properties manual and exit.
  --help-variable var [<f>]    = Print help for one variable and exit.
  --help-variable-list [<f>]   = List variables with help available and exit.
  --help-variables [<f>]       = Print cmake-variables manual and exit.

Generators

The following generators are available on this platform (* marks default):
* Visual Studio 16 2019        = Generates Visual Studio 2019 project files.
                                 Use -A option to specify architecture.
  Visual Studio 15 2017 [arch] = Generates Visual Studio 2017 project files.
                                 Optional [arch] can be "Win64" or "ARM".
  Visual Studio 14 2015 [arch] = Generates Visual Studio 2015 project files.
                                 Optional [arch] can be "Win64" or "ARM".
  Visual Studio 12 2013 [arch] = Generates Visual Studio 2013 project files.
                                 Optional [arch] can be "Win64" or "ARM".
  Visual Studio 11 2012 [arch] = Generates Visual Studio 2012 project files.
                                 Optional [arch] can be "Win64" or "ARM".
  Visual Studio 10 2010 [arch] = Generates Visual Studio 2010 project files.
                                 Optional [arch] can be "Win64" or "IA64".
  Visual Studio 9 2008 [arch]  = Generates Visual Studio 2008 project files.
                                 Optional [arch] can be "Win64" or "IA64".
  Borland Makefiles            = Generates Borland makefiles.
  NMake Makefiles              = Generates NMake makefiles.
  NMake Makefiles JOM          = Generates JOM makefiles.
  MSYS Makefiles               = Generates MSYS makefiles.
  MinGW Makefiles              = Generates a make file for use with
                                 mingw32-make.
  Unix Makefiles               = Generates standard UNIX makefiles.
  Green Hills MULTI            = Generates Green Hills MULTI files
                                 (experimental, work-in-progress).
  Ninja                        = Generates build.ninja files.
  Watcom WMake                 = Generates Watcom WMake makefiles.
  CodeBlocks - MinGW Makefiles = Generates CodeBlocks project files.
  CodeBlocks - NMake Makefiles = Generates CodeBlocks project files.
  CodeBlocks - NMake Makefiles JOM
                               = Generates CodeBlocks project files.
  CodeBlocks - Ninja           = Generates CodeBlocks project files.
  CodeBlocks - Unix Makefiles  = Generates CodeBlocks project files.
  CodeLite - MinGW Makefiles   = Generates CodeLite project files.
  CodeLite - NMake Makefiles   = Generates CodeLite project files.
  CodeLite - Ninja             = Generates CodeLite project files.
  CodeLite - Unix Makefiles    = Generates CodeLite project files.
  Sublime Text 2 - MinGW Makefiles
                               = Generates Sublime Text 2 project files.
  Sublime Text 2 - NMake Makefiles
                               = Generates Sublime Text 2 project files.
  Sublime Text 2 - Ninja       = Generates Sublime Text 2 project files.
  Sublime Text 2 - Unix Makefiles
                               = Generates Sublime Text 2 project files.
  Kate - MinGW Makefiles       = Generates Kate project files.
  Kate - NMake Makefiles       = Generates Kate project files.
  Kate - Ninja                 = Generates Kate project files.
  Kate - Unix Makefiles        = Generates Kate project files.
  Eclipse CDT4 - NMake Makefiles
                               = Generates Eclipse CDT 4.0 project files.
  Eclipse CDT4 - MinGW Makefiles
                               = Generates Eclipse CDT 4.0 project files.
  Eclipse CDT4 - Ninja         = Generates Eclipse CDT 4.0 project files.
  Eclipse CDT4 - Unix Makefiles= Generates Eclipse CDT 4.0 project files.

環境変数の設定 / Setting environmental variables

on_MinGW64_Subsystem
# set variables for Emscripten
source $HOME/Downloads/Emscripten/emsdk/emsdk_env.sh

# set variable "EMSCRIPTEN"
export $(grep EMSCRIPTEN_ROOT $EM_CONFIG | sed -e s/EMSCRIPTEN_ROOT/EMSCRIPTEN/ -e s/\ //g -e s/\'//g)

出典 / quoted from

Download and install — Emscripten 1.38.47 documentation
https://emscripten.org/docs/getting_started/downloads.html

関連文献 / related documents

Sed - An Introduction and Tutorial
https://www.grymoire.com/Unix/Sed.html

sed コマンド | コマンドの使い方(Linux) | hydroculのメモ
https://hydrocul.github.io/wiki/commands/sed.html

OpenCV.js の構築 / Building OpenCV.js

on_MinGW64_Subsystem
python2.7 platforms/js/build_js.py build_js --build_test

参考文献 / references

OpenCV: Build OpenCV.js
https://docs.opencv.org/master/d4/da1/tutorial_js_setup.html

Error building openCV.js - OpenCV Q&A Forum
https://answers.opencv.org/question/192715/error-building-opencvjs/

msys2でopenCVが使えない - プログラマ専用SNS ミクプラ
https://dixq.net/forum/viewtopic.php?t=20501

OpenCV.js のテスト / Testing OpenCV.js

HTTPサーバを立ち上げます。

Launch a HTTP server.

on_MinGW64_Subsystem
cd build_js/bin
python3 -m http.server 8080

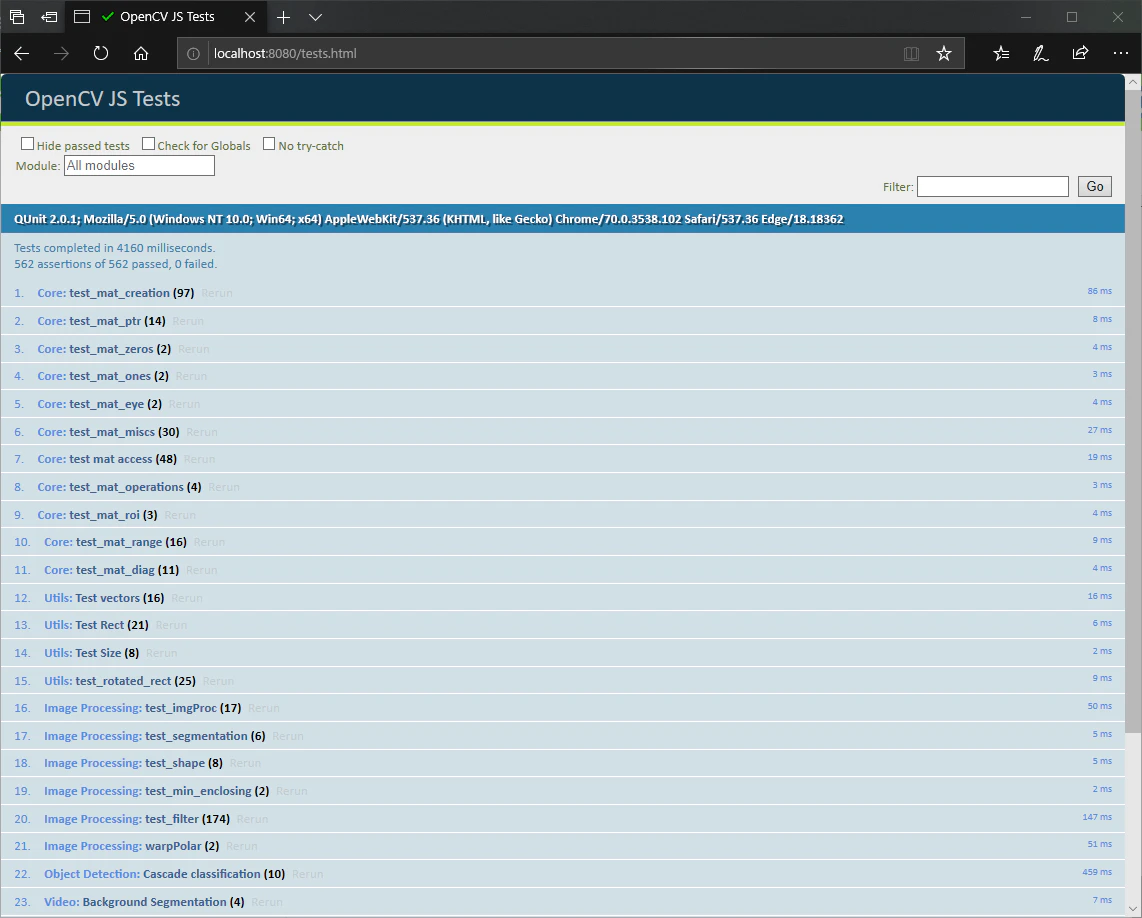

立ち上げ後、ウェブブラウザで http://localhost:8080/tests.html を開きます。

Then, open http://localhost:8080/tests.html from a web-browser.

2019-10-31 (10).png

上手に焼けました。

Well done!!

参考文献 / references

pythonでローカルwebサーバを立ち上げる - Qiita
https://qiita.com/okhrn/items/4d3c74563154f191ba16

http.server --- HTTP サーバ — Python 3.7.5 ドキュメント
https://docs.python.org/ja/3.7/library/http.server.html

http.server — HTTP servers — Python 3.7.5 documentation
https://docs.python.org/3.7/library/http.server.html

1
2
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
1
2

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
