Scene View のレンダリングをGame View に合わせる

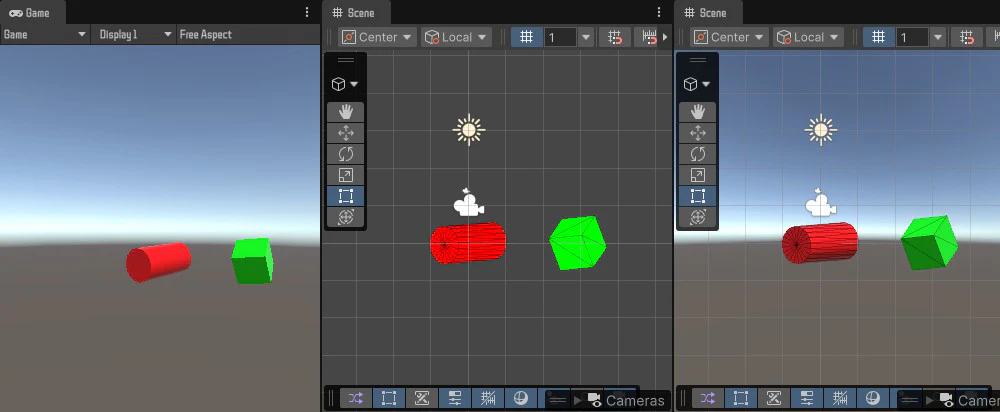

2D/3Dのシーンを行ったり来たりするような場合、SceneViewはデフォルトのレンダリングのままでGameのセッティングが反映されません。
そんな時はEditorフォルダに下記のスクリプトを用意し、メニューからTools＞SetSceneViewRendererTools＞を選択することで、SceneViewのレンダリングをGameViewに合わせることができます。

SceneViewRendererSwitcher.cs

using UnityEditor;
using UnityEngine;
using UnityEngine.Rendering;
using UnityEngine.Rendering.Universal;

public static class SceneViewRendererSwitcher
{
    private const string PipelineAssetPath = "Assets/Settings/UniversalRP.asset";
    private const string UrpSceneViewLimitationMessage = "[SetSceneViewRenderer] URP limitation: SceneView always uses URP default renderer. Switching default renderer index to reflect change in SceneView.";

    [MenuItem("Tools/SetSceneViewRenderer/Match Main Camera Renderer", false, 10)]
    public static void MatchMainCameraRenderer()
    {
        if (!TryGetPipeline(out var pipeline))
        {
            return;
        }

        if (!TryGetMainCameraRendererIndex(pipeline, out var rendererIndex))
        {
            return;
        }

        ApplySceneViewRendererIndex(pipeline, rendererIndex);
    }

    [MenuItem("Tools/SetSceneViewRenderer/Choose Renderer From URP List...", false, 11)]
    public static void OpenRendererPicker()
    {
        if (!TryGetPipeline(out var pipeline))
        {
            return;
        }

        SceneViewRendererPickerWindow.Open(pipeline);
    }

    private static bool TryGetPipeline(out UniversalRenderPipelineAsset pipeline)
    {
        pipeline = AssetDatabase.LoadAssetAtPath<UniversalRenderPipelineAsset>(PipelineAssetPath);
        if (pipeline == null)
        {
            pipeline = GraphicsSettings.currentRenderPipeline as UniversalRenderPipelineAsset;
        }

        if (pipeline != null)
        {
            return true;
        }

        Debug.LogError("[SetSceneViewRenderer] Universal RP asset was not found.");
        return false;
    }

    private static bool TryGetMainCameraRendererIndex(UniversalRenderPipelineAsset pipeline, out int rendererIndex)
    {
        rendererIndex = -1;
        var camera = Camera.main;
        if (camera == null)
        {
            Debug.LogError("[SetSceneViewRenderer] Main Camera was not found.");
            return false;
        }

        var cameraData = camera.GetComponent<UniversalAdditionalCameraData>();
        if (cameraData == null)
        {
            Debug.LogWarning("[SetSceneViewRenderer] Main Camera has no UniversalAdditionalCameraData. Using URP default renderer.");
            return TryGetDefaultRendererIndex(pipeline, out rendererIndex);
        }

        var cameraSo = new SerializedObject(cameraData);
        var cameraRendererIndex = cameraSo.FindProperty("m_RendererIndex");
        if (cameraRendererIndex == null)
        {
            Debug.LogWarning("[SetSceneViewRenderer] Main Camera renderer override property was not found. Using URP default renderer.");
            return TryGetDefaultRendererIndex(pipeline, out rendererIndex);
        }

        rendererIndex = cameraRendererIndex.intValue;
        if (rendererIndex < 0 || !IsRendererIndexValid(pipeline, rendererIndex))
        {
            if (TryGetRendererIndexFromCurrentRenderer(pipeline, cameraData, out var resolvedIndex))
            {
                rendererIndex = resolvedIndex;
                return true;
            }

            return TryGetDefaultRendererIndex(pipeline, out rendererIndex);
        }

        return true;
    }

    private static bool TryGetDefaultRendererIndex(UniversalRenderPipelineAsset pipeline, out int rendererIndex)
    {
        rendererIndex = 0;
        var pipelineSo = new SerializedObject(pipeline);
        var defaultIndex = pipelineSo.FindProperty("m_DefaultRendererIndex");
        if (defaultIndex == null)
        {
            Debug.LogError("[SetSceneViewRenderer] URP default renderer index was not found.");
            return false;
        }

        rendererIndex = defaultIndex.intValue;
        return IsRendererIndexValid(pipeline, rendererIndex);
    }

    internal static void ApplySceneViewRendererIndex(UniversalRenderPipelineAsset pipeline, int rendererIndex)
    {
        if (!IsRendererIndexValid(pipeline, rendererIndex))
        {
            Debug.LogError("[SetSceneViewRenderer] Invalid renderer index.");
            return;
        }

        var pipelineSo = new SerializedObject(pipeline);
        pipelineSo.Update();
        var defaultIndex = pipelineSo.FindProperty("m_DefaultRendererIndex");
        if (defaultIndex == null)
        {
            Debug.LogError("[SetSceneViewRenderer] URP default renderer index was not found.");
            return;
        }

        defaultIndex.intValue = rendererIndex;
        pipelineSo.ApplyModifiedPropertiesWithoutUndo();
        EditorUtility.SetDirty(pipeline);
        AssetDatabase.SaveAssets();

        var rendererData = GetRendererDataAtIndex(pipeline, rendererIndex);
        Debug.Log(UrpSceneViewLimitationMessage);
        Debug.Log($"[SetSceneViewRenderer] Default renderer set to index {rendererIndex}: {rendererData?.name}");

        RepaintSceneViews();
    }

    internal static bool IsRendererIndexValid(UniversalRenderPipelineAsset pipeline, int rendererIndex)
    {
        if (rendererIndex < 0)
        {
            return false;
        }

        var pipelineSo = new SerializedObject(pipeline);
        var rendererList = pipelineSo.FindProperty("m_RendererDataList");
        return rendererList != null && rendererIndex < rendererList.arraySize && rendererList.GetArrayElementAtIndex(rendererIndex).objectReferenceValue != null;
    }

    internal static string[] GetRendererNames(UniversalRenderPipelineAsset pipeline)
    {
        var pipelineSo = new SerializedObject(pipeline);
        var rendererList = pipelineSo.FindProperty("m_RendererDataList");
        if (rendererList == null || rendererList.arraySize == 0)
        {
            return new[] { "No renderers" };
        }

        var names = new string[rendererList.arraySize];
        for (var i = 0; i < rendererList.arraySize; i++)
        {
            var rendererData = rendererList.GetArrayElementAtIndex(i).objectReferenceValue as ScriptableRendererData;
            names[i] = rendererData == null ? $"{i}: Missing" : $"{i}: {rendererData.name} ({rendererData.GetType().Name})";
        }

        return names;
    }

    private static ScriptableRendererData GetRendererDataAtIndex(UniversalRenderPipelineAsset pipeline, int rendererIndex)
    {
        var pipelineSo = new SerializedObject(pipeline);
        var rendererList = pipelineSo.FindProperty("m_RendererDataList");
        if (rendererList == null || rendererIndex < 0 || rendererIndex >= rendererList.arraySize)
        {
            return null;
        }

        return rendererList.GetArrayElementAtIndex(rendererIndex).objectReferenceValue as ScriptableRendererData;
    }

    private static int GetCurrentSceneViewRendererIndex(UniversalRenderPipelineAsset pipeline)
    {
        return GetSafePipelineDefaultIndex(pipeline);
    }

    private static int GetSafePipelineDefaultIndex(UniversalRenderPipelineAsset pipeline)
    {
        return TryGetDefaultRendererIndex(pipeline, out var rendererIndex) ? rendererIndex : 0;
    }

    private static bool TryGetRendererIndexFromCurrentRenderer(UniversalRenderPipelineAsset pipeline, UniversalAdditionalCameraData cameraData, out int rendererIndex)
    {
        rendererIndex = -1;
        if (cameraData == null || cameraData.scriptableRenderer == null)
        {
            return false;
        }

        var targetRendererType = cameraData.scriptableRenderer.GetType();
        var pipelineSo = new SerializedObject(pipeline);
        var rendererList = pipelineSo.FindProperty("m_RendererDataList");
        if (rendererList == null)
        {
            return false;
        }

        for (var i = 0; i < rendererList.arraySize; i++)
        {
            var rendererData = rendererList.GetArrayElementAtIndex(i).objectReferenceValue as ScriptableRendererData;
            if (rendererData == null)
            {
                continue;
            }

            if (RendererDataMatchesRendererType(rendererData, targetRendererType))
            {
                rendererIndex = i;
                return true;
            }
        }

        return false;
    }

    private static bool RendererDataMatchesRendererType(ScriptableRendererData rendererData, System.Type rendererType)
    {
        if (rendererData == null || rendererType == null)
        {
            return false;
        }

        if (rendererData is Renderer2DData)
        {
            return rendererType.Name.Contains("Renderer2D");
        }

        if (rendererData is UniversalRendererData)
        {
            return rendererType.Name.Contains("UniversalRenderer");
        }

        return false;
    }

    private static bool TryGetSceneViews(out SceneView[] sceneViews)
    {
        sceneViews = Resources.FindObjectsOfTypeAll<SceneView>();
        if (sceneViews == null || sceneViews.Length == 0)
        {
            Debug.LogError("[SetSceneViewRenderer] No SceneView window was found.");
            return false;
        }

        return true;
    }

    private static void RepaintSceneViews()
    {
        if (!TryGetSceneViews(out var sceneViews))
        {
            return;
        }

        for (var i = 0; i < sceneViews.Length; i++)
        {
            sceneViews[i].sceneLighting = true;
            sceneViews[i].Repaint();
        }
    }

    private sealed class SceneViewRendererPickerWindow : EditorWindow
    {
        private UniversalRenderPipelineAsset pipeline;
        private string[] rendererNames;
        private int selectedIndex;

        internal static void Open(UniversalRenderPipelineAsset targetPipeline)
        {
            var window = GetWindow<SceneViewRendererPickerWindow>(true, "Set Scene View Renderer");
            window.minSize = new Vector2(520f, 90f);
            window.pipeline = targetPipeline;
            window.rendererNames = GetRendererNames(targetPipeline);
            window.selectedIndex = GetSafeSelectedIndex(targetPipeline, window.rendererNames.Length);
            window.Show();
        }

        private void OnGUI()
        {
            if (pipeline == null)
            {
                EditorGUILayout.HelpBox("Universal RP asset could not be loaded.", MessageType.Error);
                return;
            }

            EditorGUILayout.LabelField("Renderer From Assets/Settings/UniversalRP.asset", EditorStyles.boldLabel);
            selectedIndex = EditorGUILayout.Popup("Renderer", selectedIndex, rendererNames);

            using (new EditorGUILayout.HorizontalScope())
            {
                if (GUILayout.Button("Apply"))
                {
                    ApplySceneViewRendererIndex(pipeline, selectedIndex);
                    Close();
                }

                if (GUILayout.Button("Cancel"))
                {
                    Close();
                }
            }
        }

        private static int GetSafeSelectedIndex(UniversalRenderPipelineAsset targetPipeline, int maxLength)
        {
            var index = GetCurrentSceneViewRendererIndex(targetPipeline);
            if (index < 0 || index >= maxLength)
            {
                return 0;
            }

            return index;
        }
    }
}
