GX Works 3 DECO 命令で歩進制御を書いてみる

0
Posted at

はじめに

ラダーの勉強に歩進制御を書いてみました。

改訂履歴

  • 2026/05/03 : 初版公開。

本文

1. 環境

  • Windows 11 Home
  • 三菱電機 MELSOFT GX Works 3

2. 実装

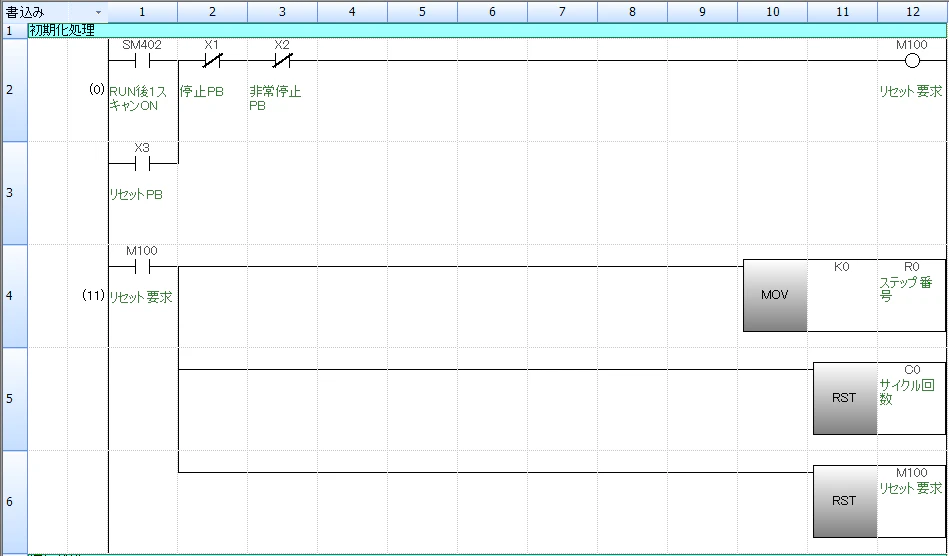

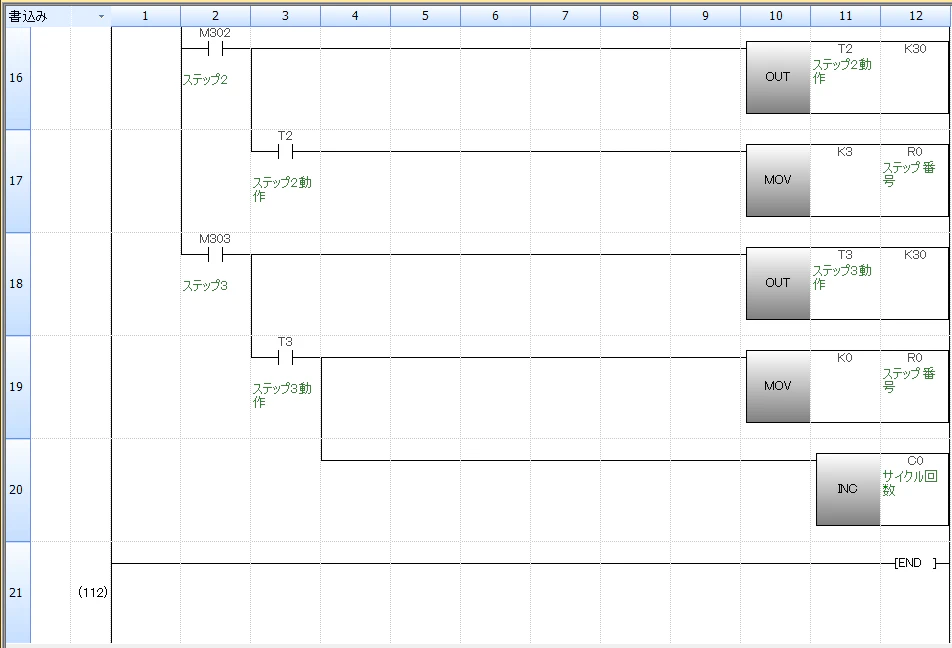

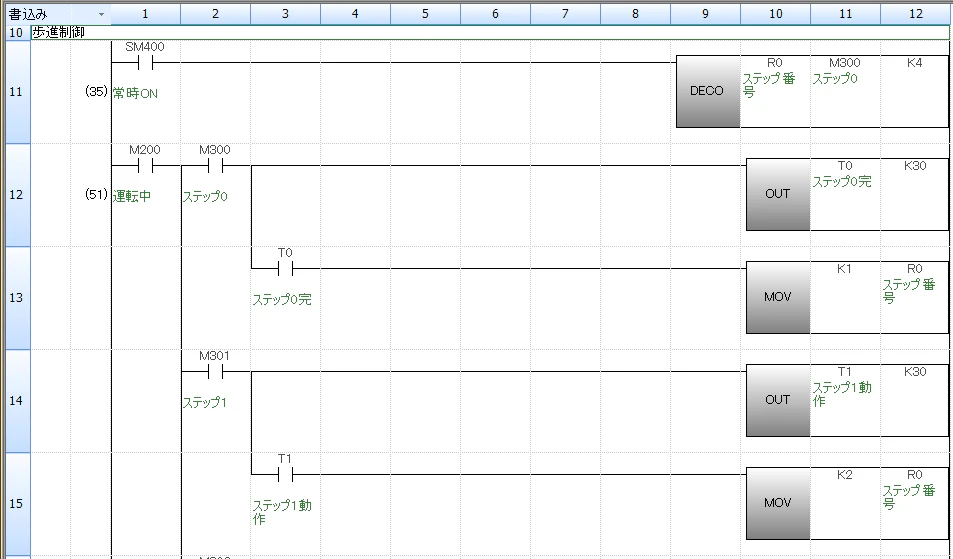

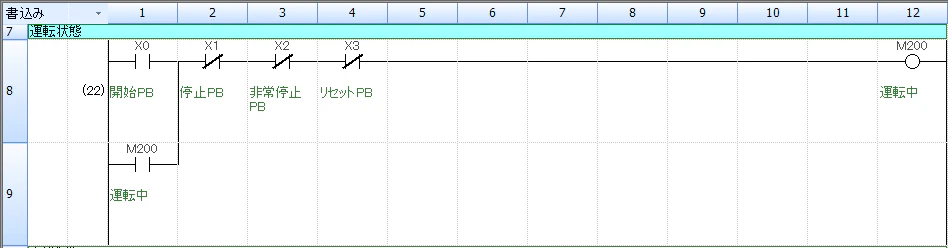

開始 PB で動作が開始し 3 秒毎に工程(ステップ)が進みます。最終工程が終了するとサイクル回数を + 1 して、最初の工程から再び開始します。非常停止 PB で非常停止、リセット PB で状態をリセットします。

おわりに

PLC 屋さんを尊敬します。
