【PyTorch】学習率スケジューラごとの学習率の推移をプロットするだけ

学習率スケジューラごとの学習率の推移をプロットするだけのスクリプトです。
参考文献： https://docs.pytorch.org/docs/2.11/optim.html#how-to-adjust-learning-rate

plot.py

import torch
import matplotlib.pyplot as plt


def get_lrs(lr, n, sch_cls, sch_params):
    opt = torch.optim.SGD(torch.nn.Linear(3, 1).parameters(), lr=lr)
    sch = sch_cls(opt, **sch_params)
    lrs = [lr]
    for epoch in range(n - 1):
        opt.step()
        sch.step()
        lrs.append(sch.get_last_lr()[0])
    return lrs


def plot_lrs():
    lr = 1.0
    n = 50
    desc = {}
    fig, ax = plt.subplots()
    for sch_cls, sch_params in [
        (torch.optim.lr_scheduler.CosineAnnealingLR, {'T_max': 20}),
        (torch.optim.lr_scheduler.ExponentialLR, {'gamma': 0.95}),
        (torch.optim.lr_scheduler.MultiStepLR, {'milestones': [10, 40], 'gamma': 0.25}),
        (torch.optim.lr_scheduler.StepLR, {'step_size': 5, 'gamma': 0.8}),
        (torch.optim.lr_scheduler.LambdaLR, {'lr_lambda': lambda epoch: 0.9 ** epoch}),
    ]:
        value_to_str = lambda v: '<function>' if callable(v) else str(v)
        params_to_str = lambda params: ', '.join([f'{k}={value_to_str(v)}' for k, v in params.items()])
        key = f'{sch_cls.__name__}({params_to_str(sch_params)})'
        lrs = get_lrs(lr, n, sch_cls, sch_params)
        desc[key] = ax.plot(range(n), lrs, linewidth=3)[0]
    ax.set_xlabel('epoch')
    ax.set_ylabel('lr')
    plt.grid(axis='both', linestyle='dotted')
    plt.legend(desc.values(), desc.keys(), bbox_to_anchor=(1.05, 1), loc='upper left')
    plt.tight_layout()

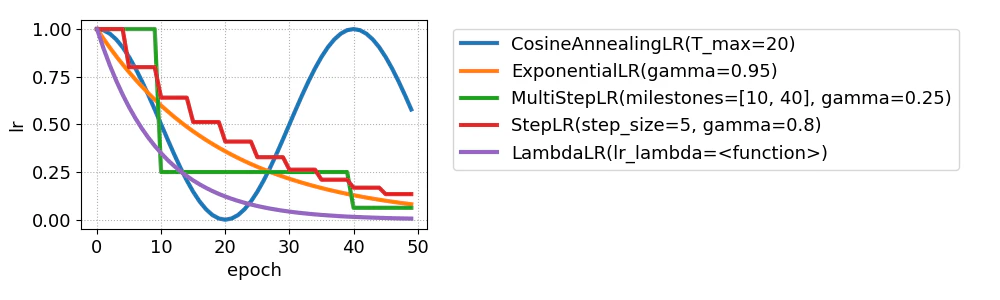

    fig.savefig('plot.png')


if __name__ == '__main__':
    with plt.rc_context({'figure.figsize': (10, 3), 'font.size': 13}):
        plot_lrs()
