Mayaのカメラを何とかしたい7 ~レンダリング範囲をトリミング~

0
Posted at

これとは逆に、　特定の部分の解像度を割り出したいなーという場面も。

全体が 960*540 だとして、この赤い部分の解像度はいくつ？


トリミング用のフレームを設置して、そこから大判と同じ方法で解像度を算出。
そのあと解像度を変更し、フレームがresolutionGateに一致するようにカメラを調整。

ここまでやってみます。

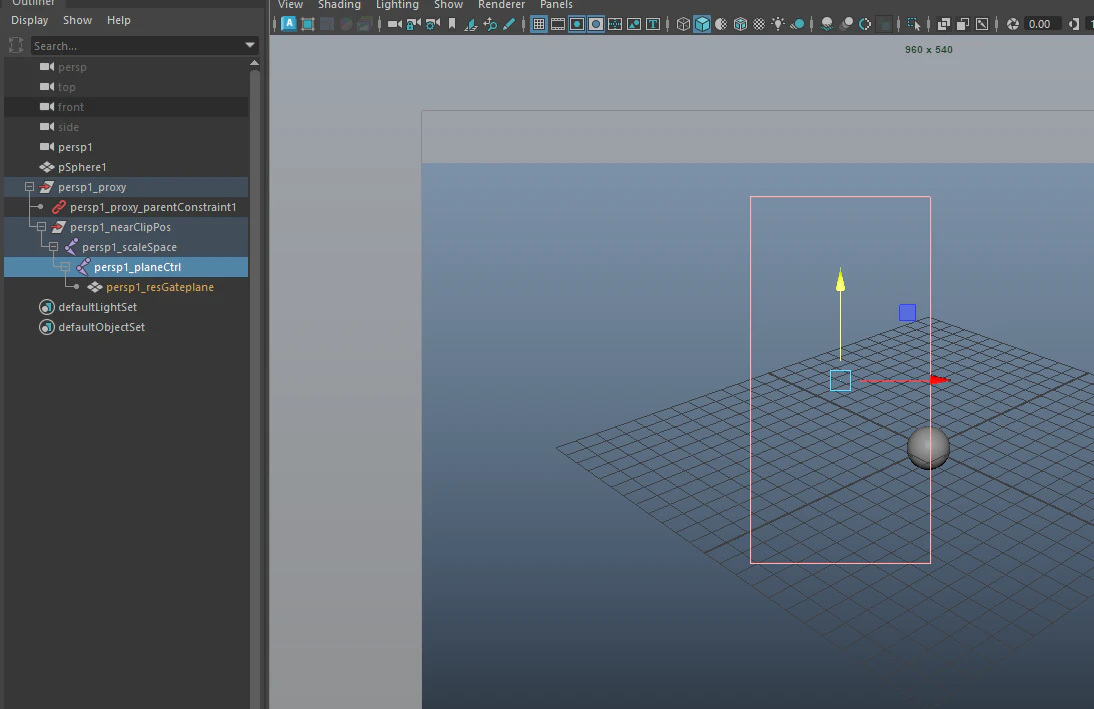

トリミング用のプレートはこんな感じで。
plateCtrl で位置を、plateでスケールを調整する感じです。


import maya.cmds as cmds
import maya.api.OpenMaya as om2

def getResGateSize(cameraName,resolutionW,resolutionH):

    sourceCamDAG = om2.MGlobal.getSelectionListByName(cameraName).getDagPath(0)
    sourceCamFn = om2.MFnCamera(sourceCamDAG)

    if cmds.getAttr(cameraName + ".filmFit") == 1:
        deviceAspectRatio = resolutionH / resolutionW
        sourceResH = sourceCamFn.horizontalFilmAperture * deviceAspectRatio
        sourceResW = sourceCamFn.horizontalFilmAperture


    elif cmds.getAttr(cameraName + ".filmFit") == 2:
        deviceAspectRatio = resolutionW / resolutionH
        sourceResH = sourceCamFn.verticalFilmAperture
        sourceResW = sourceCamFn.verticalFilmAperture * deviceAspectRatio

    return sourceResW*25.4,sourceResH*25.4

def addCameraProxyPos(cameraName):
    camProxy = cameraName + "_proxy"

    if cmds.objExists(camProxy) == False:
        cmds.createNode("transform",name = camProxy)
        cmds.parentConstraint(cameraName,camProxy)

    return camProxy

def addNearClipPos(cameraName):
    camProxy = addCameraProxyPos(cameraName)
    nearClipPoint = cameraName + "_nearClipPos"

    if cmds.objExists(nearClipPoint) == False:
        nearClipPoint = cmds.createNode("transform",name = nearClipPoint)
        cmds.parent(nearClipPoint,camProxy,r = True)

        rev = cmds.createNode("floatMath")
        cmds.setAttr(rev + ".operation",2)
        cmds.setAttr(rev + ".floatB",-1)

        cmds.connectAttr(cameraName + ".nearClipPlane",rev+".floatA" )
        cmds.connectAttr(rev + ".outFloat",nearClipPoint+".tz" )

    return nearClipPoint

def addTrimFrame(cameraName,defaultResolution):
    resolutionW = defaultResolution[0]
    resolutionH =  defaultResolution[1]

    sourceResW,sourceResH = getResGateSize(cameraName,resolutionW,resolutionH)
    nearClipPoint = addNearClipPos(cameraName)

    scaleSpace = cmds.createNode("joint",name = cameraName + "_scaleSpace")
    planeCtrl = cmds.createNode("joint",name = cameraName + "_planeCtrl")
    cmds.setAttr(scaleSpace + ".drawStyle",2)
    cmds.setAttr(planeCtrl + ".drawStyle",2)

    cmds.parent(planeCtrl,scaleSpace,a=True)
    cmds.parent(scaleSpace,nearClipPoint,r=True)

    resGatePlane = cmds.polyPlane(axis = [0,0,1],sx = 1,sy = 1,ch =False,name = cameraName + "_resGateplane")[0]
    cmds.setAttr(resGatePlane + ".template",1)

    cmds.parent(resGatePlane,planeCtrl,r=True)

    lengthRatio = cmds.createNode("floatMath")
    cmds.connectAttr(cameraName + ".nearClipPlane",lengthRatio + ".floatA")
    cmds.connectAttr(cameraName + ".focalLength",lengthRatio + ".floatB")
    cmds.setAttr(lengthRatio + ".operation",3)

    outRezGateW = cmds.createNode("floatMath")
    outRezGateH = cmds.createNode("floatMath")

    cmds.setAttr(outRezGateW + ".operation",2)
    cmds.setAttr(outRezGateH + ".operation",2)
    cmds.connectAttr(lengthRatio + ".outFloat",outRezGateW + ".floatA")
    cmds.connectAttr(lengthRatio + ".outFloat",outRezGateH + ".floatA")

    cmds.setAttr(outRezGateW + ".floatB",sourceResW)
    cmds.setAttr(outRezGateH + ".floatB",sourceResH)

    cmds.connectAttr(outRezGateW + ".outFloat",scaleSpace + ".sx")
    cmds.connectAttr(outRezGateH + ".outFloat",scaleSpace + ".sy")

    cmds.connectAttr(outRezGateW + ".outFloat",planeCtrl + ".sx")
    cmds.connectAttr(outRezGateH + ".outFloat",planeCtrl + ".sy")

    cmds.setAttr(planeCtrl + ".tz",l = True)
    cmds.setAttr(planeCtrl + ".r",l = True)
    cmds.setAttr(planeCtrl + ".s",l = True)

    cmds.setAttr(resGatePlane + ".t",l = True)
    cmds.setAttr(resGatePlane + ".r",l = True)
    cmds.setAttr(resGatePlane + ".sz",l = True)

    return resGatePlane,lengthRatio,planeCtrl,scaleSpace

select = cmds.ls(sl =True)
target = select[0]
defaultResolution = [cmds.getAttr("defaultResolution.width"),cmds.getAttr("defaultResolution.height") ]
addTrimFrame(target,defaultResolution)

設置した板の情報を取得して、
resolutionGateとの比率をだして　解像度を算出します。

import maya.cmds as cmds
import maya.api.OpenMaya as om2
import math

def getPosition(target):
    nodeType = cmds.nodeType(target)

    if nodeType == "joint" or nodeType == "transform" or nodeType == "ikHandle" or nodeType == "place3dTexture":
        # return cmds.xform(target , q =True , ws = True, t =True)
        return cmds.xform(target , q =True , ws = True, rotatePivot =True)

    elif nodeType == "mesh" or nodeType == "nurbsCurve" or nodeType == "nurbsSurface" or nodeType == "lattice":
        return cmds.xform(target , q =True , ws = True, t =True)

def getResGateSize(cameraName,resolutionW,resolutionH):

    sourceCamDAG = om2.MGlobal.getSelectionListByName(cameraName).getDagPath(0)
    sourceCamFn = om2.MFnCamera(sourceCamDAG)

    if cmds.getAttr(cameraName + ".filmFit") == 1:
        deviceAspectRatio = resolutionH / resolutionW
        sourceResH = sourceCamFn.horizontalFilmAperture * deviceAspectRatio
        sourceResW = sourceCamFn.horizontalFilmAperture

    elif cmds.getAttr(cameraName + ".filmFit") == 2:
        deviceAspectRatio = resolutionW / resolutionH
        sourceResH = sourceCamFn.verticalFilmAperture
        sourceResW = sourceCamFn.verticalFilmAperture * deviceAspectRatio
    return sourceResW*25.4,sourceResH*25.4

def getTrimResolution(cameraName,parentSpace,planeIndex=[2,3,0,1]):

    nearClipPlane = cmds.getAttr(cameraName + ".nearClipPlane")
    focalLength = cmds.getAttr(cameraName + ".focalLength")
    ratio = nearClipPlane / focalLength

    pointA = getPosition(planeName +".vtx["+str(planeIndex[0])+"]")#left-top
    pointB = getPosition(planeName +".vtx["+str(planeIndex[1])+"]")#right-top
    pointC = getPosition(planeName +".vtx["+str(planeIndex[2])+"]")#left-bot
    pointD = getPosition(planeName +".vtx["+str(planeIndex[3])+"]")#right-bot

    vectorA = om2.MVector(pointA)
    vectorB = om2.MVector(pointB)
    vectorC = om2.MVector(pointC)
    vectorD = om2.MVector(pointD)

    resolutionW = cmds.getAttr("defaultResolution.width")
    resolutionH = cmds.getAttr("defaultResolution.height")
    resGateW,resGateH = getResGateSize(cameraName,resolutionW,resolutionH)

    width = (vectorB - vectorA).length()
    height = (vectorC - vectorA).length()

    ratioW = width / (resGateW*ratio)
    ratioH = height / (resGateH*ratio)

    trimedResolution = [resolutionW * ratioW, resolutionH * ratioH]

    if trimedResolution[0] % 8 != 0:
        trimedResolution[0] = trimedResolution[0] + (8 - trimedResolution[0] % 8)

    if trimedResolution[1] % 8 != 0:
        trimedResolution[1] = trimedResolution[1] + (8 - trimedResolution[1] % 8)

    return trimedResolution

##-----------------------------------------------------------------------------------------------------------
cameraName = "persp1"
parentSpace = "persp1_nearClipPos"
planeName = "persp1_resGateplane"
planeIndex = [2,3,0,1] ##left-top/right-top/left-bot/right-bot

trimedResolution = getTrimResolution(cameraName,parentSpace,planeIndex=[2,3,0,1])

# Result: [176.0, 352.0]

合ってそうなきはしますね

つづけて、カメラの filmOffsetとpostScaleで切り抜きフレームにresolutionGateが合うようにします。


import maya.cmds as cmds
import maya.api.OpenMaya as om2
import math

def getPosition(target):
    nodeType = cmds.nodeType(target)

    if nodeType == "joint" or nodeType == "transform" or nodeType == "ikHandle" or nodeType == "place3dTexture":
        # return cmds.xform(target , q =True , ws = True, t =True)
        return cmds.xform(target , q =True , ws = True, rotatePivot =True)

    elif nodeType == "mesh" or nodeType == "nurbsCurve" or nodeType == "nurbsSurface" or nodeType == "lattice":
        return cmds.xform(target , q =True , ws = True, t =True)

def getResGateSize(cameraName,resolutionW,resolutionH):

    sourceCamDAG = om2.MGlobal.getSelectionListByName(cameraName).getDagPath(0)
    sourceCamFn = om2.MFnCamera(sourceCamDAG)

    if cmds.getAttr(cameraName + ".filmFit") == 1:
        deviceAspectRatio = resolutionH / resolutionW
        sourceResH = sourceCamFn.horizontalFilmAperture * deviceAspectRatio
        sourceResW = sourceCamFn.horizontalFilmAperture

    elif cmds.getAttr(cameraName + ".filmFit") == 2:
        deviceAspectRatio = resolutionW / resolutionH
        sourceResH = sourceCamFn.verticalFilmAperture
        sourceResW = sourceCamFn.verticalFilmAperture * deviceAspectRatio
    return sourceResW*25.4,sourceResH*25.4

def getTrimResolution(cameraName,parentSpace,planeIndex=[2,3,0,1]):

    nearClipPlane = cmds.getAttr(cameraName + ".nearClipPlane")
    focalLength = cmds.getAttr(cameraName + ".focalLength")
    ratio = nearClipPlane / focalLength

    pointA = getPosition(planeName +".vtx["+str(planeIndex[0])+"]")#left-top
    pointB = getPosition(planeName +".vtx["+str(planeIndex[1])+"]")#right-top
    pointC = getPosition(planeName +".vtx["+str(planeIndex[2])+"]")#left-bot
    pointD = getPosition(planeName +".vtx["+str(planeIndex[3])+"]")#right-bot

    vectorA = om2.MVector(pointA)
    vectorB = om2.MVector(pointB)
    vectorC = om2.MVector(pointC)
    vectorD = om2.MVector(pointD)

    resolutionW = cmds.getAttr("defaultResolution.width")
    resolutionH = cmds.getAttr("defaultResolution.height")
    resGateW,resGateH = getResGateSize(cameraName,resolutionW,resolutionH)

    width = (vectorB - vectorA).length()
    height = (vectorC - vectorA).length()

    ratioW = width / (resGateW*ratio)
    ratioH = height / (resGateH*ratio)

    trimedResolution = [resolutionW * ratioW, resolutionH * ratioH]

    if trimedResolution[0] % 8 != 0:
        trimedResolution[0] = trimedResolution[0] + (8 - trimedResolution[0] % 8)

    if trimedResolution[1] % 8 != 0:
        trimedResolution[1] = trimedResolution[1] + (8 - trimedResolution[1] % 8)

    return trimedResolution

def adjustFrame(cameraName,planeName,parentSpace,resolutionW,resolutionH,planeIndex):
    nearClipPlane = cmds.getAttr(cameraName + ".nearClipPlane")
    focalLength = cmds.getAttr(cameraName + ".focalLength")
    resGateW,resGateH = getResGateSize(cameraName,resolutionW,resolutionH)
    ratio = nearClipPlane / focalLength

    ##filmOffset
    matrixP = om2.MMatrix(cmds.getAttr(parentSpace+".worldInverseMatrix[0]"))
    matrixA = om2.MMatrix(cmds.getAttr(planeName+".worldMatrix[0]"))
    localPositionA = om2.MTransformationMatrix(matrixA*matrixP).translation(om2.MSpace.kWorld)

    offsetX = ((localPositionA[0]/(resGateW*ratio))*resGateW) / 25.4
    offsetY = ((localPositionA[1]/(resGateH*ratio))*resGateH) / 25.4

    curOffsetX = cmds.getAttr(cameraName + ".horizontalFilmOffset")
    curOffsetY = cmds.getAttr(cameraName + ".verticalFilmOffset")

    cmds.setAttr(cameraName + ".horizontalFilmOffset",curOffsetX + offsetX)
    cmds.setAttr(cameraName + ".verticalFilmOffset",curOffsetY + offsetY)

    ##postScale
    pointA = getPosition(planeName +".vtx["+str(planeIndex[0])+"]")#left-top
    pointB = getPosition(planeName +".vtx["+str(planeIndex[1])+"]")#right-top
    width = (om2.MVector(pointB) - om2.MVector(pointA)).length()

    ratioW = width / (resGateW*ratio)

    curPostScale = cmds.getAttr(cameraName + ".postScale")
    cmds.setAttr(cameraName + ".postScale",curPostScale*(1.0/ratioW))

##---------------------------------------------------------------------------------------------
cameraName = "persp1"
parentSpace = "persp1_nearClipPos"
planeName = "persp1_resGateplane"
planeIndex = [2,3,0,1] ##left-top/right-top/left-bot/right-bot

trimedResolution = getTrimResolution(cameraName,parentSpace,planeIndex=[2,3,0,1])
cmds.setAttr("defaultResolution.width",trimedResolution[0])
cmds.setAttr("defaultResolution.height",trimedResolution[1])
cmds.setAttr("defaultResolution.deviceAspectRatio", trimedResolution[0] / trimedResolution[1])

adjustFrame(cameraName,planeName,parentSpace,trimedResolution[0],trimedResolution[1],planeIndex)

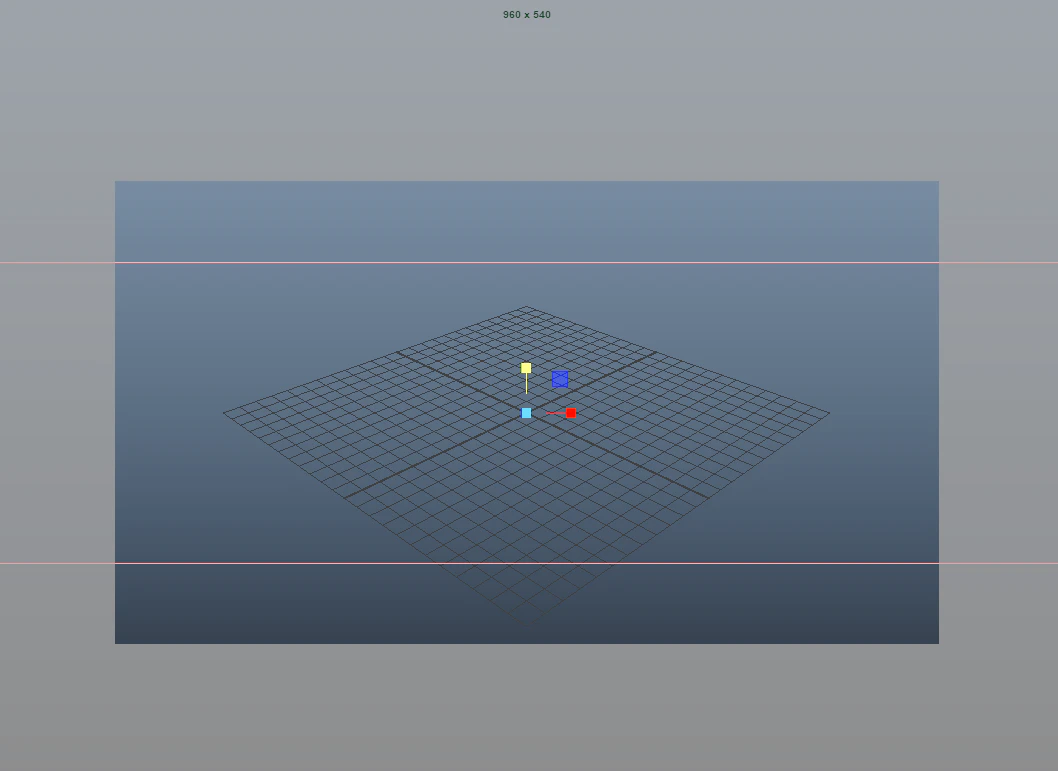

実行すると
これがー

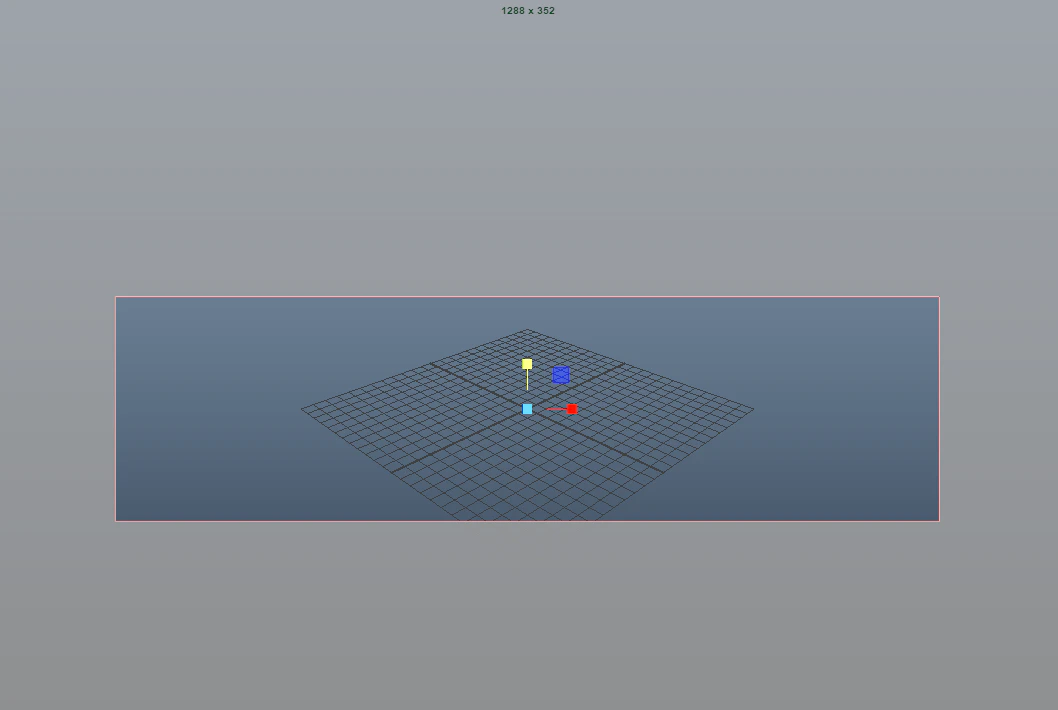

こう！
