概要
Raspberry PiでGitHub ActionsのSelf-Hosted Runnerを動かす記事です。
公式のヘルプガイドに則っています。
安全のため、必ずプライベートリポジトリで実践してください。
準備
- Raspberry Piの初期設定済み
- GitHubにリポジトリがある
環境
- Raspberry Pi 4
- Ubuntu 20.04 LTS 64bit
yukad2@raspi-tv:~$ cat /proc/device-tree/model
Raspberry Pi 4 Model B Rev 1.2y
yukad2@raspi-tv:~$ uname -a
Linux raspi-tv 5.4.0-1068-raspi #78-Ubuntu SMP PREEMPT Mon Aug 8 05:29:27 UTC 2022 aarch64 aarch64 aarch64 GNU/Linux
録画サーバを流用しているので、ホスト名がraspi-tv
になっています。
実践
準備
リポジトリのSettings>Actions>Runners>Create self-hosted runnerから
- Linux
- ARM64(32bit版のラズパイを使っている場合はARM)
を選択して、ダウンロードリンクを準備する。
ダウンロード
GitHubページのコードをコピペしながら実行してください。
yukad2@raspi-tv:~$ cd ~ # 今回はHOME下にRunnerを置きます
yukad2@raspi-tv:~$ mkdir actions-runner && cd actions-runner
yukad2@raspi-tv:~/actions-runner$ curl -o actions-runner-linux-arm64-2.301.1.tar.gz -L https://github.com/actions/runner/releases/download/v2.301.1/actions-runner-linux-arm64-2.301.1.tar.gz
yukad2@raspi-tv:~/actions-runner$ echo "6b9ba0e7296b5d613dc5aaa0ca640c16b2122a7d42e4b5906c67d9b5c8847e10 actions-runner-linux-arm64-2.301.1.tar.gz" | shasum -a 256 -c
# actions-runner-linux-arm64-2.301.1.tar.gz: OK
yukad2@raspi-tv:~/actions-runner$ tar xzf ./actions-runner-linux-arm64-2.301.1.tar.gz
設定
yukad2@raspi-tv:~/actions-runner$ ./config.sh --url URL --token TOKEN
--------------------------------------------------------------------------------
| ____ _ _ _ _ _ _ _ _ |
| / ___(_) |_| | | |_ _| |__ / \ ___| |_(_) ___ _ __ ___ |
| | | _| | __| |_| | | | | '_ \ / _ \ / __| __| |/ _ \| '_ \/ __| |
| | |_| | | |_| _ | |_| | |_) | / ___ \ (__| |_| | (_) | | | \__ \ |
| \____|_|\__|_| |_|\__,_|_.__/ /_/ \_\___|\__|_|\___/|_| |_|___/ |
| |
| Self-hosted runner registration |
| |
--------------------------------------------------------------------------------
# Authentication
√ Connected to GitHub
# Runner Registration
Enter the name of the runner group to add this runner to: [press Enter for Default] # Enter
Enter the name of runner: [press Enter for raspi-tv] raspi # 好きな名前を入れてEnter
This runner will have the following labels: 'self-hosted', 'Linux', 'ARM64'
Enter any additional labels (ex. label-1,label-2): [press Enter to skip] # Enter
√ Runner successfully added
√ Runner connection is good
# Runner settings
Enter name of work folder: [press Enter for _work] # Enter
√ Settings Saved.
yukad2@raspi-tv:~/actions-runner$ ./run.sh
√ Connected to GitHub
Current runner version: '2.301.1'
2023-02-25 08:18:40Z: Listening for Jobs
起動が確認できたらCtrl + C
で止める。
常駐化
サービス化のスクリプトまで用意されているのでそれを使います。(公式ヘルプ)
yukad2@raspi-tv:~/actions-runner$ sudo ./svc.sh install
yukad2@raspi-tv:~/actions-runner$ sudo ./svc.sh start
確認
Actionsを走らせる
リポジトリのActionsから、Simple workflow
を追加します。
コード内のruns-on
をself-hosted
に変更すると、今回追加したRunnerで実行させることができます。
# This is a basic workflow to help you get started with Actions
name: CI
# Controls when the workflow will run
on:
# Triggers the workflow on push or pull request events but only for the "main" branch
push:
branches: [ "main" ]
pull_request:
branches: [ "main" ]
# Allows you to run this workflow manually from the Actions tab
workflow_dispatch:
# A workflow run is made up of one or more jobs that can run sequentially or in parallel
jobs:
# This workflow contains a single job called "build"
build:
# The type of runner that the job will run on
runs-on: self-hosted # ubuntu-latest ここを変更
# Steps represent a sequence of tasks that will be executed as part of the job
steps:
# Checks-out your repository under $GITHUB_WORKSPACE, so your job can access it
- uses: actions/checkout@v3
# Runs a single command using the runners shell
- name: Run a one-line script
run: echo Hello, world!
# Runs a set of commands using the runners shell
- name: Run a multi-line script
run: |
echo Add other actions to build,
echo test, and deploy your project.
コミットしたら動きます。導入はここまで。
片付け
サービスの停止
yukad2@raspi-tv:~$ cd ~/actions-runner/
yukad2@raspi-tv:~/actions-runner$ sudo ./svc.sh stop
yukad2@raspi-tv:~/actions-runner$ sudo ./svc.sh uninstall
Runnerの削除

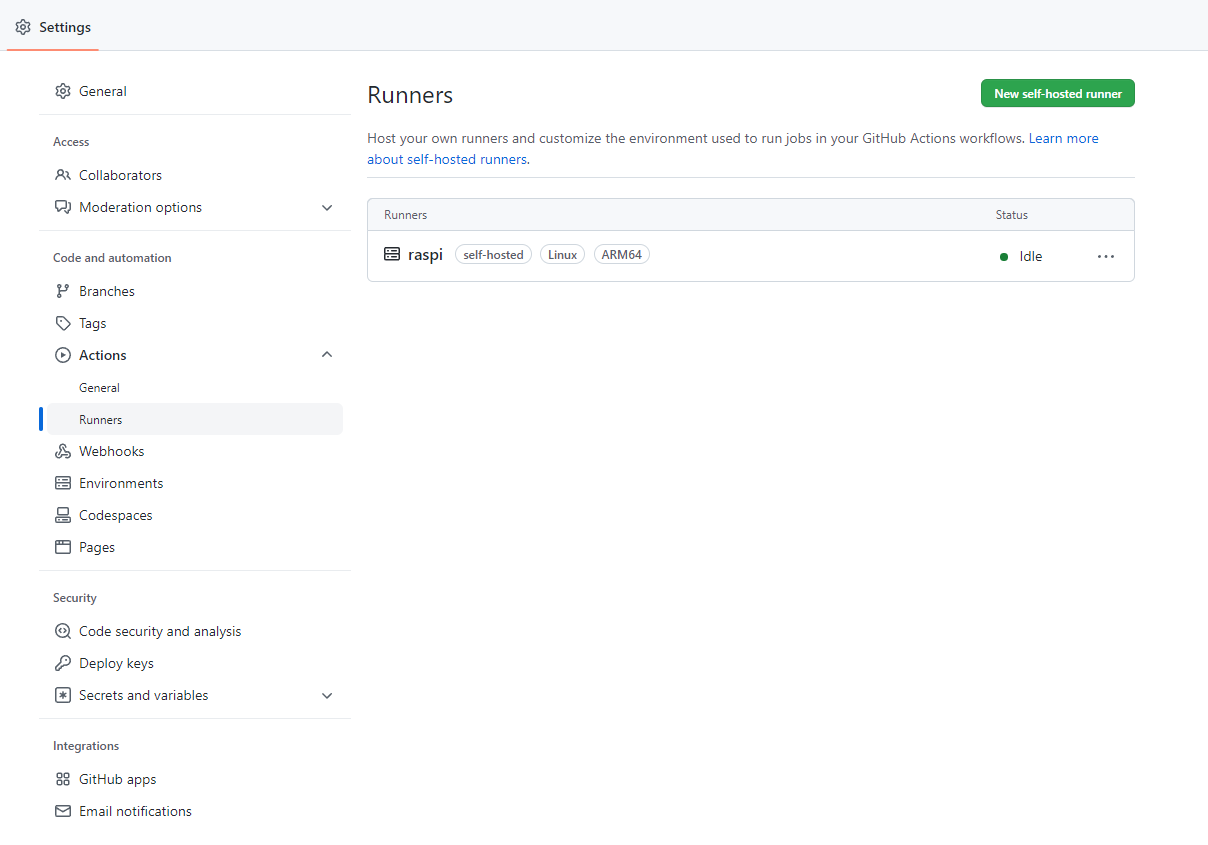

Settings>Actions>Runnersから、Removeを選択すると、削除用のコマンドラインを確認できます。
yukad2@raspi-tv:~/actions-runner$ ./config.sh remove --token TOKEN
