StoryboardのSize ClassでiPadも縦横のレイアウトを切り替える

Last updated at Posted at 2016-08-23

StoryboardのSize ClassでiPhoneの縦横のレイアウトを切り替えたい場合、Any/Anyで共通のレイアウト作って、Any/Compact横用にレイアウトを作ったりします。
が、これをiPadで動作させると、縦でも横でも共通レイアウトになってしまいます。
Size ClassではiPadの縦と横のレイアウトを分ける設定はないようです。
iPhoneとiPadで同じように縦横でレイアウトを分けたい場合、これではちょっと不都合です。

これを解決するには以下の手順を行うとうまくようです。

  1. レイアウトを分けたいViewControllerを適当なViewControllerのChildViewControllerにします。
  2. ParentViewControllerの方でUIViewController#overrideTraitCollectionForChildViewController をoverrideし、画面の向きに応じた UITraitCollection を返してあげます。
override func overrideTraitCollection(forChildViewController childViewController: UIViewController) -> UITraitCollection? { {
        let any = UITraitCollection(verticalSizeClass: .unspecified)
        let compact = UITraitCollection(verticalSizeClass: .compact)

        // landscape
        if self.view.frame.width > self.view.frame.height {
            return UITraitCollection(traitsFrom: [any, compact])
        }

        // portrait
        return UITraitCollection(traitsFrom: [any, any])
    }

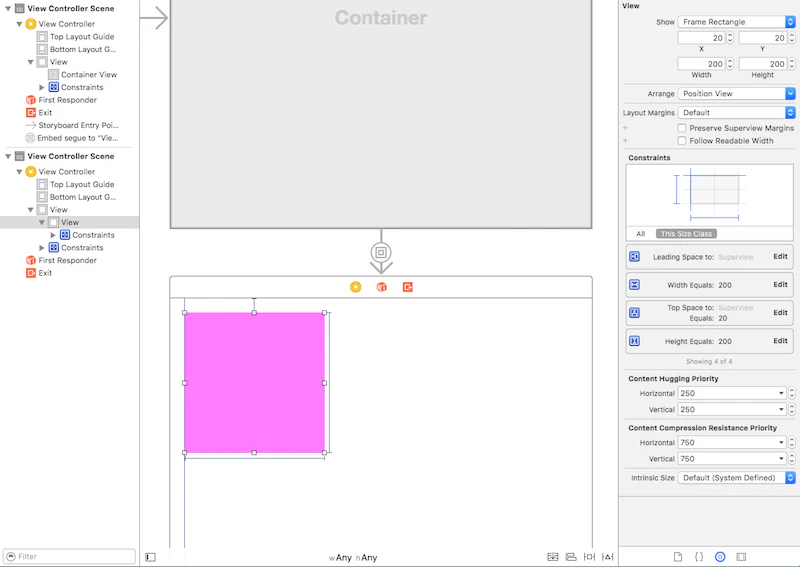

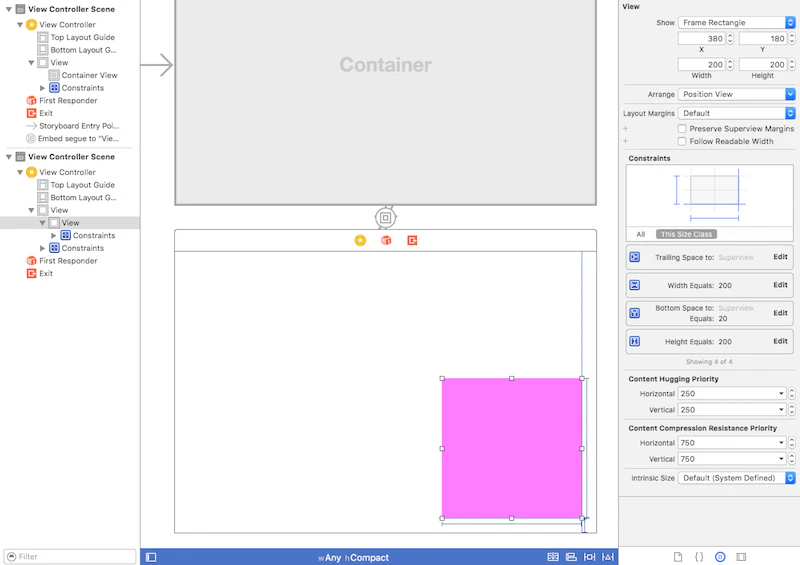

今回、例として以下の様にピンクのビューを縦の時は左上、横の時は右下になるように配置してみました。

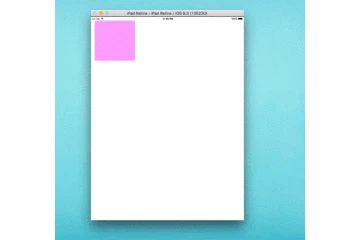

で、iPadで起動して縦横回転させてみると
ちゃんと縦横で切り替わりました。

ただ、ChildViewControllerにしないとダメなのがちょっと微妙ですね。
アップル的にはiPadは縦と横でレイアウトを分けてほしくないんでしょうか?

参考
