k3s上にhelmを用いてprometheusを導入

Posted at

先日来、学習用のk3sクラスタを構築してますが、ここにhelmを用いてprometheusを入れてみました。
kube-prometheus-stackを使ってみます。このkube-prometheus-stackとprometheus operatorとの関係性がよく分かってないんですけど、、、、

1.ソフトウェア構成

※AWS上の4インスタンスに構築したk3sクラスタ構成
Debian GNU/Linux 11
k3s version v1.23.8+k3s1 (53f2d4e7)
go version go1.17.5
Longhorn v1.3.0

2.導入手順

prometheus-communityのレポジトリを追加します。

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts

valuesファイルを取得します。

helm inspect values prometheus-community/kube-prometheus-stack > prometheus_values.yaml

valuesファイルをお好みに合わせて修正します(後述)。
valuesファイルを修正したら、名前空間を作成した後にhelm installをします。

kubectl create ns prometheus
helm install prometheus -f .\prometheus_values.yaml prometheus-community/kube-prometheus-stack -n prometheus

3.valuesファイルの変更点

今回、以下のように変えてみました。
まず、データ永続化のために以下三か所のコメントを外し、longhornを使用するようにしました。

prometheus_values.yaml(抜粋)
alertmanager:
  alertmanagerSpec:
    storage:
      volumeClaimTemplate:
        spec:
          storageClassName: longhorn
          accessModes: ["ReadWriteOnce"]
          resources:
            requests:
              storage: 1Gi
          #selector: {}

prometheus:
  prometheusSpec:
    ## Prometheus StorageSpec for persistent data
    ## ref: https://github.com/prometheus-operator/prometheus-operator/blob/main/Documentation/user-guides/storage.md
    ##
    storageSpec:
    ## Using PersistentVolumeClaim
    ##
       volumeClaimTemplate:
         spec:
           storageClassName: longhorn
           accessModes: ["ReadWriteOnce"]
           resources:
             requests:
               storage: 1Gi
         #selector: {}

thanosRuler:
  thanosRulerSpec:
    storage:
      volumeClaimTemplate:
        spec:
          storageClassName: longhorn
          accessModes: ["ReadWriteOnce"]
          resources:
            requests:
              storage: 1Gi
        #selector: {}

また、nodeSelectorを指定できるところはラベルを指定して、適切なノードで配置されるようにしました。たまたまノードにlonghorn-nodeというものを指定していたのでそれをそのまま使いましたが、本来はprometheus配置用に別のラベルを作っておいた方がいいのかもしれません。

  nodeSelector:
    longhorn-node: 'true'

また、抽出したvaluesファイルにgrafanaとkube-state-metrics用のnodeSelectorの項がありません。ありませんが、リンク先のissueによると「追記してあげたら問題なく動く」という事なので追記します。

grafana:
  #add nodeSelector
  nodeSelector:
    longhorn-node: 'true'

kube-state-metrics:
  #add nodeSelector
  nodeSelector:
    longhorn-node: 'true'

4.UIにアクセス

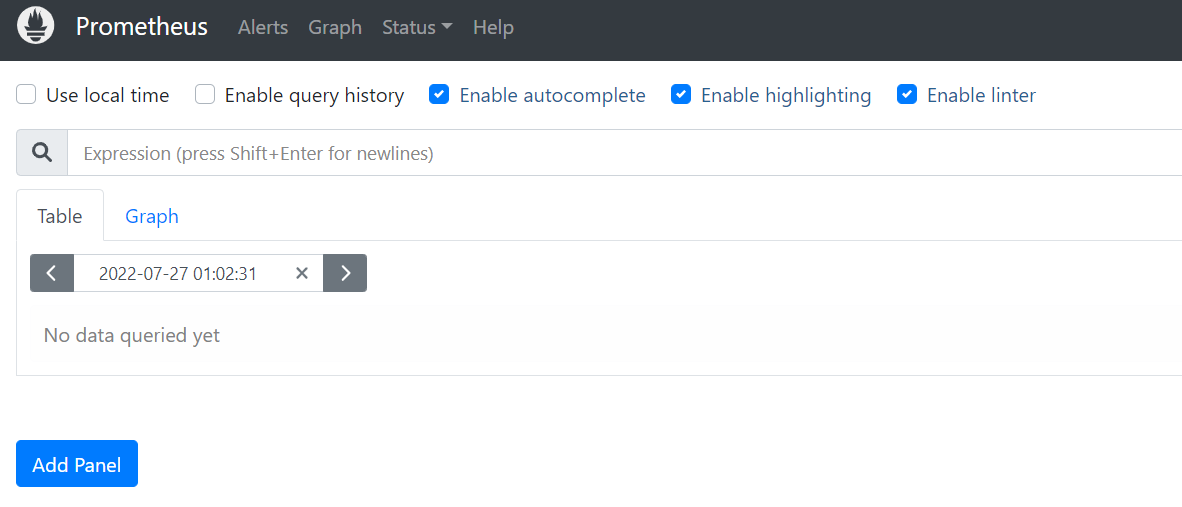

PrometheusのUIにアクセスしてみましょう。サービス prometheus-kube-prometheus-prometheusでUIが公開されているので、これをポートフォワーディングしてみます。Lensを使ってイージーにやっちゃいました。
スクリーンショット 2022-07-27 100523.png

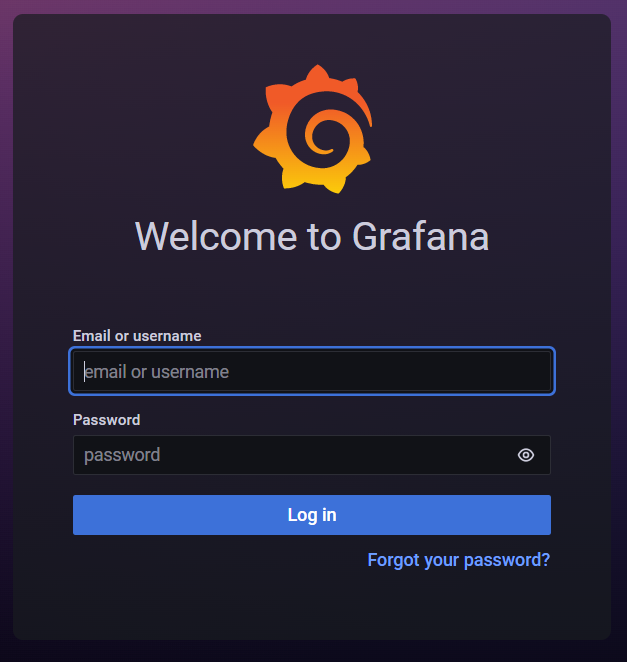

さらにgrafanaのUIにもアクセスしてみましょう。サービスprometheus-grafanaをこれまたLensでイージーにポートフォワーディングするとログイン画面が出てきます。
スクリーンショット 2022-07-27 grafana.png
adminのパスワードは、prom-operatorです。実はvaluesファイルに書いてあったりします。

grafana:
  adminPassword: prom-operator

しかしLens、便利ですね。

5.まとめ

kube-prometheus-stackを使って、PrometheusとGrafanaなど一式をk3sに導入しました。その際、データ永続化のためにlonghornを利用するようにしました。また、Prometheusなどが稼働するノードをnodeSelectorで指定してみました。
UIアクセスはLensを使って簡単にやってみました。

しかし、まだまだPrometheusというかk3sで何のパラメーターを見ればよいのか分かってないです。勉強が足りませんね、という初心者らしい一言でこの記事を締めたいと思います。
