Lightning Web Components由浅入深

Last updated at Posted at 2020-05-06




















实例学习

1.dataTableComponent

通过该实例练习,我们会掌握下面相关知识点的运用:

  • lightning-datatable 的使用
  • Popup Modal画面

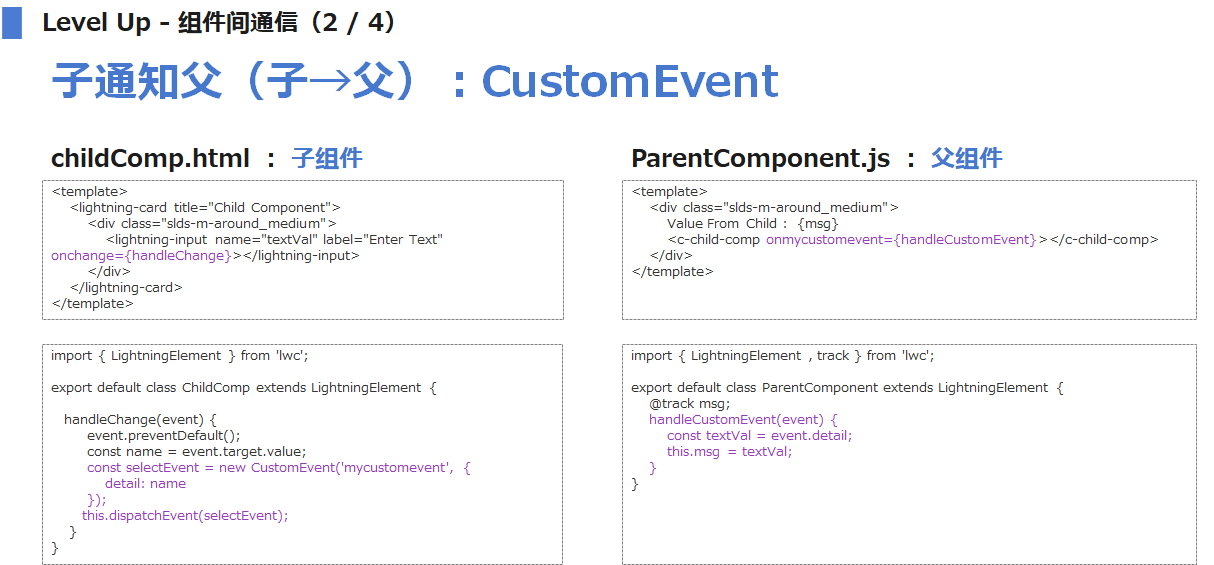

  • 子通知父(子→父):CustomEvent
  • 共享JS代码
dataTableLWC.cls
public with sharing class dataTableLWC {
	@AuraEnabled(cacheable = true)
	public static List<Account> fetchAccounts(){
		return [SELECT Id,Name,Phone,Type,Industry,Rating,Website FROM Account LIMIT 100];
	}
}
commonUtils.js
import {ShowToastEvent} from 'lightning/platformShowToastEvent'
const showToastInfo = (that, message, mode) => {
	const modevalue = (mode != null ? mode : 'dismissable');
	const event = new ShowToastEvent({
		title: 'info',
		message: message,
		variant: 'info', //info/success/warning/error
		mode: modevalue //sticky:クローズボタンを押すまで表示 pester:3秒間表示 dismissable:sticky+pester
	});
	that.dispatchEvent(event);
};
const showToastSuccess = (that, message, mode) => {
	const modevalue = (mode != null ? mode : 'dismissable');
	const event = new ShowToastEvent({
		title: 'success',
		message: message,
		variant: 'success', //info/success/warning/error
		mode: modevalue //sticky:クローズボタンを押すまで表示 pester:3秒間表示 dismissable:sticky+pester
	});
	that.dispatchEvent(event);
};
const showToastWarning = (that, message, mode) => {
	const modevalue = (mode != null ? mode : 'dismissable');
	const event = new ShowToastEvent({
		title: 'warning',
		message: message,
		variant: 'warning', //info/success/warning/error
		mode: modevalue //sticky:クローズボタンを押すまで表示 pester:3秒間表示 dismissable:sticky+pester
	});
	that.dispatchEvent(event);
};
const showToastError = (that, message, mode) => {
	const modevalue = (mode != null ? mode : 'dismissable');
	const event = new ShowToastEvent({
		title: 'error',
		message: message,
		variant: 'error', //info/success/warning/error
		mode: modevalue //sticky:クローズボタンを押すまで表示 pester:3秒間表示 dismissable:sticky+pester
	});
	that.dispatchEvent(event);
};
export {showToastInfo,showToastSuccess,showToastWarning,showToastError};
commonUtils.js-meta.xml
<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
	<apiVersion>48.0</apiVersion>
	<isExposed>false</isExposed>
</LightningComponentBundle>
modalLwc.html
<template>
	<section role="dialog" tabindex="-1"
		aria-labelledby="modal-heading-01"
		aria-modal="true"
		aria-describedby="modal-content-id-1"
		class="slds-modal slds-fade-in-open">
		<div class="slds-modal__container">
			<header class="slds-modal__header">
				<button class="slds-button slds-button_icon slds-modal__close slds-button_icon-inverse" title="Close" onclick={closeModal}>
					<lightning-icon icon-name="utility:close" alternative-text="close" variant="inverse" size="small" ></lightning-icon>
				</button>
				<h2 id="modal-heading-01" class="slds-text-heading_medium slds-hyphenate">Record Detail</h2>
			</header>
			<div class="slds-modal__content slds-p-around_medium" id="modal-content-id-1">
				<dl class="slds-list_horizontal slds-wrap">
					<dt class="slds-item_label slds-truncate" title="Name">Name:</dt>
					<dd class="slds-item_detail slds-truncate">{record.Name}</dd>
					<dt class="slds-item_label slds-truncate" title="Phone">Phone:</dt>
					<dd class="slds-item_detail slds-truncate">{record.Phone}</dd>
					<dt class="slds-item_label slds-truncate" title="Type">Type :</dt>
					<dd class="slds-item_detail slds-truncate">{record.Type}</dd>
					<dt class="slds-item_label slds-truncate" title="Industry">Industry :</dt>
					<dd class="slds-item_detail slds-truncate">{record.Industry}</dd>
					<dt class="slds-item_label slds-truncate" title="Website">Website :</dt>
					<dd class="slds-item_detail slds-truncate">{record.Website}</dd>
					<dt class="slds-item_label slds-truncate" title="Rating">Rating :</dt>
					<dd class="slds-item_detail slds-truncate">{record.Rating}</dd>
				</dl>
			</div>
			<footer class="slds-modal__footer">
				<lightning-button variant="brand" label="Close" title="Close" onclick={closeModal}></lightning-button>
			</footer>
		</div>
	</section>
	<div class="slds-backdrop slds-backdrop_open"></div>
</template>
modalLwc.js
import {LightningElement,track,api} from 'lwc';
export default class ModalLwc extends LightningElement {
	@api record = {};
	closeModal() {
		const selectEvent = new CustomEvent('close', {});
		this.dispatchEvent(selectEvent);
	}
}
modalLwc.js-meta.xml
<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
	<apiVersion>48.0</apiVersion>
	<isExposed>false</isExposed>
</LightningComponentBundle>
dataTableComponent.html
<template>
	<lightning-datatable
		key-field="id"
		data={dataList}
		onrowaction={handleRowAction}
		row-number-offset={rowOffset}
		hide-checkbox-column="true"
		columns={columns}>
	</lightning-datatable>
	<template if:true={bShowModal}>
		<c-modal-lwc record={record} onclose={closeModal}></c-modal-lwc>
	</template>
</template>
dataTableComponent.js
import {LightningElement,wire,track} from 'lwc';
import {showToastSuccess,showToastError} from 'c/commonUtils';
import fetchAccounts from '@salesforce/apex/dataTableLWC.fetchAccounts';
const columns = [
	{
		label: 'Name',
		fieldName: 'Name'
	},
	{
		label: 'Phone',
		fieldName: 'Phone'
	},
	{
		label: 'Type',
		fieldName: 'Type'
	},
	{
		label: '',
		type: 'button-icon',
		initialWidth: 75,
		typeAttributes: {
			iconName: 'action:preview',
			title: 'Preview',
			variant: 'border-filled',
			alternativeText: 'View'
		}
	}
];
export default class DataTableComponent extends LightningElement {
	@track columns = columns;
	@track record = {};
	@track rowOffset = 0;
	@track dataList = {};
	@track bShowModal = false;
	@wire(fetchAccounts)
	wiredFetchAccounts({error, data}) {
		if (data) {
			this.dataList = data;
			showToastSuccess(this, '処理を正常に完了しました。');
		} else if (error) {
			showToastError(this, error.body.message);
		}
	}
	handleRowAction(event) {
		const row = event.detail.row;
		this.record = row;
		this.bShowModal = true;
	}
	closeModal(event) {
		this.bShowModal = false;
	}
}
dataTableComponent.js-meta.xml
<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
	<apiVersion>48.0</apiVersion>
	<isExposed>false</isExposed>
	<targets>
		<target>lightning__Tab</target>
	</targets>
</LightningComponentBundle>

2.customSearch

通过该实例练习,我们会掌握下面相关知识点的运用:

  • Html的入力数据传递到Js里面

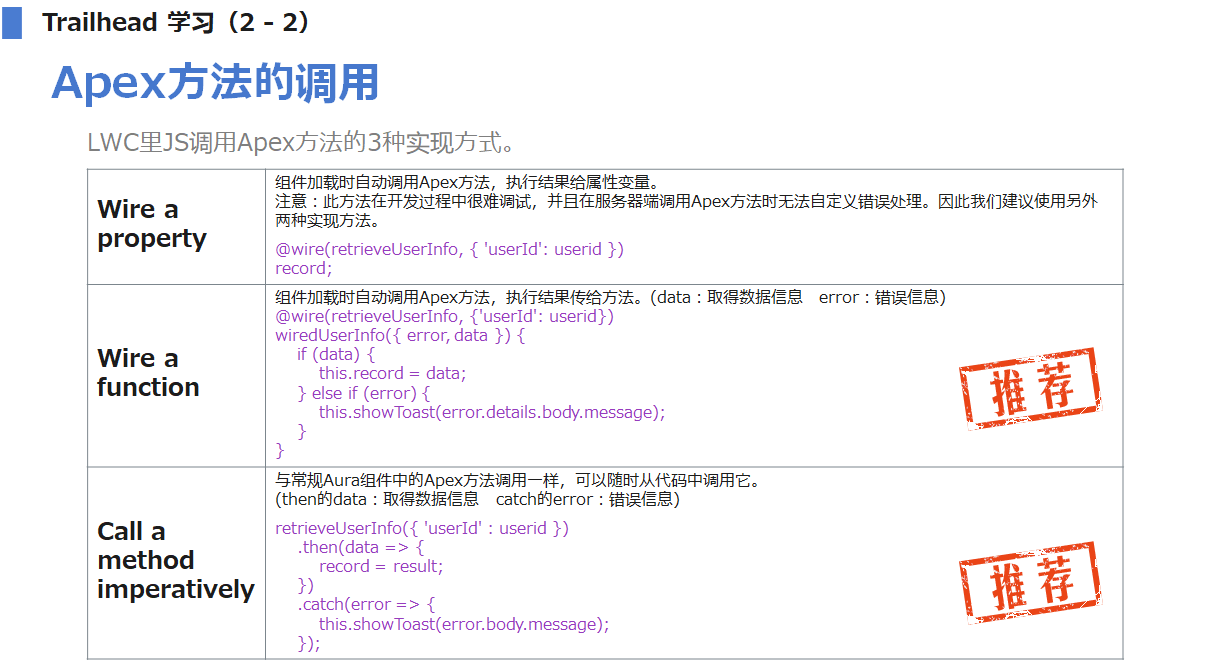

  • Apex方法的调用:Call a method imperatively
  • 用单纯html结合SLDS,一览数据表示
customSearchController.cls
public with sharing class customSearchController {
	@AuraEnabled(cacheable=true)
	 public static list<contact> getContactList(string searchKey) {
		string sTempSearchKey = '%' + searchKey + '%';
		list<contact> lstContact = new list<contact>();
		for(contact oCon : [Select id,Name,Email,FirstName,LastName,Phone
							From Contact
							WHERE name LIKE : sTempSearchKey]){
			lstContact.add(oCon);
		}
		if(lstContact.size() == 0){
			throw new AuraHandledException('No Record Found..');
		}
		return lstContact;
	}
}
customSearch.html
<template>
	<div class="slds-m-around_medium">
		<div class="slds-m-bottom_small">
			<lightning-input type="text" value={sVal} label="Contact Name" onchange={updateSeachKey}></lightning-input>
		</div>
		<lightning-button label="Search" onclick={handleSearch} variant="brand"></lightning-button>
		<table class="slds-table slds-table_cell-buffer slds-table_bordered slds-m-top_small">
			<thead>
				<tr class="slds-line-height_reset">
					<th class="" scope="col">
						<div class="slds-truncate" title="First Name">First Name</div>
					</th>
					<th class="" scope="col">
						<div class="slds-truncate" title="Last Name">Last Name</div>
					</th>
					<th class="" scope="col">
						<div class="slds-truncate" title="Phone">Phone</div>
					</th>
					<th class="" scope="col">
						<div class="slds-truncate" title="Email">Email</div>
					</th>
				</tr>
			</thead>
			<tbody>
				<template for:each={contacts} for:item="contact">
					<tr class="slds-hint-parent" key={contact.Id}>
						<td>
							<div class="slds-truncate">{contact.FirstName}</div>
						</td>
						<td>
							<div class="slds-truncate">{contact.LastName}</div>
						</td>
						<td>
							<div class="slds-truncate">
								<lightning-formatted-phone value={contact.Phone}></lightning-formatted-phone>
							</div>
						</td>
						<td>
							<div class="slds-truncate">
								<lightning-formatted-email value={contact.Email}></lightning-formatted-email>
							</div>
						</td>
					</tr>
				</template>
			</tbody>
		</table>
	</div>
</template>
customSearch.js
import {LightningElement,track} from 'lwc';
import {showToastError} from 'c/commonUtils';
import getContactList from '@salesforce/apex/customSearchController.getContactList';
export default class customSearch extends LightningElement {
	@track contacts;
	sVal = '';
	updateSeachKey(event) {
		this.sVal = event.target.value;
	}
	handleSearch() {
		if (this.sVal !== '') {
			getContactList({searchKey: this.sVal})
				.then(result => {
					this.contacts = result;
				})
				.catch(error => {
					showToastError(this, error.body.message);
					this.contacts = null;
				});
		} else {
			showToastError(this, 'Search text missing..');
		}
	}
}
customSearch.js-meta.xml
<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
    <apiVersion>48.0</apiVersion>
    <isExposed>false</isExposed>
    <targets>
       <target>lightning__Tab</target>
   </targets>
</LightningComponentBundle>

3.datatableUpdateExample

该实例是 Developer Guide 里面的一个Sample。

ContactController.cls
public with sharing class ContactController {
	@AuraEnabled(cacheable=true)
	public static List<Contact> getContactList() {
		return [
			SELECT Id, FirstName, LastName, Title, Phone, Email
			FROM Contact
			WITH SECURITY_ENFORCED
			LIMIT 10
		];
	}
}
datatableUpdateExample.html
<template>
	<lightning-card title="Datatable Example" icon-name="custom:custom63">
		<div class="slds-m-around_medium">
			<template if:true={contact.data}>
				<lightning-datatable
					key-field="Id"
					data={contact.data}
					columns={columns}
					onsave={handleSave}
					draft-values={draftValues}>
				</lightning-datatable>
			</template>
			<template if:true={contact.error}>
				<!-- handle Apex error -->
			</template>
		</div>
	</lightning-card>
</template>
datatableUpdateExample.js
import { LightningElement, wire, track } from 'lwc';
import getContactList from '@salesforce/apex/ContactController.getContactList';
import { updateRecord } from 'lightning/uiRecordApi';
import { refreshApex } from '@salesforce/apex';
import { ShowToastEvent } from 'lightning/platformShowToastEvent';
const COLS = [
	{ label: 'First Name', fieldName: 'FirstName', editable: true },
	{ label: 'Last Name', fieldName: 'LastName', editable: true },
	{ label: 'Title', fieldName: 'Title' },
	{ label: 'Phone', fieldName: 'Phone', type: 'phone' },
	{ label: 'Email', fieldName: 'Email', type: 'email' }
];
export default class DatatableUpdateExample extends LightningElement {
	@track error;
	@track columns = COLS;
	@track draftValues = [];
	@wire(getContactList)
	contact;
	handleSave(event) {
		const recordInputs =  event.detail.draftValues.slice().map(draft => {
			const fields = Object.assign({}, draft);
			return { fields };
		});
		const promises = recordInputs.map(recordInput => updateRecord(recordInput));
		Promise.all(promises).then(contacts => {
			this.dispatchEvent(
				new ShowToastEvent({
					title: 'Success',
					message: 'Contacts updated',
					variant: 'success'
				})
			);
			this.draftValues = [];
				return refreshApex(this.contact);
		}).catch(error => {
			// Handle error
		});
	}
}
datatableUpdateExample.js-meta.xml
<?xml version="1.0" encoding="UTF-8"?>
<LightningComponentBundle xmlns="http://soap.sforce.com/2006/04/metadata">
	<apiVersion>48.0</apiVersion>
	<isExposed>false</isExposed>
	<targets>
		<target>lightning__Tab</target>
	</targets>
</LightningComponentBundle>
6
6
1

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
6
6

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
