NAS OS の Rockstor を使ってみる

Last updated at Posted at 2025-02-21

Motivation

  • Main NAS は TrueNAS Scale を使っている
  • Backup NAS は、仮で Ubuntu+mdadm を入れている
    • 運用は Zabbix を使って監視しようかと思っていたが、他にやりたいことが出てきたので面倒になった
  • Backup NAS も TrueNAS にしても良かったが、慣れた同じ TrueNAS にするのも面白くない
    • (TrueNAS にすると Replication を TrueNAS の責任で行わせられるので楽ではある)
    • Rockstor は知っていたので、とりあえず使ってみる

What is Rockstor

HW

  • 今回は、じゃんぱらで安く入手した Dell Wyse5070 を使う
    • CPU: Intel(R) Celeron(R) J4105 CPU @ 1.50GHz
    • Mem: 8GB (4GBx2)
      • Toshiba KKN2NM-MIE
      • SK_Hynix HMA851S6DJR6N-XN
    • Storage: 128GB (SATA SSD)
      • Sandisk SD9SN8W-128G

Install

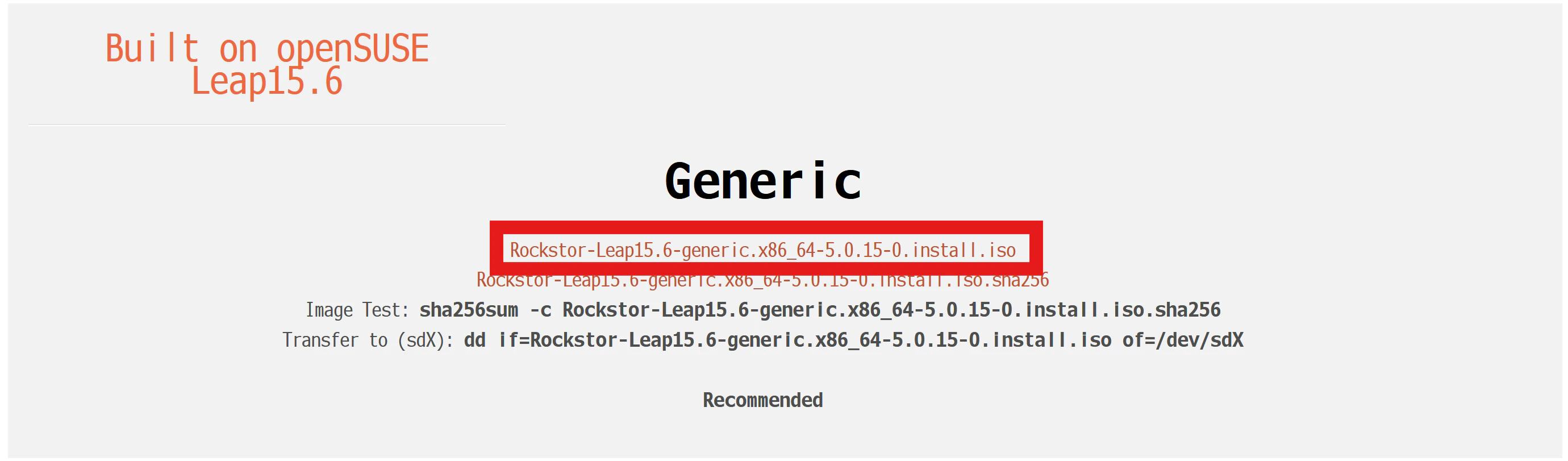

  1. .iso (openSUSE Leap15.6) ダウンロード

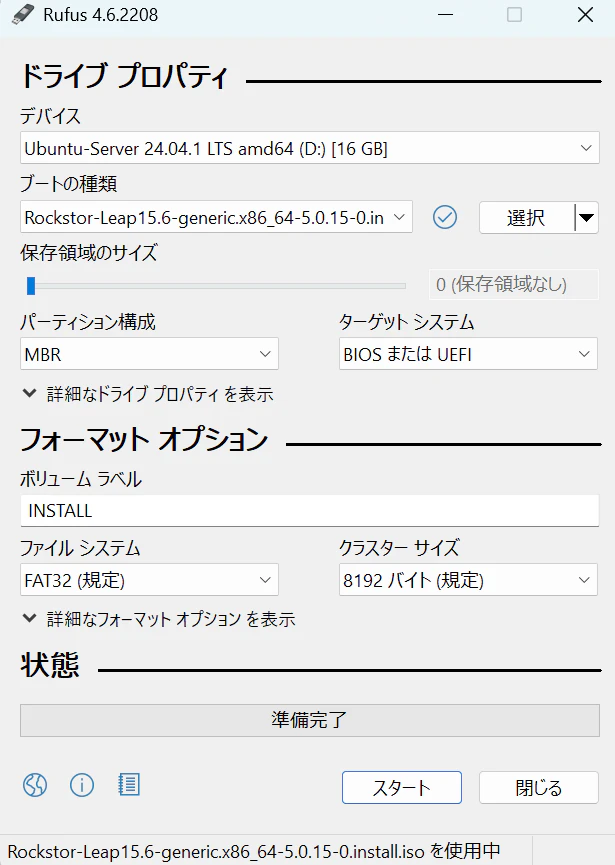

  2. Rufus で USB ディスク作成
    • image.png
      • デバイス名は使いまわしているため
    • image.png
      • ここで必ず DD イメージモードを選択する
  3. USB Boot
    • SecureBoot が Enabled かつ、SecureBoot Mode が Deplyed Mode の場合、Operating System Loader failed signature verification. WARNING: The file may have been tampered with と表示されて Boot できない可能性がある
    • 上記の場合、SecureBoot を Disabled にするか、SecureBoot Mode を Audit Mode に設定する

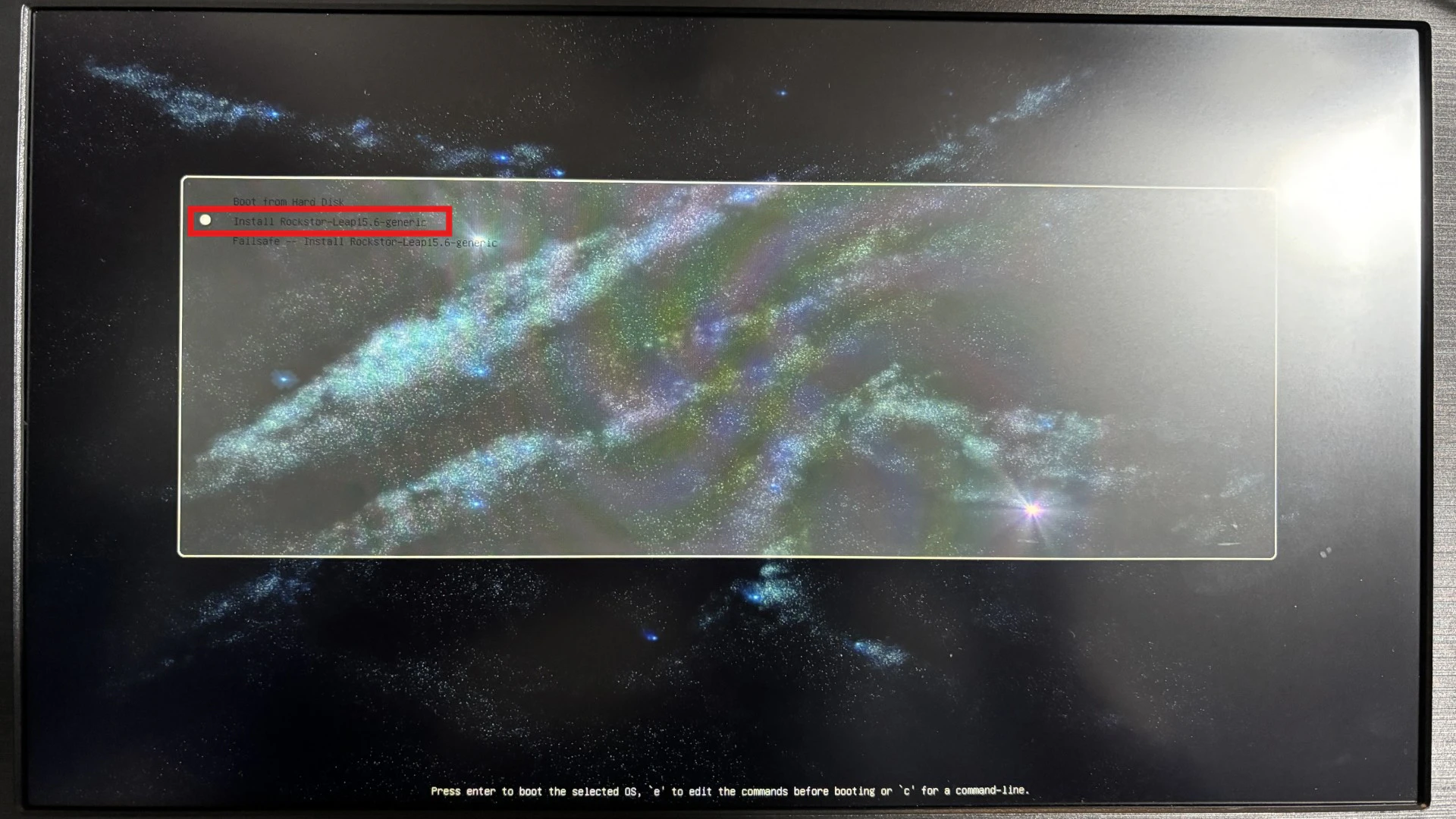

  4. Menu が表示されるので、Install Rockstor-Leap15.6-generic を選択
    • IMG_4195 (カスタム).JPG
  5. インストールを進める
    1. Select Instllation Disk
    2. Select system locale
    3. Select keyboard layout
    4. License Agreement
    5. Select time zone
    6. Enter root password
    7. Confirm root password
    8. 以降インストールが進行してログインプロンプトが表示される。その後 [ OK ] Finished Rockstor bootstrapping tasks. が表示されるまで待つ
      • このブートメッセージが表示されると WebUI にアクセスできるようになる

Configuration

  1. WebUI にアクセス

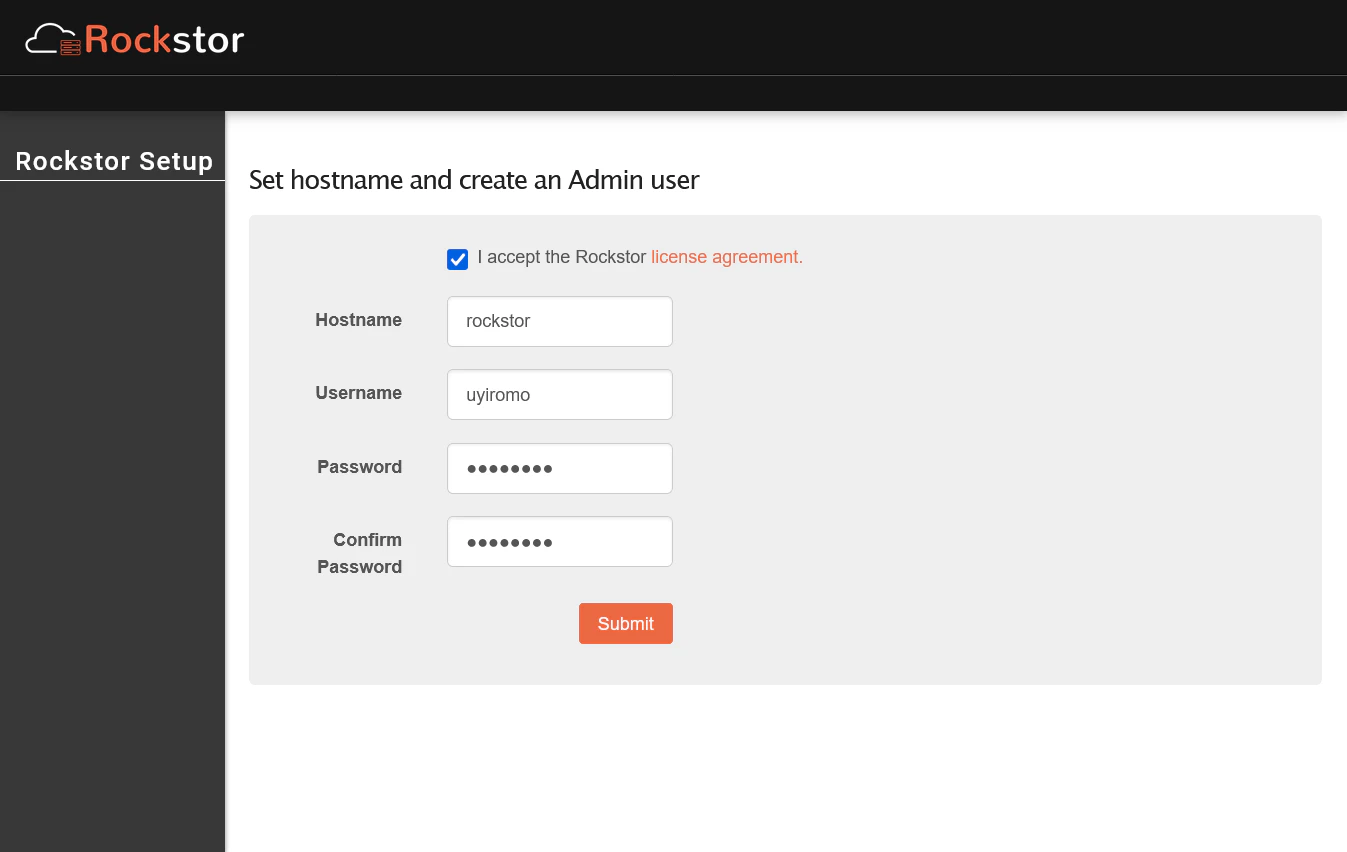

  2. 初回セットアップを行う
    • image.png
  3. NTP 有効化
    1. 左メニュー or 右上のメニューの System から NTP を ON
    2. ntp.nict.jp をセット
  4. Disk 初期化

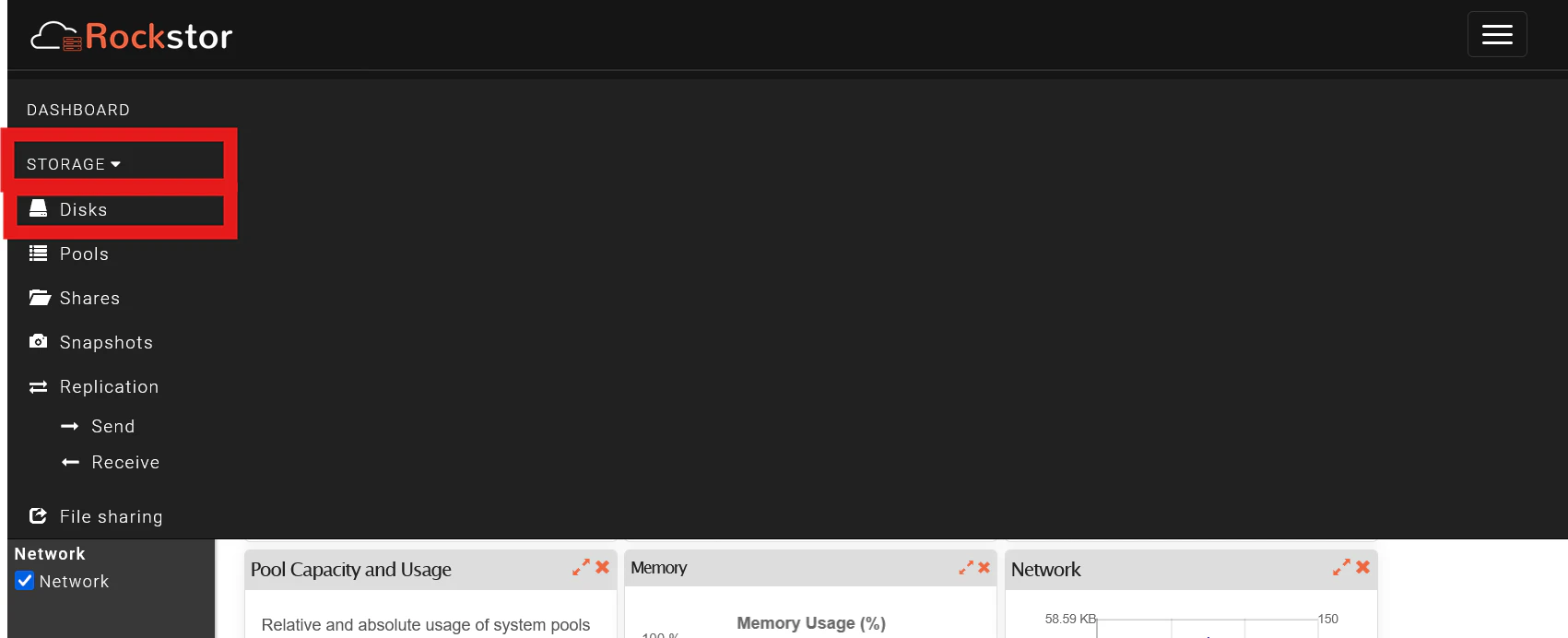

    1. 左メニュー or 右上のメニューの STORAGE > Disks を選択
      • image.png

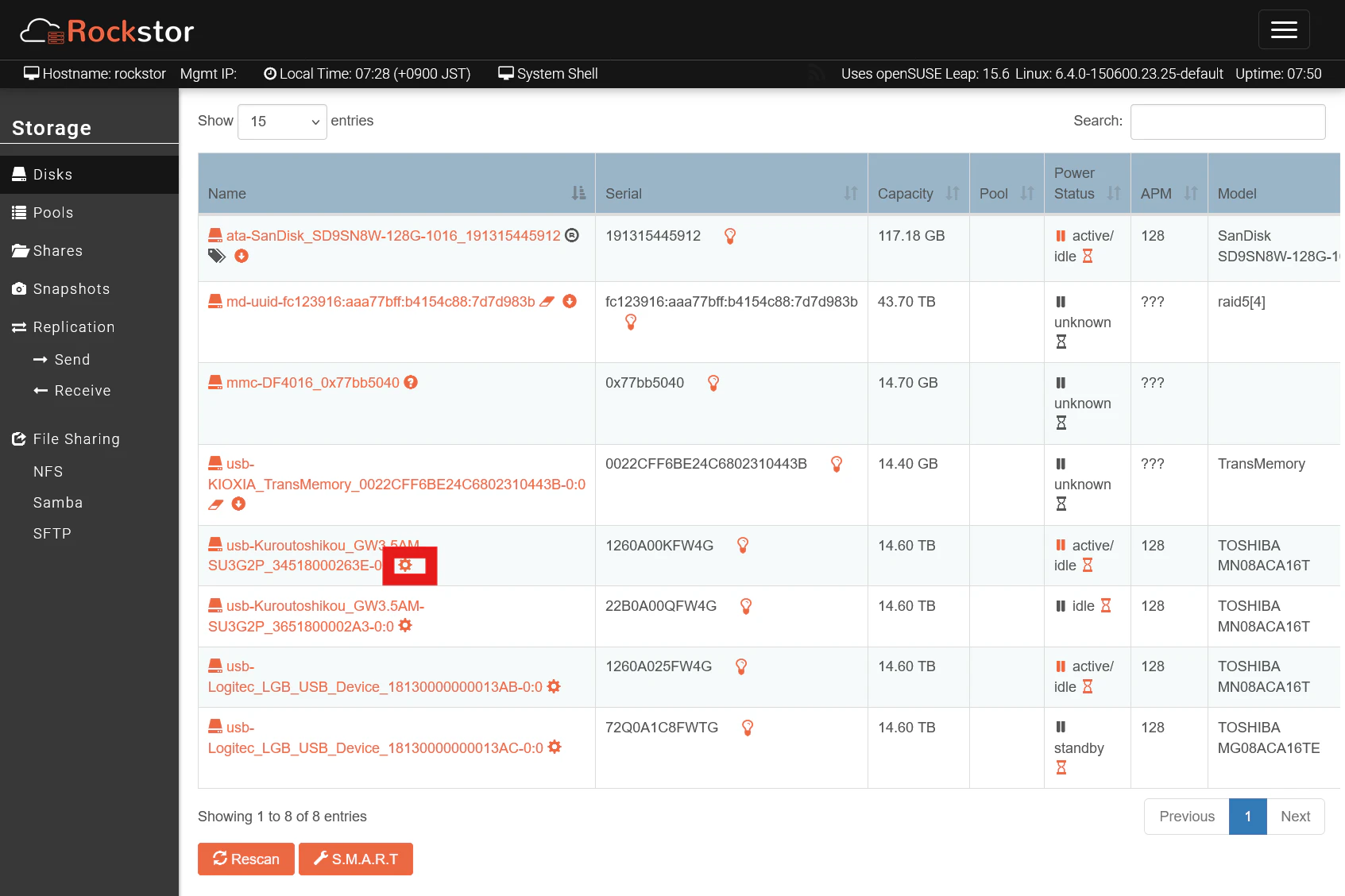

    2. 必要なディスクの歯車マークをクリック
      • image.png

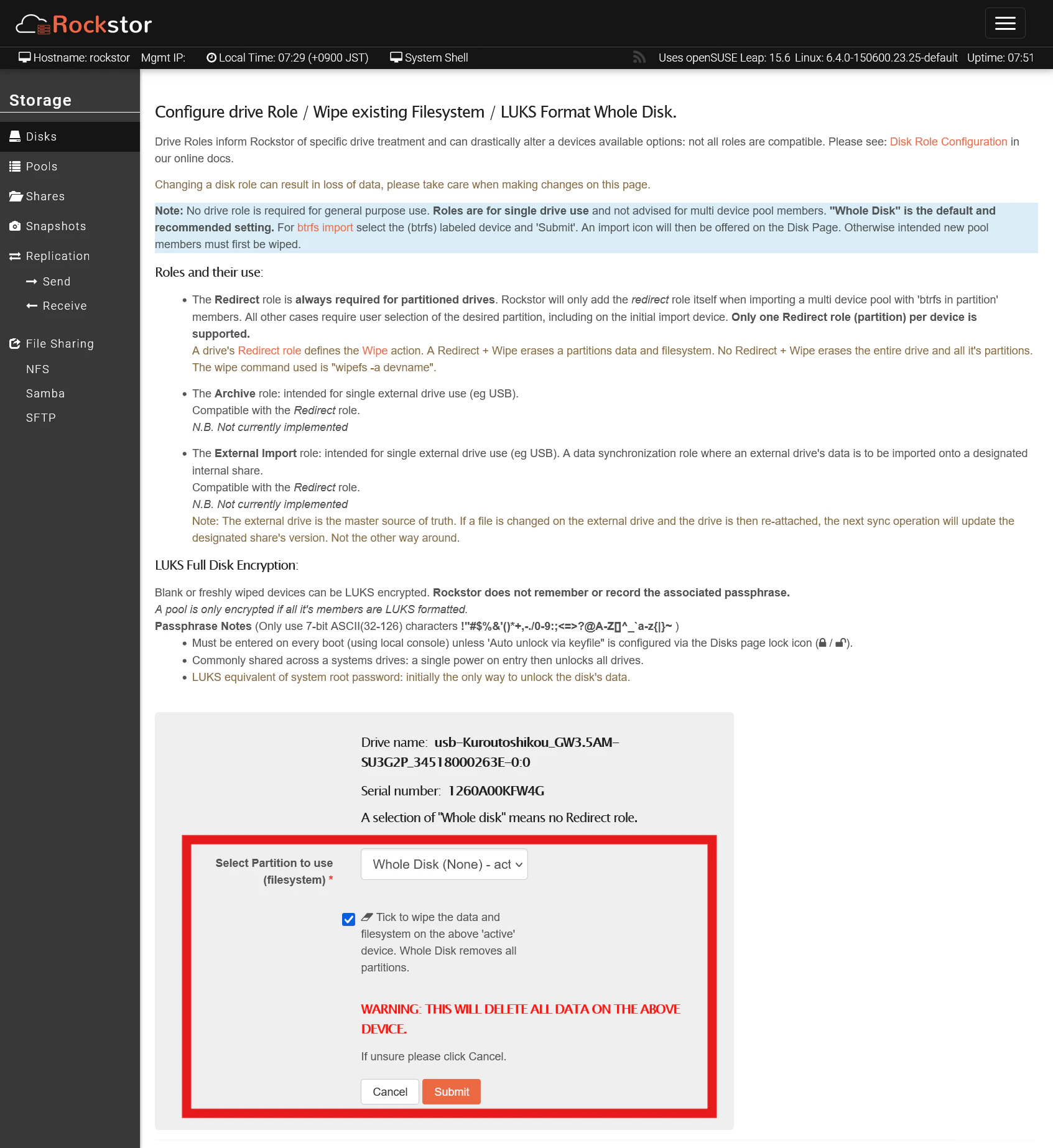

    3. Select Partition to use (filesystem) で Whole Disk (None) - active を選択
      • image.png

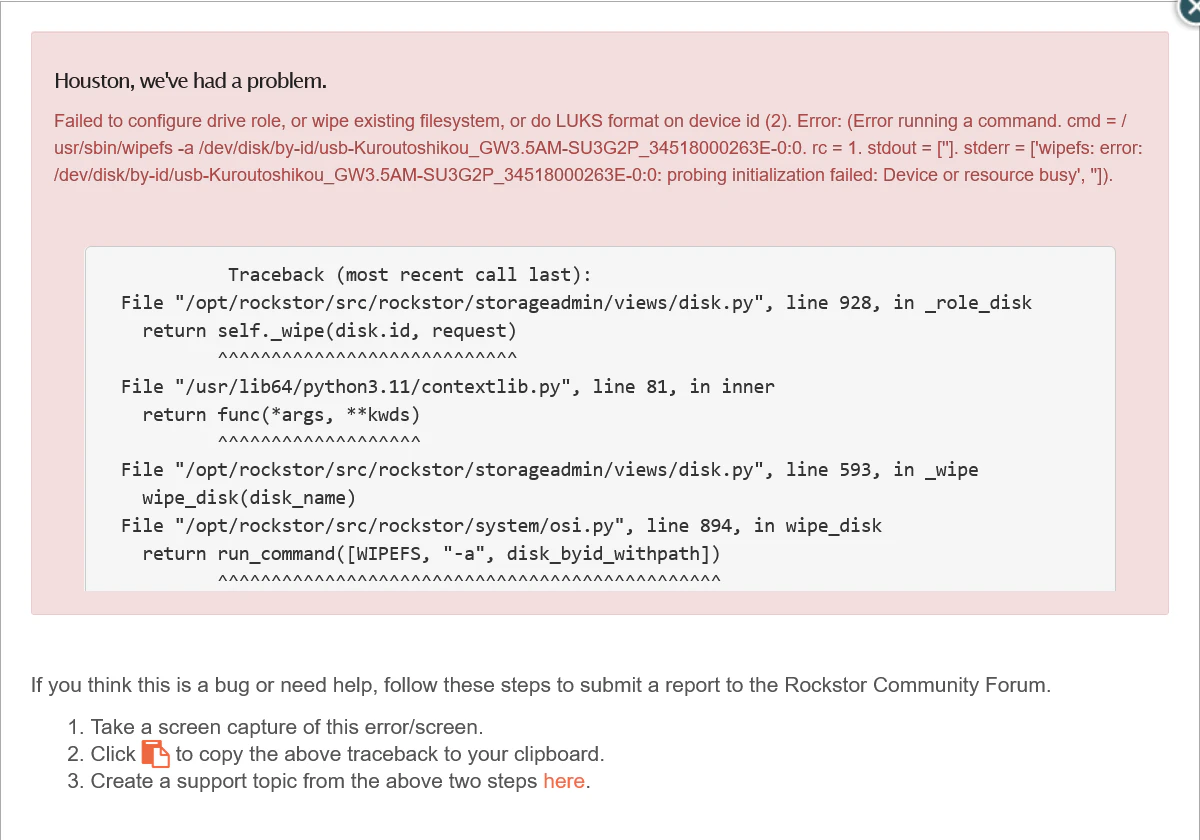

    4. エラーが出たら SSH で接続して強制的にフォーマットする
      • Screenshot 2025-02-22 at 07-30-03 Rockstor.png
      • SSH は root ユーザで行う
      rockstor:~ # /usr/sbin/wipefs -af       /dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0\:0
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffbf000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffbe000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffbd000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffbc000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffbb000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffba000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffb9000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffb8000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffb7000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffb6000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffb5000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffb4000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffb3000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0x00000200 (gpt): 45 46 49 20 50 41 52 54
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 8 bytes were erased at offset 0xe8d7ffffe00 (gpt): 45 46 49 20 50 41 52 54
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_34518000263E-0:0: 2 bytes were erased at offset 0x000001fe (PMBR): 55 aa

rockstor:~ # /usr/sbin/wipefs -af       /dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0\:0
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffbf000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffbe000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffbd000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffbc000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffbb000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffba000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffb9000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffb8000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffb7000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffb6000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffb5000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffb4000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffb3000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0x00000200 (gpt): 45 46 49 20 50 41 52 54
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 8 bytes were erased at offset 0xe8d7ffffe00 (gpt): 45 46 49 20 50 41 52 54
/dev/disk/by-id/usb-Kuroutoshikou_GW3.5AM-SU3G2P_3651800002A3-0:0: 2 bytes were erased at offset 0x000001fe (PMBR): 55 aa

rockstor:~ # /usr/sbin/wipefs -af       /dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0\:0
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffbf000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffbe000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffbd000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffbc000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffbb000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffba000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffb9000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffb8000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffb7000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffb6000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffb5000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffb4000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffb3000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0x00000200 (gpt): 45 46 49 20 50 41 52 54
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 8 bytes were erased at offset 0xe8d7ffffe00 (gpt): 45 46 49 20 50 41 52 54
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AB-0:0: 2 bytes were erased at offset 0x000001fe (PMBR): 55 aa

rockstor:~ # /usr/sbin/wipefs -af       /dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0\:0
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffbf000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffbe000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffbd000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffbc000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffbb000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffba000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffb9000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffb8000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffb7000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffb6000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffb5000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffb4000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffb3000 (zfs_member): 0c b1 ba 00 00 00 00 00
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0x00000200 (gpt): 45 46 49 20 50 41 52 54
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 8 bytes were erased at offset 0xe8d7ffffe00 (gpt): 45 46 49 20 50 41 52 54
/dev/disk/by-id/usb-Logitec_LGB_USB_Device_18130000000013AC-0:0: 2 bytes were erased at offset 0x000001fe (PMBR): 55 aa
    5. wipefs の結果を反映させるため、再起動する
    6. ? になっていれば OK
      • image.png
  5. Pool 作成

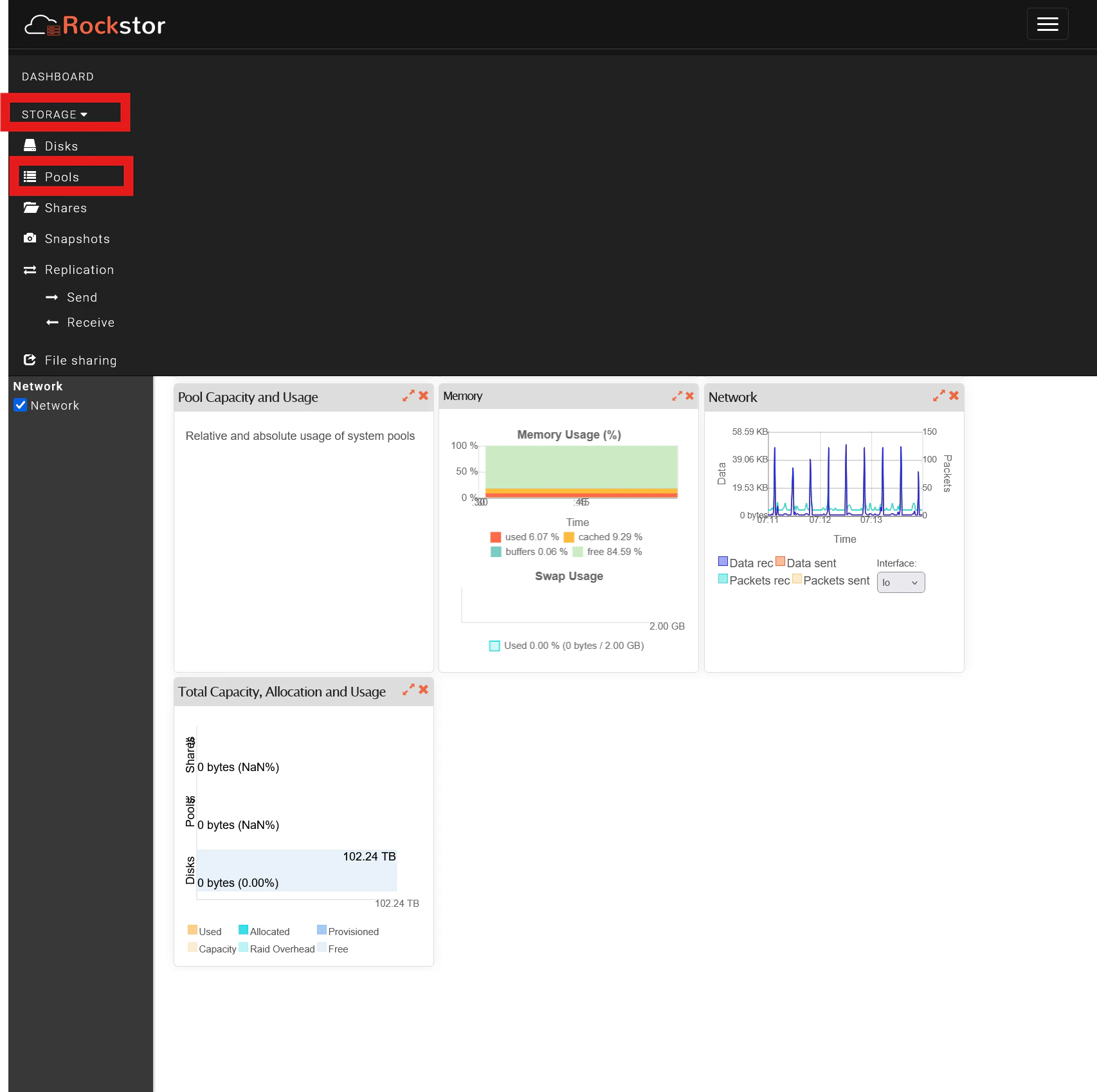

    1. 左メニュー or 右上のメニューの STORAGE > Pools を選択
      • image.png

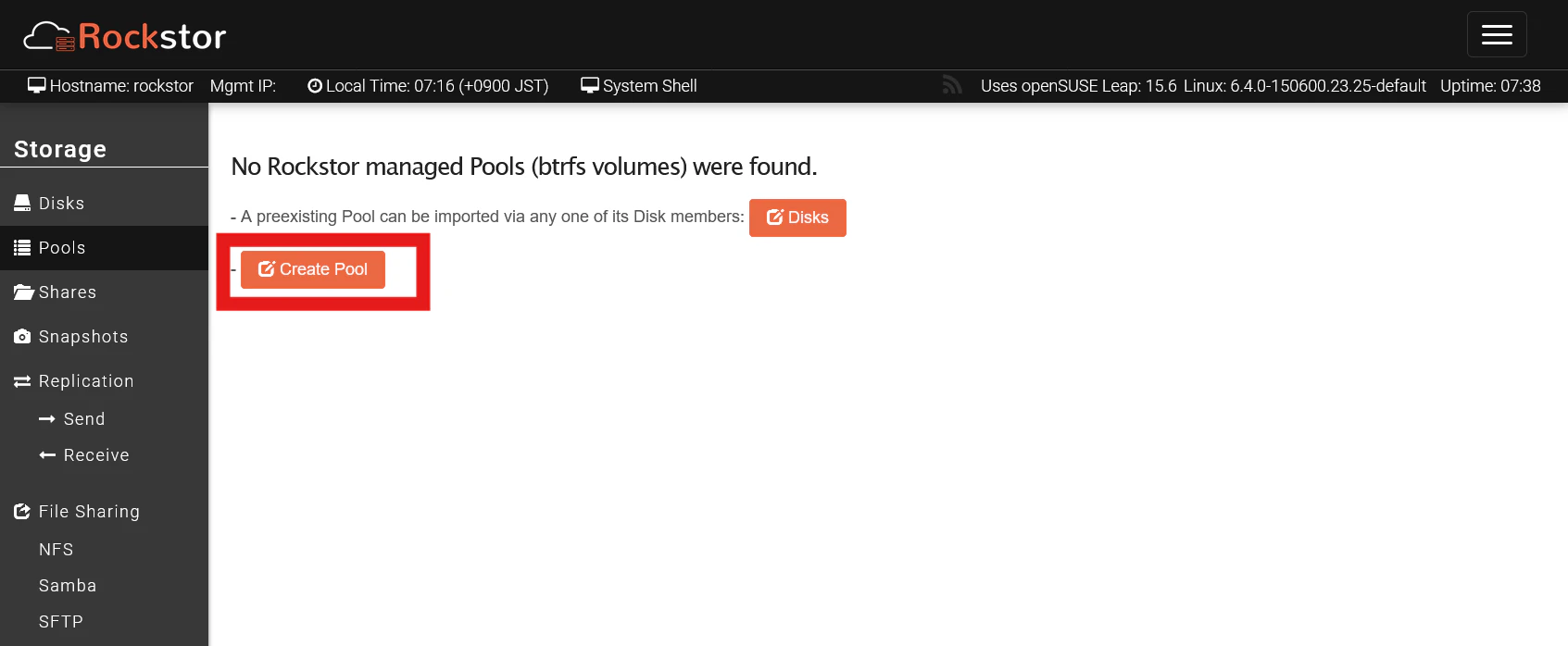

    2. Create Pool 選択
      • image.png

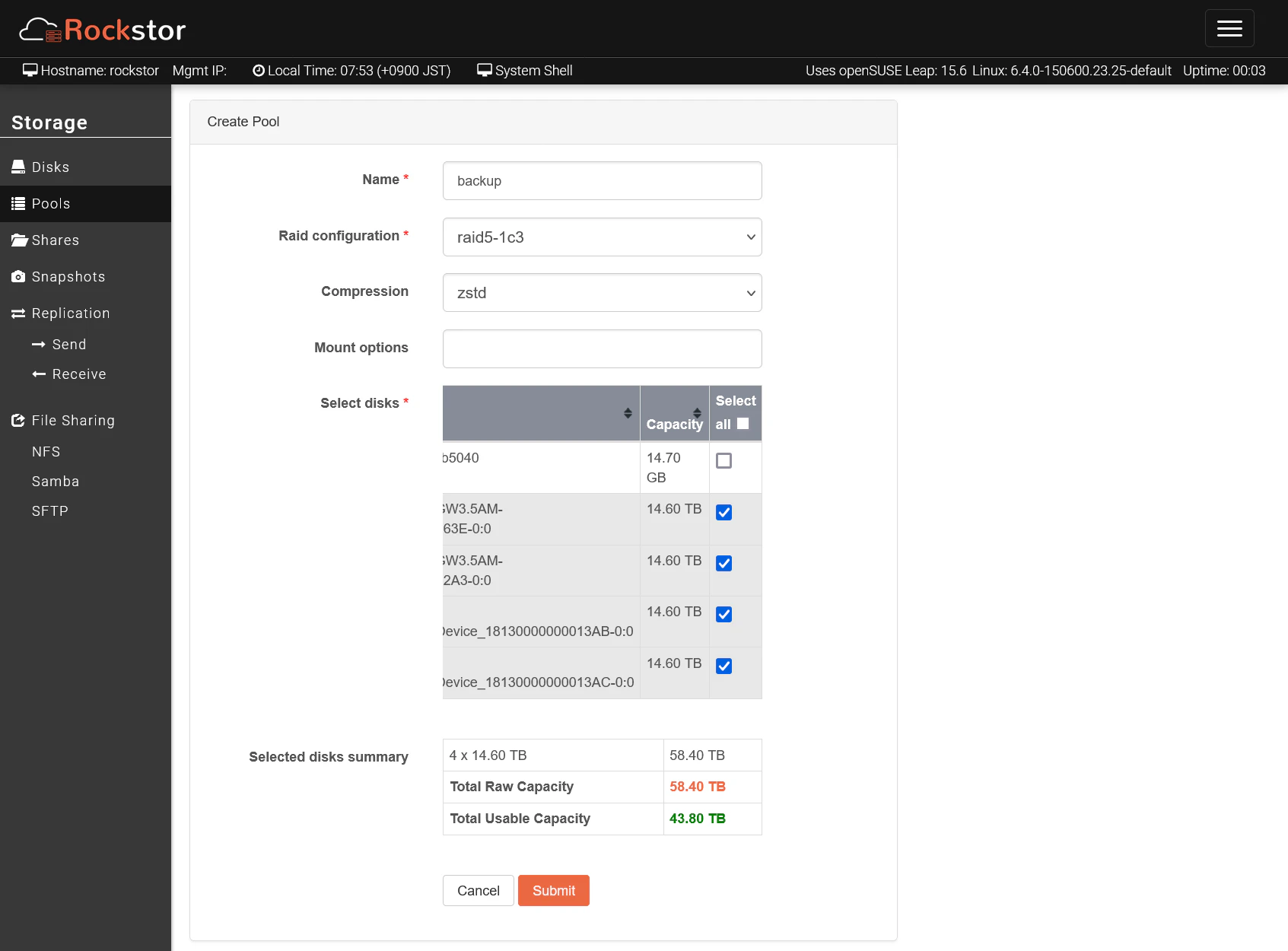

    3. オプションとディスクを選択して Submit
      • image.png
    4. Rockstor の場合、Pool = Volume なので作成終了
    5. マウントされているのは /mnt2 以下
      rockstor:~ # lsblk
NAME         MAJ:MIN RM   SIZE RO TYPE MOUNTPOINTS
sda            8:0    0 119.2G  0 disk
├─sda1         8:1    0     2M  0 part
├─sda2         8:2    0    64M  0 part /boot/efi
├─sda3         8:3    0     2G  0 part [SWAP]
└─sda4         8:4    0 117.2G  0 part /var
                                       /usr/local
                                       /tmp
                                       /srv
                                       /root
                                       /opt
                                       /home
                                       /boot/grub2/x86_64-efi
                                       /boot/grub2/i386-pc
                                       /.snapshots
                                       /
sdb            8:16   0  14.6T  0 disk /mnt2/backup
sdc            8:32   0  14.6T  0 disk
sdd            8:48   0  14.6T  0 disk
sde            8:64   0  14.6T  0 disk
sdf            8:80   1  14.4G  0 disk
├─sdf1         8:81   1 830.5M  0 part
└─sdf2         8:82   1    20M  0 part
mmcblk0      179:0    0  14.7G  0 disk
mmcblk0boot0 179:8    0     4M  1 disk
mmcblk0boot1 179:16   0     4M  1 disk

rockstor:~ # mount
/dev/sda4 on / type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=258,subvol=/@/.snapshots/1/snapshot)
devtmpfs on /dev type devtmpfs (rw,nosuid,size=4096k,nr_inodes=983499,mode=755,inode64)
tmpfs on /dev/shm type tmpfs (rw,nosuid,nodev,inode64)
devpts on /dev/pts type devpts (rw,nosuid,noexec,relatime,gid=5,mode=620,ptmxmode=000)
sysfs on /sys type sysfs (rw,nosuid,nodev,noexec,relatime)
securityfs on /sys/kernel/security type securityfs (rw,nosuid,nodev,noexec,relatime)
cgroup2 on /sys/fs/cgroup type cgroup2 (rw,nosuid,nodev,noexec,relatime,nsdelegate,memory_recursiveprot)
pstore on /sys/fs/pstore type pstore (rw,nosuid,nodev,noexec,relatime)
efivarfs on /sys/firmware/efi/efivars type efivarfs (rw,nosuid,nodev,noexec,relatime)
bpf on /sys/fs/bpf type bpf (rw,nosuid,nodev,noexec,relatime,mode=700)
proc on /proc type proc (rw,nosuid,nodev,noexec,relatime)
tmpfs on /run type tmpfs (rw,nosuid,nodev,size=1590720k,nr_inodes=819200,mode=755,inode64)
systemd-1 on /proc/sys/fs/binfmt_misc type autofs (rw,relatime,fd=32,pgrp=1,timeout=0,minproto=5,maxproto=5,direct,pipe_ino=20720)
hugetlbfs on /dev/hugepages type hugetlbfs (rw,nosuid,nodev,relatime,pagesize=2M)
mqueue on /dev/mqueue type mqueue (rw,nosuid,nodev,noexec,relatime)
debugfs on /sys/kernel/debug type debugfs (rw,nosuid,nodev,noexec,relatime)
tracefs on /sys/kernel/tracing type tracefs (rw,nosuid,nodev,noexec,relatime)
fusectl on /sys/fs/fuse/connections type fusectl (rw,nosuid,nodev,noexec,relatime)
configfs on /sys/kernel/config type configfs (rw,nosuid,nodev,noexec,relatime)
/dev/sda4 on /.snapshots type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=257,subvol=/@/.snapshots)
/dev/sda4 on /boot/grub2/i386-pc type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=266,subvol=/@/boot/grub2/i386-pc)
/dev/sda4 on /boot/grub2/x86_64-efi type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=267,subvol=/@/boot/grub2/x86_64-efi)
/dev/sda4 on /home type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=259,subvol=/@/home)
/dev/sda4 on /opt type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=260,subvol=/@/opt)
/dev/sda4 on /root type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=261,subvol=/@/root)
/dev/sda4 on /srv type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=262,subvol=/@/srv)
/dev/sda4 on /tmp type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=263,subvol=/@/tmp)
/dev/sda4 on /usr/local type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=265,subvol=/@/usr/local)
/dev/sda2 on /boot/efi type vfat (rw,relatime,fmask=0022,dmask=0022,codepage=437,iocharset=iso8859-1,shortname=mixed,errors=remount-ro)
/dev/sda4 on /var type btrfs (rw,noatime,ssd,discard=async,space_cache,subvolid=264,subvol=/@/var)
tmpfs on /run/user/0 type tmpfs (rw,nosuid,nodev,relatime,size=795356k,nr_inodes=198839,mode=700,inode64)
/dev/sdb on /mnt2/backup type btrfs (rw,relatime,compress=zstd:3,space_cache=v2,subvolid=5,subvol=/)
tracefs on /sys/kernel/debug/tracing type tracefs (rw,nosuid,nodev,noexec,relatime)

SSH Configuration

  • デフォルトでは SSH できるのが root ユーザだけなので、ユーザを追加する
  • /etc/ssh/sshd_config の AllowUsers を変更
    --- /etc/ssh/sshd_config.bak    2025-02-22 08:06:34.886955074 +0900
+++ /etc/ssh/sshd_config        2025-02-22 08:06:50.279015542 +0900
@@ -130,4 +130,4 @@
 #      ForceCommand cvs server
 ###BEGIN: Rockstor SFTP CONFIG. DO NOT EDIT BELOW THIS LINE###
 Subsystem      sftp    internal-sftp
-AllowUsers root
+AllowUsers root uyiromo
  • 変更したら Reboot

メール通知

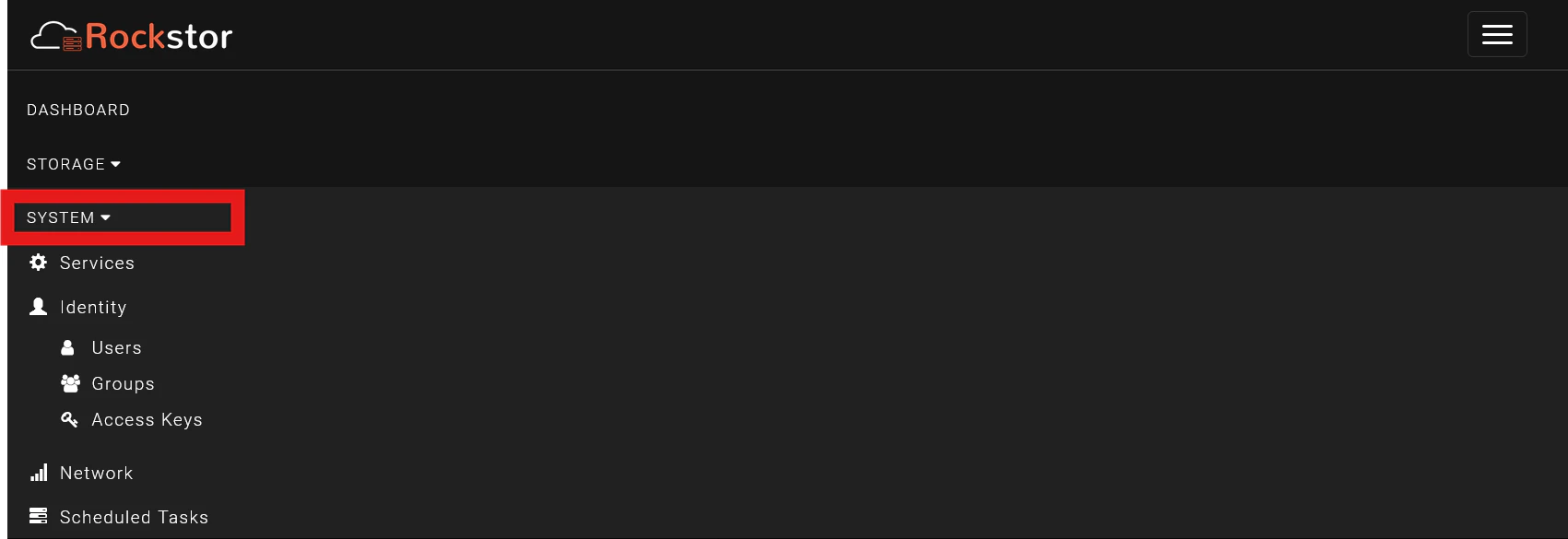

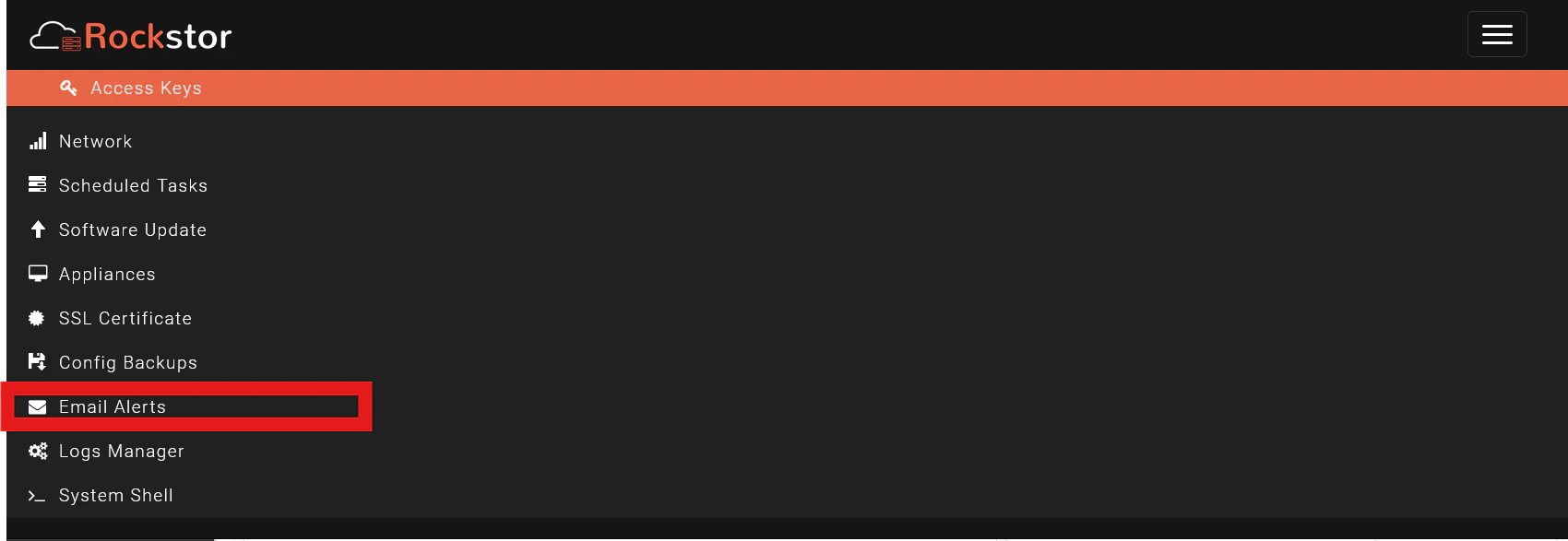

  1. 左メニュー or 右上のメニューの System から Email Alerts を 選択
    • image.png
    • image.png

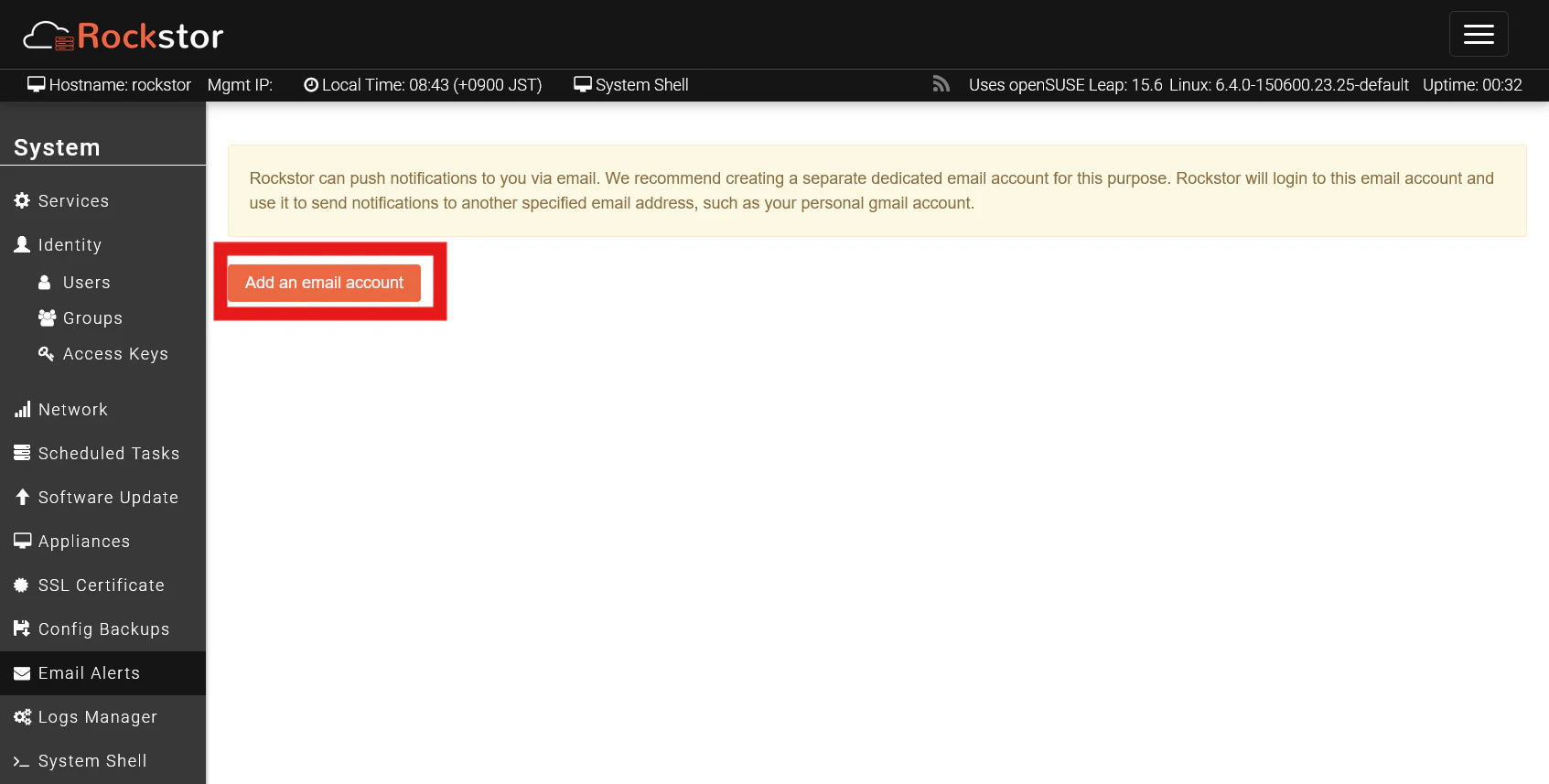

  2. Add an email account 選択
    • image.png

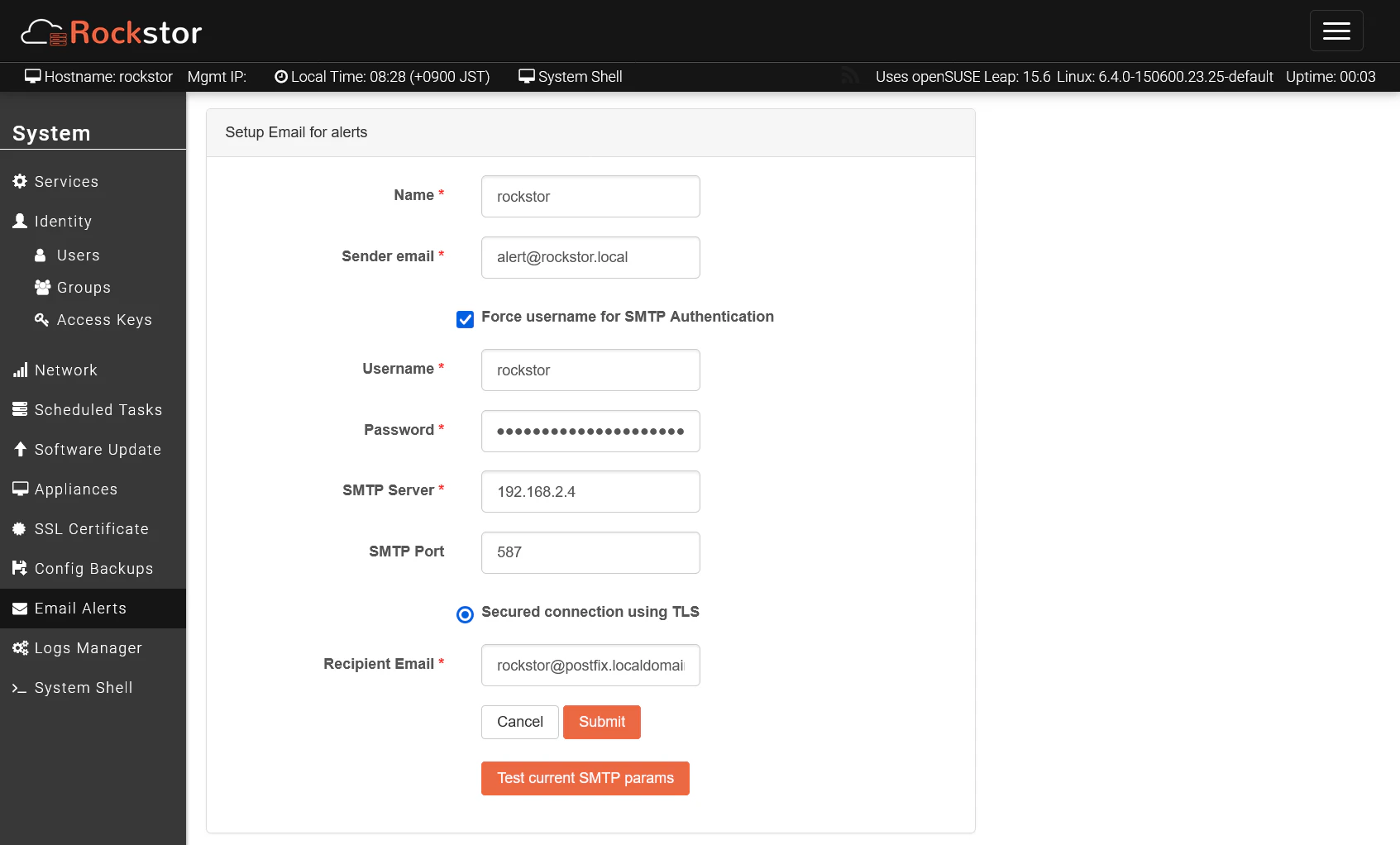

  3. SMTP 設定を入力
    • image.png

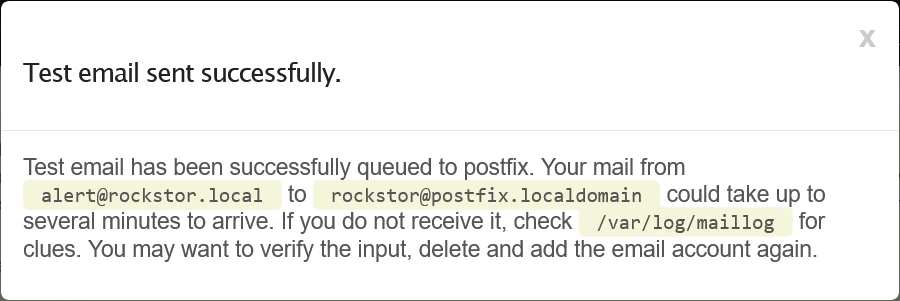

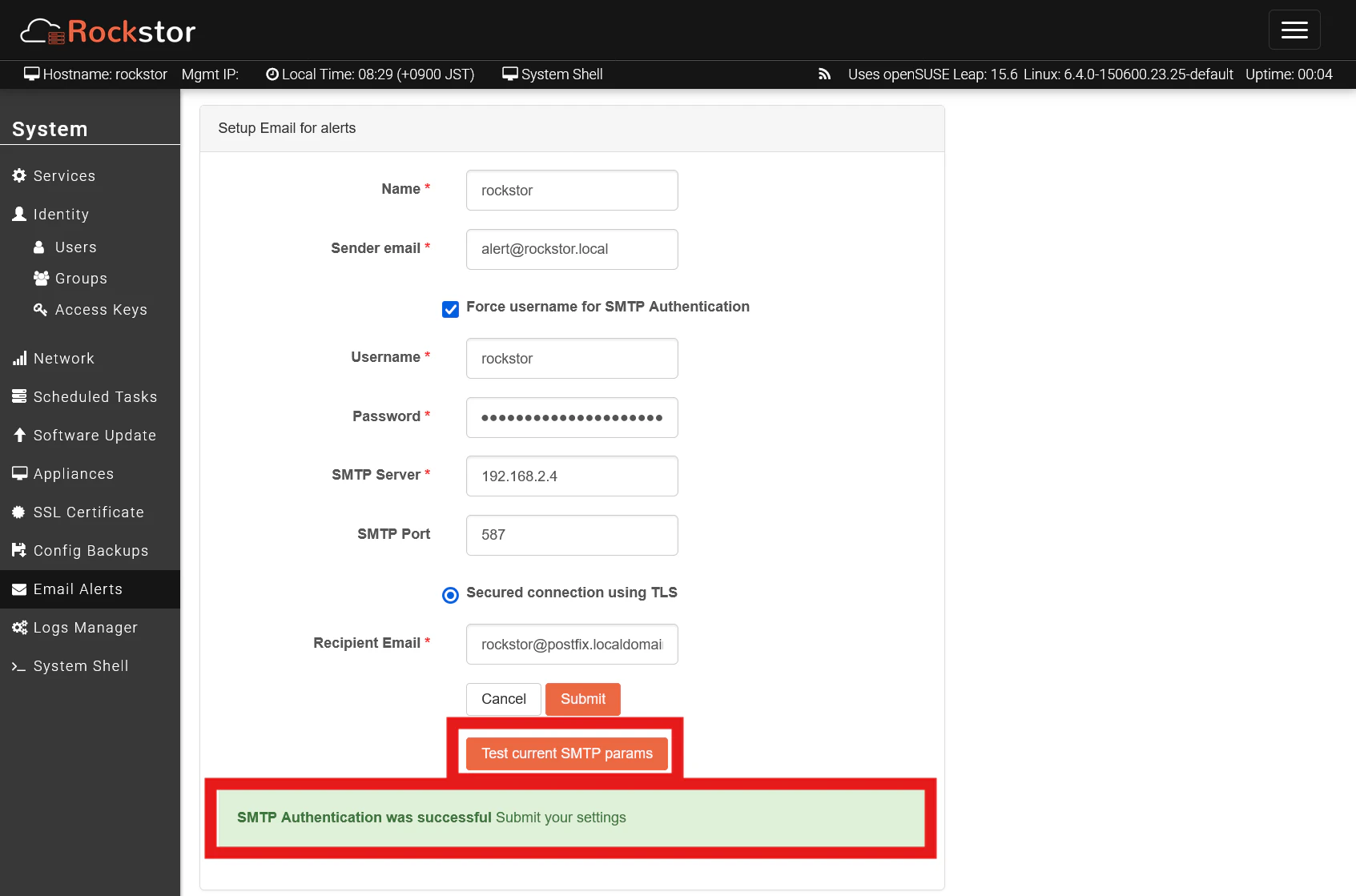

  4. Test current SMTP params をクリック
    • SMTP Authentication was successfull Submit your settings が表示されれば OK (この時、テストメールは送信されない)
    • image.png
  5. Submit で保存
    6．Email Alerts の画面に戻って来るので、Actions の紙飛行機のアイコンをクリックしてテスト
    • image.png
    • image.png

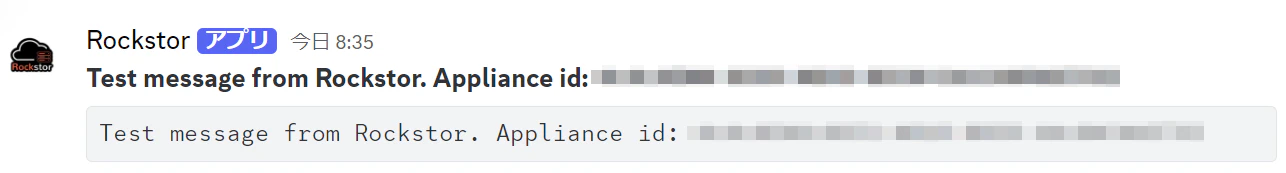

    • Discord 側のイメージ
      • image.png

Network I/F の設定

  • 1 GbE の他に 2.5 GbE を USB 経由でつなげるのでその設定

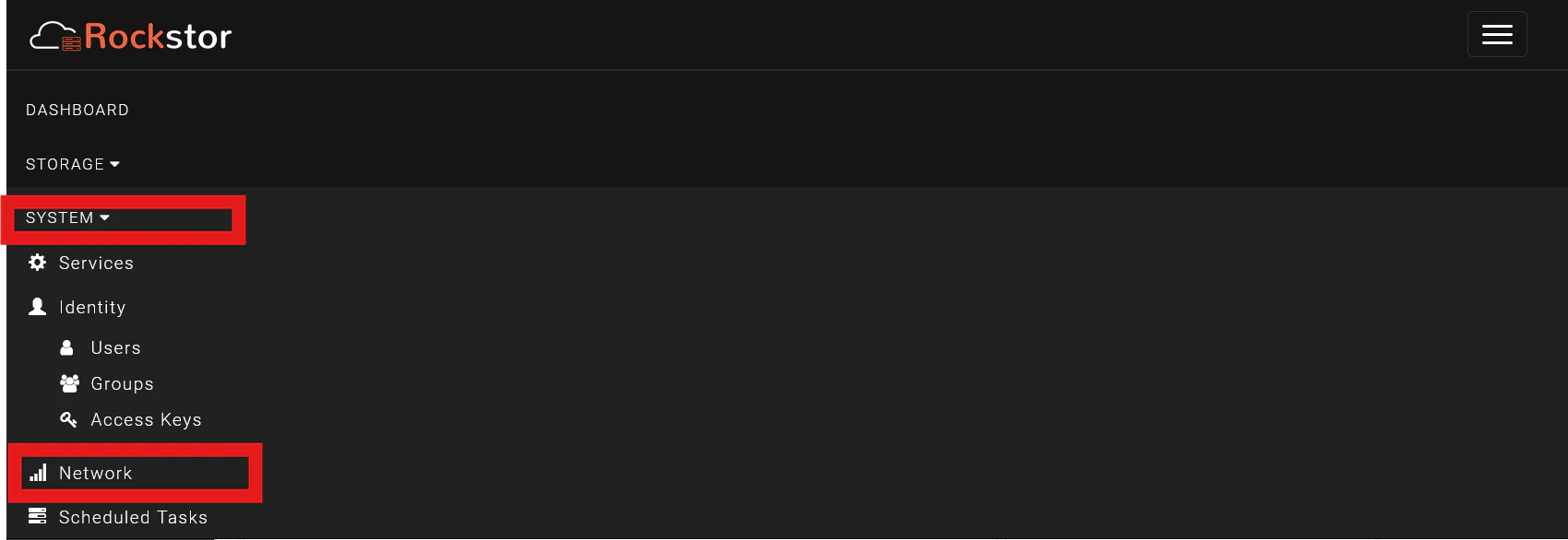

  1. 左メニュー or 右上のメニューの System から Network を 選択
    • image.png
  2. 変更したいアダプタの✏️を選択
    • image.png

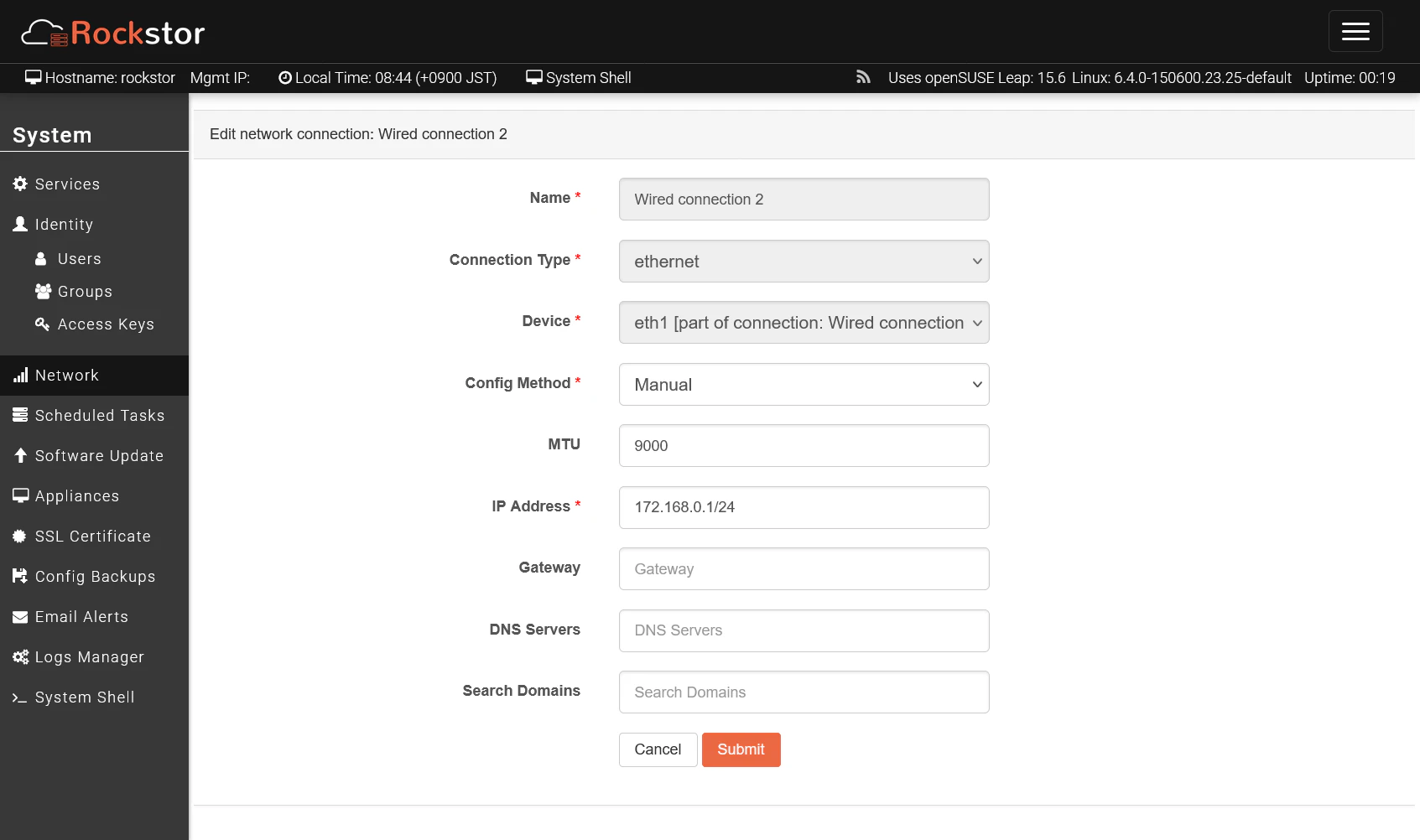

  3. Config Method を Manual にして必要事項を入力して Submit
    • image.png

終了

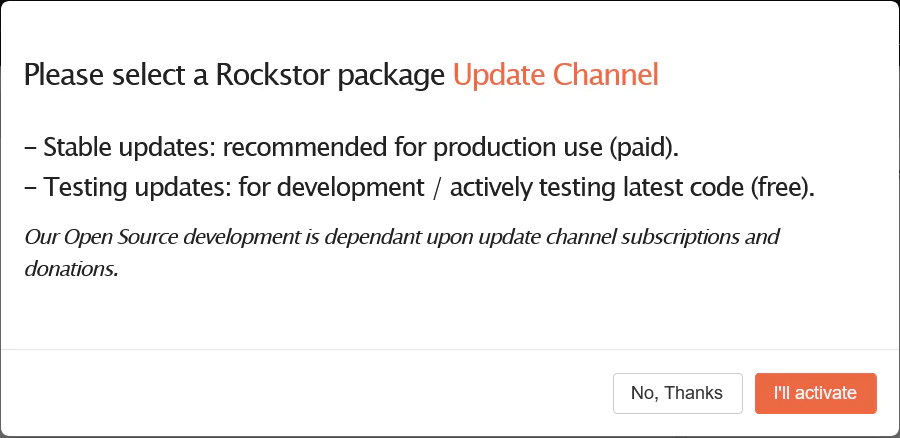

  • Dashboard に飛ぶたびに Popup 出てくるのはしつこいと思う
    • image.png
0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
