W55RP20-EVB-Picoを使ってみよう~C/C++編~

Posted at

W55RP20-EVB-PicoをVisualStudio Codeで使用してみましょう。

VSCodeに拡張機能を追加する

VisualStudioCode拡張機能追加 します。

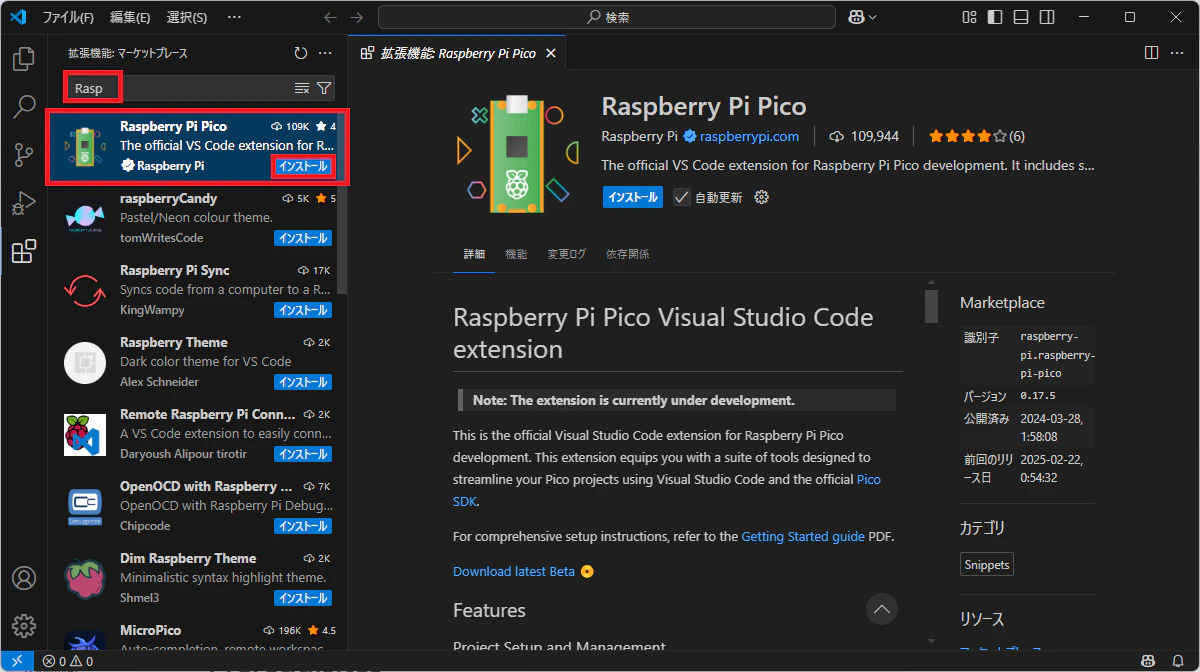

RaspberryPiPicoインストール します。

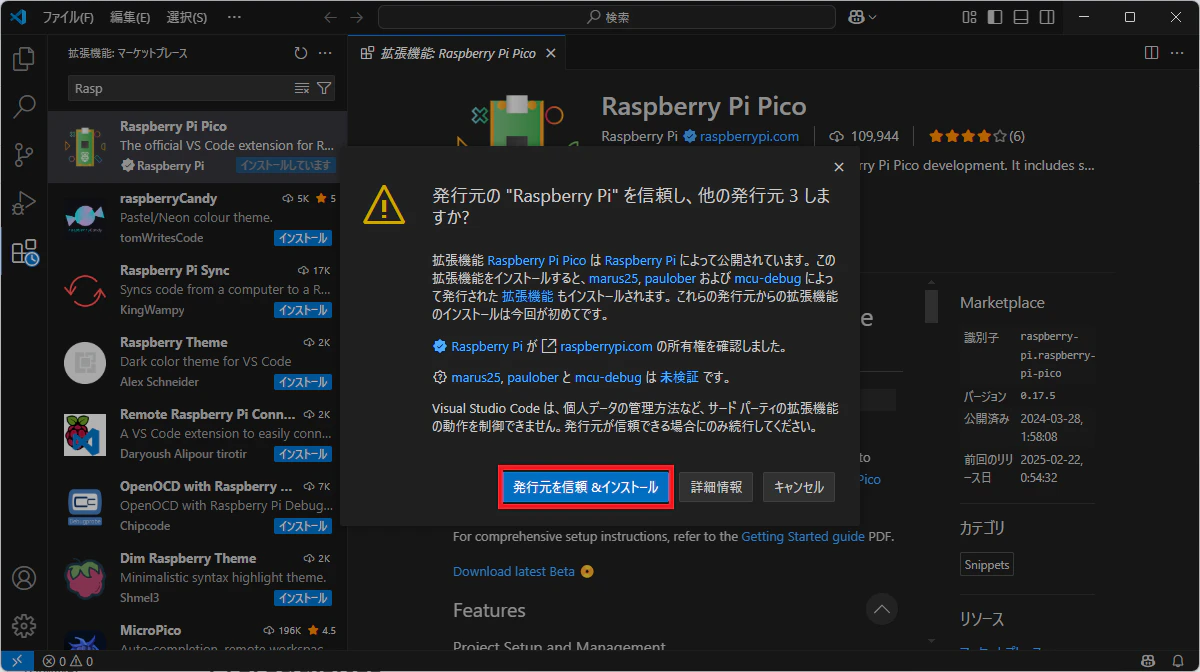

発行元を信頼&インストールクリック します。

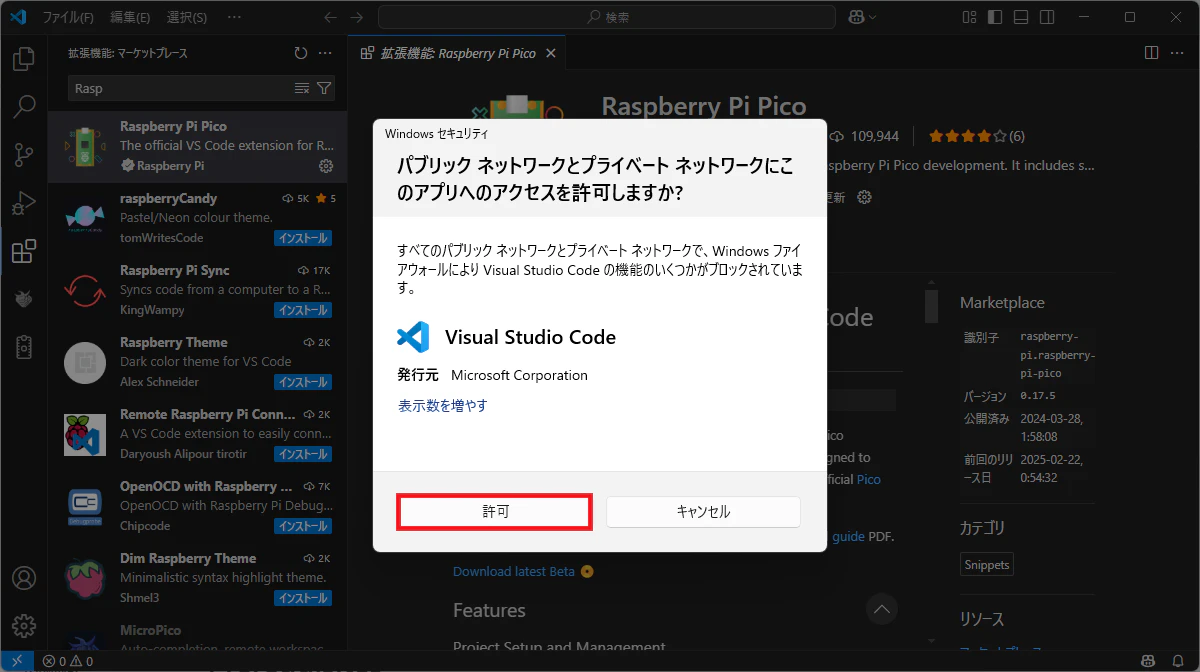

許可クリック します。

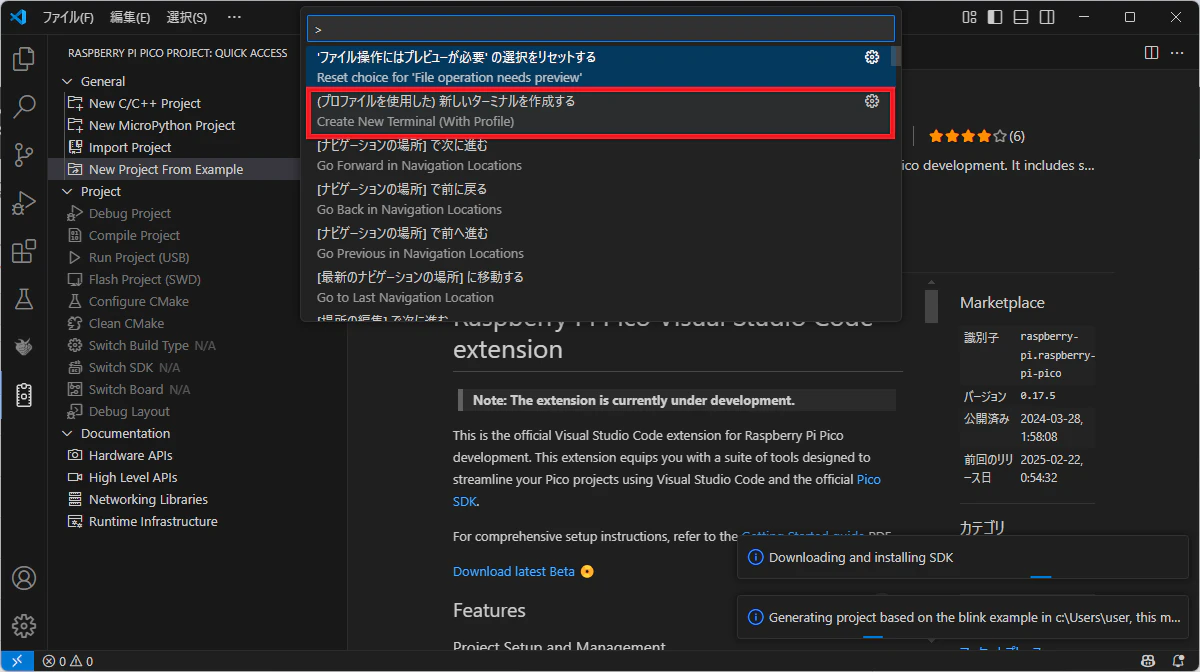

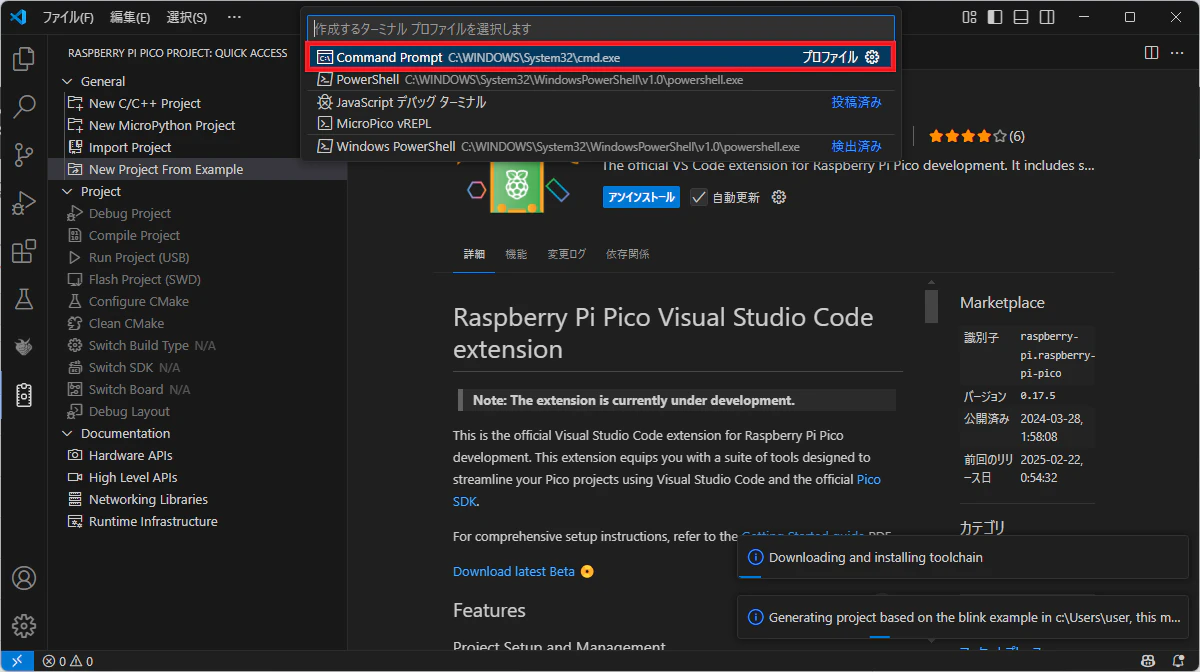

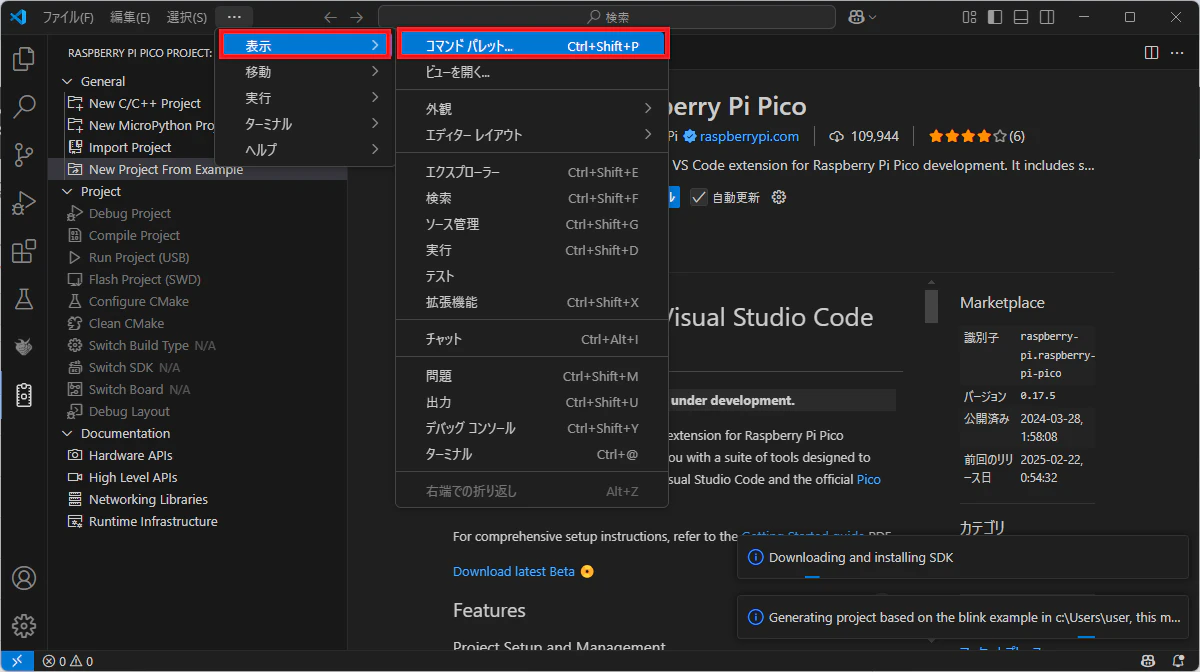

表示⇒コマンドパレット⇒新しいターミナルを作成する⇒Command Prompt選択 します。

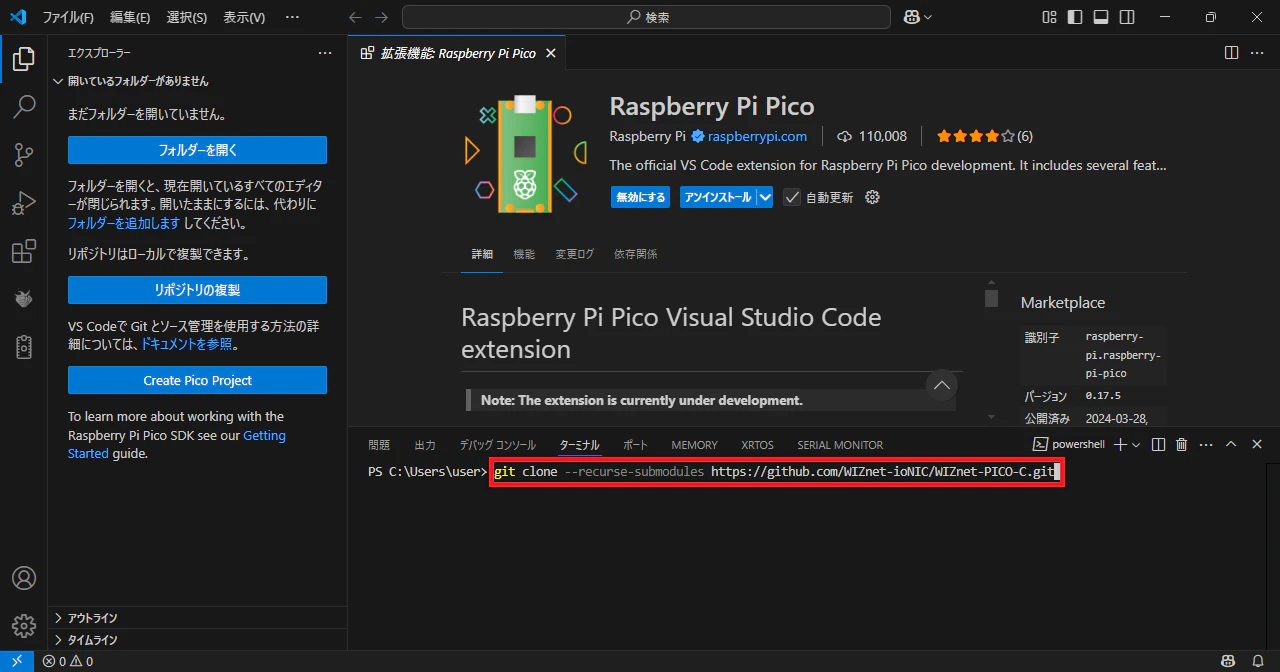

ターミナルに以下を入力します。

git clone --recurse-submodules https://github.com/WIZnet-ioNIC/WIZnet-PICO-C.git

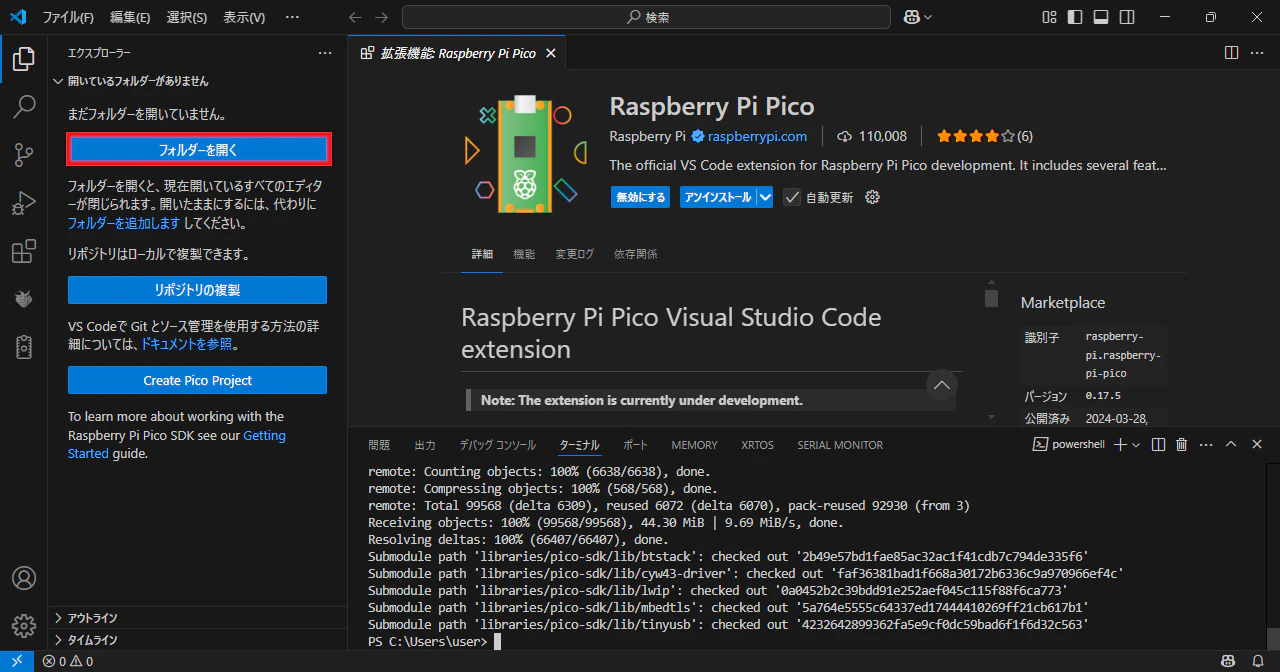

フォルダーを開くクリック します。
ダウンロードフォルダ-を選択し フォルダーの選択クリック します。

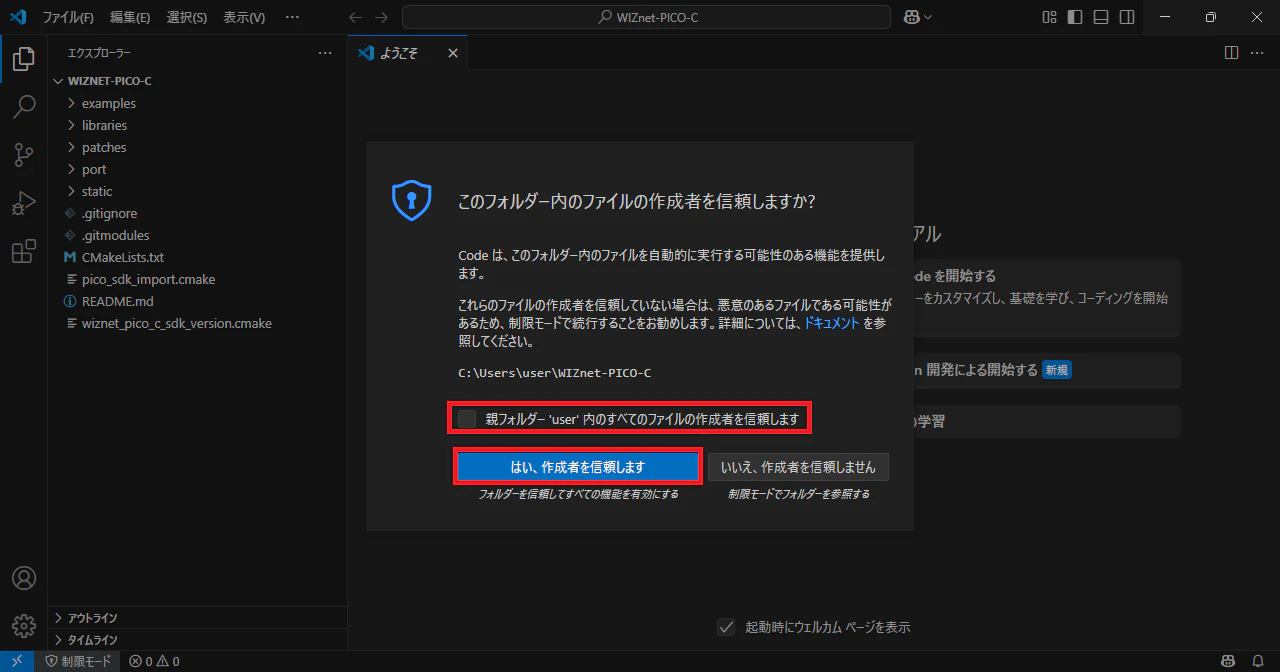

親フォルダ―user内のすべてのファイルの作成者を信頼しますチェック を入れ
はい、作成者を信頼しますクリック します。
import project Yesクリック します。
Basic SettingsLocationSDK Version選択Importクリック します。

コンパイラ検索

Picoコンパイラ選択 します。

CMakerKists

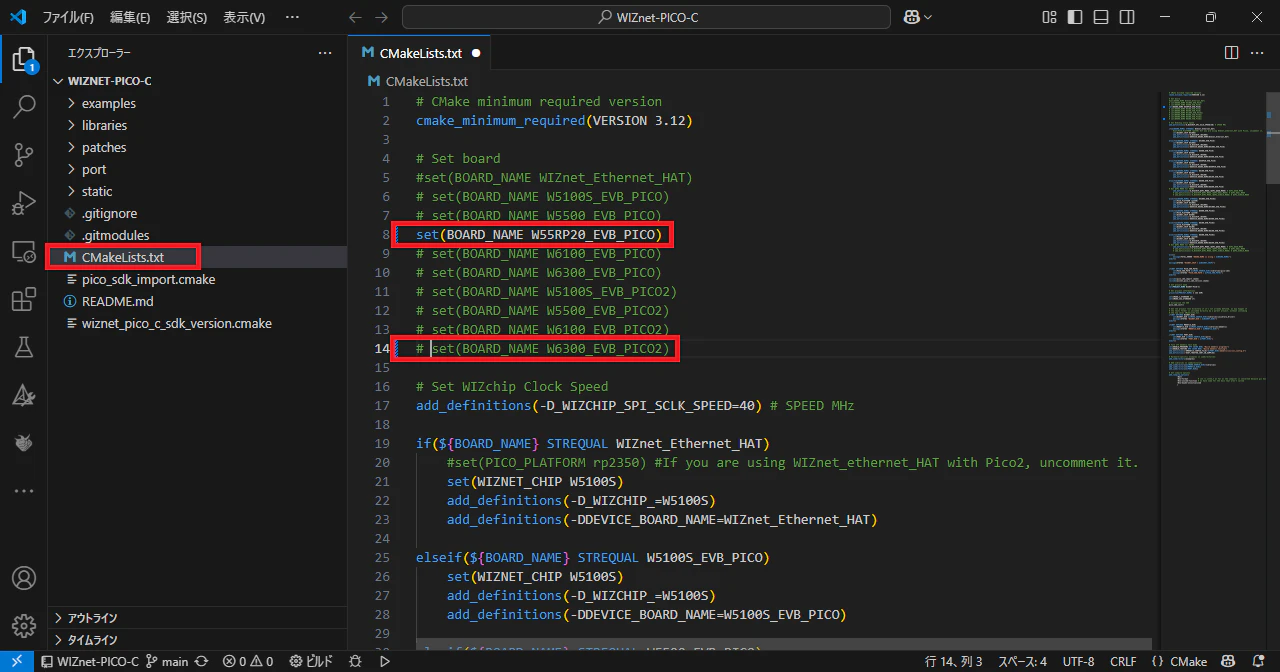

CMakerKists を開き、使用するボードを指定します。

# Set board
set(BOARD_NAME XXXXXX)

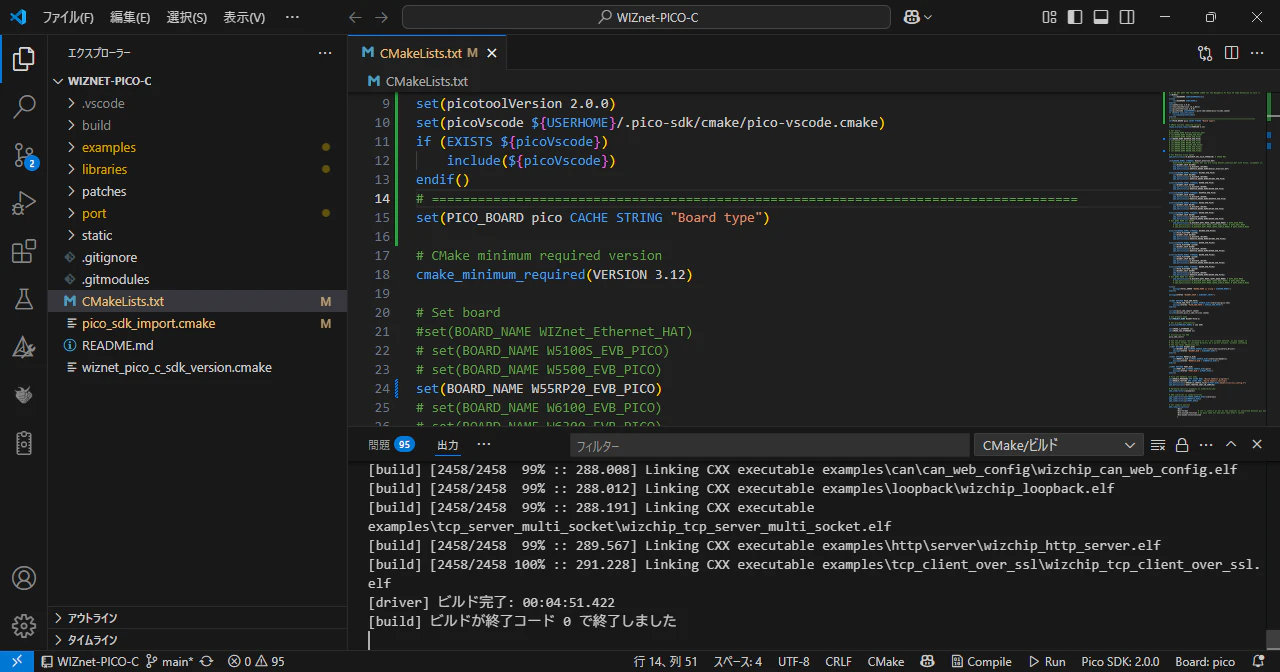

この状態で F7 または Run ボタンを押すことでコンパイルが始まります。

SDKを変更する方法

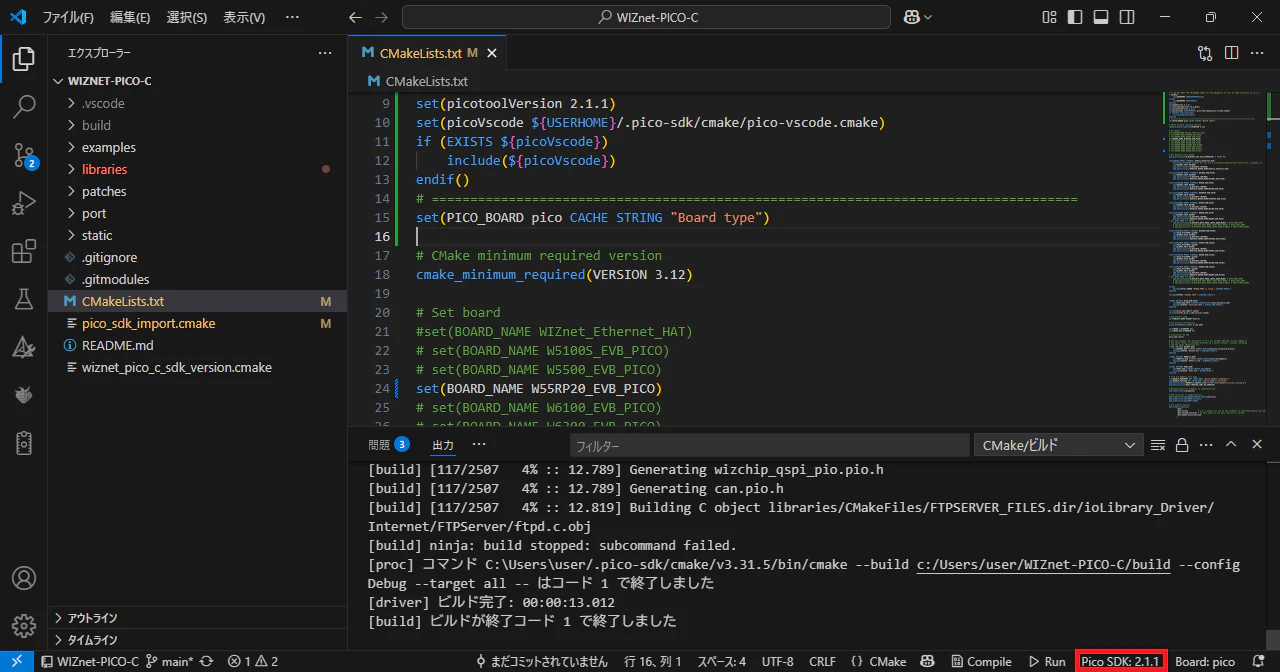

Pico SDKクリック します。

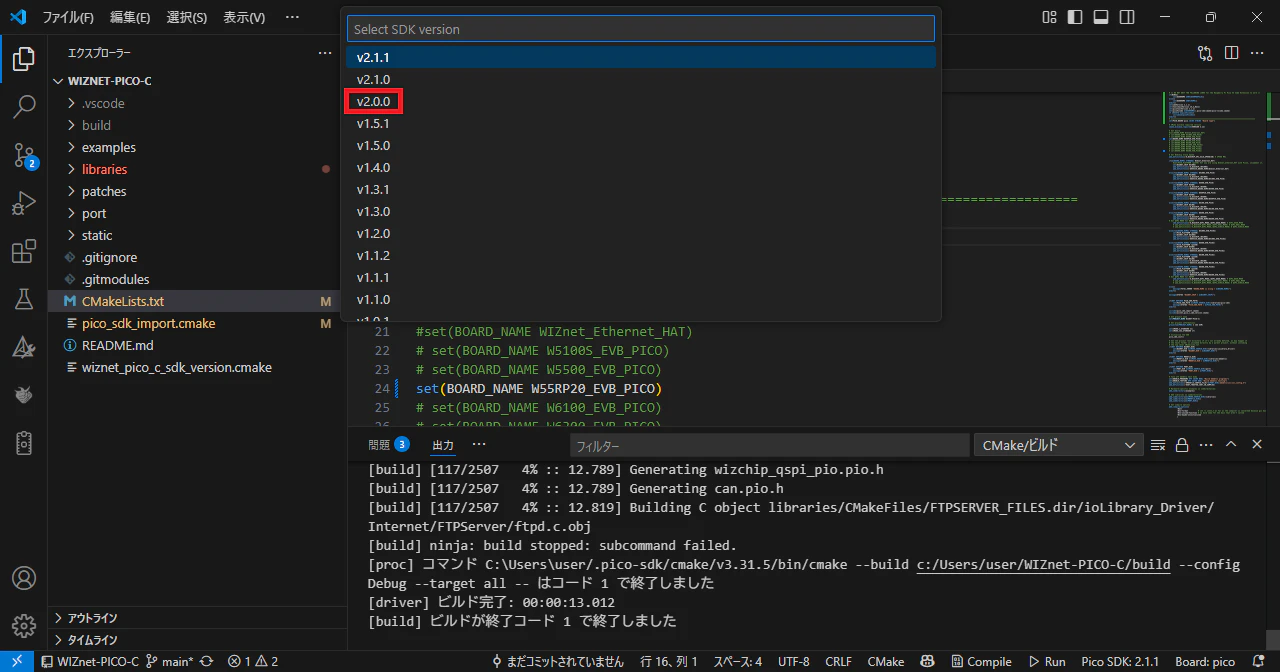

インストールしたいバージョンを指定します。
Yesクリック します。

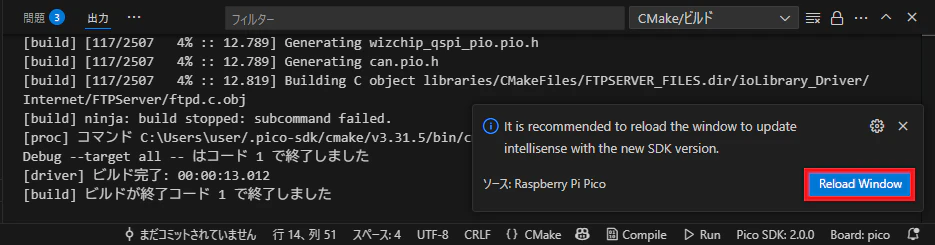

インストール後 Reload Windowクリック します。

ファームの書込み

ボードのBOOTSELボタンとRUNボタンを同時に押し、RUNボタンを先に離すことで書き込みモードにし

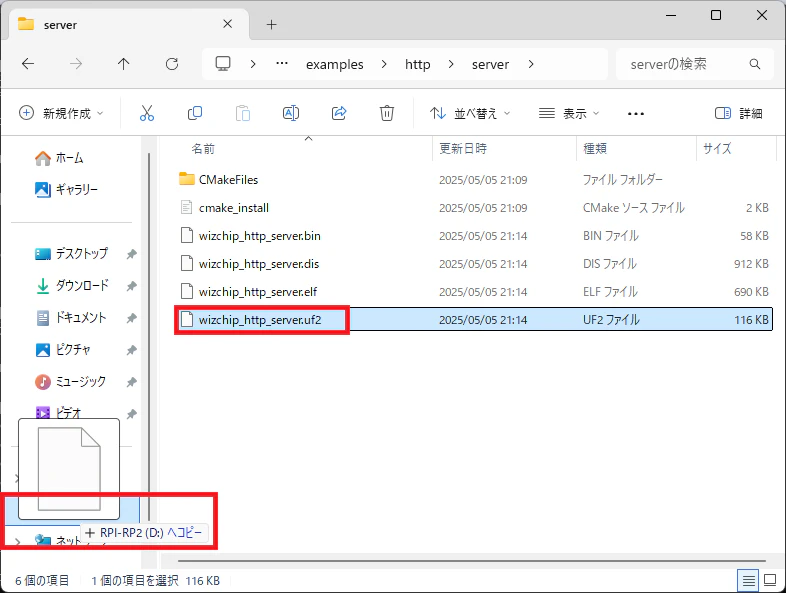

UF2ファイルを書き込みます。
