ListViewをColumnに格納する方法【Flutter】

はじめに

FlutterのColumnの中にListViewを格納しようとしたところ、Bad state: Future already completedをはじめとしたエラーが出てきました(全文は末尾を参照)。色々とソースコードを調べてみたところ、直接Widgetとしては入れられないらしいです。

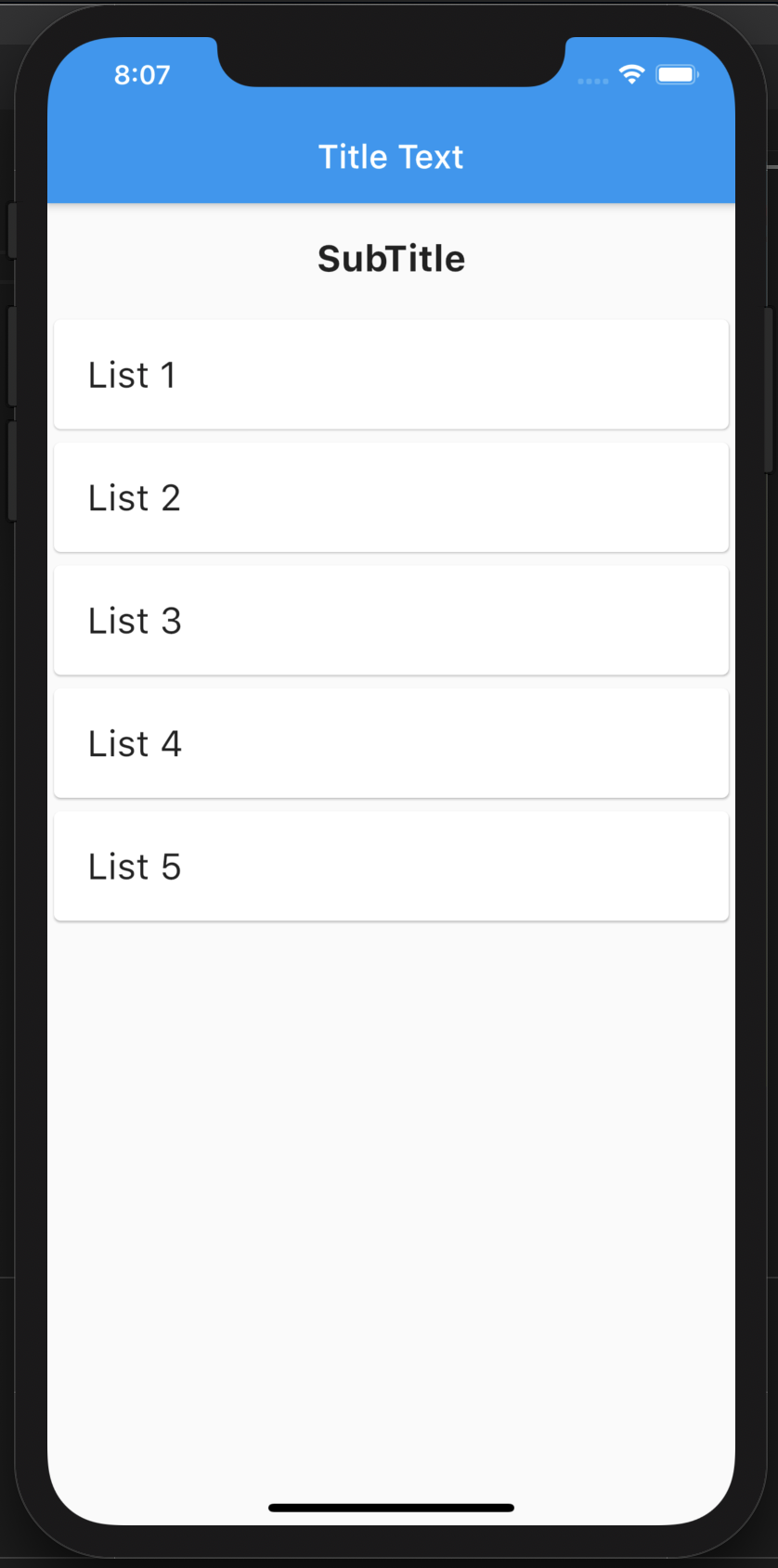

具体的にやりたかったこととしては、以下のようにText (SubTitle)ListView (List 1~5)を、同一のContainerの中のColumnの中に入れるようなものになります。


エラー時のコード

実際に、エラーになった時のコードは以下の通りです。

sample.dart
class SamplePage extends StatefulWidget {
  SampleListPage({Key key}) : super(key: key);
  final List<String> sampleList = <String>[
    'List 1',
    'List 2',
    'List 3',
    'List 4',
    'List 5',
  ];

  @override
  _SamplePageState createState() => _SamplePageState();
}

class _SamplePageState extends State<SamplePage> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(title: Text('Title Text')),
        body: new Container(
            child: new Column(children: <Widget>[
          Container(
              padding: EdgeInsets.all(20.0),
              child: Text(
                "SubTitle",
                style: TextStyle(fontWeight: FontWeight.bold, fontSize: 22.0),
              )),
          ListView.builder(
            itemBuilder: (BuildContext context, int index) {
              return Card(
                child: Padding(
                  child: Text(
                    '${widget.sampleList[index]}',
                    style: TextStyle(fontSize: 22.0),
                  ),
                  padding: EdgeInsets.all(20.0),
                ),
              );
            },
            itemCount: widget.sampleList.length,
          ),
        ])));
  }
}

エラー対処した時のコード

対処法は大変シンプルで、ListViewの外側にExpandedのWidgetを追加すると、表示に成功することができました。

sample.dart
class SamplePage extends StatefulWidget {
  SampleListPage({Key key}) : super(key: key);
  final List<String> sampleList = <String>[
    'List 1',
    'List 2',
    'List 3',
    'List 4',
    'List 5',
  ];

  @override
  _SamplePageState createState() => _SamplePageState();
}

class _SamplePageState extends State<SamplePage> {
  @override
  Widget build(BuildContext context) {
    return Scaffold(
        appBar: AppBar(title: Text('Title Text')),
        body: new Container(
            child: new Column(children: <Widget>[
          Container(
              padding: EdgeInsets.all(20.0),
              child: Text(
                "SubTitle",
                style: TextStyle(fontWeight: FontWeight.bold, fontSize: 22.0),
              )),
          Expanded(
            child: ListView.builder(
              itemBuilder: (BuildContext context, int index) {
                return Card(
                  child: Padding(
                    child: Text(
                      '${widget.sampleList[index]}',
                      style: TextStyle(fontSize: 22.0),
                    ),
                    padding: EdgeInsets.all(20.0),
                  ),
                );
              },
              itemCount: widget.sampleList.length,
            ),
          )
        ])));
  }
}

エラー内容全文

エラー内容は以下の通りでした。

error.txt
Restarted application in 1,605ms.
flutter: ══╡ EXCEPTION CAUGHT BY RENDERING LIBRARY ╞═════════════════════════════════════════════════════════
flutter: The following assertion was thrown during performResize():
flutter: Vertical viewport was given unbounded height.
flutter: Viewports expand in the scrolling direction to fill their container. In this case, a vertical
flutter: viewport was given an unlimited amount of vertical space in which to expand. This situation
flutter: typically happens when a scrollable widget is nested inside another scrollable widget.
flutter: If this widget is always nested in a scrollable widget there is no need to use a viewport because
flutter: there will always be enough vertical space for the children. In this case, consider using a Column
flutter: instead. Otherwise, consider using the "shrinkWrap" property (or a ShrinkWrappingViewport) to size
flutter: the height of the viewport to the sum of the heights of its children.
flutter:
flutter: The relevant error-causing widget was:
flutter:   ListView
[38;5;248mflutter:[39;49m
flutter:
flutter: When the exception was thrown, this was the stack:
[38;5;244mflutter: #0      RenderViewport.performResize.<anonymous closure>[39;49m
[38;5;244mflutter: #1      RenderViewport.performResize[39;49m
[38;5;244mflutter: #2      RenderObject.layout[39;49m
[38;5;244mflutter: #3      RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #4      RenderObject.layout[39;49m
[38;5;244mflutter: #5      RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #6      RenderObject.layout[39;49m
[38;5;244mflutter: #7      RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #8      RenderObject.layout[39;49m
[38;5;244mflutter: #9      RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #10     RenderObject.layout[39;49m
[38;5;244mflutter: #11     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #12     RenderObject.layout[39;49m
[38;5;244mflutter: #13     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #14     RenderObject.layout[39;49m
[38;5;244mflutter: #15     RenderFlex.performLayout[39;49m
[38;5;244mflutter: #16     RenderObject.layout[39;49m
[38;5;244mflutter: #17     MultiChildLayoutDelegate.layoutChild[39;49m
[38;5;244mflutter: #18     _ScaffoldLayout.performLayout[39;49m
[38;5;244mflutter: #19     MultiChildLayoutDelegate._callPerformLayout[39;49m
[38;5;244mflutter: #20     RenderCustomMultiChildLayoutBox.performLayout[39;49m
[38;5;244mflutter: #21     RenderObject.layout[39;49m
[38;5;244mflutter: #22     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #23     RenderObject.layout[39;49m
[38;5;244mflutter: #24     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #25     _RenderCustomClip.performLayout[39;49m
[38;5;244mflutter: #26     RenderObject.layout[39;49m
[38;5;244mflutter: #27     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #28     RenderObject.layout[39;49m
[38;5;244mflutter: #29     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #30     RenderObject.layout[39;49m
[38;5;244mflutter: #31     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #32     RenderObject.layout[39;49m
[38;5;244mflutter: #33     RenderStack.performLayout[39;49m
[38;5;244mflutter: #34     RenderObject.layout[39;49m
[38;5;244mflutter: #35     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #36     RenderObject.layout[39;49m
[38;5;244mflutter: #37     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #38     RenderObject.layout[39;49m
[38;5;244mflutter: #39     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #40     RenderObject.layout[39;49m
[38;5;244mflutter: #41     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #42     RenderObject.layout[39;49m
[38;5;244mflutter: #43     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #44     RenderObject.layout[39;49m
[38;5;244mflutter: #45     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #46     RenderOffstage.performLayout[39;49m
[38;5;244mflutter: #47     RenderObject.layout[39;49m
[38;5;244mflutter: #48     _RenderTheatre.performLayout[39;49m
[38;5;244mflutter: #49     RenderObject.layout[39;49m
[38;5;244mflutter: #50     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #51     RenderObject.layout[39;49m
[38;5;244mflutter: #52     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #53     RenderObject.layout[39;49m
[38;5;244mflutter: #54     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #55     RenderObject.layout[39;49m
[38;5;244mflutter: #56     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #57     RenderObject.layout[39;49m
[38;5;244mflutter: #58     RenderProxyBoxMixin.performLayout[39;49m
[38;5;244mflutter: #59     RenderObject.layout[39;49m
[38;5;244mflutter: #60     RenderView.performLayout[39;49m
[38;5;244mflutter: #61     RenderObject._layoutWithoutResize[39;49m
[38;5;244mflutter: #62     PipelineOwner.flushLayout[39;49m
[38;5;244mflutter: #63     RendererBinding.drawFrame[39;49m
[38;5;244mflutter: #64     WidgetsBinding.drawFrame[39;49m
[38;5;244mflutter: #65     RendererBinding._handlePersistentFrameCallback[39;49m
[38;5;244mflutter: #66     SchedulerBinding._invokeFrameCallback[39;49m
[38;5;244mflutter: #67     SchedulerBinding.handleDrawFrame[39;49m
[38;5;244mflutter: #68     SchedulerBinding.scheduleWarmUpFrame.<anonymous closure>[39;49m
flutter: (elided 11 frames from class _RawReceivePortImpl, class _Timer, dart:async, and dart:async-patch)
flutter:
flutter: The following RenderObject was being processed when the exception was fired: RenderViewport#7229c NEEDS-LAYOUT NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE:
flutter:   needs compositing
flutter:   creator: Viewport  IgnorePointer-[GlobalKey#655d4]  Semantics  _PointerListener  Listener
flutter:     _GestureSemantics  RawGestureDetector-[LabeledGlobalKey<RawGestureDetectorState>#a6270]
flutter:     _PointerListener  Listener  _ScrollableScope  _ScrollSemantics-[GlobalKey#4ec2c]  Scrollable
flutter:
flutter:   parentData: <none> (can use size)
flutter:   constraints: BoxConstraints(0.0<=w<=414.0, 0.0<=h<=Infinity)
flutter:   size: MISSING
flutter:   axisDirection: down
flutter:   crossAxisDirection: right
flutter:   offset: ScrollPositionWithSingleContext#7e1fe(offset: 0.0, range: null..null, viewport: null,
flutter:     ScrollableState, AlwaysScrollableScrollPhysics -> BouncingScrollPhysics, IdleScrollActivity#48691,
flutter:     ScrollDirection.idle)
flutter:   anchor: 0.0
flutter: This RenderObject had the following descendants (showing up to depth 5):
flutter:     center child: RenderSliverPadding#bfa3f NEEDS-LAYOUT NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter:       child: RenderSliverList#7edf4 NEEDS-LAYOUT NEEDS-PAINT
flutter: ════════════════════════════════════════════════════════════════════════════════════════════════════
flutter: Another exception was thrown: RenderBox was not laid out: RenderViewport#7229c NEEDS-LAYOUT NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: RenderBox was not laid out: RenderViewport#7229c NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: RenderBox was not laid out: RenderIgnorePointer#4261e relayoutBoundary=up7 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: RenderBox was not laid out: RenderSemanticsAnnotations#7da34 relayoutBoundary=up6 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: RenderBox was not laid out: RenderPointerListener#f25ce relayoutBoundary=up5 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: RenderBox was not laid out: RenderSemanticsGestureHandler#7f987 relayoutBoundary=up4 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: RenderBox was not laid out: RenderPointerListener#02432 relayoutBoundary=up3 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: RenderBox was not laid out: _RenderScrollSemantics#af1cd relayoutBoundary=up2 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: RenderBox was not laid out: RenderFlex#b3709 relayoutBoundary=up1 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
flutter: Another exception was thrown: NoSuchMethodError: The method '>' was called on null.
flutter: Another exception was thrown: NoSuchMethodError: The getter 'visible' was called on null.

[38;5;248m════════ Exception caught by Flutter framework ═════════════════════════════════[39;49m
[38;5;244mThe following StateError was thrown while executing callbacks for FrameTiming:[39;49m
Bad state: Future already completed

[38;5;244mWhen the exception was thrown, this was the stack[39;49m
[38;5;244m#1      WidgetsBinding.drawFrame.<anonymous closure>[39;49m
[38;5;244m#2      SchedulerBinding._executeTimingsCallbacks[39;49m
[38;5;244m#6      _invoke1  (dart:ui/hooks.dart:275:10)[39;49m
[38;5;244m#7      _reportTimings  (dart:ui/hooks.dart:213:3)[39;49m
[38;5;244m(elided 4 frames from dart:async)[39;49m
[38;5;244mThe TimingsCallback that gets executed was: Closure: (List<FrameTiming>) => Null[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m
Reloaded 2 of 500 libraries in 344ms.

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
[38;5;244mThe following assertion was thrown during performResize():[39;49m
Vertical viewport was given unbounded height.

[38;5;244mViewports expand in the scrolling direction to fill their container. In this case, a vertical viewport was given an unlimited amount of vertical space in which to expand. This situation typically happens when a scrollable widget is nested inside another scrollable widget.[39;49m

[38;5;248mIf this widget is always nested in a scrollable widget there is no need to use a viewport because there will always be enough vertical space for the children. In this case, consider using a Column instead. Otherwise, consider using the "shrinkWrap" property (or a ShrinkWrappingViewport) to size the height of the viewport to the sum of the heights of its children.[39;49m

[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mListView[39;49m
[38;5;244mWhen the exception was thrown, this was the stack[39;49m
[38;5;244m#0      RenderViewport.performResize.<anonymous closure>[39;49m
[38;5;244m#1      RenderViewport.performResize[39;49m
[38;5;244m#2      RenderObject.layout[39;49m
[38;5;244m#3      RenderProxyBoxMixin.performLayout[39;49m
[38;5;244m#4      RenderObject.layout[39;49m
[38;5;244m...[39;49m
[38;5;244mThe following RenderObject was being processed when the exception was fired: RenderViewport#5cb1f NEEDS-LAYOUT NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE[39;49m
[38;5;244mRenderObject: RenderViewport#5cb1f NEEDS-LAYOUT NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE[39;49m
    [38;5;244mneeds compositing[39;49m
    [38;5;244mparentData: <none> (can use size)[39;49m
    [38;5;244mconstraints: BoxConstraints(0.0<=w<=382.0, 0.0<=h<=Infinity)[39;49m
    [38;5;244msize: MISSING[39;49m
    [38;5;244maxisDirection: down[39;49m
    [38;5;244mcrossAxisDirection: right[39;49m
    [38;5;244moffset: ScrollPositionWithSingleContext#70352(offset: 0.0, range: null..null, viewport: null, ScrollableState, AlwaysScrollableScrollPhysics -> BouncingScrollPhysics, IdleScrollActivity#f5d2d, ScrollDirection.idle)[39;49m
    [38;5;244manchor: 0.0[39;49m
    [38;5;244mcenter child: RenderSliverPadding#96b1e NEEDS-LAYOUT NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE[39;49m
        [38;5;244mparentData: paintOffset=Offset(0.0, 0.0)[39;49m
        [38;5;244mconstraints: MISSING[39;49m
        [38;5;244mgeometry: null[39;49m
        [38;5;244mpadding: EdgeInsets.zero[39;49m
        [38;5;244mtextDirection: ltr[39;49m
        [38;5;244mchild: RenderSliverList#7efe4 NEEDS-LAYOUT NEEDS-PAINT[39;49m
            [38;5;244mparentData: paintOffset=Offset(0.0, 0.0)[39;49m
            [38;5;244mconstraints: MISSING[39;49m
            [38;5;244mgeometry: null[39;49m
            [38;5;244mno children current live[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderViewport#5cb1f NEEDS-LAYOUT NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mListView[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderViewport#5cb1f NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mListView[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderIgnorePointer#85840 relayoutBoundary=up9 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mListView[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderSemanticsAnnotations#80a22 relayoutBoundary=up8 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mListView[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderPointerListener#4e7df relayoutBoundary=up7 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mListView[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderSemanticsGestureHandler#89797 relayoutBoundary=up6 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mListView[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderPointerListener#78530 relayoutBoundary=up5 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mListView[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: _RenderScrollSemantics#fdaa8 relayoutBoundary=up4 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mColumn[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderFlex#afb81 relayoutBoundary=up3 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mColumn[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderFlex#dc692 relayoutBoundary=up2 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mContainer[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
RenderBox was not laid out: RenderPadding#ab435 relayoutBoundary=up1 NEEDS-PAINT NEEDS-COMPOSITING-BITS-UPDATE
'package:flutter/src/rendering/box.dart':
Failed assertion: line 1694 pos 12: 'hasSize'
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mScaffold[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m

[38;5;248m════════ Exception caught by rendering library ═════════════════════════════════[39;49m
The method '>' was called on null.
Receiver: null
Tried calling: >(1e-10)
[38;5;244mThe relevant error-causing widget was[39;49m
    [38;5;248mColumn[39;49m
[38;5;248m════════════════════════════════════════════════════════════════════════════════[39;49m
umi_mori
リサーチャー / フリーランスエンジニア。 研究では、リハビリを題材としてヒトの学習に対して、脳波とMRIでデータ分析。 #脳科学 #研究 #フリーランス #エンジニア #人工知能 #AI #機械学習 #慶應 #リハビリ #教育 #障害
https://www.umi-mori.jp
ai-lab
ai-labというデータサイエンス系のクラウド研究室です! ai-labという情報プラットフォームへ投稿したり、slackで議論をしたりしています。
https://www.ai-lab.app/
Why not register and get more from Qiita?
  1. We will deliver articles that match you
    By following users and tags, you can catch up information on technical fields that you are interested in as a whole
  2. you can read useful information later efficiently
    By "stocking" the articles you like, you can search right away
