React ComponentをGUI上のコンポーネント = Code Componetとして表示できるFramer X。
そのFramer XのCode Componetからローカルの(プロジェクトディレクトリに置いている)画像ファイルにどうアクセスするか公式のSlack#framer-xチャンネルで質問して教えてもらえたのでメモを残しておきます。
画像ファイルの置く場所
画像ファイルは以下ディレクトリに配置します。
+ FramerXのプロジェクトディレクトリ
+ container
+ code
- Hoge.tsx
+ design
+ assets
- horse.png
この design/assets
以下に置くと http://127.0.0.1:4567/design/asstes/image.png
でアクセスできるようになります。
Code Componentからの参照の仕方
以下は Hoge.tsx
のコードです。
Hoge.tsx
import * as React from "react";
import { PropertyControls, ControlType, } from "framer";
interface Props {
image?: string;
}
const defaultImage = 'http://127.0.0.1:4567/design/assets/horse.jpg'
export class Hoge extends React.Component<Props> {
static defaultProps: Props = {
image: 'http://127.0.0.1:4567/design/assets/horse.jpg',
}
static propertyControls: PropertyControls = {
imagefile: {
type: ControlType.Image,
title: "Choose Image File",
},
}
render() {
return (
<div>
<h2>default image</h2>
<img src={defaultImage} width={200} height={200} />
<h2>props image</h2>
<img src={this.props.image} width={200} height={200} />
</div>
)
}
}
-
defaultImage
はFramer Xのインスペクタで画像を任意選択しない場合の指定の方法 - props.imageはFrmaer Xのインスペクタで画像を任意選択できる場合の指定方法
- デフォルトの画像が不要の場合は
defaultProps
は不要です
- デフォルトの画像が不要の場合は

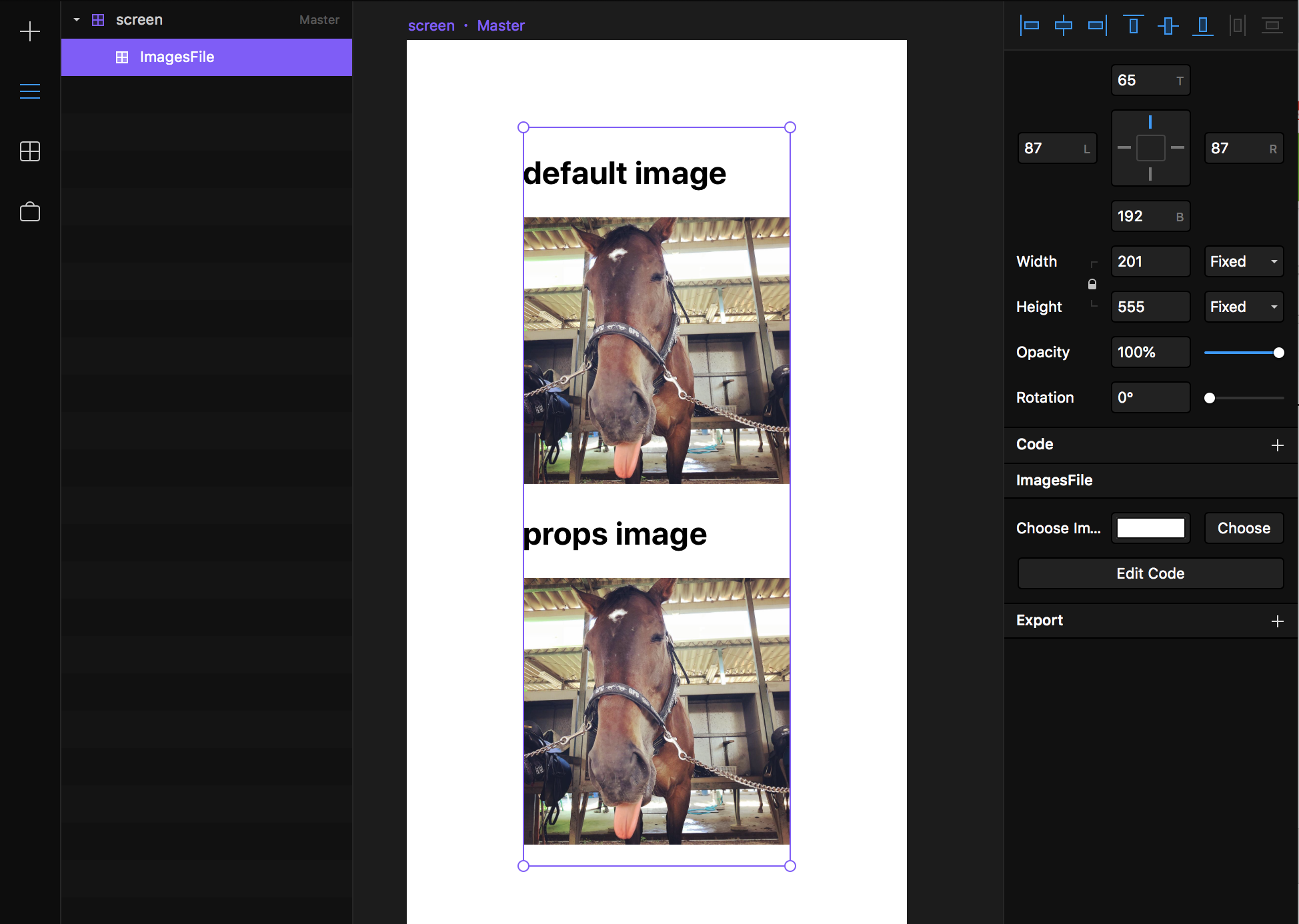

Framer X上の表示
Framer XのPreviewモードでの表示

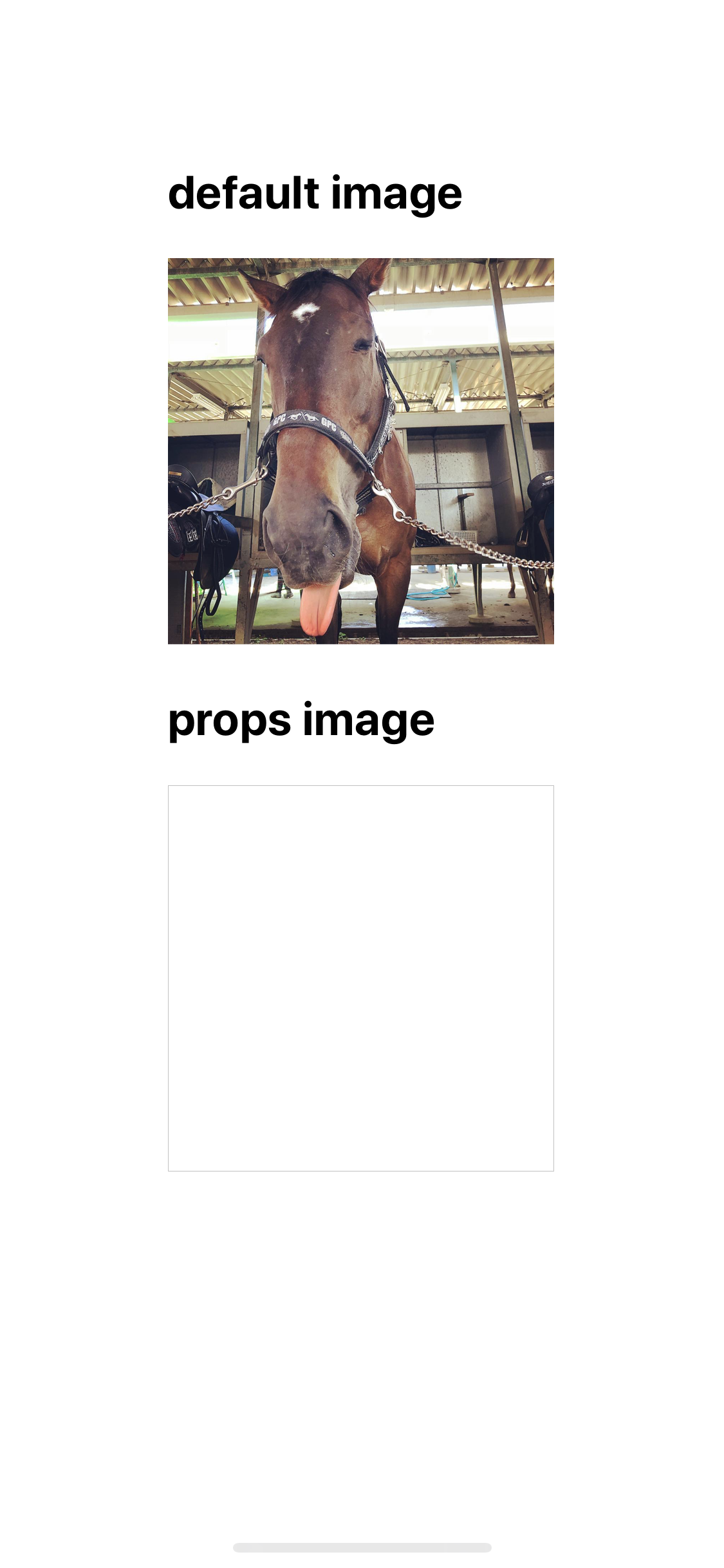

Framer App(Mobile, iOS)での表示
と、結局Framer Appで出ない(WiFiは同じ所に接続してますが…)という結果なので実機検証できないプロトタイピングは意味ないわけですが… 当然画像をリモートに置けばでます。
Hoge.tsx
import * as React from "react";
import { PropertyControls, ControlType, } from "framer";
interface Props {
image?: string;
}
const defaultImage = 'https://scontent-nrt1-1.cdninstagram.com/vp/9e0e8228203ef044c5df2be70fa80d36/5C56B0CF/t51.2885-15/e35/41381170_704999723191120_6293607066180249889_n.jpg'
export class Hoge extends React.Component<Props> {
static defaultProps: Props = {
image: 'http://127.0.0.1:4567/design/assets/horse.jpg',
}
static propertyControls: PropertyControls = {
imagefile: {
type: ControlType.Image,
title: "Choose Image File",
},
}
render() {
return (
<div>
<h2>default image</h2>
<img src={defaultImage} width={200} height={200} />
<h2>props image</h2>
<img src={this.props.image} width={200} height={200} />
</div>
)
}
}
