SwiftUIで作るドラえもん【顔編】

Last updated at Posted at 2020-03-01

はじめに

日曜日で暇なので， SwiftUIを使ってドラえもんを作ってみました．

この記事で完成するドラえもんは以下の画像です．
口を開けているドラえもんは難しそうなので断念しました．
かなり本物に近くないですか？笑

DoraFace

さぁ作って行きましょう．

土台づくり

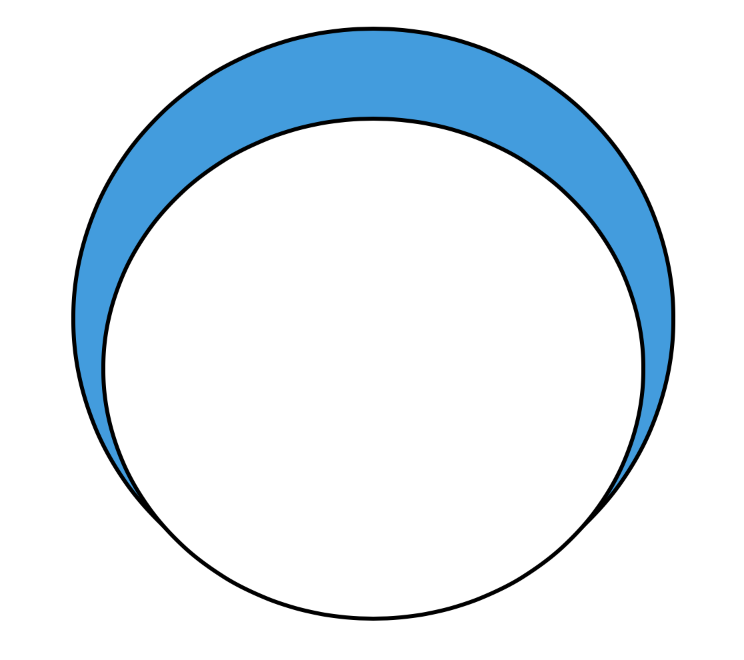

まず，以下の画像のような土台となる青の円とその中にある円から作って行きましょう．
ドラえもんって意識してませんでしたが，地味に楕円なんだと感じました．
確かによくよく見たら楕円なんですよね．

土台の色のみ，Asset Catalogで色を管理しています．
(鼻も管理した方が良さそう...)

土台

以下コードです．

ContentView.swift

struct base: View {
    var body: some View {
        ZStack {
            // 土台
            Ellipse()
            .overlay(
              Ellipse()
             .stroke(Color.black,lineWidth: 2)
            )
            .frame(width: 300, height: 290)
            .foregroundColor(Color("DoraColor"))

            // 顔
            Ellipse()
                .frame(width: 270 , height: 250)
                .foregroundColor(Color.white)
                .overlay(
                  Ellipse()
                 .stroke(Color.black,lineWidth: 2)
                )
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 100 } )
        }
    }
}

目

次に目です．

eyeeye

ContentView.swift
struct eyes: View {
    var body: some View {
        HStack(spacing:0) {
            // 左目
            ZStack {
                Ellipse()
                    .frame(width: 60, height: 80)
                    .foregroundColor(Color.white)
                    .overlay(
                      Ellipse()
                     .stroke(Color.black,lineWidth: 2)
                    )
                ZStack {
                    Ellipse()
                        .frame(width: 20, height: 30)
                        .foregroundColor(Color.black)

                    Ellipse()
                        .frame(width:5, height: 10)
                        .foregroundColor(Color.white)
                }
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 10 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in -5 })

            }

            ZStack {
                // 右目
                Ellipse()
                    .frame(width: 60, height: 80)
                    .foregroundColor(Color.white)
                    .overlay(
                      Ellipse()
                     .stroke(Color.black,lineWidth: 2)
                    )

                ZStack {
                    Ellipse()
                        .frame(width: 20, height: 30)
                        .foregroundColor(Color.black)

                    Ellipse()
                        .frame(width:5, height: 10)
                        .foregroundColor(Color.white)
                }
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 10 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 25 } )
            }
        }
    }
}

鼻

続いては鼻ですね．

nosenose

ContentView.swift
struct nose: View {
    var body: some View {
        Group {
            // 鼻
            ZStack{
                Circle()
                    .frame(width: 50, height: 50)
                    .foregroundColor(Color.red)
                    .overlay(
                      Ellipse()
                     .stroke(Color.black,lineWidth: 2)
                    )
                Circle()
                    .frame(width: 20, height: 10)
                    .foregroundColor(Color.white)
                    .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 20})
                    .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 15})
            }
            .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 60 } )

            // 人中?
            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 110, height: 2)
                .rotationEffect(Angle(degrees: 90))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -45 } )
        }
    }
}

髭

ここまでくるとそれっぽくなってきました．

CatBeardCatBeard

ContentView.swift
struct CatBeard: View {
    var body: some View {
        Group {
            // 左髭
            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: 15))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 10 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 120 } )

            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: 0))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -20 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 120 } )

            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: -15))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -50 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 120 } )

            // 右髭
            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: -15))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 10 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in -50 } )

            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: 0))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -20 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in -50 } )

            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: 15))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -50 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in -50 } )
        }
    }
}

口

最後に口です．

mouthmouth

ContentView.swift
struct Mouth: View {
    var body: some View {
        Circle()
            .trim(from: 0.05, to: 0.45)
            .stroke(Color.black,lineWidth: 3)
            .frame(width: 200, height: 200)
    }
}

完成

無理やりですがなんとか完成しました．
DoraFace

全文
ContentView.swift

import SwiftUI

struct base: View {
    var body: some View {
        ZStack {
            // 土台
            Ellipse()
            .overlay(
              Ellipse()
             .stroke(Color.black,lineWidth: 2)
            )
            .frame(width: 300, height: 290)
            .foregroundColor(Color("DoraColor"))

            // 顔
            Ellipse()
                .frame(width: 270 , height: 250)
                .foregroundColor(Color.white)
                .overlay(
                  Ellipse()
                 .stroke(Color.black,lineWidth: 2)
                )
                .alignmentGuide(.leading, computeValue: { _ in 10 } )
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 100 } )
        }
    }
}

struct eyes: View {
    var body: some View {
        HStack(spacing:0) {
            // 左目
            ZStack {
                Ellipse()
                    .frame(width: 60, height: 80)
                    .foregroundColor(Color.white)
                    .overlay(
                      Ellipse()
                     .stroke(Color.black,lineWidth: 2)
                    )
                ZStack {
                    Ellipse()
                        .frame(width: 20, height: 30)
                        .foregroundColor(Color.black)

                    Ellipse()
                        .frame(width:5, height: 10)
                        .foregroundColor(Color.white)
                }
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 10 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in -5 })

            }

            ZStack {
                // 右目
                Ellipse()
                    .frame(width: 60, height: 80)
                    .foregroundColor(Color.white)
                    .overlay(
                      Ellipse()
                     .stroke(Color.black,lineWidth: 2)
                    )

                ZStack {
                    Ellipse()
                        .frame(width: 20, height: 30)
                        .foregroundColor(Color.black)

                    Ellipse()
                        .frame(width:5, height: 10)
                        .foregroundColor(Color.white)
                }
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 10 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 25 } )
            }
        }
    }
}

struct nose: View {
    var body: some View {
        Group {
            // 鼻
            ZStack{
                Circle()
                    .frame(width: 50, height: 50)
                    .foregroundColor(Color.red)
                    .overlay(
                      Ellipse()
                     .stroke(Color.black,lineWidth: 2)
                    )
                Circle()
                    .frame(width: 20, height: 10)
                    .foregroundColor(Color.white)
                    .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 20})
                    .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 15})
            }
            .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 60 } )
            // 人中?
            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 110, height: 2)
                .rotationEffect(Angle(degrees: 90))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -45 } )
        }
    }
}

struct CatBeard: View {
    var body: some View {
        Group {
            // 左髭
            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: 15))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 10 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 120 } )

            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: 0))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -20 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 120 } )

            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: -15))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -50 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in 120 } )

            // 右髭
            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: -15))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 10 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in -50 } )

            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: 0))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -20 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in -50 } )

            Rectangle()
                .foregroundColor(Color.black)
                .frame(width: 70, height: 2)
                .rotationEffect(Angle(degrees: 15))
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in -50 } )
                .alignmentGuide(HorizontalAlignment.center, computeValue: { _ in -50 } )
        }
    }
}

struct Mouth: View {
    var body: some View {
        Circle()
            .trim(from: 0.05, to: 0.45)
            .stroke(Color.black,lineWidth: 3)
            .frame(width: 200, height: 200)
    }
}

struct DoraFace: View {
    var body: some View {
        ZStack{
            // 土台
            base()
            // 目
            eyes()
                .alignmentGuide(VerticalAlignment.center, computeValue: { _ in 130})
            // 鼻
            nose()
            //　髭
            CatBeard()
            //　口
            Mouth()
        }
    }
}

struct ContentView: View {
    var body: some View {
        VStack{
            Text("ドラえもん")
                .font(.largeTitle)
            DoraFace()
        }

    }
}

struct ContentView_Previews: PreviewProvider {
    static var previews: some View {
        ContentView()
    }
}

終わりに

あまり綺麗ではありませんが，なんとか完成させることができました．
次の暇な日曜日にでも綺麗なコードに修正していこうと思います．

ちなみに，今回のタイトルに，【顔編】とありますが，【体編】を作る予定はありません．笑

SwiftUI初心者なのでもっと良い書き方があればご教示ください．

GitHub URL: https://github.com/tukuyo/Doraemon_SwiftUI
