OpenWRT + UnboundでDNS over TLSキャッシュサーバを作る

Last updated at Posted at 2018-12-09

はじめに

  • DNSはUDPプロトコルを使う
  • しかし、UDPプロトコルは欠けることがある
  • 名前解決リクエストが欠けてDNSサーバから応答がない場合、利用者からの見え方は「ページを開くのが遅い」
  • ならば、UDPじゃなくてTCPで名前解決すればいいじゃない

今回試したOpenWRT

  • Model: TP-LINK Archer C7 v4
  • Firmware Version: OpenWrt 18.06.1 r7258-5eb055306f / LuCI openwrt-18.06 branch (git-18.228.31946-f64b152)

構成（設定前）

PC--->[udp:53@dnsmasq]OpenWRT--->[udp:53]DGW+DNS

  • 前の構成では、dnsmasqは上流（プロバイダ）のDHCPから配布されたudp port 53へ問い合わせる。

構成（設定後）

PC--->udp:53@dnsmasqOpenWRT---DGW--->[tcp+tls:853]1.1.1.1

  • 後の構成では、dnsmasqはunboundにDNSクエリを転送し、unboundはCloudFlareのtcp+tls port 853へ問い合わせる。

設定

設定は、CUIからする方法と、OpenWRTのWebGUIからする方法がある。
以下に、前半はCUIで設定し、後半はその設定がWebGUIからどう見えるか掲載する。

  • unboundをインストール
opkg update
opkg install unbound unbound-control luci-app-unbound
  • UnboundのConfigに、CloudFlareのdns over tlsを転送先に設定
/etc/unbound/unbound_ext.conf
forward-zone:
  name: "."
  forward-addr: 1.1.1.1@853
  forward-addr: 1.0.0.1@853
  #forward-addr: 2606:4700:4700::1111@853
  #forward-addr: 2606:4700:4700::1001@853
  forward-ssl-upstream: yes
  • unboundの待受portを53から5453に変更
config unbound
        option rebind_protection '1'
        option unbound_control '1'
        option enabled '1'
        option manual_conf '0'
        option localservice '0'
        option validator '0'
        option dns64 '0'
        option rebind_localhost '0'
        option protocol 'default'
        option resource 'default'
        option recursion 'default'
        option extended_stats '0'
        option edns_size '4096'
        option ttl_min '512'
        option root_age '9'
        option trigger_interface 'lan'
        option dhcp_link 'none'
        option domain_type 'deny'
        option add_local_fqdn '0'
        option add_wan_fqdn '0'
        option add_extra_dns '0'
        option listen_port '5453' # '53' --> '5453'
        option extended_luci '1'
  • port:53で受けたDNSリクエストの問い合わせ先を ::1:5453 に設定
config dnsmasq
        option domainneeded '1'
        option localise_queries '1'
        option rebind_protection '1'
        option rebind_localhost '1'
        option local '/lan/'
        option domain 'lan'
        option expandhosts '1'
        option authoritative '1'
        option readethers '1'
        option leasefile '/tmp/dhcp.leases'
        option resolvfile '/tmp/resolv.conf.auto'
        option nonwildcard '1'
        option localservice '1'
        list server '::1#5453'   # 追加
  • dhcpとunboundをリスタート
service unbound restart
service unbound enable
service dnsmasq restart
  • unboundとodhcpdが動いていることを確認
root@LEDE:~# ps w | grep unbound
17504 unbound   9124 S    /usr/sbin/unbound -d -c /var/lib/unbound/unbound.conf
30232 root      1200 R    grep unbound
root@LEDE:/# ps w | grep dnsmasq
 2788 dnsmasq   1332 S    /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.cfg01411c -k -x /var/run/dnsmasq/dnsmasq.cfg01411c.pid
30285 root      1200 S    grep dnsmasq
root@LEDE:~# netstat -anp | grep unbound
tcp        0      0 0.0.0.0:5453            0.0.0.0:*               LISTEN      17504/unbound
tcp        0      0 127.0.0.1:8953          0.0.0.0:*               LISTEN      17504/unbound
tcp        0      0 :::5453                 :::*                    LISTEN      17504/unbound
tcp        0      0 ::1:8953                :::*                    LISTEN      17504/unbound
udp        0      0 0.0.0.0:5453            0.0.0.0:*                           17504/unbound
udp        0      0 :::5453                 :::*                                17504/unbound
unix  3      [ ]         STREAM     CONNECTED     147457 17504/unbound
unix  3      [ ]         STREAM     CONNECTED     147456 17504/unbound
unix  2      [ ]         DGRAM                    147451 17504/unbound
root@LEDE:/# netstat -anp | grep dnsmasq
tcp        0      0 127.0.0.1:53            0.0.0.0:*               LISTEN      2788/dnsmasq
tcp        0      0 192.168.32.253:53       0.0.0.0:*               LISTEN      2788/dnsmasq
tcp        0      0 ::1:53                  :::*                    LISTEN      2788/dnsmasq
tcp        0      0 fe80::b24e:26ff:fe02:4813:53 :::*                    LISTEN      2788/dnsmasq
tcp        0      0 fd83:497f:e263::1:53    :::*                    LISTEN      2788/dnsmasq
tcp        0      0 fe80::b24e:26ff:fe02:4813:53 :::*                    LISTEN      2788/dnsmasq
tcp        0      0 fe80::b24e:26ff:fe02:4813:53 :::*                    LISTEN      2788/dnsmasq
udp        0      0 127.0.0.1:53            0.0.0.0:*                           2788/dnsmasq
udp        0      0 192.168.32.253:53       0.0.0.0:*                           2788/dnsmasq
udp        0      0 0.0.0.0:67              0.0.0.0:*                           2788/dnsmasq
udp        0      0 ::1:53                  :::*                                2788/dnsmasq
udp        0      0 fe80::b24e:26ff:fe02:4813:53 :::*                                2788/dnsmasq
udp        0      0 fd83:497f:e263::1:53    :::*                                2788/dnsmasq
udp        0      0 fe80::b24e:26ff:fe02:4813:53 :::*                                2788/dnsmasq
udp        0      0 fe80::b24e:26ff:fe02:4813:53 :::*                                2788/dnsmasq
unix  3      [ ]         STREAM     CONNECTED       7232 2788/dnsmasq
unix  2      [ ]         DGRAM                      7229 2788/dnsmasq
root@LEDE:/# logread | grep unbound
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info: server stats for thread 0: 1840 queries, 127 answers from cache, 1713 recursions, 0 prefetch, 0 rejected by ip ratelimiting
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info: server stats for thread 0: requestlist max 35 avg 2.91302 exceeded 0 jostled 0
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info: average recursion processing time 0.816272 sec
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info: histogram of recursion processing times
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info: [25%]=0.221933 median[50%]=0.417136 [75%]=0.819838
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info: lower(secs) upper(secs) recursions
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.000000    0.000001 6
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.004096    0.008192 1
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.008192    0.016384 11
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.016384    0.032768 10
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.032768    0.065536 12
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.065536    0.131072 138
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.131072    0.262144 361
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.262144    0.524288 537
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    0.524288    1.000000 336
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    1.000000    2.000000 187
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    2.000000    4.000000 68
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    4.000000    8.000000 18
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:    8.000000   16.000000 25
Sun Dec  9 09:33:49 2018 daemon.info unbound: [2540:0] info:   16.000000   32.000000 3
Sun Dec  9 09:33:49 2018 daemon.notice unbound: [17328:0] notice: init module 0: iterator
Sun Dec  9 09:33:49 2018 daemon.info unbound: [17328:0] info: start of service (unbound 1.8.1).
  • 名前解決できているか確認
root@LEDE:# nslookup openwrt.org
Server:         127.0.0.1
Address:        127.0.0.1#53

Name:      openwrt.org
Address 1: 139.59.209.225
Address 2: 2a03:b0c0:3:d0::1af1:1

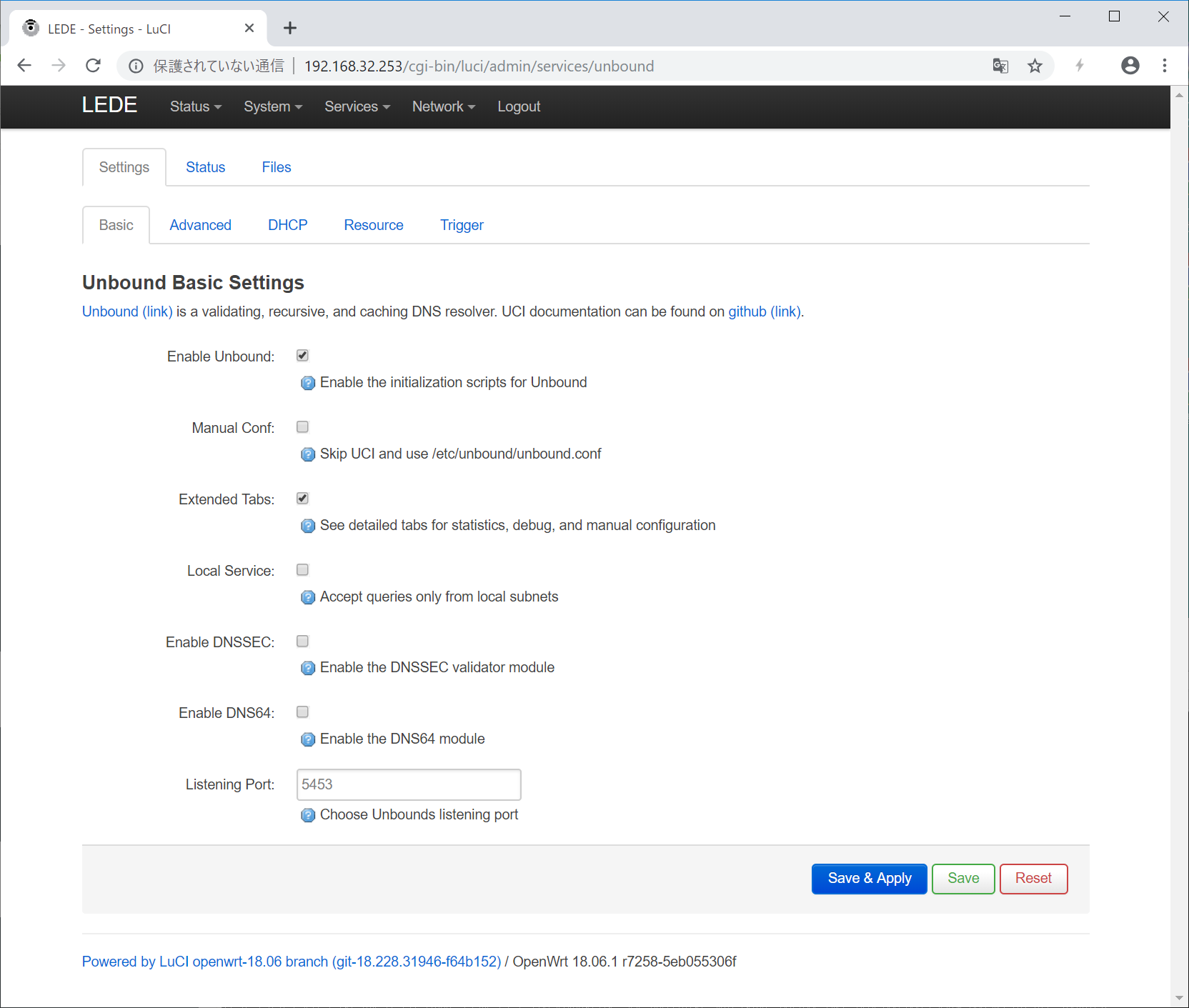

  • service -> Recursive DNS
  • Extended Tabs にチェックして Save & Apply
1_lede1.PNG 2_lede2.PNG

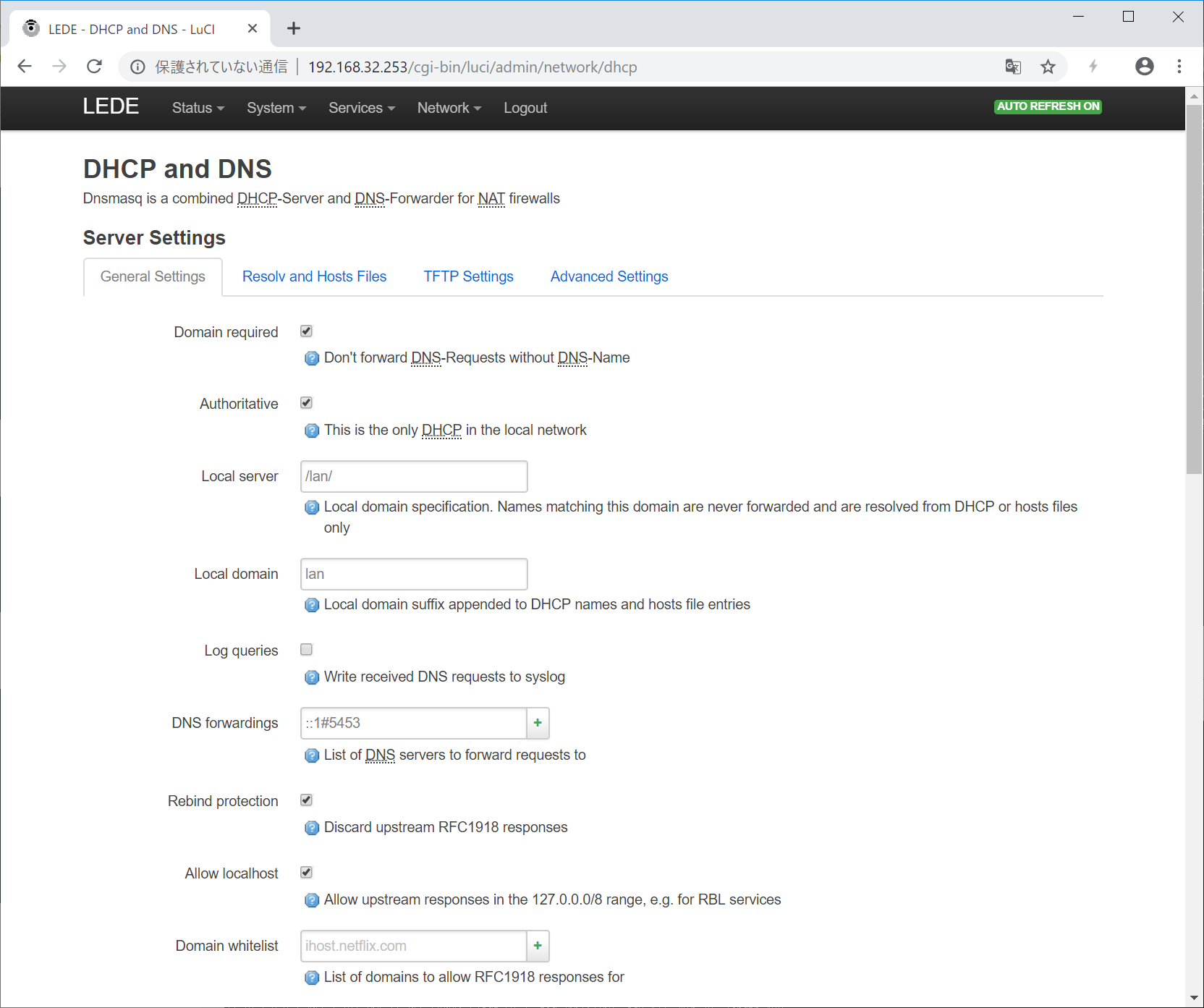

  • Network -> DHCP and DNS
  • System -> Startup

動作確認

opkg install tcpdump

root@LEDE:~# tcpdump -n -i lo port 53 or port 5453
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on lo, link-type EN10MB (Ethernet), capture size 262144 bytes
12:33:09.658017 IP6 ::1.30627 > ::1.5453: UDP, length 36
12:33:09.662440 IP6 ::1.58585 > ::1.5453: UDP, length 46
12:33:09.662860 IP6 ::1.43285 > ::1.5453: UDP, length 38
12:33:09.663259 IP6 ::1.29077 > ::1.5453: UDP, length 33
12:33:09.883091 IP6 ::1.5453 > ::1.30627: UDP, length 52
12:33:09.887197 IP6 ::1.5453 > ::1.58585: UDP, length 62
12:33:09.889635 IP6 ::1.5453 > ::1.43285: UDP, length 54
12:33:09.905030 IP6 ::1.5453 > ::1.29077: UDP, length 49

root@LEDE:~# tcpdump -n host 1.1.1.1 or host 1.0.0.1
tcpdump: verbose output suppressed, use -v or -vv for full protocol decode
listening on eth0, link-type EN10MB (Ethernet), capture size 262144 bytes
12:33:56.320512 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [S.], seq 1248523186, ack 257751725, win 29200, options [mss 1414,nop,nop,sackOK,nop,wscale 10], length 0
12:33:56.321113 IP 1.0.0.1.853 > 192.168.32.253.37058: Flags [S.], seq 2895618164, ack 4230885144, win 29200, options [mss 1414,nop,nop,sackOK,nop,wscale 10], length 0
12:33:56.321442 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [S.], seq 3932341765, ack 1392067511, win 29200, options [mss 1414,nop,nop,sackOK,nop,wscale 10], length 0
12:33:56.341400 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [.], ack 272, win 30, length 0
12:33:56.342238 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [.], seq 1:1415, ack 272, win 30, length 1414
12:33:56.342392 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [P.], seq 1415:2238, ack 272, win 30, length 823
12:33:56.342521 IP 1.0.0.1.853 > 192.168.32.253.37058: Flags [.], ack 272, win 30, length 0
12:33:56.342593 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [.], ack 272, win 30, length 0
12:33:56.342790 IP 1.0.0.1.853 > 192.168.32.253.37058: Flags [.], seq 1:1415, ack 272, win 30, length 1414
12:33:56.342907 IP 1.0.0.1.853 > 192.168.32.253.37058: Flags [P.], seq 1415:2237, ack 272, win 30, length 822
12:33:56.343008 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [.], seq 1:1415, ack 272, win 30, length 1414
12:33:56.406025 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [P.], seq 2238:2662, ack 398, win 30, length 424
12:33:56.443698 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [P.], seq 2236:2660, ack 398, win 30, length 424
12:33:56.486064 IP 1.0.0.1.853 > 192.168.32.253.37058: Flags [P.], seq 2237:2661, ack 398, win 30, length 424
12:33:56.505523 IP 1.0.0.1.853 > 192.168.32.253.37058: Flags [P.], seq 2661:3160, ack 472, win 30, length 499
12:33:56.524271 IP 1.0.0.1.853 > 192.168.32.253.37060: Flags [S.], seq 4140691539, ack 3482710292, win 29200, options [mss 1414,nop,nop,sackOK,nop,wscale 10], length 0
12:33:56.525077 IP 1.0.0.1.853 > 192.168.32.253.37058: Flags [F.], seq 3160, ack 503, win 30, length 0
12:33:56.525243 IP 1.0.0.1.853 > 192.168.32.253.37058: Flags [.], ack 504, win 30, length 0
12:33:56.527395 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [.], ack 468, win 30, length 0
12:33:56.527698 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [.], ack 473, win 30, length 0
12:33:56.545116 IP 1.0.0.1.853 > 192.168.32.253.37060: Flags [.], ack 272, win 30, length 0
12:33:56.545587 IP 1.0.0.1.853 > 192.168.32.253.37060: Flags [.], seq 1:1415, ack 272, win 30, length 1414
12:33:56.545762 IP 1.0.0.1.853 > 192.168.32.253.37060: Flags [P.], seq 1415:2237, ack 272, win 30, length 822
12:33:56.607521 IP 1.0.0.1.853 > 192.168.32.253.37060: Flags [P.], seq 2237:2661, ack 398, win 30, length 424
12:33:56.628128 IP 1.0.0.1.853 > 192.168.32.253.37060: Flags [P.], seq 2661:3160, ack 468, win 30, length 499
12:33:56.649061 IP 1.0.0.1.853 > 192.168.32.253.37060: Flags [F.], seq 3160, ack 500, win 30, length 0
12:33:56.751853 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [P.], seq 2662:3161, ack 468, win 30, length 499
12:33:56.770763 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [.], ack 499, win 30, length 0
12:33:56.771415 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [F.], seq 3161, ack 499, win 30, length 0
12:33:56.771632 IP 1.0.0.1.853 > 192.168.32.253.37054: Flags [.], ack 500, win 30, length 0
12:33:57.058494 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [P.], seq 2660:3159, ack 473, win 30, length 499
12:33:57.078964 IP 1.0.0.1.853 > 192.168.32.253.37062: Flags [S.], seq 3019741958, ack 2871487956, win 29200, options [mss 1414,nop,nop,sackOK,nop,wscale 10], length 0
12:33:57.079168 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [.], ack 504, win 30, length 0
12:33:57.079241 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [F.], seq 3159, ack 504, win 30, length 0
12:33:57.079549 IP 1.0.0.1.853 > 192.168.32.253.37056: Flags [.], ack 505, win 30, length 0
12:33:57.098817 IP 1.0.0.1.853 > 192.168.32.253.37062: Flags [.], ack 272, win 30, length 0
12:33:57.099310 IP 1.0.0.1.853 > 192.168.32.253.37062: Flags [.], seq 1:1415, ack 272, win 30, length 1414
12:33:57.099869 IP 1.0.0.1.853 > 192.168.32.253.37062: Flags [P.], seq 1415:2236, ack 272, win 30, length 821
12:33:57.159535 IP 1.0.0.1.853 > 192.168.32.253.37062: Flags [P.], seq 2236:2660, ack 398, win 30, length 424
12:33:57.178574 IP 1.0.0.1.853 > 192.168.32.253.37062: Flags [P.], seq 2660:3159, ack 476, win 30, length 499
12:33:57.197648 IP 1.0.0.1.853 > 192.168.32.253.37062: Flags [F.], seq 3159, ack 507, win 30, length 0
12:33:57.198438 IP 1.0.0.1.853 > 192.168.32.253.37062: Flags [.], ack 508, win 30, length 0
  • Network -> Diagnostics

結果

http://test-ipv6.jp の結果が早く出るようになった（気がする）

その他

  • いじる前後にConfigのバックアップをとろう。
  • バックアップから戻したら、なんかエラーでunboundが起動しない場合
root@LEDE:/# logread | grep unbound
Sat Dec  8 19:07:09 2018 daemon.info procd: Instance unbound::unbound s in a crash loop 6 crashes, 0 seconds since last crash
Sat Dec  8 19:08:54 2018 daemon.err uhttpd[1076]: chown: unknown user/group unbound:unbound
Sat Dec  8 19:08:55 2018 daemon.err uhttpd[1076]: chown: unknown user/group unbound:unbound

forceオプション付きで入れ直すと直る。

opkg install unbound --force-reinstall
  • 今回は pc --> odhcpd --> unbound --> dns であり、理想は pc --> unbound --> dns の設定なのだが、DHCPが機能しなくなりうまくいかなかった。

参考

https://blog.cloudflare.com/dns-over-tls-for-openwrt/
https://github.com/openwrt/packages/tree/master/net/unbound/files#how-to-integrate-with-dhcp

1
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
1
1

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
