はじめに
OAuth2.0などのテスト用に認可サーバーが必要なので、手っ取り早く作れそうなKeycloakを入れてみました。その時のログです。
Keycloakというのは認証や認可機能を提供するID管理のためのソフトウェアです。Javaベースで実装されいるOSSで、Open ID ConnectやOAuth2.0に対応しています。
参考情報
KeycloakによるAPIセキュリティの基本
Keycloakのインストールと構築例
環境情報
RHEL V8.2 の環境にインストールします。
Keycloakはこの時点で最新の15.0.2を使用します。
テスト用なので、クラスター構成は行わずスタンドアローンで稼働させる想定です。
インストール
基本的には以下の公式ガイドに従います。
参考: Server Installation and Configuration Guide
前提確認
クラスター構成を行う場合は別途データベースが必要のようですが、スタンドアローンの場合は不要のようです。
基本的にはJava8 SDKがあればよさそう。
[root@raijin ~]# java -version
java version "1.8.0_291"
Java(TM) SE Runtime Environment (build 1.8.0_291-b10)
Java HotSpot(TM) 64-Bit Server VM (build 25.291-b10, mixed mode)
ダウンロード
以下のサイトからKeycloak最新版(15.0.2)のzipをダウンロードし、ターゲットのサーバーに転送します。
KEYCLOAK - Download
[root@raijin /Inst_Image/Keycloak1502]# ls -la
合計 249940
drwxr-xr-x. 2 root root 33 10月 7 13:39 .
drwxr-xr-x. 10 root root 120 10月 7 13:03 ..
-rw-r--r--. 1 root root 255938077 10月 7 13:13 keycloak-15.0.2.zip
ファイル展開
入手したzipを展開するだけ。ここでは/opt以下に展開します。
[root@raijin /Inst_Image/Keycloak1502]# unzip keycloak-15.0.2.zip -d /opt
...
[root@raijin ~]# ls -la /opt/keycloak-15.0.2/
合計 508
drwxr-xr-x. 11 root root 216 8月 20 07:30 .
drwxr-xr-x. 7 root root 77 10月 7 13:40 ..
drwxr-xr-x. 2 root root 6 8月 20 07:30 .installation
drwxr-xr-x. 3 root root 28 8月 20 07:30 .well-known
-rw-r--r--. 1 root root 11358 8月 20 07:30 LICENSE.txt
drwxr-xr-x. 3 root root 4096 8月 20 07:30 bin
drwxr-xr-x. 7 root root 92 8月 20 07:30 docs
drwxr-xr-x. 4 root root 38 8月 20 07:30 domain
-rw-r--r--. 1 root root 497210 8月 20 07:30 jboss-modules.jar
drwxr-xr-x. 3 root root 39 8月 20 07:30 modules
drwxr-xr-x. 6 root root 68 8月 20 07:30 standalone
drwxr-xr-x. 5 root root 71 8月 20 07:30 themes
-rw-r--r--. 1 root root 26 8月 20 07:30 version.txt
drwxr-xr-x. 2 root root 42 8月 20 07:30 welcome-content
インストールはzip展開するだけ。楽でいいですね！
動作確認
構成
参考: Standalone Mode
standalone.xml
/opt/keycloak-15.0.2/standalone/configuration/standalone.xml
<?xml version='1.0' encoding='UTF-8'?>
<server xmlns="urn:jboss:domain:16.0">
<extensions>
<extension module="org.jboss.as.clustering.infinispan"/>
<extension module="org.jboss.as.connector"/>
<extension module="org.jboss.as.deployment-scanner"/>
<extension module="org.jboss.as.ee"/>
<extension module="org.jboss.as.ejb3"/>
<extension module="org.jboss.as.jaxrs"/>
<extension module="org.jboss.as.jmx"/>
<extension module="org.jboss.as.jpa"/>
<extension module="org.jboss.as.logging"/>
<extension module="org.jboss.as.mail"/>
<extension module="org.jboss.as.naming"/>
<extension module="org.jboss.as.remoting"/>
<extension module="org.jboss.as.security"/>
<extension module="org.jboss.as.transactions"/>
<extension module="org.jboss.as.weld"/>
<extension module="org.keycloak.keycloak-server-subsystem"/>
<extension module="org.wildfly.extension.bean-validation"/>
<extension module="org.wildfly.extension.core-management"/>
<extension module="org.wildfly.extension.elytron"/>
<extension module="org.wildfly.extension.health"/>
<extension module="org.wildfly.extension.io"/>
<extension module="org.wildfly.extension.metrics"/>
<extension module="org.wildfly.extension.request-controller"/>
<extension module="org.wildfly.extension.security.manager"/>
<extension module="org.wildfly.extension.undertow"/>
</extensions>
<management>
<security-realms>
<security-realm name="ManagementRealm">
<authentication>
<local default-user="$local" skip-group-loading="true"/>
<properties path="mgmt-users.properties" relative-to="jboss.server.config.dir"/>
</authentication>
<authorization map-groups-to-roles="false">
<properties path="mgmt-groups.properties" relative-to="jboss.server.config.dir"/>
</authorization>
</security-realm>
<security-realm name="ApplicationRealm">
<server-identities>
<ssl>
<keystore path="application.keystore" relative-to="jboss.server.config.dir" keystore-password="password" alias="server" key-password="password" generate-self-signed-certificate-host="localhost"/>
</ssl>
</server-identities>
<authentication>
<local default-user="$local" allowed-users="*" skip-group-loading="true"/>
<properties path="application-users.properties" relative-to="jboss.server.config.dir"/>
</authentication>
<authorization>
<properties path="application-roles.properties" relative-to="jboss.server.config.dir"/>
</authorization>
</security-realm>
</security-realms>
<audit-log>
<formatters>
<json-formatter name="json-formatter"/>
</formatters>
<handlers>
<file-handler name="file" formatter="json-formatter" path="audit-log.log" relative-to="jboss.server.data.dir"/>
</handlers>
<logger log-boot="true" log-read-only="false" enabled="false">
<handlers>
<handler name="file"/>
</handlers>
</logger>
</audit-log>
<management-interfaces>
<http-interface security-realm="ManagementRealm">
<http-upgrade enabled="true"/>
<socket-binding http="management-http"/>
</http-interface>
</management-interfaces>
<access-control provider="simple">
<role-mapping>
<role name="SuperUser">
<include>
<user name="$local"/>
</include>
</role>
</role-mapping>
</access-control>
</management>
<profile>
<subsystem xmlns="urn:jboss:domain:logging:8.0">
<console-handler name="CONSOLE">
<level name="INFO"/>
<formatter>
<named-formatter name="COLOR-PATTERN"/>
</formatter>
</console-handler>
<periodic-rotating-file-handler name="FILE" autoflush="true">
<formatter>
<named-formatter name="PATTERN"/>
</formatter>
<file relative-to="jboss.server.log.dir" path="server.log"/>
<suffix value=".yyyy-MM-dd"/>
<append value="true"/>
</periodic-rotating-file-handler>
<logger category="com.arjuna">
<level name="WARN"/>
</logger>
<logger category="io.jaegertracing.Configuration">
<level name="WARN"/>
</logger>
<logger category="org.jboss.as.config">
<level name="DEBUG"/>
</logger>
<logger category="sun.rmi">
<level name="WARN"/>
</logger>
<root-logger>
<level name="INFO"/>
<handlers>
<handler name="CONSOLE"/>
<handler name="FILE"/>
</handlers>
</root-logger>
<formatter name="PATTERN">
<pattern-formatter pattern="%d{yyyy-MM-dd HH:mm:ss,SSS} %-5p [%c] (%t) %s%e%n"/>
</formatter>
<formatter name="COLOR-PATTERN">
<pattern-formatter pattern="%K{level}%d{HH:mm:ss,SSS} %-5p [%c] (%t) %s%e%n"/>
</formatter>
</subsystem>
<subsystem xmlns="urn:jboss:domain:bean-validation:1.0"/>
<subsystem xmlns="urn:jboss:domain:core-management:1.0"/>
<subsystem xmlns="urn:jboss:domain:datasources:6.0">
<datasources>
<datasource jndi-name="java:jboss/datasources/ExampleDS" pool-name="ExampleDS" enabled="true" use-java-context="true" statistics-enabled="${wildfly.datasources.statistics-enabled:${wildfly.statistics-enabled:false}}">
<connection-url>jdbc:h2:mem:test;DB_CLOSE_DELAY=-1;DB_CLOSE_ON_EXIT=FALSE</connection-url>
<driver>h2</driver>
<security>
<user-name>sa</user-name>
<password>sa</password>
</security>
</datasource>
<datasource jndi-name="java:jboss/datasources/KeycloakDS" pool-name="KeycloakDS" enabled="true" use-java-context="true" statistics-enabled="${wildfly.datasources.statistics-enabled:${wildfly.statistics-enabled:false}}">
<connection-url>jdbc:h2:${jboss.server.data.dir}/keycloak;AUTO_SERVER=TRUE</connection-url>
<driver>h2</driver>
<security>
<user-name>sa</user-name>
<password>sa</password>
</security>
</datasource>
<drivers>
<driver name="h2" module="com.h2database.h2">
<xa-datasource-class>org.h2.jdbcx.JdbcDataSource</xa-datasource-class>
</driver>
</drivers>
</datasources>
</subsystem>
<subsystem xmlns="urn:jboss:domain:deployment-scanner:2.0">
<deployment-scanner path="deployments" relative-to="jboss.server.base.dir" scan-interval="5000" runtime-failure-causes-rollback="${jboss.deployment.scanner.rollback.on.failure:false}"/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:ee:6.0">
<spec-descriptor-property-replacement>false</spec-descriptor-property-replacement>
<concurrent>
<context-services>
<context-service name="default" jndi-name="java:jboss/ee/concurrency/context/default" use-transaction-setup-provider="true"/>
</context-services>
<managed-thread-factories>
<managed-thread-factory name="default" jndi-name="java:jboss/ee/concurrency/factory/default" context-service="default"/>
</managed-thread-factories>
<managed-executor-services>
<managed-executor-service name="default" jndi-name="java:jboss/ee/concurrency/executor/default" context-service="default" hung-task-termination-period="0" hung-task-threshold="60000" keepalive-time="5000"/>
</managed-executor-services>
<managed-scheduled-executor-services>
<managed-scheduled-executor-service name="default" jndi-name="java:jboss/ee/concurrency/scheduler/default" context-service="default" hung-task-termination-period="0" hung-task-threshold="60000" keepalive-time="3000"/>
</managed-scheduled-executor-services>
</concurrent>
<default-bindings context-service="java:jboss/ee/concurrency/context/default" datasource="java:jboss/datasources/ExampleDS" managed-executor-service="java:jboss/ee/concurrency/executor/default" managed-scheduled-executor-service="java:jboss/ee/concurrency/scheduler/default" managed-thread-factory="java:jboss/ee/concurrency/factory/default"/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:ejb3:9.0">
<session-bean>
<stateless>
<bean-instance-pool-ref pool-name="slsb-strict-max-pool"/>
</stateless>
<stateful default-access-timeout="5000" cache-ref="simple" passivation-disabled-cache-ref="simple"/>
<singleton default-access-timeout="5000"/>
</session-bean>
<pools>
<bean-instance-pools>
<strict-max-pool name="mdb-strict-max-pool" derive-size="from-cpu-count" instance-acquisition-timeout="5" instance-acquisition-timeout-unit="MINUTES"/>
<strict-max-pool name="slsb-strict-max-pool" derive-size="from-worker-pools" instance-acquisition-timeout="5" instance-acquisition-timeout-unit="MINUTES"/>
</bean-instance-pools>
</pools>
<caches>
<cache name="simple"/>
<cache name="distributable" passivation-store-ref="infinispan" aliases="passivating clustered"/>
</caches>
<passivation-stores>
<passivation-store name="infinispan" cache-container="ejb" max-size="10000"/>
</passivation-stores>
<async thread-pool-name="default"/>
<timer-service thread-pool-name="default" default-data-store="default-file-store">
<data-stores>
<file-data-store name="default-file-store" path="timer-service-data" relative-to="jboss.server.data.dir"/>
</data-stores>
</timer-service>
<remote cluster="ejb" connectors="http-remoting-connector" thread-pool-name="default">
<channel-creation-options>
<option name="MAX_OUTBOUND_MESSAGES" value="1234" type="remoting"/>
</channel-creation-options>
</remote>
<thread-pools>
<thread-pool name="default">
<max-threads count="10"/>
<keepalive-time time="60" unit="seconds"/>
</thread-pool>
</thread-pools>
<default-security-domain value="other"/>
<default-missing-method-permissions-deny-access value="true"/>
<statistics enabled="${wildfly.ejb3.statistics-enabled:${wildfly.statistics-enabled:false}}"/>
<log-system-exceptions value="true"/>
</subsystem>
<subsystem xmlns="urn:wildfly:elytron:13.0" final-providers="combined-providers" disallowed-providers="OracleUcrypto">
<providers>
<aggregate-providers name="combined-providers">
<providers name="elytron"/>
<providers name="openssl"/>
</aggregate-providers>
<provider-loader name="elytron" module="org.wildfly.security.elytron"/>
<provider-loader name="openssl" module="org.wildfly.openssl"/>
</providers>
<audit-logging>
<file-audit-log name="local-audit" path="audit.log" relative-to="jboss.server.log.dir" format="JSON"/>
</audit-logging>
<security-domains>
<security-domain name="ApplicationDomain" default-realm="ApplicationRealm" permission-mapper="default-permission-mapper">
<realm name="ApplicationRealm" role-decoder="groups-to-roles"/>
<realm name="local"/>
</security-domain>
<security-domain name="ManagementDomain" default-realm="ManagementRealm" permission-mapper="default-permission-mapper">
<realm name="ManagementRealm" role-decoder="groups-to-roles"/>
<realm name="local" role-mapper="super-user-mapper"/>
</security-domain>
</security-domains>
<security-realms>
<identity-realm name="local" identity="$local"/>
<properties-realm name="ApplicationRealm">
<users-properties path="application-users.properties" relative-to="jboss.server.config.dir" digest-realm-name="ApplicationRealm"/>
<groups-properties path="application-roles.properties" relative-to="jboss.server.config.dir"/>
</properties-realm>
<properties-realm name="ManagementRealm">
<users-properties path="mgmt-users.properties" relative-to="jboss.server.config.dir" digest-realm-name="ManagementRealm"/>
<groups-properties path="mgmt-groups.properties" relative-to="jboss.server.config.dir"/>
</properties-realm>
</security-realms>
<mappers>
<simple-permission-mapper name="default-permission-mapper" mapping-mode="first">
<permission-mapping>
<principal name="anonymous"/>
<permission-set name="default-permissions"/>
</permission-mapping>
<permission-mapping match-all="true">
<permission-set name="login-permission"/>
<permission-set name="default-permissions"/>
</permission-mapping>
</simple-permission-mapper>
<constant-realm-mapper name="local" realm-name="local"/>
<simple-role-decoder name="groups-to-roles" attribute="groups"/>
<constant-role-mapper name="super-user-mapper">
<role name="SuperUser"/>
</constant-role-mapper>
</mappers>
<permission-sets>
<permission-set name="login-permission">
<permission class-name="org.wildfly.security.auth.permission.LoginPermission"/>
</permission-set>
<permission-set name="default-permissions">
<permission class-name="org.wildfly.extension.batch.jberet.deployment.BatchPermission" module="org.wildfly.extension.batch.jberet" target-name="*"/>
<permission class-name="org.wildfly.transaction.client.RemoteTransactionPermission" module="org.wildfly.transaction.client"/>
<permission class-name="org.jboss.ejb.client.RemoteEJBPermission" module="org.jboss.ejb-client"/>
<permission class-name="org.jboss.ejb.client.RemoteEJBPermission" module="org.jboss.ejb-client"/>
</permission-set>
</permission-sets>
<http>
<http-authentication-factory name="management-http-authentication" security-domain="ManagementDomain" http-server-mechanism-factory="global">
<mechanism-configuration>
<mechanism mechanism-name="DIGEST">
<mechanism-realm realm-name="ManagementRealm"/>
</mechanism>
</mechanism-configuration>
</http-authentication-factory>
<provider-http-server-mechanism-factory name="global"/>
</http>
<sasl>
<sasl-authentication-factory name="application-sasl-authentication" sasl-server-factory="configured" security-domain="ApplicationDomain">
<mechanism-configuration>
<mechanism mechanism-name="JBOSS-LOCAL-USER" realm-mapper="local"/>
<mechanism mechanism-name="DIGEST-MD5">
<mechanism-realm realm-name="ApplicationRealm"/>
</mechanism>
</mechanism-configuration>
</sasl-authentication-factory>
<sasl-authentication-factory name="management-sasl-authentication" sasl-server-factory="configured" security-domain="ManagementDomain">
<mechanism-configuration>
<mechanism mechanism-name="JBOSS-LOCAL-USER" realm-mapper="local"/>
<mechanism mechanism-name="DIGEST-MD5">
<mechanism-realm realm-name="ManagementRealm"/>
</mechanism>
</mechanism-configuration>
</sasl-authentication-factory>
<configurable-sasl-server-factory name="configured" sasl-server-factory="elytron">
<properties>
<property name="wildfly.sasl.local-user.default-user" value="$local"/>
</properties>
</configurable-sasl-server-factory>
<mechanism-provider-filtering-sasl-server-factory name="elytron" sasl-server-factory="global">
<filters>
<filter provider-name="WildFlyElytron"/>
</filters>
</mechanism-provider-filtering-sasl-server-factory>
<provider-sasl-server-factory name="global"/>
</sasl>
<tls>
<key-stores>
<key-store name="applicationKS">
<credential-reference clear-text="password"/>
<implementation type="JKS"/>
<file path="application.keystore" relative-to="jboss.server.config.dir"/>
</key-store>
</key-stores>
<key-managers>
<key-manager name="applicationKM" key-store="applicationKS" generate-self-signed-certificate-host="localhost">
<credential-reference clear-text="password"/>
</key-manager>
</key-managers>
<server-ssl-contexts>
<server-ssl-context name="applicationSSC" key-manager="applicationKM"/>
</server-ssl-contexts>
</tls>
</subsystem>
<subsystem xmlns="urn:wildfly:health:1.0" security-enabled="false"/>
<subsystem xmlns="urn:jboss:domain:infinispan:12.0">
<cache-container name="ejb" default-cache="passivation" aliases="sfsb" modules="org.wildfly.clustering.ejb.infinispan">
<local-cache name="passivation">
<locking isolation="REPEATABLE_READ"/>
<transaction mode="BATCH"/>
<file-store passivation="true" purge="false"/>
</local-cache>
</cache-container>
<cache-container name="keycloak" modules="org.keycloak.keycloak-model-infinispan">
<local-cache name="realms">
<heap-memory size="10000"/>
</local-cache>
<local-cache name="users">
<heap-memory size="10000"/>
</local-cache>
<local-cache name="sessions"/>
<local-cache name="authenticationSessions"/>
<local-cache name="offlineSessions"/>
<local-cache name="clientSessions"/>
<local-cache name="offlineClientSessions"/>
<local-cache name="loginFailures"/>
<local-cache name="work"/>
<local-cache name="authorization">
<heap-memory size="10000"/>
</local-cache>
<local-cache name="keys">
<heap-memory size="1000"/>
<expiration max-idle="3600000"/>
</local-cache>
<local-cache name="actionTokens">
<heap-memory size="-1"/>
<expiration interval="300000" max-idle="-1"/>
</local-cache>
</cache-container>
<cache-container name="server" default-cache="default" modules="org.wildfly.clustering.server">
<local-cache name="default">
<transaction mode="BATCH"/>
</local-cache>
</cache-container>
<cache-container name="web" default-cache="passivation" modules="org.wildfly.clustering.web.infinispan">
<local-cache name="passivation">
<locking isolation="REPEATABLE_READ"/>
<transaction mode="BATCH"/>
<file-store passivation="true" purge="false"/>
</local-cache>
<local-cache name="sso">
<locking isolation="REPEATABLE_READ"/>
<transaction mode="BATCH"/>
</local-cache>
<local-cache name="routing"/>
</cache-container>
<cache-container name="hibernate" modules="org.infinispan.hibernate-cache">
<local-cache name="entity">
<heap-memory size="10000"/>
<expiration max-idle="100000"/>
</local-cache>
<local-cache name="local-query">
<heap-memory size="10000"/>
<expiration max-idle="100000"/>
</local-cache>
<local-cache name="timestamps"/>
</cache-container>
</subsystem>
<subsystem xmlns="urn:jboss:domain:io:3.0">
<worker name="default"/>
<buffer-pool name="default"/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:jaxrs:2.0"/>
<subsystem xmlns="urn:jboss:domain:jca:5.0">
<archive-validation enabled="true" fail-on-error="true" fail-on-warn="false"/>
<bean-validation enabled="true"/>
<default-workmanager>
<short-running-threads>
<core-threads count="50"/>
<queue-length count="50"/>
<max-threads count="50"/>
<keepalive-time time="10" unit="seconds"/>
</short-running-threads>
<long-running-threads>
<core-threads count="50"/>
<queue-length count="50"/>
<max-threads count="50"/>
<keepalive-time time="10" unit="seconds"/>
</long-running-threads>
</default-workmanager>
<cached-connection-manager/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:jmx:1.3">
<expose-resolved-model/>
<expose-expression-model/>
<remoting-connector/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:jpa:1.1">
<jpa default-extended-persistence-inheritance="DEEP"/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:keycloak-server:1.1">
<web-context>auth</web-context>
<providers>
<provider>
classpath:${jboss.home.dir}/providers/*
</provider>
</providers>
<master-realm-name>master</master-realm-name>
<scheduled-task-interval>900</scheduled-task-interval>
<theme>
<staticMaxAge>2592000</staticMaxAge>
<cacheThemes>true</cacheThemes>
<cacheTemplates>true</cacheTemplates>
<dir>${jboss.home.dir}/themes</dir>
</theme>
<spi name="eventsStore">
<provider name="jpa" enabled="true">
<properties>
<property name="exclude-events" value="["REFRESH_TOKEN"]"/>
</properties>
</provider>
</spi>
<spi name="userCache">
<provider name="default" enabled="true"/>
</spi>
<spi name="userSessionPersister">
<default-provider>jpa</default-provider>
</spi>
<spi name="timer">
<default-provider>basic</default-provider>
</spi>
<spi name="connectionsHttpClient">
<provider name="default" enabled="true"/>
</spi>
<spi name="connectionsJpa">
<provider name="default" enabled="true">
<properties>
<property name="dataSource" value="java:jboss/datasources/KeycloakDS"/>
<property name="initializeEmpty" value="true"/>
<property name="migrationStrategy" value="update"/>
<property name="migrationExport" value="${jboss.home.dir}/keycloak-database-update.sql"/>
</properties>
</provider>
</spi>
<spi name="realmCache">
<provider name="default" enabled="true"/>
</spi>
<spi name="connectionsInfinispan">
<default-provider>default</default-provider>
<provider name="default" enabled="true">
<properties>
<property name="cacheContainer" value="java:jboss/infinispan/container/keycloak"/>
</properties>
</provider>
</spi>
<spi name="jta-lookup">
<default-provider>${keycloak.jta.lookup.provider:jboss}</default-provider>
<provider name="jboss" enabled="true"/>
</spi>
<spi name="publicKeyStorage">
<provider name="infinispan" enabled="true">
<properties>
<property name="minTimeBetweenRequests" value="10"/>
</properties>
</provider>
</spi>
<spi name="x509cert-lookup">
<default-provider>${keycloak.x509cert.lookup.provider:default}</default-provider>
<provider name="default" enabled="true"/>
</spi>
<spi name="hostname">
<default-provider>default</default-provider>
<provider name="default" enabled="true">
<properties>
<property name="frontendUrl" value="${keycloak.frontendUrl:}"/>
<property name="forceBackendUrlToFrontendUrl" value="false"/>
</properties>
</provider>
</spi>
</subsystem>
<subsystem xmlns="urn:jboss:domain:mail:4.0">
<mail-session name="default" jndi-name="java:jboss/mail/Default">
<smtp-server outbound-socket-binding-ref="mail-smtp"/>
</mail-session>
</subsystem>
<subsystem xmlns="urn:wildfly:metrics:1.0" security-enabled="false" exposed-subsystems="*" prefix="${wildfly.metrics.prefix:wildfly}"/>
<subsystem xmlns="urn:jboss:domain:naming:2.0">
<remote-naming/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:remoting:4.0">
<http-connector name="http-remoting-connector" connector-ref="default" security-realm="ApplicationRealm"/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:request-controller:1.0"/>
<subsystem xmlns="urn:jboss:domain:security:2.0">
<security-domains>
<security-domain name="other" cache-type="default">
<authentication>
<login-module code="Remoting" flag="optional">
<module-option name="password-stacking" value="useFirstPass"/>
</login-module>
<login-module code="RealmDirect" flag="required">
<module-option name="password-stacking" value="useFirstPass"/>
</login-module>
</authentication>
</security-domain>
<security-domain name="jboss-web-policy" cache-type="default">
<authorization>
<policy-module code="Delegating" flag="required"/>
</authorization>
</security-domain>
<security-domain name="jaspitest" cache-type="default">
<authentication-jaspi>
<login-module-stack name="dummy">
<login-module code="Dummy" flag="optional"/>
</login-module-stack>
<auth-module code="Dummy"/>
</authentication-jaspi>
</security-domain>
<security-domain name="jboss-ejb-policy" cache-type="default">
<authorization>
<policy-module code="Delegating" flag="required"/>
</authorization>
</security-domain>
</security-domains>
</subsystem>
<subsystem xmlns="urn:jboss:domain:security-manager:1.0">
<deployment-permissions>
<maximum-set>
<permission class="java.security.AllPermission"/>
</maximum-set>
</deployment-permissions>
</subsystem>
<subsystem xmlns="urn:jboss:domain:transactions:6.0">
<core-environment node-identifier="${jboss.tx.node.id:1}">
<process-id>
<uuid/>
</process-id>
</core-environment>
<recovery-environment socket-binding="txn-recovery-environment" status-socket-binding="txn-status-manager"/>
<coordinator-environment statistics-enabled="${wildfly.transactions.statistics-enabled:${wildfly.statistics-enabled:false}}"/>
<object-store path="tx-object-store" relative-to="jboss.server.data.dir"/>
</subsystem>
<subsystem xmlns="urn:jboss:domain:undertow:12.0" default-server="default-server" default-virtual-host="default-host" default-servlet-container="default" default-security-domain="other" statistics-enabled="${wildfly.undertow.statistics-enabled:${wildfly.statistics-enabled:false}}">
<buffer-cache name="default"/>
<server name="default-server">
<http-listener name="default" socket-binding="http" redirect-socket="https" enable-http2="true"/>
<https-listener name="https" socket-binding="https" security-realm="ApplicationRealm" enable-http2="true"/>
<host name="default-host" alias="localhost">
<location name="/" handler="welcome-content"/>
<http-invoker security-realm="ApplicationRealm"/>
</host>
</server>
<servlet-container name="default">
<jsp-config/>
<websockets/>
</servlet-container>
<handlers>
<file name="welcome-content" path="${jboss.home.dir}/welcome-content"/>
</handlers>
</subsystem>
<subsystem xmlns="urn:jboss:domain:weld:4.0"/>
</profile>
<interfaces>
<interface name="management">
<inet-address value="${jboss.bind.address.management:127.0.0.1}"/>
</interface>
<interface name="public">
<inet-address value="${jboss.bind.address:127.0.0.1}"/>
</interface>
</interfaces>
<socket-binding-group name="standard-sockets" default-interface="public" port-offset="${jboss.socket.binding.port-offset:0}">
<socket-binding name="ajp" port="${jboss.ajp.port:8009}"/>
<socket-binding name="http" port="${jboss.http.port:8080}"/>
<socket-binding name="https" port="${jboss.https.port:8443}"/>
<socket-binding name="management-http" interface="management" port="${jboss.management.http.port:9990}"/>
<socket-binding name="management-https" interface="management" port="${jboss.management.https.port:9993}"/>
<socket-binding name="txn-recovery-environment" port="4712"/>
<socket-binding name="txn-status-manager" port="4713"/>
<outbound-socket-binding name="mail-smtp">
<remote-destination host="${jboss.mail.server.host:localhost}" port="${jboss.mail.server.port:25}"/>
</outbound-socket-binding>
</socket-binding-group>
</server>
JBossで実装されているみたいですね。
デフォルトでは、127.0.0.1のアドレスにバインドされてしまうようなので、外部から接続できません。
参考:Bind Addresses
また、以下のポートが使われるようです。
参考: Socket Port Bindings
デフォルトではhttp:8080, https:8443が使われます。
構成変更
バインドアドレスを任意のアドレスにするために、0.0.0.0に変更しまｓ。また、使用するポートはここではhttp:18080, https:18443, ajp:18009に変更しておきます。
standalone.xml抜粋
...
<interfaces>
<interface name="management">
<inet-address value="${jboss.bind.address.management:127.0.0.1}"/>
</interface>
<interface name="public">
<inet-address value="${jboss.bind.address:0.0.0.0}"/>
</interface>
</interfaces>
<socket-binding-group name="standard-sockets" default-interface="public" port-offset="${jboss.socket.binding.port-offset:0}">
<socket-binding name="ajp" port="${jboss.ajp.port:18009}"/>
<socket-binding name="http" port="${jboss.http.port:18080}"/>
<socket-binding name="https" port="${jboss.https.port:18443}"/>
<socket-binding name="management-http" interface="management" port="${jboss.management.http.port:9990}"/>
<socket-binding name="management-https" interface="management" port="${jboss.management.https.port:9993}"/>
<socket-binding name="txn-recovery-environment" port="4712"/>
<socket-binding name="txn-status-manager" port="4713"/>
<outbound-socket-binding name="mail-smtp">
<remote-destination host="${jboss.mail.server.host:localhost}" port="${jboss.mail.server.port:25}"/>
</outbound-socket-binding>
</socket-binding-group>
...
txn-xxxというよく分からないポートの指定などもありますがとりあえずそれはそのままで、一応firewall通しておきます。
[root@raijin ~]# firewall-cmd --zone=public --add-port=18080/tcp --permanent
success
[root@raijin ~]# firewall-cmd --zone=public --add-port=18443/tcp --permanent
success
[root@raijin ~]# firewall-cmd --zone=public --add-port=18009/tcp --permanent
success
[root@raijin ~]# firewall-cmd --zone=public --add-port=4712/tcp --permanent
success
[root@raijin ~]# firewall-cmd --zone=public --add-port=4713/tcp --permanent
success
[root@raijin ~]# firewall-cmd --reload
success
[root@raijin ~]# firewall-cmd --list-all
public (active)
target: default
icmp-block-inversion: no
interfaces: enp0s25 enp0s26u1u1
sources:
services: cockpit dhcpv6-client ssh
ports: 3389/tcp 10101/tcp 10901/tcp 11701/tcp 8080/tcp 18080/tcp 18443/tcp 18009/tcp 4712/tcp 4713/tcp
protocols:
masquerade: no
forward-ports:
source-ports:
icmp-blocks:
rich rules:
起動/停止
起動用のシェル・スクリプトが用意されているのでそれを実行します。
standalone.sh実行ログ
[root@raijin /opt/keycloak-15.0.2/bin]# ./standalone.sh
=========================================================================
JBoss Bootstrap Environment
JBOSS_HOME: /opt/keycloak-15.0.2
JAVA: java
JAVA_OPTS: -server -Xms64m -Xmx512m -XX:MetaspaceSize=96M -XX:MaxMetaspaceSize=256m -Djava.net.preferIPv4Stack=true -Djboss.modules.system.pkgs=org.jboss.byteman -Djava.awt.headless=true
=========================================================================
15:44:08,659 INFO [org.jboss.modules] (main) JBoss Modules version 1.11.0.Final
15:44:10,146 INFO [org.jboss.msc] (main) JBoss MSC version 1.4.12.Final
15:44:10,180 INFO [org.jboss.threads] (main) JBoss Threads version 2.4.0.Final
15:44:10,541 INFO [org.jboss.as] (MSC service thread 1-2) WFLYSRV0049: Keycloak 15.0.2 (WildFly Core 15.0.1.Final) starting
15:44:13,431 INFO [org.wildfly.security] (ServerService Thread Pool -- 20) ELY00001: WildFly Elytron version 1.15.3.Final
15:44:14,511 INFO [org.jboss.as.controller.management-deprecated] (ServerService Thread Pool -- 14) WFLYCTL0033: Extension 'security' is deprecated and may not be supported in future versions
15:44:15,837 INFO [org.jboss.as.controller.management-deprecated] (Controller Boot Thread) WFLYCTL0028: Attribute 'security-realm' in the resource at address '/core-service=management/management-interface=http-interface' is deprecated, and may be removed in a future version. See the attribute description in the output of the read-resource-description operation to learn more about the deprecation.
15:44:15,956 INFO [org.jboss.as.controller.management-deprecated] (ServerService Thread Pool -- 23) WFLYCTL0028: Attribute 'security-realm' in the resource at address '/subsystem=undertow/server=default-server/https-listener=https' is deprecated, and may be removed in a future version. See the attribute description in the output of the read-resource-description operation to learn more about the deprecation.
15:44:16,590 INFO [org.jboss.as.server] (Controller Boot Thread) WFLYSRV0039: Creating http management service using socket-binding (management-http)
15:44:16,673 INFO [org.xnio] (MSC service thread 1-1) XNIO version 3.8.4.Final
15:44:16,705 INFO [org.xnio.nio] (MSC service thread 1-1) XNIO NIO Implementation Version 3.8.4.Final
15:44:16,834 INFO [org.jboss.remoting] (MSC service thread 1-4) JBoss Remoting version 5.0.20.Final
15:44:16,960 INFO [org.jboss.as.naming] (ServerService Thread Pool -- 46) WFLYNAM0001: Activating Naming Subsystem
15:44:16,970 INFO [org.jboss.as.security] (ServerService Thread Pool -- 49) WFLYSEC0002: Activating Security Subsystem
15:44:17,024 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 37) WFLYCLINF0001: Activating Infinispan subsystem.
15:44:17,046 INFO [org.wildfly.extension.metrics] (ServerService Thread Pool -- 45) WFLYMETRICS0001: Activating Base Metrics Subsystem
15:44:16,979 WARN [org.jboss.as.txn] (ServerService Thread Pool -- 51) WFLYTX0013: The node-identifier attribute on the /subsystem=transactions is set to the default value. This is a danger for environments running multiple servers. Please make sure the attribute value is unique.
15:44:17,098 INFO [org.jboss.as.security] (MSC service thread 1-4) WFLYSEC0001: Current PicketBox version=5.0.3.Final-redhat-00007
15:44:17,216 INFO [org.jboss.as.jaxrs] (ServerService Thread Pool -- 39) WFLYRS0016: RESTEasy version 3.15.1.Final
15:44:17,320 INFO [org.jboss.as.connector] (MSC service thread 1-3) WFLYJCA0009: Starting Jakarta Connectors Subsystem (WildFly/IronJacamar 1.4.27.Final)
15:44:17,336 INFO [org.wildfly.extension.io] (ServerService Thread Pool -- 38) WFLYIO001: Worker 'default' has auto-configured to 4 IO threads with 32 max task threads based on your 2 available processors
15:44:17,474 INFO [org.wildfly.extension.undertow] (MSC service thread 1-2) WFLYUT0003: Undertow 2.2.5.Final starting
15:44:17,480 INFO [org.wildfly.extension.health] (ServerService Thread Pool -- 36) WFLYHEALTH0001: Activating Base Health Subsystem
15:44:17,394 INFO [org.jboss.as.connector.subsystems.datasources] (ServerService Thread Pool -- 31) WFLYJCA0004: Deploying JDBC-compliant driver class org.h2.Driver (version 1.4)
15:44:18,041 INFO [org.jboss.as.connector.deployers.jdbc] (MSC service thread 1-1) WFLYJCA0018: Started Driver service with driver-name = h2
15:44:18,075 INFO [org.jboss.as.naming] (MSC service thread 1-1) WFLYNAM0003: Starting Naming Service
15:44:18,366 WARN [org.wildfly.clustering.web.undertow] (ServerService Thread Pool -- 52) WFLYCLWEBUT0007: No routing provider found for default-server; using legacy provider based on static configuration
15:44:18,411 INFO [org.jboss.as.mail.extension] (MSC service thread 1-3) WFLYMAIL0001: Bound mail session [java:jboss/mail/Default]
15:44:18,626 INFO [org.jboss.as.ejb3] (MSC service thread 1-3) WFLYEJB0481: Strict pool slsb-strict-max-pool is using a max instance size of 32 (per class), which is derived from thread worker pool sizing.
15:44:18,650 INFO [org.jboss.as.ejb3] (MSC service thread 1-1) WFLYEJB0482: Strict pool mdb-strict-max-pool is using a max instance size of 8 (per class), which is derived from the number of CPUs on this host.
15:44:18,950 INFO [org.wildfly.extension.undertow] (ServerService Thread Pool -- 52) WFLYUT0014: Creating file handler for path '/opt/keycloak-15.0.2/welcome-content' with options [directory-listing: 'false', follow-symlink: 'false', case-sensitive: 'true', safe-symlink-paths: '[]']
15:44:19,288 WARN [org.wildfly.extension.elytron] (MSC service thread 1-3) WFLYELY00023: KeyStore file '/opt/keycloak-15.0.2/standalone/configuration/application.keystore' does not exist. Used blank.
15:44:19,392 WARN [org.wildfly.extension.elytron] (MSC service thread 1-3) WFLYELY01084: KeyStore /opt/keycloak-15.0.2/standalone/configuration/application.keystore not found, it will be auto generated on first use with a self-signed certificate for host localhost
15:44:19,603 INFO [org.wildfly.extension.undertow] (MSC service thread 1-3) WFLYUT0012: Started server default-server.
15:44:19,619 INFO [org.wildfly.extension.undertow] (MSC service thread 1-3) Queuing requests.
15:44:19,622 INFO [org.wildfly.extension.undertow] (MSC service thread 1-3) WFLYUT0018: Host default-host starting
15:44:20,027 INFO [org.jboss.as.patching] (MSC service thread 1-4) WFLYPAT0050: Keycloak cumulative patch ID is: base, one-off patches include: none
15:44:20,167 INFO [org.wildfly.extension.undertow] (MSC service thread 1-3) WFLYUT0006: Undertow HTTP listener default listening on 0.0.0.0:18080
15:44:20,212 WARN [org.jboss.as.domain.management.security] (MSC service thread 1-4) WFLYDM0111: Keystore /opt/keycloak-15.0.2/standalone/configuration/application.keystore not found, it will be auto generated on first use with a self signed certificate for host localhost
15:44:20,269 INFO [org.jboss.as.server.deployment.scanner] (MSC service thread 1-4) WFLYDS0013: Started FileSystemDeploymentService for directory /opt/keycloak-15.0.2/standalone/deployments
15:44:20,378 INFO [org.jboss.as.server.deployment] (MSC service thread 1-3) WFLYSRV0027: Starting deployment of "keycloak-server.war" (runtime-name: "keycloak-server.war")
15:44:20,577 INFO [org.jboss.as.ejb3] (MSC service thread 1-4) WFLYEJB0493: Jakarta Enterprise Beans subsystem suspension complete
15:44:20,795 INFO [org.wildfly.extension.undertow] (MSC service thread 1-4) WFLYUT0006: Undertow HTTPS listener https listening on 0.0.0.0:18443
15:44:21,107 INFO [org.jboss.as.connector.subsystems.datasources] (MSC service thread 1-2) WFLYJCA0001: Bound data source [java:jboss/datasources/KeycloakDS]
15:44:21,109 INFO [org.jboss.as.connector.subsystems.datasources] (MSC service thread 1-1) WFLYJCA0001: Bound data source [java:jboss/datasources/ExampleDS]
15:44:24,186 INFO [org.infinispan.CONTAINER] (ServerService Thread Pool -- 54) ISPN000128: Infinispan version: Infinispan 'Corona Extra' 11.0.9.Final
15:44:24,399 INFO [org.infinispan.CONFIG] (MSC service thread 1-2) ISPN000152: Passivation configured without an eviction policy being selected. Only manually evicted entities will be passivated.
15:44:24,404 INFO [org.infinispan.CONFIG] (MSC service thread 1-2) ISPN000152: Passivation configured without an eviction policy being selected. Only manually evicted entities will be passivated.
15:44:24,632 INFO [org.infinispan.PERSISTENCE] (ServerService Thread Pool -- 54) ISPN000556: Starting user marshaller 'org.wildfly.clustering.infinispan.spi.marshalling.InfinispanProtoStreamMarshaller'
15:44:24,649 INFO [org.infinispan.PERSISTENCE] (ServerService Thread Pool -- 55) ISPN000556: Starting user marshaller 'org.wildfly.clustering.infinispan.marshalling.jboss.JBossMarshaller'
15:44:25,388 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 54) WFLYCLINF0002: Started http-remoting-connector cache from ejb container
15:44:25,454 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 60) WFLYCLINF0002: Started work cache from keycloak container
15:44:25,456 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 56) WFLYCLINF0002: Started offlineSessions cache from keycloak container
15:44:25,463 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 55) WFLYCLINF0002: Started authenticationSessions cache from keycloak container
15:44:25,467 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 54) WFLYCLINF0002: Started actionTokens cache from keycloak container
15:44:25,485 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 56) WFLYCLINF0002: Started offlineClientSessions cache from keycloak container
15:44:25,492 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 61) WFLYCLINF0002: Started sessions cache from keycloak container
15:44:25,570 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 59) WFLYCLINF0002: Started loginFailures cache from keycloak container
15:44:25,570 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 58) WFLYCLINF0002: Started clientSessions cache from keycloak container
15:44:25,622 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 60) WFLYCLINF0002: Started keys cache from keycloak container
15:44:25,630 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 54) WFLYCLINF0002: Started realms cache from keycloak container
15:44:25,662 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 57) WFLYCLINF0002: Started authorization cache from keycloak container
15:44:25,666 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 55) WFLYCLINF0002: Started users cache from keycloak container
15:44:26,026 WARN [org.jboss.as.server.deployment] (MSC service thread 1-4) WFLYSRV0273: Excluded subsystem webservices via jboss-deployment-structure.xml does not exist.
15:44:28,115 INFO [org.keycloak.services] (ServerService Thread Pool -- 55) KC-SERVICES0001: Loading config from standalone.xml or domain.xml
15:44:29,215 INFO [org.keycloak.url.DefaultHostnameProviderFactory] (ServerService Thread Pool -- 55) Frontend: <request>, Admin: <frontend>, Backend: <request>
15:44:29,752 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 55) WFLYCLINF0002: Started realmRevisions cache from keycloak container
15:44:29,773 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 55) WFLYCLINF0002: Started userRevisions cache from keycloak container
15:44:29,795 INFO [org.jboss.as.clustering.infinispan] (ServerService Thread Pool -- 55) WFLYCLINF0002: Started authorizationRevisions cache from keycloak container
15:44:29,798 INFO [org.keycloak.connections.infinispan.DefaultInfinispanConnectionProviderFactory] (ServerService Thread Pool -- 55) Node name: raijin, Site name: null
15:44:35,412 INFO [org.keycloak.connections.jpa.DefaultJpaConnectionProviderFactory] (ServerService Thread Pool -- 55) Database info: {databaseUrl=jdbc:h2:/opt/keycloak-15.0.2/standalone/data/keycloak, databaseUser=SA, databaseProduct=H2 1.4.197 (2018-03-18), databaseDriver=H2 JDBC Driver 1.4.197 (2018-03-18)}
15:44:40,292 INFO [org.hibernate.jpa.internal.util.LogHelper] (ServerService Thread Pool -- 55) HHH000204: Processing PersistenceUnitInfo [
name: keycloak-default
...]
15:44:40,472 INFO [org.hibernate.Version] (ServerService Thread Pool -- 55) HHH000412: Hibernate Core {5.3.20.Final}
15:44:40,477 INFO [org.hibernate.cfg.Environment] (ServerService Thread Pool -- 55) HHH000206: hibernate.properties not found
15:44:40,885 INFO [org.hibernate.annotations.common.Version] (ServerService Thread Pool -- 55) HCANN000001: Hibernate Commons Annotations {5.0.5.Final}
15:44:41,422 INFO [org.hibernate.dialect.Dialect] (ServerService Thread Pool -- 55) HHH000400: Using dialect: org.hibernate.dialect.H2Dialect
15:44:41,581 INFO [org.hibernate.envers.boot.internal.EnversServiceImpl] (ServerService Thread Pool -- 55) Envers integration enabled? : true
15:44:43,212 INFO [org.hibernate.orm.beans] (ServerService Thread Pool -- 55) HHH10005002: No explicit CDI BeanManager reference was passed to Hibernate, but CDI is available on the Hibernate ClassLoader.
15:44:43,389 INFO [org.hibernate.validator.internal.util.Version] (ServerService Thread Pool -- 55) HV000001: Hibernate Validator 6.0.22.Final
15:44:47,700 INFO [org.hibernate.hql.internal.QueryTranslatorFactoryInitiator] (ServerService Thread Pool -- 55) HHH000397: Using ASTQueryTranslatorFactory
15:44:50,832 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002225: Deploying javax.ws.rs.core.Application: class org.keycloak.services.resources.KeycloakApplication
15:44:50,835 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002205: Adding provider class org.keycloak.services.error.KeycloakErrorHandler from Application class org.keycloak.services.resources.KeycloakApplication
15:44:50,838 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002200: Adding class resource org.keycloak.services.resources.JsResource from Application class org.keycloak.services.resources.KeycloakApplication
15:44:50,839 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002200: Adding class resource org.keycloak.services.resources.ThemeResource from Application class org.keycloak.services.resources.KeycloakApplication
15:44:50,842 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002205: Adding provider class org.keycloak.services.filters.KeycloakSecurityHeadersFilter from Application class org.keycloak.services.resources.KeycloakApplication
15:44:50,843 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002220: Adding singleton resource org.keycloak.services.resources.WelcomeResource from Application class org.keycloak.services.resources.KeycloakApplication
15:44:50,843 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002220: Adding singleton resource org.keycloak.services.resources.admin.AdminRoot from Application class org.keycloak.services.resources.KeycloakApplication
15:44:50,844 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002220: Adding singleton resource org.keycloak.services.resources.RobotsResource from Application class org.keycloak.services.resources.KeycloakApplication
15:44:50,844 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002210: Adding provider singleton org.keycloak.services.util.ObjectMapperResolver from Application class org.keycloak.services.resources.KeycloakApplication
15:44:50,845 INFO [org.jboss.resteasy.resteasy_jaxrs.i18n] (ServerService Thread Pool -- 55) RESTEASY002220: Adding singleton resource org.keycloak.services.resources.RealmsResource from Application class org.keycloak.services.resources.KeycloakApplication
15:44:51,118 INFO [org.wildfly.extension.undertow] (ServerService Thread Pool -- 55) WFLYUT0021: Registered web context: '/auth' for server 'default-server'
15:44:51,541 INFO [org.jboss.as.server] (ServerService Thread Pool -- 43) WFLYSRV0010: Deployed "keycloak-server.war" (runtime-name : "keycloak-server.war")
15:44:51,752 INFO [org.jboss.as.server] (Controller Boot Thread) WFLYSRV0212: Resuming server
15:44:51,759 INFO [org.jboss.as] (Controller Boot Thread) WFLYSRV0025: Keycloak 15.0.2 (WildFly Core 15.0.1.Final) started in 44359ms - Started 594 of 872 services (584 services are lazy, passive or on-demand)
15:44:51,774 INFO [org.jboss.as] (Controller Boot Thread) WFLYSRV0060: Http management interface listening on http://127.0.0.1:9990/management
15:44:51,775 INFO [org.jboss.as] (Controller Boot Thread) WFLYSRV0051: Admin console listening on http://127.0.0.1:9990
起動スクリプトを実行したシェルに上のようにメッセージが出力されます。実行時のシェルがコンソールとして占有されてしまうようですね。
停止するにはここでCtrl+Cを入力します。
ブラウザから接続確認

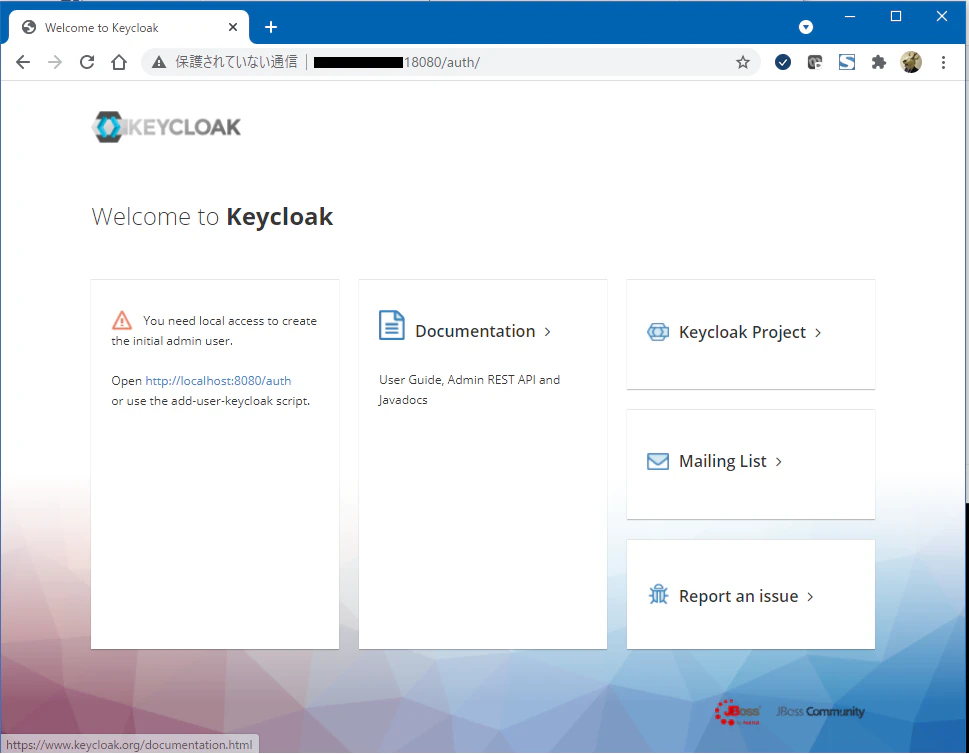

PCのブラウザから以下にアクセスしてみると...
http://<hostname>:18080/auth
接続はできましたが、上のように「You need local access to create the initial admin user.」という警告が出ました。
管理ユーザー作成
参考: [Creating the admin account](https://www.keycloak.org/docs/latest/getting_started/index.html#creating-the-admin-account

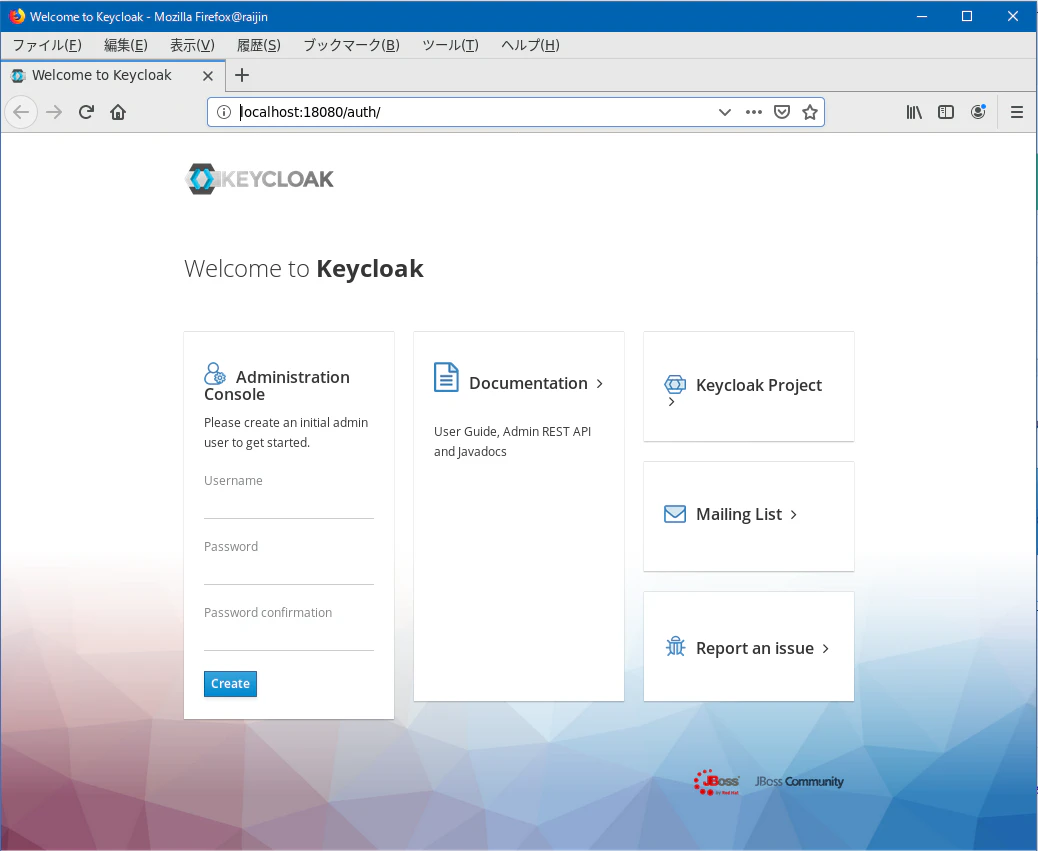

最初の管理ユーザーはローカルで接続する必要があるようです(X-Serverの環境が必要)。改めてローカルでブラウザを起動すると...
上のようにきちんと表示されました。Administration Consoleの欄にユーザー名とパスワードを指定してCreateを押します。

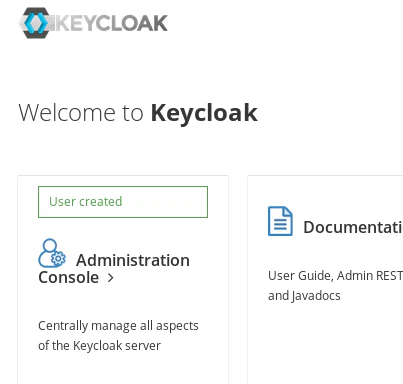

"User created"と表示されました。
各種リソース作成
以下の記事を参考に、いくつかリソースを作成してみまｓ。
参考: Keycloakのインストールと構築例
Administration Consoleに接続
PCのブラウザから接続します。httpsで接続する必要があるようなので、以下の様にhttps用のポートを指定してアクセスします。
https://hostname:18443
Administration Console
先に作成したadminユーザーでサインインします。
接続できました。
レルムの作成
左上のMasterのプルダウンメニューからAdd realmを選択
realm_test01という名前を指定してCreate
Realmが作成されました。
クライアントの作成

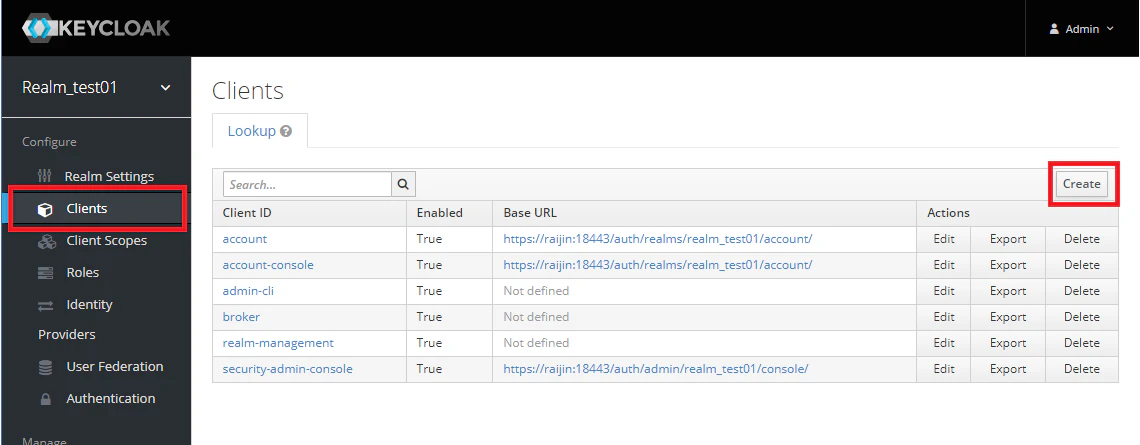

左側のメニューからClientsを選択し、Createボタンをクリック
client_test01という名前を指定してSave
クライアントが作成されました。以下、表中のclient_test01をクリック。
以下のように設定してSaveします。
AccessType: confidentialを指定 (ClientTypeに相当するらしい)
Standard Flow Enabled: OFF (Authorization Code Grantに相当するらしい)
Direct Access Grants Enabled: ON (Resource Owner Password Credentials Grantに相当するらしい)
後に使用するのでこのクライアントのシークレットを確認しておきます。
Credentialsタブを開いてSecretの値を確認
ユーザーの作成

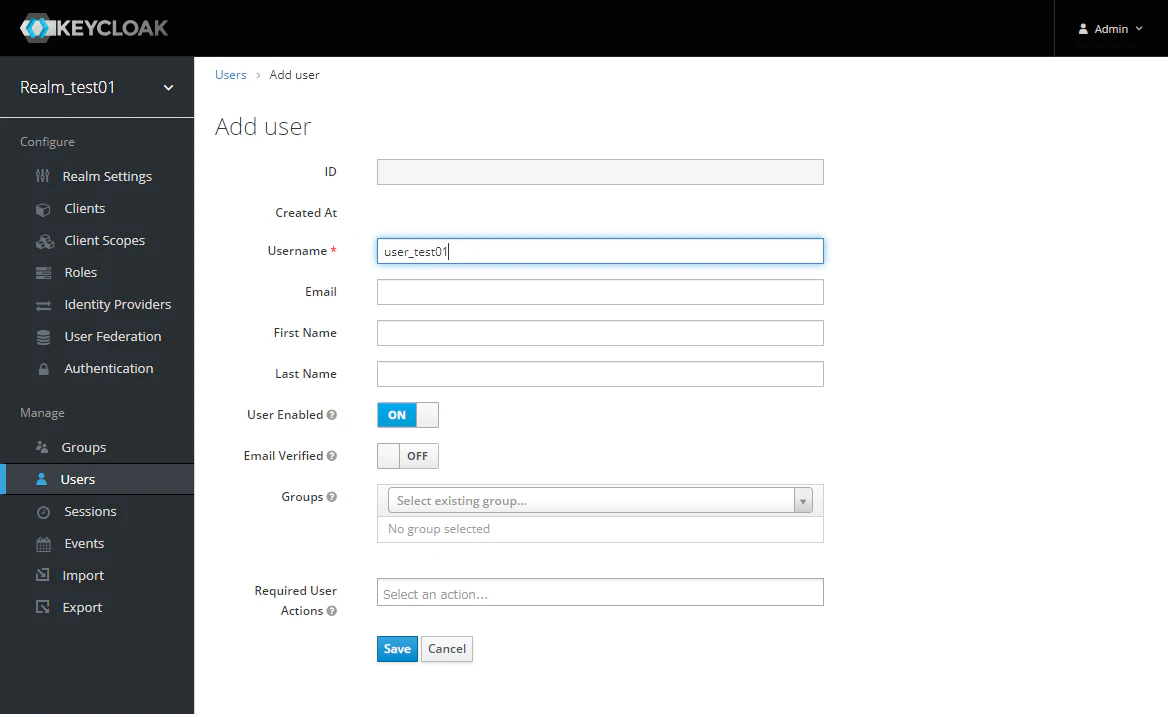

左側のメニューからUserを選択し、Add userをクリック
usernameにuser_test01を指定してSave

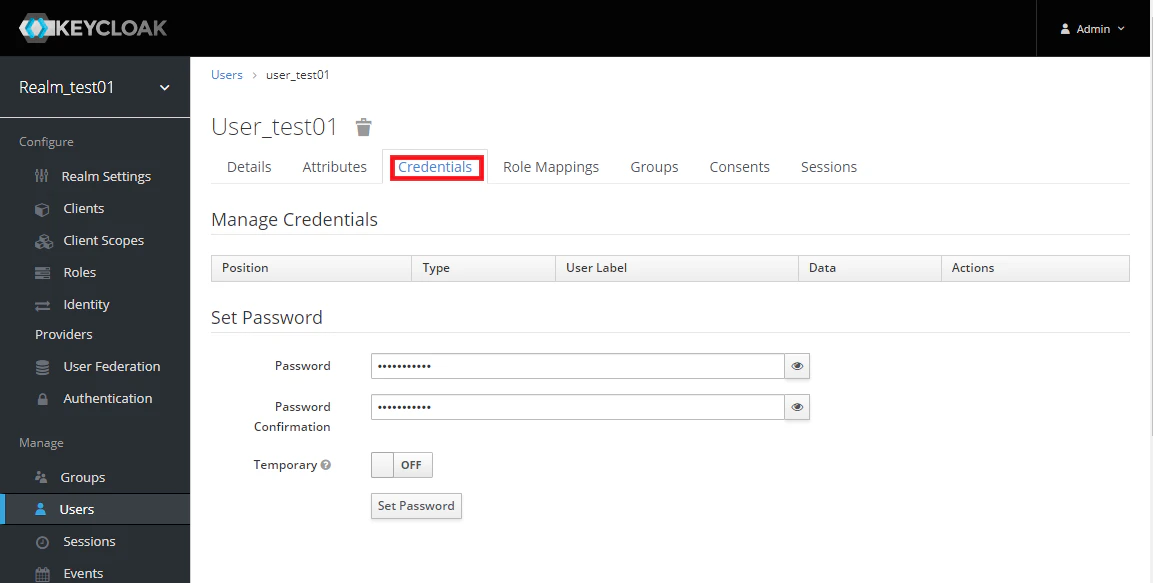

Credentialsタブを開いて、パスワードを設定します。また、TemporaryはOffにしておきます。
トークンを発行してみる
別のマシンから以下のようなcurlコマンドを発行してtokenを取得してみます。
curl https://raijin:18443/auth/realms/realm_test01/protocol/openid-connect/token -d "grant_type=password&client_id=client_test01&client_secret=xxx&username=user_test01&password=yyy&scope=openid" --insecure --silent | jq .
xxxは上で作成したクライアントのシークレットです。
yyyは上で作成したユーザーのパスワードです。
以下のようにトークンが返されました。
{
"access_token": "eyJhb ...(略)... XBWaQzHgbGg",
"expires_in": 300,
"refresh_expires_in": 1800,
"refresh_token": "eyJhb ...(略)... hblU0",
"token_type": "Bearer",
"id_token": "eyJh ...(略)... wWxQ",
"not-before-policy": 0,
"session_state": "cbedbceb-566c-4691-b05d-fe5e9741abbb",
"scope": "openid email profile"
}
access_token部分は以下のようにピリオドで区切られた3つのパートから成るようです。
base64url(Header).base64url(Payload).base64url(Signature)
Payload部分を抜き出してbase64url decodeしてみると、こんな感じになりました。
Payload部分
{
"exp": 1633647677,
"iat": 1633647377,
"jti": "aba8b907-bc0a-4ca5-9a47-a70af7ab1268",
"iss": "https://raijin:18443/auth/realms/realm_test01",
"aud": "account",
"sub": "22b0baf5-3d27-46b9-b871-6b9302153ec5",
"typ": "Bearer",
"azp": "client_test01",
"session_state": "9dfd1f05-166e-4fdd-9ce8-3e17b0e423b3",
"acr": "1",
"realm_access": {
"roles": [
"default-roles-realm_test01",
"offline_access",
"uma_authorization"
]
},
"resource_access": {
"account": {
"roles": [
"manage-account",
"manage-account-links",
"view-profile"
]
}
},
"scope": "openid email profile",
"sid": "9dfd1f05-166e-4fdd-9ce8-3e17b0e423b3",
"email_verified": false,
"preferred_username": "user_test01"
}
参考: curl結果加工スクリプト例
getSampleToken.sh
# !/bin/bash
# base64url encode
function base64url_encode {
(if [ -z "$1" ]; then cat -; else echo -n "$1"; fi) |
openssl base64 -e -A |
sed s/\\+/-/g |
sed s/\\//_/g |
sed -E s/=+$//
}
# base64url decode
function base64url_decode {
INPUT=$(if [ -z "$1" ]; then echo -n $(cat -); else echo -n "$1"; fi)
MOD=$(($(echo -n "$INPUT" | wc -c) % 4))
PADDING=$(if [ $MOD -eq 2 ]; then echo -n '=='; elif [ $MOD -eq 3 ]; then echo -n '=' ; fi)
echo -n "$INPUT$PADDING" |
sed s/-/+/g |
sed s/_/\\//g |
openssl base64 -d -A
}
# AccessInfo
keycloak_host=raijin
keycloak_port=18443
realm_name=realm_test01
clien_id=client_test01
client_secret=bf***62
username=user_test01
password=***
result=$(curl https://${keycloak_host}:${keycloak_port}/auth/realms/${realm_name}/protocol/openid-connect/token -d "grant_type=password&client_id=${clien_id}&client_secret=${client_secret}&username=${username}&password=${password}&scope=openid" --insecure --silent)
echo "curl result-----------------"
echo ${result} | jq .
echo ""
echo "Acces Token------------------"
access_token=$(echo ${result} | jq .access_token -r)
echo ${access_token}
echo ""
echo "Split Access Token ------------"
access_token_list=(${access_token//./ })
access_token_header=${access_token_list[0]}
access_token_payload=${access_token_list[1]}
access_token_signature=${access_token_list[2]}
echo "header:" ${access_token_header}
echo "payload:" ${access_token_payload}
echo "signature:" ${access_token_signature}
echo ""
echo "base64url decode ----------------"
echo "***Header***"
base64url_decode ${access_token_header} | jq .
echo ""
echo "***Payload***"
base64url_decode ${access_token_payload} | jq .
base64urlのエンコード/デコードは以下のコードをそのまま使用させていただきました。
参考: https://gist.github.com/alvis/89007e96f7958f2686036d4276d28e47
