【Prometheus】remote writeの設定項目について調べてみた

Last updated at Posted at 2019-01-14

remote writeの設定項について詳しい説明が見当たらなかったので、
ソースコードを読んだりデバッグしてわかったことをまとめてみた。
※バージョンは2.6.0を使用

remote writeのデフォルト設定

prometheus.yml
remote_write:
- url: http://HOST:PORT/xxxxx
  remote_timeout: 30s
  queue_config:
    capacity: 10000
    max_shards: 1000
    min_shards: 1
    max_samples_per_send: 100
    batch_send_deadline: 5s
    max_retries: 3
    min_backoff: 30ms
    max_backoff: 100ms

urlから下は書かなくても自動で設定が追加される。

remote_writeの設定項目

url

外部ストレージへ書き込みを行うAdapterのURL。

remote_write:
- url: http://HOST01:PORT/receive
- url: http://HOST02:PORT/api/v1/prom/write?db=prometheus

↑のように複数指定できる。

remote_timeout

Adapterとの接続をタイムアウトさせる時間。

queue_config

Prometheusがスクレイプしたサンプルはキューに一旦格納され、順番に外部ストレージに書き込まれるようになっている。
queue_configではそのキューについて設定ができる。
またキューはurlで指定した書き込み先ごとに割り当てられる。

capacity

サンプルを格納できる最大容量。
スクレイピングで取得したサンプル数がcapacityを超えた場合、超えた分のサンプルは破棄されるので注意。
100のcapacityに対してスクレイピングしたサンプル数が130個だったとすると、30個のサンプルが送信されず消失することになる。
その際以下のようなエラーが出力される。

Remote storage queue full, discarding sample. Multiple subsequent messages of this kind may be suppressed.

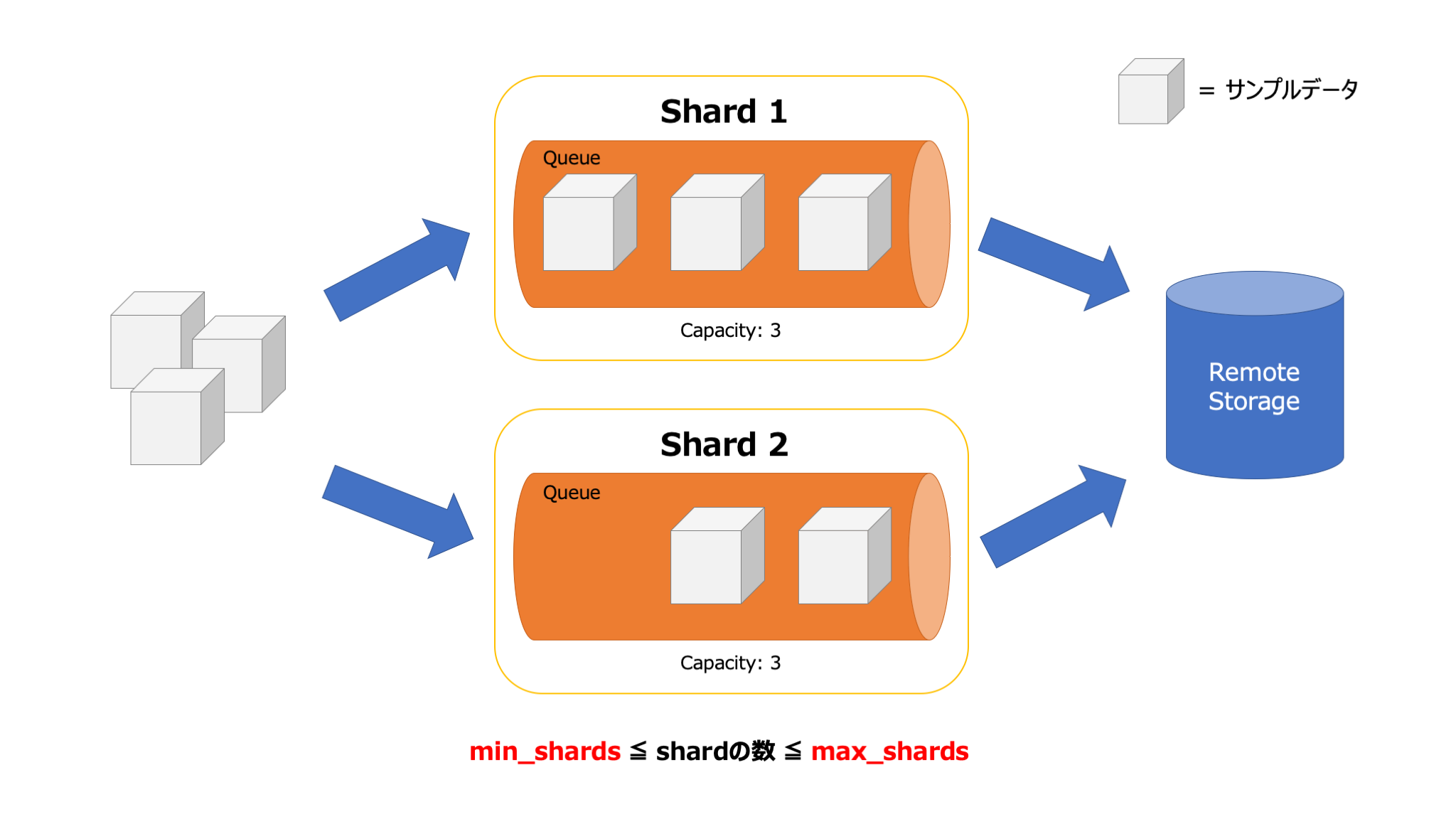

max_shards/min_shards

remote writeの並列実行数の上限・下限。
remote writeはShardという単位で並列に実行することができ、max/min_shardsではその並列実行数の下限と上限を決めることができる。(起動時のShard数はmin_shards)
Prometheusは10秒置きに負荷を計算し、負荷に合わせてShardの数を増減させている。

詳細は省くが必要なShard数は以下の計算式で計算されていた。

desiredShards = (timePerSample * (samplesIn + samplesPending + t.integralAccumulator)) / float64(time.Second)

timePerSample: サンプル1つあたりの送信時間
samplesIn: 1秒あたりの取り込みサンプル数
samplesPending: samplesInから1秒あたりの送信サンプル数を引いた数( = 1秒あたりの送信待ちサンプル数)
t.integralAccumulator: t.integralAccumulator + (samplesPending * 0.1)

参考:https://github.com/prometheus/prometheus/blob/master/storage/remote/queue_manager.go
func (t *QueueManager) calculateDesiredShards()


max_samples_per_send

一度にまとめて送信するサンプルの数。データをPOSTする回数を調節することができる。
例えばキュー内に100個のサンプルがあり、max_samples_per_sendを20に設定している場合、サンプルを20個ずつ5回に分けて送信する。
(この場合実際にはサンプルが20個溜まった時点で外部ストレージに送信される。)

batch_send_deadline

キュー内に残ったサンプルを外部ストレージにフラッシュするまでの待ち時間。
外部ストレージへのサンプルの送信はmax_samples_per_send単位で送信されるため、キュー内のサンプル数が単位未満の場合は送信されず残ることになる。
サンプルがキューに残り続けないようbatch_send_deadlineに設定した時間が送信待ちサンプルの待機時間となり、設定した時間経過すると外部ストレージに書き込まれる。


max_retries

サンプルの送信が失敗した時にリトライする回数。

min_backoff/max_backoff

送信リトライの待ち時間の上限・下限。
送信が失敗した時すぐにはリトライせず、min_backoffに設定した時間待ってから行われる。
2回目は前回のbackoff時間を2倍した値が待ち時間になり、以降2倍ずつ待ち時間が増えていく。
ただし最大はmax_backoffまで。

参考

https://prometheus.io/docs/prometheus/latest/configuration/configuration/#remote_write
https://prometheus.io/docs/prometheus/latest/storage/#remote-storage-integrations
https://prometheus.io/docs/operating/integrations/#remote-endpoints-and-storage
https://github.com/prometheus/prometheus/tree/master/storage/remote
