IBM Cloud: VPC-Gen2とVMware NSX-TをIPsec VPNで接続してみる

Last updated at Posted at 2020-08-12

1. はじめに

IBM CloudのVPC-Gen2にはVPNaaSが存在する。このVPNaaSとVMWare NSX-T 2.5間でIPsec VPNを張れることを確認した。
加えて、IPsec VPNを張る際には失敗することもあるため、成功時のログと比較したいことが多い。今回はActivity Tracker with LogDNAでの出力結果も確認してみた。

2. IBM Cloud側の設定

IKEポリシー

DH Group=14でもOKだった。

IPsecポリシー

PFS=EnabledでもOKだった。

VPN Connection設定

対抗アドレス、local subnets/remote subnets、IKEポリシー/IPsecポリシー/DPDの指定など。
NSX-TではDPD actionはRestartが自動構成されるためその設定に揃える。

Status確認

設定変更をした後は、下記のStateをdisalbed/enabledする方が安全かもしれない。

3. NSX-T側の設定

VPN Service

ガワを作ってT0 Gatewayを指定しただけ。

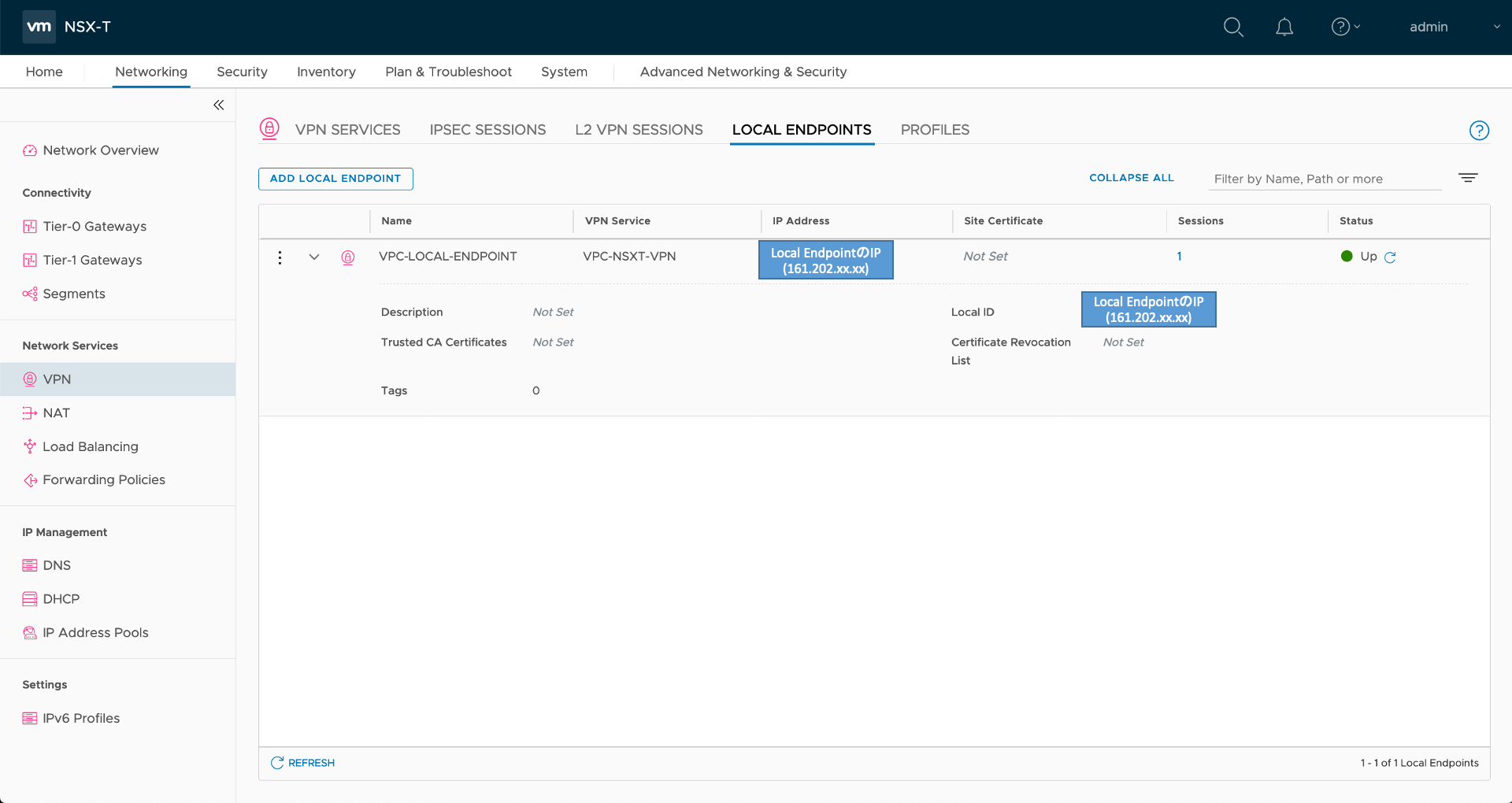

Local Endpoints


IKE Profile


IPsec Profile


DPD Profile


NSX-TではDPD actionはRestartが自動構成される。
参考

In NSX-T, dpdaction is set to “restart” and cannot be changed.

IPsec Session

各種Profileの指定、対抗アドレス(Remote IP)、local subnets/remote subnetsの指定など

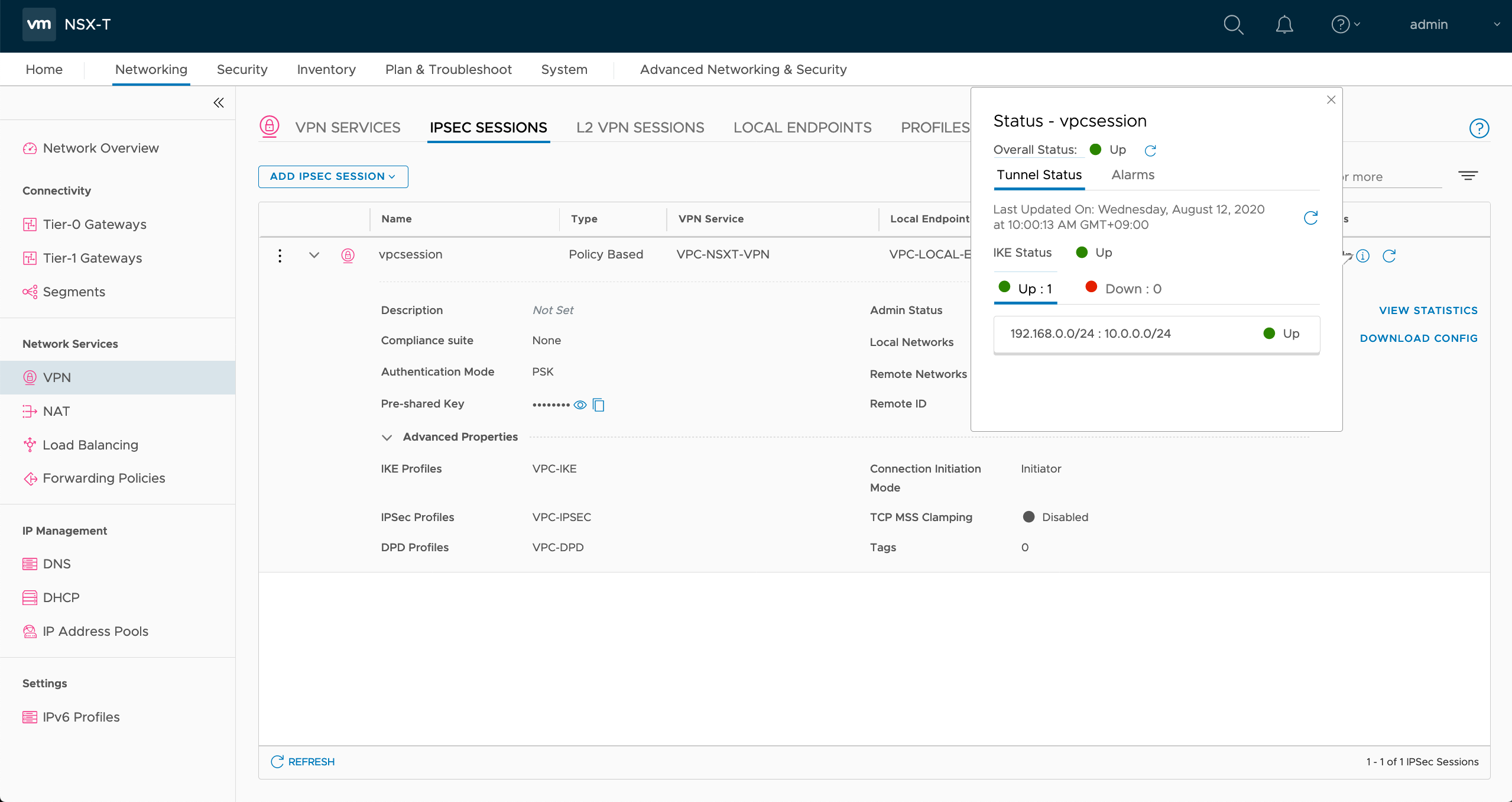

Status確認


Firewall構成

本来はFirewallは事前に構成しておくべきなのだが、VPN Sessionを作成すると自動的にシステムがポートを開いてくれる構成になっているようだ。よって、NSX-TでのFirewall構成は特に変更していない。

4. Activity Tracker with LogDNAによるログの確認

Activity Tracker with LogDNAでログの確認ができる。
https://cloud.ibm.com/docs/vpc?topic=vpc-using-logdna-to-view-vpn-logs

しかし、コンソールでログを追いかけるのは大変なので以下の手順に従ってログをexportして、手元で確認する。
https://cloud.ibm.com/docs/Log-Analysis-with-LogDNA?topic=Log-Analysis-with-LogDNA-export

  • ViewでEVERYTHINGを選択し、事前に該当のVPNサービスをフィルタリングしておく。
  • Export Linesを選択
  • 範囲選択

なお、exportされたログはgz形式で圧縮されている。解凍したログもjson形式のため、jqコマンドで必要な箇所のみ抽出する。
$ cat export_2020-08-12-01-54-23-982_705cf228-4b0d-4de2-87eb-37e6a85e4b07.jsonl | jq '.message' > vpn.log

vpn.log（128.168.xx.xxおよび161.202.xx.xxのようにIPアドレスは隠蔽して表示しています）
"UTC 2020-08-11 14:00:46 03[NET] sending packet: from 10.1.0.4[500] to 161.202.xx.xx[500]"
"UTC 2020-08-11 14:00:47 00[DMN] signal of type SIGINT received. Shutting down"
"UTC 2020-08-11 14:00:47 00[DMN] Starting IKE charon daemon (strongSwan 5.8.1, Linux 4.15.0-106-generic, x86_64)"
"UTC 2020-08-11 14:00:47 00[CFG] loading ca certificates from '/etc/ipsec.d/cacerts'"
"UTC 2020-08-11 14:00:47 00[CFG] loading aa certificates from '/etc/ipsec.d/aacerts'"
"UTC 2020-08-11 14:00:47 00[CFG] loading ocsp signer certificates from '/etc/ipsec.d/ocspcerts'"
"UTC 2020-08-11 14:00:47 00[CFG] loading attribute certificates from '/etc/ipsec.d/acerts'"
"UTC 2020-08-11 14:00:47 00[CFG] loading crls from '/etc/ipsec.d/crls'"
"UTC 2020-08-11 14:00:47 00[CFG] loading secrets from '/etc/ipsec.secrets'"
"UTC 2020-08-11 14:00:47 00[CFG]   loaded IKE secret for 128.168.xx.xx 161.202.xx.xx"
"UTC 2020-08-11 14:00:47 00[LIB] loaded plugins: charon aes des rc2 sha2 sha1 md5 mgf1 random nonce x509 revocation constraints pubkey pkcs1 pkcs7 pkcs8 pkcs12 pgp dnskey sshkey pem fips-prf gmp curve25519 xcbc cmac hmac attr kernel-netlink resolve socket-default stroke vici updown xauth-generic counters"
"UTC 2020-08-11 14:00:47 00[LIB] dropped capabilities, running as uid 0, gid 0"
"UTC 2020-08-11 14:00:47 00[JOB] spawning 16 worker threads"
"UTC 2020-08-11 14:00:47 03[NET] waiting for data on sockets"
"UTC 2020-08-11 14:00:47 04[CFG] received stroke: add connection 'peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960'"
"UTC 2020-08-11 14:00:47 04[CFG] conn peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960"
"UTC 2020-08-11 14:00:47 04[CFG]   left=%any"
"UTC 2020-08-11 14:00:47 04[CFG]   leftsubnet=10.0.0.0/24"
"UTC 2020-08-11 14:00:47 04[CFG]   leftauth=psk"
"UTC 2020-08-11 14:00:47 04[CFG]   leftid=128.168.xx.xx"
"UTC 2020-08-11 14:00:47 04[CFG]   right=161.202.xx.xx"
"UTC 2020-08-11 14:00:47 04[CFG]   rightsubnet=192.168.0.0/24"
"UTC 2020-08-11 14:00:47 04[CFG]   rightauth=psk"
"UTC 2020-08-11 14:00:47 04[CFG]   rightid=161.202.xx.xx"
"UTC 2020-08-11 14:00:47 04[CFG]   ike=aes256-sha256-modp2048!"
"UTC 2020-08-11 14:00:47 04[CFG]   esp=aes256-sha256-modp2048!"
"UTC 2020-08-11 14:00:47 04[CFG]   dpddelay=60"
"UTC 2020-08-11 14:00:47 04[CFG]   dpdtimeout=120"
"UTC 2020-08-11 14:00:47 04[CFG]   dpdaction=3"
"UTC 2020-08-11 14:00:47 04[CFG]   sha256_96=no"
"UTC 2020-08-11 14:00:47 04[CFG]   mediation=no"
"UTC 2020-08-11 14:00:47 04[CFG]   keyexchange=ikev2"
"UTC 2020-08-11 14:00:47 04[CFG] added configuration 'peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960'"
"UTC 2020-08-11 14:00:47 06[CFG] received stroke: initiate 'peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960'"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing IKE_VENDOR task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing IKE_INIT task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing IKE_NATD task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing IKE_CERT_PRE task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing IKE_AUTH task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing IKE_CERT_POST task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing IKE_CONFIG task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing IKE_AUTH_LIFETIME task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> queueing CHILD_CREATE task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> activating new tasks"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating IKE_VENDOR task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating IKE_INIT task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating IKE_NATD task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating IKE_CERT_PRE task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating IKE_AUTH task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating IKE_CERT_POST task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating IKE_CONFIG task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating CHILD_CREATE task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   activating IKE_AUTH_LIFETIME task"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> initiating IKE_SA peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960[1] to 161.202.xx.xx"
"UTC 2020-08-11 14:00:47 06[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> IKE_SA peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960[1] state change: CREATED => CONNECTING"
"UTC 2020-08-11 14:00:47 06[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048"
"UTC 2020-08-11 14:00:47 06[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending supported signature hash algorithms: sha256 sha384 sha512 identity"
"UTC 2020-08-11 14:00:47 06[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> generating IKE_SA_INIT request 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) N(FRAG_SUP) N(HASH_ALG) N(REDIR_SUP) ]"
"UTC 2020-08-11 14:00:47 06[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending packet: from 10.1.0.4[500] to 161.202.xx.xx[500] (464 bytes)"
"UTC 2020-08-11 14:00:47 13[NET] sending packet: from 10.1.0.4[500] to 161.202.xx.xx[500]"
"UTC 2020-08-11 14:00:47 03[NET] received packet: from 161.202.xx.xx[500] to 10.1.0.4[500]"
"UTC 2020-08-11 14:00:47 03[NET] waiting for data on sockets"
"UTC 2020-08-11 14:00:47 08[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received packet: from 161.202.xx.xx[500] to 10.1.0.4[500] (468 bytes)"
"UTC 2020-08-11 14:00:47 08[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> parsed IKE_SA_INIT response 0 [ SA KE No N(NATD_S_IP) N(NATD_D_IP) N(HTTP_CERT_LOOK) N(FRAG_SUP) V ]"
"UTC 2020-08-11 14:00:47 08[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received unknown vendor ID: 4f:85:58:17:1d:21:a0:8d:69:cb:5f:60:9b:3c:06:00"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received HTTP_CERT_LOOKUP_SUPPORTED notify"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received FRAGMENTATION_SUPPORTED notify"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> selecting proposal:"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   proposal matches"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> configured proposals: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> selected proposal: IKE:AES_CBC_256/HMAC_SHA2_256_128/PRF_HMAC_SHA2_256/MODP_2048"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> local host is behind NAT, sending keep alives"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> reinitiating already active tasks"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   IKE_CERT_PRE task"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   IKE_AUTH task"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> authentication of '128.168.xx.xx' (myself) with pre-shared key"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> successfully created shared key MAC"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> proposing traffic selectors for us:"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>  10.0.0.0/24"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> proposing traffic selectors for other:"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>  192.168.0.0/24"
"UTC 2020-08-11 14:00:47 08[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> configured proposals: ESP:AES_CBC_256/HMAC_SHA2_256_128/NO_EXT_SEQ"
"UTC 2020-08-11 14:00:47 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> establishing CHILD_SA peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960{1}"
"UTC 2020-08-11 14:00:47 08[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> generating IKE_AUTH request 1 [ IDi N(INIT_CONTACT) IDr AUTH SA TSi TSr N(EAP_ONLY) N(MSG_ID_SYN_SUP) ]"
"UTC 2020-08-11 14:00:47 08[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500] (256 bytes)"
"UTC 2020-08-11 14:00:47 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:00:47 03[NET] received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500]"
"UTC 2020-08-11 14:00:47 03[NET] waiting for data on sockets"
"UTC 2020-08-11 14:00:47 09[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500] (224 bytes)"
"UTC 2020-08-11 14:00:47 09[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> parsed IKE_AUTH response 1 [ IDr AUTH SA TSi TSr N(ESP_TFC_PAD_N) ]"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received ESP_TFC_PADDING_NOT_SUPPORTED notify"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> authentication of '161.202.xx.xx' with pre-shared key successful"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> IKE_SA peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960[1] established between 10.1.0.4[128.168.xx.xx]...161.202.xx.xx[161.202.xx.xx]"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> IKE_SA peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960[1] state change: CONNECTING => ESTABLISHED"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> scheduling reauthentication in 35055s"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> maximum IKE_SA lifetime 35595s"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received ESP_TFC_PADDING_NOT_SUPPORTED, not using ESPv3 TFC padding"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> selecting proposal:"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>   proposal matches"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received proposals: ESP:AES_CBC_256/HMAC_SHA2_256_128/NO_EXT_SEQ"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> configured proposals: ESP:AES_CBC_256/HMAC_SHA2_256_128/MODP_2048/NO_EXT_SEQ"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> selected proposal: ESP:AES_CBC_256/HMAC_SHA2_256_128/NO_EXT_SEQ"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> selecting traffic selectors for us:"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>  config: 10.0.0.0/24, received: 10.0.0.0/24 => match: 10.0.0.0/24"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> selecting traffic selectors for other:"
"UTC 2020-08-11 14:00:47 09[CFG] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1>  config: 192.168.0.0/24, received: 192.168.0.0/24 => match: 192.168.0.0/24"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> CHILD_SA peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960{1} established with SPIs c63e56c9_i 7bbedc16_o and TS 10.0.0.0/24 === 192.168.0.0/24"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> activating new tasks"
"UTC 2020-08-11 14:00:47 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> nothing to initiate"
"UTC 2020-08-11 14:01:09 16[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:01:09 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:01:29 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:01:29 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:01:47 03[NET] received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500]"
"UTC 2020-08-11 14:01:47 03[NET] waiting for data on sockets"
"UTC 2020-08-11 14:01:47 09[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500] (80 bytes)"
"UTC 2020-08-11 14:01:47 09[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> parsed INFORMATIONAL request 0 [ ]"
"UTC 2020-08-11 14:01:47 09[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> generating INFORMATIONAL response 0 [ ]"
"UTC 2020-08-11 14:01:47 09[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500] (80 bytes)"
"UTC 2020-08-11 14:01:47 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:02:07 05[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:02:07 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:02:27 02[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:02:27 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:02:47 10[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:02:47 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:02:47 03[NET] received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500]"
"UTC 2020-08-11 14:02:47 03[NET] waiting for data on sockets"
"UTC 2020-08-11 14:02:47 14[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500] (80 bytes)"
"UTC 2020-08-11 14:02:47 14[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> parsed INFORMATIONAL request 1 [ ]"
"UTC 2020-08-11 14:02:47 14[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> generating INFORMATIONAL response 1 [ ]"
"UTC 2020-08-11 14:02:47 14[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500] (80 bytes)"
"UTC 2020-08-11 14:02:47 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:03:07 09[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:03:07 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:03:27 12[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:03:27 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:03:47 16[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:03:47 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:03:47 03[NET] received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500]"
"UTC 2020-08-11 14:03:47 03[NET] waiting for data on sockets"
"UTC 2020-08-11 14:03:47 15[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500] (80 bytes)"
"UTC 2020-08-11 14:03:47 15[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> parsed INFORMATIONAL request 2 [ ]"
"UTC 2020-08-11 14:03:47 15[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> generating INFORMATIONAL response 2 [ ]"
"UTC 2020-08-11 14:03:47 15[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500] (80 bytes)"
"UTC 2020-08-11 14:03:47 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:04:07 08[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:04:07 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:04:27 14[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:04:27 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:04:47 03[NET] received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500]"
"UTC 2020-08-11 14:04:47 03[NET] waiting for data on sockets"
"UTC 2020-08-11 14:04:47 05[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500] (80 bytes)"
"UTC 2020-08-11 14:04:47 05[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> parsed INFORMATIONAL request 3 [ ]"
"UTC 2020-08-11 14:04:47 05[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> generating INFORMATIONAL response 3 [ ]"
"UTC 2020-08-11 14:04:47 05[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500] (80 bytes)"
"UTC 2020-08-11 14:04:47 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:05:07 10[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:05:07 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:05:27 12[IKE] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending keep alive to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:05:27 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
"UTC 2020-08-11 14:05:47 03[NET] received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500]"
"UTC 2020-08-11 14:05:47 03[NET] waiting for data on sockets"
"UTC 2020-08-11 14:05:47 04[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> received packet: from 161.202.xx.xx[4500] to 10.1.0.4[4500] (80 bytes)"
"UTC 2020-08-11 14:05:47 04[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> parsed INFORMATIONAL request 4 [ ]"
"UTC 2020-08-11 14:05:47 04[ENC] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> generating INFORMATIONAL response 4 [ ]"
"UTC 2020-08-11 14:05:47 04[NET] <peer_161.202.xx.xx_02f7-885f1aa1-280f-4a08-9093-6e8c8b732960|1> sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500] (80 bytes)"
"UTC 2020-08-11 14:05:47 13[NET] sending packet: from 10.1.0.4[4500] to 161.202.xx.xx[4500]"
2
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
2
1

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
