目的
OpenShiftでIBM Cloud Pakシリーズを使う場合はLicense Serviceをインストールしますが、Pakではない製品、例えばWebSphere Hybrid Editionのような製品を使う場合は、スタンドアローン版のLicense Serviceをインストールする必要があります。今回はそれをRed Hat OpenShift on IBM Cloudにインストールしてみます。
手順
参考
インストールシナリオ
いくつかのインストールシナリオがあります。
- Automatic installation using Operator Lifecycle Manager (OLM)
- Manual installation on OpenShift Container Platform (OCP) version 4.6 or higher
- Manual installation without the Operator Lifecycle Manager (OLM)
- Manual installation on Kubernetes from scratch with kubectl
- Offline installation
今回は最も簡単なAutomatic installation using Operator Lifecycle Manager (OLM)
で実施します。
インストールスクリプトのダウンロード
$ curl -O https://raw.githubusercontent.com/IBM/ibm-licensing-operator/latest/common/scripts/ibm_licensing_operator_install.sh
$ chmod +x ./ibm_licensing_operator_install.sh
IBM Licensing Operatorのインストール
クラスターにログイン後、スクリプトを実行します。
$ ./ibm_licensing_operator_install.sh
Creating namespace ibm-common-services
namespace/ibm-common-services created
Check if OLM is installed
OLM should be working
Waiting for opencloud Catalog Source deployment to be ready
opencloud Catalog Source state: READY
opencloud Catalog Source initialized
operatorgroup.operators.coreos.com/operatorgroup created
subscription.operators.coreos.com/ibm-licensing-operator-app created
Checking Subscription and CSV status
ibm-licensing-operator.v1.10.0 phase: Waiting for CSV to appear
ibm-licensing-operator.v1.10.0 phase: Installing
ibm-licensing-operator.v1.10.0 phase: Succeeded
Subscription and CSV should work
ibmlicensing.operator.ibm.com/instance created
Checking IBMLicensing instance status
IBMLicensing Pod phase: Pending
IBMLicensing Pod phase: Running
License Service secret for accessing the API is: **********************
License Service Route URL for accessing the API is: https://ibm-licensing-service-instance-ibm-common-services.********-********-0000.jp-tok.containers.appdomain.cloud
IBM License Service should be running, you can check post installation section in README to see possible configurations of IBM Licensing instance, and how to configure ingress/route if needed
下から3行目のシークレットをメモしておきます。
IBM License Serviceへのアクセス

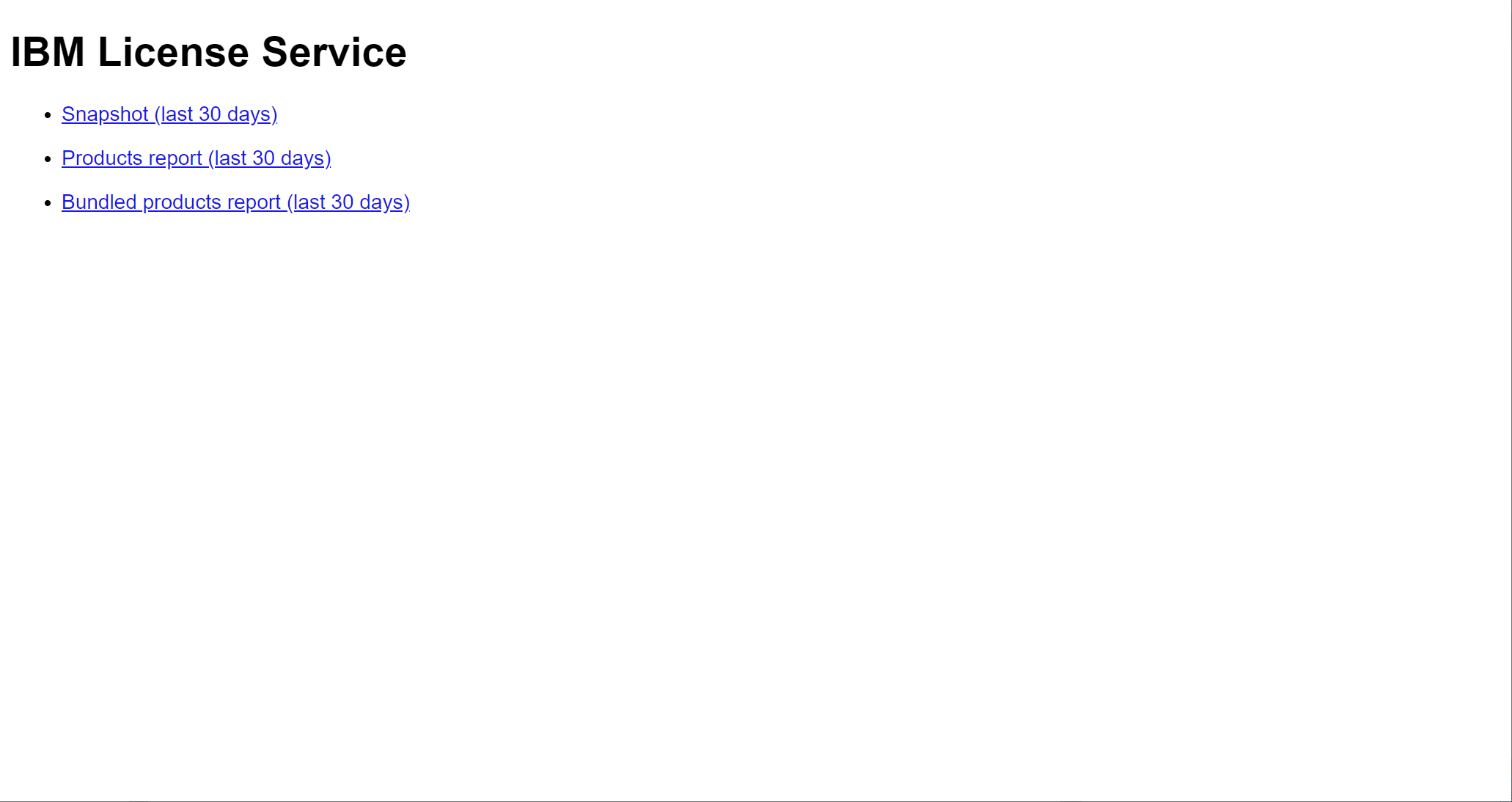

先ほどのログにURLが出ていますので、ブラウザでアクセスします。デフォルトでは自己署名証明書なので警告が出たら無視して継続してください。

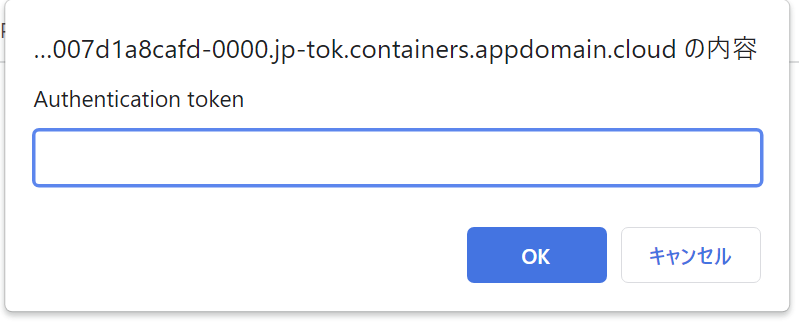

いずれかのリンクを選択してください。Basic認証が求められるので、先ほどメモしたシークレットを入力してください。
以上です。
