※2020/04/11時点
意外とハマりました。
基本的にはドキュメントの通り
https://docs.microsoft.com/ja-jp/azure/aks/windows-container-cli
.NETFrameworkで適当なコンソールアプリ作成
結論からいうと、ここのwindowsservercoreイメージの指定が悪くハマりました。
気軽に mcr.microsoft.com/dotnet/framework/runtime:4.8
ではだめでした。
FROM mcr.microsoft.com/dotnet/framework/runtime:4.8-20200211-windowsservercore-ltsc2019 AS runtime
WORKDIR /app
COPY bin/Debug .
ENTRYPOINT ["Docker48.exe"]
ACR作成
sample1222 という名前
リソースグループはakstest という名前にしています。
az acr create -n sample1222 -g akstest --sku basic
buildしてpush
--platform Windows いります
az acr build --registry sample1222 --image dotnetapp48:v1.0 --platform Windows .
AKSクラスター作成
az aks create --resource-group akstest --name myAKSCluster --node-count 2 --enable-addons monitoring --kubernetes-version 1.15.7 --generate-ssh-keys --windows-admin-password P@ssw0rd1234 --windows-admin-username azureuser --vm-set-type VirtualMachineScaleSets --load-balancer-sku standard --network-plugin azure --attach-acr sample1222
--attach-acr でACRと紐づけ。 便利になりました。
az aks create gives Could not create a role assignment for subnet. Are you an Owner on this subscription?
というエラーでましたが、C:\Users\XXXXXX.azure\aksServicePrincipal.jsonを消して
何度か実行したら作成できました。
Windows Server ノード プール追加
az aks nodepool add --resource-group akstest --cluster-name myAKSCluster --os-type Windows --name npwin --node-count 1 --kubernetes-version 1.15.7
クラスターに接続する
az aks get-credentials --resource-group akstest --name myAKSCluster
マニフェスト作成してデプロイ
apiVersion: apps/v1
kind: Deployment
metadata:
name: sample
labels:
app: sample
spec:
template:
metadata:
name: sample
labels:
app: sample
spec:
nodeSelector:
"beta.kubernetes.io/os": windows
containers:
- name: sample
image: sample1222.azurecr.io/dotnetapp48:v1.0
resources:
ports:
- containerPort: 80
selector:
matchLabels:
app: sample
---
apiVersion: v1
kind: Service
metadata:
name: sample
spec:
type: LoadBalancer
ports:
- protocol: TCP
port: 80
selector:
app: sample
kubectl apply -f sample.yaml
最初に書いたとおりベースイメージ間違っているとpodが起動しないのですが、イメージのバージョン関連のエラーの後にunauthorized: authentication required というエラーがでるのでACRの認証周りかと勘違いして時間を無駄にしました。
最後に

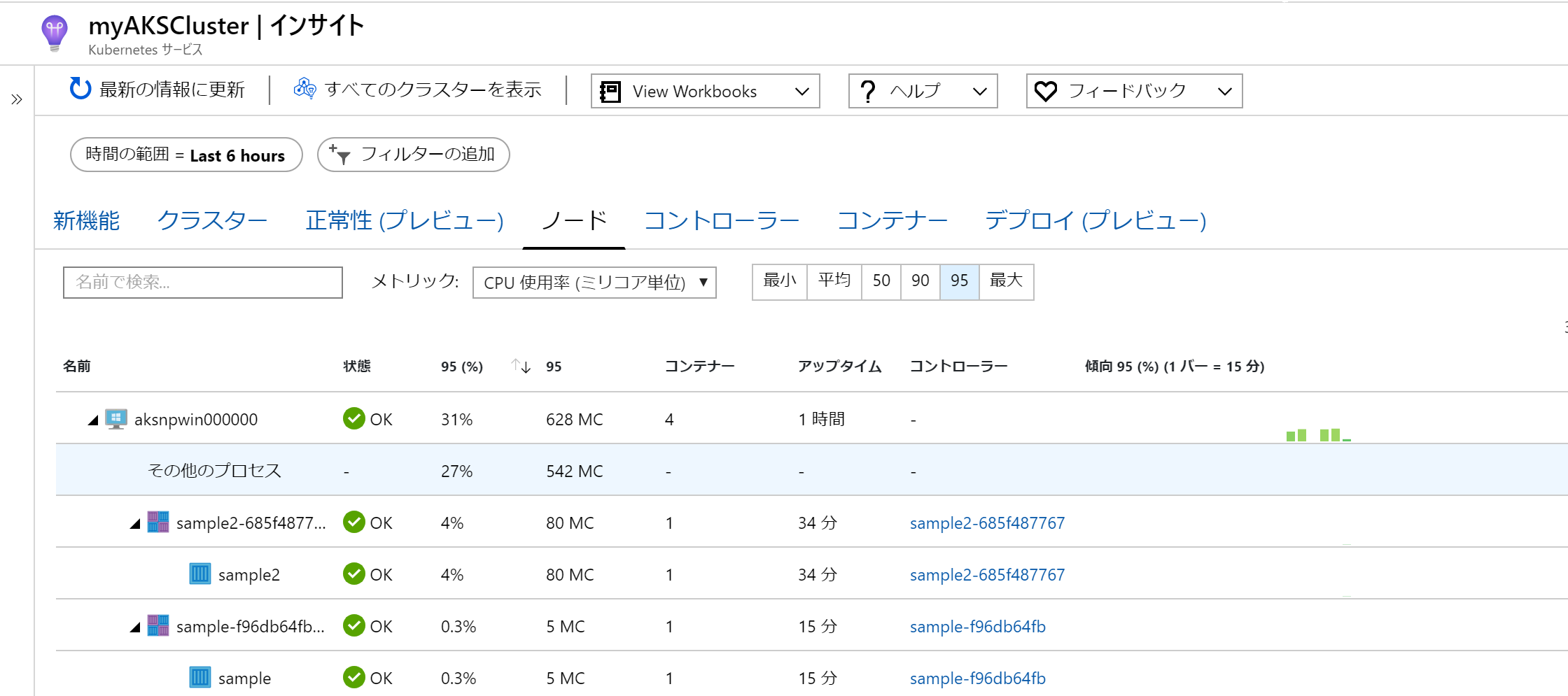

構築後からすぐにAzure Monitorでモニタリングできてログが見れるのはちょっとした検証に便利です。
