@tbpgr(てぃー びー)

PlantUML Web 版で UML を作って Slack に貼る

Posted at

PlantUML Web 版で UML を作って Slack に貼ってみます。

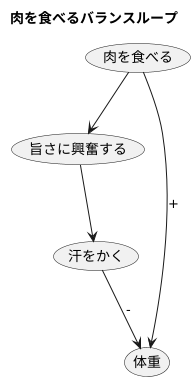

@startuml
title: 肉を食べるバランスループ
(肉を食べる) --> (旨さに興奮する)
(旨さに興奮する) --> (汗をかく)
(汗をかく) --> (体重): -
(肉を食べる) --> (体重): +
@enduml


Slack にはる

生成結果の画像URL ( http://www.plantuml.com/plantuml/png/SoWkIImgAStDuIh9BCb9jL9uqTJvk6dIoyNp7pVkVDpK_RXvmkFcbO-RDpzkslcuUVNZvZsFcwTpQQ2fqbJGrRLJq7WsVSNZngcF6rU_wEXukdJTuyQP83akRE88FHkd0qrwtDZzkB5Vamk52rNnPE_ab-szcbOAkXZseglGvd98pKi1-WO0 ) をSlackに貼ります
