【AWS】AWS CLIを利用してPostfixのメールキューを監視する。

Posted at

1. はじめに

1-1 ご挨拶

初めまして、井村と申します。
AWSのAmazon Linux 2023にPostfixをインストールしメールキューの監視設定を行いました。
メールキューの数をCloudWatchに転送します。
備忘録の記事になります。

1-2 対象読者

  • AWSに興味がある
  • 監視に興味がある

1-3 メールキューの監視方法について

サーバ上でaws cliコマンドを利用します。引数としてメールキューの総数を取得、CloudWatchへ転送します。定期的にメトリクスを送りますのでクーロンも同時に設定します。

2. 構築

2-1 test.yaml構成

CloudFormationで各リソースを作成します。

test.yaml
test.yaml
AWSTemplateFormatVersion: "2010-09-09"
Description: Simple Web Architecture

Metadata:
  AWS::CloudFormation::Interface:
    ParameterGroups:
    - Label:
        default: "Common"
      Parameters:
        - SystemName
        - EnvType
    - Label:
        default: "EC2 Configuration"
      Parameters:
        - LastestAmiId

Parameters:
  SystemName:
      Description: "Enter System name"
      Type: String
      Default: "timura"
  EnvType:
      Description: "Select Environment type"
      Type: String
      Default: "dev"
      AllowedValues:
      - "dev"
      - "prod"
  LatestAmiId:
      Type: AWS::SSM::Parameter::Value<String>
      Default: "/aws/service/ami-amazon-linux-latest/al2023-ami-kernel-default-x86_64"


Mappings:
  EnvConfig:
    prod:
      EC2InstanceType: t3.micro
      EC2DiskSize: 20
      RDSInstanceType: db.t3.micro
      RDSStorageSize: 20
    dev:
      EC2InstanceType: t2.micro
      EC2DiskSize: 20
      RDSInstanceType: db.t3.micro
      RDSStorageSize: 20

Resources:
  VPC:
      Type: AWS::EC2::VPC
      Properties:
        CidrBlock: 10.0.0.0/16
        EnableDnsSupport: true
        EnableDnsHostnames: true
        InstanceTenancy: default
        Tags:
          - Key: Name
            Value: !Sub ${SystemName}-${EnvType}-vpc

  PublicSubnet01:
      Type: AWS::EC2::Subnet
      Properties:
          VpcId: !Ref VPC
          CidrBlock: 10.0.1.0/24
          AvailabilityZone: !Select [ 0, !GetAZs "" ]
          Tags:
              - Key: Name
                Value: !Sub ${SystemName}-${EnvType}-public-subnet01

  PublicSubnet02:
      Type: AWS::EC2::Subnet
      Properties:
          VpcId: !Ref VPC
          CidrBlock: 10.0.2.0/24
          AvailabilityZone: !Select [ 1, !GetAZs "" ]
          Tags:
              - Key: Name
                Value: !Sub ${SystemName}-${EnvType}-public-subnet02

  PrivateSubnet01:
      Type: AWS::EC2::Subnet
      Properties:
          VpcId: !Ref VPC
          CidrBlock: 10.0.3.0/24
          AvailabilityZone: !Select [ 0, !GetAZs "" ]
          Tags:
              - Key: Name
                Value: !Sub ${SystemName}-${EnvType}-private-subnet01

  PrivateSubnet02:
      Type: AWS::EC2::Subnet
      Properties:
          VpcId: !Ref VPC
          CidrBlock: 10.0.4.0/24
          AvailabilityZone: !Select [ 1, !GetAZs "" ]
          Tags:
              - Key: Name
                Value: !Sub ${SystemName}-${EnvType}-private-subnet02

  InternetGateway:
      Type: AWS::EC2::InternetGateway
      Properties:
          Tags:
              - Key: Name
                Value: !Sub ${SystemName}-${EnvType}-igw

  AttachGateway:
      Type: AWS::EC2::VPCGatewayAttachment
      Properties:
          VpcId: !Ref VPC
          InternetGatewayId: !Ref InternetGateway

  NatGatewayEIP:
    Type: AWS::EC2::EIP
    Properties:
      Domain: vpc

  NatGateway:
    Type: AWS::EC2::NatGateway
    Properties:
      AllocationId: !GetAtt NatGatewayEIP.AllocationId
      SubnetId: !Ref PublicSubnet01
      Tags:
        - Key: Name
          Value: !Sub ${SystemName}-${EnvType}-ngw

  PublicRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${SystemName}-${EnvType}-public-rtb

  PrivateRouteTable:
    Type: AWS::EC2::RouteTable
    Properties:
      VpcId: !Ref VPC
      Tags:
        - Key: Name
          Value: !Sub ${SystemName}-${EnvType}-private-rtb

  PublicRoute:
    Type: AWS::EC2::Route
    DependsOn: AttachGateway
    Properties:
          RouteTableId: !Ref PublicRouteTable
          DestinationCidrBlock: '0.0.0.0/0'
          GatewayId: !Ref InternetGateway

  PrivateRoute:
    Type: AWS::EC2::Route
    Properties:
          RouteTableId: !Ref PrivateRouteTable
          DestinationCidrBlock: '0.0.0.0/0'
          NatGatewayId: !Ref NatGateway

  PublicSubnet01RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnet01

  PublicSubnet02RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PublicRouteTable
      SubnetId: !Ref PublicSubnet02

  PrivateSubnet01RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      SubnetId: !Ref PrivateSubnet01

  PrivateSubnet02RouteTableAssociation:
    Type: AWS::EC2::SubnetRouteTableAssociation
    Properties:
      RouteTableId: !Ref PrivateRouteTable
      SubnetId: !Ref PrivateSubnet02

  ALBSecurityGroup:
      Type: AWS::EC2::SecurityGroup
      Properties:
          GroupName: !Sub ${SystemName}-${EnvType}-alb-sg
          GroupDescription: "Allow http https from users"
          VpcId: !Ref VPC
          SecurityGroupIngress:
          - IpProtocol: tcp
            FromPort: 80
            ToPort: 80
            CidrIp: "0.0.0.0/0"
          Tags:
              - Key: Name
                Value: !Sub ${SystemName}-${EnvType}-alb-sg

  EC2SecurityGroup:
      Type: AWS::EC2::SecurityGroup
      Properties:
          GroupName: !Sub ${SystemName}-${EnvType}-ec2-sg
          GroupDescription: "Allow http https from alb"
          VpcId: !Ref VPC
          SecurityGroupIngress:
          - IpProtocol: tcp
            FromPort: 80
            ToPort: 80
            SourceSecurityGroupId: !Ref ALBSecurityGroup
          Tags:
              - Key: Name
                Value: !Sub ${SystemName}-${EnvType}-ec2-sg

  EC2Role:
    Type: AWS::IAM::Role
    Properties:
      RoleName: !Sub ${SystemName}-${EnvType}-ec2-role
      AssumeRolePolicyDocument:
        Version: 2012-10-17
        Statement:
          - Effect: Allow
            Principal:
              Service:
                - ec2.amazonaws.com
            Action:
              - sts:AssumeRole
      ManagedPolicyArns:
        - arn:aws:iam::aws:policy/AmazonSSMManagedInstanceCore
        - arn:aws:iam::aws:policy/CloudWatchAgentServerPolicy

  EC2Profile:
    Type: AWS::IAM::InstanceProfile
    Properties:
      InstanceProfileName: !Sub ${SystemName}-${EnvType}-ec2-profile
      Roles:
        - !Ref EC2Role

  EC2Instance:
    Type: AWS::EC2::Instance
    Properties:
      ImageId: !Ref LatestAmiId
      InstanceType: !FindInMap [ EnvConfig, !Ref EnvType, EC2InstanceType ]
      BlockDeviceMappings:
        - DeviceName: /dev/xvda
          Ebs:
            VolumeType: gp3
            VolumeSize: !FindInMap [ EnvConfig, !Ref EnvType, EC2DiskSize ]
      SecurityGroupIds:
        - !Ref EC2SecurityGroup
      SubnetId: !Ref PrivateSubnet01
      IamInstanceProfile: !Ref EC2Profile
      UserData:
        "Fn::Base64": |
          #!/bin/bash
          dnf update -y
          dnf install -y postfix
          dnf install -y mailx # mailコマンド
          dnf install -y cronie # crontabのため
          systemctl enable postfix
          systemctl stop postfix
          systemctl enable crond
          systemctl start crond

      Tags:
        - Key: Name
          Value: !Sub ${SystemName}-${EnvType}-ec2

  ALB:
    Type: AWS::ElasticLoadBalancingV2::LoadBalancer
    Properties:
      Name: !Sub ${SystemName}-${EnvType}-alb
      Scheme: internet-facing
      Type: application
      Subnets:
        - !Ref PublicSubnet01
        - !Ref PublicSubnet02
      SecurityGroups:
        - !Ref ALBSecurityGroup
      Tags:
        - Key: Name
          Value: !Sub ${SystemName}-${EnvType}-alb

  ALBTargetGroup:
    Type: AWS::ElasticLoadBalancingV2::TargetGroup
    Properties:
      Name: !Sub ${SystemName}-${EnvType}-alb-tg
      VpcId: !Ref VPC
      TargetType: instance
      Port: 80
      Protocol: HTTP
      Targets:
        - Id: !Ref EC2Instance
          Port: 80
      HealthCheckProtocol: HTTP
      Tags:
        - Key: Name
          Value: !Sub ${SystemName}-${EnvType}-alb-tg

  ALBListener:
    Type: AWS::ElasticLoadBalancingV2::Listener
    Properties:
      DefaultActions:
        - Type: forward
          TargetGroupArn: !Ref ALBTargetGroup
      LoadBalancerArn: !Ref ALB
      Port: 80
      Protocol: HTTP

セッションマネージャーからEC2にログイン後、以下コマンドを実行していきます。
実行結果も載せています。

2-2 クーロンの設定

まずはコンフィグ設定を実施します。権限はCloudFormationにて設定済みですので、リージョンとアウトプットフォーマットの設定のみになります。

aws configure

[ec2-user@ip-10-0-3-117 ~]$ aws configure
AWS Access Key ID [None]:
AWS Secret Access Key [None]:
Default region name [None]: ap-northeast-1
Default output format [None]: json
[ec2-user@ip-10-0-3-117 ~]$
[ec2-user@ip-10-0-3-117 ~]$ cat .aws/config
[default]
region = ap-northeast-1
output = json
[ec2-user@ip-10-0-3-117 ~]$

次は定期的にメトリクスを取得するシェルを作成します。今回選定したディレクトリはローカルサーバから投稿されたメールキューを溜めるmaildropになります。

以下がシェルになります。インスタンスIdはコンソール画面からEC2のインスタンスIDを取得し、置き換えます。

sudo cat > maildrop.sh << 'EOF'
#!/bin/bash

metric_name="maildrop"
name_space="AWS/EC2"
InstanceId="インスタンスId"

# maildropに溜まるメールキュー数を取得
maildrop=`sudo ls -l /var/spool/postfix/maildrop | wc -l`

/usr/bin/aws cloudwatch --region "ap-northeast-1" put-metric-data --metric-name "${metric_name}" --namespace ${name_space} --value ${maildrop} --dimensions InstanceId=${InstanceId}
EOF

[ec2-user@ip-10-0-3-117 ~]$ sudo mkdir /opt/shell/
[ec2-user@ip-10-0-3-117 ~]$ sudo chown ec2-user:ec2-user /opt/shell/
[ec2-user@ip-10-0-3-117 ~]$ cd /opt/shell/
[ec2-user@ip-10-0-3-117 shell]$
[ec2-user@ip-10-0-3-117 shell]$ cat > maildrop.sh << 'EOF'
#!/bin/bash

metric_name="maildrop"
name_space="AWS/EC2"
InstanceId="i-032bd3e5340acbead"

# maildropに溜まるメールキュー数を取得
maildrop=`sudo ls -l /var/spool/postfix/maildrop | wc -l`

/usr/bin/aws cloudwatch --region "ap-northeast-1" put-metric-data --metric-name "${metric_name}" --namespace ${name_space} --value ${maildrop} --dimensions InstanceId=${InstanceId}
EOF
[ec2-user@ip-10-0-3-117 shell]$ chmod +x maildrop.sh ; ls -l maildrop.sh
-rwxr-xr-x. 1 ec2-user ec2-user 384 May 24 10:37 maildrop.sh
[ec2-user@ip-10-0-3-117 shell]$

それではクーロンの設定、実行を行います。5分間隔でメトリクスを送ります。

crontab -e

sudo systemctl restart crond

[ec2-user@ip-10-0-3-117 shell]$ crontab -e
no crontab for ec2-user - using an empty one
crontab: installing new crontab
[ec2-user@ip-10-0-3-117 shell]$
[ec2-user@ip-10-0-3-117 shell]$ crontab -l
*/5 * * * * /opt/shell/maildrop.sh
[ec2-user@ip-10-0-3-117 shell]$
[ec2-user@ip-10-0-3-117 shell]$ sudo systemctl restart crond
[ec2-user@ip-10-0-3-117 shell]$
[ec2-user@ip-10-0-3-117 shell]$ sudo systemctl status crond
● crond.service - Command Scheduler
     Loaded: loaded (/usr/lib/systemd/system/crond.service; enabled; preset: enabled)
     Active: active (running) since Sat 2025-05-24 10:41:11 UTC; 7s ago
   Main PID: 28642 (crond)
      Tasks: 2 (limit: 1111)
     Memory: 1.3M
        CPU: 3ms
     CGroup: /system.slice/crond.service
             ├─27142 /usr/sbin/anacron -s
             └─28642 /usr/sbin/crond -n

May 24 10:41:11 ip-10-0-3-117.ap-northeast-1.compute.internal systemd[1]: Started crond.service - Command Scheduler.
May 24 10:41:11 ip-10-0-3-117.ap-northeast-1.compute.internal crond[28642]: (CRON) STARTUP (1.5.7)
May 24 10:41:11 ip-10-0-3-117.ap-northeast-1.compute.internal crond[28642]: (CRON) INFO (RANDOM_DELAY will be scaled with factor 99% if used.)
May 24 10:41:11 ip-10-0-3-117.ap-northeast-1.compute.internal crond[28642]: (CRON) INFO (running with inotify support)
May 24 10:41:11 ip-10-0-3-117.ap-northeast-1.compute.internal crond[28642]: (CRON) INFO (@reboot jobs will be run at computer's startup.)
[ec2-user@ip-10-0-3-117 shell]$

これで構築は終了です。

3. 確認

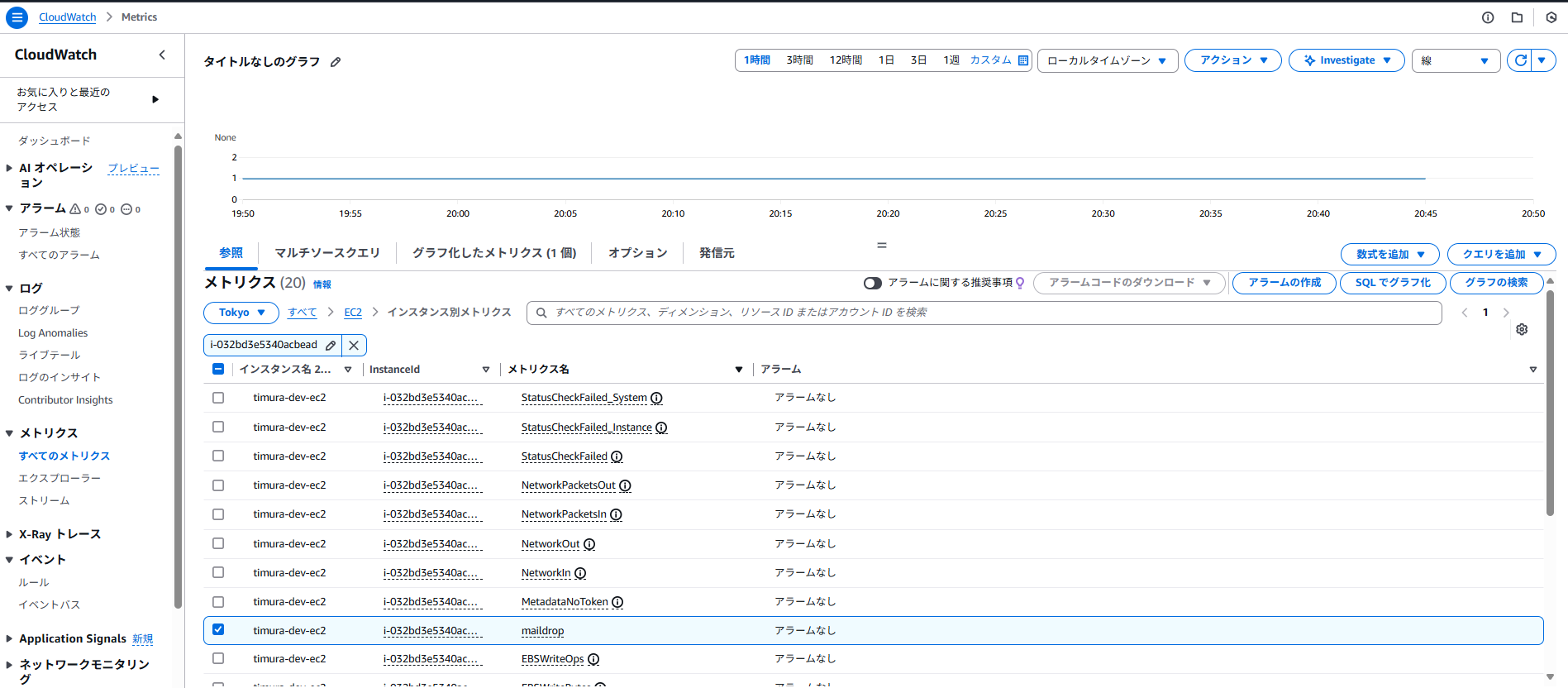

CloudWatchにてメトリクスを確認します。

コンソール画面からすべてのメトリクスをえらびEC2のインスタンスIDを入力します。
メトリクスからシェルで設定したmaildropが確認できます。
※1がカウントされているのはwc-lの出力結果がカウントされて常に1となります。。


4. 検証

ここから検証を行います。
postfixを停止し、ローカルサーバからメールを発行します。postfixが停止しているので、受信ボックスに格納されずメールキューがたまることを確認します。

まずは受信ボックスとメールキューが溜まるディレクトリを確認します。

# 受信ボックスの確認
[ec2-user@ip-10-0-3-117 ~]$ mail
No mail for ec2-user
[ec2-user@ip-10-0-3-117 ~]$
[ec2-user@ip-10-0-3-117 ~]$ sudo ls -l /var/spool/mail/
total 0
-rw-rw----. 1 ec2-user mail 0 May 24 09:50 ec2-user
-rw-rw----. 1 rpc      mail 0 May  9 22:23 rpc
-rw-rw----. 1 ssm-user mail 0 May 24 10:12 ssm-user
[ec2-user@ip-10-0-3-117 ~]$

# メールキューディレクトリの確認
[ec2-user@ip-10-0-3-117 ~]$ sudo ls -l /var/spool/postfix/
total 0
drwx------. 2 postfix root     6 Jan 16  2024 active
drwx------. 2 postfix root     6 Jan 16  2024 bounce
drwx------. 2 postfix root     6 Jan 16  2024 corrupt
drwx------. 2 postfix root     6 Jan 16  2024 defer
drwx------. 2 postfix root     6 Jan 16  2024 deferred
drwx------. 2 postfix root     6 Jan 16  2024 flush
drwx------. 2 postfix root     6 Jan 16  2024 hold
drwx------. 2 postfix root     6 Jan 16  2024 incoming
drwx-wx---. 2 postfix postdrop 6 Jan 16  2024 maildrop
drwxr-xr-x. 2 root    root     6 Jan 16  2024 pid
drwx------. 2 postfix root     6 Jan 16  2024 private
drwx--x---. 2 postfix postdrop 6 Jan 16  2024 public
drwx------. 2 postfix root     6 Jan 16  2024 saved
drwx------. 2 postfix root     6 Jan 16  2024 trace
[ec2-user@ip-10-0-3-117 ~]$
[ec2-user@ip-10-0-3-117 ~]$ sudo ls -l /var/spool/postfix/maildrop/
total 0
[ec2-user@ip-10-0-3-117 ~]$

Postfixが停止さていることを確認します。

[ec2-user@ip-10-0-3-117 ~]$ sudo systemctl status postfix
○ postfix.service - Postfix Mail Transport Agent
     Loaded: loaded (/usr/lib/systemd/system/postfix.service; enabled; preset: disabled)
     Active: inactive (dead)
[ec2-user@ip-10-0-3-117 ~]$

景気よくメールを100通投稿しましょう！

[ec2-user@ip-10-0-3-117 ~]$ touch send_test_mail.sh; chmod a+x send_test_mail.sh
[ec2-user@ip-10-0-3-117 ~]$
[ec2-user@ip-10-0-3-117 ~]$ cat > send_test_mail.sh << EOF
> #!/bin/bash

for i in {1..100}
do
  echo "This is a test mail from postfix" | mail -s "Test Mail!!" ec2-user@localhost &
done
> EOF
[ec2-user@ip-10-0-3-117 ~]$

# シェル実行
[ec2-user@ip-10-0-3-117 ~]$ ./send_test_mail.sh &
[1] 37344
[ec2-user@ip-10-0-3-117 ~]$
[1]+  Done                    ./send_test_mail.sh
[ec2-user@ip-10-0-3-117 ~]$

メールキューおよび受信ボックスを確認します。
以下よりメールキューが100件、受信ボックスが0であることがわかります。

[ec2-user@ip-10-0-3-117 ~]$ ls -l /var/spool/postfix/
total 32
drwx------. 2 postfix root         6 May 24 13:11 active
drwx------. 2 postfix root         6 May 24 13:11 bounce
drwx------. 2 postfix root         6 Jan 16  2024 corrupt
drwx------. 2 postfix root         6 Jan 16  2024 defer
drwx------. 2 postfix root         6 Jan 16  2024 deferred
drwx------. 2 postfix root         6 Jan 16  2024 flush
drwx------. 2 postfix root         6 Jan 16  2024 hold
drwx------. 2 postfix root         6 May 24 13:11 incoming
drwx-wx---. 2 postfix postdrop 16384 May 24 13:42 maildrop
drwxr-xr-x. 2 root    root        63 May 24 13:15 pid
drwx------. 2 postfix root     16384 May 24 13:11 private # ここは検証ミスでゴミです。
drwx--x---. 2 postfix postdrop    88 May 24 13:11 public
drwx------. 2 postfix root         6 Jan 16  2024 saved
drwx------. 2 postfix root         6 Jan 16  2024 trace
[ec2-user@ip-10-0-3-117 ~]$
[ec2-user@ip-10-0-3-117 ~]$ sudo ls -l /var/spool/postfix/maildrop/
total 400
-rwxr--r--. 1 ec2-user postdrop 351 May 24 13:42 01E151007E55
-rwxr--r--. 1 ec2-user postdrop 352 May 24 13:42 048E81007E56
-rwxr--r--. 1 ec2-user postdrop 352 May 24 13:42 0499E1007E57
～省略～
-rwxr--r--. 1 ec2-user postdrop 353 May 24 13:42 EC8281007E51
-rwxr--r--. 1 ec2-user postdrop 353 May 24 13:42 EE5D31007E53
-rwxr--r--. 1 ec2-user postdrop 353 May 24 13:42 F19FC1007E54
[ec2-user@ip-10-0-3-117 ~]$ sudo ls -l /var/spool/postfix/maildrop/ | wc -l
101
[ec2-user@ip-10-0-3-117 ~]$
[ec2-user@ip-10-0-3-117 ~]$ mail
No mail for ec2-user
[ec2-user@ip-10-0-3-117 ~]$

それではPostfixを起動させメールを受信ボックスに送ります。

[ec2-user@ip-10-0-3-117 ~]$ sudo systemctl start postfix
[ec2-user@ip-10-0-3-117 ~]$
[ec2-user@ip-10-0-3-117 ~]$ systemctl status postfix
● postfix.service - Postfix Mail Transport Agent
     Loaded: loaded (/usr/lib/systemd/system/postfix.service; enabled; preset: disabled)
     Active: active (running) since Sat 2025-05-24 13:50:03 UTC; 32s ago
    Process: 38199 ExecStartPre=/usr/sbin/restorecon -R /var/spool/postfix/pid/master.pid (code=exited, status=255/EXCEPTION)
    Process: 38200 ExecStartPre=/usr/libexec/postfix/aliasesdb (code=exited, status=0/SUCCESS)
    Process: 38202 ExecStartPre=/usr/libexec/postfix/chroot-update (code=exited, status=0/SUCCESS)
    Process: 38203 ExecStart=/usr/sbin/postfix start (code=exited, status=0/SUCCESS)
   Main PID: 38270 (master)
      Tasks: 9 (limit: 1111)
     Memory: 6.1M
        CPU: 422ms
     CGroup: /system.slice/postfix.service
             ├─38270 /usr/libexec/postfix/master -w
             ├─38271 pickup -l -t unix -u
             ├─38272 qmgr -l -t unix -u
             ├─38273 cleanup -z -t unix -u
             ├─38274 trivial-rewrite -n rewrite -t unix -u
             ├─38275 local -t unix
             ├─38276 local -t unix
             ├─38277 local -t unix
             └─38278 cleanup -z -t unix -u

May 24 13:50:03 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/cleanup[38278]: E67E9827E0F: message-id=<20250524135003.E67E9827E0F@ip-10-0-3-117.ap-northeast-1.compute.internal>
May 24 13:50:03 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/qmgr[38272]: E67E9827E0F: from=<ec2-user@ip-10-0-3-117.ap-northeast-1.compute.internal>, size=570, nrcpt=1 (queue active)
May 24 13:50:03 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/local[38275]: E4D4E827E0D: to=<ec2-user@localhost>, relay=local, delay=427, delays=427/0.01/0/0, dsn=2.0.0, status=sent (delivered to mailbox)
May 24 13:50:03 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/qmgr[38272]: E4D4E827E0D: removed
May 24 13:50:03 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/local[38277]: E59A1827E0E: to=<ec2-user@localhost>, relay=local, delay=427, delays=427/0.01/0/0, dsn=2.0.0, status=sent (delivered to mailbox)
May 24 13:50:03 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/qmgr[38272]: E59A1827E0E: removed
May 24 13:50:03 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/local[38275]: E67E9827E0F: to=<ec2-user@localhost>, relay=local, delay=427, delays=427/0/0/0, dsn=2.0.0, status=sent (delivered to mailbox)
May 24 13:50:03 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/qmgr[38272]: E67E9827E0F: removed
May 24 13:50:04 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/local[38276]: 9D0BD827E0A: to=<ec2-user@localhost>, relay=local, delay=429, delays=427/0.01/0/1.2, dsn=2.0.0, status=sent (delivered to mailbox)
May 24 13:50:04 ip-10-0-3-117.ap-northeast-1.compute.internal postfix/qmgr[38272]: 9D0BD827E0A: removed
You have mail in /var/spool/mail/ec2-user
[ec2-user@ip-10-0-3-117 ~]$
[ec2-user@ip-10-0-3-117 ~]$ sudo ls -l /var/spool/postfix/maildrop/
total 0
[ec2-user@ip-10-0-3-117 ~]$

[ec2-user@ip-10-0-3-117 ~]$ mail
Heirloom Mail version 12.5 7/5/10.  Type ? for help.
"/var/spool/mail/ec2-user": 100 messages 100 new
>N  1 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N  2 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N  3 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N  4 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N  5 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N  6 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N  7 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N  8 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N  9 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 10 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 11 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 12 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 13 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 14 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 15 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 16 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 17 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 18 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 19 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 20 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 21 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 22 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 23 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 24 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 25 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 26 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 27 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 28 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 29 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 30 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 31 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 32 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 33 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 34 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 35 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 36 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 37 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 38 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 39 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 40 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 41 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 42 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 43 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 44 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 45 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 46 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 47 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 48 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 49 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 50 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
 N 51 EC2 Default User      Sat May 24 13:50  18/781   "Test Mail!!"
& 1
Message  1:
From ec2-user@ip-10-0-3-117.ap-northeast-1.compute.internal  Sat May 24 13:50:03 2025
Return-Path: <ec2-user@ip-10-0-3-117.ap-northeast-1.compute.internal>
X-Original-To: ec2-user@localhost
Delivered-To: ec2-user@localhost
Date: Sat, 24 May 2025 13:42:55 +0000
To: ec2-user@localhost
Subject: Test Mail!!
User-Agent: Heirloom mailx 12.5 7/5/10
Content-Type: text/plain; charset=us-ascii
From: EC2 Default User <ec2-user@ip-10-0-3-117.ap-northeast-1.compute.internal>
Status: R

This is a test mail from postfix

& q
Held 100 messages in /var/spool/mail/ec2-user
[ec2-user@ip-10-0-3-117 ~]$

無事に受信ボックスにメールが届きました。
CloudWatchにも反映されています。


実際の監視については参考記事より
incoming -> activeを経由し受信ボックスや別のMTAにキューを転送します。
ですが、色々な残念な結果によりキューがdeferredやbounceに溜まるそうです。
そのためメトリクスではactive、deferredとbounceを取得し、deferredとbounceに閾値を設定し超過するとアラートする運用がいいのかなと思います。

5. 終わりに

本記事を最後まで読んで頂きましてありがとうございます。
aws cliを扱った案件に初めて参画したのでとても勉強になりました。

6. 参考記事

0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
