できたもの
用意したもの
- Raspberry Pi3(microSD、電源ケーブルは別途必要です)
- Bose SoundLink Mini Bluetooth speaker II
制作手順
1. RaspberryPi3のセットアップ
OSなどのインストールは他のQiita記事を参考にしてください
OSインストールできたらSSH接続してみます
pi@raspberrypi:~ $ ssh pi@192.xxx.xxx.xxx * RaspberryPi3 IPを確認
pi@192.168.11.16's password: raspberry * 初期パスワード
The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.
Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Fri Feb 24 21:51:21 2017 from 192.168.11.7
pi@raspberrypi:~ $
- パスワードは変更しておいたほうがよさそうです
pi@raspberrypi:~ $ sudo passwd pi
Enter new UNIX password: * 新しいパスワード
Retype new UNIX password: * 新しいパスワード
passwd: password updated successfully
- スピーカの電源を入れてペアリングモードして、Bluetoothスピーカーと接続してみます
pi@raspberrypi:~ $ bluetoothctl
[NEW] Controller B8:27:XX:XX:XX:XX raspberrypi [default]
[NEW] Device 64:A9:XX:XX:XX:XX 64-A9-D7-XX-XX-XX
[NEW] Device 65:5F:XX:XX:XX:XX 65-5F-6F-XX-XX-XX
....
[NEW] Device 04:52:XX:XX:XX:XX Bose Mini II SoundLink
-- 初回はpairが必要かも
[bluetooth]# pair 04:52:XX:XX:XX:XX * 上記Bose Mini II SoundLinkのID
Attempting to pair with 04:52:XX:XX:XX:XX
-- 接続
[bluetooth]# connect 04:52:XX:XX:XX:XX
Attempting to connect to 04:52:XX:XX:XX:XX
[CHG] Device 04:52:XX:XX:XX:XX Connected: yes
Connection successful
-- (参考) 接続解除したいときは...
[bluetooth]# disconnect 04:52:XX:XX:XX:XX
Attempting to disconnect from 04:52:XX:XX:XX:XX
Successful disconnected
- (事前準備)音量調節とサンプルのサウンド再生をしてみる
pi@raspberrypi:~ $ alsamixer
pi@raspberrypi:~ $ aplay /usr/share/sounds/alsa/Front_Center.wav
再生中 WAVE '/usr/share/sounds/alsa/Front_Center.wav' : Signed 16 bit Little Endian, レート 48000 Hz, モノラル
- AquesTalk Piをインストールして音声合成してみる
pi@raspberrypi:~ $ wget http://www.a-quest.com/download/package/aquestalkpi-20130827.tgz
pi@raspberrypi:~ $ tar xzvf aquestalkpi-20130827.tgz
pi@raspberrypi:~ $ cd aquestalkpi
pi@raspberrypi:~ $ ./AquesTalkPi "今日はいい天気ですね。" | aplay
pi@raspberrypi:~ $ 再生中 WAVE 'stdin' : Signed 16 bit Little Endian, レート 8000 Hz, モノラル
外人さんが片言の日本語で話しかけてきたらOKです
定期実行したいのでcronを使えるようにしておきます
pi@raspberrypi:~ $ sudo /etc/init.d/cron start
[ ok ] Starting cron (via systemctl): cron.service.
- 自動起動の設定もしておきます
pi@raspberrypi:~ $ sudo apt-get install chkconfig
パッケージリストを読み込んでいます... 完了
依存関係ツリーを作成しています
状態情報を読み取っています... 完了
以下のパッケージが新たにインストールされます:
chkconfig
アップグレード: 0 個、新規インストール: 1 個、削除: 0 個、保留: 119 個。
9,766 B のアーカイブを取得する必要があります。
この操作後に追加で 59.4 kB のディスク容量が消費されます。
取得:1 http://mirrordirector.raspbian.org/raspbian/ jessie/main chkconfig all 11.4.54.60.1debian1 [9,766 B]
9,766 B を 0秒 で取得しました (12.1 kB/s)
以前に未選択のパッケージ chkconfig を選択しています。
(データベースを読み込んでいます ... 現在 128178 個のファイルとディレクトリがインストールされています。)
.../chkconfig_11.4.54.60.1debian1_all.deb を展開する準備をしています ...
chkconfig (11.4.54.60.1debian1) を展開しています...
man-db (2.7.0.2-5) のトリガを処理しています ...
chkconfig (11.4.54.60.1debian1) を設定しています ...
pi@raspberrypi:~ $ sudo chkconfig cron
cron on
2. Message APIをHeroku動かす
- Message APIをscaffoldします(DBはpostgresに変更)
$ rails new t-taira-messages
$ rails g scaffold message content:text invoked_at:datetime repeat:boolean
- モデルに処理を追加しました
class Message < ApplicationRecord
# nowメッセージを取得
scope :now, -> { where(invoked_at: Time.now.strftime('%Y-%m-%d %H:%M')) }
class << self
# repeatフラグを見て、次の日のメッセージを作成
def generate
Message.where(repeat: true).each do |m|
Message.create(content: m.content, invoked_at: m.invoked_at + 1.day, repeat: true)
m.destroy
end
end
end
end
- type=nowをリクエストしたら、メッセージを取得するようにしました
class MessagesController < ApplicationController
def index
@messages = Message.all
@messages = Message.now if params[:type] == 'now' # ここ追加
end
end
- repeatフラグがONのものは、毎日次の日のメッセージを作成するタスクを追加しました
# 次の日のメッセージを作成するタスク(lib/tasks/scheduler.rake)
desc "This task is called by the Heroku scheduler add-on"
task :generate_messages => :environment do
puts "Generating messages..."
Message.generate
puts "done."
end
- Message APIをHerokuで動かせるようにします
$ git init
$ git add .
$ git commit -m 'first commit'
$ heroku create t-taira-message
Creating ⬢ t-taira-message... done
https://t-taira-message.herokuapp.com/ | https://git.heroku.com/t-taira-message.git
$ heroku config:add TZ='Asia/Tokyo'
$ heroku config:add TZ='Asia/Tokyo'
Setting TZ and restarting ⬢ t-taira-message2... done, v3
TZ: Asia/Tokyo
$ git push heroku master
$ heroku run rake
db:migrate
$ heroku open
$ heroku config:set HUBOT_HEROKU_KEEPALIVE_URL=https://t-taira-bob.herokuapp.com/
$ heroku config:add HUBOT_HEROKU_WAKEUP_TIME=8:00
$ heroku config:add HUBOT_HEROKU_SLEEP_TIME=24:00

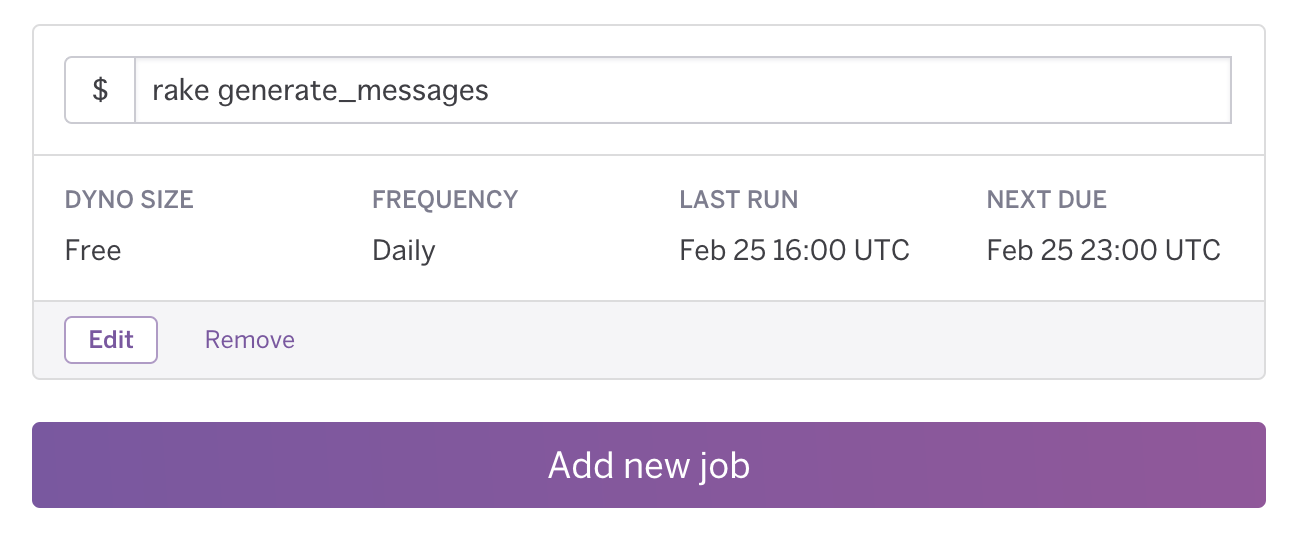

- 次の日のメッセージを作成するタスクのスケジュールする設定をします
$ heroku addons:create scheduler:standard
$ heroku addons:open scheduler:standard
3. Slackのbotを仕込む
- 必要なモジュールをnpm経由でインストールします
$ npm install -g hubot yo generator-hubot coffee-script
- hubotの作成をします
$ mkdir hubot-bob
$ cd hubot-bob/
$ yo hubot
_____________________________
/ \
//\ | Extracting input for |
////\ _____ | self-replication process |
//////\ /_____\ \ /
======= |[^_/\_]| /----------------------------
| | _|___@@__|__
+===+/ /// \_\
| |_\ /// HUBOT/\\
|___/\// / \\
\ / +---+
\____/ | |
| //| +===+
\// |xx|
? Owner Takao Taira <takao.taira@gmail.com>
? Bot name hubot-bob
? Description A simple helpful robot for your Company
? Bot adapter campfire
create bin/hubot
create bin/hubot.cmd
create Procfile
create README.md
create external-scripts.json
create hubot-scripts.json
create .gitignore
create package.json
create scripts/example.coffee
create .editorconfig

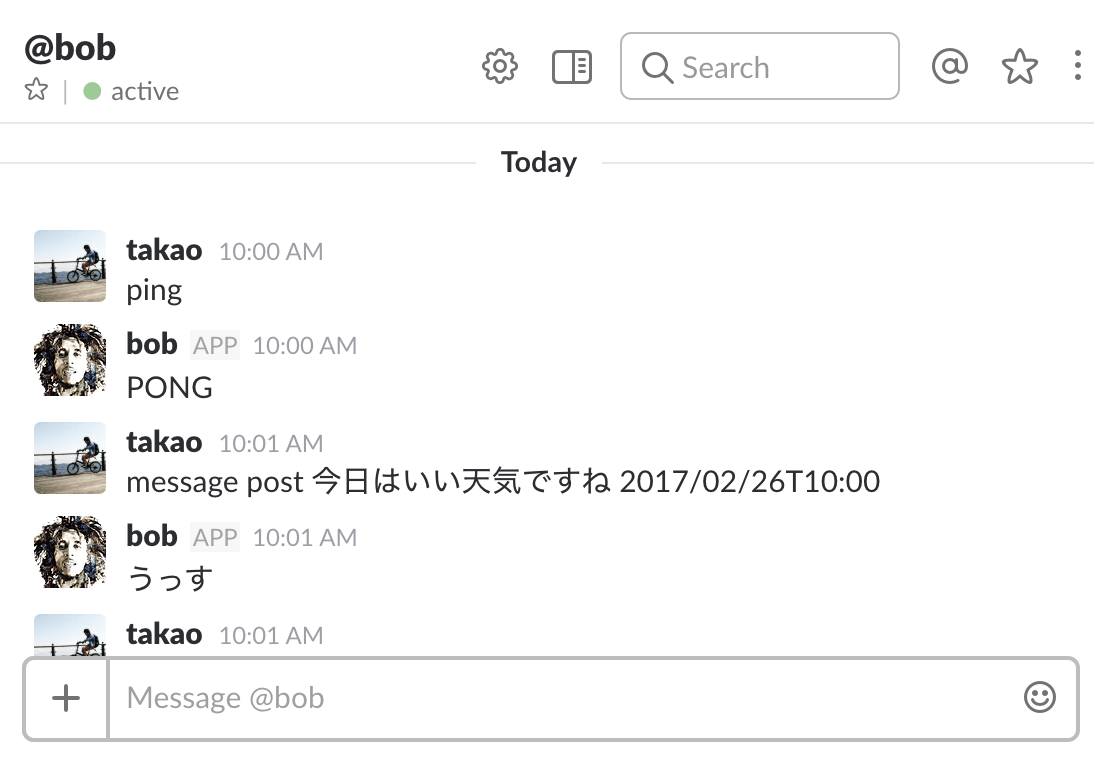

- Message APIを操作するscriptを追加します
querystring = require "querystring"
url = 'https://t-taira-message.herokuapp.com/messages.json'
module.exports = (robot) ->
robot.respond /message list/i, (msg) ->
request = msg.http(url).get()
request (err, res, body) ->
data = JSON.parse body
message = ''
for value in data
robot.logger.info value
message += value.content
robot.send message
robot.respond /message post (.*) (.*)/i, (msg) ->
content = msg.match[1]
invoked_at = msg.match[2]
data = querystring.stringify({'message[content]': content, 'message[invoked_at]': invoked_at})
msg.http(url)
.post(data) (err, res, body) ->
response = JSON.parse(body)
robot.logger.info response
msg.send 'うっす'
- Herokuで動かしたいので、sleepしないように設定追加
{
"name": "bob",
"version": "0.0.0",
"private": true,
"author": "Takao Taira <takao.taira@gmail.com>",
"description": "A simple helpful robot for your Company",
"dependencies": {
"hubot": "^2.19.0",
"hubot-diagnostics": "0.0.1",
"hubot-google-images": "^0.2.6",
"hubot-google-translate": "^0.2.0",
"hubot-help": "^0.2.0",
"hubot-heroku-keepalive": "^1.0.2", # ここ追加
"hubot-maps": "0.0.2",
"hubot-pugme": "^0.1.0",
"hubot-redis-brain": "0.0.3",
"hubot-rules": "^0.1.1",
"hubot-scripts": "^2.17.2",
"hubot-shipit": "^0.2.0",
"hubot-slack": "^4.3.2"
},
"engines": {
"node": "0.10.x"
}
}
- Massage APIを同様にHerokuにデプロイします
$ git init
$ git add .
$ git commit -m 'fitst commit'
$ heroku create t-taira-bob
$ heroku config:set HUBOT_HEROKU_KEEPALIVE_URL=https://t-taira-bob.herokuapp.com/
$ heroku config:add HUBOT_HEROKU_WAKEUP_TIME=8:00
$ heroku config:add HUBOT_HEROKU_SLEEP_TIME=24:00
$ git push heroku master
4. RaspberryPi3のcron設定
- もう一息ですw 登録されたメッセージを読み上げるスクリプトを作成します(Python初心者なので微妙なコードですみません)
pi@raspberrypi:~ $ vi now.py
#!/usr/bin/env python
# -*- coding: utf-8 -*-
import requests
import os
URL = 'https://t-taira-message.herokuapp.com/messages.json?type=now'
r = requests.get(URL).json()
content = r[0]['content'].encode('utf-8')
print(content)
os.system('~/aquestalkpi/AquesTalkPi "' + content + '" | aplay')
- crontabの設定(1分毎に起動する)
pi@raspberrypi:~ $ crontab -e
*/1 * * * * python /home/pi/now.py
