はじめに
本記事はgumi Inc. Advent Calendar 2019の15日目の記事です。
Unityのエディタ拡張のUIElementsとIMGUIのコントロールであるTreeViewでJsonビューワを作ってみました。
使い方

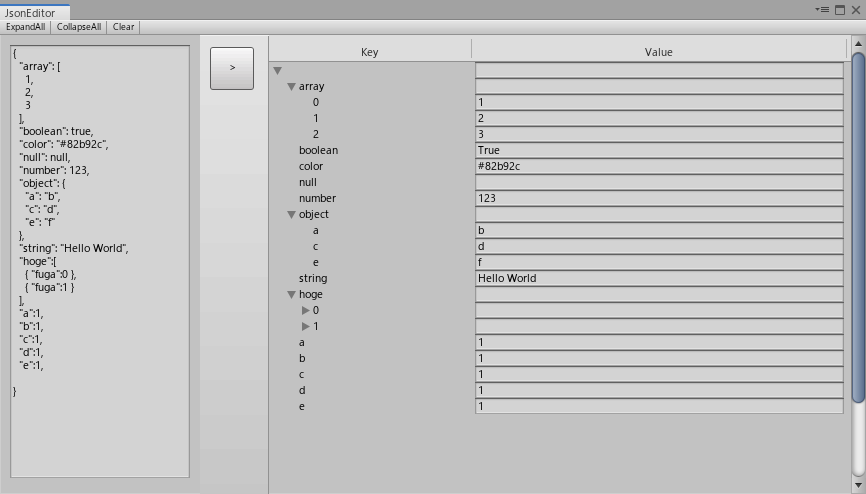

- 左側にJsonテキストをコピペし、＞ボタンを押すと右側にツリー構造で表示します。
JSON Editor Onlineを参考にしました。
環境
- Unity2019.2.5f1
- Windows10
必要アセット
今回、JsonパーサーにMiniJsonを使用しております。
こちらよりコードをダウンロードしてください。
コード
JsonEditor.cs
using System.Linq;
using MiniJSON;
using System.Collections.Generic;
using UnityEditor;
using UnityEditor.IMGUI.Controls;
using UnityEditor.UIElements;
using UnityEngine;
using UnityEngine.UIElements;
public class JsonEditor : EditorWindow
{
public class JsonNode
{
public int Id { get; set; }
public string Key { get; set; }
public string Value { get; set; }
public JsonNode Parent { get; private set; }
List<JsonNode> children = new List<JsonNode>();
public List<JsonNode> Children => children;
public IEnumerable<int> Ids
{
get
{
yield return Id;
foreach (var child in children)
{
foreach (var childId in child.Ids)
{
yield return childId;
}
}
}
}
public void AddChild(JsonNode child)
{
if (child.Parent != null)
{
child.Parent.RemoveChild(child);
}
Children.Add(child);
child.Parent = this;
}
public void RemoveChild(JsonNode child)
{
if (Children.Contains(child))
{
Children.Remove(child);
child.Parent = null;
}
}
}
public class JsonTreeView : TreeView
{
class JsonTreeViewItem : TreeViewItem
{
public JsonNode Data { get; set; }
}
JsonNode[] baseElements;
public JsonTreeView(TreeViewState treeViewState, MultiColumnHeader multiColumnHeader) : base(treeViewState, multiColumnHeader)
{
}
public void Setup(JsonNode[] baseElements)
{
this.baseElements = baseElements;
Reload();
}
protected override TreeViewItem BuildRoot()
{
return new TreeViewItem { id = 0, depth = -1, displayName = "Root" };
}
protected override IList<TreeViewItem> BuildRows(TreeViewItem root)
{
var rows = GetRows() ?? new List<TreeViewItem>();
rows.Clear();
foreach (var baseElement in baseElements)
{
var baseItem = CreateTreeViewItem(baseElement);
root.AddChild(baseItem);
rows.Add(baseItem);
if (baseElement.Children.Count >= 1)
{
if (IsExpanded(baseItem.id))
{
AddChildrenRecursive(baseElement, baseItem, rows);
}
else
{
baseItem.children = CreateChildListForCollapsedParent();
}
}
}
SetupDepthsFromParentsAndChildren(root);
return rows;
}
void AddChildrenRecursive(JsonNode element, TreeViewItem item, IList<TreeViewItem> rows)
{
foreach (var childElement in element.Children)
{
var childItem = CreateTreeViewItem(childElement);
item.AddChild(childItem);
rows.Add(childItem);
if (childElement.Children.Count >= 1)
{
if (IsExpanded(childElement.Id))
{
AddChildrenRecursive(childElement, childItem, rows);
}
else
{
childItem.children = CreateChildListForCollapsedParent();
}
}
}
}
JsonTreeViewItem CreateTreeViewItem(JsonNode model)
{
return new JsonTreeViewItem { id = model.Id, displayName = model.Key, Data = model };
}
protected override void RowGUI(RowGUIArgs args)
{
var item = (JsonTreeViewItem)args.item;
for (int i = 0; i < args.GetNumVisibleColumns(); ++i)
{
var cellRect = args.GetCellRect(i);
var columnIndex = args.GetColumn(i);
if (columnIndex == 0)
{
base.RowGUI(args);
}
else if (columnIndex == 1)
{
GUI.TextField(cellRect, item.Data.Value);
}
}
}
}
JsonTreeView treeView;
TextField inputText;
int currentId;
List<JsonNode> roots = new List<JsonNode>();
[MenuItem("Window/JsonEditor")]
static void Open()
{
GetWindow<JsonEditor>();
}
void OnEnable()
{
currentId = 0;
BuildToolbarUI();
BuildTreeView();
Refresh();
var scroller = new ScrollView();
rootVisualElement.Add(scroller);
var container = new VisualElement();
container.style.flexDirection = FlexDirection.Row;
scroller.Add(container);
inputText = new TextField();
inputText.style.width = 200;
inputText.style.paddingBottom = 10;
inputText.style.paddingTop = 10;
inputText.style.paddingLeft = 10;
inputText.style.paddingRight = 10;
inputText.style.height = Screen.height - 100;
inputText.multiline = true;
foreach (var child in inputText.Children())
{
child.style.unityTextAlign = TextAnchor.UpperLeft;
}
container.Add(inputText);
var convertButton = new Button(() => Convert());
convertButton.text = ">";
convertButton.style.width = 44;
convertButton.style.height = 44;
var space = new ToolbarSpacer();
space.style.width = 100;
space.flex = false;
space.style.backgroundColor = rootVisualElement.style.backgroundColor;
space.style.paddingBottom = 10;
space.style.paddingTop = 10;
space.style.paddingLeft = 10;
space.style.paddingRight = 10;
space.Add(convertButton);
container.Add(space);
var treeContainer = new IMGUIContainer(() =>
{
var rect = EditorGUILayout.GetControlRect(false, Screen.height);
treeView.OnGUI(rect);
});
treeContainer.style.width = Screen.width;
treeContainer.style.height = Screen.height;
container.Add(treeContainer);
}
void BuildToolbarUI()
{
var toolbar = new Toolbar();
var clearButton = new ToolbarButton(() =>
{
roots.Clear();
Refresh();
});
var expandAllButton = new ToolbarButton(() => treeView.SetExpanded(roots[0].Ids.ToArray()));
expandAllButton.text = "ExpandAll";
toolbar.Add(expandAllButton);
var collapseAllButton = new ToolbarButton(() => treeView.CollapseAll());
collapseAllButton.text = "CollapseAll";
toolbar.Add(collapseAllButton);
clearButton.text = "Clear";
toolbar.Add(clearButton);
rootVisualElement.Add(toolbar);
}
void BuildTreeView()
{
var nameColumn = new MultiColumnHeaderState.Column()
{
headerContent = new GUIContent("Key"),
headerTextAlignment = TextAlignment.Center,
canSort = false,
width = 200,
minWidth = 50,
autoResize = true,
allowToggleVisibility = false
};
var descriptionColumn = new MultiColumnHeaderState.Column()
{
headerContent = new GUIContent("Value"),
headerTextAlignment = TextAlignment.Center,
canSort = false,
width = Screen.width / 2 - 100,
minWidth = 50,
autoResize = true,
allowToggleVisibility = false
};
var headerState = new MultiColumnHeaderState(new MultiColumnHeaderState.Column[] { nameColumn, descriptionColumn });
var multiColumnHeader = new MultiColumnHeader(headerState);
var treeViewState = new TreeViewState();
this.treeView = new JsonTreeView(treeViewState, multiColumnHeader);
}
void Convert()
{
roots.Clear();
currentId = 0;
var root = AddTree(inputText.value, string.Empty);
roots.Add(root);
treeView.SetExpanded(new int[] { root.Id });
Refresh();
}
void Refresh()
{
treeView.Setup(roots.ToArray());
}
JsonNode AddTree(string json, string rootLabel)
{
var root = new JsonNode { Id = currentId++, Key = rootLabel };
var dict = Json.Deserialize(json) as Dictionary<string, object>;
AddNode(root, dict);
return root;
}
void AddNode(JsonNode element, object node)
{
if (node == null) { return; }
if (node.GetType() == typeof(Dictionary<string, object>))
{
var dict = node as Dictionary<string, object>;
foreach (var childPair in dict)
{
AddNode(element, childPair);
}
}
else if (node.GetType() == typeof(KeyValuePair<string, object>))
{
var pair = (KeyValuePair<string, object>)node;
var child = new JsonNode { Id = currentId++, Key = pair.Key };
if (pair.Value != null)
{
var valueType = pair.Value.GetType();
if (valueType != typeof(Dictionary<string, object>) &&
valueType != typeof(List<object>)
)
{
child.Value = pair.Value.ToString();
}
}
element.AddChild(child);
AddNode(child, pair.Value);
}
else if (node.GetType() == typeof(List<object>))
{
var list = node as List<object>;
var index = 0;
foreach (var item in list)
{
if (item != null)
{
var val = item.GetType() == typeof(Dictionary<string, object>) ? string.Empty : item.ToString();
var child = new JsonNode { Id = currentId++, Key = (index++).ToString(), Value = val };
element.AddChild(child);
AddNode(child, item);
}
else
{
var child = new JsonNode { Id = currentId++, Key = (index++).ToString(), Value = "null" };
element.AddChild(child);
}
}
}
}
}
