ブラウザのテキスト読み上げに合わせてバーが伸び縮みするアニメーション

Posted at

ブラウザのテキスト読み上げに合わせてバーが伸び縮みするアニメーション

TEXTAREA に入力したテキストを読み上げます。
ページ下部のソースをローカルに保存してご利用ください。

Windows 10 上の Google Chrome、Microsoft Edge、Firefox で動作を確認しています。
Microsoft Edge は、音声で日本語を選択しないと読み上げてくれませんでした。

パソコンのスピーカーから出た音声をマイクで拾って可視化しているので、ヘッドホンなどで音声出力がふさがっていると、バーの表示は何も起きません。
ブラウザが読み上げた台詞だけでなく、ユーザが読み上げた台詞にも反応しますが、気にしてはいけません。

「それは失敗じゃない。”大失敗”だ。」

Canvasで赤いLEDが残光を曳くアニメーション が必要な方は過去の投稿をどうぞ。

使い方

TEXTAREA にお好みの名台詞／迷台詞を入力して「話す」ボタンを押すと、マイクの使用許可を求めるダイアログが出ます。
マイクの使用を許可すると、数秒後に読み上げが始まります。

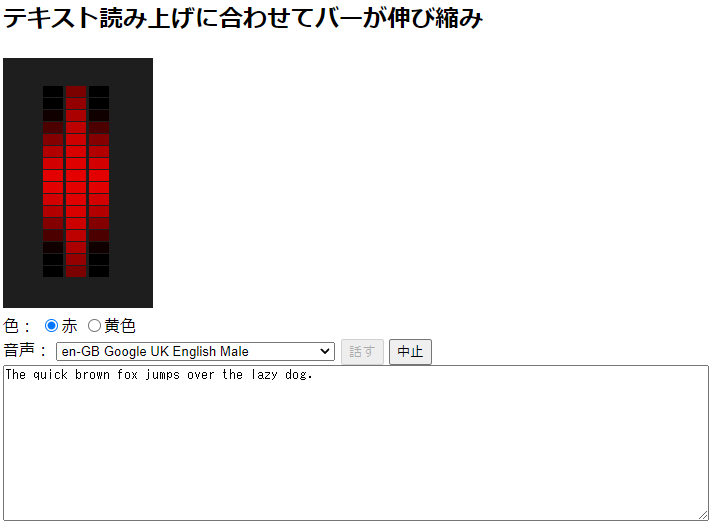

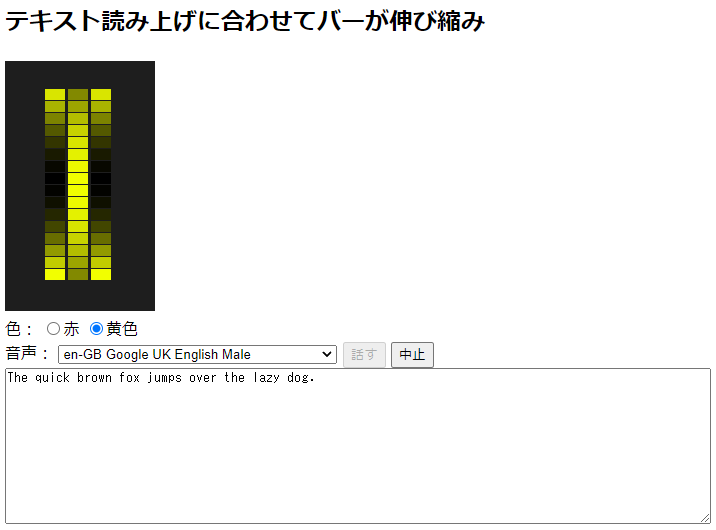

実行するとこんな感じです。


ソース

speak.html
<!DOCTYPE html>
<html lang='ja'>
<head>
  <meta http-equiv='Content-Type' content='text/html; charset=utf-8' />
  <meta http-equiv="Pragma" content="no-cache">
  <meta http-equiv="Cache-Control" content="no-cache">
  <title>What would you like to hear?</title>
<script>
let $ = e => document.getElementById(e);

const LEDColor = {
    red: 0,
    yellow: 1
};
Object.freeze(LEDColor);

class Lamp {
    constructor() {
        this.width = 20;
        this.height = 11;
        this.x = 0;
        this.y = 0;
        this.brightness = 100;      //0 <= brightness <= 100
        this.colortype = LEDColor.red;
    }
    color() {
        const alpha = ((this.brightness == 0) ? 0 : 1);
        return (this.colortype == LEDColor.red) ?
            {r:Math.round(255 * this.brightness / 100), g:0, b:0, a:alpha} :
            {r:Math.round(255 * this.brightness / 95), g:Math.round(255 * this.brightness / 90), b:0, a:alpha};
    }
    drawon(context) {
        const mycolor = this.color();
        context.fillStyle = "rgba(" + mycolor.r + "," + mycolor.g + "," + mycolor.b + "," + mycolor.a + ")";
        context.fillRect(this.x, this.y, this.width, this.height);
    }
}

const LEDArray = {
    vLamp: [[], [], []],
    col: 3,
    row: 16,
    brightness_min: 10,
    colortype: LEDColor.red,

    init() {
        let r = this.row;
        this.vLamp = new Array(3);
        this.vLamp[0] = new Array(r).fill(0);
        this.vLamp[1] = new Array(r).fill(0);
        this.vLamp[2] = new Array(r).fill(0);

        const gap_x = 3;
        const gap_y = 1;
        let x0 = 40, y0 = 28, x = x0, y = y0;
        for (let i = 0; i < this.col; i++) {
            y = y0;
            for (let j = 0; j < r; j++) {
                this.vLamp[i][j] = new Lamp();
                Object.assign(this.vLamp[i][j], {x:x, y:y, brightness:10});
                y += (this.vLamp[i][j].height + gap_y);
            }
            x += (this.vLamp[i][0].width + gap_x);
        }
    },
    setBrightness_off() {
        for (let i = 0; i < this.col; i++) {
            for (let j = 0; j < this.row; j++) {
                Object.assign(this.vLamp[i][j],
                    {brightness:this.brightness_min, colortype:this.colortype});
            }
        }
    },
    setBrightness(brightness) {
        //center
        for (let j = 0; j < this.row; j++) {
            Object.assign(this.vLamp[1][j],
                {brightness:brightness * Math.cos((j - 7.5) / 23.5 * Math.PI), colortype:this.colortype});
        }

        //side
        if (this.colortype == LEDColor.red) {
            for (let i = 0; i < this.col; i += 2) {
                for (let j = 0; j < this.row; j++) {
                    Object.assign(this.vLamp[i][j],
                        {brightness:brightness * Math.cos((j - 7.5) / 13.5 * Math.PI), colortype:this.colortype});
                }
            }
        } else {
            for (let i = 0; i < this.col; i += 2) {
                for (let j = 0; j < this.row; j++) {
                    Object.assign(this.vLamp[i][j],
                        {brightness:brightness * (1 - Math.sin((j + 0.5) / 15.5 * Math.PI)), colortype:this.colortype});
                }
            }
        }
    }
}

const Animation = {
    context: 0,
    init() {
        LEDArray.init();

        const canvas = $("canvas");
        if (!canvas.getContext) { return; }
        this.context = canvas.getContext("2d");
        this.redraw_off();
    },
    redraw_off() {
        LEDArray.setBrightness_off();
        for (let i = 0; i < LEDArray.col; i++) {
            for (let j = 0; j < LEDArray.row; j++) {
                LEDArray.vLamp[i][j].drawon(this.context);
            }
        }
    },
    redraw(brightness) {
        LEDArray.setBrightness(brightness);
        for (let i = 0; i < LEDArray.col; i++) {
            for (let j = 0; j < LEDArray.row; j++) {
                LEDArray.vLamp[i][j].drawon(this.context);
            }
        }
    }
}

const allVoicesObtained = new Promise(function(resolve, reject) {
    let voices = window.speechSynthesis.getVoices();
    if (voices.length !== 0) {
        resolve(voices);
    } else {
        window.speechSynthesis.addEventListener("voiceschanged", function() {
            voices = window.speechSynthesis.getVoices();
            voices.sort(function(a, b) {
                return (a.lang > b.lang) ? 1 : -1;
            });
            resolve(voices);
        });
    }
});

function InitVoice() {
    let ssu = new SpeechSynthesisUtterance();
    ssu.text = " ";
    window.speechSynthesis.speak(ssu);

    allVoicesObtained.then(voices => {
        const select = $("selVoice");

        let nSelected = -1;
        for (let i = 0; i < voices.length; i++) {
            const option = document.createElement("option");
            option.text = voices[i].lang + " " + voices[i].name;
            option.value = i;
            select.appendChild(option);

            if ((nSelected == -1) && (voices[i].lang.substr(0, 2) == "en")) {
                nSelected = i;
            }
        }

        if (nSelected == -1) { nSelected = 0; }
        select.options[nSelected].selected = true;
    });
}

function doSpeak() {
    const select = $("selVoice");
    const option = select.options[select.selectedIndex];

    let ssu = new SpeechSynthesisUtterance();
    ssu.lang = option.text.substr(0, 5);
    ssu.volume = 1.0;
    ssu.rate = 1.0;
    ssu.pitch = 1.0;

    ssu.text = " ";
    window.speechSynthesis.speak(ssu);

    allVoicesObtained.then(voices => {
        for (let i = 0; i < voices.length; i++) {
            if (voices[i].name == option.text.substring(6)) {
                ssu.voice = voices[i];
                break;
            }
        }
    });

    ssu.text = $("script").value;
    ssu.onend = function(ev) {
        //$("btnStop").onclick();
    }
    window.speechSynthesis.speak(ssu);
}

function doShutUp() {
    window.speechSynthesis.cancel();
}

function split_text(text) {
    const eol = text.match(/\r\n|\n|\r/);
    let vLines = text.split(eol).map(s => s.trim());
    return vLines.filter(s => s != "");
}

const MediaStream = {
    stream: {},

    start() {
        //window.speechSynthesis.onvoiceschanged = function() {
        //  window.speechSynthesis.getVoices();
        //};

        let objAudioContext = new (window.AudioContext || window.webkitAudioContext)();

        navigator.mediaDevices.getUserMedia({ audio: true, video: false }).then((stream) => {
            doSpeak();

            this.stream = stream;

            let src = objAudioContext.createMediaStreamSource(this.stream);

            let analyser = objAudioContext.createAnalyser();
            analyser.fftSize = 2048;

            let processor = objAudioContext.createScriptProcessor(0, 1, 1);
            processor.onaudioprocess = (ev) => {
                let dataArray = new Uint8Array(analyser.fftSize);
                analyser.getByteTimeDomainData(dataArray);

                let ymax = 0;
                for (let i = 0; i < dataArray.length; i++) {
                    let y = dataArray[i] / 128.0 * 100 - 100;
                    ymax = Math.max(ymax, y);
                }
                Animation.redraw(ymax);
            }
            src.connect(processor);
            processor.connect(objAudioContext.destination);

            src.connect(analyser);
        }).catch((err) => {
            console.log(err);
        })
    },

    stop() {
        doShutUp();

        this.stream.getTracks().forEach((track) => {
            track.stop();
        })
    }
}

window.onload = function() {
    if (!navigator.getUserMedia) {
        navigator.getUserMedia = navigator.webkitGetUserMedia || navigator.mozGetUserMedia;
    }

    $("btnStart").onclick = () => {
        $("btnStart").disabled = true;
        $("btnStop").disabled = false;
        MediaStream.start();
    }
    $("btnStop").onclick = () => {
        if (!$("btnStart").disabled) { return; }
        $("btnStart").disabled = false;
        $("btnStop").disabled = true;
        MediaStream.stop();
    }

    document.getElementsByName("rdoColor").forEach(
        e => e.addEventListener("change",
            ev => {
                LEDArray.colortype = (ev.target.value == 1) ? LEDColor.yellow : LEDColor.red;
                Animation.redraw_off();
            }
        )
    );

    InitVoice();

    Animation.init();
}
</script>
</head>
<body>

<h2>テキスト読み上げに合わせてバーが伸び縮み</h2>

<canvas id="canvas" width="150" height="250" style="background-color:#1e1e1e;"></canvas>
<br />

<div>
色：
<input type="radio" name="rdoColor" value="0" checked />赤
<input type="radio" name="rdoColor" value="1" />黄
<br />
音声：
<select id="selVoice" style="width:350;">
</select>
<button id="btnStart">話す</button>
<button id="btnStop" disabled>中止</button>
</div>

<textarea id="script" rows="20" col="100" style="width:700px;height:150px;">
The quick brown fox jumps over the lazy dog.
</textarea>

</body>
</html>
