network namespaceでL2TP

Posted at

L2TP

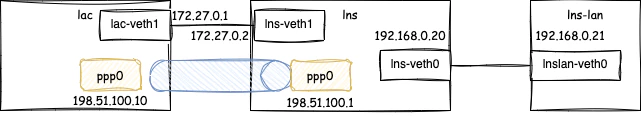

試したい環境は以下の通り。


Ubutun22.04ベースの環境でapt-getでxl2tpdをインストールし、network namespaceで環境を構築する。

sudo ip netns add lac
sudo ip netns add lns
sudo ip netns add lns-lan

sudo ip link add lnslan-veth0 type veth peer name lns-veth0
sudo ip link add lac-veth1 type veth peer name lns-veth1
sudo ip link set lnslan-veth0 netns lns-lan
sudo ip link set lac-veth1 netns lac
sudo ip link set lns-veth0  netns lns
sudo ip link set lns-veth1 netns lns

sudo ip netns exec lac ip link set lac-veth1 up
sudo ip netns exec lns ip link set lns-veth1 up
sudo ip netns exec lac ip addr add 172.27.0.1/16 dev lac-veth1
sudo ip netns exec lns ip addr add 172.27.0.2/16 dev lnc-veth1

sudo ip netns exec lns ip link set lns-veth0 up
sudo ip netns exec lns-lan ip link set lnslan-veth0 up

sudo ip netns exec lac ip addr add 192.168.0.10/24 dev lac-veth0
sudo ip netns exec lns ip addr add 192.168.0.20/24 dev lns-veth0
sudo ip netns exec lns-lan ip addr add 192.168.0.21/24 dev lnslan-veth0

xl2tpおよびpppの設定は参考欄を参照。
L2TPトンネルの起動と停止は以下の通り。

ubuntu@l2tp:~$ sudo xl2tpd-control -c /var/run/xl2tpd/l2tp-control.lac connect-lac mylac

ubuntu@l2tp:~$ sudo xl2tpd-control -c /var/run/xl2tpd/l2tp-control.lac disconnect-lac mylac

lnsの先の端末にping導通する事を確認。

ubuntu@l2tp:~$ sudo ip netns exec lac ping 192.168.0.21 -I 198.51.100.10
PING 192.168.0.21 (192.168.0.21) from 198.51.100.10 : 56(84) bytes of data.
64 bytes from 192.168.0.21: icmp_seq=1 ttl=63 time=1.17 ms
64 bytes from 192.168.0.21: icmp_seq=2 ttl=63 time=1.44 ms
64 bytes from 192.168.0.21: icmp_seq=3 ttl=63 time=0.531 ms
64 bytes from 192.168.0.21: icmp_seq=4 ttl=63 time=0.808 ms
64 bytes from 192.168.0.21: icmp_seq=5 ttl=63 time=1.92 ms
^C
--- 192.168.0.21 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4191ms

以下las-veth1でパケットキャプチャした内容の抜粋。

L2TPのネゴシエーション。

      1 0.000000       172.27.0.1            172.27.0.2            L2TP     143    1701   Control Message - SCCRQ (tunnel id=0, session id=0)
      2 0.001790       172.27.0.2            172.27.0.1            L2TP     143    1701   Control Message - SCCRP (tunnel id=61084, session id=0)
      3 0.013411       172.27.0.1            172.27.0.2            L2TP     62     1701   Control Message - SCCCN (tunnel id=63940, session id=0)
      4 0.014555       172.27.0.2            172.27.0.1            L2TP     54     1701   Control Message - ZLB      (tunnel id=61084, session id=0)
      5 0.016118       172.27.0.1            172.27.0.2            L2TP     90     1701   Control Message - ICRQ (tunnel id=63940, session id=0)
      6 0.017800       172.27.0.2            172.27.0.1            L2TP     70     1701   Control Message - ICRP (tunnel id=61084, session id=18462)
      7 0.018291       172.27.0.2            172.27.0.1            L2TP     54     1701   Control Message - ZLB      (tunnel id=61084, session id=0)
      8 0.018699       172.27.0.1            172.27.0.2            L2TP     92     1701   Control Message - ICCN (tunnel id=63940, session id=32050)
      9 0.025021       172.27.0.2            172.27.0.1            L2TP     54     1701   Control Message - ZLB      (tunnel id=61084, session id=18462)

L2TP上でのPPP接続。

     10 0.042653       172.27.0.1            172.27.0.2            PPP LCP  72     1701   Configuration Request
     11 0.043139       172.27.0.2            172.27.0.1            PPP LCP  77     1701   Configuration Request
     12 0.046111       172.27.0.2            172.27.0.1            PPP LCP  72     1701   Configuration Ack
     13 0.049744       172.27.0.1            172.27.0.2            PPP LCP  77     1701   Configuration Ack
     14 0.049836       172.27.0.1            172.27.0.2            PPP LCP  58     1701   Echo Request
     15 0.053677       172.27.0.2            172.27.0.1            PPP LCP  58     1701   Echo Request
     16 0.054119       172.27.0.2            172.27.0.1            PPP CHAP 78     1701   Challenge (NAME='example', VALUE=0xdb8a9b73f0c6e81c3f5fafa264dd5c3d)
     17 0.054130       172.27.0.2            172.27.0.1            PPP LCP  58     1701   Echo Reply
     18 0.054558       172.27.0.1            172.27.0.2            PPP LCP  58     1701   Echo Reply
     19 0.056500       172.27.0.1            172.27.0.2            PPP CHAP 112    1701   Response (NAME='testuser', VALUE=0x4c08ca400ec78e296c6824db04468de70000000000000000...)
     20 0.058826       172.27.0.2            172.27.0.1            PPP CHAP 113    1701   Success (MESSAGE='S=7150D65D39F05454A408D28C87D0193A6DB317E3 M=Access granted')

L2TP/PPP上でのicmp。

     41 18.311794      198.51.100.10         192.168.0.21          ICMP     133    1701   Echo (ping) request  id=0x0c4a, seq=1/256, ttl=64 (reply in 42)
     42 18.312590      192.168.0.21          198.51.100.10         ICMP     133    1701   Echo (ping) reply    id=0x0c4a, seq=1/256, ttl=63 (request in 41)

以下のようにL2TPでカプセル化(Ethernet:ip:udp:l2tp:ppp:ip:icmp)されていることがわかる。

Frame 41: 133 bytes on wire (1064 bits), 133 bytes captured (1064 bits)
    Encapsulation type: Ethernet (1)
    Arrival Time: Dec 30, 2024 16:44:10.752168000 JST
    [Time shift for this packet: 0.000000000 seconds]
    Epoch Time: 1735544650.752168000 seconds
    [Time delta from previous captured frame: 4.937816000 seconds]
    [Time delta from previous displayed frame: 4.937816000 seconds]
    [Time since reference or first frame: 18.311794000 seconds]
    Frame Number: 41
    Frame Length: 133 bytes (1064 bits)
    Capture Length: 133 bytes (1064 bits)
    [Frame is marked: False]
    [Frame is ignored: False]
    [Protocols in frame: eth:ethertype:ip:udp:l2tp:ppp:ip:icmp:data]
    [Coloring Rule Name: ICMP]
    [Coloring Rule String: icmp || icmpv6]
Ethernet II, Src: 96:cd:0d:8e:87:9f (96:cd:0d:8e:87:9f), Dst: 1e:9a:c4:a9:52:2c (1e:9a:c4:a9:52:2c)
    Destination: 1e:9a:c4:a9:52:2c (1e:9a:c4:a9:52:2c)
        Address: 1e:9a:c4:a9:52:2c (1e:9a:c4:a9:52:2c)
        .... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
        .... ...0 .... .... .... .... = IG bit: Individual address (unicast)
    Source: 96:cd:0d:8e:87:9f (96:cd:0d:8e:87:9f)
        Address: 96:cd:0d:8e:87:9f (96:cd:0d:8e:87:9f)
        .... ..1. .... .... .... .... = LG bit: Locally administered address (this is NOT the factory default)
        .... ...0 .... .... .... .... = IG bit: Individual address (unicast)
    Type: IPv4 (0x0800)
Internet Protocol Version 4, Src: 172.27.0.1, Dst: 172.27.0.2
    0100 .... = Version: 4
    .... 0101 = Header Length: 20 bytes (5)
    Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT)
        0000 00.. = Differentiated Services Codepoint: Default (0)
        .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0)
    Total Length: 119
    Identification: 0xdcba (56506)
    Flags: 0x02 (Don't Fragment)
        0... .... = Reserved bit: Not set
        .1.. .... = Don't fragment: Set
        ..0. .... = More fragments: Not set
    Fragment offset: 0
    Time to live: 64
    Protocol: UDP (17)
    Header checksum: 0x0582 [validation disabled]
    [Header checksum status: Unverified]
    Source: 172.27.0.1
    Destination: 172.27.0.2
    [Source GeoIP: Unknown]
    [Destination GeoIP: Unknown]
User Datagram Protocol, Src Port: 1701, Dst Port: 1701
    Source Port: 1701
    Destination Port: 1701
    Length: 99
    Checksum: 0x0000 [unverified]
    [Checksum Status: Unverified]
    [Stream index: 0]
Layer 2 Tunneling Protocol
    Packet Type: Data    Message Tunnel Id=63940 Session Id=32050
        0... .... .... .... = Type: Data Message (0)
        .0.. .... .... .... = Length Bit: Length field is not present
        .... 0... .... .... = Sequence Bit: Ns and Nr fields are not present
        .... ..0. .... .... = Offset bit: Offset size field is not present
        .... ...0 .... .... = Priority: No priority
        .... .... .... 0010 = Version: 2
    Tunnel ID: 63940
    Session ID: 32050
Point-to-Point Protocol
    Protocol: Internet Protocol version 4 (0x0021)
Internet Protocol Version 4, Src: 198.51.100.10, Dst: 192.168.0.21
    0100 .... = Version: 4
    .... 0101 = Header Length: 20 bytes (5)
    Differentiated Services Field: 0x00 (DSCP: CS0, ECN: Not-ECT)
        0000 00.. = Differentiated Services Codepoint: Default (0)
        .... ..00 = Explicit Congestion Notification: Not ECN-Capable Transport (0)
    Total Length: 84
    Identification: 0x3310 (13072)
    Flags: 0x02 (Don't Fragment)
        0... .... = Reserved bit: Not set
        .1.. .... = Don't fragment: Set
        ..0. .... = More fragments: Not set
    Fragment offset: 0
    Time to live: 64
    Protocol: ICMP (1)
    Header checksum: 0x1c9e [validation disabled]
    [Header checksum status: Unverified]
    Source: 198.51.100.10
    Destination: 192.168.0.21
    [Source GeoIP: Unknown]
    [Destination GeoIP: Unknown]
Internet Control Message Protocol
    Type: 8 (Echo (ping) request)
    Code: 0
    Checksum: 0xe5b1 [correct]
    [Checksum Status: Good]
    Identifier (BE): 3146 (0x0c4a)
    Identifier (LE): 18956 (0x4a0c)
    Sequence number (BE): 1 (0x0001)
    Sequence number (LE): 256 (0x0100)
    [Response frame: 42]
    Timestamp from icmp data: Dec 30, 2024 16:44:10.000000000 JST
    [Timestamp from icmp data (relative): 0.752168000 seconds]
    Data (48 bytes)
        Data: 7f790b0000000000101112131415161718191a1b1c1d1e1f...
        [Length: 48]

参考
