Cloud RunとCloud Load Balancingでカスタムドメインを設定する with Cloud Armor

Posted at

はじめに

Cloud Runにアプリをデプロイして、カスタムドメインを設定する必要があり、
やり方を調べてみたんですが、全然なかったので、備忘録がてらここに残します。

※この記事では画像ベースで手順を紹介しています
※Zennでは、Terraformを使って同じ内容のデプロイに挑戦しようと思います(準備中)

Cloud Runをデプロイ

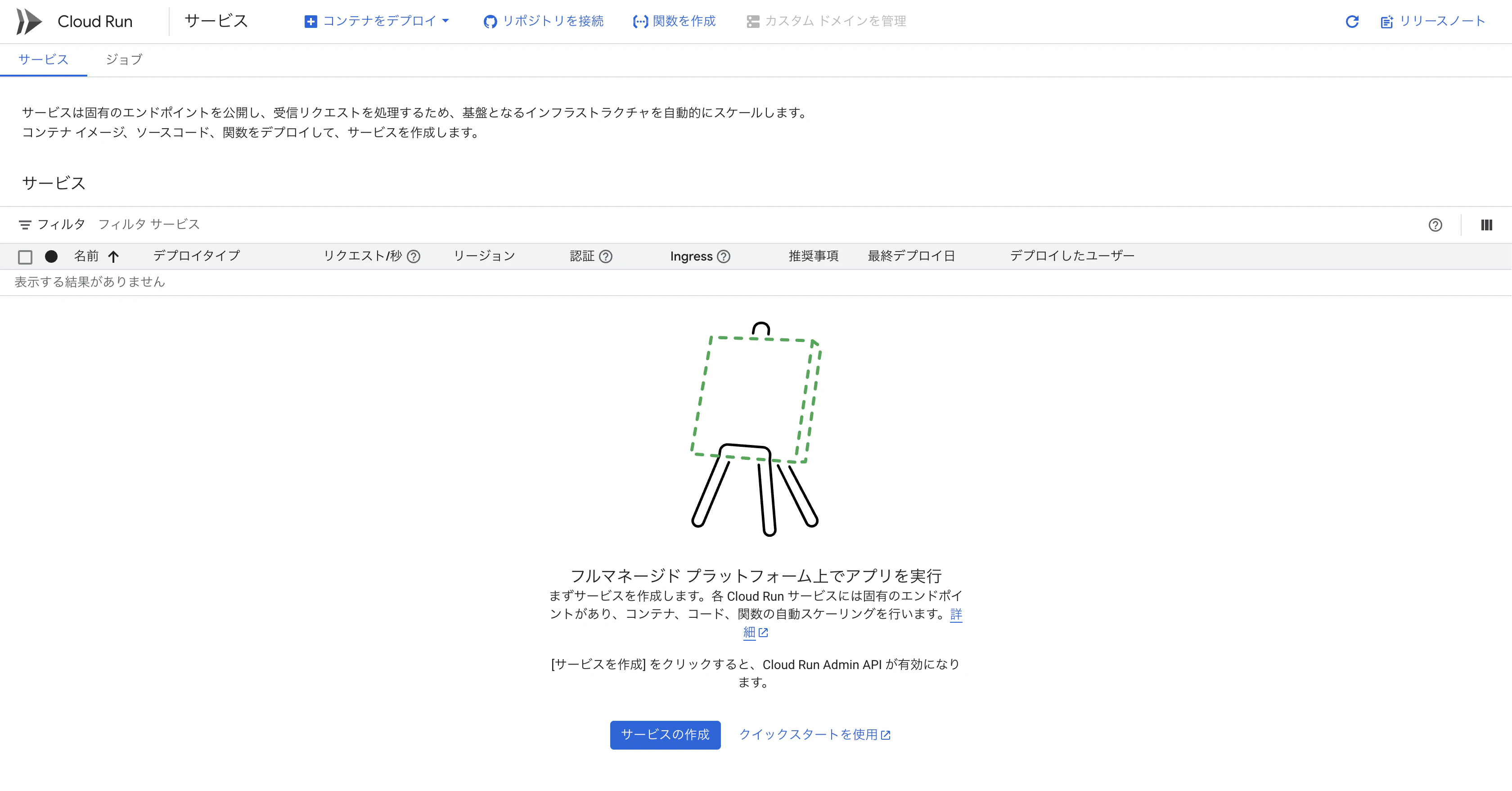

1. Cloud Runのページからサービスを作成します

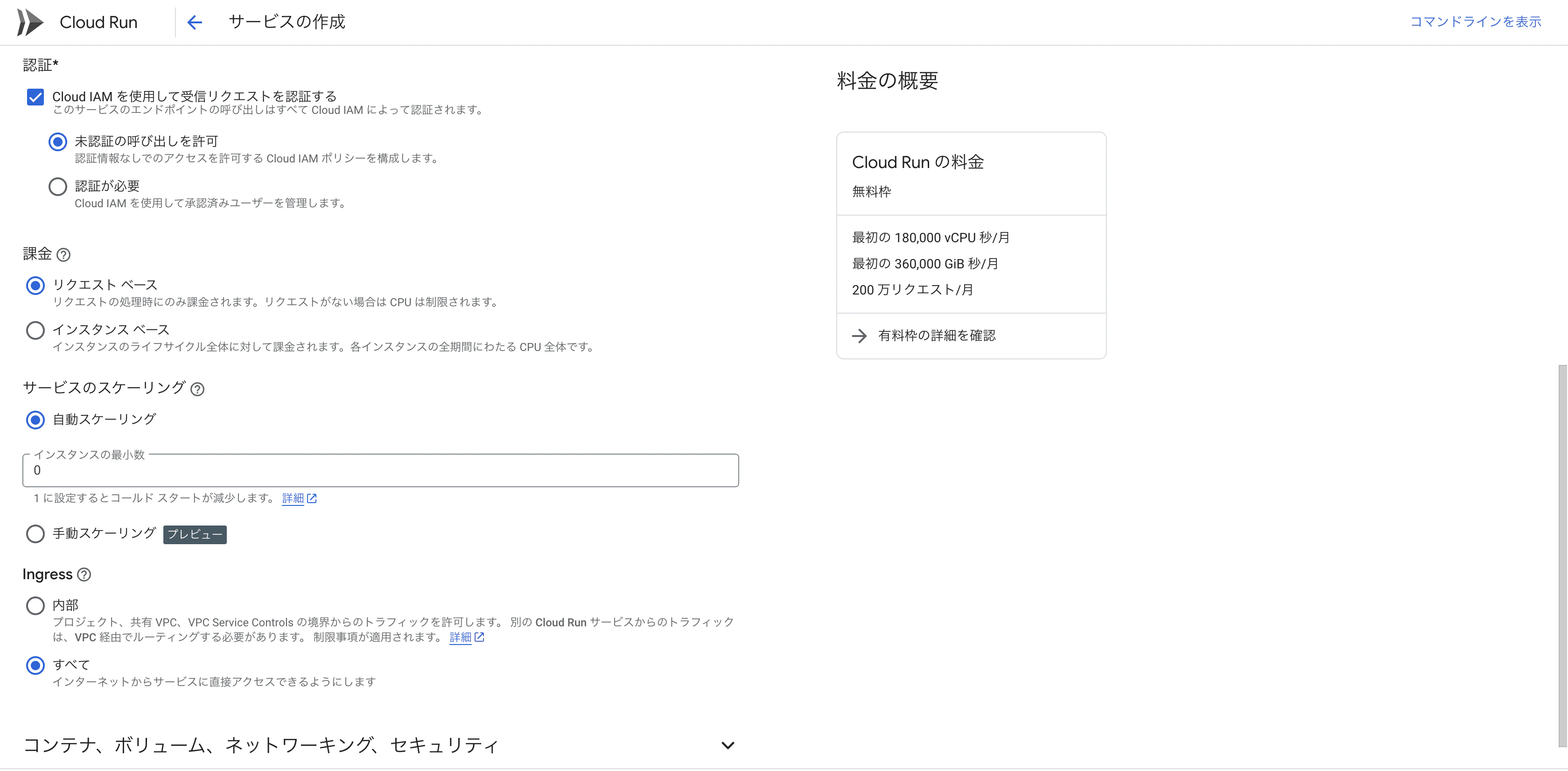

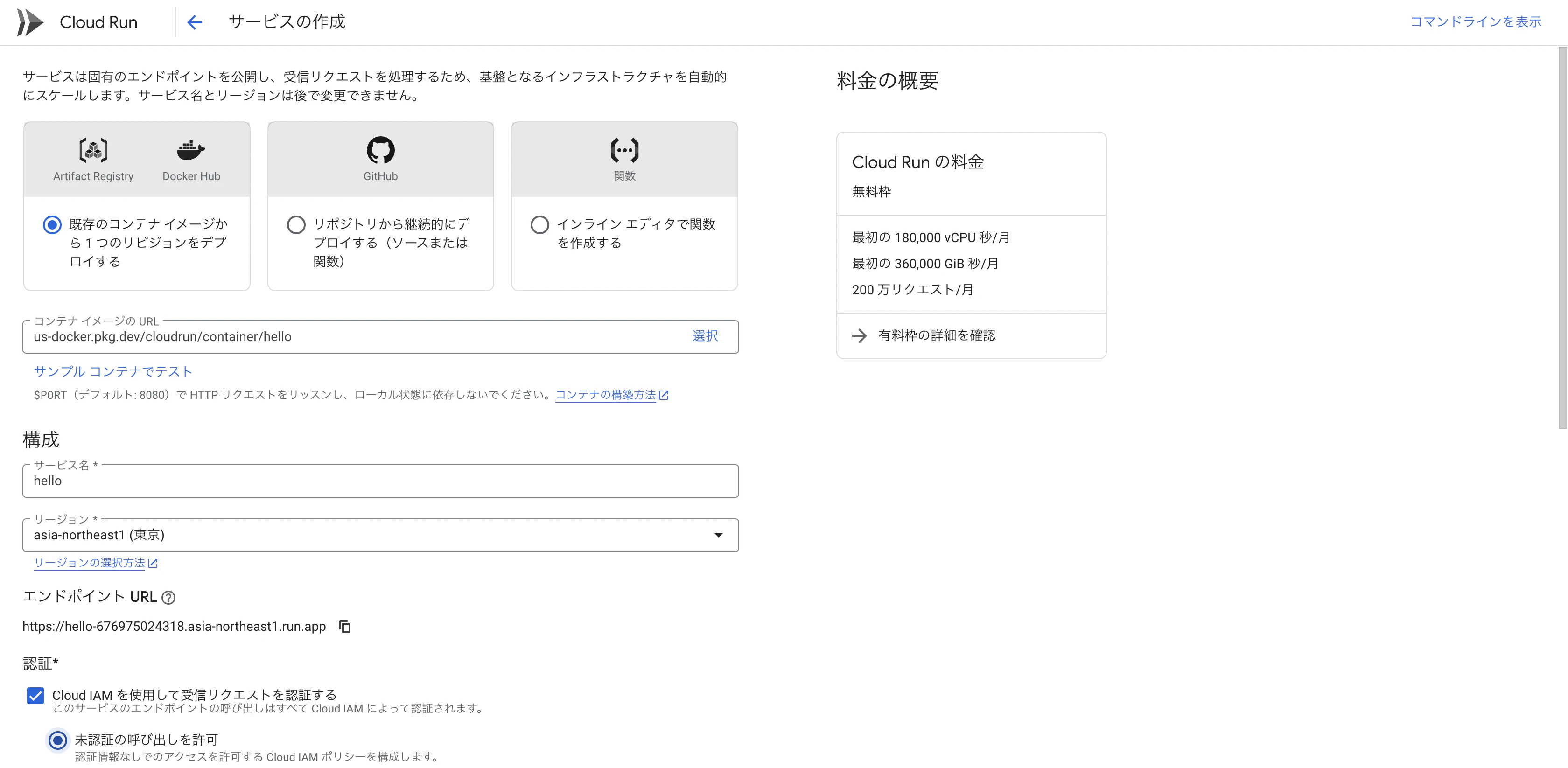

2. 画像の項目を選択して、「作成」ボタンを押す

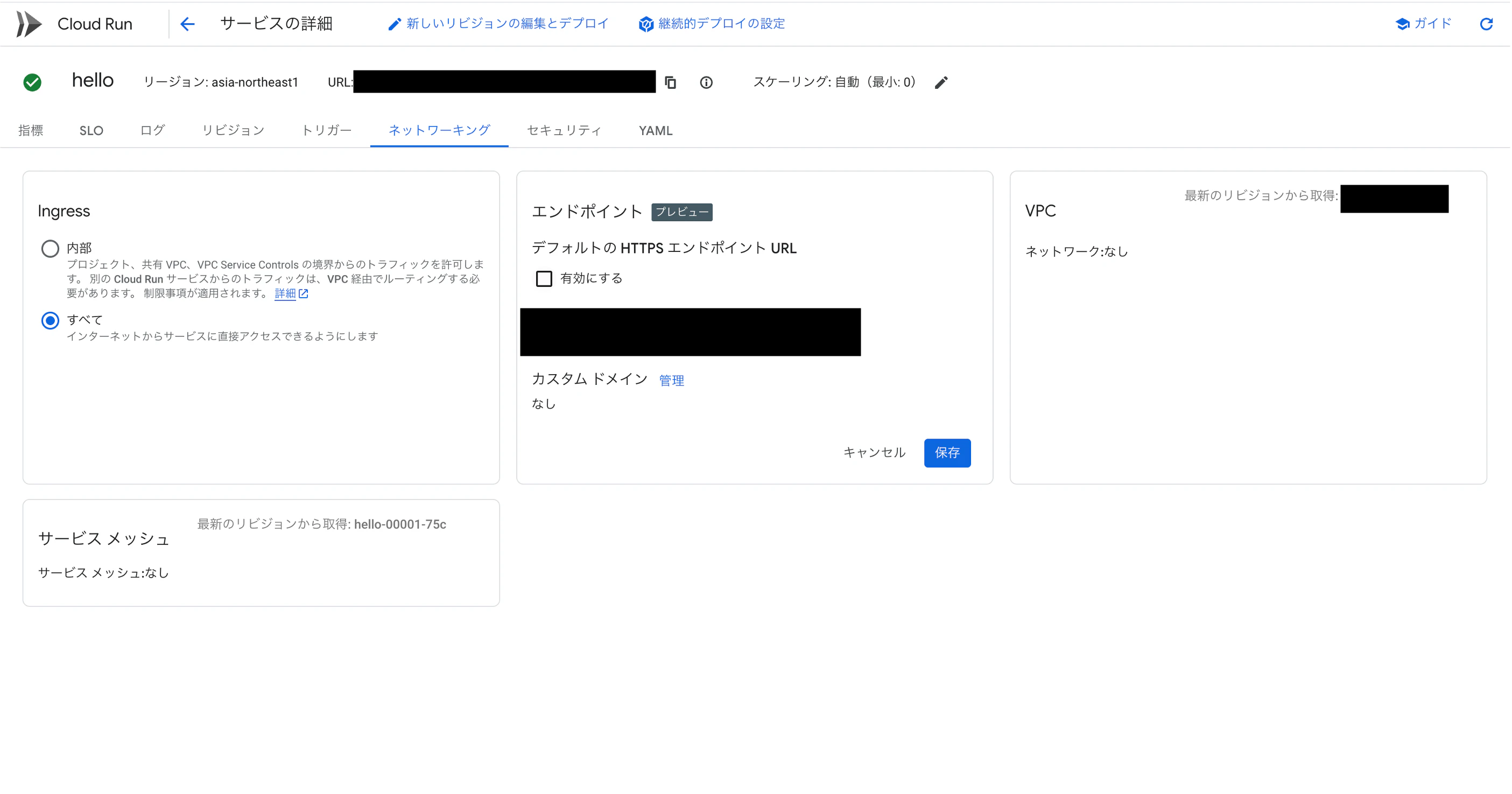

3. 作成したCloud Runのデフォルトのエンドポイントを有効化のチェックを外す


Cloud Domainsでドメインを取得

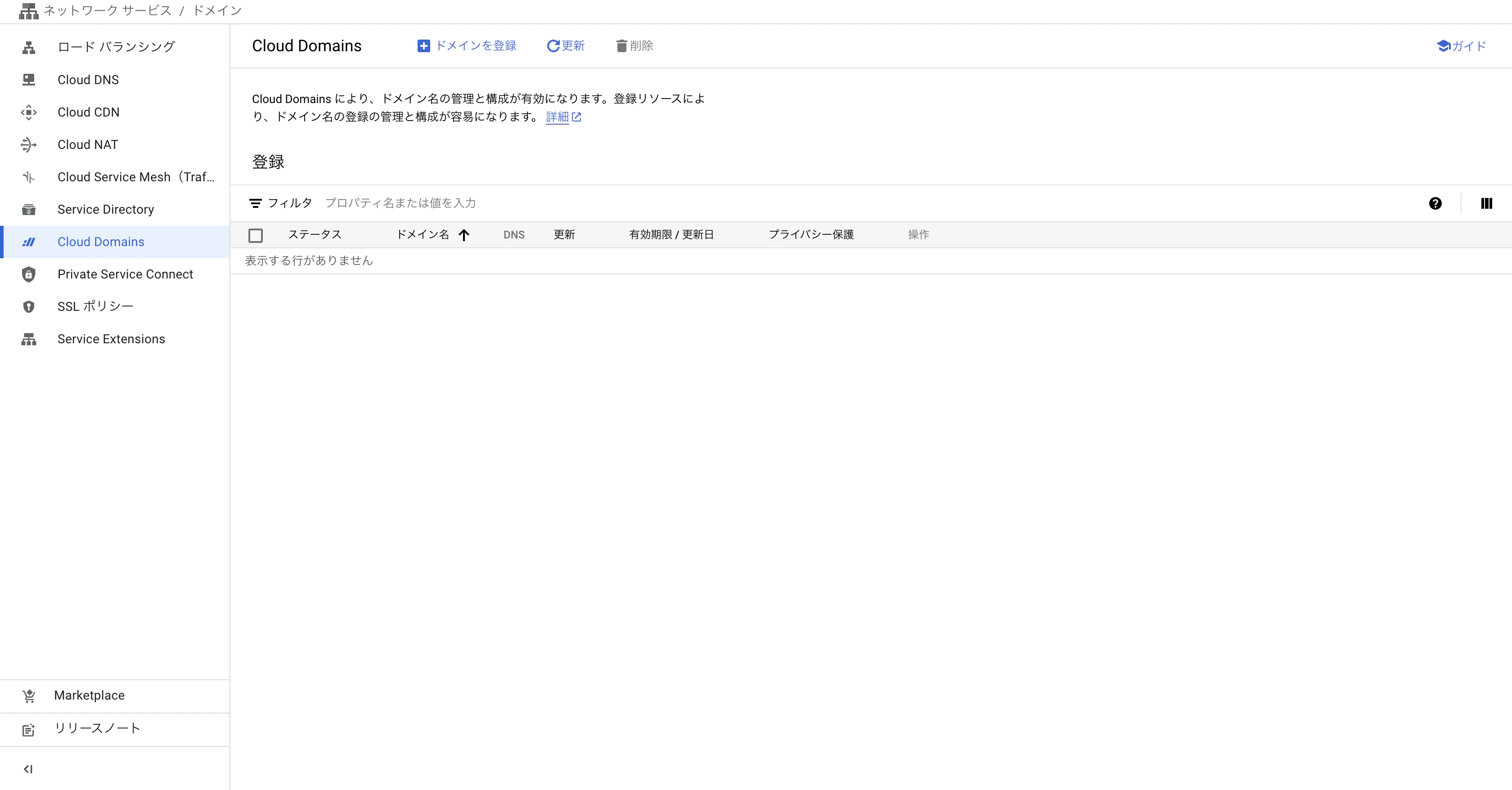

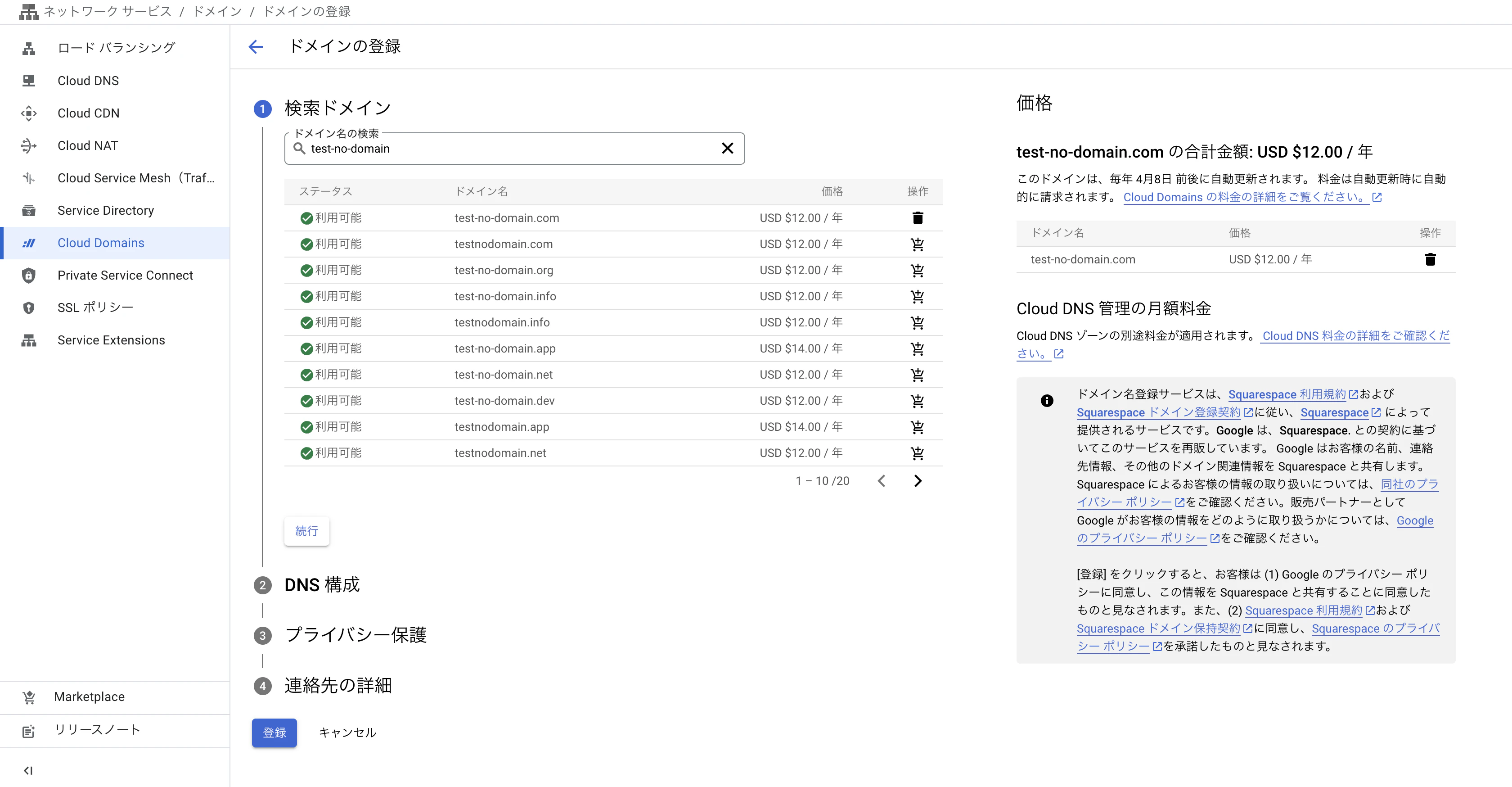

Cloud Domainsのページからドメインを取得します

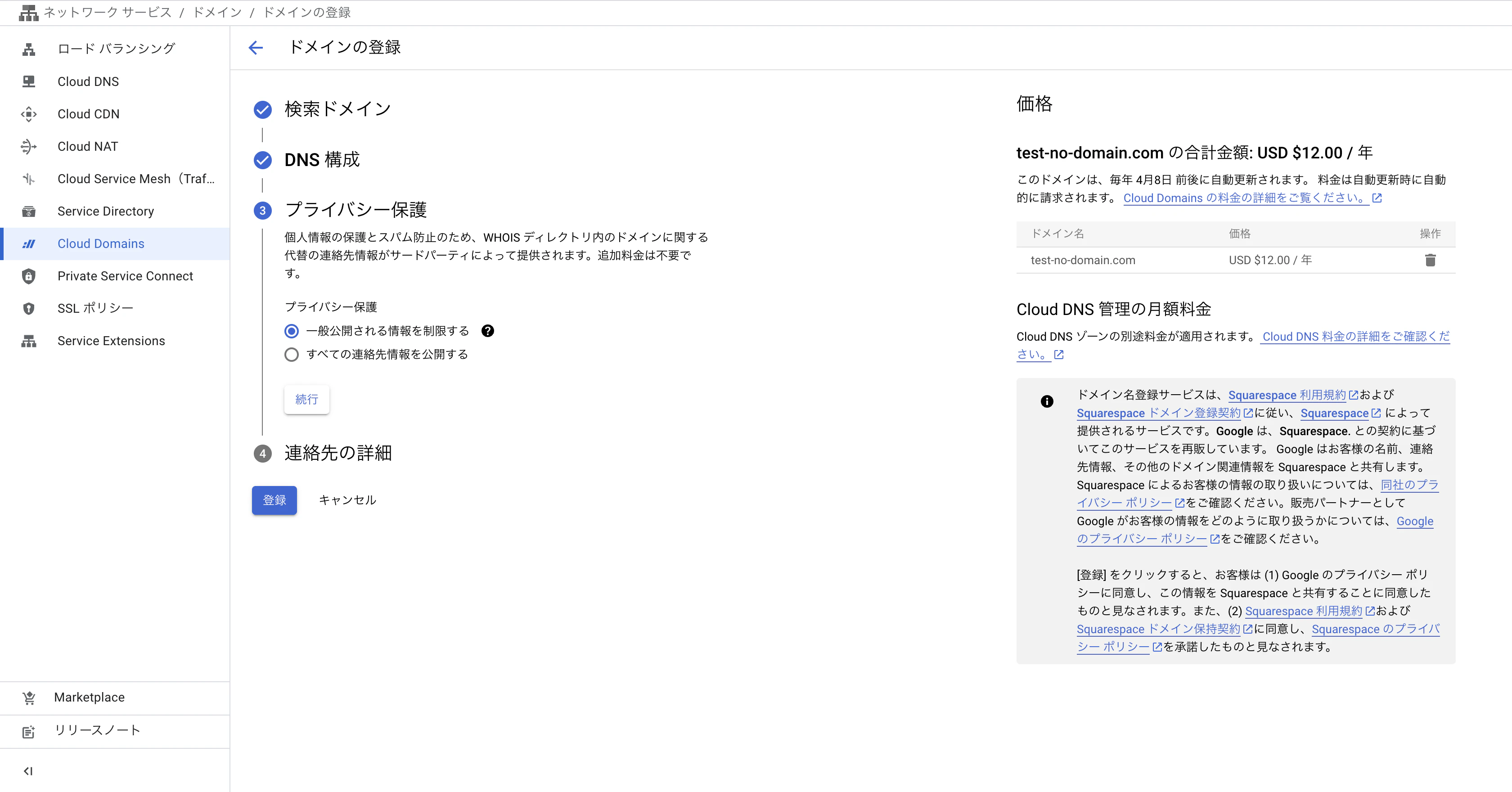

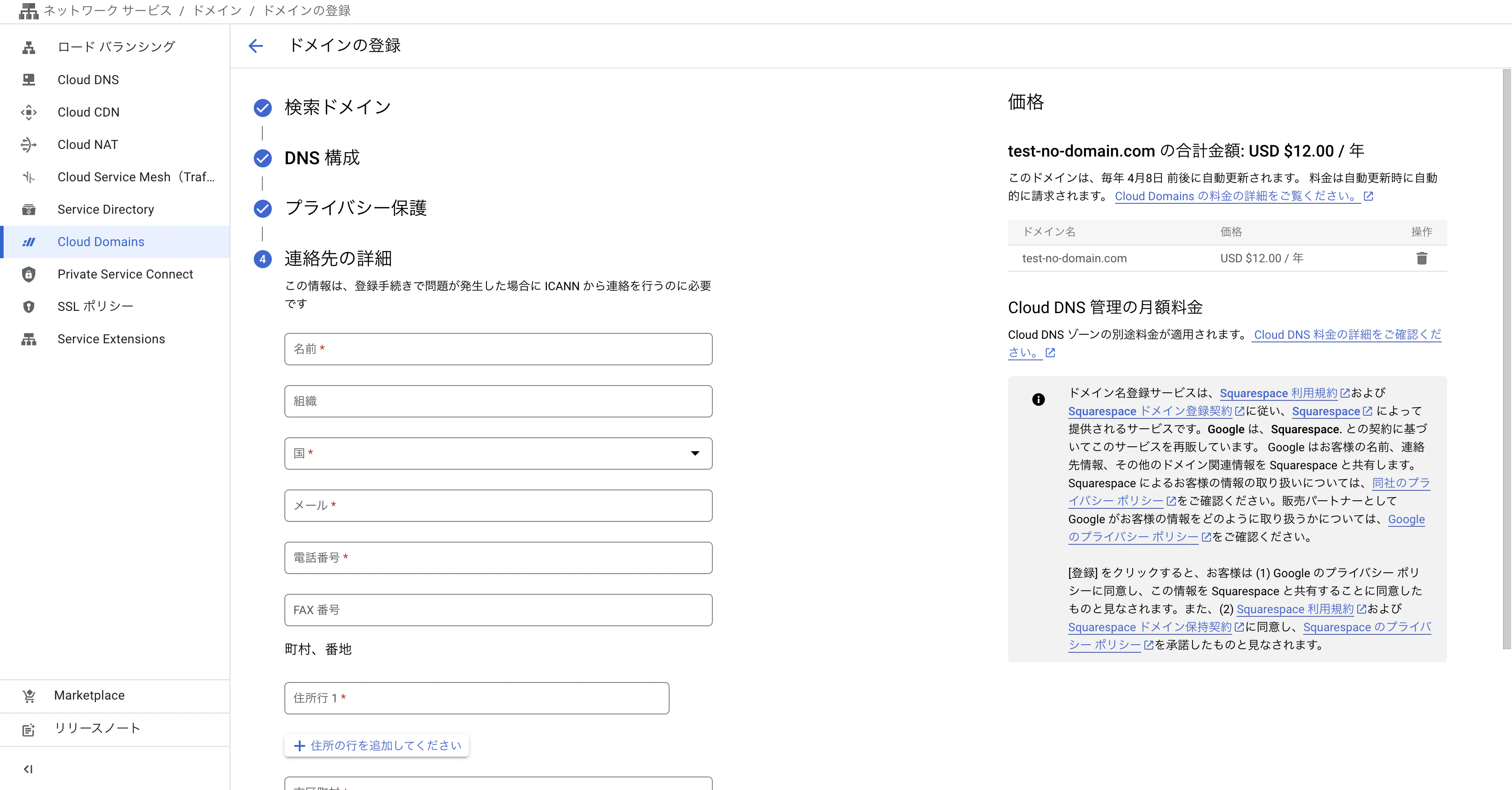

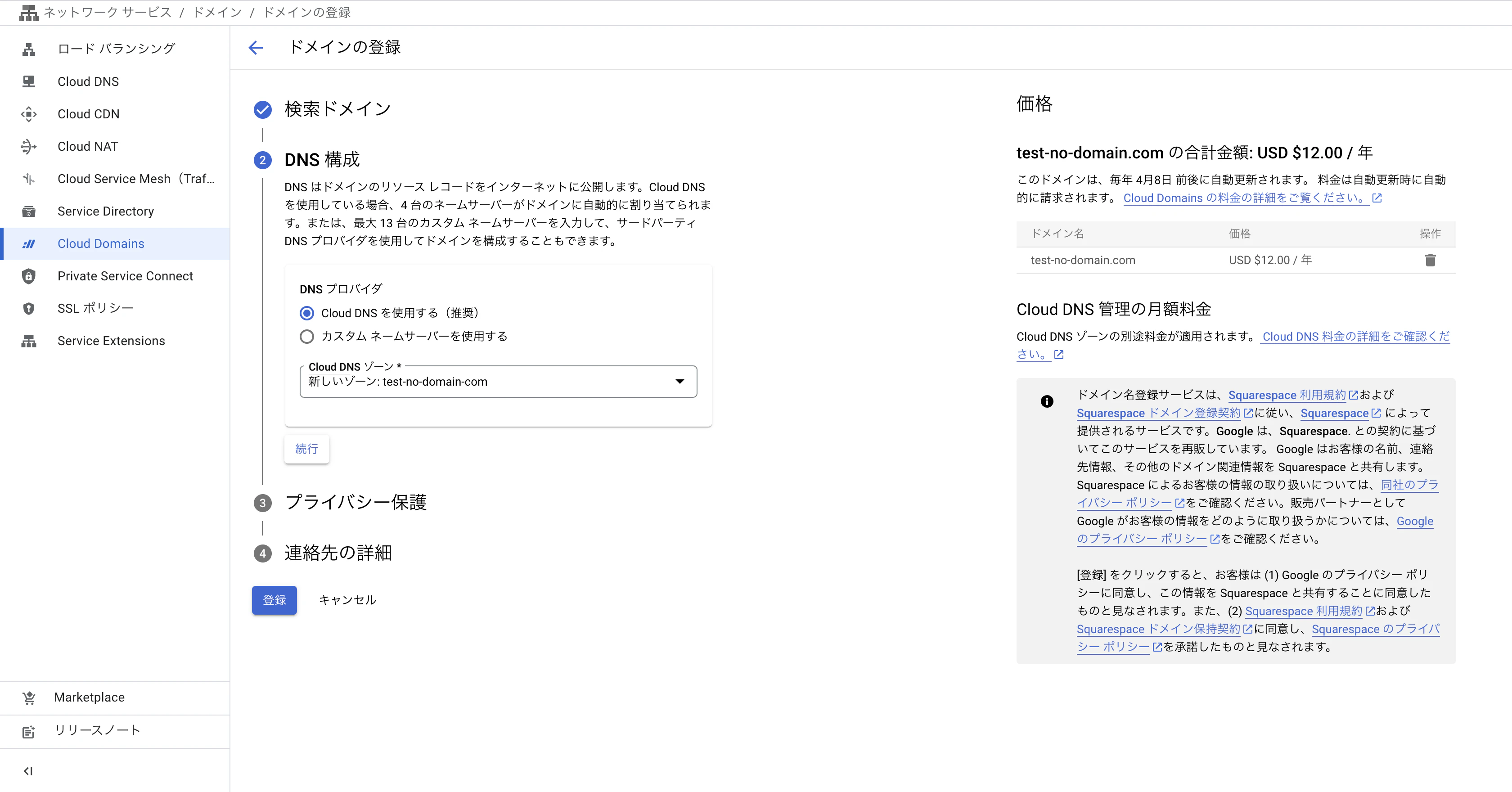

必要項目を入力していき、ドメインを登録します





Certificate Managerで証明書を発行

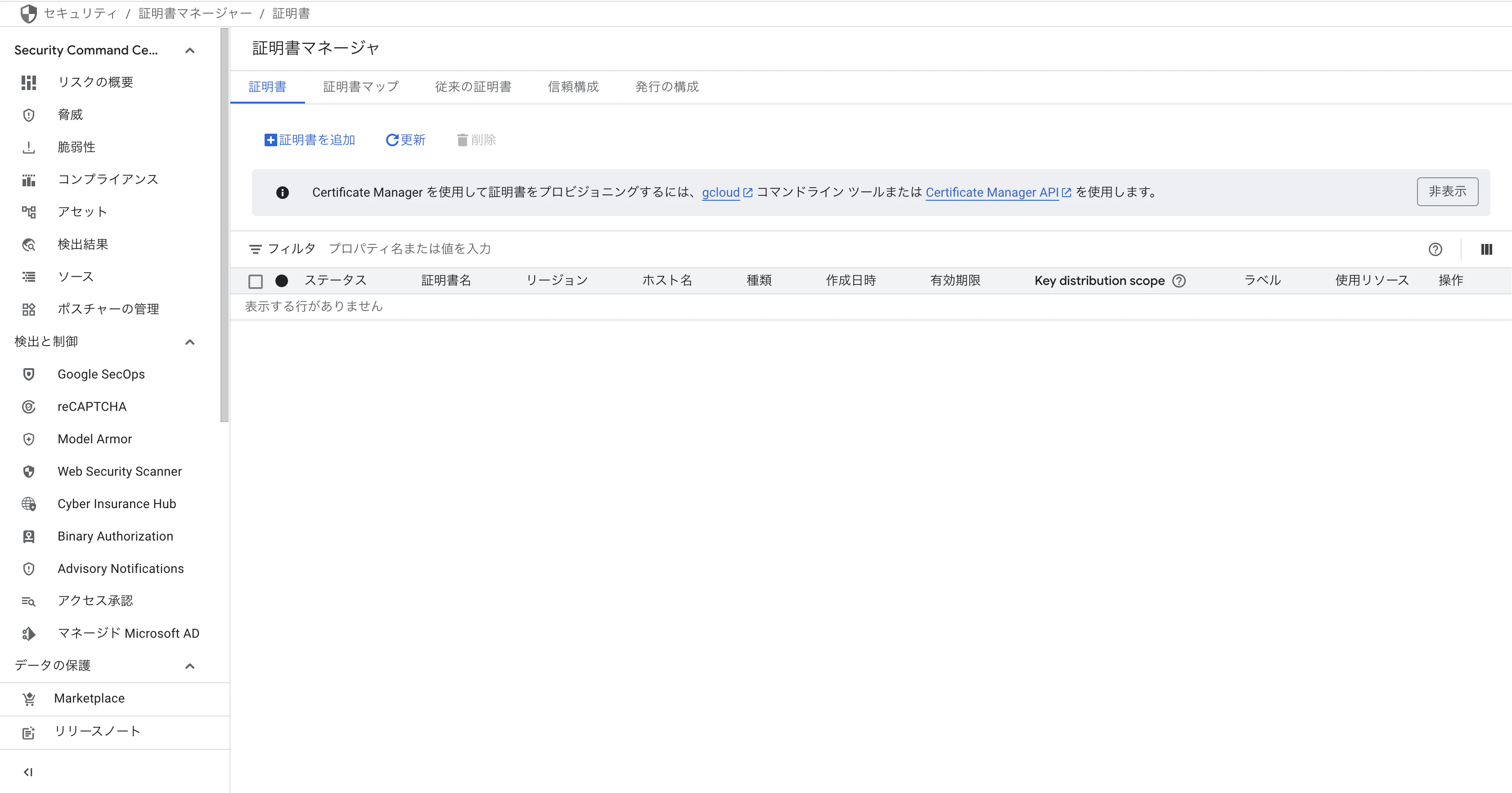

Certificate Managerの画面から証明書を発行します

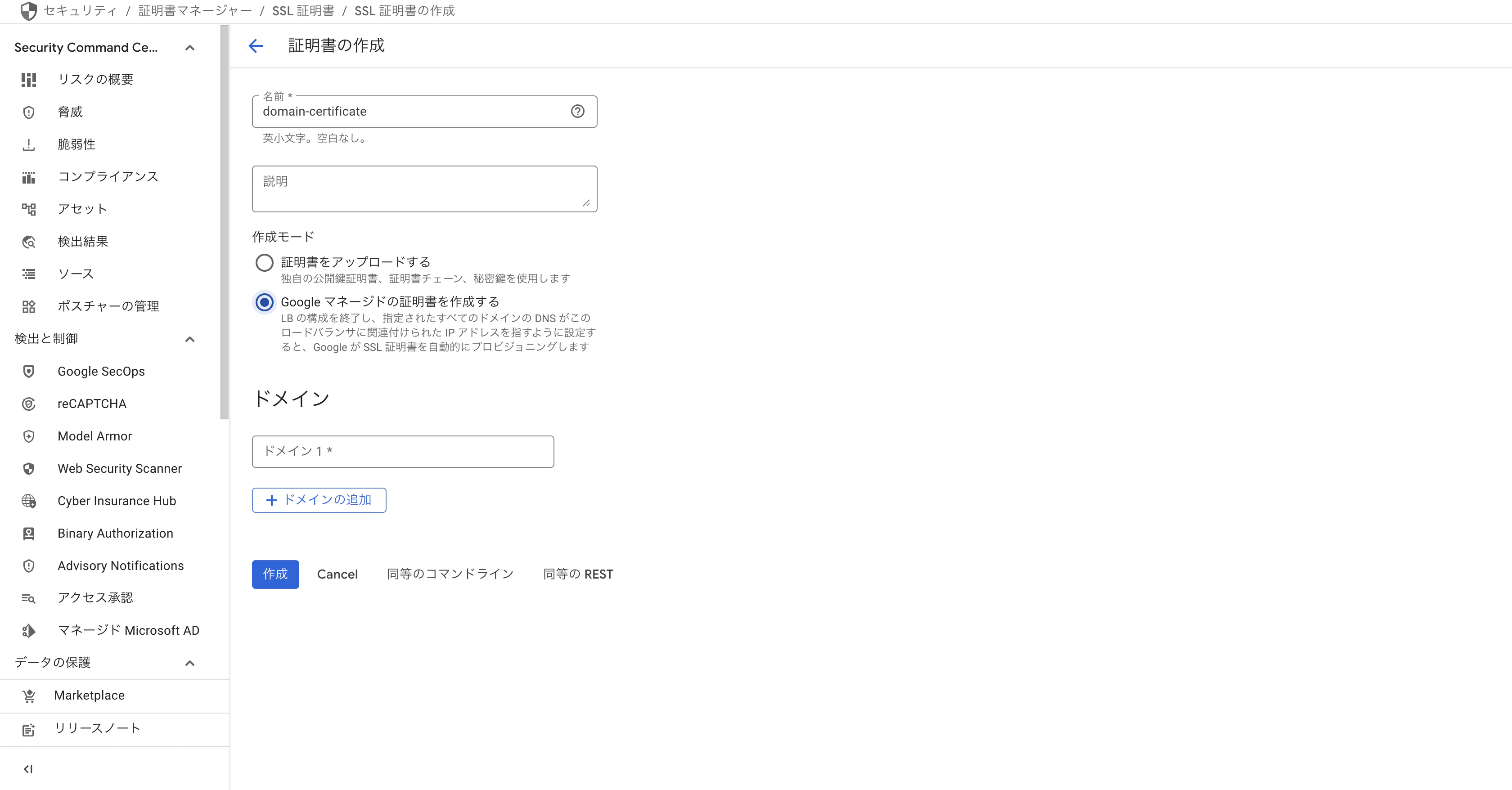

先ほど登録したドメインを入力して、マネージドの証明書を作成する


Cloud Load Balancingでロードバランサーを設定

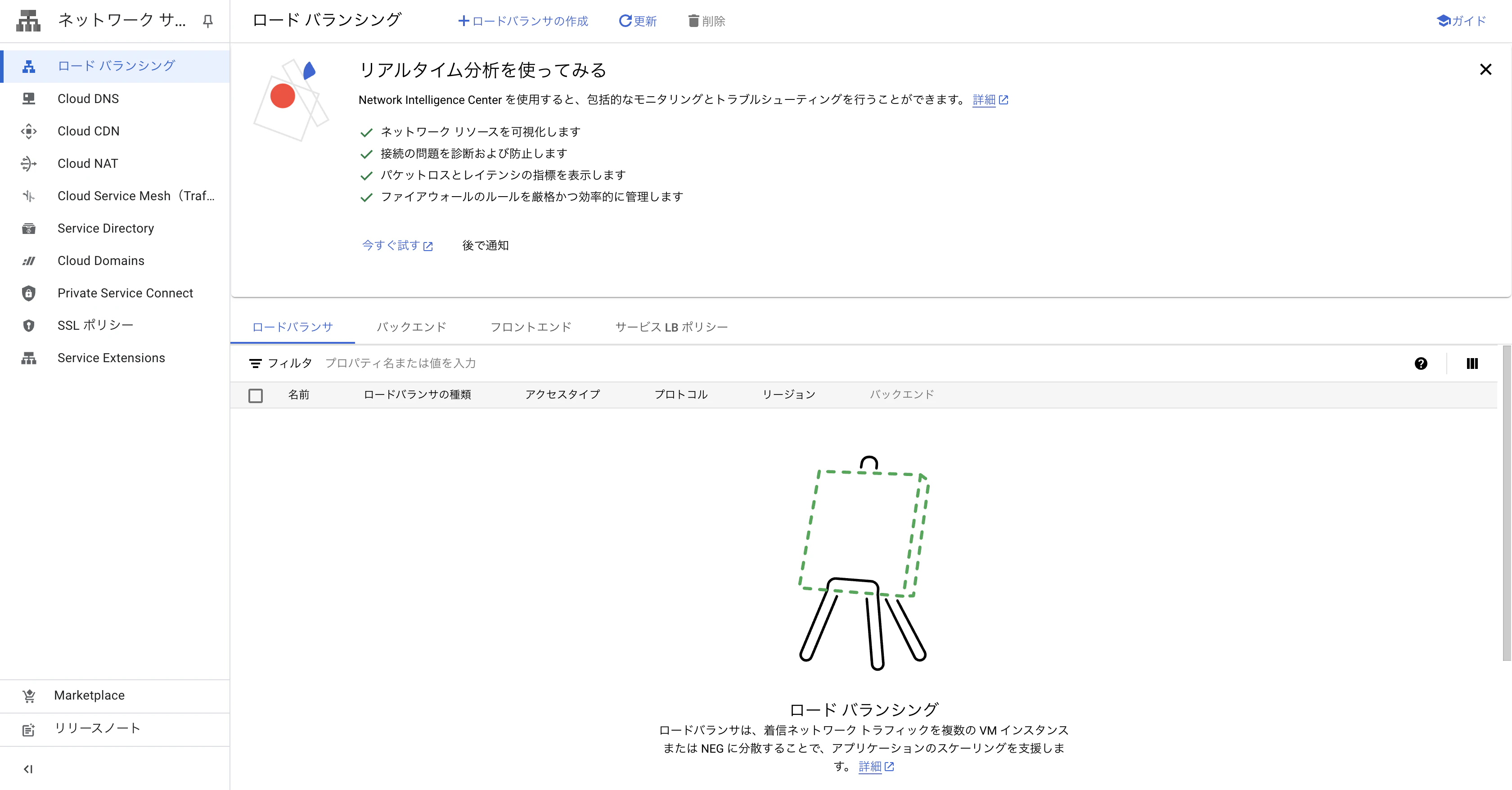

Cloud Load Balancingのページからロードバランサーを作成

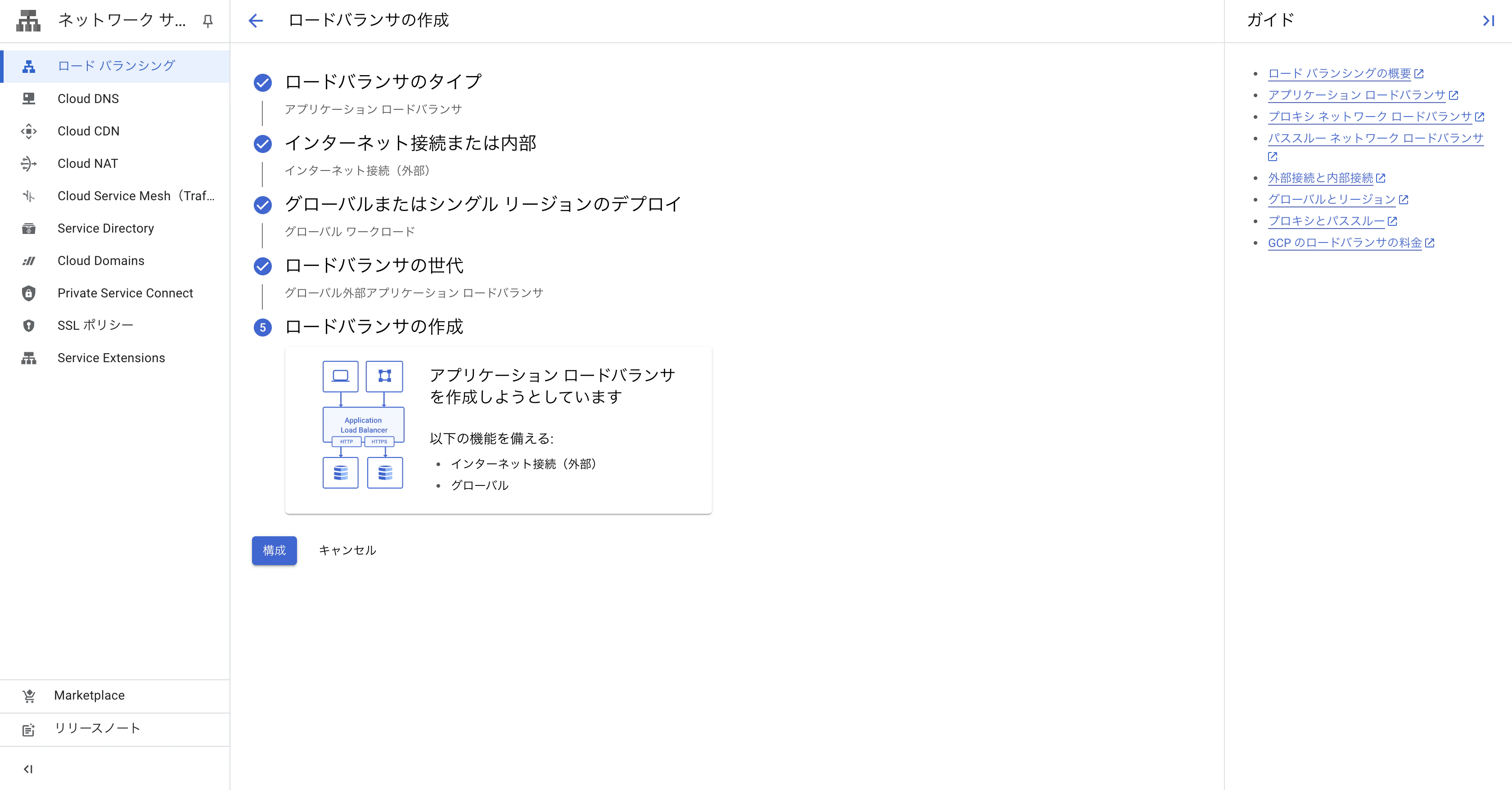

それぞれの項目を選択して、グローバル外部アプリケーションロードバランサーを構成する

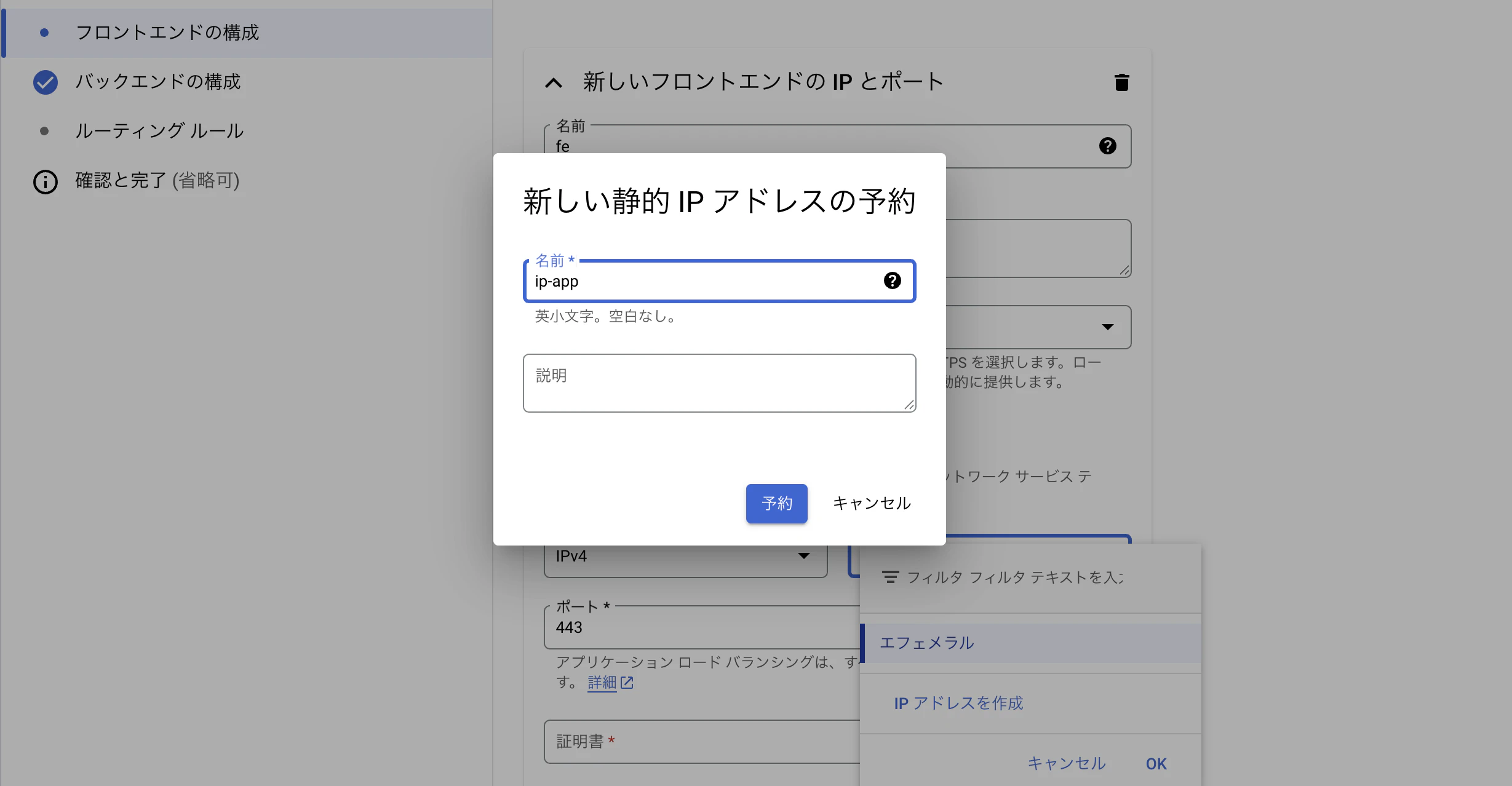

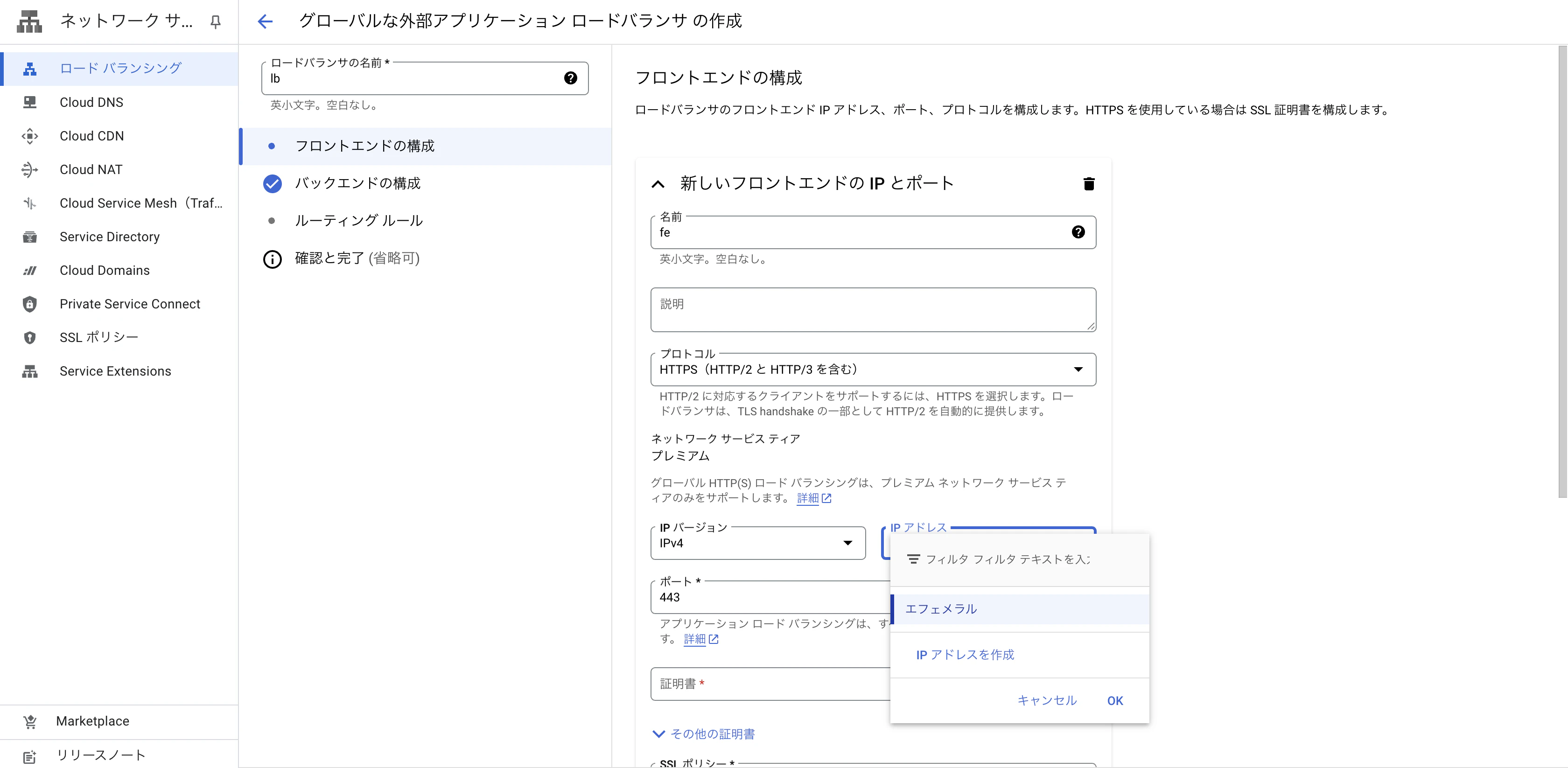

フロントエンドを構成していき、IPアドレスを作成します

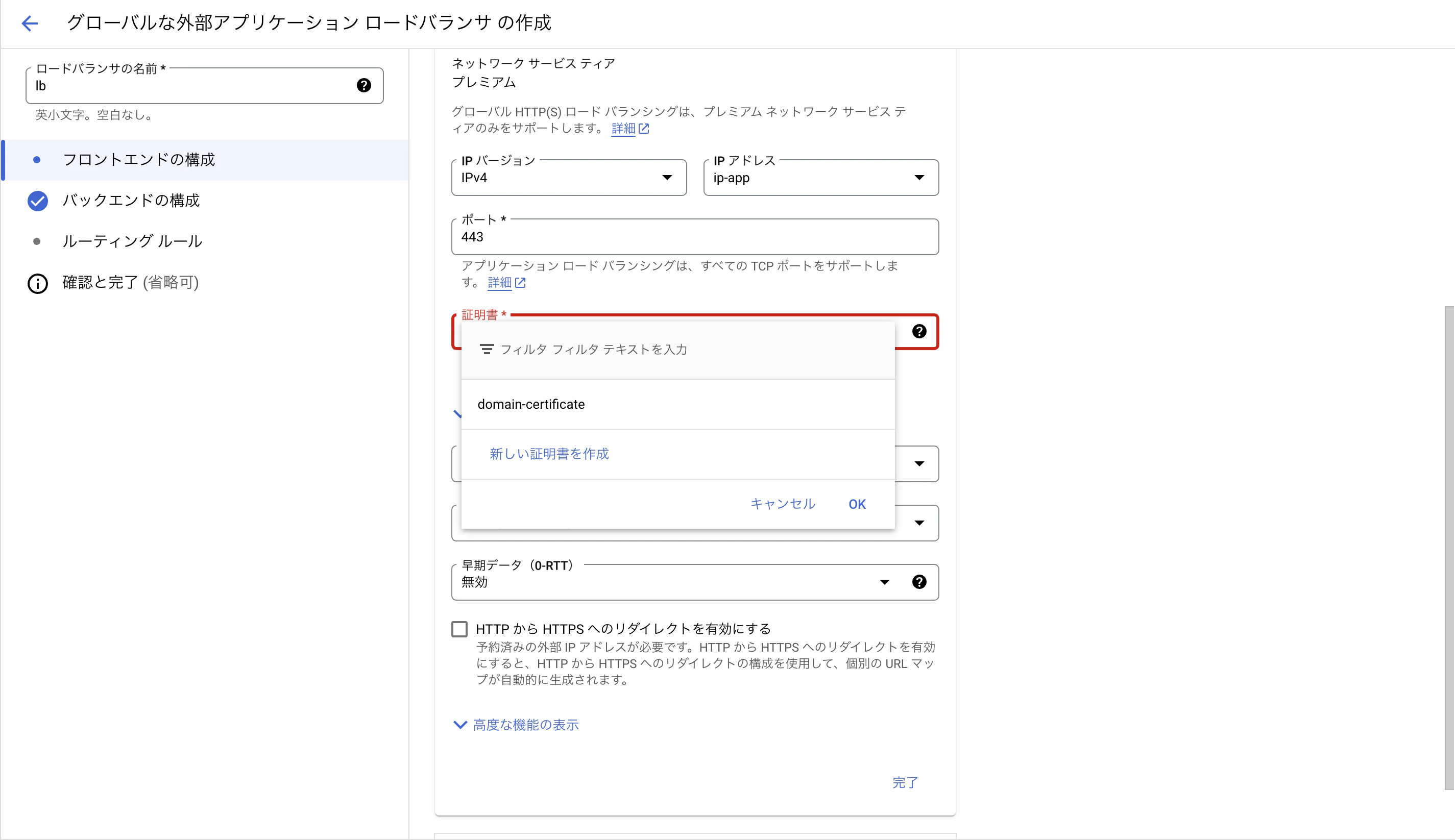

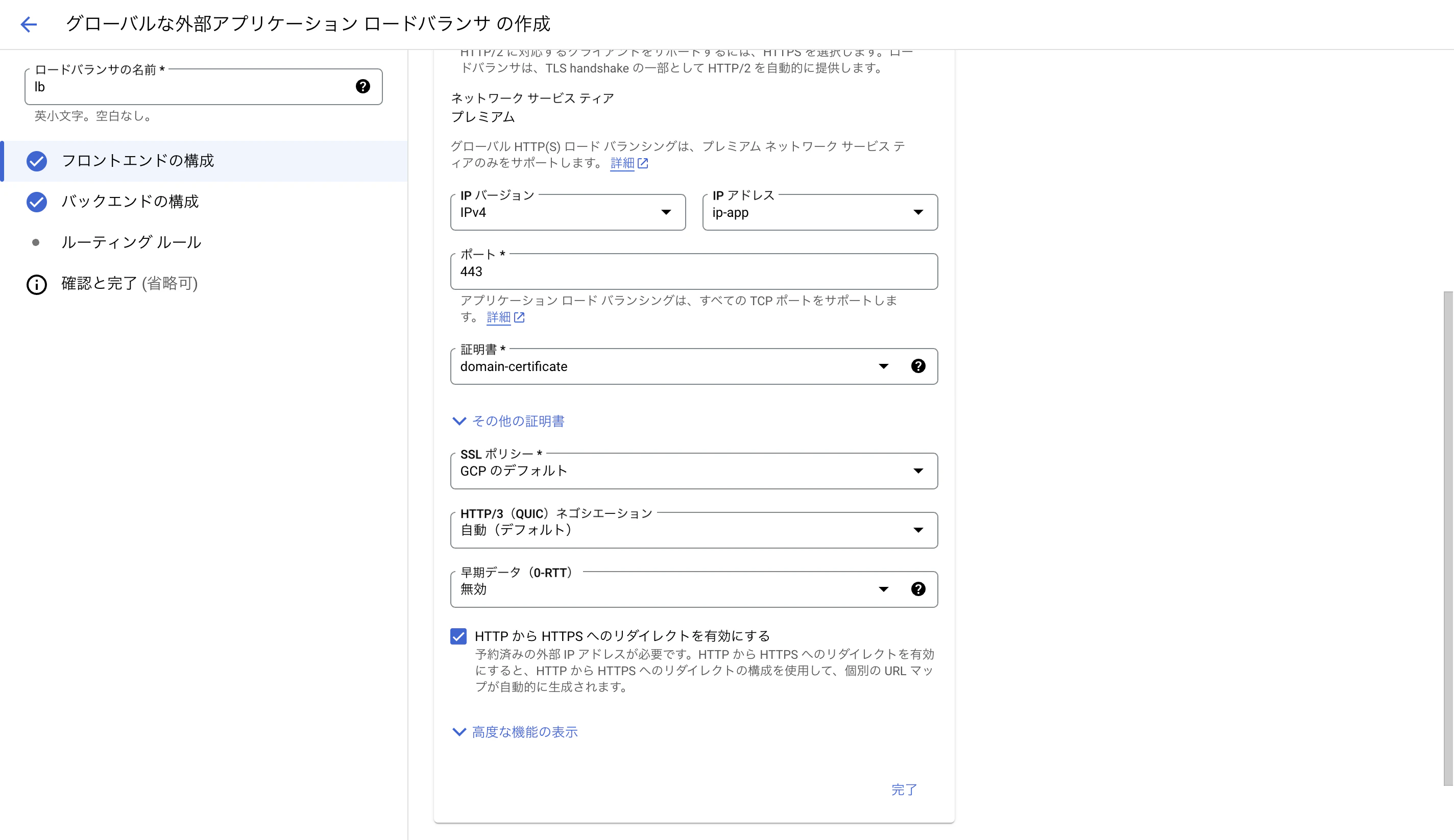

先ほど作成した証明書を選択して、「HTTP から HTTPS へのリダイレクトを有効にする」をチェックする

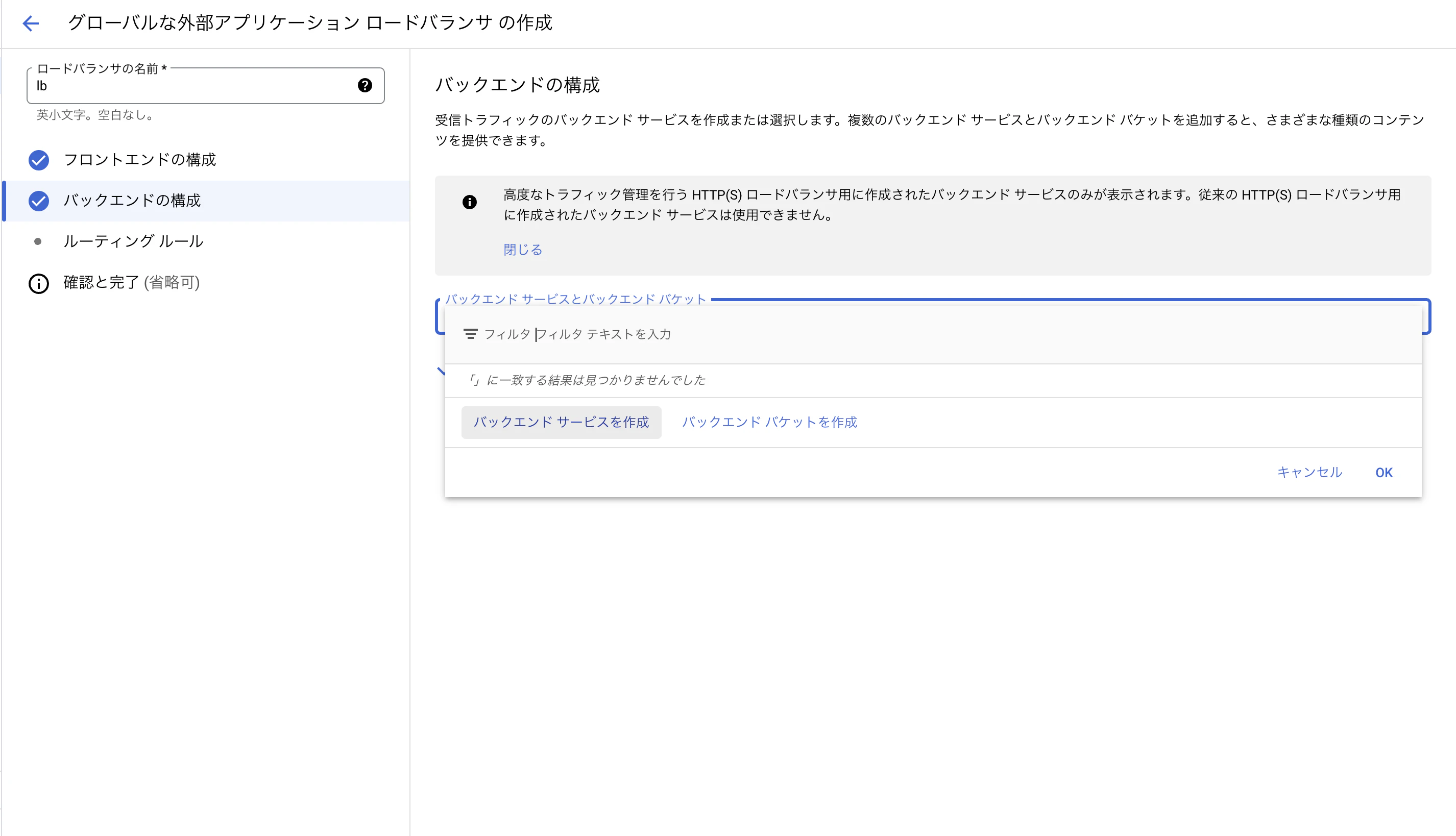

バックエンドを構成します

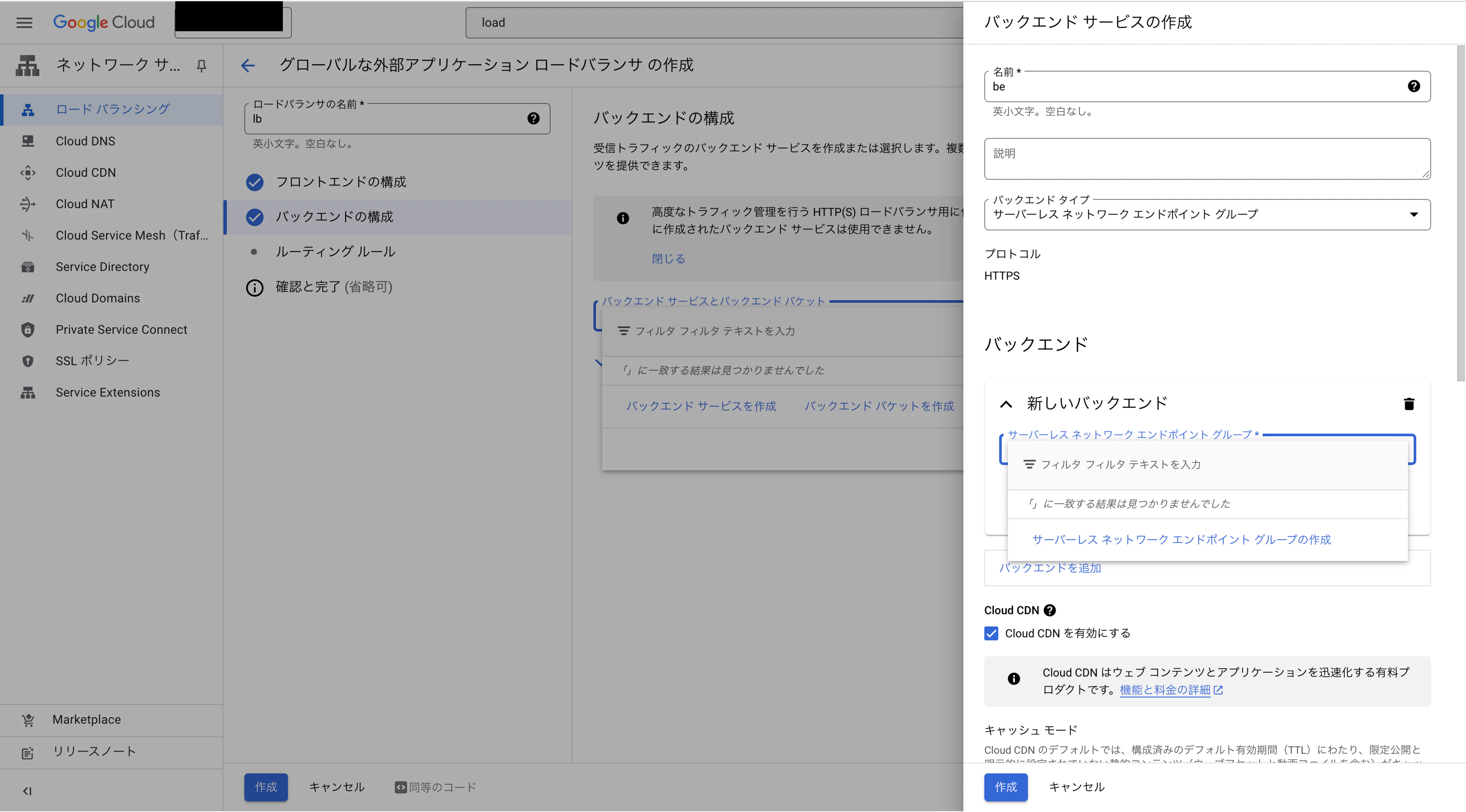

項目を入力していき、新しいバックエンドで、サーバーレスネットワークエンドポイントグループの作成を選択

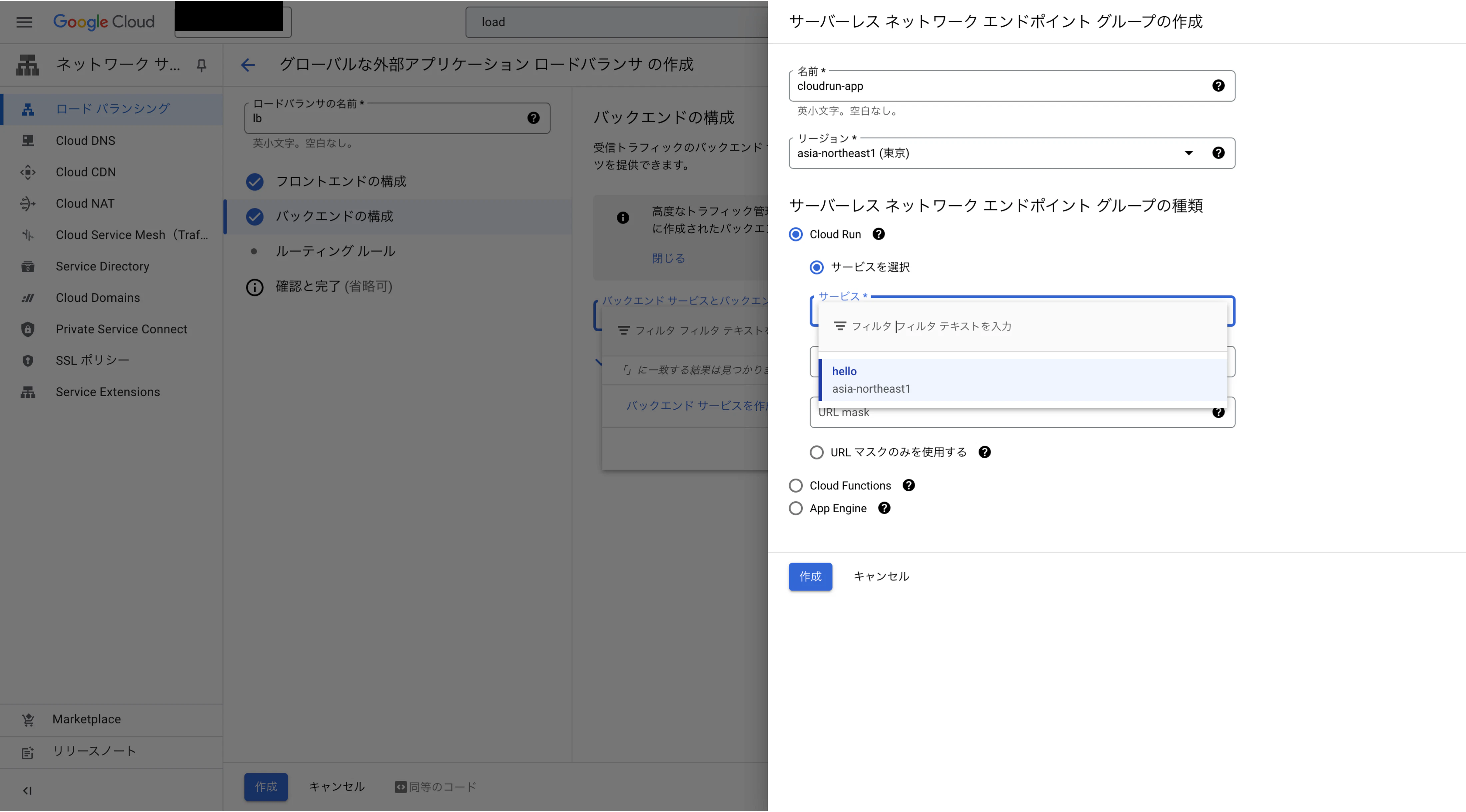

項目を入力し、作成したCloud Runサービスを選択して、作成します

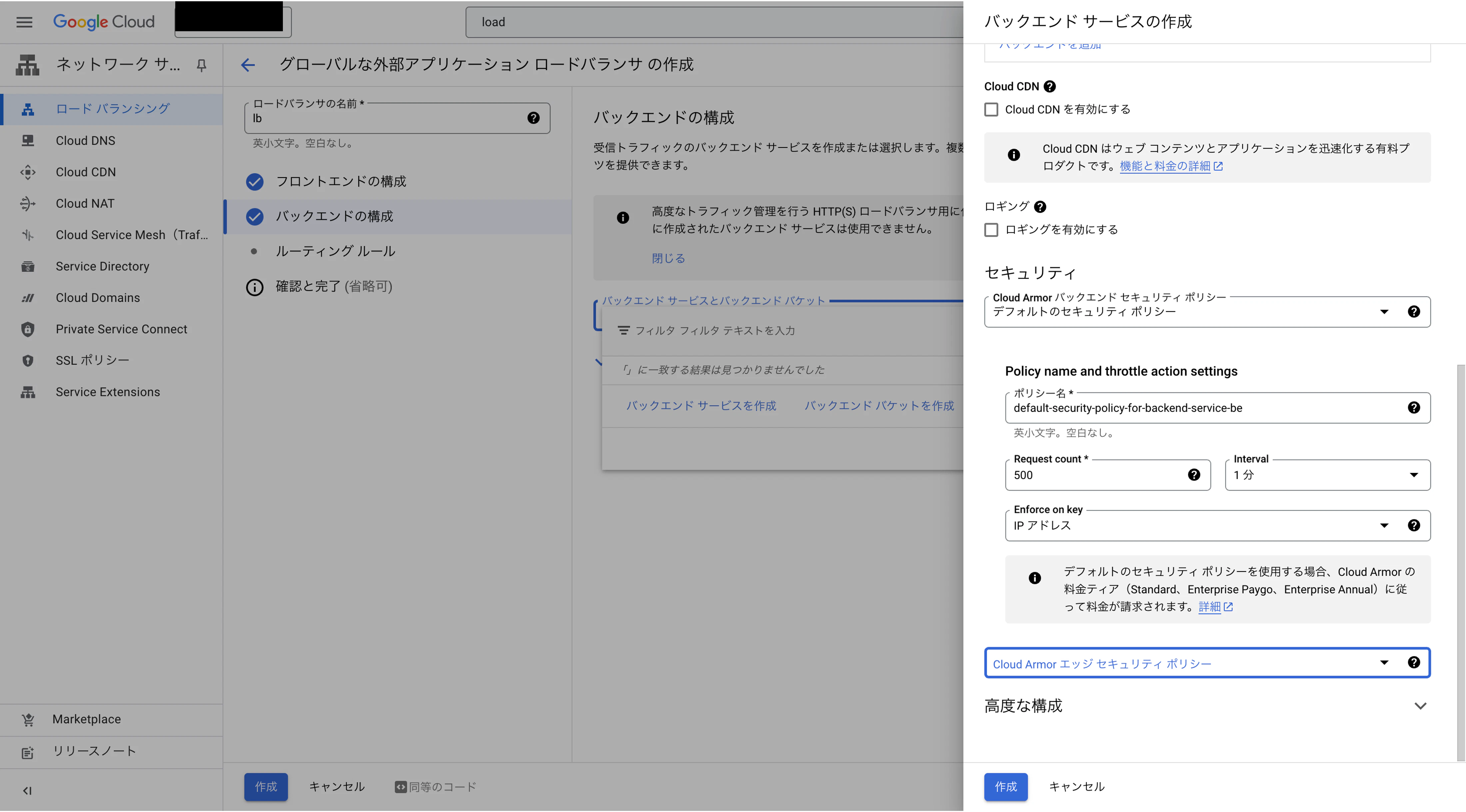

セキュリティより下の項目を入力して、作成します

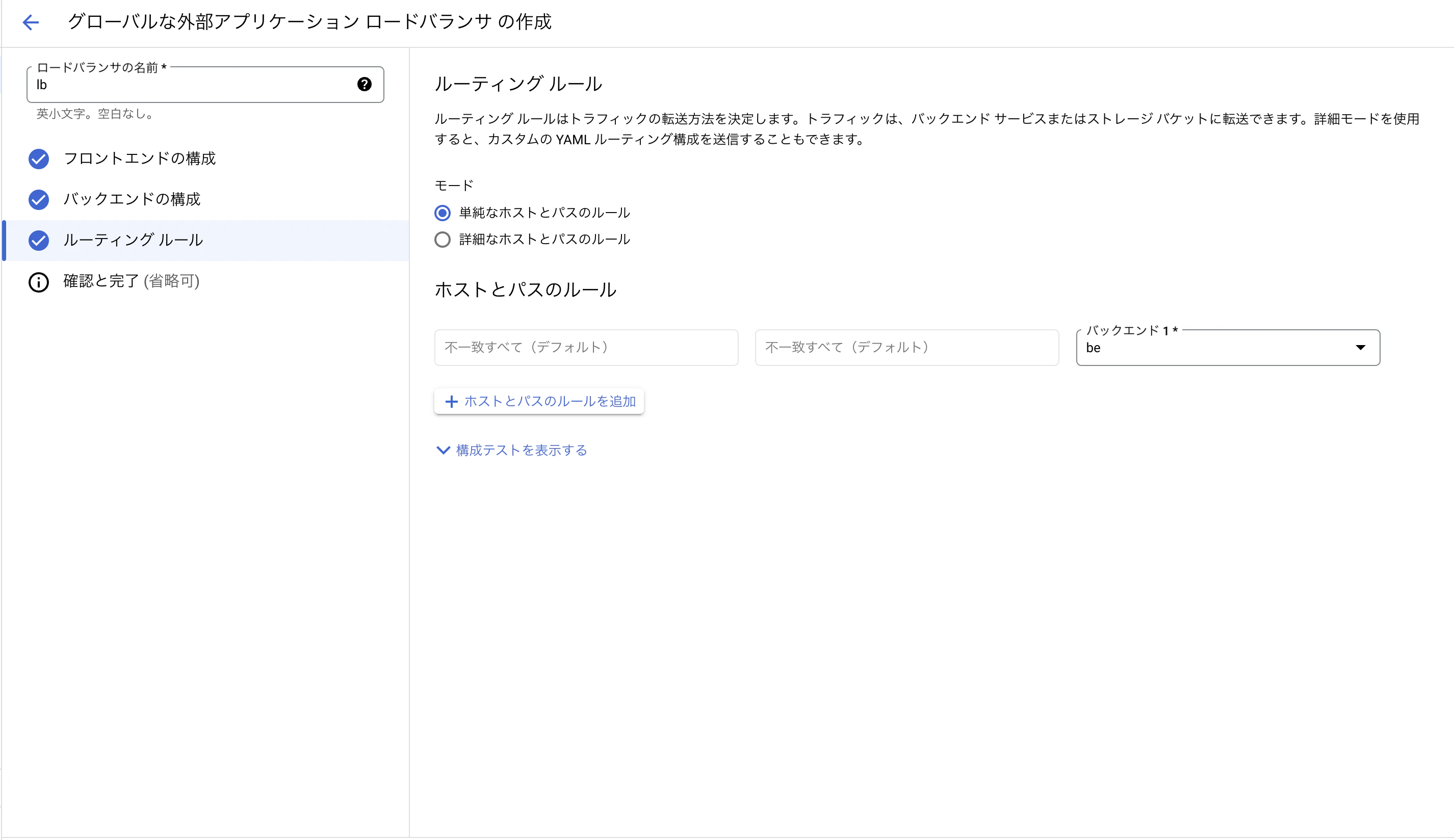

次のルーティングルールはそのままの内容で、ロードバランサーを作成します


Cloud DNSでドメインとIPアドレスを紐づける

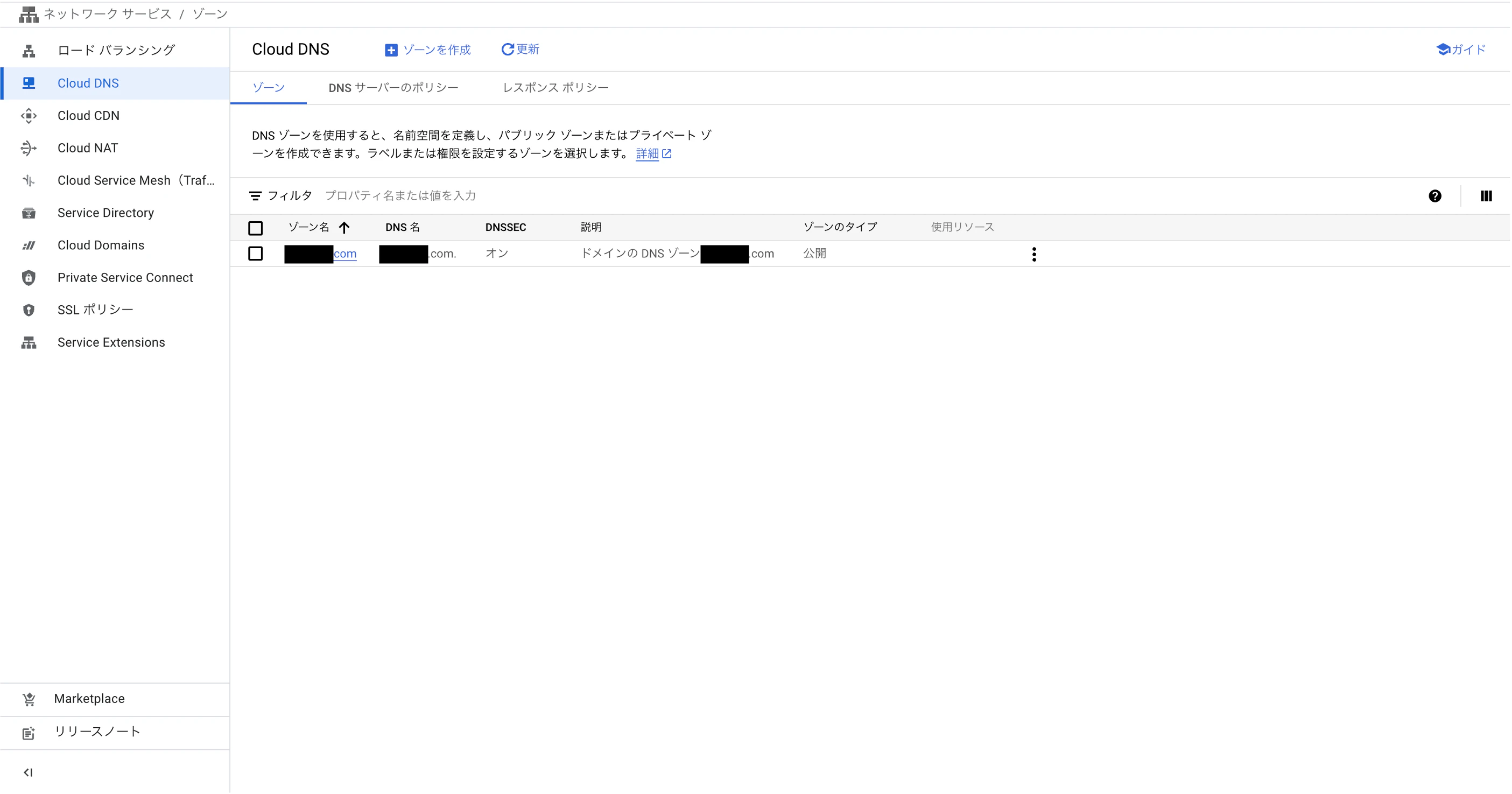

Cloud DNSのページから取得したドメインを選択します

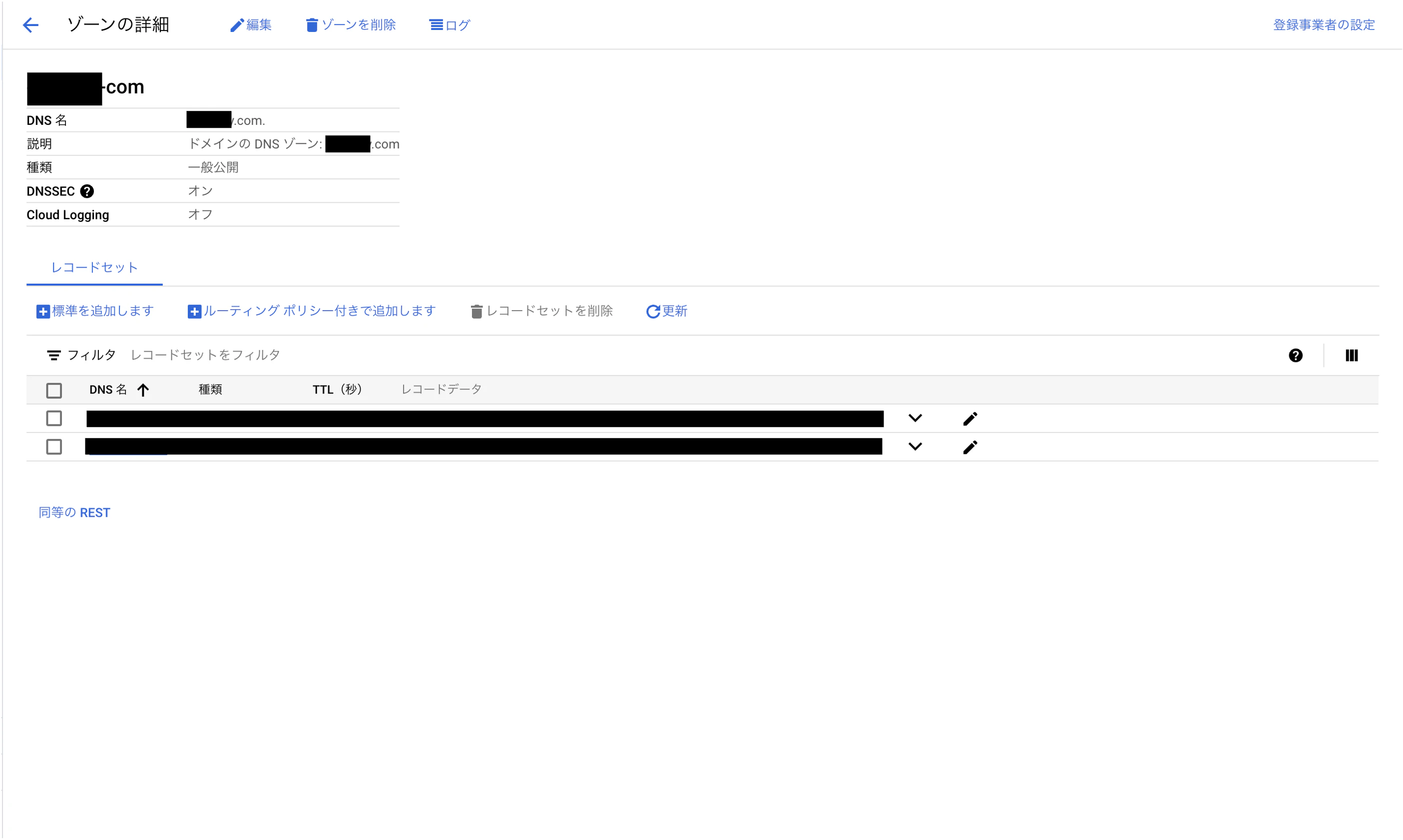

レコードセットを追加するために、「標準を追加します」ボタンを押下

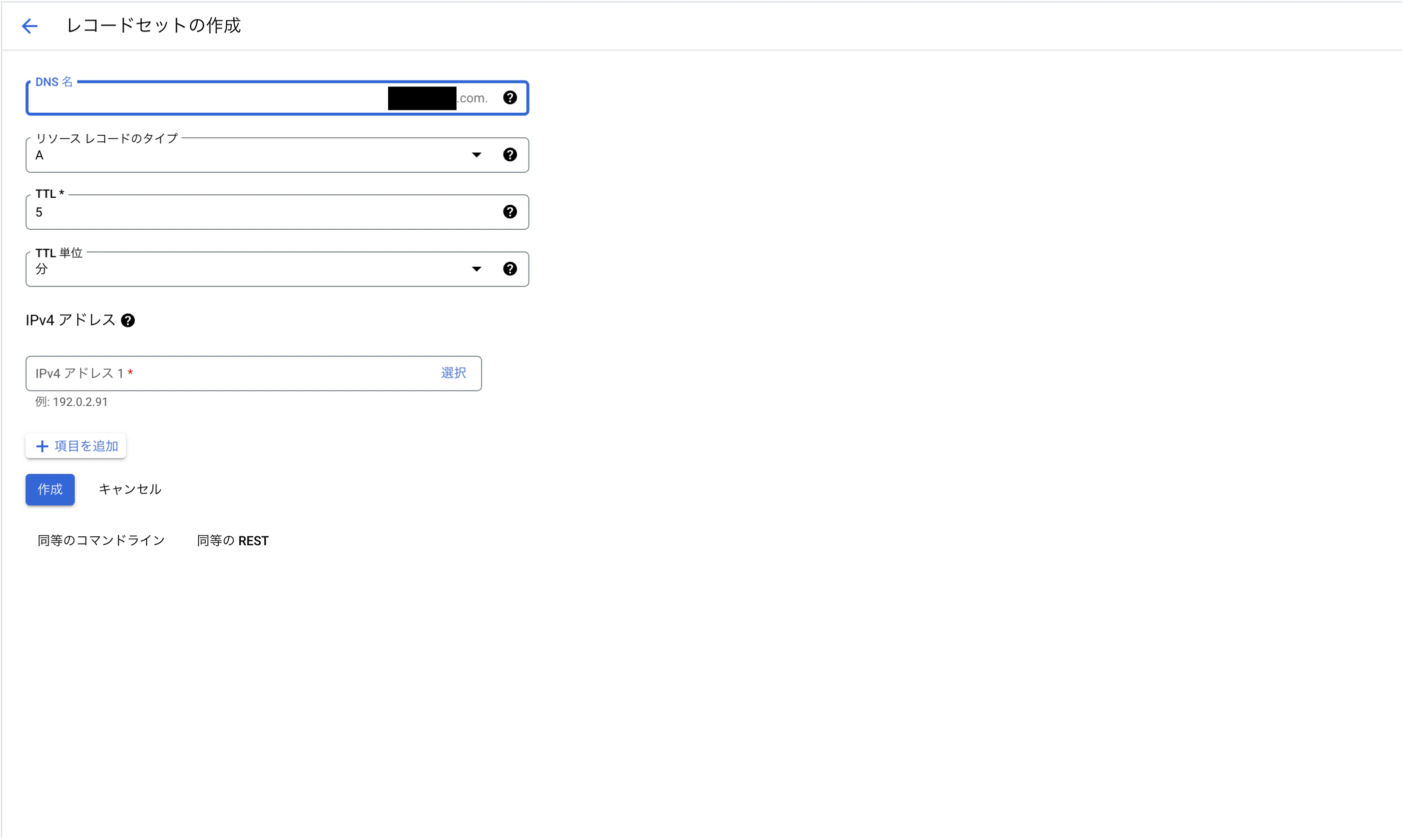

Aレコードを追加して、作成したロードバランサーのIPを入力して作成する


Cloud ArmorでIP直叩きを防ぐ

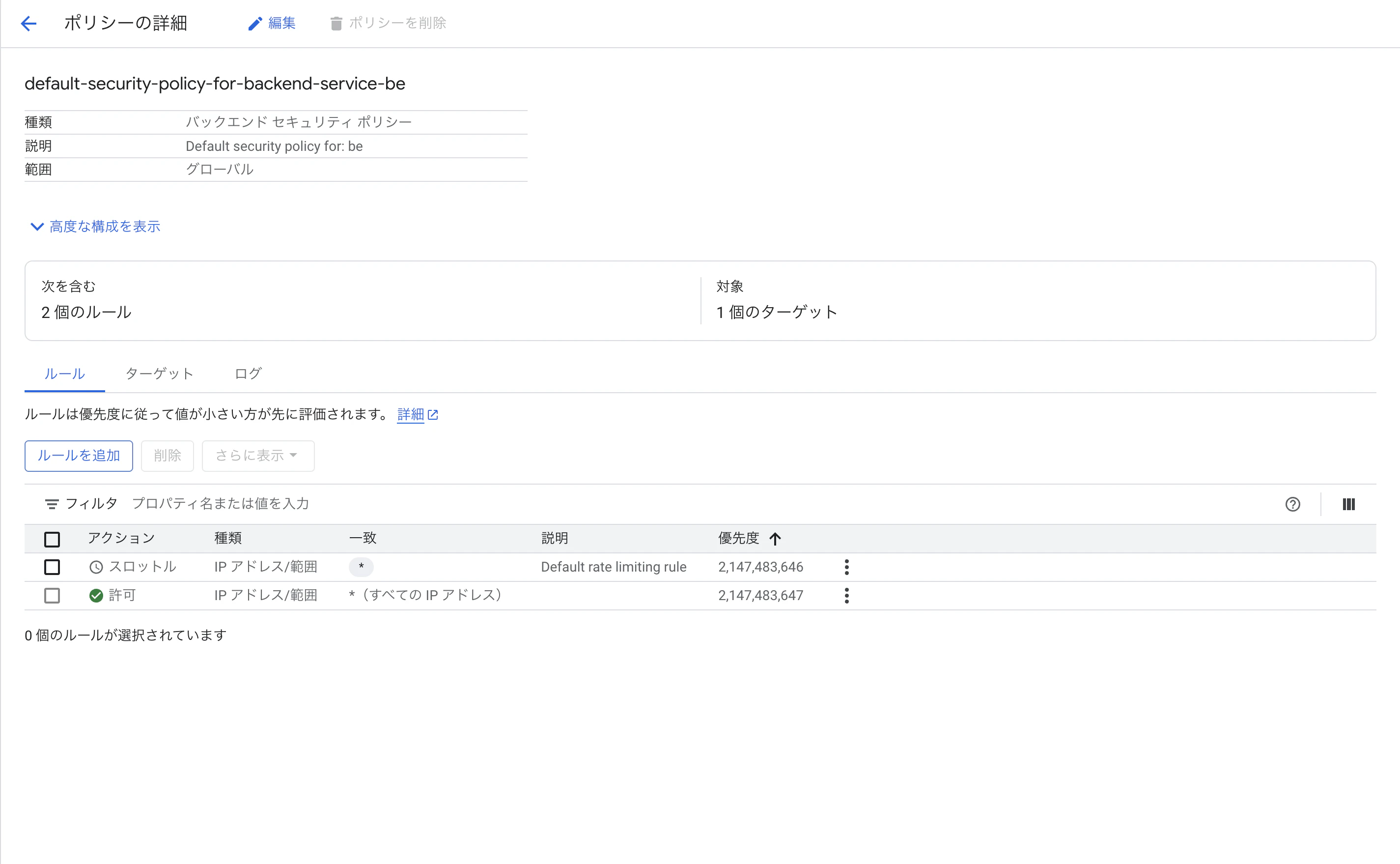

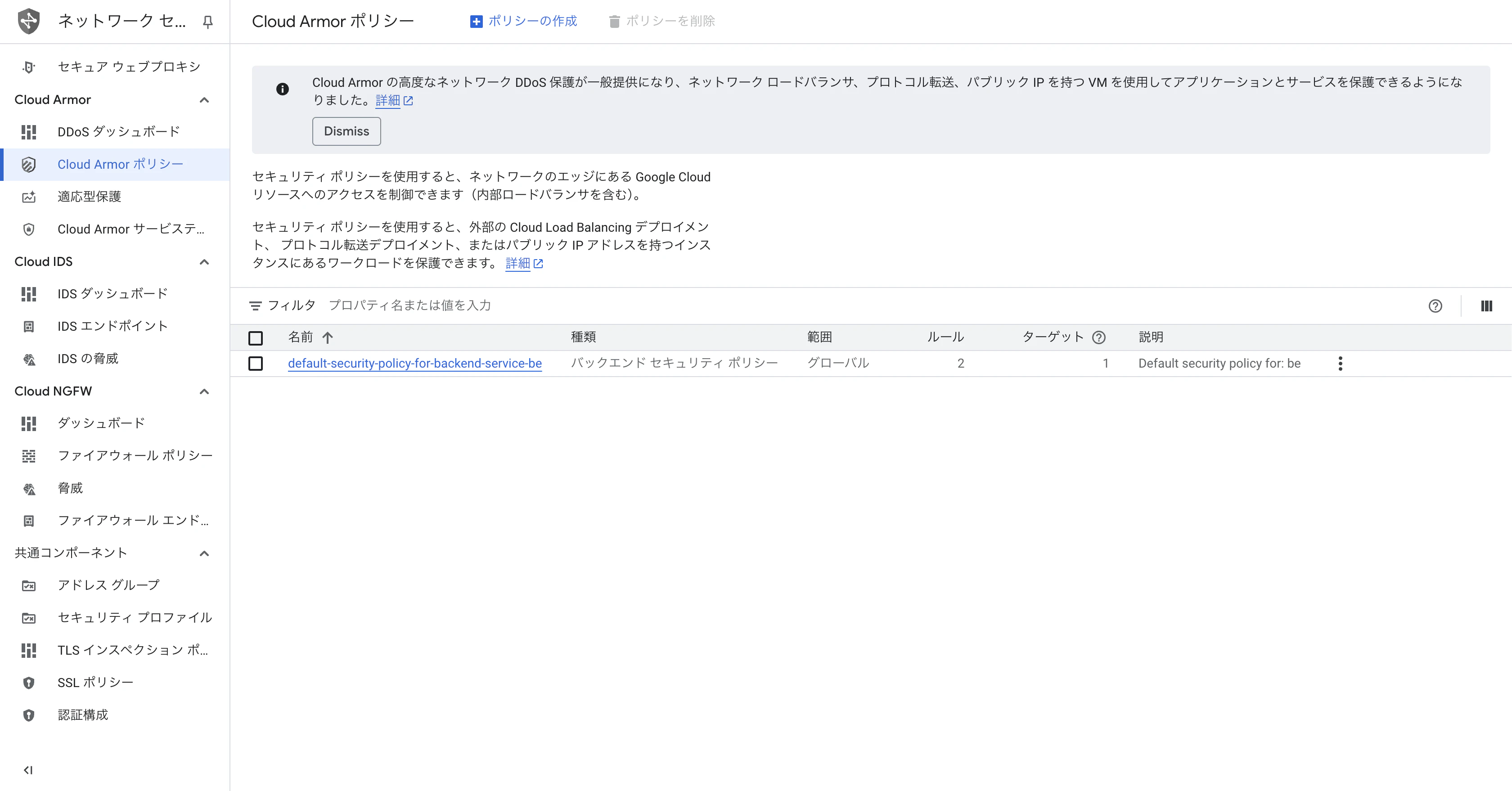

Cloud Armorのページに行き、ロードバランサーが作成された時のポリシーを編集する


ルールを追加します

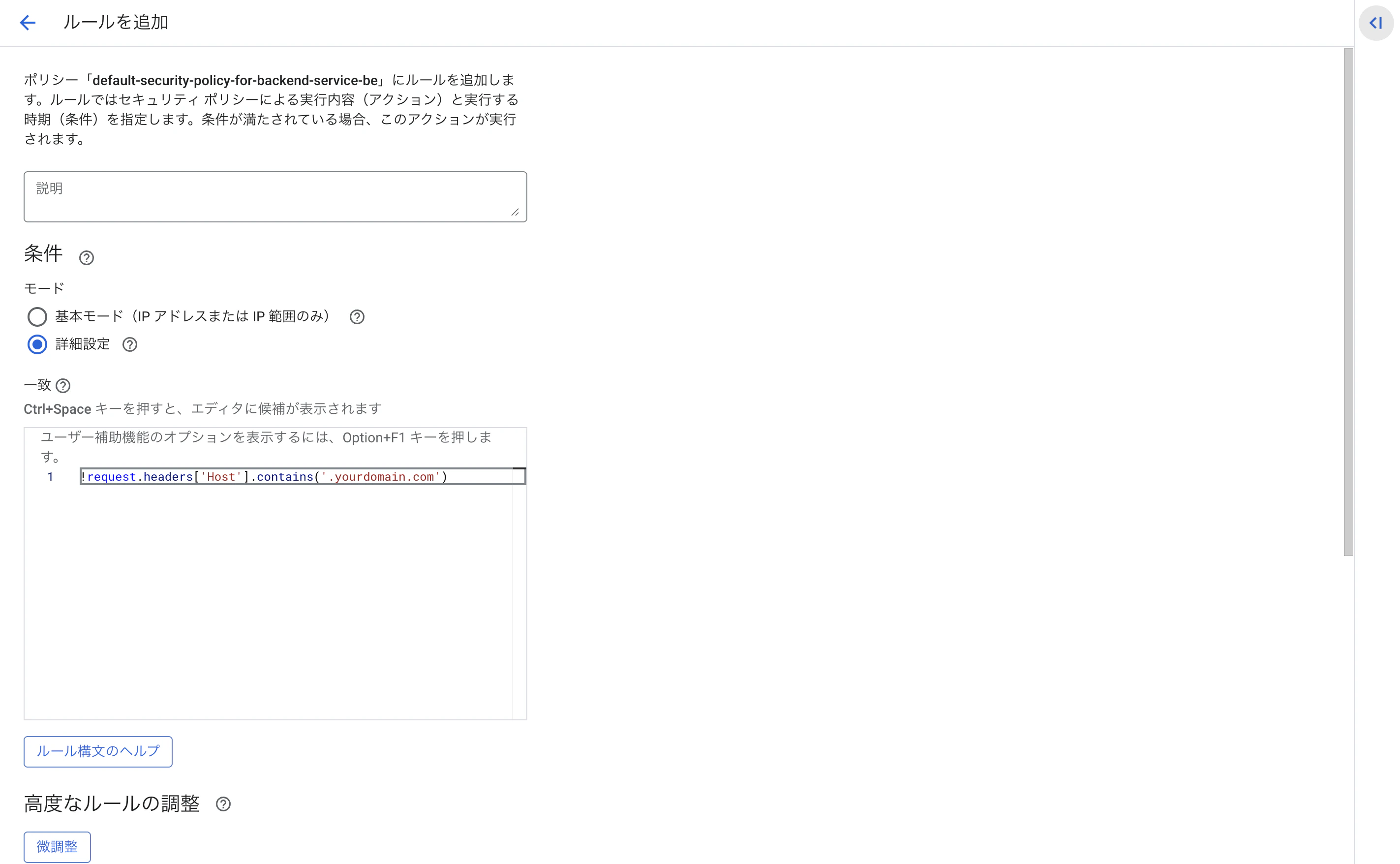

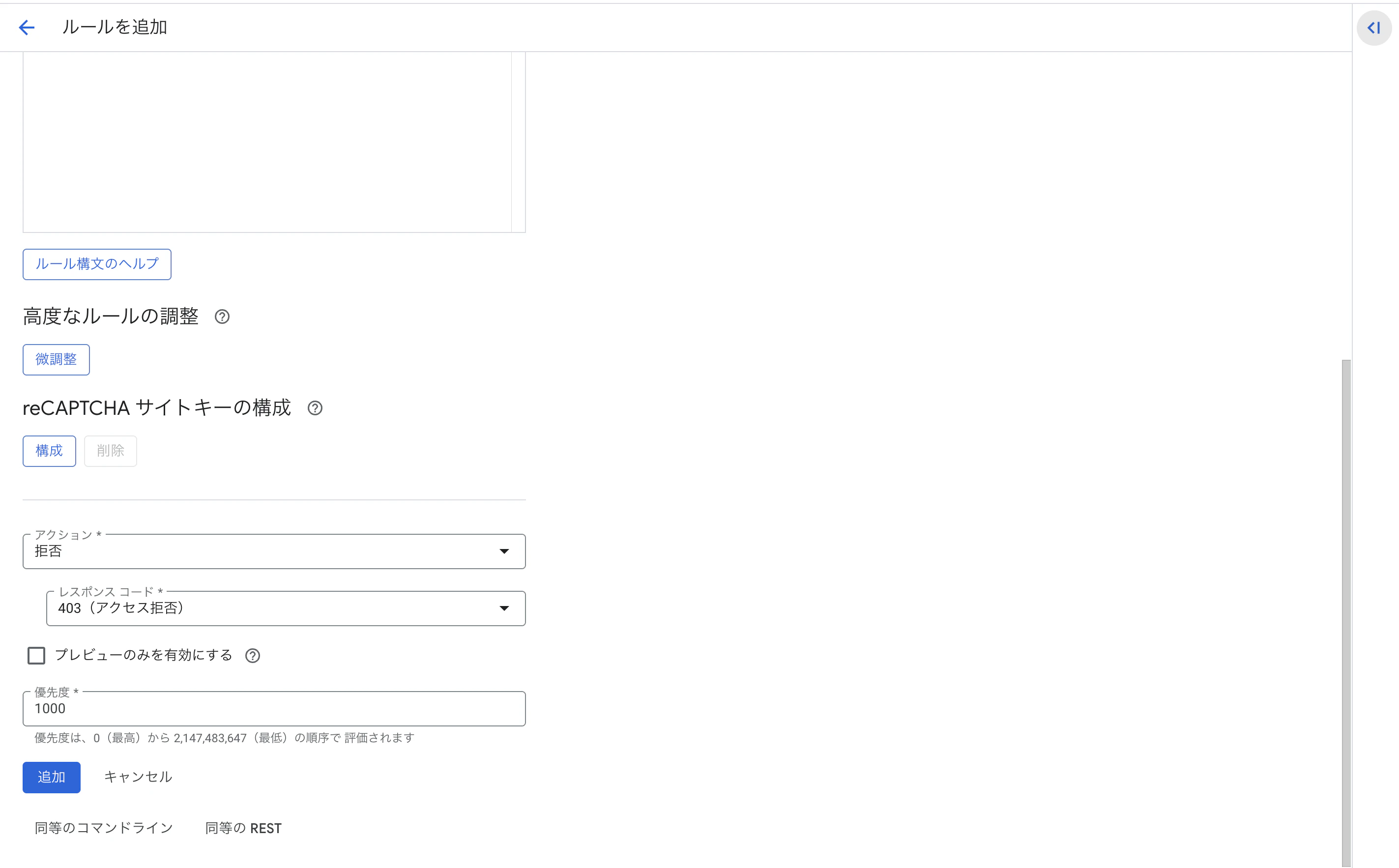

以下の詳細なルールを入力して、そのルールに該当する項目を拒否します

!request.headers['Host'].contains('yourdomain.com')

取得したドメインに変更してにゅうりょく



お疲れ様でした

しばらくすると、登録したドメインからアクセスできます。

ロードバランサーのIPアドレスを直打ちしても403が出てアクセスできないようになっています
