CloudFormationを使ってAWSのALBを構築してECS[Django+Nginx]へヘルスチェックを送ろう！

Posted at

概要

今回はCloudFormationを使ってALBを構築する方法について解説していきたいと思います

前提

  • VPC、プライベートサブネットをはじめとするネットワークを構築済み
  • ECSを構築済み
  • ヘルスチェック用のAPIを作成済み
  • 今回はHTTPの設定のみ解説します

ディレクトリ構成

構成は以下の通りです

tree
.
└── templates
    ├── containers
    |   ├── ecr.yml
    |   ├── ecs-cluster.yml
    |   └── ecs-fargate.yml
    ├── logs
    |   └── cloudwatch-logs.yml
    ├── network
    |   ├── alb.yml
    |   └── vpc.yml
    ├── databases
    |   └── rds.yml
    └── security
        └── sg.yml

sg.yml

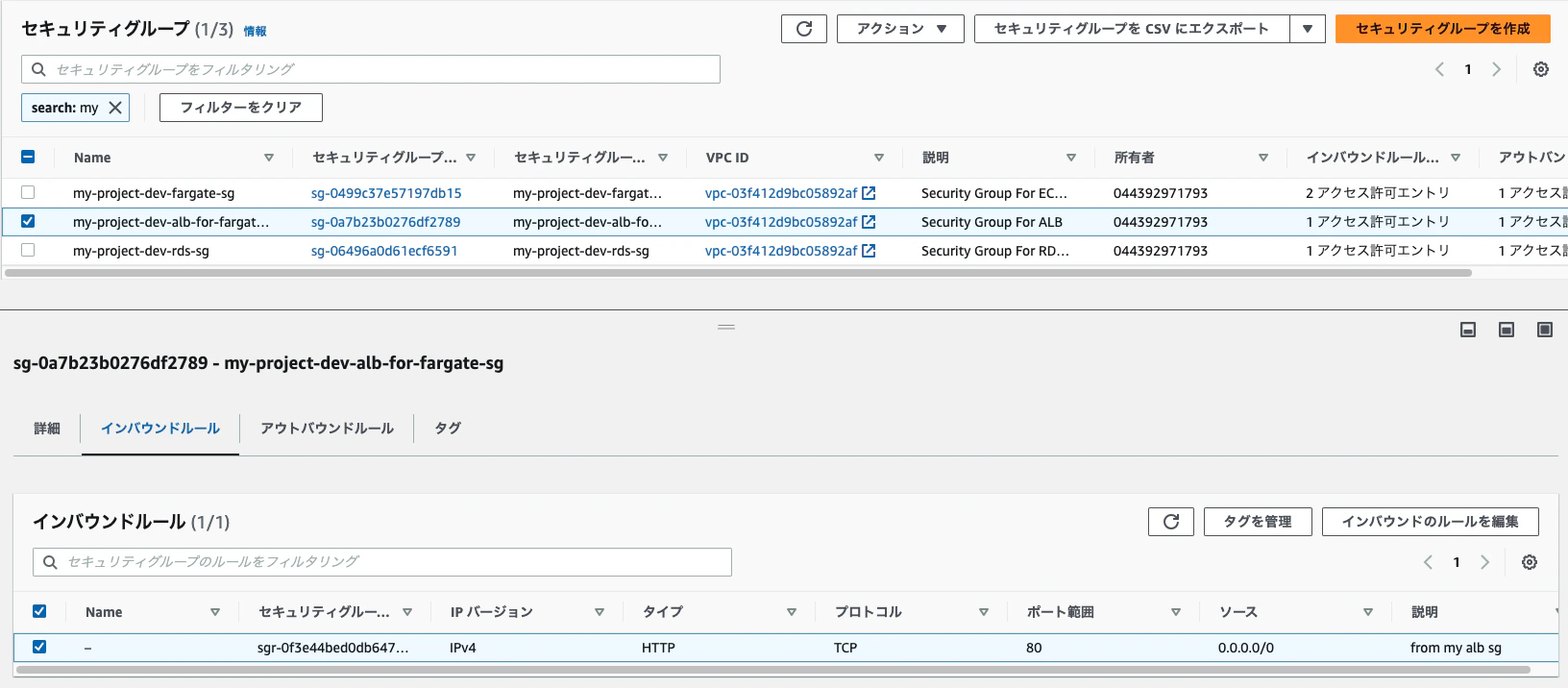

ALBのセキュリティグループの設定を行います
ALBを使用するので80番ポートからの全てのアクセスを許可します
また、Nginxをリバースプロキシとして使用するのでアウトバウンドアクセスはNginxの80番ポートからの全てのアクセスを許可します

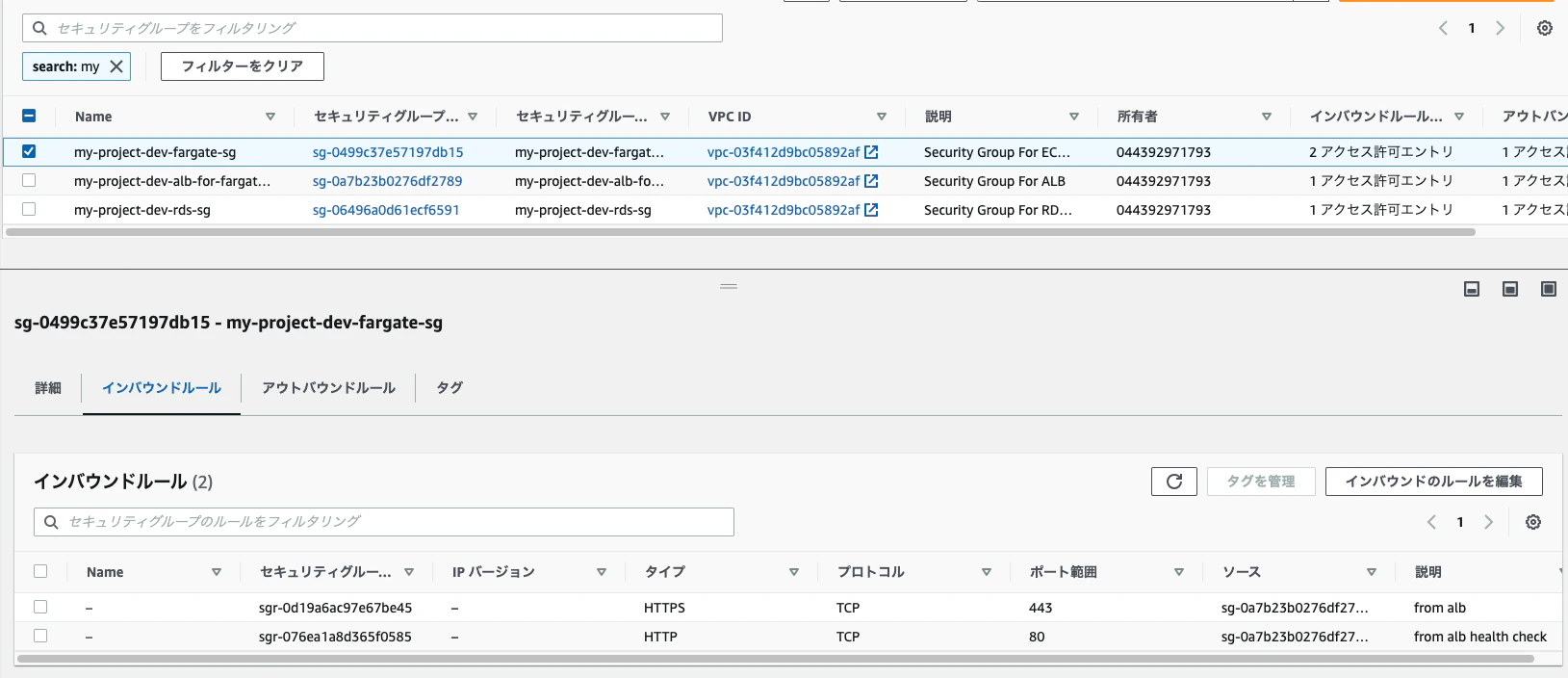

ECSのセキュリティグループもALBからのセキュリティグループからアクセスするよう修正します

サービス プロトコル in/out ポート番号 CIDR
ALB HTTP inbound 80 全てのアクセス
ALB HTTP outbound 80 全てのアクセス
ECS HTTP outbound 80 ALBのセキュリティグループからのアクセス

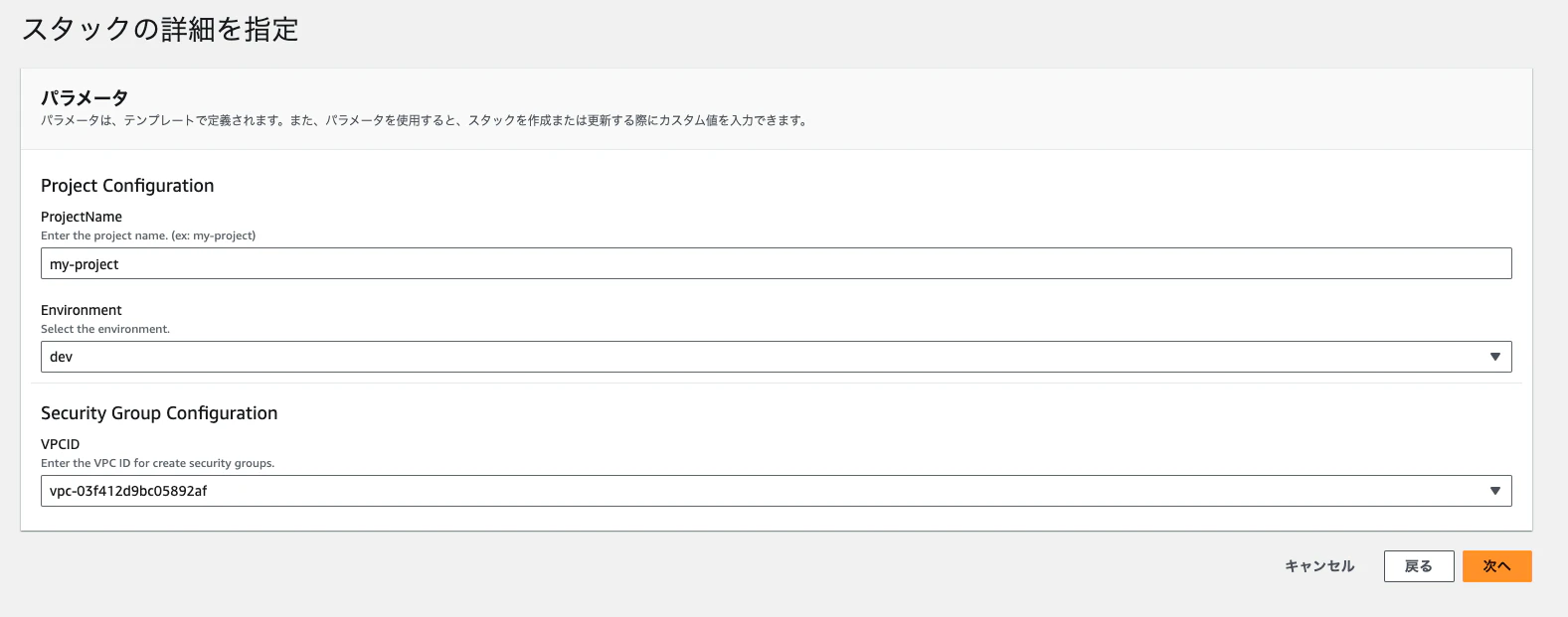

sg.yml
AWSTemplateFormatVersion: 2010-09-09
Description: "Security Group Stack"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    # パラメータの並び順
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
          - Environment
      - Label:
          default: "Security Group Configuration"
        Parameters:
          - VPCID

# -------------------------------------
# Input parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name. (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter."
    Default: my-project
  Environment:
    Description: "Select the environment."
    Type: String
    AllowedValues:
      - dev
      - stg
      - prd
    ConstraintDescription: "Environment must be select."
  VPCID:
    Description: "Enter the VPC ID for create security groups."
    Type: AWS::EC2::VPC::Id

# -------------------------------------
# Resources
# -------------------------------------
Resources:

  # For ALB
  ALBSG:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: !Sub ${ProjectName}-${Environment}-alb-for-fargate-sg
      GroupDescription: "Security Group For ALB"
      VpcId: !Ref VPCID
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-alb-for-fargate-sg
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  ALBSGIngressHTTP:
    Type: AWS::EC2::SecurityGroupIngress
    Properties:
      GroupId: !Ref ALBSG
      IpProtocol: tcp
      FromPort: 80
      ToPort: 80
      CidrIp: 0.0.0.0/0
      Description: "from my alb sg"
  ALBSGEgressHTTP:
    Type: AWS::EC2::SecurityGroupEgress
    Properties:
      GroupId: !Ref ALBSG
      IpProtocol: tcp
      FromPort: 80
      ToPort: 80
      CidrIp: 0.0.0.0/0
      Description: "from my alb sg"
  ALBSGIngressHTTPS1:
    Type: AWS::EC2::SecurityGroupIngress
    Properties:
      GroupId: !Ref ALBSG
      IpProtocol: tcp
      FromPort: 443
      ToPort: 443
      CidrIp: 0.0.0.0/0
      Description: "from my alb sg"

  # For ECS Fargate
  FargateSG:
    Type: AWS::EC2::SecurityGroup
    Properties:
      GroupName: !Sub ${ProjectName}-${Environment}-fargate-sg
      GroupDescription: "Security Group For ECS Fargate"
      VpcId: !Ref VPCID
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-fargate-sg
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment
  FargateSGIngressHTTP:
    Type: AWS::EC2::SecurityGroupIngress
    Properties:
      GroupId: !Ref FargateSG
      IpProtocol: tcp
      FromPort: 80
      ToPort: 80
      SourceSecurityGroupId: !Ref ALBSG
      Description: "from alb health check"
  # For RDS (PostgreSQL)
  RDSForPostgreSQLSG:
    Type: AWS::EC2::SecurityGroup
    Properties:
      VpcId: !Ref VPCID
      GroupName: !Sub ${ProjectName}-${Environment}-rds-sg
      GroupDescription: "Security Group For RDS (PostgreSQL)"
      Tags:
        - Key: Name
          Value: !Sub ${ProjectName}-${Environment}-rds-sg
  RDSForPostgreSQLSGIngress:
    Type: AWS::EC2::SecurityGroupIngress
    Properties:
      GroupId: !Ref RDSForPostgreSQLSG
      IpProtocol: tcp
      FromPort: 5432
      ToPort: 5432
      SourceSecurityGroupId: !GetAtt FargateSG.GroupId
      Description: "from fargate"

# -------------------------------------
# Output parameters
# -------------------------------------
Outputs:
  ALBSG:
    Description: "Security Group For ALB"
    Value: !Ref ALBSG
  FargateSG:
    Description: "Security Group For ECS Fargate with ALB"
    Value: !Ref FargateSG
  RDSForPostgreSQLSG:
    Description: "Security Group For RDS (PostgreSQL)"
    Value: !Ref RDSForPostgreSQLSG

alb.yml

alb.yml
AWSTemplateFormatVersion: 2010-09-09
Description: "ALB Stack"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    # パラメータの並び順
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
          - Environment
      - Label:
          default: "ELB Configuration"
        Parameters:
          - VPCID
          - ALBPublicSubnet1
          - ALBPublicSubnet2
          - ALBSecurityGroupID
          - HealthCheckPath
          - DeletionProtectionEnabled
          - IdleTimeoutSeconds

# -------------------------------------
# Input parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name. (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter."
    Default: my-project
  Environment:
    Description: "Select the environment."
    Type: String
    AllowedValues:
      - dev
      - stg
      - prd
    ConstraintDescription: "Environment must be select."
  VPCID:
    Description: "Select the VPC ID."
    Type: AWS::EC2::VPC::Id
  ALBPublicSubnet1:
    Description: "Enter the Subnet ID for ALB in the selected VPC."
    Type: AWS::EC2::Subnet::Id
  ALBPublicSubnet2:
    Description: "Enter the Subnet ID for ALB in the selected VPC."
    Type: AWS::EC2::Subnet::Id
  ALBSecurityGroupID:
    Description: "Select the Security Group ID for ALB."
    Type: AWS::EC2::SecurityGroup::Id
  HealthCheckPath:
    Description: "Enter the path respond to health checks from ALB."
    Type: String
    Default: /api/health
  # 今回は検証用のためfalse
  DeletionProtectionEnabled:
    Description: "Select whether to enable deletion protection."
    Type: String
    Default: false
    AllowedValues:
      - false
      - true
  # アイドルタイムアウト値
  IdleTimeoutSeconds:
    Description: "Enter the ALB idle timeout seconds. (default: 60)"
    Type: String
    Default: 60

# -------------------------------------
# Resources
# -------------------------------------
Resources:
  # -------------------------------------
  # Target Groups
  # -------------------------------------
  ALBTargetGroup:
    Type: AWS::ElasticLoadBalancingV2::TargetGroup
    DependsOn: InternetALB
    Properties:
      Name: !Sub ${ProjectName}-${Environment}-tg
      TargetType: ip
      Protocol: HTTP
      Port: 80
      VpcId: !Ref VPCID
      HealthCheckProtocol: HTTP
      HealthCheckPath: !Ref HealthCheckPath
      HealthyThresholdCount: 5
      UnhealthyThresholdCount: 2
      HealthCheckTimeoutSeconds: 5
      HealthCheckIntervalSeconds: 30

  # -------------------------------------
  # Elastic Load Balancer
  # -------------------------------------
  InternetALB:
    Type: AWS::ElasticLoadBalancingV2::LoadBalancer
    Properties:
      Type: application
      Name: !Sub ${ProjectName}-${Environment}-alb-fargate
      Scheme: internet-facing
      LoadBalancerAttributes:
        - Key: "deletion_protection.enabled"
          Value: !Ref DeletionProtectionEnabled
        - Key: "idle_timeout.timeout_seconds"
          Value: !Ref IdleTimeoutSeconds
      Subnets:
        - !Ref ALBPublicSubnet1
        - !Ref ALBPublicSubnet2
      SecurityGroups:
        - !Ref ALBSecurityGroupID
      Tags:
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

  # -------------------------------------
  # Listener
  # -------------------------------------
  ALBListenerHTTP:
    Type: AWS::ElasticLoadBalancingV2::Listener
    Properties:
      DefaultActions:
        - Type: forward
          TargetGroupArn: !Ref ALBTargetGroup
      LoadBalancerArn: !Ref InternetALB
      Port: 80
      Protocol: HTTP

# -------------------------------------
# Output parameters
# -------------------------------------
Outputs:
  InternetALBArn:
    Value: !Ref InternetALB
  InternetALBName:
    Value: !GetAtt InternetALB.LoadBalancerName
  ALBTargetGroupArn:
    Value: !Ref ALBTargetGroup
  ALBTargetGroupName:
    Value: !GetAtt ALBTargetGroup.TargetGroupName

ALB本体の設定

ALB本体の設定を行います
HTTP通信を扱うので今回はload_balancer_typeをapplicationに指定します
サブネット内にはpublicサブネットを指定します
セキュリティグループにはsg.ymlで作成したALBのセキュリティグループを指定します

alb.yml
  # -------------------------------------
  # Elastic Load Balancer
  # -------------------------------------
  InternetALB:
    Type: AWS::ElasticLoadBalancingV2::LoadBalancer
    Properties:
      Type: application
      Name: !Sub ${ProjectName}-${Environment}-alb-fargate
      Scheme: internet-facing
      LoadBalancerAttributes:
        - Key: "deletion_protection.enabled"
          Value: !Ref DeletionProtectionEnabled
        - Key: "idle_timeout.timeout_seconds"
          Value: !Ref IdleTimeoutSeconds
      Subnets:
        - !Ref ALBPublicSubnet1
        - !Ref ALBPublicSubnet2
      SecurityGroups:
        - !Ref ALBSecurityGroupID
      Tags:
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

ALBのターゲットグループの設定

ターゲットグループの設定を行います
ターゲットグループはリクエストをフォワード先として指定する対象、つまりロードバランシングする対象のことです
作成する際は

  • ターゲットグループが所属しているVPC
  • ターゲットグループがトラフィックを待ち受けるプロトコル
  • ターゲットグループがトラフィックを待ち受けるポート

を指定することで登録済みのターゲット(今回だとECS)ごとにリクエストをルーティングできます
また、ヘルスチェックは/api/health/へ向けて行います
今回はすでにヘルスチェックのパスを作成した上でECSのコンテナを作成しています

alb.yml
  # -------------------------------------
  # Target Groups
  # -------------------------------------
  ALBTargetGroup:
    Type: AWS::ElasticLoadBalancingV2::TargetGroup
    DependsOn: InternetALB
    Properties:
      Name: !Sub ${ProjectName}-${Environment}-tg
      TargetType: ip
      Protocol: HTTP
      Port: 80
      VpcId: !Ref VPCID
      HealthCheckProtocol: HTTP
      HealthCheckPath: !Ref HealthCheckPath
      HealthyThresholdCount: 5
      UnhealthyThresholdCount: 2
      HealthCheckTimeoutSeconds: 5
      HealthCheckIntervalSeconds: 30

ALBのリスナー

ALBのリスナーの設定を行います
リスナーは外部(インターネット)からアクセスするロードバランサーの入り口のことです
リスナーを作成する際はどのプロトコル・ポートを許可するか設定します
今回はHTTPの80番ポートを指定します

alb.yml
  # -------------------------------------
  # Listener
  # -------------------------------------
  ALBListenerHTTP:
    Type: AWS::ElasticLoadBalancingV2::Listener
    Properties:
      DefaultActions:
        - Type: forward
          TargetGroupArn: !Ref ALBTargetGroup
      LoadBalancerArn: !Ref InternetALB
      Port: 80
      Protocol: HTTP

ecs-fargate.yml

ECS本体の設定にAlbの設定を追加します

ecs-fargate.yml
AWSTemplateFormatVersion: 2010-09-09
Description: "ECS Fargate Service Stack"

# -------------------------------------
# Metadata
# -------------------------------------
Metadata:
  AWS::CloudFormation::Interface:
    # パラメータの並び順
    ParameterGroups:
      - Label:
          default: "Project Configuration"
        Parameters:
          - ProjectName
          - Environment
      - Label:
          default: "ECS Configuration"
        Parameters:
          - ECSClusterName
          - ECSPublicSubnet1
          - ECSPublicSubnet2
          - ECSSecurityGroupID
          - ECSTaskCPUUnit
          - ECSTaskMemory
          - ECSTaskDesiredCount
          - ECSTaskRoleArn
          - ECSTaskExecutionRoleArn
          - ApplicationRootPath
          - ALBTargetGroupArn
      - Label:
          default: "ECR Configuration"
        Parameters:
          - ECRAppContainerImageURI
          - ECRWebContainerImageURI
      - Label:
          default: "CloudWatch Logs Configuration"
        Parameters:
          - AppLogGroupName
          - WebLogGroupName

# -------------------------------------
# Input parameters
# -------------------------------------
Parameters:
  ProjectName:
    Description: "Enter the project name. (ex: my-project)"
    Type: String
    MinLength: 1
    ConstraintDescription: "ProjectName must be enter."
    Default: my-project
  Environment:
    Description: "Select the environment."
    Type: String
    AllowedValues:
      - dev
      - stg
      - prd
    Default: dev
  ECSClusterName:
    Description: "Enter the ECS cluster name. (ex: my-project-dev-cluster)"
    Type: String
    Default: my-project-dev-cluster
  ECSPublicSubnet1:
    Description: "Enter the Subnet ID for ECS in the selected VPC."
    Type: AWS::EC2::Subnet::Id
  ECSPublicSubnet2:
    Description: "Enter the Subnet ID for ECS in the selected VPC."
    Type: AWS::EC2::Subnet::Id
  ECSSecurityGroupID:
    Description: "Select the Security Group ID for ECS."
    Type: AWS::EC2::SecurityGroup::Id
  ECSTaskCPUUnit:
    Description: "Enter a numeric CPU size used by ECS Tasks."
    Type: Number
    Default: 512
    AllowedValues:
      - 256
      - 512
      - 1024
      - 2048
      - 4096
  ECSTaskMemory:
    Description: "Enter a numeric memory size used by ECS Tasks."
    Type: Number
    Default: 1024
    AllowedValues:
      - 256
      - 512
      - 1024
      - 2048
      - 4096
  # ECS サービス上で常時起動するタスク数
  ECSTaskDesiredCount:
    Description: "Enter a number of tasks to always keep running."
    Type: Number
    Default: 1
  ECSTaskRoleArn:
    Description: "Specify the IAM Role ARN required to run the application. (ex: arn:aws:iam::XXXXXXXXXXXX:role/ECSTaskRole)"
    Type: String
  ECSTaskExecutionRoleArn:
    Description: "Specify the IAM Role ARN required to execute the task. (ex: arn:aws:iam::XXXXXXXXXXXX:role/ECSTaskExecutionRole)"
    Type: String
  EntrypointPath:
    Description: "Enter the path of the entrypoint to be executed at ECS task startup. (default: /usr/local/bin/entrypoint.prd.sh)"
    Type: String
    Default: /usr/local/bin/entrypoint.prd.sh
  ApplicationRootPath:
    Description: "Enter the application root path as defined in the Dockerfile. (ex: /code)"
    Type: String
    Default: /code
  ALBTargetGroupArn:
    Description: "Enter the ALB Target Group ARN."
    Type: String
  # ECR リポジトリにプッシュしているアプリケーションまたはウェブサーバのイメージタグを指定
  # CI/CD で Image URI が置き換えられている場合は Tag （コミットハッシュ） を揃えること
  ECRAppContainerImageURI:
    Description: "Enter the ECR image URI for application."
    Type: String
  ECRWebContainerImageURI:
    Description: "Enter the ECR image URI for webserver."
    Type: String
  AppLogGroupName:
    Description: "Enter the CloudWatch Logs log-group name for application. (ex: /ecs/project/dev/back/django)"
    Type: String
    Default: /ecs/my-project/dev/back/django
  WebLogGroupName:
    Description: "Enter the CloudWatch Logs log-group name for webserver. (ex: /ecs/project/dev/back/nginx)"
    Type: String
    Default: /ecs/my-project/dev/back/nginx

# -------------------------------------
# Resources
# -------------------------------------
Resources:
  # -------------------------------------
  # ECS Fargate
  # -------------------------------------
  # ECS Task Definition
  ECSTaskDefinition:
    Type: AWS::ECS::TaskDefinition
    Properties:
      # タスク定義名
      Family: !Sub ${ProjectName}-${Environment}-back-taskdef
      # タスク定義で起動できる ECS タイプの指定
      RequiresCompatibilities:
        - FARGATE
      # Fargate の場合は `awsvpc` で固定
      NetworkMode: awsvpc
      TaskRoleArn: !Ref ECSTaskRoleArn
      ExecutionRoleArn: !Ref ECSTaskExecutionRoleArn
      # タスクが使用する CPU と Memory を指定
      Cpu: !Ref ECSTaskCPUUnit
      Memory: !Ref ECSTaskMemory
      # タスク内のコンテナ定義
      ContainerDefinitions:
        # Application
        - Name: app
          Image: !Ref ECRAppContainerImageURI
          PortMappings:
            - ContainerPort: 8000
              HostPort: 8000
              Protocol: tcp
          EntryPoint:
            - !Ref EntrypointPath
          # 環境変数
          Secrets:
            # -------------------------------------
            # Specific Environment
            # -------------------------------------
            - Name: POSTGRES_NAME
              ValueFrom: !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${ProjectName}/${Environment}/POSTGRES_NAME
            - Name: POSTGRES_USER
              ValueFrom: !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${ProjectName}/${Environment}/POSTGRES_USER
            - Name: POSTGRES_PASSWORD
              ValueFrom: !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${ProjectName}/${Environment}/POSTGRES_PASSWORD
            - Name: POSTGRES_PORT
              ValueFrom: !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${ProjectName}/${Environment}/POSTGRES_PORT
            - Name: POSTGRES_HOST
              ValueFrom: !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${ProjectName}/${Environment}/POSTGRES_HOST
            - Name: SECRET_KEY
              ValueFrom: !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${ProjectName}/${Environment}/SECRET_KEY
            - Name: ALLOWED_HOSTS
              ValueFrom: !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${ProjectName}/${Environment}/ALLOWED_HOSTS
            - Name: DJANGO_SETTINGS_MODULE
              ValueFrom: !Sub arn:aws:ssm:${AWS::Region}:${AWS::AccountId}:parameter/${ProjectName}/${Environment}/DJANGO_SETTINGS_MODULE
          MountPoints:
            - SourceVolume: tmp-data
              ContainerPath: !Sub ${ApplicationRootPath}/tmp
          LogConfiguration:
            LogDriver: awslogs
            Options:
              awslogs-region: !Ref AWS::Region
              awslogs-group: !Ref AppLogGroupName
              awslogs-stream-prefix: !Sub ${ProjectName}
          Essential: true
        # Web Server
        - Name: web
          Image: !Ref ECRWebContainerImageURI
          PortMappings:
            - ContainerPort: 80
              HostPort: 80
              Protocol: tcp
          DependsOn:
            - ContainerName: app
              Condition: START
          MountPoints:
            - SourceVolume: tmp-data
              ContainerPath: !Sub ${ApplicationRootPath}/tmp
          LogConfiguration:
            LogDriver: awslogs
            Options:
              awslogs-region: !Ref AWS::Region
              awslogs-group: !Ref WebLogGroupName
              awslogs-stream-prefix: !Sub ${ProjectName}
          Essential: true
      Volumes:
        - Name: tmp-data
      Tags:
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

  # ECS Service
  ECSService:
    Type: AWS::ECS::Service
    Properties:
      LaunchType: FARGATE
      TaskDefinition: !Ref ECSTaskDefinition
      Cluster: !Ref ECSClusterName
      ServiceName: !Sub ${ProjectName}-${Environment}-back-service
      SchedulingStrategy: REPLICA
      DesiredCount: !Ref ECSTaskDesiredCount
      LoadBalancers:
        - TargetGroupArn: !Ref ALBTargetGroupArn
          ContainerPort: 80
          ContainerName: web
      NetworkConfiguration:
        AwsvpcConfiguration:
          # PublicSubnet を利用する場合は ENABLED にする
          # PrivateSubnet を利用する (PrivateLink or NAT 経由で ECR や SSM パラメータストアにアクセスさせたい) 場合は DISABLED にする
          AssignPublicIp: ENABLED
          SecurityGroups:
            - !Ref ECSSecurityGroupID
          Subnets:
            - !Ref ECSPublicSubnet1
            - !Ref ECSPublicSubnet2
      # ECS Exec の有効化 (Fargate に SSM Session Manager 経由で SSH 接続出来るようにする)
      EnableExecuteCommand: true
      Tags:
        - Key: ProjectName
          Value: !Ref ProjectName
        - Key: Environment
          Value: !Ref Environment

# -------------------------------------
# Output parameters
# -------------------------------------
Outputs:
  ECSTaskDefinitionName:
    Value: !Ref ECSTaskDefinition
  ECSServiceArn:
    Value: !Ref ECSService

実際に作成してみよう！

セキュリティグループを作成しよう！

セキュリティグループを作成します
スクリーンショット 2023-09-23 20.54.07.png

下記のように作成されたら成功です

スクリーンショット 2023-09-23 20.53.27.png

スクリーンショット 2023-09-23 20.51.26.png

Albを作成しよう！

Albを作成します
スクリーンショット 2023-09-23 20.54.51.png

下記のように作成されたら成功です

スクリーンショット 2023-09-23 20.57.49.png
スクリーンショット 2023-09-23 20.58.02.png

ECSを更新しよう！

ECSを更新します

スクリーンショット 2023-09-23 20.59.30.png

下記のように起動できていたら成功です

スクリーンショット 2023-09-23 12.30.30.png

ヘルスチェックを確認しよう

Albのtarget groupからヘルスチェックが成功したことを確認します

スクリーンショット 2023-09-23 21.00.56.png

参考

2
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
2
1

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
