Juniper vSRXでOracle CloudへIPsec VPN接続してみてみた

Last updated at Posted at 2019-07-07

Juniper vSRX はセキュア インターネット ゲートウェイ製品です。
ネットワーク管理者は、高度なルーティング機能を備えた業界トップクラスの性能を誇るvSRX 仮想ファイアウォールを使用して、脅威に先んじ、ワークロードを保護しながら、高度な接続と IPsec および VPN 終端サービスを提供できます。
ということで、問い合わせも多いJuniper SRX と同等のIPSec接続設定をvSRX を用いてOracle Cloud Infrastructure(OCI)とのIPSec接続の設定してみてみます。

■構成

vSRXの導入は次の記事を参考とし、本手順はIPSec接続から行います。
Juniper vSRX Virtual FirewallをOracle Cloudにインストールしてみてみた
#■OCI IPSec設定

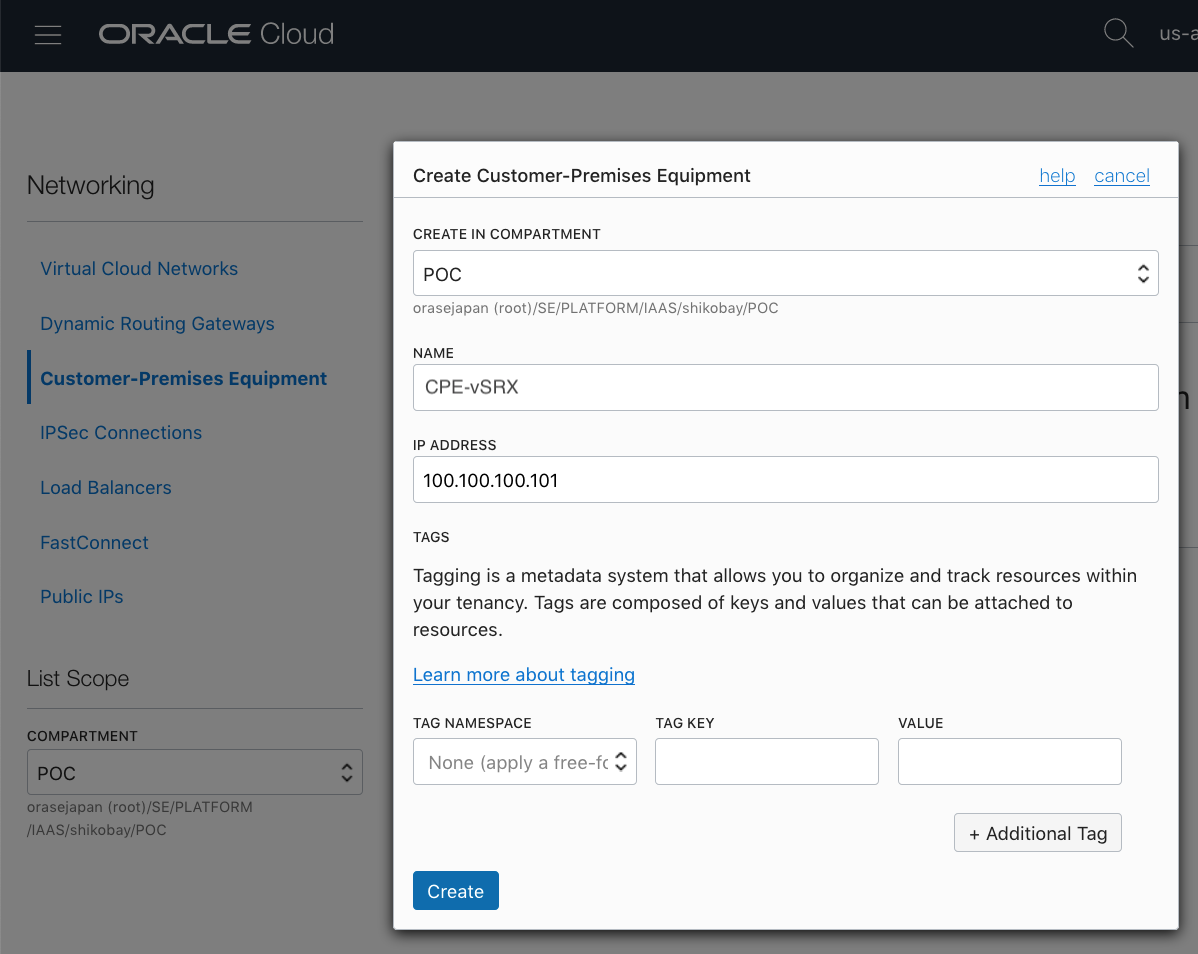

##●Customer-Premises Equipment作成
OCIの[Networking] > [ICustomer-Premises Equipment] 画面から[Create Customer-Premises Equipmentn]をクリックし以下内容を設定

・NAME:適当な名前を設定
・DRG：IPsec接続させる作成済みのDRGを設定
・STATIC ROUTE CIDER:対向側(FortiGate)のCIDERを設定　*後から追加変更削除可能です
・CPE IKE IDENTIFIER : FortiGateのWAN側Private IPを設定
01_CPE01.png [Create Premises Equipment]をクリックして作成

##●IPSec Connection作成
①OCIの[Networking] > [IPsec Connetion] 画面から[Create IPsec Connection]をクリックし以下内容を設定
[Create IPsec Connection]をクリックして作成

②作成したIPsec ConnetionのVPN IP Addressを確認

③作成したIPsec ConnetionのShared Secretを確認
・Tunnel1(200.200.200.201)のShared Secret

・Tunnel２(200.200.200.202)のShared Secret

##●Security List設定
IPSecに必要な 4500と500のUDP Portと対向の10.0.0.0/16と通信できるようにSecurity Listを設定

#■vSRX IPSec設定
以下の設定コマンドを入力し、インターフェイス及びゾーンの作成と、スタティックルート(静的ルート)の設定を行います。

●管理者モードへ移行

root@% cli
root> configure exclusive
    warning: uncommitted changes will be discarded on exit
    Entering configuration mode

[edit]
root#

##●IPsec IKE Phase1設定
以下の設定コマンドを入力し、IKE Phase1の設定を行います。

set security ike proposal oracle-ike-proposal authentication-method pre-shared-keys
set security ike proposal oracle-ike-proposal authentication-algorithm sha-384
set security ike proposal oracle-ike-proposal encryption-algorithm aes-256-cbc
set security ike proposal oracle-ike-proposal lifetime-seconds 28800
set security ike proposal oracle-ike-proposal dh-group group5

set security ike policy ike_pol_oracle-vpn01 mode main
set security ike policy ike_pol_oracle-vpn01 proposals oracle-ike-proposal
set security ike policy ike_pol_oracle-vpn01 pre-shared-key ascii-text vSRXSharedSercret01
set security ike gateway gw_oracle01  ike-policy ike_pol_oracle-vpn01
set security ike gateway gw_oracle01 dead-peer-detection
set security ike gateway gw_oracle01 external-interface ge-0/0/0.0
set security ike gateway gw_oracle01  address 200.200.200.201

set security ike policy ike_pol_oracle-vpn02 mode main
set security ike policy ike_pol_oracle-vpn02 proposals oracle-ike-proposal
set security ike policy ike_pol_oracle-vpn02 pre-shared-key ascii-text vSRXSharedSercret02
set security ike gateway gw_oracle02  ike-policy ike_pol_oracle-vpn02
set security ike gateway gw_oracle02 dead-peer-detection
set security ike gateway gw_oracle02 external-interface ge-0/0/0.0
set security ike gateway gw_oracle02  address 200.200.200.202

##●IPsec IKE Phase2設定
以下の設定コマンドを入力し、IKE Phase2の設定を行います。

set security ipsec proposal vpn-monitor-options
set security ipsec proposal oracle-ipsec-proposal protocol esp
set security ipsec proposal oracle-ipsec-proposal authentication-algorithm hmac-sha1-96
set security ipsec proposal oracle-ipsec-proposal encryption-algorithm aes-256-cbc
set security ipsec proposal oracle-ipsec-proposal lifetime-seconds 3600
set security ipsec policy ipsec-pol-ipsec_pol_oracle-vpn perfect-forward-secrecy keys group5
set security ipsec policy ipsec-pol-ipsec_pol_oracle-vpn proposals oracle-ipsec-proposal

set security ipsec vpn oracle-vpn01 bind-interface st0.1
set security ipsec vpn oracle-vpn01 vpn-monitor
set security ipsec vpn oracle-vpn01 ike gateway gw_oracle01
set security ipsec vpn oracle-vpn01 ike ipsec-policy ipsec-pol-ipsec_pol_oracle-vpn
set security ipsec vpn oracle-vpn01 establish-tunnels immediately

set security ipsec vpn oracle-vpn02 bind-interface st0.2
set security ipsec vpn oracle-vpn02 vpn-monitor
set security ipsec vpn oracle-vpn02 ike gateway gw_oracle02
set security ipsec vpn oracle-vpn02 ike ipsec-policy ipsec-pol-ipsec_pol_oracle-vpn
set security ipsec vpn oracle-vpn02 establish-tunnels immediately

##●Zone インターフェイス設定
・LAN側インターフェイス Zone設定

set security zones security-zone trust interfaces ge-0/0/1.0 host-inbound-traffic system-services ssh
set security zones security-zone trust interfaces ge-0/0/1.0 host-inbound-traffic system-services ping

・WAN側インターフェイス Zone設定

set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services ping
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services ssh
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services ike
set security zones security-zone untrust interfaces ge-0/0/0.0 host-inbound-traffic system-services http

・VPNインターフェイス Zone設定

set security zones security-zone vpn interfaces st0.1
set security zones security-zone vpn interfaces st0.2

##●Policy設定
・trustゾーンとvpnゾーン間の通信を許可

set security policies from-zone trust to-zone vpn policy permit-all match source-address any
set security policies from-zone trust to-zone vpn policy permit-all match destination-address any
set security policies from-zone trust to-zone vpn policy permit-all match application any
set security policies from-zone trust to-zone vpn policy permit-all then permit
set security policies from-zone vpn to-zone trust policy permit-all match source-address any
set security policies from-zone vpn to-zone trust policy permit-all match destination-address any
set security policies from-zone vpn to-zone trust policy permit-all match application any
set security policies from-zone vpn to-zone trust policy permit-all then permit

・trustゾーンとuntrustゾーン間の通信を許可

set security policies from-zone trust to-zone trust policy default-permit match source-address any
set security policies from-zone trust to-zone trust policy default-permit match destination-address any
set security policies from-zone trust to-zone trust policy default-permit match application any
set security policies from-zone trust to-zone trust policy default-permit then permit
set security policies from-zone trust to-zone untrust policy default-permit match source-address any
set security policies from-zone trust to-zone untrust policy default-permit match destination-address any set security policies from-zone trust to-zone untrust policy default-permit match application any
set security policies from-zone trust to-zone untrust policy default-permit then permit
set security zones security-zone trust tcp-rst

・untrustゾーンからtrustゾーンへの通信はuntrust interfaces ge-0/0/0.0に個別設定したプロトコルのみ許可

set security policies from-zone untrust to-zone trust policy default-deny match source-address any
set security policies from-zone untrust to-zone trust policy default-deny match destination-address any
set security policies from-zone untrust to-zone trust policy default-deny match application any
set security policies from-zone untrust to-zone trust policy default-deny then deny
set security zones security-zone trust tcp-rst

##●設定保存

[edit]
root# commit
    commit complete

#■IPSec接続確認

以下のコマンドを入力して、IKE SA, IPsec SAが正常に確立していることを確認

root> show security ike security-associations
    Index   State  Initiator cookie  Responder cookie  Mode           Remote Address
    39237   UP       86c315a81cc3      d8e9489d8d90    Main           200.200.200.201
    39237   UP       f56d3577d51f      a4e83b20ea89    Main           200.200.200.202

##●SA が確立されていることを確認
接続済みであればパケットがカウントされていきます

root> show security ipsec statistics
    ESP Statistics:
    Encrypted bytes:           258704
    Decrypted bytes:            95284
    Encrypted packets:           1702
    Decrypted packets:           1700
    ・・・

root> show security ipsec statistics
    ESP Statistics:
    Encrypted bytes:           264176
    Decrypted bytes:            97300
    Encrypted packets:           1738
    Decrypted packets:           1736
    ・・・

.IPSec接続情報を出力して確認

root> show security ipsec security-associations detail

    ID: 131073 Virtual-system: root, VPN Name: oracle-vpn01
    Local Gateway: 10.0.2.201, Remote Gateway: 200.200.200.201
    Local Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
    Remote Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
    Version: IKEv1
    DF-bit: clear, Copy-Outer-DSCP Disabled, Bind-interface: st0.1
    Port: 4500, Nego#: 91, Fail#: 0, Def-Del#: 0 Flag: 0x600a29
    Tunnel events:
        Sat Jul 06 2019 23:57:42 +0900: IPSec SA negotiation successfully completed (1 times)
        Sat Jul 06 2019 23:57:32 +0900: VPN monitoring detected tunnel as down. Existing IPSec SAs cleared (1 times)
        Sat Jul 06 2019 23:55:42 +0900: IPSec SA negotiation successfully completed (1 times)
        Sat Jul 06 2019 23:55:32 +0900: VPN monitoring detected tunnel as down. Existing IPSec SAs cleared (1 times)
        Sat Jul 06 2019 23:53:42 +0900: IPSec SA negotiation successfully completed (1 times)
        Sat Jul 06 2019 23:53:32 +0900: VPN monitoring detected tunnel as down. Existing IPSec SAs cleared (1 times)
        Sat Jul 06 2019 23:51:42 +0900: IPSec SA negotiation successfully completed (1 times)
        Sat Jul 06 2019 23:51:32 +0900: VPN monitoring detected tunnel as down. Existing IPSec SAs cleared (1 times)
        Sat Jul 06 2019 20:57:33 +0900: IKE SA negotiation successfully completed (35 times)
    Direction: inbound, SPI: a50d0109, AUX-SPI: 0
                                , VPN Monitoring: UP
        Hard lifetime: Expires in 3514 seconds
        Lifesize Remaining:  Unlimited
        Soft lifetime: Expires in 2905 seconds
        Mode: Tunnel(10 10), Type: dynamic, State: installed
        Protocol: ESP, Authentication: hmac-sha1-96, Encryption: aes-cbc (256 bits)
        Anti-replay service: counter-based enabled, Replay window size: 64
    Direction: outbound, SPI: 6e79af70, AUX-SPI: 0
                                , VPN Monitoring: UP
        Hard lifetime: Expires in 3514 seconds
        Lifesize Remaining:  Unlimited
        Soft lifetime: Expires in 2905 seconds
        Mode: Tunnel(10 10), Type: dynamic, State: installed
        Protocol: ESP, Authentication: hmac-sha1-96, Encryption: aes-cbc (256 bits)
        Anti-replay service: counter-based enabled, Replay window size: 64

    ID: 131074 Virtual-system: root, VPN Name: oracle-vpn02
    Local Gateway: 10.0.2.201, Remote Gateway: 200.200.200.202
    Local Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
    Remote Identity: ipv4_subnet(any:0,[0..7]=0.0.0.0/0)
    Version: IKEv1
    DF-bit: clear, Copy-Outer-DSCP Disabled, Bind-interface: st0.2
    Port: 500, Nego#: 86, Fail#: 0, Def-Del#: 0 Flag: 0x600a29
    Tunnel events:
        Sat Jul 06 2019 23:58:22 +0900: IPSec SA negotiation successfully completed (1 times)
        Sat Jul 06 2019 23:58:12 +0900: VPN monitoring detected tunnel as down. Existing IPSec SAs cleared (1 times)
        Sat Jul 06 2019 23:56:32 +0900: IPSec SA negotiation successfully completed (1 times)
        Sat Jul 06 2019 23:56:22 +0900: VPN monitoring detected tunnel as down. Existing IPSec SAs cleared (1 times)
        Sat Jul 06 2019 23:54:32 +0900: IPSec SA negotiation successfully completed (1 times)
        Sat Jul 06 2019 23:54:22 +0900: VPN monitoring detected tunnel as down. Existing IPSec SAs cleared (1 times)
        Sat Jul 06 2019 23:52:32 +0900: IPSec SA negotiation successfully completed (1 times)
        Sat Jul 06 2019 23:52:22 +0900: VPN monitoring detected tunnel as down. Existing IPSec SAs cleared (1 times)
        Sat Jul 06 2019 21:09:13 +0900: IKE SA negotiation successfully completed (1 times)
    Direction: inbound, SPI: 96feb2a0, AUX-SPI: 0
                                , VPN Monitoring: UP
        Hard lifetime: Expires in 3554 seconds
        Lifesize Remaining:  Unlimited
        Soft lifetime: Expires in 2911 seconds
        Mode: Tunnel(10 10), Type: dynamic, State: installed
        Protocol: ESP, Authentication: hmac-sha1-96, Encryption: aes-cbc (256 bits)
        Anti-replay service: counter-based enabled, Replay window size: 64
    Direction: outbound, SPI: 85b0170f, AUX-SPI: 0
                                , VPN Monitoring: UP
        Hard lifetime: Expires in 3554 seconds
        Lifesize Remaining:  Unlimited
        Soft lifetime: Expires in 2911 seconds
        Mode: Tunnel(10 10), Type: dynamic, State: installed
        Protocol: ESP, Authentication: hmac-sha1-96, Encryption: aes-cbc (256 bits)
        Anti-replay service: counter-based enabled, Replay window size: 64

##●DRG IPsec Connection Status UP確認
IPsec ConnectionのStatusがUPしていることを確認

#■接続確認
IPSec通信が確立できていることを確認するためにそれぞれのNetwork上にあるインスタン同士が通信できることを確認します

##●ssh接続確認

・Tokyo --> Phoenix間インスタンス ssh接続確認

[opc@tokyo-inst01 ~]$ ssh -i <ssh鍵> opc@172.24.0.2 hostname
    phoenix-inst1

・Phoenix --> Tokyo間インスタンス ssh接続確認

[opc@phoenix-inst1 ~]$ ssh -i <ssh鍵> opc@10.0.10.2 hostname
    tokyo-inst01

#■VPN Connect Metric確認
OCIコンソソールで各トンネルのIPSec接続のメトリックでStatus,Error,Sent/ReceivedのMonitoring情報を確認できます


#■参考
・【SRX】JUNOS ハンズオントレーニング資料　SRXシリーズ サービス ゲートウェイ コース
・vSRX Deployment Guide for KVM
・vSRX Documentation

1
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
1
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
