Non-RFC1918 NetworkでIPSec + BGP接続してみてみた

Last updated at Posted at 2019-07-12

■ 目的

稀に、Private Network に Non-RFC1918 アドレス(Illegal Public Address)を利用したいということがあるかもわかりません。
その時に利用される IPは[1.1.1.1]など、いわゆる非正規(イリーガル)グローバルアドレス=公式には他社が登録しているけど、Internet上に広告していないのでこっそり利用可能ですが、
今後、Oracle Cloud Infrastructure(OCI)のPublic IPのサービスや他社Cloud(Office365、salesforce.com‎等)等の利用の際に、正規で利用されている事業者のアドレスと重複する可能性があります。
そのため、Non-RFC1918(非正規 グローバルアドレス,Illegal Public Address)は、自己責任で実装となります。

ということで、オンプレミスとOCIのVCN それぞれNon-RFC1918 CIDRを使用した構成でIPSec接続をおこない、使用するIPは例でよくつかわれる "1.2.3.4" と 有名どころなPublic IP "8.8.8.8" をインスタンスに設定して双方向で通信接続できるかやってみてみます。

■ 構成と構築

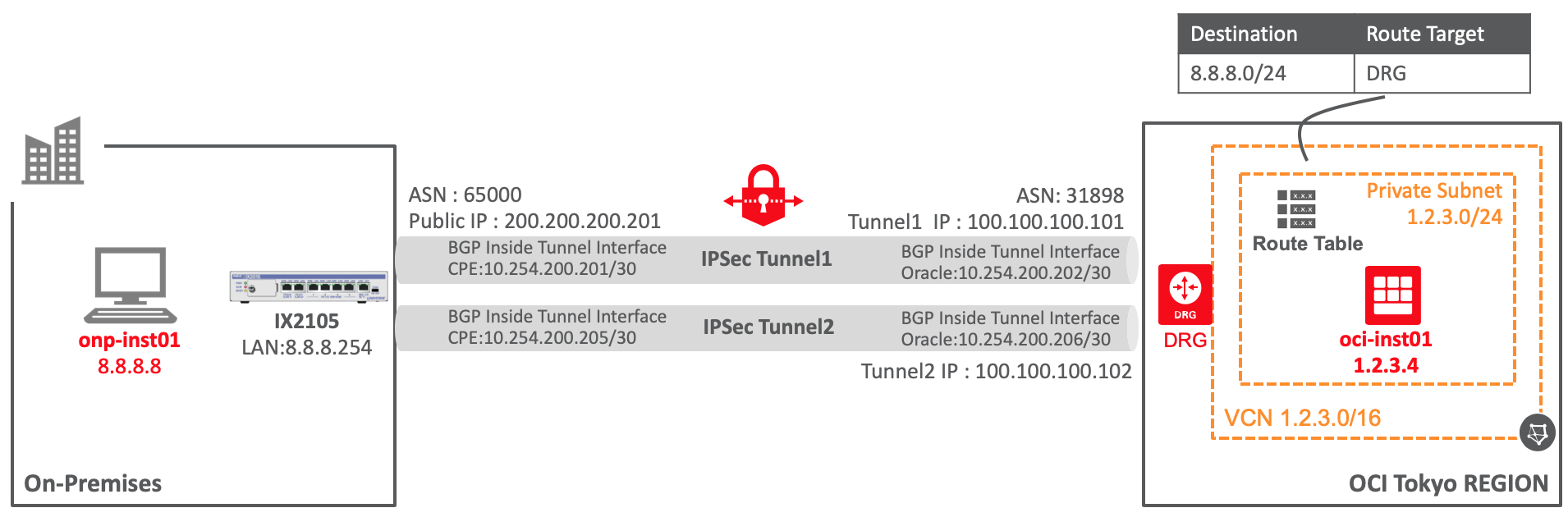

NW構成.png 手順はいつものとおり図のように構築します 使用ルーターは、NEC UNIVERGE IX2105を使用します

■ Router設定

以下のようにNEC UNIVERGE IX2105を設定

Router# configure
    Enter configuration commands, one per line. End with CNTL/Z.
    Router(config)# show config
    Using 3938 out of 524288 bytes

    ! NEC Portable Internetwork Core Operating System Software
    ! IX Series IX2105 (magellan-sec) Software, Version 9.2.20, RELEASE SOFTWARE
    ! Compiled Aug 19-Wed-2015 16:25:46 JST #2
    ! Last updated Jul 12-Fri-2019 08:47:16 JST
    !
    !
    hostname Router
    timezone +09 00
    !
    !
    !
    username admin password hash 6B1R4JK2 administrator
    !
    !
    !
    !
    !
    !
    logging buffered 131072
    logging subsystem all warn
    logging timestamp datetime
    !
    !
    ip ufs-cache enable
    ip multipath per-flow
    ip route default GigaEthernet0.1
    ip dhcp enable
    ip prefix-list as-path-in 10 permit any
    ip prefix-list as-path-out 10 permit any
    ip access-list sec-list permit ip src any dest any
    ip access-list web-http-acl permit ip src any dest 8.8.8.212/32
    ip access-list web_console permit ip src any dest 8.8.8.212/32
    !
    !
    !
    ike nat-traversal
    !
    ike proposal ike-prop encryption aes-256 hash sha2-256 group 1536-bit
    !
    ike policy ike-pol1 peer 100.100.100.101 key IPSecKey01 ike-prop
    !
    ike policy ike-pol2 peer 100.100.100.102 key IPSecKey02 ike-prop
    !
    ipsec autokey-proposal ipsec-prop esp-aes-256 esp-sha lifetime time 3600
    !
    ipsec autokey-map ipsec-map1 sec-list peer 100.100.100.101 ipsec-prop pfs 1536-bit
    !
    ipsec autokey-map ipsec-map2 sec-list peer 100.100.100.102 ipsec-prop pfs 1536-bit
    !
    !
    !
    !
    !
    !
    !
    !
    !
    proxy-dns ip enable
    proxy-dns interface GigaEthernet0.1 priority 254
    !
    telnet-server ip enable
    !
    !
    http-server username admin
    http-server ip access-list web-http-acl
    http-server ip enable
    !
    web-console interface lan1 GigaEthernet1.0
    !
    !
    !
    vrrp enable
    !
    !
    !
    watch-group watch_tunnel0 10
    event 20 ip unreach-host 8.8.8.212 Tunnel0.0 source GigaEthernet1.0
    action 20 ipsec clear-sa Tunnel0.0
    !
    network-monitor watch_tunnel0 enable
    !
    watch-group watch_tunnel1 10
    event 20 ip unreach-host 8.8.8.212 Tunnel1.0 source GigaEthernet1.0
    action 20 ipsec clear-sa Tunnel1.0
    !
    network-monitor watch_tunnel1 enable
    !
    !
    route-map bgp permit 65000
    !
    route-map rmap-in permit 10
    match ip address prefix-list as-path-in
    set as-path prepend 31898 31898
    !
    route-map rmap-out permit 10
    match ip address prefix-list as-path-out
    set as-path prepend 65000 65000
    !
    ppp profile web-ppp-gigaethernet0.1
    authentication myname frt645gf@ntt.ne.jp
    authentication password frt645gf@ntt.ne.jp passwd
    !
    ip dhcp profile web-dhcp-gigaethernet1.0
    dns-server 8.8.8.212
    !

    router bgp 65000
    neighbor 10.254.200.202 remote-as 31898
    neighbor 10.254.200.202 timers 10 30
    neighbor 10.254.200.206 remote-as 31898
    neighbor 10.254.200.206 timers 10 30
    address-family ipv4 unicast
        neighbor 10.254.200.206 route-map rmap-in in
        neighbor 10.254.200.206 route-map rmap-out out
        network 8.8.8.0/24
    !
    device GigaEthernet0
    !
    device GigaEthernet1
    !
    interface GigaEthernet0.0
    no ip address
    shutdown
    !
    interface GigaEthernet1.0
    description LAN1
    ip address 8.8.8.212/24
    ip dhcp binding web-dhcp-gigaethernet1.0
    vrrp 254 ip 8.8.8.254
    vrrp 254 priority 95
    vrrp 254 ip virtual-host
    no shutdown
    !
    interface GigaEthernet0.1
    description WAN1
    encapsulation pppoe
    auto-connect
    ppp binding web-ppp-gigaethernet0.1
    ip address ipcp
    ip tcp adjust-mss auto
    ip napt enable
    no shutdown
    !
    interface Loopback0.0
    no ip address
    !
    interface Null0.0
    no ip address
    !
    interface Tunnel0.0
    tunnel mode ipsec
    ip address 10.254.200.201/30
    ip tcp adjust-mss auto
    ipsec policy tunnel ipsec-map1 df-bit ignore pre-fragment out
    no shutdown
    !
    interface Tunnel1.0
    tunnel mode ipsec
    ip address 10.254.200.205/30
    ip tcp adjust-mss auto
    ipsec policy tunnel ipsec-map2 df-bit ignore pre-fragment out
    no shutdown

■ OCI IPSec 接続確認


■ BGP設定確認

● Route情報確認

Router(config)# show ip route
    IP Routing Table - 8 entries, 4 hidden, 2036 frees
    Entries: 5 Connected, 1 Static, 0 RIP, 0 OSPF, 2 BGP
    Codes: C - Connected, S - Static, R - RIP, O - OSPF, IA - OSPF inter area
        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
        E1 - OSPF external type 1, E2 - OSPF external type 2, B - BGP
        * - Candidate default, s - Summary
    Timers: Age
    S*   0.0.0.0/0 [1/1] is directly connected, GigaEthernet0.1, 16:34:07
        1.0.0.0/8 is subnetted, 2 subnets
    B      1.2.3.0/24 [20/0] via 10.254.200.202, Tunnel0.0, 0:28:28
    B      1.2.10.0/24 [20/0] via 10.254.200.202, Tunnel0.0, 0:28:28
        8.0.0.0/8 is subnetted, 2 subnets
    C      8.8.8.0/24 [0/1] is directly connected, GigaEthernet1.0, 0:29:16
    C      8.8.8.254/32 [0/1] is directly connected, Virtual254, 0:29:12
        10.254.0.0/16 is subnetted, 2 subnets
    C      10.254.200.202/30 [0/1] is directly connected, Tunnel0.0, 16:20:22
    C      10.254.200.206/30 [0/1] is directly connected, Tunnel1.0, 16:20:22

● BGP情報確認

・すべてのBGP接続のステータスを確認

Router(config)# show ip bgp summary
    BGP router ID 10.254.200.205, local AS number 65000
    4 BGP AS-PATH entries

    Neighbor         V    AS    MsgRcvd MsgSent Up/DownTime   State
    10.254.200.202 4    31898 6381    5836    0:23:39       ESTABLISHED
    10.254.200.206 4    31898 6421    5839    0:23:39       ESTABLISHED

    Total number of neighbors 2

・ BGP情報確認

Router(config)# show ip bgp
    BGP table version is 28, local router ID is 10.254.200.205
    Local AS number 65000
    Status codes: s - suppressed, * - valid, h - history
                > - best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete

    Network            Next Hop            Metric     LocPrf  Path
    *  1.2.3.0/24         10.254.200.206                        31898 31898 31898 i
    *>                    10.254.200.202                        31898 i
    *  1.2.10.0/24        10.254.200.206                        31898 31898 31898 i
    *>                    10.254.200.202                        31898 i
    *> 8.8.8.0/24         0.0.0.0                  1             i
    10.254.200.0/24   0.0.0.0                  0             i

    Total number of prefixes 6

・ NeighborのBGPおよび TCP 接続に関する情報を確認

Router(config)# show ip bgp neighbors 10.254.200.202 advertised-routes
    BGP table version is 28, local router ID is 10.254.200.205
    Local AS number 65000
    Status codes: s - suppressed, * - valid, h - history
                > - best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete

    Network            Next Hop            Metric     LocPrf  Path
    *> 8.8.8.0/24         10.254.200.201          1             i

    Total number of prefixes 1
Router(config)# show ip bgp neighbors 10.254.200.202 received-routes
    BGP table version is 28, local router ID is 10.254.200.205
    Local AS number 65000
    Status codes: s - suppressed, * - valid, h - history
                > - best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete

    Network            Next Hop            Metric     LocPrf  Path
    *> 1.2.3.0/24         10.254.200.202                        31898 i
    *> 1.2.10.0/24        10.254.200.202                        31898 i

    Total number of prefixes 2
Router(config)# show ip bgp neighbors 10.254.200.206 advertised-routes
    BGP table version is 28, local router ID is 10.254.200.205
    Local AS number 65000
    Status codes: s - suppressed, * - valid, h - history
                > - best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete

    Network            Next Hop            Metric     LocPrf  Path
    *> 8.8.8.0/24         10.254.200.205          1             65000 65000 i

    Total number of prefixes 1
Router(config)# show ip bgp neighbors 10.254.200.206 received-routes
    BGP table version is 28, local router ID is 10.254.200.205
    Local AS number 65000
    Status codes: s - suppressed, * - valid, h - history
                > - best, i - internal
    Origin codes: i - IGP, e - EGP, ? - incomplete

    Network            Next Hop            Metric     LocPrf  Path
    *  1.2.3.0/24         10.254.200.206                        31898 31898 31898 i
    *  1.2.10.0/24        10.254.200.206                        31898 31898 31898 i

    Total number of prefixes 2

■ 接続確認

● On-Premises -> OCI接続確認

・ traceroute確認

onp-inst01:~ root# traceroute 1.2.3.4
traceroute to 1.2.3.4 (1.2.3.4), 64 hops max, 52 byte packets
 1  8.8.8.254 (8.8.8.254)  1.799 ms  3.034 ms  1.227 ms
 2  * * *
 3  1.2.3.4 (1.2.3.4)  5.682 ms  6.982 ms  5.358 ms

・ ping確認

onp-inst01:~ root# ping 1.2.3.4 -c 10
    PING 1.2.3.4 (1.2.3.4): 56 data bytes
    64 bytes from 1.2.3.4: icmp_seq=0 ttl=62 time=7.716 ms
    64 bytes from 1.2.3.4: icmp_seq=1 ttl=62 time=10.973 ms
    64 bytes from 1.2.3.4: icmp_seq=2 ttl=62 time=6.656 ms
    64 bytes from 1.2.3.4: icmp_seq=3 ttl=62 time=6.813 ms
    64 bytes from 1.2.3.4: icmp_seq=4 ttl=62 time=6.135 ms
    64 bytes from 1.2.3.4: icmp_seq=5 ttl=62 time=7.018 ms
    64 bytes from 1.2.3.4: icmp_seq=6 ttl=62 time=8.734 ms
    64 bytes from 1.2.3.4: icmp_seq=7 ttl=62 time=6.887 ms
    64 bytes from 1.2.3.4: icmp_seq=8 ttl=62 time=6.592 ms
    64 bytes from 1.2.3.4: icmp_seq=9 ttl=62 time=6.771 ms

    --- 1.2.3.4 ping statistics ---
    10 packets transmitted, 10 packets received, 0.0% packet loss
    round-trip min/avg/max/stddev = 6.135/7.429/10.973/1.364 ms

・ ssh接続確認

onp-inst01:~ root# ssh -i id_rsa opc@1.2.3.4
    The authenticity of host '1.2.3.4 (1.2.3.4)' can't be established.
    ECDSA key fingerprint is SHA256:agH9jrx4S2Kw2G.
    Are you sure you want to continue connecting (yes/no)? yes
    Warning: Permanently added '1.2.3.4' (ECDSA) to the list of known hosts.
    Last login: Fri Jul 12 15:59:12 2019 from 8.8.8.2
[opc@oci-inst01 ~]$ hostname
    oci-inst01

● OCI -> On-Premises接続確認

・ traceroute確認

[opc@oci-inst01 ~]$ traceroute 8.8.8.8
    traceroute to 8.8.8.8 (8.8.8.8), 30 hops max, 60 byte packets
    1  * * *
    2  * * *
    3  8.8.8.8 (8.8.8.8)  5.647 ms  6.229 ms  5.597 ms

・ ping確認

[opc@oci-inst01 ~]$ ping 8.8.8.8 -c 10
    PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
    64 bytes from 8.8.8.8: icmp_seq=1 ttl=62 time=83.4 ms
    64 bytes from 8.8.8.8: icmp_seq=2 ttl=62 time=107 ms
    64 bytes from 8.8.8.8: icmp_seq=3 ttl=62 time=25.2 ms
    64 bytes from 8.8.8.8: icmp_seq=4 ttl=62 time=49.4 ms
    64 bytes from 8.8.8.8: icmp_seq=5 ttl=62 time=71.9 ms
    64 bytes from 8.8.8.8: icmp_seq=6 ttl=62 time=92.6 ms
    64 bytes from 8.8.8.8: icmp_seq=7 ttl=62 time=63.8 ms
    64 bytes from 8.8.8.8: icmp_seq=8 ttl=62 time=8.43 ms
    64 bytes from 8.8.8.8: icmp_seq=9 ttl=62 time=135 ms
    64 bytes from 8.8.8.8: icmp_seq=10 ttl=62 time=79.0 ms

    --- 8.8.8.8 ping statistics ---
    10 packets transmitted, 10 received, 0% packet loss, time 9015ms
    rtt min/avg/max/mdev = 8.434/71.753/135.776/35.721 ms

・ ssh接続確認

[opc@oci-inst01 ~]$ ssh root@8.8.8.8
    The authenticity of host '8.8.8.8 (8.8.8.8)' can't be established.
    ECDSA key fingerprint is SHA256:FkidRp3f180gTMol.
    ECDSA key fingerprint is MD5:98:4f:41:7c:24:b1:.
    Are you sure you want to continue connecting (yes/no)? yes
    Warning: Permanently added '8.8.8.8' (ECDSA) to the list of known hosts.
    Password:
    Last login: Sat Jul 13 01:00:23 2019 from 1.2.3.4
onp-inst01:~ root# hostname
    onp-inst01.local

■ 参考

● OCI利用IP Address

Oracle Cloud Infrastructure(OCI)で使用される IP Address は次のようなものがあります
 ・Networking Overview
 ・Public IP Address Ranges
 ・Public IP Addresses for VCNs and the Oracle Services Network
 ・FastConnect Public Peering Advertised Routes
 ・Object Storage IP Addresses
 ・Network Setup for DB Systems: Requirements for IP Address Space

● その他

 ・Virtual Cloud Networkに関するよくある質問

2
1
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
2
1

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
