NECさんがIXルーターとOracle CloudとのIKEv2で冗長構成のIPSec VPN接続コンフィグを作成してくれました。
・Oracle CloudとのVPN接続:冗長構成
NEC IXルーターはVPN構築に適した、企業向けの高速アクセスルータです。
企業向けということで機器冗長構成も作成してしてくれたので、障害テストもやってみます。
ということで、早速やってみてみます。
■ 構成図
冗長はIPsec接続とオンプレミス側の顧客構内機器(CPE)を別々に設定することで、以下の構成のような冗長構成を組むことが出来ます。
OCIのDRGは物理的に機器冗長されているので、１台のCPE用にIPSec Connectionを作成すると２つのそれぞれ異なる機器のTunnel用Public IPが払い出されます
今回は、下記図のMultiple CPE構成でCPE側も２台構成で冗長させるので、合計４つのTunnelを張ることになります
■ Oracle Cloud 側作業
Oracle Cloud(OCI)側作業は簡単です。CPEとIPSecリソースを作成するだけです。
構成図を参考に値を埋めて作成します。
● CPE(顧客構内機器)作成

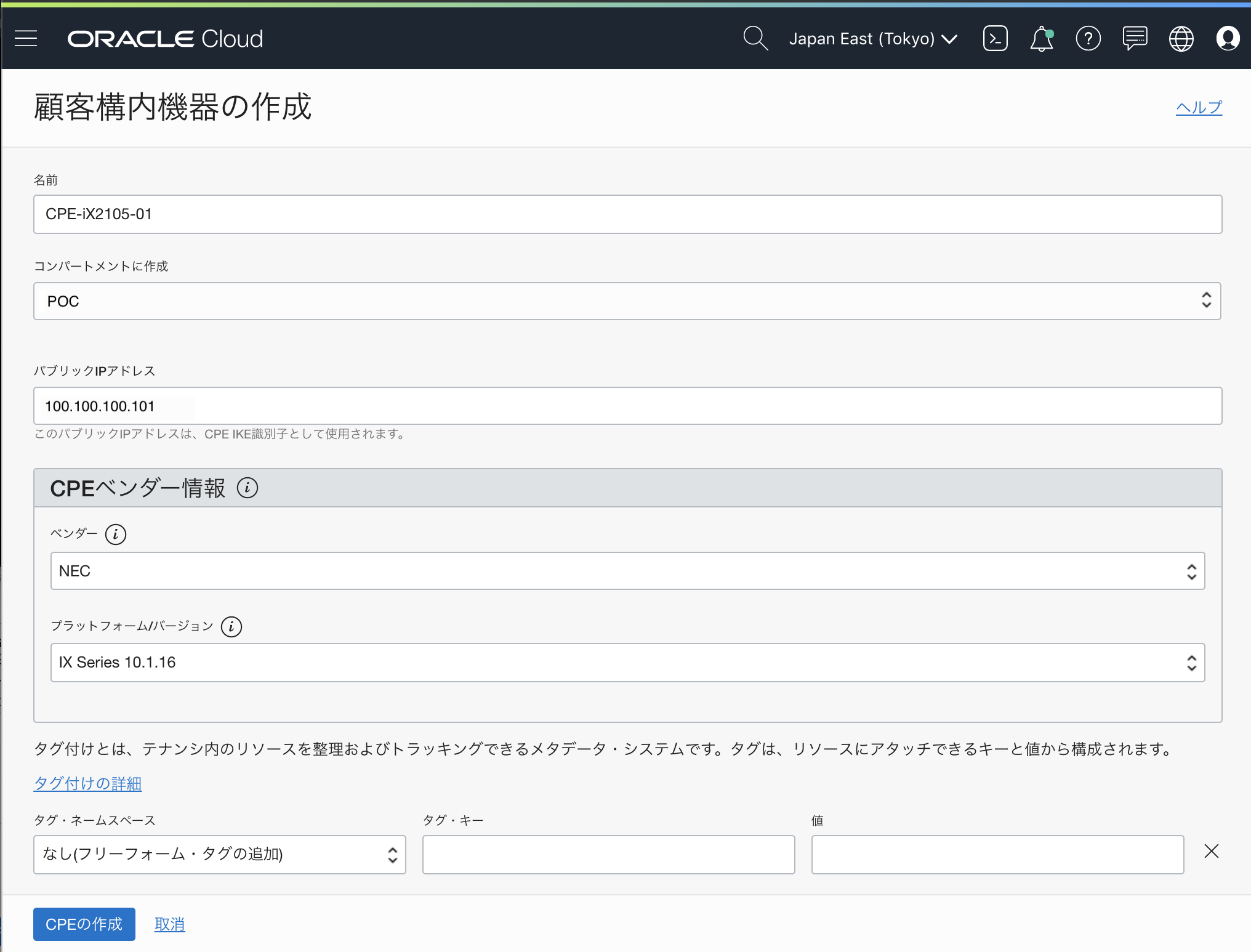

① CPE作成
OCIのWebコンソールから、[ネットワーク] > [顧客構内機器] 画面から、[顧客構内機器の作成]をクリックし
以下内容を設定し、[CPEの作成]をクリック
名前： 適当な名前を設定
パブリックIPアドレス: 100.100.100.101
ベンダー: NEC
プラットフォームバージョン: 対象となるバージョンがあれば選択
② CPE作成確認
● IPSec Connection作成
① IPSec Connection作成
OCIのWebコンソールから、[ネットワーク] > [IPSec接続] 画面から、[IPSec接続]をクリックし
以下内容を設定し、[IPSec接続の作成]をクリック
名前： 適当な名前を設定
顧客構内機器: 作成したCPEを選択
動的ルーティンティング・ゲートウェイ: DRGを選択
拡張オプションの表示をクリックし、
・[CPE IKE識別子]タブ
そのままデフォルト
・[トンネル1]タブ
名前:適当な名前を設定
共有シークレット: 共有シークレットを設定
IKEバージョン: IKEv2を設定
ルーティング・タイプ: BGP動的ルーティングを設定
BGP ASN: 65100を設定
トンネル内インターフェース-CPE: 192.168.254.13/30
トンネル内インターフェース-Oracle 192.168.254.14/30
・[トンネル2]タブ
②IPSec Connection作成確認
■ NEC IX Router設定
● 初期化
① コンフィグレーションモードで[erase startup-config]コマンドを実行し、スタートアップコンフィグを削除
Router01# enable-config
Enter configuration commands, one per line. End with CNTL/Z.
Router01(config)# erase startup-config
Are you sure you want to erase the startup-configuration? (Yes or [No]): Yes
② オペレーションモードに戻り、[default-console command-line]コマンドを実行
Router01(config)# exit
Router01# default-console command-line
% You must RELOAD the router for this configuration to take effect.
③ 再起動
Router01# reload
% Warning: current running-configuration is not saved yet.
Notice: The router will be RELOADED. This is to ensure that
the peripheral devices are properly initialized.
Are you sure you want to reload the router? (Yes or [No]): Yes
NEC Bootstrap Software
Copyright (c) NEC Corporation 2001-2017. All rights reserved.
%BOOT-INFO: Trying flash load, exec-image [ix2105-ms-9.6.12.a.ldc].
Loading: #################################################################################### [OK]
Starting at 0x20000
Configuring router subsystems (before IDB proc): done.
Constructing IDB(Interface Database): done.
Configuring router subsystems (after IDB proc): done.
Initializing router subsystems: done.
Starting router subsystems: done.
All router subsystems coming up.
NEC Portable Internetwork Core Operating System Software
Copyright Notices:
Copyright (c) NEC Corporation 2001-2017. All rights reserved.
Copyright (c) 1985-1998 OpenROUTE Networks, Inc.
Copyright (c) 1984-1987, 1989 J. Noel Chiappa.
Router#
④ 初期化確認
Router# enable-config
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)# show running-config
! NEC Portable Internetwork Core Operating System Software
! IX Series IX2105 (magellan-sec) Software, Version 9.6.12A, MAINTENANCE RELEASE SOFTWARE
! Compiled Oct 05-Thu-2017 19:27:09 JST #2
! Current time Mar 18-Wed-2020 13:46:56 JST
!
timezone +09 00
!
!
!
!
!
!
!
!
!
!
!
!
!
device GigaEthernet0
!
device GigaEthernet1
!
interface GigaEthernet0.0
no ip address
shutdown
!
interface GigaEthernet1.0
no ip address
shutdown
!
interface Loopback0.0
no ip address
!
interface Null0.0
no ip address
Router(config)#
■ NEC IX Router初期設定
ホスト名、Internet(ppp)接続、VRRP, LANとWANアドレス設定などなど設定します
● Master Router01
① ユーザー作成
Router(config)# username oracle password plain <パスワード> administrator
% User 'oracle' has been added.
② ホスト名、ssh接続、Loggingなど初期設定
・ Host名設定
hostname Router01
・ ssh有効化
ssh-server ip enable
・ イベントログ取得設定
logging buffered 131072
logging subsystem all warn
logging timestamp datetime
③ Ineternet(ppp)接続設定
ppp profile web-ppp-gigaethernet0.1
authentication myname [プロバイダ接続用ユーザID]
authentication password [プロバイダ接続用ユーザID] [プロバイダ接続用パスワード]
!
interface GigaEthernet0.1
description WAN1
encapsulation pppoe
auto-connect
ppp binding web-ppp-gigaethernet0.1
ip address ipcp
ip tcp adjust-mss auto
ip napt enable
ip napt static GigaEthernet0.1 udp 500
ip napt static GigaEthernet0.1 udp 4500
ip napt static GigaEthernet0.1 50
no shutdown
!
proxy-dns ip enable
proxy-dns interface GigaEthernet0.1 priority 254
④ LAN側インターフェースとVRRP,DHCP設定
ip route default GigaEthernet0.1
ip dhcp enable
vrrp enable
!
interface GigaEthernet1.0
description LAN1
ip address 192.168.100.211/24
ip dhcp binding web-dhcp-gigaethernet1.0
vrrp 10 ip 192.168.100.254
vrrp 10 priority 100
vrrp 10 ip virtual-host
no shutdown
!
ip dhcp profile web-dhcp-gigaethernet1.0
assignable-range 192.168.100.10 192.168.100.50
dns-server 192.168.100.211
⑤ 設定確認
Router01(config)# show running-config
! NEC Portable Internetwork Core Operating System Software
! IX Series IX2105 (magellan-sec) Software, Version 9.6.12A, MAINTENANCE RELEASE SOFTWARE
! Compiled Oct 05-Thu-2017 19:27:09 JST #2
! Current time Mar 18-Wed-2020 15:57:48 JST
!
hostname Router01
timezone +09 00
!
username oracle password hash AD8SFBB9DSVDSBN7 administrator
!
logging buffered 131072
logging subsystem all warn
logging timestamp datetime
!
!
ip ufs-cache enable
ip multipath per-flow
ip route default GigaEthernet0.1
ip dhcp enable
!
!
!
!
!
!
!
!
!
proxy-dns ip enable
proxy-dns interface GigaEthernet0.1 priority 254
!
!
ssh-server ip enable
!
!
!
!
ppp profile web-ppp-gigaethernet0.1
authentication myname [プロバイダ接続用ユーザID]
authentication password [プロバイダ接続用ユーザID] [プロバイダ接続用パスワード]
!
ip dhcp profile web-dhcp-gigaethernet1.0
assignable-range 192.168.100.10 192.168.100.50
dns-server 192.168.100.211
!
device GigaEthernet0
!
device GigaEthernet1
!
interface GigaEthernet0.0
no ip address
shutdown
!
interface GigaEthernet1.0
description LAN1
ip address 192.168.100.211/24
ip dhcp binding web-dhcp-gigaethernet1.0
no shutdown
!
interface GigaEthernet0.1
description WAN1
encapsulation pppoe
auto-connect
ppp binding web-ppp-gigaethernet0.1
ip address ipcp
ip tcp adjust-mss auto
ip napt enable
no shutdown
!
interface Loopback0.0
no ip address
!
interface Null0.0
no ip address
⑥ IP Address確認
Router01(config)# show ip address
Interface GigaEthernet0.1 is up, line protocol is up
Internet address is 100.100.100.101/32
Broadcast address is 255.255.255.255
Peer address is 200.100.100.246
Address determined by IPCP
Primary DNS server is 200.200.200.2
Secondary DNS server is 200.200.200.3
Interface GigaEthernet1.0 is up, line protocol is up
Internet address is 192.168.100.211/24
Broadcast address is 255.255.255.255
Address determined by config
Interface Null0.0 is up, line protocol is up
Interface is unnumbered.
⑦ Internet接続確認
Router01(config)# ping google.com
Looking up ipv4 address for "google.com" ...Success
PING 100.100.100.101 > 172.217.175.78 56 data bytes
64 bytes from 172.217.175.78: icmp_seq=0 ttl=56 time=15.248 ms
64 bytes from 172.217.175.78: icmp_seq=1 ttl=56 time=2.767 ms
64 bytes from 172.217.175.78: icmp_seq=2 ttl=56 time=2.882 ms
64 bytes from 172.217.175.78: icmp_seq=3 ttl=56 time=5.910 ms
--- 172.217.175.78 ping statistics ---
4 packets transmitted, 4 packets received, 0% packet loss
round-trip (ms) min/avg/max = 2.767/6.701/15.248
⑧ VRRP設定確認
・ Master Router01
Router01(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 100 P master 192.168.100.211
・ Master Router02
Router02(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 95 P backup 192.168.100.211
● Standby Router02設定
上記設定の様にRouter02用のIPを使用して設定
・設定確認
Router01(config)# show running-config
! NEC Portable Internetwork Core Operating System Software
! IX Series IX2105 (magellan-sec) Software, Version 9.6.12A, MAINTENANCE RELEASE SOFTWARE
! Compiled Oct 05-Thu-2017 19:27:09 JST #2
! Current time Mar 18-Wed-2020 16:10:15 JST
!
hostname Router01
timezone +09 00
!
username oracle password hash AD8SFBB9DSVDSBN7 administrator
!
logging buffered 131072
logging subsystem all warn
logging timestamp datetime
!
!
ip ufs-cache enable
ip multipath per-flow
ip route default GigaEthernet0.1
ip dhcp enable
!
!
!
!
!
!
!
!
!
proxy-dns ip enable
proxy-dns interface GigaEthernet0.1 priority 254
!
!
ssh-server ip enable
!
!
!
!
ppp profile web-ppp-gigaethernet0.1
authentication myname [プロバイダ接続用ユーザID]
authentication password [プロバイダ接続用ユーザID] [プロバイダ接続用パスワード]
!
ip dhcp profile web-dhcp-gigaethernet1.0
assignable-range 192.168.100.60 192.168.100.90
dns-server 192.168.100.212
!
device GigaEthernet0
!
device GigaEthernet1
!
interface GigaEthernet0.0
no ip address
shutdown
!
interface GigaEthernet1.0
description LAN1
ip address 192.168.100.212/24
ip dhcp binding web-dhcp-gigaethernet1.0
no shutdown
!
interface GigaEthernet0.1
description WAN1
encapsulation pppoe
auto-connect
ppp binding web-ppp-gigaethernet0.1
ip address ipcp
ip tcp adjust-mss auto
ip napt enable
no shutdown
!
interface Loopback0.0
no ip address
!
interface Null0.0
no ip address
■ NEC IX Router IPSec VPNとBGP設定
LAN interface, IPSec VPNとBGPを設定
● Master Router01設定
ikev2 authentication psk id ipv4 140.204.100.101 key char SharedSecret01
ikev2 authentication psk id ipv4 140.204.100.102 key char SharedSecret02
!
ikev2 default-profile
dpd interval 10
source-address GigaEthernet0.1
!
interface Tunnel0.0
tunnel mode ipsec-ikev2
ip address 192.168.254.13/30
ip tcp adjust-mss auto
ikev2 child-pfs 1536-bit
ikev2 child-proposal enc aes-cbc-256
ikev2 child-proposal integrity sha1
ikev2 connect-type auto
ikev2 ipsec pre-fragment
ikev2 outgoing-interface GigaEthernet0.1
ikev2 sa-proposal enc aes-cbc-256
ikev2 sa-proposal integrity sha2-384
ikev2 sa-proposal dh 1536-bit
ikev2 peer 140.204.100.101 authentication psk id ipv4 140.204.100.101
no shutdown
!
interface Tunnel1.0
tunnel mode ipsec-ikev2
ip address 192.168.254.17/30
ip tcp adjust-mss auto
ikev2 child-pfs 1536-bit
ikev2 child-proposal enc aes-cbc-256
ikev2 child-proposal integrity sha1
ikev2 connect-type auto
ikev2 ipsec pre-fragment
ikev2 outgoing-interface GigaEthernet0.1
ikev2 sa-proposal enc aes-cbc-256
ikev2 sa-proposal integrity sha2-384
ikev2 sa-proposal dh 1536-bit
ikev2 peer 140.204.100.102 authentication psk id ipv4 140.204.100.102
no shutdown
!
route-map pri1 permit 10
set metric 5
set local-preference 200
!
route-map pri2 permit 10
set metric 10
set local-preference 150
!
router bgp 65100
neighbor 192.168.254.14 remote-as 31898
neighbor 192.168.254.14 timers 10 30
neighbor 192.168.254.18 remote-as 31898
neighbor 192.168.254.18 timers 10 30
neighbor 192.168.100.212 remote-as 65100
neighbor 192.168.100.212 timers 10 30
address-family ipv4 unicast
neighbor 192.168.254.14 route-map pri1 in
neighbor 192.168.254.14 route-map pri1 out
neighbor 192.168.254.18 route-map pri2 in
neighbor 192.168.254.18 route-map pri2 out
neighbor 192.168.100.212 next-hop-self
network 192.168.100.0/24
● Standby Router02設定
ikev2 authentication psk id ipv4 129.146.200.201 key char SharedSecret01
ikev2 authentication psk id ipv4 129.146.200.202 key char SharedSecret02
!
ikev2 default-profile
child-pfs 1536-bit
child-proposal enc aes-cbc-256
child-proposal integrity sha1
dpd interval 10
sa-proposal enc aes-cbc-256
sa-proposal integrity sha2-384
sa-proposal dh 1536-bit
source-address GigaEthernet0.1
!
interface Tunnel0.0
tunnel mode ipsec-ikev2
ip address 192.168.254.21/30
ip tcp adjust-mss auto
ikev2 connect-type auto
ikev2 ipsec pre-fragment
ikev2 outgoing-interface GigaEthernet0.1
ikev2 peer 129.146.200.201 authentication psk id ipv4 129.146.200.201
no shutdown
!
interface Tunnel1.0
tunnel mode ipsec-ikev2
ip address 192.168.254.25/30
ip tcp adjust-mss auto
ikev2 connect-type auto
ikev2 ipsec pre-fragment
ikev2 outgoing-interface GigaEthernet0.1
ikev2 peer 129.146.200.202 authentication psk id ipv4 129.146.200.202
no shutdown
!
router bgp 65100
neighbor 192.168.254.22 remote-as 31898
neighbor 192.168.254.22 timers 10 30
neighbor 192.168.254.26 remote-as 31898
neighbor 192.168.254.26 timers 10 30
neighbor 192.168.100.211 remote-as 65100
neighbor 192.168.100.211 timers 10 30
address-family ipv4 unicast
neighbor 192.168.254.22 route-map pri1 in
neighbor 192.168.254.22 route-map pri1 out
neighbor 192.168.254.26 route-map pri2 in
neighbor 192.168.254.26 route-map pri2 out
neighbor 192.168.100.211 next-hop-self
network 192.168.100.0/24
■ BGP確認
① show ip bgp summary
すべてのBGP接続のステータスを表示
Router01(config)# show ip bgp summary
BGP router ID 192.168.254.17, local AS number 65100
2 BGP AS-PATH entries
Neighbor V AS MsgRcvd MsgSent Up/DownTime State
192.168.100.212 4 65100 779 779 2:09:09 ESTABLISHED
192.168.254.14 4 31898 842 786 2:10:35 ESTABLISHED
192.168.254.18 4 31898 841 786 2:10:33 ESTABLISHED
Total number of neighbors 3
② show ip bgp
BGPルーティング テーブルのエントリを表示
Router01(config)# show ip bgp
BGP table version is 9, local router ID is 192.168.254.17
Local AS number 65100
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
* 10.0.0.0/24 192.168.254.18 10 150 31898 i
*> 192.168.254.14 5 200 31898 i
* i 192.168.100.212 5 200 31898 i
* 134.70.80.0/23 192.168.254.18 10 150 31898 i
*> 192.168.254.14 5 200 31898 i
* i 192.168.100.212 5 200 31898 i
* 134.70.82.0/23 192.168.254.18 10 150 31898 i
*> 192.168.254.14 5 200 31898 i
* i 192.168.100.212 5 200 31898 i
* 140.91.32.0/23 192.168.254.18 10 150 31898 i
*> 192.168.254.14 5 200 31898 i
* i 192.168.100.212 5 200 31898 i
* 140.204.8.128/25 192.168.254.18 10 150 31898 i
*> 192.168.254.14 5 200 31898 i
* i 192.168.100.212 5 200 31898 i
* 192.29.36.0/22 192.168.254.18 10 150 31898 i
*> 192.168.254.14 5 200 31898 i
* i 192.168.100.212 5 200 31898 i
* 192.29.40.0/22 192.168.254.18 10 150 31898 i
*> 192.168.254.14 5 200 31898 i
* i 192.168.100.212 5 200 31898 i
* 192.29.44.0/25 192.168.254.18 10 150 31898 i
*> 192.168.254.14 5 200 31898 i
* i 192.168.100.212 5 200 31898 i
*> 192.168.100.0/24 0.0.0.0 1 i
* i 192.168.100.212 1 100 i
Total number of prefixes 26
③ show ip bgp neighbors advertised-routes
neighborにアドバタイズされたすべてのルートを表示
Router01(config)# show ip bgp neighbors 192.168.254.14 advertised-routes
BGP table version is 9, local router ID is 192.168.254.17
Local AS number 65100
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
*> 192.168.100.0/24 192.168.254.13 5 i
Total number of prefixes 1
④ show ip bgp neighbors received-routes
neighborから受信されたすべてのルートを表示
Router01(config)# show ip bgp neighbors 192.168.254.14 received-routes
BGP table version is 9, local router ID is 192.168.254.17
Local AS number 65100
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
*> 10.0.0.0/24 192.168.254.14 5 200 31898 i
*> 134.70.80.0/23 192.168.254.14 5 200 31898 i
*> 134.70.82.0/23 192.168.254.14 5 200 31898 i
*> 140.91.32.0/23 192.168.254.14 5 200 31898 i
*> 140.204.8.128/25 192.168.254.14 5 200 31898 i
*> 192.29.36.0/22 192.168.254.14 5 200 31898 i
*> 192.29.40.0/22 192.168.254.14 5 200 31898 i
*> 192.29.44.0/25 192.168.254.14 5 200 31898 i
Total number of prefixes 8
⑤ show ip route
ルーティング テーブルの内容を表示
Router01(config)# show ip route
IP Routing Table - 14 entries, 7 hidden, 2027 frees
Entries: 5 Connected, 1 Static, 0 RIP, 0 OSPF, 8 BGP
Codes: C - Connected, S - Static, R - RIP, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, B - BGP
* - Candidate default, s - Summary
Timers: Age
S* 0.0.0.0/0 [1/1] is directly connected, GigaEthernet0.1, 1d9h48m10s
10.0.0.0/8 is subnetted, 1 subnets
B 10.0.0.0/24 [20/5] via 192.168.254.14, Tunnel0.0, 4:32:50
134.70.0.0/16 is subnetted, 2 subnets
B 134.70.80.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 4:29:32
B 134.70.82.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 4:29:32
140.91.0.0/16 is subnetted, 1 subnets
B 140.91.32.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 4:29:32
140.204.0.0/16 is subnetted, 1 subnets
B 140.204.8.128/25 [20/5] via 192.168.254.14, Tunnel0.0, 4:29:32
B 192.29.36.0/22 [20/5] via 192.168.254.14, Tunnel0.0, 4:29:32
B 192.29.40.0/22 [20/5] via 192.168.254.14, Tunnel0.0, 4:29:32
192.29.44.0/24 is subnetted, 1 subnets
B 192.29.44.0/25 [20/5] via 192.168.254.14, Tunnel0.0, 4:29:32
192.168.100.0/24 is subnetted, 2 subnets
C 192.168.100.0/24 [0/1] is directly connected, GigaEthernet1.0, 1d12m59s
C 192.168.100.254/32 [0/1] is directly connected, Virtual10, 1d12m4s
192.168.254.0/24 is subnetted, 2 subnets
C 192.168.254.12/30 [0/1] is directly connected, Tunnel0.0, 5:49:32
C 192.168.254.16/30 [0/1] is directly connected, Tunnel1.0, 5:49:31
202.223.119.0/24 is subnetted, 1 subnets
C 202.223.119.246/32 [0/1] is directly connected, GigaEthernet0.1, 1d9h49m59s
■ Oracle Cloud IPSec接続確認
IPSecステータスとBGPステータスが「稼働中」でグリーン色になっていればOK
① Router01
② Router02
■ 接続確認
● ping確認
① onp-inst01 -> OCI tokyo-inst01
[root@onp-inst01:~]$ ping 10.0.0.2 -c 3
PING 10.0.0.2 (10.0.0.2): 56 data bytes
64 bytes from 10.0.0.2: icmp_seq=0 ttl=62 time=46.431 ms
64 bytes from 10.0.0.2: icmp_seq=1 ttl=62 time=48.592 ms
64 bytes from 10.0.0.2: icmp_seq=2 ttl=62 time=61.959 ms
--- 10.0.0.2 ping statistics ---
3 packets transmitted, 3 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 46.431/52.327/61.959/6.868 ms
② onp-inst01 -> OCI Objectstorage
[root@onp-inst01:~]$ ping objectstorage.ap-tokyo-1.oraclecloud.com -c 3
PING objectstorage.ap-tokyo-1.oraclecloud.com (134.70.80.1): 56 data bytes
64 bytes from 134.70.80.1: icmp_seq=0 ttl=62 time=15.937 ms
64 bytes from 134.70.80.1: icmp_seq=1 ttl=62 time=296.453 ms
64 bytes from 134.70.80.1: icmp_seq=2 ttl=62 time=72.517 ms
--- objectstorage.ap-tokyo-1.oraclecloud.com ping statistics ---
3 packets transmitted, 3 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 15.937/128.302/296.453/121.123 ms
● traceroute確認
① onp-inst01 -> OCI tokyo-inst01
[root@onp-inst01:~]$ traceroute -I 10.0.0.2
traceroute to 10.0.0.2 (10.0.0.2), 64 hops max, 72 byte packets
1 * * *
2 * * *
3 10.0.0.2 (10.0.0.2) 32.602 ms 33.115 ms 35.621 ms
② onp-inst01 -> OCI Objectstorage
[root@onp-inst01:~]$ traceroute -I objectstorage.ap-tokyo-1.oraclecloud.com
traceroute to objectstorage.ap-tokyo-1.oraclecloud.com (134.70.80.1), 64 hops max, 72 byte packets
1 * * *
2 * * *
3 134.70.80.1 (134.70.80.1) 18.641 ms 37.581 ms 32.537 ms
■ LAN側抜線障害テスト
Master Router01のLAN側を抜線するとはVRRPでIPフェールオーバーしますが、WAN側のIPSec トンネルは生きているので、どうなるのでしょうか。
動作は以下の様な感じになるはずです
抜線したMaster Router01のVRRPがStandby Router02へフェールオーバー
抜線したMaster Router01側では、On-PremiseのRouteが対抗のOCI DRGへ伝搬されなくなり、
DRGからのパケットはVRRPがフェールオーバーした Standby Router02のみへ送信される
ということで抜線してみてみます
● Master Router01のLAN抜線
① 状態確認
・VRRP確認
Master Router01(192.168.100.211)にVRRPのIPがあるMasterノードであることを確認
Router01(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 100 P master 192.168.100.211
・BGP全確立確認
全てのBGP確立がされてESTABLISHED場外であることを確認
eBGP: ２つのTunnel Peerアドレス(92.168.254.14,92.168.254.18)
iBGP: Standby Router02アドレス(192.168.100.212)
Router01(config)# show ip bgp summary
BGP router ID 192.168.254.17, local AS number 65001
2 BGP AS-PATH entries
Neighbor V AS MsgRcvd MsgSent Up/DownTime State
192.168.100.212 4 65001 13673 13680 1d4h20m39s ESTABLISHED
192.168.254.14 4 31898 14654 13690 1d7h24m23s ESTABLISHED
192.168.254.18 4 31898 14658 13689 6:48:24 ESTABLISHED
Total number of neighbors 3
・BGP Neighbor側CPE Route伝搬確認
BGP Neighbor側となるOCI DRGが CPE(IX Router01)のROuter(CIDR:192.168.100.0/24)を伝搬し疎通状態であることを確認
Router01(config)# show ip bgp neighbors 192.168.254.14 advertised-routes
BGP table version is 25, local router ID is 192.168.254.17
Local AS number 65001
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
*> 192.168.100.0/24 192.168.254.13 5 i
Total number of prefixes 1
・BGP CPE側Neighbor Route伝搬確認
BGP CPE(IX Router01)側が、BGP Neighbor側となるOCI DRGののRouteを伝搬し疎通状態であることを確認
OCI DRGののRouteはここでは、以下、VCN Subnet(10.0.0.0/24)と Tokyo RegioのOSN CIDR群
Router01(config)# show ip bgp neighbors 192.168.254.14 received-routes
BGP table version is 25, local router ID is 192.168.254.17
Local AS number 65001
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
*> 10.0.0.0/24 192.168.254.14 5 200 31898 i
*> 134.70.80.0/23 192.168.254.14 5 200 31898 i
*> 134.70.82.0/23 192.168.254.14 5 200 31898 i
*> 140.91.32.0/23 192.168.254.14 5 200 31898 i
*> 140.204.8.128/25 192.168.254.14 5 200 31898 i
*> 192.29.36.0/22 192.168.254.14 5 200 31898 i
*> 192.29.40.0/22 192.168.254.14 5 200 31898 i
*> 192.29.44.0/25 192.168.254.14 5 200 31898 i
Total number of prefixes 8
② 抜線前ping実行
抜線前にonp-inst01からping実行し抜線したらどうなるか、確認できるようにします
[root@onp-inst01:~]$ ping 10.0.0.2
PING 10.0.0.2 (10.0.0.2): 56 data bytes
64 bytes from 10.0.0.2: icmp_seq=0 ttl=62 time=5.662 ms
64 bytes from 10.0.0.2: icmp_seq=1 ttl=62 time=7.754 ms
64 bytes from 10.0.0.2: icmp_seq=2 ttl=62 time=6.971 ms
・・・
③ 抜線
Master Router01のLANを抜線
④ 抜線後ping確認
②で実行中のping状態を確認し疎通できていることを確認
ここでは抜線後、３回Request timeout し復旧しています
[root@onp-inst01:~]$ ping 10.0.0.2
PING 10.0.0.2 (10.0.0.2): 56 data bytes
64 bytes from 10.0.0.2: icmp_seq=0 ttl=62 time=5.662 ms
64 bytes from 10.0.0.2: icmp_seq=1 ttl=62 time=7.754 ms
64 bytes from 10.0.0.2: icmp_seq=2 ttl=62 time=6.971 ms
・・・
64 bytes from 10.0.0.2: icmp_seq=21 ttl=62 time=7.318 ms
64 bytes from 10.0.0.2: icmp_seq=22 ttl=62 time=8.815 ms
64 bytes from 10.0.0.2: icmp_seq=23 ttl=62 time=7.748 ms
Request timeout for icmp_seq 24
Request timeout for icmp_seq 25
Request timeout for icmp_seq 26
64 bytes from 10.0.0.2: icmp_seq=27 ttl=62 time=6.116 ms
64 bytes from 10.0.0.2: icmp_seq=28 ttl=62 time=7.787 ms
64 bytes from 10.0.0.2: icmp_seq=29 ttl=62 time=7.315 ms
64 bytes from 10.0.0.2: icmp_seq=30 ttl=62 time=6.390 ms
⑤ Router01状態確認
・VRRP確認
Router01(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 100 P initialize 0.0.0.0
・BGP状態確認
LAN側が抜線されているのでStandby Router02とのBGPが確立されていないことを確認
Router01(config)# show ip bgp summary
BGP router ID 192.168.254.17, local AS number 65001
2 BGP AS-PATH entries
Neighbor V AS MsgRcvd MsgSent Up/DownTime State
192.168.100.212 4 65001 13762 13773 0:00:08 IDLE
192.168.254.14 4 31898 14753 13784 1d7h39m41s ESTABLISHED
192.168.254.18 4 31898 14756 13783 7:03:42 ESTABLISHED
・BGP Neighbor側CPE Route伝搬確認
BGP Neighbor側となるOCI DRGが CPE(IX Router01)のRoute(CIDR:192.168.100.0/24)を伝搬せずCPE-DRG間疎通されないことを確認
Router01(config)# show ip bgp neighbors 192.168.254.14 advertised-routes
BGP table version is 27, local router ID is 192.168.254.17
Local AS number 65001
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
Total number of prefixes 0
⑥ Router02確認
・VRRP確認
VRRPがRouter02へフェールオーバーされていることを確認
Router02(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 95 P master 192.168.100.212
・BGP状態確認
LAN側が抜線されているのでMaster Router01とのBGPが確立されていないことを確認
Router02(config)# show ip bgp summary
BGP router ID 192.168.254.25, local AS number 65001
2 BGP AS-PATH entries
Neighbor V AS MsgRcvd MsgSent Up/DownTime State
192.168.100.211 4 65001 13772 13779 0:12:02 CONNECT
192.168.254.22 4 31898 14885 13907 1d14h37m1s ESTABLISHED
192.168.254.26 4 31898 14837 13858 10:24:27 ESTABLISHED
・BGP Neighbor側CPE Route伝搬確認
抜線前とかわらず、BGP Neighbor側となるOCI DRGが CPE(IX Router01)のROuter(CIDR:192.168.100.0/24)を伝搬し疎通状態であることを確認
Router02(config)# show ip bgp neighbors 192.168.254.22 advertised-routes
BGP table version is 9, local router ID is 192.168.254.25
Local AS number 65001
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
*> 192.168.100.0/24 192.168.254.21 5 i
Total number of prefixes 1
・BGP CPE側Neighbor Route伝搬確認
抜線前とかわらず、BGP CPE(IX Router01)側が、BGP Neighbor側となるOCI DRGののRouteを伝搬し疎通状態であることを確認
Router02(config)# show ip bgp neighbors 192.168.254.22 received-routes
BGP table version is 9, local router ID is 192.168.254.25
Local AS number 65001
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
*> 10.0.0.0/24 192.168.254.22 5 200 31898 i
*> 134.70.80.0/23 192.168.254.22 5 200 31898 i
*> 134.70.82.0/23 192.168.254.22 5 200 31898 i
*> 140.91.32.0/23 192.168.254.22 5 200 31898 i
*> 140.204.8.128/25 192.168.254.22 5 200 31898 i
*> 192.29.36.0/22 192.168.254.22 5 200 31898 i
*> 192.29.40.0/22 192.168.254.22 5 200 31898 i
*> 192.29.44.0/25 192.168.254.22 5 200 31898 i
Total number of prefixes 8
■ 抜線切り戻し
① 抜線切り戻し
② 抜線切り戻しping確認
ここでは抜線後、1回Request timeoutし復旧しています
[root@onp-inst01:~]$ ping 10.0.0.2
PING 10.0.0.2 (10.0.0.2): 56 data bytes
64 bytes from 10.0.0.2: icmp_seq=0 ttl=62 time=5.662 ms
64 bytes from 10.0.0.2: icmp_seq=1 ttl=62 time=7.754 ms
64 bytes from 10.0.0.2: icmp_seq=2 ttl=62 time=6.971 ms
・・・
64 bytes from 10.0.0.2: icmp_seq=1067 ttl=62 time=7.508 ms
64 bytes from 10.0.0.2: icmp_seq=1068 ttl=62 time=7.073 ms
64 bytes from 10.0.0.2: icmp_seq=1069 ttl=62 time=8.185 ms
Request timeout for icmp_seq 1070
64 bytes from 10.0.0.2: icmp_seq=1071 ttl=62 time=5.640 ms
64 bytes from 10.0.0.2: icmp_seq=1072 ttl=62 time=7.220 ms
64 bytes from 10.0.0.2: icmp_seq=1073 ttl=62 time=8.407 ms
③ Router02確認
・VRRP状態確認
VRRPがRouter01へフェールオーバー(フェールバック)されていることを確認
Router02(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 95 P backup 192.168.100.211
④ Router01確認
・VRRP状態確認
VRRPがRouter01へフェールオーバー(フェールバック)されていることを確認
Router01(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 100 P master 192.168.100.211
・BGP全確立確認
全てのBGP確立がされてESTABLISHED状態であることを確認
Router01(config)# show ip bgp summary
BGP router ID 192.168.254.17, local AS number 65001
2 BGP AS-PATH entries
Neighbor V AS MsgRcvd MsgSent Up/DownTime State
192.168.100.212 4 65001 13811 13822 0:07:38 ESTABLISHED
192.168.254.14 4 31898 14911 13933 1d8h4m13s ESTABLISHED
192.168.254.18 4 31898 14913 13932 7:28:14 ESTABLISHED
Total number of neighbors 3
・BGP Neighbor側CPE Route伝搬確認
BGP Neighbor側となるOCI DRGが CPE(IX Router01)のROuter(CIDR:192.168.100.0/24)を伝搬し疎通状態であることを確認
Router01(config)# show ip bgp neighbors 192.168.254.14 advertised-routes
BGP table version is 29, local router ID is 192.168.254.17
Local AS number 65001
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
*> 192.168.100.0/24 192.168.254.13 5 i
Total number of prefixes 1
・BGP CPE側Neighbor Route伝搬確認
BGP CPE(IX Router01)側が、BGP Neighbor側となるOCI DRGののRouteを伝搬し疎通状態であることを確認
Router01(config)# show ip bgp neighbors 192.168.254.14 received-routes
BGP table version is 29, local router ID is 192.168.254.17
Local AS number 65001
Status codes: s - suppressed, * - valid, h - history
> - best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Path
*> 10.0.0.0/24 192.168.254.14 5 200 31898 i
*> 134.70.80.0/23 192.168.254.14 5 200 31898 i
*> 134.70.82.0/23 192.168.254.14 5 200 31898 i
*> 140.91.32.0/23 192.168.254.14 5 200 31898 i
*> 140.204.8.128/25 192.168.254.14 5 200 31898 i
*> 192.29.36.0/22 192.168.254.14 5 200 31898 i
*> 192.29.40.0/22 192.168.254.14 5 200 31898 i
*> 192.29.44.0/25 192.168.254.14 5 200 31898 i
Total number of prefixes 8
■ WAN側Tunnelダウン障害テスト
WAN側Internet IPは固定IPでないため、WAN抜線を行うと、IPが変わりIPSecの設定をし直さなくてはいけないため、
Tunnelダウンで障害を発生させます。
Master Route01は、WAN側を抜線、IP/TunnelダウンさせてもLAN側はアップでVRRPもMaster Route01のままです。
そのため、On-PremisのインスタンスがOCIへパケットを流すと、WAN側がダウンしている VRRP Master Router01へ送信されます。
が、iBGP動作でRouter01へ送信されたパケットは、Router02へ流れOCI DRGへ送信される動作になります。
ということで、確認してみてみます。
● Master Router01のTunnel0.0,Tunnel1.0 ダウン障害検証
① Tunnnelダウン前状態確認
・VRRP確認
Master Router01(192.168.100.211)にVRRPのIPがあるMasterノードであることを確認
Router01(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 100 P master 192.168.100.211
Router01(config)#
・BGP全確立確認
全てのBGP確立がされてESTABLISHED場外であることを確認
Router01(config)# show ip bgp summ
BGP router ID 192.168.254.17, local AS number 65001
2 BGP AS-PATH entries
Neighbor V AS MsgRcvd MsgSent Up/DownTime State
192.168.100.212 4 65001 18691 18702 13:40:56 ESTABLISHED
192.168.254.14 4 31898 20132 18813 1d21h37m31s ESTABLISHED
192.168.254.18 4 31898 20125 18802 2:48:54 ESTABLISHED
・ Tunnel0.0アップ確認
Router01(config)# show interfaces Tunnel0.0
Interface Tunnel0.0 is up
・・・
・ Tunnel1.0アップ確認
Router01(config)# show interfaces Tunnel1.0
Interface Tunnel1.0 is up
・・・
・Route確認
OCI側のCIDRが、Tunnel0.0, Tunnel1.0を経由することを確認
Router01(config)# show ip route
IP Routing Table - 14 entries, 7 hidden, 2027 frees
Entries: 5 Connected, 1 Static, 0 RIP, 0 OSPF, 8 BGP
Codes: C - Connected, S - Static, R - RIP, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, B - BGP
* - Candidate default, s - Summary
Timers: Age
S* 0.0.0.0/0 [1/1] is directly connected, GigaEthernet0.1, 3d9h32m3s
10.0.0.0/8 is subnetted, 1 subnets
B 10.0.0.0/24 [20/5] via 192.168.254.14, Tunnel0.0, 1d21h38m17s
134.70.0.0/16 is subnetted, 2 subnets
B 134.70.80.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 1d21h38m17s
B 134.70.82.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 1d21h38m17s
140.91.0.0/16 is subnetted, 1 subnets
B 140.91.32.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 1d21h38m17s
140.204.0.0/16 is subnetted, 1 subnets
B 140.204.8.128/25 [20/5] via 192.168.254.14, Tunnel0.0, 1d21h38m17s
B 192.29.36.0/22 [20/5] via 192.168.254.14, Tunnel0.0, 1d21h38m18s
B 192.29.40.0/22 [20/5] via 192.168.254.14, Tunnel0.0, 1d21h38m18s
192.29.44.0/24 is subnetted, 1 subnets
B 192.29.44.0/25 [20/5] via 192.168.254.14, Tunnel0.0, 1d21h38m18s
192.168.100.0/24 is subnetted, 2 subnets
C 192.168.100.0/24 [0/1] is directly connected, GigaEthernet1.0, 13:41:43
C 192.168.100.254/32 [0/1] is directly connected, Virtual10, 13:41:40
192.168.254.0/24 is subnetted, 2 subnets
C 192.168.254.12/30 [0/1] is directly connected, Tunnel0.0, 2d5h33m25s
C 192.168.254.16/30 [0/1] is directly connected, Tunnel1.0, 2:51:41
② Tunnleダウン前ping実行
[root@onp-inst01:~]$ ping 10.0.0.2
PING 10.0.0.2 (10.0.0.2): 56 data bytes
64 bytes from 10.0.0.2: icmp_seq=0 ttl=62 time=45.499 ms
64 bytes from 10.0.0.2: icmp_seq=1 ttl=62 time=18.790 ms
64 bytes from 10.0.0.2: icmp_seq=2 ttl=62 time=90.103 ms
・・・
③ Tunnelダウン障害実行
・ Tunnel0.0ダウン実行
VRRP Master Router01のTunnel0.0ダウン実行
Router01(config)# interface Tunnel0.0
Router01(config-Tunnel0.0)# shutdown
・Tunnel0.0ダウン確認
Router01(config)# show interfaces Tunnel0.0
Interface Tunnel0.0 is administratively down
・Tunnel1.0ダウン
Router01(config-Tunnel0.0)# interface Tunnel1.0
Router01(config-Tunnel1.0)# shutdown
・Tunnel1.0ダウン確認
Router01(config)# show interfaces Tunnel1.0
Interface Tunnel1.0 is administratively down
④ 状態確認
・VRRP確認
Tunnelが全てダウンしてもVRRPは変わらずRouter01(192.168.100.211)がMasterであることを確認
Router01(config)# show vrrp
Interface VRID Pri Pre State Master addr
GigaEthernet1.0 10 100 P master 192.168.100.211
・BGP状態確認
TunnelのBGP(192.168.254.14, 192.168.254.18)が全てダウン(IDLE)状態であることを確認
Router01(config)# show ip bgp summary
BGP router ID 192.168.254.17, local AS number 65001
2 BGP AS-PATH entries
Neighbor V AS MsgRcvd MsgSent Up/DownTime State
192.168.100.212 4 65001 18721 18733 13:45:57 ESTABLISHED
192.168.254.14 4 31898 20154 18837 0:01:11 IDLE
192.168.254.18 4 31898 20149 18828 0:00:50 IDLE
・Rote確認
OCI側のCIDRが、Router02(192.168.100.212)を経由することを確認
Router01(config)# show ip route
IP Routing Table - 12 entries, 6 hidden, 2030 frees
Entries: 3 Connected, 1 Static, 0 RIP, 0 OSPF, 8 BGP
Codes: C - Connected, S - Static, R - RIP, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, B - BGP
* - Candidate default, s - Summary
Timers: Age
S* 0.0.0.0/0 [1/1] is directly connected, GigaEthernet0.1, 3d9h36m29s
10.0.0.0/8 is subnetted, 1 subnets
B 10.0.0.0/24 [200/5] via 192.168.100.212, GigaEthernet1.0, 0:01:22
134.70.0.0/16 is subnetted, 2 subnets
B 134.70.80.0/23 [200/5] via 192.168.100.212, GigaEthernet1.0, 0:01:22
B 134.70.82.0/23 [200/5] via 192.168.100.212, GigaEthernet1.0, 0:01:22
140.91.0.0/16 is subnetted, 1 subnets
B 140.91.32.0/23 [200/5] via 192.168.100.212, GigaEthernet1.0, 0:01:22
140.204.0.0/16 is subnetted, 1 subnets
B 140.204.8.128/25 [200/5] via 192.168.100.212, GigaEthernet1.0, 0:01:22
B 192.29.36.0/22 [200/5] via 192.168.100.212, GigaEthernet1.0, 0:01:22
B 192.29.40.0/22 [200/5] via 192.168.100.212, GigaEthernet1.0, 0:01:22
192.29.44.0/24 is subnetted, 1 subnets
B 192.29.44.0/25 [200/5] via 192.168.100.212, GigaEthernet1.0, 0:01:22
192.168.100.0/24 is subnetted, 2 subnets
C 192.168.100.0/24 [0/1] is directly connected, GigaEthernet1.0, 13:46:08
C 192.168.100.254/32 [0/1] is directly connected, Virtual10, 13:46:08
⑤ ping 確認
全てのTunnelがダウンしたので、ここではtimeoutが25回でてるが、iBGPにより経路がRouter02へ切り替わり疎通再開できていることを確認
[root@onp-inst01:~]$ ping 10.0.0.2
PING 10.0.0.2 (10.0.0.2): 56 data bytes
64 bytes from 10.0.0.2: icmp_seq=0 ttl=62 time=45.499 ms
64 bytes from 10.0.0.2: icmp_seq=1 ttl=62 time=18.790 ms
64 bytes from 10.0.0.2: icmp_seq=2 ttl=62 time=90.103 ms
64 bytes from 10.0.0.2: icmp_seq=3 ttl=62 time=20.731 ms
64 bytes from 10.0.0.2: icmp_seq=4 ttl=62 time=48.073 ms
64 bytes from 10.0.0.2: icmp_seq=5 ttl=62 time=9.557 ms
64 bytes from 10.0.0.2: icmp_seq=6 ttl=62 time=13.235 ms
Request timeout for icmp_seq 7
Request timeout for icmp_seq 8
Request timeout for icmp_seq 9
Request timeout for icmp_seq 10
Request timeout for icmp_seq 11
Request timeout for icmp_seq 12
Request timeout for icmp_seq 13
Request timeout for icmp_seq 14
Request timeout for icmp_seq 15
Request timeout for icmp_seq 16
Request timeout for icmp_seq 17
Request timeout for icmp_seq 18
Request timeout for icmp_seq 19
Request timeout for icmp_seq 20
Request timeout for icmp_seq 21
Request timeout for icmp_seq 22
Request timeout for icmp_seq 23
Request timeout for icmp_seq 24
Request timeout for icmp_seq 25
Request timeout for icmp_seq 26
Request timeout for icmp_seq 27
Request timeout for icmp_seq 28
Request timeout for icmp_seq 29
Request timeout for icmp_seq 30
Request timeout for icmp_seq 31
64 bytes from 10.0.0.2: icmp_seq=32 ttl=62 time=33.984 ms
64 bytes from 10.0.0.2: icmp_seq=33 ttl=62 time=37.560 ms
64 bytes from 10.0.0.2: icmp_seq=34 ttl=62 time=54.988 ms
・・・
● 切り戻し(障害復旧)
① Tunnelアップ
Tunnelアップさせて切り戻し(障害復旧)
・Tunnel0.0 アップ
Router01(config)# interface Tunnel0.0
Router01(config-Tunnel0.0)# no shutdown
・Tunnel0.0 アップ確認
Router01(config)# show interface Tunnel0.0
Interface Tunnel0.0 is up
・Tunnel1.0 アップ
Router01(config-Tunnel0.0)# interface Tunnel1.0
Router01(config-Tunnel1.0)# no shutdown
・Tunnel1.0 アップ確認
Router01(config)# show interface Tunnel1.0
Interface Tunnel1.0 is up
② BGP復旧確認
TunnelのBGP(192.168.254.14, 192.168.254.18)が全て復旧したことを確認
Router01(config)# show ip bgp summary
BGP router ID 192.168.254.17, local AS number 65001
2 BGP AS-PATH entries
Neighbor V AS MsgRcvd MsgSent Up/DownTime State
192.168.100.212 4 65001 18738 18751 13:48:44 ESTABLISHED
192.168.254.14 4 31898 20166 18848 0:01:25 ESTABLISHED
192.168.254.18 4 31898 20158 18837 0:01:04 ESTABLISHED
③ Route復旧確認
OCI側のCIDRが、Tunnel0.0, Tunnel1.0を経由するよう復旧したことを確認
Router01(config)# show ip route
IP Routing Table - 14 entries, 7 hidden, 2027 frees
Entries: 5 Connected, 1 Static, 0 RIP, 0 OSPF, 8 BGP
Codes: C - Connected, S - Static, R - RIP, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, B - BGP
* - Candidate default, s - Summary
Timers: Age
S* 0.0.0.0/0 [1/1] is directly connected, GigaEthernet0.1, 3d9h39m13s
10.0.0.0/8 is subnetted, 1 subnets
B 10.0.0.0/24 [20/5] via 192.168.254.14, Tunnel0.0, 0:01:33
134.70.0.0/16 is subnetted, 2 subnets
B 134.70.80.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 0:01:33
B 134.70.82.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 0:01:33
140.91.0.0/16 is subnetted, 1 subnets
B 140.91.32.0/23 [20/5] via 192.168.254.14, Tunnel0.0, 0:01:33
140.204.0.0/16 is subnetted, 1 subnets
B 140.204.8.128/25 [20/5] via 192.168.254.14, Tunnel0.0, 0:01:34
B 192.29.36.0/22 [20/5] via 192.168.254.14, Tunnel0.0, 0:01:34
B 192.29.40.0/22 [20/5] via 192.168.254.14, Tunnel0.0, 0:01:34
192.29.44.0/24 is subnetted, 1 subnets
B 192.29.44.0/25 [20/5] via 192.168.254.14, Tunnel0.0, 0:01:34
192.168.100.0/24 is subnetted, 2 subnets
C 192.168.100.0/24 [0/1] is directly connected, GigaEthernet1.0, 13:48:53
C 192.168.100.254/32 [0/1] is directly connected, Virtual10, 13:48:52
192.168.254.0/24 is subnetted, 2 subnets
C 192.168.254.12/30 [0/1] is directly connected, Tunnel0.0, 0:01:41
C 192.168.254.16/30 [0/1] is directly connected, Tunnel1.0, 0:01:19
④ ping確認
特にtimeoutせず、通信できていることを確認
・・・
64 bytes from 10.0.0.2: icmp_seq=239 ttl=62 time=29.308 ms
64 bytes from 10.0.0.2: icmp_seq=240 ttl=62 time=46.684 ms
64 bytes from 10.0.0.2: icmp_seq=241 ttl=62 time=30.180 ms
64 bytes from 10.0.0.2: icmp_seq=242 ttl=62 time=44.906 ms
64 bytes from 10.0.0.2: icmp_seq=243 ttl=62 time=27.194 ms
64 bytes from 10.0.0.2: icmp_seq=244 ttl=62 time=17.733 ms
・・・
■ コンフィグ確認
● Master Router01
Router01(config)# show running-config
! NEC Portable Internetwork Core Operating System Software
! IX Series IX2105 (magellan-sec) Software, Version 9.6.12A, MAINTENANCE RELEASE SOFTWARE
! Compiled Oct 05-Thu-2017 19:27:09 JST #2
! Current time Mar 19-Thu-2020 23:59:33 JST
!
hostname Router01
timezone +09 00
!
username oracle password hash AD8SFBB9DSVDSBN7 administrator
!
logging buffered 131072
logging subsystem all warn
logging timestamp datetime
!
!
ip ufs-cache enable
ip multipath per-flow
ip route default GigaEthernet0.1
ip dhcp enable
!
!
!
!
!
!
!
!
!
proxy-dns ip enable
proxy-dns interface GigaEthernet0.1 priority 254
!
!
ssh-server ip enable
!
vrrp enable
!
ikev2 authentication psk id ipv4 140.204.100.101 key char SharedSecret01
ikev2 authentication psk id ipv4 140.204.100.102 key char SharedSecret02
!
!
route-map pri1 permit 10
set metric 5
set local-preference 200
!
route-map pri2 permit 10
set metric 10
set local-preference 150
!
ppp profile web-ppp-gigaethernet0.1
authentication myname [プロバイダ接続用ユーザID]
authentication password [プロバイダ接続用ユーザID] [プロバイダ接続用パスワード]
!
ip dhcp profile web-dhcp-gigaethernet1.0
assignable-range 192.168.100.10 192.168.100.50
dns-server 192.168.100.211
!
router bgp 65100
neighbor 192.168.254.14 remote-as 31898
neighbor 192.168.254.14 timers 10 30
neighbor 192.168.254.18 remote-as 31898
neighbor 192.168.254.18 timers 10 30
neighbor 192.168.100.212 remote-as 65100
neighbor 192.168.100.212 timers 10 30
address-family ipv4 unicast
neighbor 192.168.254.14 route-map pri1 in
neighbor 192.168.254.14 route-map pri1 out
neighbor 192.168.254.18 route-map pri2 in
neighbor 192.168.254.18 route-map pri2 out
neighbor 192.168.100.212 next-hop-self
network 192.168.100.0/24
!
ikev2 default-profile
child-pfs 1536-bit
child-proposal enc aes-cbc-256
child-proposal integrity sha1
dpd interval 10
sa-proposal enc aes-cbc-256
sa-proposal integrity sha2-384
sa-proposal dh 1536-bit
source-address GigaEthernet0.1
!
device GigaEthernet0
!
device GigaEthernet1
!
interface GigaEthernet0.0
no ip address
shutdown
!
interface GigaEthernet1.0
description LAN1
ip address 192.168.100.211/24
ip dhcp binding web-dhcp-gigaethernet1.0
vrrp 10 ip 192.168.100.254
vrrp 10 ip virtual-host
no shutdown
!
interface GigaEthernet0.1
description WAN1
encapsulation pppoe
auto-connect
ppp binding web-ppp-gigaethernet0.1
ip address ipcp
ip tcp adjust-mss auto
ip napt enable
ip napt static GigaEthernet0.1 udp 500
ip napt static GigaEthernet0.1 udp 4500
ip napt static GigaEthernet0.1 50
no shutdown
!
interface Loopback0.0
no ip address
!
interface Null0.0
no ip address
!
interface Tunnel0.0
tunnel mode ipsec-ikev2
ip address 192.168.254.13/30
ip tcp adjust-mss auto
ikev2 connect-type auto
ikev2 ipsec pre-fragment
ikev2 outgoing-interface GigaEthernet0.1
ikev2 peer 140.204.100.101 authentication psk id ipv4 140.204.100.101
no shutdown
!
interface Tunnel1.0
tunnel mode ipsec-ikev2
ip address 192.168.254.17/30
ip tcp adjust-mss auto
ikev2 connect-type auto
ikev2 ipsec pre-fragment
ikev2 outgoing-interface GigaEthernet0.1
ikev2 peer 140.204.100.102 authentication psk id ipv4 140.204.100.102
no shutdown
・保存
Router01(config)# write memory
Building configuration...
% Warning: do NOT enter CNTL/Z while saving to avoid config corruption.
● Standby Router02
Router02(config)# show running-config
Current configuration : 3498 bytes
! NEC Portable Internetwork Core Operating System Software
! IX Series IX2105 (magellan-sec) Software, Version 9.2.20, RELEASE SOFTWARE
! Compiled Aug 19-Wed-2015 16:25:46 JST #2
! Current time Mar 19-Thu-2020 21:20:39 JST
!
!
hostname Router02
timezone +09 00
!
!
!
username oracle password hash AD8SFBB9DSVDSBN7 administrator
!
!
!
!
!
!
logging buffered 131072
logging subsystem all warn
logging timestamp datetime
!
!
ip ufs-cache enable
ip multipath per-flow
ip route default GigaEthernet0.1
ip dhcp enable
!
!
!
!
!
!
!
!
!
!
!
proxy-dns ip enable
proxy-dns interface GigaEthernet0.1 priority 254
!
!
ssh-server ip enable
!
!
!
!
!
vrrp enable
!
ikev2 authentication psk id ipv4 129.146.200.201 key char SharedSecret01
ikev2 authentication psk id ipv4 129.146.200.202 key char SharedSecret02
!
!
!
!
route-map pri1 permit 10
set metric 5
set local-preference 200
!
route-map pri2 permit 10
set metric 10
set local-preference 150
!
ppp profile web-ppp-gigaethernet0.1
authentication myname [プロバイダ接続用ユーザID]
authentication password [プロバイダ接続用ユーザID] [プロバイダ接続用パスワード]
!
ip dhcp profile web-dhcp-gigaethernet1.0
assignable-range 192.168.100.100 192.168.100.110
dns-server 192.168.100.212
!
router bgp 65100
neighbor 192.168.254.22 remote-as 31898
neighbor 192.168.254.22 timers 10 30
neighbor 192.168.254.26 remote-as 31898
neighbor 192.168.254.26 timers 10 30
neighbor 192.168.100.211 remote-as 65100
neighbor 192.168.100.211 timers 10 30
address-family ipv4 unicast
neighbor 192.168.254.22 route-map pri1 in
neighbor 192.168.254.22 route-map pri1 out
neighbor 192.168.254.26 route-map pri2 in
neighbor 192.168.254.26 route-map pri2 out
neighbor 192.168.100.211 next-hop-self
network 192.168.100.0/24
!
ikev2 default-profile
child-pfs 1536-bit
child-proposal enc aes-cbc-256
child-proposal integrity sha1
dpd interval 10
sa-proposal enc aes-cbc-256
sa-proposal integrity sha2-384
sa-proposal dh 1536-bit
source-address GigaEthernet0.1
!
device GigaEthernet0
!
device GigaEthernet1
!
interface GigaEthernet0.0
no ip address
shutdown
!
interface GigaEthernet1.0
description LAN1
ip address 192.168.100.212/24
ip dhcp binding web-dhcp-gigaethernet1.0
vrrp 10 ip 192.168.100.254
vrrp 10 priority 95
vrrp 10 ip virtual-host
no shutdown
!
interface GigaEthernet0.1
description WAN1
encapsulation pppoe
auto-connect
ppp binding web-ppp-gigaethernet0.1
ip address ipcp
ip tcp adjust-mss auto
ip napt enable
ip napt static GigaEthernet0.1 udp 500
ip napt static GigaEthernet0.1 udp 4500
ip napt static GigaEthernet0.1 50
no shutdown
!
interface Loopback0.0
no ip address
!
interface Null0.0
no ip address
!
interface Tunnel0.0
tunnel mode ipsec-ikev2
ip address 192.168.254.21/30
ip tcp adjust-mss auto
ikev2 connect-type auto
ikev2 ipsec pre-fragment
ikev2 outgoing-interface GigaEthernet0.1
ikev2 peer 129.146.200.201 authentication psk id ipv4 129.146.200.201
no shutdown
!
interface Tunnel1.0
tunnel mode ipsec-ikev2
ip address 192.168.254.25/30
ip tcp adjust-mss auto
ikev2 connect-type auto
ikev2 ipsec pre-fragment
ikev2 outgoing-interface GigaEthernet0.1
ikev2 peer 129.146.200.202 authentication psk id ipv4 129.146.200.202
no shutdown
・保存
Router02(config)# write memory
Building configuration...
% Warning: do NOT enter CNTL/Z while saving to avoid config corruption.
■ 参考
● NEC 技術情報
・UNIVERGE IXシリーズ 技術情報
・Oracle CloudとのVPN接続
・Oracle Cloudの設定(BGP)
・UNIVERGE IXシリーズ 障害切り分けガイドライン
● Oracle Cloud Infrastructureドキュメント
● Blog
・Oracle Cloud:NEC UNIVERGE IXルーターでOCIへIPsec VPN接続してみてみた
・UNIVERGE IXルーターとOracle CloudをIPSec接続してAS-Path Prependで経路制御してみてみた
・Transit Routing + IPSec VPN / FastConnectで Object Storage, Autonomous Databaseへ接続してみてみた
