初めに
どうも、クソ雑魚のなんちゃてエンジニアです。
本記事は CyberDefenders （以下リンク参考）の「RedLine」にチャレンジした際のWriteupになります。
※本チャレンジについてはRed側のペネトレというよりはBlue側の分析力を問われるものになります。
What is the name of the suspicious process?
とりあえずimageinfoでOSプロファイルを確認しておきます。
remnux@remnux:~/Downloads$ vol.py -f MemoryDump.mem imageinfo
Volatility Foundation Volatility Framework 2.6.1
/usr/local/lib/python2.7/dist-packages/volatility/plugins/community/YingLi/ssh_agent_key.py:12: CryptographyDeprecationWarning: Python 2 is no longer supported by the Python core team. Support for it is now deprecated in cryptography, and will be removed in the next release.
from cryptography.hazmat.backends.openssl import backend
INFO : volatility.debug : Determining profile based on KDBG search...
Suggested Profile(s) : Win10x64_19041
AS Layer1 : SkipDuplicatesAMD64PagedMemory (Kernel AS)
AS Layer2 : FileAddressSpace (/home/remnux/Downloads/MemoryDump.mem)
PAE type : No PAE
DTB : 0x1ad002L
KDBG : 0xf80762e1ab20L
Number of Processors : 4
Image Type (Service Pack) : 0
KPCR for CPU 0 : 0xfffff80761287000L
KPCR for CPU 1 : 0xffff8a0094dc0000L
KPCR for CPU 2 : 0xffff8a00949e8000L
KPCR for CPU 3 : 0xffff8a0094b5d000L
KUSER_SHARED_DATA : 0xfffff78000000000L
Image date and time : 2023-05-21 23:02:39 UTC+0000
Image local date and time : 2023-05-22 01:02:39 +0200
remnux@remnux:~/Downloads$
おお、win10なので最近の奴ですね。
あまりvolatility2の特殊コマンドが効かなさそうなのでvolatility3主軸で攻めようかなと思います。

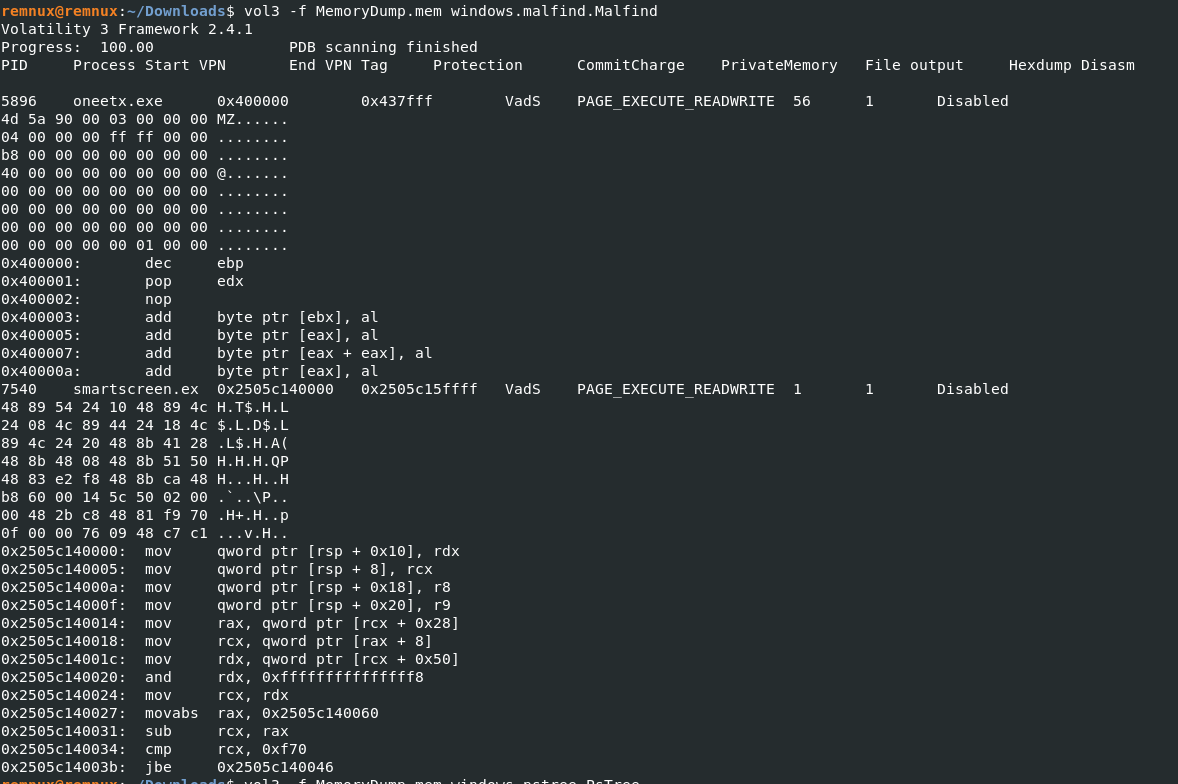

不審なプロセスを見つけるためにmalfindコマンドを実施します。
remnux@remnux:~/Downloads$ vol3 -f MemoryDump.mem windows.malfind.Malfind
Volatility 3 Framework 2.4.1
Progress: 100.00 PDB scanning finished
PID Process Start VPN End VPN Tag Protection CommitCharge PrivateMemory File output Hexdump Disasm
5896 oneetx.exe 0x400000 0x437fff VadS PAGE_EXECUTE_READWRITE 56 1 Disabled
4d 5a 90 00 03 00 00 00 MZ......
04 00 00 00 ff ff 00 00 ........
b8 00 00 00 00 00 00 00 ........
40 00 00 00 00 00 00 00 @.......
00 00 00 00 00 00 00 00 ........
00 00 00 00 00 00 00 00 ........
00 00 00 00 00 00 00 00 ........
00 00 00 00 00 01 00 00 ........
0x400000: dec ebp
0x400001: pop edx
0x400002: nop
0x400003: add byte ptr [ebx], al
0x400005: add byte ptr [eax], al
0x400007: add byte ptr [eax + eax], al
0x40000a: add byte ptr [eax], al
7540 smartscreen.ex 0x2505c140000 0x2505c15ffff VadS PAGE_EXECUTE_READWRITE 1 1 Disabled
48 89 54 24 10 48 89 4c H.T$.H.L
24 08 4c 89 44 24 18 4c $.L.D$.L
89 4c 24 20 48 8b 41 28 .L$.H.A(
48 8b 48 08 48 8b 51 50 H.H.H.QP
48 83 e2 f8 48 8b ca 48 H...H..H
b8 60 00 14 5c 50 02 00 .`..\P..
00 48 2b c8 48 81 f9 70 .H+.H..p
0f 00 00 76 09 48 c7 c1 ...v.H..
0x2505c140000: mov qword ptr [rsp + 0x10], rdx
0x2505c140005: mov qword ptr [rsp + 8], rcx
0x2505c14000a: mov qword ptr [rsp + 0x18], r8
0x2505c14000f: mov qword ptr [rsp + 0x20], r9
0x2505c140014: mov rax, qword ptr [rcx + 0x28]
0x2505c140018: mov rcx, qword ptr [rax + 8]
0x2505c14001c: mov rdx, qword ptr [rcx + 0x50]
0x2505c140020: and rdx, 0xfffffffffffffff8
0x2505c140024: mov rcx, rdx
0x2505c140027: movabs rax, 0x2505c140060
0x2505c140031: sub rcx, rax
0x2505c140034: cmp rcx, 0xf70
0x2505c14003b: jbe 0x2505c140046
remnux@remnux:~/Downloads$
ふむoneetx.exeかな？pslistも確認しておきます。
remnux@remnux:~/Downloads$ vol3 -f MemoryDump.mem windows.pslist.PsList
Volatility 3 Framework 2.4.1
WARNING volatility3.framework.symbols.windows.pdbutil: Cannot write necessary symbol file, please check permissions on /usr/local/lib/python3.8/dist-packages/volatility3/symbols/windows/ntkrnlmp.pdb/68A17FAF3012B7846079AEECDBE0A583-1.json.xz
Progress: 100.00 PDB scanning finished
PID PPID ImageFileName Offset(V) Threads Handles SessionId Wow64 CreateTime ExitTime File output
4 0 System 0xad8185883180 157 - N/A False 2023-05-21 22:27:10.000000 N/A Disabled
108 4 Registry 0xad81858f2080 4 - N/A False 2023-05-21 22:26:54.000000 N/A Disabled
332 4 smss.exe 0xad81860dc040 2 - N/A False 2023-05-21 22:27:10.000000 N/A Disabled
452 444 csrss.exe 0xad81861cd080 12 - 0 False 2023-05-21 22:27:22.000000 N/A Disabled
528 520 csrss.exe 0xad8186f1b140 14 - 1 False 2023-05-21 22:27:25.000000 N/A Disabled
552 444 wininit.exe 0xad8186f2b080 1 - 0 False 2023-05-21 22:27:25.000000 N/A Disabled
588 520 winlogon.exe 0xad8186f450c0 5 - 1 False 2023-05-21 22:27:25.000000 N/A Disabled
676 552 services.exe 0xad8186f4d080 7 - 0 False 2023-05-21 22:27:29.000000 N/A Disabled
696 552 lsass.exe 0xad8186fc6080 10 - 0 False 2023-05-21 22:27:29.000000 N/A Disabled
824 676 svchost.exe 0xad818761d240 22 - 0 False 2023-05-21 22:27:32.000000 N/A Disabled
852 552 fontdrvhost.ex 0xad818761b0c0 5 - 0 False 2023-05-21 22:27:33.000000 N/A Disabled
860 588 fontdrvhost.ex 0xad818761f140 5 - 1 False 2023-05-21 22:27:33.000000 N/A Disabled
952 676 svchost.exe 0xad81876802c0 12 - 0 False 2023-05-21 22:27:36.000000 N/A Disabled
1016 588 dwm.exe 0xad81876e4340 15 - 1 False 2023-05-21 22:27:38.000000 N/A Disabled
448 676 svchost.exe 0xad8187721240 54 - 0 False 2023-05-21 22:27:41.000000 N/A Disabled
752 676 svchost.exe 0xad8187758280 21 - 0 False 2023-05-21 22:27:43.000000 N/A Disabled
1012 676 svchost.exe 0xad818774c080 19 - 0 False 2023-05-21 22:27:43.000000 N/A Disabled
1196 676 svchost.exe 0xad81877972c0 34 - 0 False 2023-05-21 22:27:46.000000 N/A Disabled
1280 4 MemCompression 0xad8187835080 62 - N/A False 2023-05-21 22:27:49.000000 N/A Disabled
1376 676 svchost.exe 0xad81878020c0 15 - 0 False 2023-05-21 22:27:49.000000 N/A Disabled
1448 676 svchost.exe 0xad818796c2c0 30 - 0 False 2023-05-21 22:27:52.000000 N/A Disabled
1496 676 svchost.exe 0xad81879752c0 12 - 0 False 2023-05-21 22:27:52.000000 N/A Disabled
1644 676 svchost.exe 0xad8187a112c0 6 - 0 False 2023-05-21 22:27:58.000000 N/A Disabled
1652 676 svchost.exe 0xad8187a2d2c0 10 - 0 False 2023-05-21 22:27:58.000000 N/A Disabled
1840 676 spoolsv.exe 0xad8187acb200 10 - 0 False 2023-05-21 22:28:03.000000 N/A Disabled
1892 676 svchost.exe 0xad8187b34080 14 - 0 False 2023-05-21 22:28:05.000000 N/A Disabled
2024 676 svchost.exe 0xad8187b65240 7 - 0 False 2023-05-21 22:28:11.000000 N/A Disabled
2076 676 svchost.exe 0xad8187b94080 10 - 0 False 2023-05-21 22:28:19.000000 N/A Disabled
2144 676 vmtoolsd.exe 0xad81896ab080 11 - 0 False 2023-05-21 22:28:19.000000 N/A Disabled
2152 676 vm3dservice.ex 0xad81896ae240 2 - 0 False 2023-05-21 22:28:19.000000 N/A Disabled
2200 676 VGAuthService. 0xad81896b3300 2 - 0 False 2023-05-21 22:28:19.000000 N/A Disabled
2404 2152 vm3dservice.ex 0xad8186619200 2 - 1 False 2023-05-21 22:28:32.000000 N/A Disabled
3028 676 dllhost.exe 0xad8185907080 12 - 0 False 2023-05-21 22:29:20.000000 N/A Disabled
832 676 msdtc.exe 0xad8185861280 9 - 0 False 2023-05-21 22:29:25.000000 N/A Disabled
1232 676 svchost.exe 0xad8186f4a2c0 7 - 0 False 2023-05-21 22:29:39.000000 N/A Disabled
1392 448 sihost.exe 0xad8189e94280 11 - 1 False 2023-05-21 22:30:08.000000 N/A Disabled
1064 676 svchost.exe 0xad8189d7c2c0 15 - 1 False 2023-05-21 22:30:09.000000 N/A Disabled
1600 448 taskhostw.exe 0xad8189d07300 10 - 1 False 2023-05-21 22:30:09.000000 N/A Disabled
3204 752 ctfmon.exe 0xad8189c8b280 12 - 1 False 2023-05-21 22:30:11.000000 N/A Disabled
3556 588 userinit.exe 0xad818c02f340 0 - 1 False 2023-05-21 22:30:28.000000 2023-05-21 22:30:43.000000 Disabled
3580 3556 explorer.exe 0xad818c047340 76 - 1 False 2023-05-21 22:30:28.000000 N/A Disabled
3944 824 WmiPrvSE.exe 0xad818c054080 13 - 0 False 2023-05-21 22:30:44.000000 N/A Disabled
3004 676 svchost.exe 0xad818c4212c0 7 - 0 False 2023-05-21 22:30:55.000000 N/A Disabled
1116 676 svchost.exe 0xad818c426080 6 - 1 False 2023-05-21 22:31:00.000000 N/A Disabled
3160 824 StartMenuExper 0xad818cad3240 14 - 1 False 2023-05-21 22:31:21.000000 N/A Disabled
4116 824 RuntimeBroker. 0xad818cd93300 3 - 1 False 2023-05-21 22:31:24.000000 N/A Disabled
4228 676 SearchIndexer. 0xad818ce06240 15 - 0 False 2023-05-21 22:31:27.000000 N/A Disabled
4448 824 RuntimeBroker. 0xad818c09a080 9 - 1 False 2023-05-21 22:31:33.000000 N/A Disabled
464 3580 SecurityHealth 0xad818979d080 3 - 1 False 2023-05-21 22:31:59.000000 N/A Disabled
3252 3580 vmtoolsd.exe 0xad8189796300 8 - 1 False 2023-05-21 22:31:59.000000 N/A Disabled
5136 676 SecurityHealth 0xad818d374280 7 - 0 False 2023-05-21 22:32:01.000000 N/A Disabled
5328 3580 msedge.exe 0xad818d0980c0 54 - 1 False 2023-05-21 22:32:02.000000 N/A Disabled
4396 5328 msedge.exe 0xad818d515080 7 - 1 False 2023-05-21 22:32:19.000000 N/A Disabled
1144 5328 msedge.exe 0xad818d75f080 18 - 1 False 2023-05-21 22:32:38.000000 N/A Disabled
4544 5328 msedge.exe 0xad818d75b080 14 - 1 False 2023-05-21 22:32:39.000000 N/A Disabled
5340 5328 msedge.exe 0xad818d7b3080 10 - 1 False 2023-05-21 22:32:39.000000 N/A Disabled
5704 824 RuntimeBroker. 0xad8185962080 5 - 1 False 2023-05-21 22:32:44.000000 N/A Disabled
1764 824 dllhost.exe 0xad818d176080 7 - 1 False 2023-05-21 22:32:48.000000 N/A Disabled
1916 824 SearchApp.exe 0xad818d099080 24 - 1 False 2023-05-21 22:33:05.000000 N/A Disabled
6200 676 SgrmBroker.exe 0xad818d09f080 7 - 0 False 2023-05-21 22:33:42.000000 N/A Disabled
6696 676 svchost.exe 0xad818c532080 8 - 0 False 2023-05-21 22:34:07.000000 N/A Disabled
7312 824 ApplicationFra 0xad818e84f300 10 - 1 False 2023-05-21 22:35:44.000000 N/A Disabled
7772 676 svchost.exe 0xad818e88e140 3 - 0 False 2023-05-21 22:36:03.000000 N/A Disabled
6724 3580 Outline.exe 0xad818e578080 0 - 1 True 2023-05-21 22:36:09.000000 2023-05-21 23:01:24.000000 Disabled
4224 6724 Outline.exe 0xad818e88b080 0 - 1 True 2023-05-21 22:36:23.000000 2023-05-21 23:01:24.000000 Disabled
7160 824 SearchApp.exe 0xad818ccc4080 57 - 1 False 2023-05-21 22:39:13.000000 N/A Disabled
4628 6724 tun2socks.exe 0xad818de82340 0 - 1 True 2023-05-21 22:40:10.000000 2023-05-21 23:01:24.000000 Disabled
6048 448 taskhostw.exe 0xad818dc5d080 5 - 1 False 2023-05-21 22:40:20.000000 N/A Disabled
8264 824 RuntimeBroker. 0xad818eec8080 4 - 1 False 2023-05-21 22:40:33.000000 N/A Disabled
3608 676 svchost.exe 0xad818d07a080 3 - 0 False 2023-05-21 22:41:28.000000 N/A Disabled
6644 824 SkypeApp.exe 0xad818d3ac080 49 - 1 False 2023-05-21 22:41:52.000000 N/A Disabled
5656 824 RuntimeBroker. 0xad81876e8080 0 - 1 False 2023-05-21 21:58:19.000000 2023-05-21 22:02:01.000000 Disabled
8952 824 TextInputHost. 0xad818e6db080 10 - 1 False 2023-05-21 21:59:11.000000 N/A Disabled
5808 824 HxTsr.exe 0xad818de5d080 0 - 1 False 2023-05-21 21:59:58.000000 2023-05-21 22:07:45.000000 Disabled
2388 5328 msedge.exe 0xad818e54c340 18 - 1 False 2023-05-21 22:05:35.000000 N/A Disabled
6292 5328 msedge.exe 0xad818d7a1080 20 - 1 False 2023-05-21 22:06:15.000000 N/A Disabled
3876 448 taskhostw.exe 0xad8189b30080 8 - 1 False 2023-05-21 22:08:02.000000 N/A Disabled
372 824 SkypeBackgroun 0xad8186f49080 3 - 1 False 2023-05-21 22:10:00.000000 N/A Disabled
1120 676 MsMpEng.exe 0xad818945c080 12 - 0 False 2023-05-21 22:10:01.000000 N/A Disabled
6076 824 ShellExperienc 0xad818eb18080 14 - 1 False 2023-05-21 22:11:36.000000 N/A Disabled
7336 824 RuntimeBroker. 0xad818e8bb080 2 - 1 False 2023-05-21 22:11:39.000000 N/A Disabled
7964 5328 msedge.exe 0xad818dee5080 19 - 1 False 2023-05-21 22:22:09.000000 N/A Disabled
6544 5328 msedge.exe 0xad818c0ea080 18 - 1 False 2023-05-21 22:22:35.000000 N/A Disabled
5964 676 svchost.exe 0xad818ef86080 5 - 0 False 2023-05-21 22:27:56.000000 N/A Disabled
8896 5328 msedge.exe 0xad8187a39080 18 - 1 False 2023-05-21 22:28:21.000000 N/A Disabled
5156 5328 msedge.exe 0xad818c553080 14 - 1 False 2023-05-21 22:28:22.000000 N/A Disabled
5896 8844 oneetx.exe 0xad8189b41080 5 - 1 True 2023-05-21 22:30:56.000000 N/A Disabled
7732 5896 rundll32.exe 0xad818d1912c0 1 - 1 True 2023-05-21 22:31:53.000000 N/A Disabled
6324 1496 audiodg.exe 0xad818df2e080 4 - 0 False 2023-05-21 22:42:56.000000 N/A Disabled
2228 3580 FTK Imager.exe 0xad818d143080 10 - 1 False 2023-05-21 22:43:56.000000 N/A Disabled
5636 3580 notepad.exe 0xad818db45080 1 - 1 False 2023-05-21 22:46:50.000000 N/A Disabled
2044 676 svchost.exe 0xad8189b27080 28 - 0 False 2023-05-21 22:49:29.000000 N/A Disabled
8708 676 svchost.exe 0xad818d431080 5 - 0 False 2023-05-21 22:57:33.000000 N/A Disabled
5476 676 svchost.exe 0xad818e752080 9 - 0 False 2023-05-21 22:58:08.000000 N/A Disabled
6596 676 TrustedInstall 0xad818dc88080 4 - 0 False 2023-05-21 22:58:13.000000 N/A Disabled
2332 824 TiWorker.exe 0xad818e780080 4 - 0 False 2023-05-21 22:58:13.000000 N/A Disabled
4340 676 VSSVC.exe 0xad818e888080 3 - 0 False 2023-05-21 23:01:06.000000 N/A Disabled
7540 824 smartscreen.ex 0xad818e893080 14 - 1 False 2023-05-21 23:02:26.000000 N/A Disabled
8920 3580 FTK Imager.exe 0xad818ef81080 20 - 1 False 2023-05-21 23:02:28.000000 N/A Disabled
5480 448 oneetx.exe 0xad818d3d6080 6 - 1 True 2023-05-21 23:03:00.000000 N/A Disabled
remnux@remnux:~/Downloads$

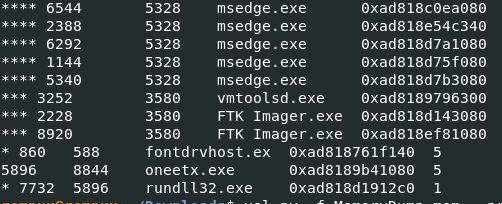

PPIDがまぁ不審だなこのPID 5896のoneetx.exe
というわけで回答します。
Ans: oneetx.exe
What is the child process name of the suspicious process?
これはpstreeコマンドで確認します。
remnux@remnux:~/Downloads$ vol3 -f MemoryDump.mem windows.pstree.PsTree
Volatility 3 Framework 2.4.1
Progress: 100.00 PDB scanning finished
PID PPID ImageFileName Offset(V) Threads Handles SessionId Wow64 CreateTime ExitTime
4 0 System 0xad8185883180 157 - N/A False 2023-05-21 22:27:10.000000 N/A
* 1280 4 MemCompression 0xad8187835080 62 - N/A False 2023-05-21 22:27:49.000000 N/A
* 108 4 Registry 0xad81858f2080 4 - N/A False 2023-05-21 22:26:54.000000 N/A
* 332 4 smss.exe 0xad81860dc040 2 - N/A False 2023-05-21 22:27:10.000000 N/A
452 444 csrss.exe 0xad81861cd080 12 - 0 False 2023-05-21 22:27:22.000000 N/A
528 520 csrss.exe 0xad8186f1b140 14 - 1 False 2023-05-21 22:27:25.000000 N/A
552 444 wininit.exe 0xad8186f2b080 1 - 0 False 2023-05-21 22:27:25.000000 N/A
* 696 552 lsass.exe 0xad8186fc6080 10 - 0 False 2023-05-21 22:27:29.000000 N/A
* 676 552 services.exe 0xad8186f4d080 7 - 0 False 2023-05-21 22:27:29.000000 N/A
** 4228 676 SearchIndexer. 0xad818ce06240 15 - 0 False 2023-05-21 22:31:27.000000 N/A
** 8708 676 svchost.exe 0xad818d431080 5 - 0 False 2023-05-21 22:57:33.000000 N/A
** 5136 676 SecurityHealth 0xad818d374280 7 - 0 False 2023-05-21 22:32:01.000000 N/A
** 2200 676 VGAuthService. 0xad81896b3300 2 - 0 False 2023-05-21 22:28:19.000000 N/A
** 3608 676 svchost.exe 0xad818d07a080 3 - 0 False 2023-05-21 22:41:28.000000 N/A
** 2076 676 svchost.exe 0xad8187b94080 10 - 0 False 2023-05-21 22:28:19.000000 N/A
** 1448 676 svchost.exe 0xad818796c2c0 30 - 0 False 2023-05-21 22:27:52.000000 N/A
** 1064 676 svchost.exe 0xad8189d7c2c0 15 - 1 False 2023-05-21 22:30:09.000000 N/A
** 6696 676 svchost.exe 0xad818c532080 8 - 0 False 2023-05-21 22:34:07.000000 N/A
** 1196 676 svchost.exe 0xad81877972c0 34 - 0 False 2023-05-21 22:27:46.000000 N/A
** 1840 676 spoolsv.exe 0xad8187acb200 10 - 0 False 2023-05-21 22:28:03.000000 N/A
** 952 676 svchost.exe 0xad81876802c0 12 - 0 False 2023-05-21 22:27:36.000000 N/A
** 824 676 svchost.exe 0xad818761d240 22 - 0 False 2023-05-21 22:27:32.000000 N/A
*** 7312 824 ApplicationFra 0xad818e84f300 10 - 1 False 2023-05-21 22:35:44.000000 N/A
*** 4116 824 RuntimeBroker. 0xad818cd93300 3 - 1 False 2023-05-21 22:31:24.000000 N/A
*** 5656 824 RuntimeBroker. 0xad81876e8080 0 - 1 False 2023-05-21 21:58:19.000000 2023-05-21 22:02:01.000000
*** 2332 824 TiWorker.exe 0xad818e780080 4 - 0 False 2023-05-21 22:58:13.000000 N/A
*** 7336 824 RuntimeBroker. 0xad818e8bb080 2 - 1 False 2023-05-21 22:11:39.000000 N/A
*** 5808 824 HxTsr.exe 0xad818de5d080 0 - 1 False 2023-05-21 21:59:58.000000 2023-05-21 22:07:45.000000
*** 7160 824 SearchApp.exe 0xad818ccc4080 57 - 1 False 2023-05-21 22:39:13.000000 N/A
*** 6076 824 ShellExperienc 0xad818eb18080 14 - 1 False 2023-05-21 22:11:36.000000 N/A
*** 5704 824 RuntimeBroker. 0xad8185962080 5 - 1 False 2023-05-21 22:32:44.000000 N/A
*** 8264 824 RuntimeBroker. 0xad818eec8080 4 - 1 False 2023-05-21 22:40:33.000000 N/A
*** 3160 824 StartMenuExper 0xad818cad3240 14 - 1 False 2023-05-21 22:31:21.000000 N/A
*** 4448 824 RuntimeBroker. 0xad818c09a080 9 - 1 False 2023-05-21 22:31:33.000000 N/A
*** 1764 824 dllhost.exe 0xad818d176080 7 - 1 False 2023-05-21 22:32:48.000000 N/A
*** 3944 824 WmiPrvSE.exe 0xad818c054080 13 - 0 False 2023-05-21 22:30:44.000000 N/A
*** 6644 824 SkypeApp.exe 0xad818d3ac080 49 - 1 False 2023-05-21 22:41:52.000000 N/A
*** 372 824 SkypeBackgroun 0xad8186f49080 3 - 1 False 2023-05-21 22:10:00.000000 N/A
*** 7540 824 smartscreen.ex 0xad818e893080 14 - 1 False 2023-05-21 23:02:26.000000 N/A
*** 8952 824 TextInputHost. 0xad818e6db080 10 - 1 False 2023-05-21 21:59:11.000000 N/A
*** 1916 824 SearchApp.exe 0xad818d099080 24 - 1 False 2023-05-21 22:33:05.000000 N/A
** 6200 676 SgrmBroker.exe 0xad818d09f080 7 - 0 False 2023-05-21 22:33:42.000000 N/A
** 3004 676 svchost.exe 0xad818c4212c0 7 - 0 False 2023-05-21 22:30:55.000000 N/A
** 448 676 svchost.exe 0xad8187721240 54 - 0 False 2023-05-21 22:27:41.000000 N/A
*** 1600 448 taskhostw.exe 0xad8189d07300 10 - 1 False 2023-05-21 22:30:09.000000 N/A
*** 6048 448 taskhostw.exe 0xad818dc5d080 5 - 1 False 2023-05-21 22:40:20.000000 N/A
*** 3876 448 taskhostw.exe 0xad8189b30080 8 - 1 False 2023-05-21 22:08:02.000000 N/A
*** 5480 448 oneetx.exe 0xad818d3d6080 6 - 1 True 2023-05-21 23:03:00.000000 N/A
*** 1392 448 sihost.exe 0xad8189e94280 11 - 1 False 2023-05-21 22:30:08.000000 N/A
** 832 676 msdtc.exe 0xad8185861280 9 - 0 False 2023-05-21 22:29:25.000000 N/A
** 6596 676 TrustedInstall 0xad818dc88080 4 - 0 False 2023-05-21 22:58:13.000000 N/A
** 5964 676 svchost.exe 0xad818ef86080 5 - 0 False 2023-05-21 22:27:56.000000 N/A
** 1232 676 svchost.exe 0xad8186f4a2c0 7 - 0 False 2023-05-21 22:29:39.000000 N/A
** 3028 676 dllhost.exe 0xad8185907080 12 - 0 False 2023-05-21 22:29:20.000000 N/A
** 1496 676 svchost.exe 0xad81879752c0 12 - 0 False 2023-05-21 22:27:52.000000 N/A
*** 6324 1496 audiodg.exe 0xad818df2e080 4 - 0 False 2023-05-21 22:42:56.000000 N/A
** 1116 676 svchost.exe 0xad818c426080 6 - 1 False 2023-05-21 22:31:00.000000 N/A
** 7772 676 svchost.exe 0xad818e88e140 3 - 0 False 2023-05-21 22:36:03.000000 N/A
** 1376 676 svchost.exe 0xad81878020c0 15 - 0 False 2023-05-21 22:27:49.000000 N/A
** 2144 676 vmtoolsd.exe 0xad81896ab080 11 - 0 False 2023-05-21 22:28:19.000000 N/A
** 1120 676 MsMpEng.exe 0xad818945c080 12 - 0 False 2023-05-21 22:10:01.000000 N/A
** 1892 676 svchost.exe 0xad8187b34080 14 - 0 False 2023-05-21 22:28:05.000000 N/A
** 5476 676 svchost.exe 0xad818e752080 9 - 0 False 2023-05-21 22:58:08.000000 N/A
** 2024 676 svchost.exe 0xad8187b65240 7 - 0 False 2023-05-21 22:28:11.000000 N/A
** 2152 676 vm3dservice.ex 0xad81896ae240 2 - 0 False 2023-05-21 22:28:19.000000 N/A
*** 2404 2152 vm3dservice.ex 0xad8186619200 2 - 1 False 2023-05-21 22:28:32.000000 N/A
** 1644 676 svchost.exe 0xad8187a112c0 6 - 0 False 2023-05-21 22:27:58.000000 N/A
** 752 676 svchost.exe 0xad8187758280 21 - 0 False 2023-05-21 22:27:43.000000 N/A
*** 3204 752 ctfmon.exe 0xad8189c8b280 12 - 1 False 2023-05-21 22:30:11.000000 N/A
** 1012 676 svchost.exe 0xad818774c080 19 - 0 False 2023-05-21 22:27:43.000000 N/A
** 1652 676 svchost.exe 0xad8187a2d2c0 10 - 0 False 2023-05-21 22:27:58.000000 N/A
** 4340 676 VSSVC.exe 0xad818e888080 3 - 0 False 2023-05-21 23:01:06.000000 N/A
** 2044 676 svchost.exe 0xad8189b27080 28 - 0 False 2023-05-21 22:49:29.000000 N/A
* 852 552 fontdrvhost.ex 0xad818761b0c0 5 - 0 False 2023-05-21 22:27:33.000000 N/A
588 520 winlogon.exe 0xad8186f450c0 5 - 1 False 2023-05-21 22:27:25.000000 N/A
* 1016 588 dwm.exe 0xad81876e4340 15 - 1 False 2023-05-21 22:27:38.000000 N/A
* 3556 588 userinit.exe 0xad818c02f340 0 - 1 False 2023-05-21 22:30:28.000000 2023-05-21 22:30:43.000000
** 3580 3556 explorer.exe 0xad818c047340 76 - 1 False 2023-05-21 22:30:28.000000 N/A
*** 6724 3580 Outline.exe 0xad818e578080 0 - 1 True 2023-05-21 22:36:09.000000 2023-05-21 23:01:24.000000
**** 4224 6724 Outline.exe 0xad818e88b080 0 - 1 True 2023-05-21 22:36:23.000000 2023-05-21 23:01:24.000000
**** 4628 6724 tun2socks.exe 0xad818de82340 0 - 1 True 2023-05-21 22:40:10.000000 2023-05-21 23:01:24.000000
*** 5636 3580 notepad.exe 0xad818db45080 1 - 1 False 2023-05-21 22:46:50.000000 N/A
*** 464 3580 SecurityHealth 0xad818979d080 3 - 1 False 2023-05-21 22:31:59.000000 N/A
*** 5328 3580 msedge.exe 0xad818d0980c0 54 - 1 False 2023-05-21 22:32:02.000000 N/A
**** 4544 5328 msedge.exe 0xad818d75b080 14 - 1 False 2023-05-21 22:32:39.000000 N/A
**** 8896 5328 msedge.exe 0xad8187a39080 18 - 1 False 2023-05-21 22:28:21.000000 N/A
**** 5156 5328 msedge.exe 0xad818c553080 14 - 1 False 2023-05-21 22:28:22.000000 N/A
**** 7964 5328 msedge.exe 0xad818dee5080 19 - 1 False 2023-05-21 22:22:09.000000 N/A
**** 4396 5328 msedge.exe 0xad818d515080 7 - 1 False 2023-05-21 22:32:19.000000 N/A
**** 6544 5328 msedge.exe 0xad818c0ea080 18 - 1 False 2023-05-21 22:22:35.000000 N/A
**** 2388 5328 msedge.exe 0xad818e54c340 18 - 1 False 2023-05-21 22:05:35.000000 N/A
**** 6292 5328 msedge.exe 0xad818d7a1080 20 - 1 False 2023-05-21 22:06:15.000000 N/A
**** 1144 5328 msedge.exe 0xad818d75f080 18 - 1 False 2023-05-21 22:32:38.000000 N/A
**** 5340 5328 msedge.exe 0xad818d7b3080 10 - 1 False 2023-05-21 22:32:39.000000 N/A
*** 3252 3580 vmtoolsd.exe 0xad8189796300 8 - 1 False 2023-05-21 22:31:59.000000 N/A
*** 2228 3580 FTK Imager.exe 0xad818d143080 10 - 1 False 2023-05-21 22:43:56.000000 N/A
*** 8920 3580 FTK Imager.exe 0xad818ef81080 20 - 1 False 2023-05-21 23:02:28.000000 N/A
* 860 588 fontdrvhost.ex 0xad818761f140 5 - 1 False 2023-05-21 22:27:33.000000 N/A
5896 8844 oneetx.exe 0xad8189b41080 5 - 1 True 2023-05-21 22:30:56.000000 N/A
* 7732 5896 rundll32.exe 0xad818d1912c0 1 - 1 True 2023-05-21 22:31:53.000000 N/A
remnux@remnux:~/Downloads$
末尾に子プロセスが見えます。
Ans: rundll32.exe
What is the memory protection applied to the suspicious process memory region?
これはQ1で確認したmalfindコマンドで確認できます。
Protectionの欄を確認する。
Ans: PAGE_EXECUTE_READWRITE
What is the name of the process responsible for the VPN connection?
netscanで外部とVPN接続してそうなプロセスを見ます。
remnux@remnux:~/Downloads$ vol3 -f MemoryDump.mem windows.netscan.NetScan
Volatility 3 Framework 2.4.1
Progress: 100.00 PDB scanning finished
Offset Proto LocalAddr LocalPort ForeignAddr ForeignPort State PID Owner Created
0xad81861e2310 TCPv4 0.0.0.0 49668 0.0.0.0 0 LISTENING 1840 spoolsv.exe 2023-05-21 22:28:09.000000
0xad81861e2310 TCPv6 :: 49668 :: 0 LISTENING 1840 spoolsv.exe 2023-05-21 22:28:09.000000
0xad81861e2470 TCPv4 0.0.0.0 5040 0.0.0.0 0 LISTENING 1196 svchost.exe 2023-05-21 22:30:31.000000
0xad81861e2730 TCPv4 0.0.0.0 135 0.0.0.0 0 LISTENING 952 svchost.exe 2023-05-21 22:27:36.000000
0xad81861e2b50 TCPv4 0.0.0.0 49665 0.0.0.0 0 LISTENING 552 wininit.exe 2023-05-21 22:27:36.000000
0xad81861e2b50 TCPv6 :: 49665 :: 0 LISTENING 552 wininit.exe 2023-05-21 22:27:36.000000
0xad81861e2e10 TCPv4 0.0.0.0 49665 0.0.0.0 0 LISTENING 552 wininit.exe 2023-05-21 22:27:36.000000
0xad81861e3230 TCPv4 0.0.0.0 49664 0.0.0.0 0 LISTENING 696 lsass.exe 2023-05-21 22:27:36.000000
0xad81861e3390 TCPv4 0.0.0.0 135 0.0.0.0 0 LISTENING 952 svchost.exe 2023-05-21 22:27:36.000000
0xad81861e3390 TCPv6 :: 135 :: 0 LISTENING 952 svchost.exe 2023-05-21 22:27:36.000000
0xad81861e34f0 TCPv4 0.0.0.0 49664 0.0.0.0 0 LISTENING 696 lsass.exe 2023-05-21 22:27:36.000000
0xad81861e34f0 TCPv6 :: 49664 :: 0 LISTENING 696 lsass.exe 2023-05-21 22:27:36.000000
0xad81861e37b0 TCPv4 0.0.0.0 49666 0.0.0.0 0 LISTENING 1012 svchost.exe 2023-05-21 22:27:49.000000
0xad81861e37b0 TCPv6 :: 49666 :: 0 LISTENING 1012 svchost.exe 2023-05-21 22:27:49.000000
0xad81861e3910 TCPv4 0.0.0.0 49667 0.0.0.0 0 LISTENING 448 svchost.exe 2023-05-21 22:27:58.000000
0xad81861e3910 TCPv6 :: 49667 :: 0 LISTENING 448 svchost.exe 2023-05-21 22:27:58.000000
0xad81861e3a70 TCPv4 0.0.0.0 49668 0.0.0.0 0 LISTENING 1840 spoolsv.exe 2023-05-21 22:28:09.000000
0xad81861e3bd0 TCPv4 0.0.0.0 49666 0.0.0.0 0 LISTENING 1012 svchost.exe 2023-05-21 22:27:49.000000
0xad81861e3e90 TCPv4 0.0.0.0 49667 0.0.0.0 0 LISTENING 448 svchost.exe 2023-05-21 22:27:58.000000
0xad818662ecb0 TCPv4 0.0.0.0 445 0.0.0.0 0 LISTENING 4 System 2023-05-21 22:29:04.000000
0xad818662ecb0 TCPv6 :: 445 :: 0 LISTENING 4 System 2023-05-21 22:29:04.000000
0xad818662f390 TCPv4 0.0.0.0 7680 0.0.0.0 0 LISTENING 5476 svchost.exe 2023-05-21 22:58:09.000000
0xad818662f390 TCPv6 :: 7680 :: 0 LISTENING 5476 svchost.exe 2023-05-21 22:58:09.000000
0xad81878518f0 UDPv4 192.168.190.141 138 * 0 4 System 2023-05-21 22:27:56.000000
0xad8187852250 UDPv4 192.168.190.141 137 * 0 4 System 2023-05-21 22:27:56.000000
0xad818902a5d0 TCPv4 192.168.190.141 139 0.0.0.0 0 LISTENING 4 System 2023-05-21 22:27:56.000000
0xad818971f870 UDPv4 0.0.0.0 56250 * 0 6644 SkypeApp.exe 2023-05-21 22:58:07.000000
0xad818971f870 UDPv6 :: 56250 * 0 6644 SkypeApp.exe 2023-05-21 22:58:07.000000
0xad81897eb010 TCPv4 10.0.85.2 55439 20.22.207.36 443 CLOSED 448 svchost.exe 2023-05-21 23:00:40.000000
0xad81898a6d10 UDPv4 127.0.0.1 57787 * 0 448 svchost.exe 2023-05-21 22:28:54.000000
0xad81898bc7f0 UDPv4 0.0.0.0 5355 * 0 1448 svchost.exe 2023-05-21 22:57:37.000000
0xad81898bc7f0 UDPv6 :: 5355 * 0 1448 svchost.exe 2023-05-21 22:57:37.000000
0xad8189a291b0 TCPv4 0.0.0.0 55972 0.0.0.0 0 LISTENING 5964 svchost.exe 2023-05-21 22:27:57.000000
0xad8189a291b0 TCPv6 :: 55972 :: 0 LISTENING 5964 svchost.exe 2023-05-21 22:27:57.000000
0xad8189a29470 TCPv4 0.0.0.0 55972 0.0.0.0 0 LISTENING 5964 svchost.exe 2023-05-21 22:27:57.000000
0xad8189a2a7b0 TCPv4 0.0.0.0 49669 0.0.0.0 0 LISTENING 676 services.exe 2023-05-21 22:29:08.000000
0xad8189a2a910 TCPv4 0.0.0.0 49669 0.0.0.0 0 LISTENING 676 services.exe 2023-05-21 22:29:08.000000
0xad8189a2a910 TCPv6 :: 49669 :: 0 LISTENING 676 services.exe 2023-05-21 22:29:08.000000
0xad8189a30a20 TCPv4 192.168.190.141 53660 38.121.43.65 443 CLOSED 4628 tun2socks.exe 2023-05-21 22:00:25.000000
0xad8189a844e0 UDPv4 10.0.85.2 58844 * 0 5328 msedge.exe 2023-05-21 22:51:53.000000
0xad8189cea350 UDPv4 0.0.0.0 5050 * 0 1196 svchost.exe 2023-05-21 22:30:27.000000
0xad818c17ada0 UDPv4 0.0.0.0 52051 * 0 4628 tun2socks.exe 2023-05-21 22:24:14.000000
0xad818c367b30 TCPv4 192.168.190.141 49710 204.79.197.203 443 CLOSE_WAIT 1916 SearchApp.exe 2023-05-21 22:33:09.000000
0xad818c3b22e0 UDPv4 0.0.0.0 63218 * 0 1448 svchost.exe 2023-05-21 22:39:15.000000
0xad818c3b22e0 UDPv6 :: 63218 * 0 1448 svchost.exe 2023-05-21 22:39:15.000000
0xad818d004ba0 UDPv4 0.0.0.0 63917 * 0 1448 svchost.exe 2023-05-21 23:02:48.000000
0xad818d004ba0 UDPv6 :: 63917 * 0 1448 svchost.exe 2023-05-21 23:02:48.000000
0xad818d1bc010 TCPv4 10.0.85.2 55424 52.182.143.208 443 CLOSE_WAIT 6644 SkypeApp.exe 2023-05-21 22:57:59.000000
0xad818d2f7b00 TCPv4 10.0.85.2 55460 52.159.127.243 443 CLOSED 448 svchost.exe 2023-05-21 23:01:08.000000
0xad818d5352b0 TCPv4 10.0.85.2 53659 204.79.197.237 443 CLOSED 3580 explorer.exe 2023-05-21 22:00:25.000000
0xad818da19700 UDPv4 0.0.0.0 500 * 0 448 svchost.exe 2023-05-21 22:27:56.000000
0xad818da1ab50 UDPv4 0.0.0.0 4500 * 0 448 svchost.exe 2023-05-21 22:27:56.000000
0xad818da1d8a0 UDPv4 0.0.0.0 4500 * 0 448 svchost.exe 2023-05-21 22:27:56.000000
0xad818da1d8a0 UDPv6 :: 4500 * 0 448 svchost.exe 2023-05-21 22:27:56.000000
0xad818da1dbc0 UDPv4 0.0.0.0 0 * 0 448 svchost.exe 2023-05-21 22:27:57.000000
0xad818da1dbc0 UDPv6 :: 0 * 0 448 svchost.exe 2023-05-21 22:27:57.000000
0xad818da1e520 UDPv4 0.0.0.0 0 * 0 448 svchost.exe 2023-05-21 22:27:57.000000
0xad818da1f010 UDPv4 0.0.0.0 500 * 0 448 svchost.exe 2023-05-21 22:27:56.000000
0xad818da1f010 UDPv6 :: 500 * 0 448 svchost.exe 2023-05-21 22:27:56.000000
0xad818da202d0 UDPv4 0.0.0.0 0 * 0 5964 svchost.exe 2023-05-21 22:27:57.000000
0xad818da202d0 UDPv6 :: 0 * 0 5964 svchost.exe 2023-05-21 22:27:57.000000
0xad818da21bd0 UDPv4 0.0.0.0 0 * 0 5964 svchost.exe 2023-05-21 22:27:57.000000
0xad818dbc1a60 TCPv4 192.168.190.141 49713 104.119.188.96 443 CLOSE_WAIT 1916 SearchApp.exe 2023-05-21 22:33:11.000000
0xad818dd05370 UDPv4 0.0.0.0 5353 * 0 5328 msedge.exe 2023-05-21 23:01:32.000000
0xad818dd07440 UDPv4 0.0.0.0 5353 * 0 5328 msedge.exe 2023-05-21 23:01:32.000000
0xad818dd07440 UDPv6 :: 5353 * 0 5328 msedge.exe 2023-05-21 23:01:32.000000
0xad818de4aa20 TCPv4 10.0.85.2 55462 77.91.124.20 80 CLOSED 5896 oneetx.exe 2023-05-21 23:01:22.000000
0xad818df1d920 TCPv4 192.168.190.141 55433 38.121.43.65 443 CLOSED 4628 tun2socks.exe 2023-05-21 23:00:02.000000
0xad818e3698f0 UDPv4 0.0.0.0 5353 * 0 5328 msedge.exe 2023-05-21 22:05:24.000000
0xad818e3701a0 UDPv4 0.0.0.0 5353 * 0 5328 msedge.exe 2023-05-21 22:05:24.000000
0xad818e3701a0 UDPv6 :: 5353 * 0 5328 msedge.exe 2023-05-21 22:05:24.000000
0xad818e370b00 UDPv4 0.0.0.0 5353 * 0 5328 msedge.exe 2023-05-21 22:05:24.000000
0xad818e371dc0 UDPv4 0.0.0.0 5353 * 0 5328 msedge.exe 2023-05-21 22:05:24.000000
0xad818e371dc0 UDPv6 :: 5353 * 0 5328 msedge.exe 2023-05-21 22:05:24.000000
0xad818e3a1200 UDPv4 0.0.0.0 5355 * 0 1448 svchost.exe 2023-05-21 22:57:37.000000
0xad818e4a6900 UDPv4 0.0.0.0 0 * 0 5480 oneetx.exe 2023-05-21 22:39:47.000000
0xad818e4a6900 UDPv6 :: 0 * 0 5480 oneetx.exe 2023-05-21 22:39:47.000000
0xad818e4a9650 UDPv4 0.0.0.0 0 * 0 5480 oneetx.exe 2023-05-21 22:39:47.000000
0xad818e77da20 TCPv4 192.168.190.141 52434 204.79.197.200 443 CLOSED - - 2023-05-21 23:02:20.000000
0xad818ef06c70 UDPv6 fe80::a406:8c42:43a9:413 1900 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef09b50 UDPv6 fe80::4577:874:81a:78cd 1900 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef0b5e0 UDPv6 ::1 1900 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef0ec90 UDPv6 fe80::a406:8c42:43a9:413 55910 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef0f140 UDPv6 fe80::4577:874:81a:78cd 55911 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef0f2d0 UDPv6 ::1 55912 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef0fdc0 UDPv4 192.168.190.141 55913 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef10270 UDPv4 10.0.85.2 137 * 0 4 System 2023-05-21 22:40:16.000000
0xad818ef11530 UDPv4 192.168.190.141 1900 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef116c0 UDPv4 10.0.85.2 1900 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef11850 UDPv4 10.0.85.2 138 * 0 4 System 2023-05-21 22:40:16.000000
0xad818ef119e0 UDPv4 127.0.0.1 1900 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef13150 UDPv4 10.0.85.2 55914 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef132e0 UDPv4 127.0.0.1 55915 * 0 3004 svchost.exe 2023-05-21 22:40:16.000000
0xad818ef77b40 TCPv4 192.168.190.141 55176 192.168.190.2 53 CLOSED 1448 svchost.exe 2023-05-21 23:01:39.000000
0xad818f88cc80 UDPv4 0.0.0.0 5355 * 0 1448 svchost.exe 2023-05-21 23:01:26.000000
0xad818f88cc80 UDPv6 :: 5355 * 0 1448 svchost.exe 2023-05-21 23:01:26.000000
0xad818f894340 UDPv4 0.0.0.0 5355 * 0 1448 svchost.exe 2023-05-21 23:01:26.000000
0xad8190dd8800 UDPv4 0.0.0.0 5353 * 0 1448 svchost.exe 2023-05-21 23:01:25.000000
0xad8190dd8800 UDPv6 :: 5353 * 0 1448 svchost.exe 2023-05-21 23:01:25.000000
0xad8190dd8990 UDPv4 0.0.0.0 5353 * 0 1448 svchost.exe 2023-05-21 23:01:25.000000
0xad8190dd97a0 UDPv4 0.0.0.0 0 * 0 1448 svchost.exe 2023-05-21 23:01:25.000000
0xad8190dd97a0 UDPv6 :: 0 * 0 1448 svchost.exe 2023-05-21 23:01:25.000000
0xad8190e12b10 UDPv6 fe80::a406:8c42:43a9:413 1900 * 0 3004 svchost.exe 2023-05-21 23:01:29.000000
0xad8190e161c0 UDPv6 ::1 1900 * 0 3004 svchost.exe 2023-05-21 23:01:29.000000
0xad8190e16e40 UDPv4 192.168.190.141 1900 * 0 3004 svchost.exe 2023-05-21 23:01:29.000000
0xad8190e19230 UDPv6 ::1 57094 * 0 3004 svchost.exe 2023-05-21 23:01:29.000000
0xad8190e1a1d0 UDPv4 192.168.190.141 57095 * 0 3004 svchost.exe 2023-05-21 23:01:29.000000
0xad8190e1a360 UDPv4 127.0.0.1 57096 * 0 3004 svchost.exe 2023-05-21 23:01:29.000000
0xad8190e1a680 UDPv4 127.0.0.1 1900 * 0 3004 svchost.exe 2023-05-21 23:01:29.000000
0xad8190e1acc0 UDPv6 fe80::a406:8c42:43a9:413 57093 * 0 3004 svchost.exe 2023-05-21 23:01:29.000000
0xad8190e59a60 UDPv4 0.0.0.0 55536 * 0 4628 tun2socks.exe 2023-05-21 23:00:47.000000
0xad8190e59d80 UDPv4 0.0.0.0 56228 * 0 4628 tun2socks.exe 2023-05-21 23:00:38.000000
0xad8190e5b040 UDPv4 0.0.0.0 49734 * 0 4628 tun2socks.exe 2023-05-21 23:00:41.000000
tun2socks.exeが怪しい。回答する。
間違いと言われる。といってもこれくらいでは？？？
子プロセスの可能性も追ってpstreeで確認した親のOutline.exeも投入しておく。
正解だった。
Ans: Outline.exe
What is the attacker's IP address?
netscanの結果で判断できる。
Ans: 77.91.124.20
Based on the previous artifacts. What is the name of the malware family?
こいつのファイルダンプを取ってVirusTotalで検索することとする。
filescanコマンドでアドレスを確認する。
remnux@remnux:~/Downloads$ vol3 -f MemoryDump.mem windows.filescan.FileScan | grep oneetx.exe
0xad818d436c70.0\Users\Tammam\AppData\Local\Temp\c3912af058\oneetx.exe 216
0xad818da36c30 \Users\Tammam\AppData\Local\Temp\c3912af058\oneetx.exe 216
0xad818ef1a0b0 \Users\Tammam\AppData\Local\Temp\c3912af058\oneetx.exe 216
remnux@remnux:~/Downloads$
このアドレスでダンプを取り、ハッシュ値を取る。
remnux@remnux:~/Downloads$ vol3 -f MemoryDump.mem -o out windows.dumpfiles.DumpFiles --virtaddr=0xad818d436c70
Volatility 3 Framework 2.4.1
Progress: 100.00 PDB scanning finished
Cache FileObject FileName Result
ImageSectionObject 0xad818d436c70 oneetx.exe file.0xad818d436c70.0xad818ca48660.ImageSectionObject.oneetx.exe.img
remnux@remnux:~/Downloads$ cd out/
remnux@remnux:~/Downloads/out$ sha256sum file.0xad818d436c70.0xad818ca48660.ImageSectionObject.oneetx.exe.img
8d5d5bbdccb82a10ac28e2779ba0821f12da3e1f08f03ec467ce213a6fccf38c file.0xad818d436c70.0xad818ca48660.ImageSectionObject.oneetx.exe.img
remnux@remnux:~/Downloads/out$

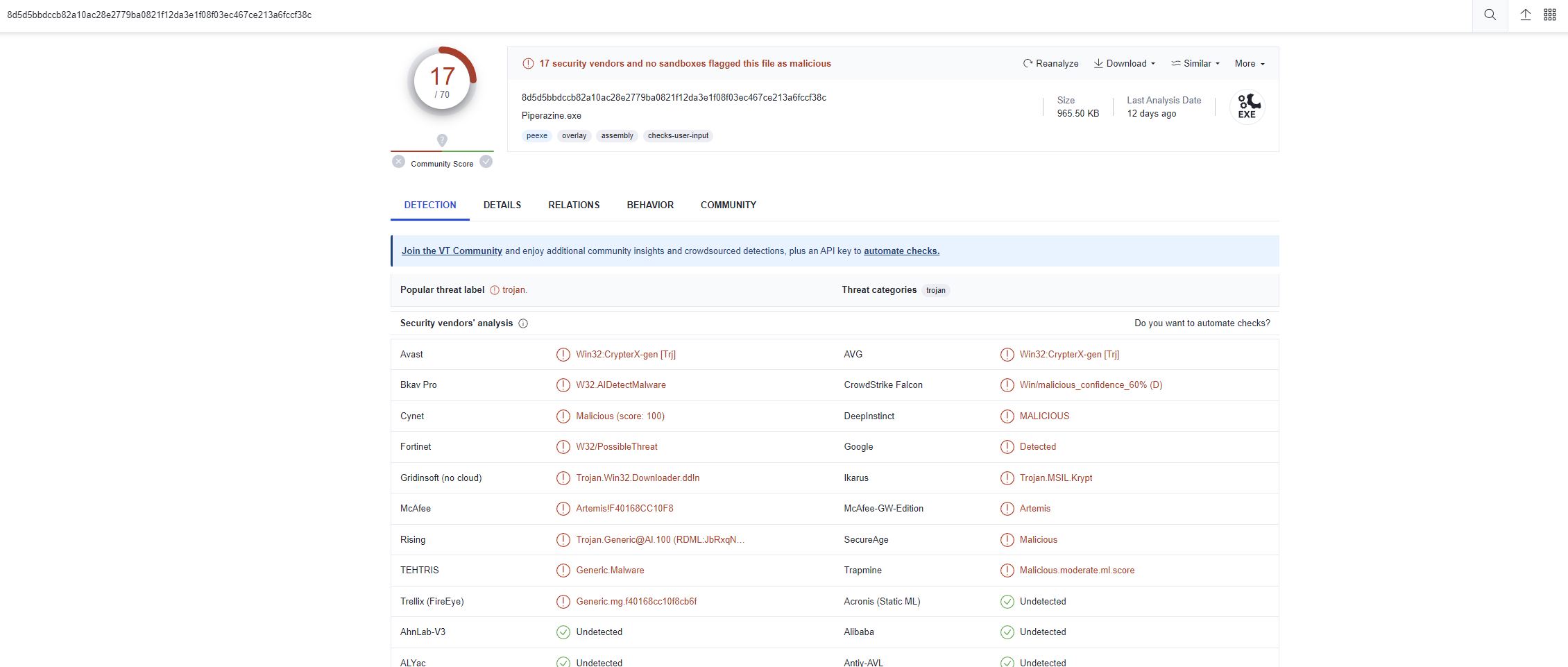

このハッシュ値を以下のVTで確認！
それっぽいファミリー表示はなかった。
まぁファイルなので情報は偽装や隠蔽をされていると思うが、Stringsで表層解析もしておく。
remnux@remnux:~/Downloads/out$ strings -e l file.0xad818d436c70.0xad818ca48660.ImageSectionObject.oneetx.exe.img | more
VS_VERSION_INFO
VarFileInfo
Translation
StringFileInfo
000004b0
Comments
Ps 5 Game
CompanyName
FileDescription
Midnight Suns
FileVersion
5.14.22.1
InternalName
Piperazine.exe
LegalCopyright
Marvel Corp.
LegalTrademarks
OriginalFilename
Piperazine.exe
ProductName
Marvel md
ProductVersion
5.14.22.1
Assembly Version
131.32.5.3
remnux@remnux:~/Downloads/out$
調べてみたが、良さそうな情報はない。
ならメモリダンプのほうを取得する。以下のコマンドを打つ。
remnux@remnux:~/Downloads$ vol3 -f MemoryDump.mem -o out windows.memmap.Memmap --pid 5896 --dump
取れたメモリダンプでC2辺りの情報を取得しようということでStringsでgrepをかける。
お、このアドレスってさっきのC２じゃなかったか。。。

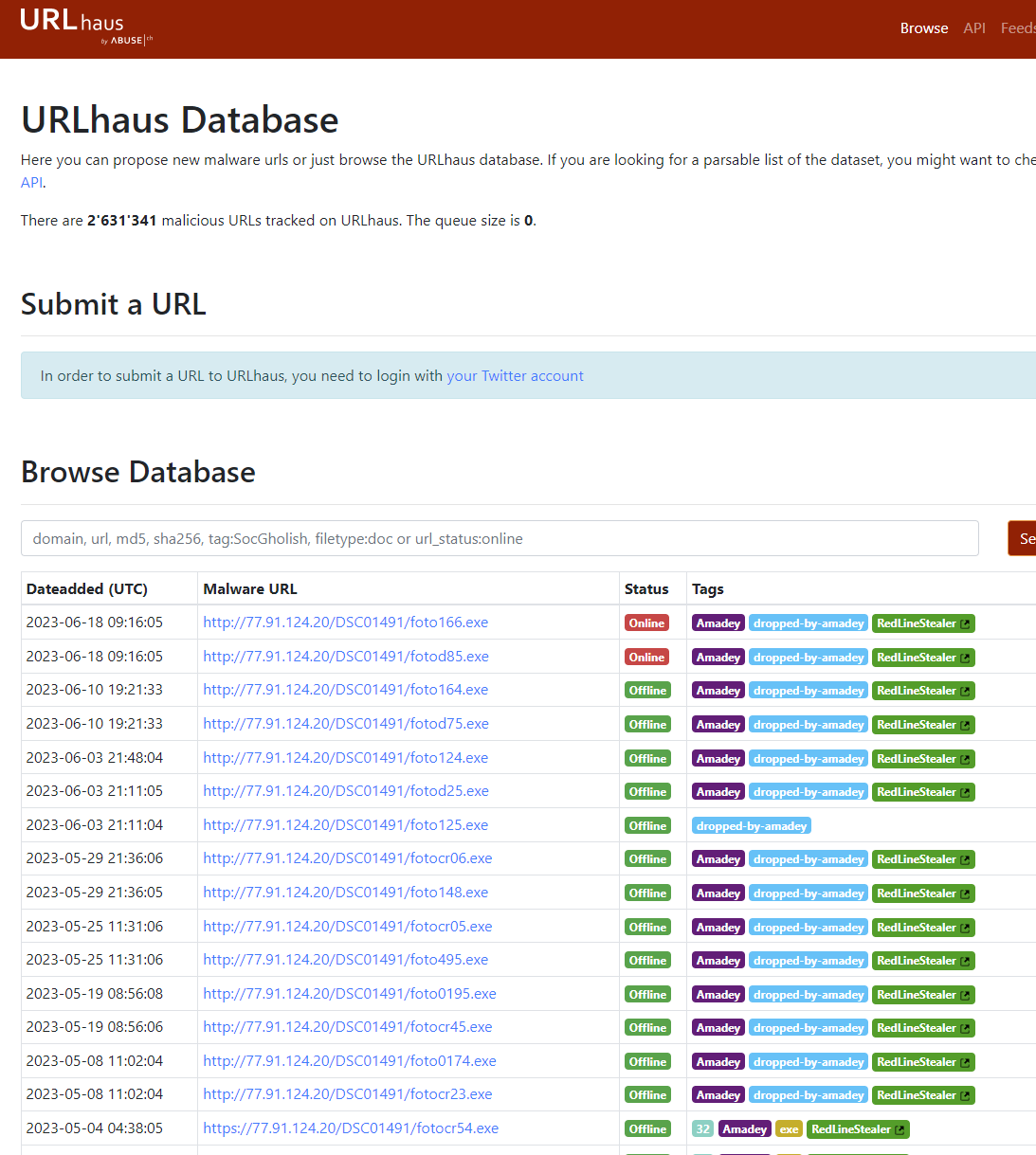

このアドレスをURLhausで確認してみる。（full pathは引っかからなかった。）
ファミリー名が見えたので回答。
Ans: RedLine Stealer
What is the full URL of the PHP file that the attacker visited?
さっきの調査の時に確認できている。
※defang実施
Ans: hxxp://77.91.124.20/store/games/index.php
What is the full path of the malicious executable?
これもさっきのファイルダンプ取得の時に確認している。
Cドライブを引っ付けて回答。
Ans: C:\Users\Tammam\AppData\Local\Temp\c3912af058\oneetx.exe
最後に
メモリフォレンジック、Volatility3入門問題かなといった感じでした。
EasyなのでRedline Stealerをガチガチに見ていくというわけではないです。メモリフォレンジック問はこんな感じかなと思います。
ファミリー表示は問題に書いてあったのに最後の問題の答えがわかってしまうまで拘ってしまった。
今回もセキュリティエンジニアの皆さんの助けになればなと思います。
