KVM の PCI Passthrough を有効化する

Last updated at Posted at 2025-01-20

概要

KVM で PCI passthrough をするために必要な host 側の設定について説明する。要点は次の2つ:

  • IOMMU を有効化し、PCI device からホストへの Direct Memory Access を VM 上のメモリアクセスにマップできるようにする
  • 仮想ドライバ VFIO を有効化し、ホスト上の PCI device driver ではなく、ゲスト上の PCI device driver にマップできるようにする

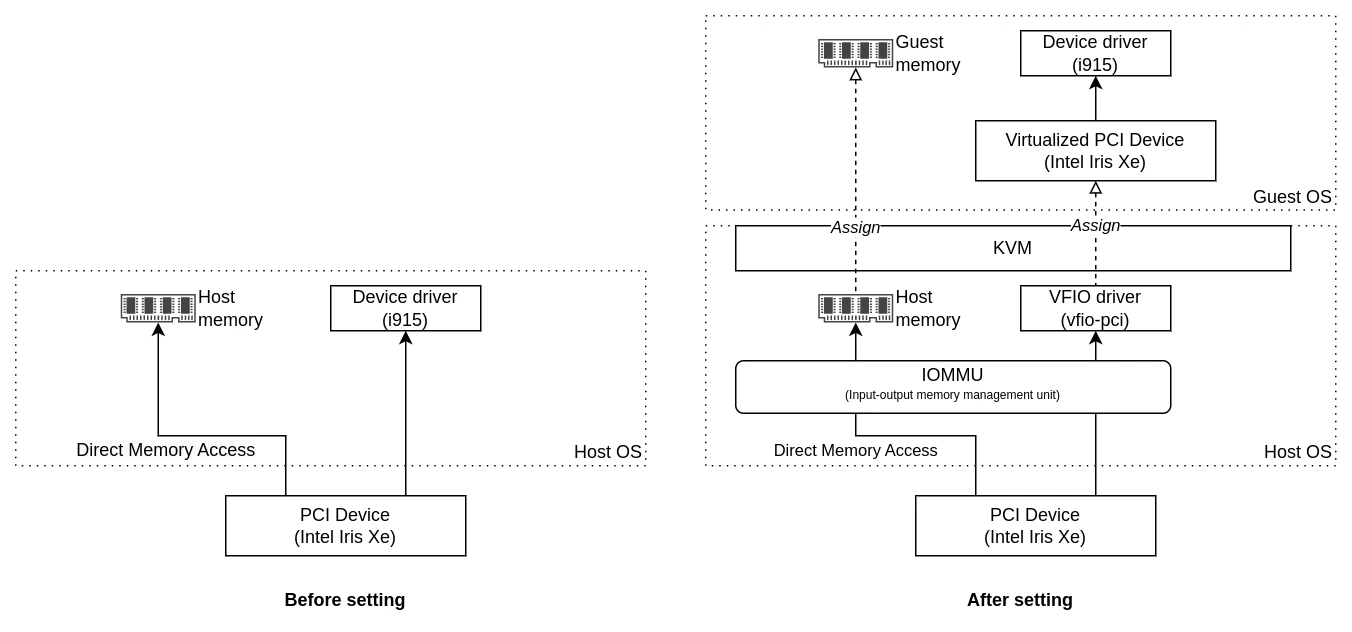

  • 図左:設定前。デフォルト、PCI Device がホスト側 driver にバインドされた状態
  • 図右:設定後。IOMMU および VFIO の設定が完了した状態

本記事では、ホスト OS を Rocky Linux 9.4 を使用する。対象の PCI デバイス Intel Iris Xe (GPU) を例として説明する。

本記事の例では、host GPU の PCI Passthrough 設定を行う。この場合、ホスト側から GPU へのアクセスが遮断されるため、設定が成功するとディスプレイに何も映らなくなる可能性がある。したがって、事前にホストにリモートログインできるようにしておき、別マシンから SSH 経由で設定を行うようにする。

PCI Passthrough の有効化

Prerequisites

ホスト側に次のソフトウェアをインストールしておく:

# sudo dnf install pciutils driverctl
  • pciutils ... PCI 情報の閲覧のため
  • driverctl ... VFIO に関する設定のため

IOMMU の有効化

Intel VT-d (IOMMU) を有効化する:

# grubby --args="intel_iommu=on iommu_pt" --update-kernel DEFAULT

Kernel Option に intel_iommu=on および iommu_pt が追加されたことを確認する:

# grubby --info=DEFAULT | grep iommu

ホストを再起動して設定を反映する:

# reboot

VFIO の有効化

PCI Device の情報から PCI device address (ex: 0000:00:02.0) を確認する:

# lspci -Dnnk | grep -A 4 -E "Iris"
0000:00:02.0 VGA compatible controller [0300]: Intel Corporation Raptor Lake-P [Iris Xe Graphics] [8086:a7a0] (rev 04)
        DeviceName: Onboard - Video
        Subsystem: Intel Corporation Device [8086:3037]
        Kernel driver in use: i915
        Kernel modules: i915

Intel Iris Xe 0000:00:02.0 にバインドされるドライバが i915 (Interl GUI Driver) ではなく vfio-pci になるよう設定する:

# driverctl set-override 0000:00:02.0 vfio-pci

再度 PCI Device の情報を確認し、kernel driver in use key の値が vfio-pci になっていることを確認する:

# lspci -Dnnk | grep -A 4 -E "Iris"
0000:00:02.0 VGA compatible controller [0300]: Intel Corporation Raptor Lake-P [Iris Xe Graphics] [8086:a7a0] (rev 04)
        DeviceName: Onboard - Video
        Subsystem: Intel Corporation Device [8086:3037]
        Kernel driver in use: vfio-pci
        Kernel modules: i915

仮想マシンに VFIO デバイスを割り当てる

PCIe デバイスを passthrough する場合、qemu machine type は q35 である必要がある。

PCI device 情報の xml を記述し、ドメインに割り当てる。<address> タグの各属性は PCI device address の形式 <domain>:<bus>:<slot>.<function> から読み取る。例えば、さきほど lspci コマンドで確認した PCI address 0000:00:02.0 の場合は次のようになる:

virsh attach-device <domain> --persistent /dev/stdin <<EOF
<hostdev mode='subsystem' type='pci' managed='yes'>
 <driver name='vfio'/>
 <source>
  <address domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
 </source>
</hostdev>
EOF

Guest 側から PCI デバイスを確認する

Guest にログインし、Guest 側にも pciutils をインストール:

# sudo dnf install pciutils

Guest 側から PCI device が認識されていることを確認する:

# lspci -Dnnk | grep -A 4 -E "Iris"
0000:09:00.0 VGA compatible controller [0300]: Intel Corporation Raptor Lake-P [Iris Xe Graphics] [8086:a7a0] (rev 04)
        Subsystem: Intel Corporation Device [8086:3037]
        Kernel driver in use: i915
        Kernel modules: i915

もとの設定の復元

上記の設定を完了すると、ホストから PCI device を利用することはできなくなる。もとに戻したい場合、以下の手順を実行する。

Kernel option を削除する:

# grubby --remove-args="intel_iommu=on iommu_pt --update-kernel DEFAULT

本記事で設定した kernel options intel_iommu=on, iommu_pt, pci-stub.ids が削除されていることを確認する:

# grubby --info=DEFAULT

再起動して設定を反映する:

# reboot

デフォルトのドライバを元に戻す (例: i915) :

# driverctl set-override 0000:00:02.0 i915

Trouboleshooting

今回の例では Intel Iris Xe の PCI Passthrough を試みたが、GPU 特有の問題に当たったので Trouble shooting を残す。

PCI デバイスの割り当て後、マシンを起動するとすぐにエラーで落ちる

virsh start <domain> 実行後、すぐに起動に失敗する場合は、OOM (Out Of Memory) Killer によって VM が kill されている可能性がある。これを確認するには、失敗した直後、ホスト上で dmesg を実行し出力を確認する:

# dmesg
...
[ 3443.989849] oom-kill:constraint=CONSTRAINT_NONE,nodemask=(null),cpuset=system.slice,mems_allowed=0,global_oom,task_memcg=/machine.slice/machine-qemu\x2d9\x2dmaster0.scope/libvirt,task=qemu-kvm,pid=3563,uid=107
[ 3443.989880] Out of memory: Killed process 3563 (qemu-kvm) total-vm:34551624kB, anon-rss:31759628kB, file-rss:0kB, shmem-rss:0kB, UID:107 pgtables:62552kB oom_score_adj:0

解決策:メモリ不足の解消

上記はメモリ不足が原因なので、VM のメモリを減らすなどして対策する。

参考:Intel GVT-g: QEMU unexpectedly closed the monitor : r/VFIO
