「THE」で終わらない文字列を受理するDFAのコード(C++)

Last updated at Posted at 2023-05-27

以下のサイトで勉強していると、「「THE」で終わらない文字列を受理するDFA」というテーマがあった。

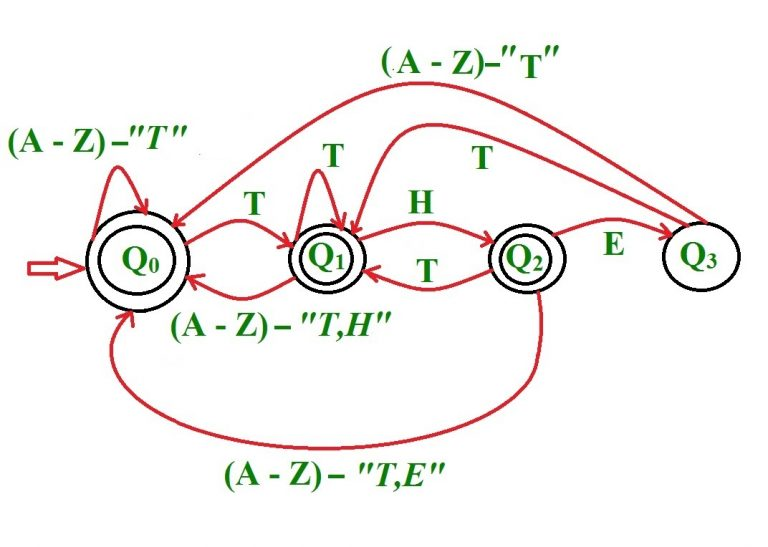

そのDFAは以下のようになる(上記のサイトから引用しているが、小英文字も加える必要がある)。


それを再現するために紹介されていたコードが分かりにくかったので、自分で書き直した。

ただし、状態集合を{s0, s1, s2, s3}とし、初期状態はs0、受理状態を{s0, s1, s2}とした。
また、変数nextsには、遷移先の状態の番号が入る。
ex.) 遷移先がs2 ⇒ nexts = 2

#include <iostream>
#include <string>
using namespace std;

int nexts = 0; // start state = 0

void s0(char c){
    if(c == 'T' || c == 't') nexts = 1;
    else nexts = 0;
}

void s1(char c){
    if(c == 'H' || c == 'h') nexts = 2;
    else if(c == 'T' || c == 't') nexts = 1;
    else nexts = 0;
}

void s2(char c){
    if(c == 'E' || c == 'e') nexts = 3;
    else if(c == 'T' || c == 't') nexts = 1;
    else nexts = 0;
}

void s3(char c){
    if(c == 'T' || c == 't') nexts = 0;
    else nexts = 3;
}

bool isAccepted(string str){
    for(int i = 0; i < (int)str.length(); i++){
        switch(nexts){
            case 0:
                s0(str[i]);
                break;
            case 1:
                s1(str[i]);
                break;
            case 2:
                s2(str[i]);
                break;
            case 3:
                s3(str[i]);
                break;
            default:
                cout << "The variable nexts should be an integer between 0 and 3." << endl;
                return false;
        }
    }
    return nexts != 3;
}

int main() {
    string str;
    cin >> str;
    if(isAccepted(str)) cout << "ACCEPTED" << endl;
    else cout << "REJECTED" << endl;
    return 0;
}
