Wio TerminalでRustをやるのをちょっと途中で投げ出してました。
初心に戻ってArduinoからやり直そうと思います。

基本ここ↓をなぞっていけばよさそうですが手順通りに進めてもbuildできません :innocent:

ちょっと調べてみたところ以下のissueにヒットするようで、nightly-2021-01-07のtoolchainを使わないとbuildできないようです。

※LLVM側の問題の様子です
https://github.com/rust-lang/compiler-builtins/issues/400

環境構築

WindowsのWSLにRustを入れた後、nightly-2021-01-07のtoolchainをinstallしました。

rustup toolchain install nightly-2021-01-07
rustup component add rust-src --toolchain nightly-2021-01-07

Lチカ

installしたらこの方のコードをCloneします。

https://elchika.com/article/c74e9dd4-cdbe-4550-a4e9-60730bb374b0
https://github.com/grace2riku/avr-hal/tree/add_leafony

git clone -b add_leafony https://github.com/grace2riku/avr-hal.git
cd avr-hal/boards/arduino-uno/
cargo +nightly-2021-01-07 build --example uno-blink

buildできたらホスト側のTerminalからelfファイルをArduinoに書き込みます。
WindowsではAKBONEを挿したらデバイスマネージャーでポートを確認してCOM3=ttyS3に置き換えるといいようです。

avrdude -patmega328p -carduino -P/dev/ttyS3 -b57600 -D -Uflash:w:../../target/avr-atmega328p/debug/examples/uno-blink.elf:e

avrdude: AVR device initialized and ready to accept instructions

Reading | ################################################## | 100% 0.00s

avrdude: Device signature = 0x1e950f (probably m328p)
avrdude: reading input file "../../target/avr-atmega328p/debug/examples/uno-blink.elf"
avrdude: writing flash (374 bytes):

Writing | ################################################## | 100% 0.11s

avrdude: 374 bytes of flash written
avrdude: verifying flash memory against ../../target/avr-atmega328p/debug/examples/uno-blink.elf:
avrdude: load data flash data from input file ../../target/avr-atmega328p/debug/examples/uno-blink.elf:
avrdude: input file ../../target/avr-atmega328p/debug/examples/uno-blink.elf contains 374 bytes
avrdude: reading on-chip flash data:

Reading | ################################################## | 100% 0.08s

avrdude: verifying ...
avrdude: 374 bytes of flash verified

avrdude: safemode: Fuses OK (E:00, H:00, L:00)

avrdude done.  Thank you.

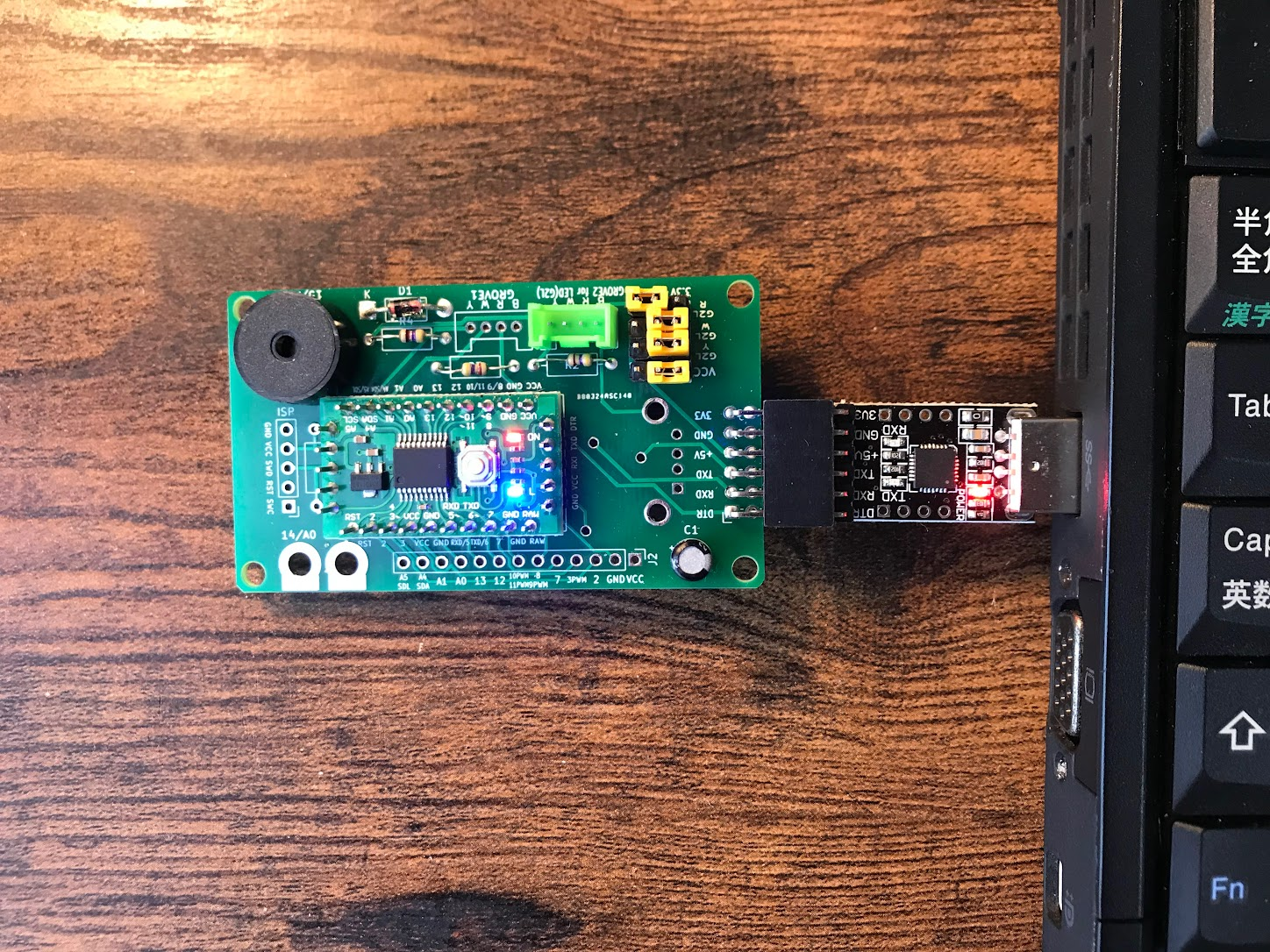

書き込みに成功してLEDが点滅すればOKです。
