音声のフーリエ変換

Posted at

環境:MATLAB R2018b
内容:ビープ音のパターンマッチングの勉強メモ

.mlx
[AmpLv, Fs] = audioread('bleep-41488.mp3');
disp(Fs); % サンプリング周波数=24000hz

N = length(AmpLv); % サンプル数
time = (0:N-1) / Fs; % 時間軸
disp(N/Fs); % 総時間=5.018sec

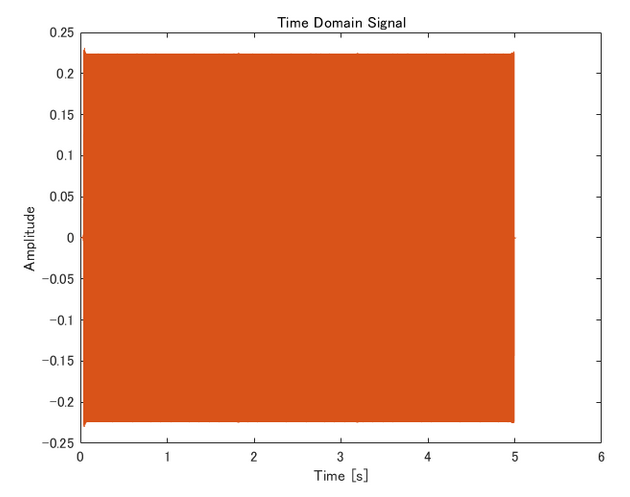

% 時間領域のプロット
figure;
plot(time, AmpLv);
xlabel('Time [s]');
ylabel('Amplitude');
title('Time Domain Signal');

% FFT計算
fftAmpLv = abs(fft(AmpLv)); % フーリエ変換
lenfftAmpLv = length(fftAmpLv);
x_freq = (0:lenfftAmpLv/2-1) * Fs / N; % 周波数軸
y_freq = fftAmpLv(1:lenfftAmpLv/2) / N; % 振幅正規化

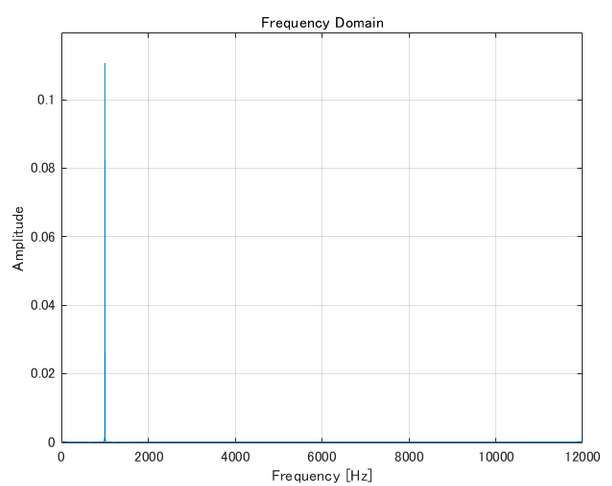

% 周波数領域のプロット
figure;
plot(x_freq, y_freq);
xlabel('Frequency [Hz]');
ylabel('Amplitude');
title('Frequency Domain');
grid on;



単純なビープ音なら、周波数で何のビープ音か判別できるかもしれません。
