iptables実行の操作ログをAuditbeatで採取しElasticsearchで参照してみる

Last updated at Posted at 2020-01-25

はじめに

Linuxサーバで実行されたiptablesによるパケットフィルタ設定の操作ログを分析する機会があったのでその備忘録。ログはElasticsearchとAuditbeatの構成で採取しました。

利用するソフトウェア

  • OS: Ubuntu 18.04
  • Elasticsearch (7.3.2)
  • Kibana (7.3.2)
  • Auditbeat (7.4.2)
  • Apache 2.4.29
  • python3 -m http.server

想定する操作ログのシナリオ

  1. 管理アクセス（想定）のTCPポート(Apache2: 192.168.0.10:80)をiptalbesでブロック(drop)する
  2. 代わりに別TCPポートでリスニングするアプリケーション（想定）を起動する
  3. そのアプリケーションのTCPポート(python -m http.server 192.168.0.10:8000)をiptablesで許可(pass/allow)する

Auditbeatの設定

iptablesが呼び出すシステムコール

まずサーバ上でAuditの監視対象を確認するためにiptablesコマンドが呼び出すシステムコールを列挙。

straceでiptablesを実行
> strace -t -x iptables -A INPUT -p tcp --dport 80 -j DROP
...(略)
14:11:05 socket(AF_INET, SOCK_RAW, IPPROTO_RAW) = 4
14:11:05 fcntl(4, F_SETFD, FD_CLOEXEC)  = 0
14:11:05 getsockopt(4, SOL_IP, IPT_SO_GET_INFO, "\x66\x69\x6c\x74\x65\x72\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00"..., [84]) = 0
14:11:05 getsockopt(4, SOL_IP, IPT_SO_GET_ENTRIES, "\x66\x69\x6c\x74\x65\x72\x00\x20\x53\x65\x63\x75\x72\x69\x74\x79\x20\x50\x61\x79\x6c\x6f\x61\x64\x0a\x72\x6f\x68\x63\x09\x31\x34"..., [1072]) = 0
14:11:05 setsockopt(4, SOL_IP, IPT_SO_SET_REPLACE, "\x66\x69\x6c\x74\x65\x72\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00"..., 1328) = 0
14:11:05 setsockopt(4, SOL_IP, IPT_SO_SET_ADD_COUNTERS, "\x66\x69\x6c\x74\x65\x72\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00"..., 152) = 0
14:11:05 close(4)                       = 0
...(略)

※補足: iptalbesの実体は**/sbin/xtables-multi**

ということで以下のシステムコールを監視してみます。

  • socket
  • getsockopt
  • setsockopt

代わりに実行するアプリケーションの接続監視

ここでは単純にpython3のhttp.serverを起動してみます。iptablesと同様にAuditbeatのAuditルールを作成しますが、サーバ側ソケット関連の以下のシステムコールを追加します。

  • listen
  • bind
  • accept/accept4

※補足：Auditbeatのサンプル設定ではaccept4がないようです。

Auditbeat設定の監視ルール

auditd moduleへ以下のルールを追加してみます。書式はauditdと同じです。

    -a always,exit -F arch=b64 -S socket,accept,accept4,listen,setsockopt,getsockopt,bind -F key=audit-iptables

※補足：実行ファイル名を**exe=...**で追加指定してもよいかもしれません。

/etc/auditbeat/auditbeat.yml
###################### Auditbeat Configuration Example #########################

# This is an example configuration file highlighting only the most common
# options. The auditbeat.reference.yml file from the same directory contains all
# the supported options with more comments. You can use it as a reference.
#
# You can find the full configuration reference here:
# https://www.elastic.co/guide/en/beats/auditbeat/index.html

# ==========================  Modules configuration =============================
auditbeat.modules:

- module: auditd
  # Load audit rules from separate files. Same format as audit.rules(7).
  audit_rule_files: [ '${path.config}/audit.rules.d/*.conf' ]
  audit_rules: |
    ## Define audit rules here.
    ## Create file watches (-w) or syscall audits (-a or -A). Uncomment these
    ## examples or add your own rules.
...
    ## External access (warning: these can be expensive to audit).
    #-a always,exit -F arch=b64 -S accept,bind,connect -F key=external-access

    ## iptables exec test (warning: these can be expensive to audit). ★★★
    -a always,exit -F arch=b64 -S execve,execveat -k exec
    -a always,exit -F arch=b64 -S socket,accept,accept4,listen,setsockopt,getsockopt,bind -F key=audit-iptables ★★★
...

設定内容を確認。

> auditbeat test config
OK

ログを採取

操作
# Apache2を起動
> systemctl start apache2

# iptables操作
> iptables -A INPUT -p tcp --dport 80 -j DROP
> iptables -A INPUT -p tcp --dport 8000 -j ACCEPT

# 代わりのアプリケーションを起動
> python3 -m http.server 8000
Webアクセス
# 管理サーバポート（想定）へのアクセス
> curl -XGET http://192.168.1.10
curl: (7) Failed to connect to 192.168.1.10 port 80: Connection refused

# 代わりに起動した別アプリケーションポート（想定）へのアクセス
> curl -XGET http://192.168.1.10:8000
...

Kibanaで確認

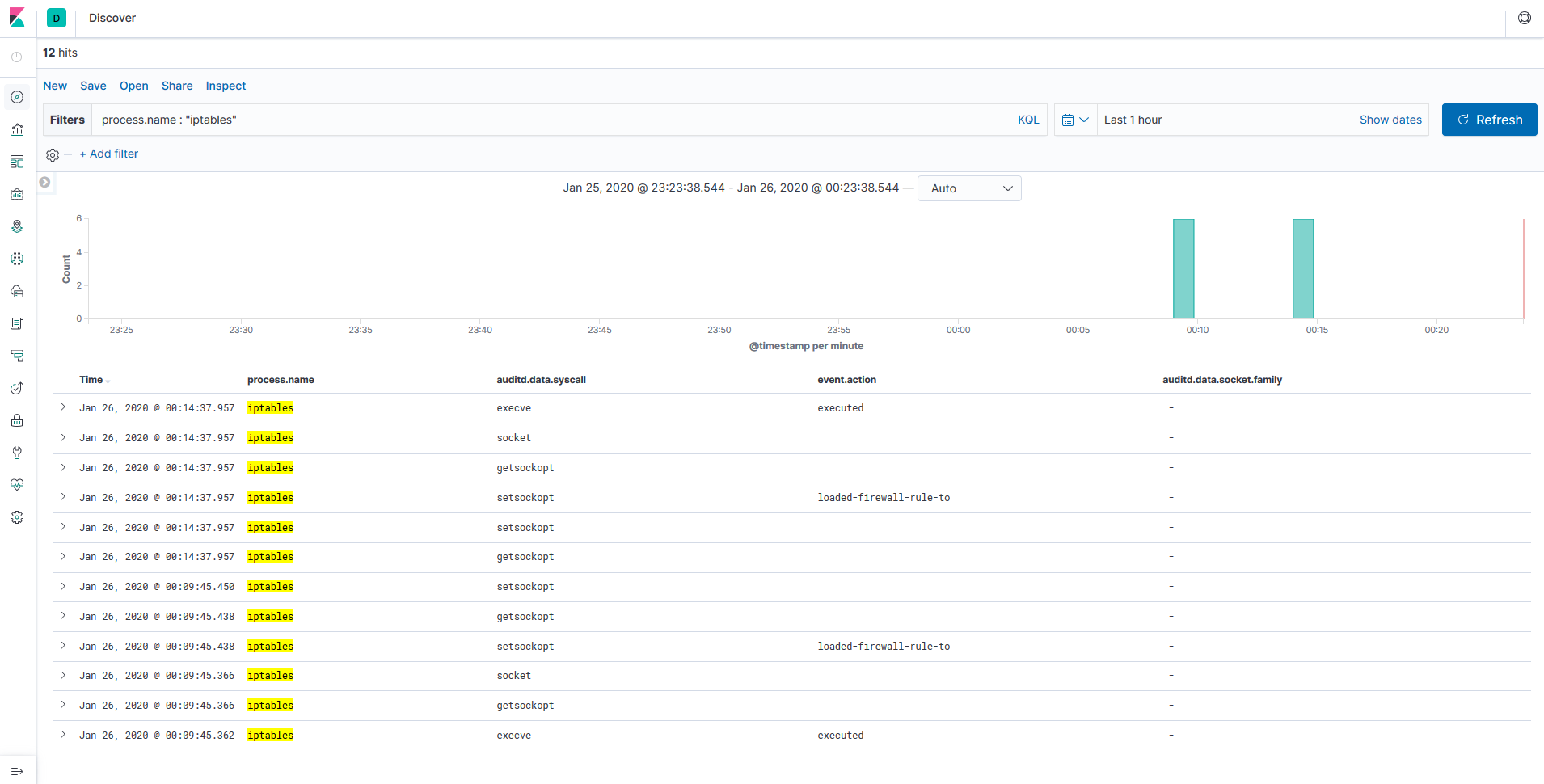

iptables_kibana.png iptablesの設定操作は**event.action: loaded-firewall-rule-to**というラベルになるようですね！ また**execve**でiptables実行時に指定されたコマンド引数も記録されています(**おまけ(2)**を参照)。 apache2_kibana.png listenおよびaccept/accept4のシステムコール呼び出しはそれぞれ**event.action: listen-for-connections**および**event.action: accepted-connection-from**というラベルなるようです。**source.ip**や**source.port**で接続元の情報も採取できています(**おまけ(2)**を参照)。 python3_kibana.png

まとめ

iptables実行をログ参照できました。

同様にして他にも例えばiptablesによるポートフォーワードを利用するMITM実行ログの参照などへも応用できそうです。

おまけ(1)：AuditbeatのEventアクションの一覧

Elastic Common Schema (ECS)のEventオブジェクトのevent.actionに設定されるラベルは、LinuxカーネルのauditからNETLINKインターフェースで取得されるメッセージタイプをマッピングしたものです。Kibanaのevent.actionなどのフィールドとLinux auditのマッピングを参照したい際など以下で参照できます。

おまけ(2)：採取されたログサンプル (Kibana)

iptables-execv
{
  "_index": "auditbeat-7.4.2-20xx.xx.xx-000001",
  "_type": "_doc",
  "_id": "xxxxxxxxxxxxxxxxxxxxxxx",
  "_version": 1,
  "_score": null,
  "_source": {
    "@timestamp": "2020-01-25T15:09:45.362Z",
    "event": {
      "outcome": "success",
      "module": "auditd",
      "category": "audit-rule",
      "action": "executed"
    },
    "user": {
      "name": "root",
      "filesystem": {
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0",
        "name": "root"
      },
      "saved": {
        "name": "root",
        "id": "0",
        "group": {
          "id": "0",
          "name": "root"
        }
      },
      "effective": {
        "name": "root",
        "id": "0",
        "group": {
          "name": "root",
          "id": "0"
        }
      },
      "audit": {
        "id": "1000",
        "name": "xxxxxxxxx"
      },
      "group": {
        "id": "0",
        "name": "root"
      },
      "id": "0"
    },
    "file": {
      "gid": "0",
      "owner": "root",
      "group": "root",
      "path": "/sbin/iptables",
      "device": "00:00",
      "inode": "786668",
      "mode": "0755",
      "uid": "0"
    },
    "host": {
      "architecture": "x86_64",
      "os": {
        "version": "18.04.1 LTS (Bionic Beaver)",
        "family": "debian",
        "name": "Ubuntu",
        "kernel": "4.15.0-74-generic",
        "codename": "bionic",
        "platform": "ubuntu"
      },
      "id": "xxxxxxxxx",
      "containerized": false,
      "name": "dmz_server",
      "hostname": "dmz_server"
    },
    "auditd": {
      "paths": [
        {
          "ouid": "0",
          "cap_fi": "0000000000000000",
          "dev": "08:02",
          "name": "/sbin/iptables",
          "nametype": "NORMAL",
          "ogid": "0",
          "mode": "0100755",
          "rdev": "00:00",
          "cap_fe": "0",
          "cap_fp": "0000000000000000",
          "cap_fver": "0",
          "inode": "786668",
          "item": "0"
        },
        {
          "cap_fe": "0",
          "cap_fp": "0000000000000000",
          "cap_fver": "0",
          "item": "1",
          "mode": "0100755",
          "ogid": "0",
          "rdev": "00:00",
          "cap_fi": "0000000000000000",
          "dev": "08:02",
          "inode": "136740",
          "name": "/lib64/ld-linux-x86-64.so.2",
          "nametype": "NORMAL",
          "ouid": "0"
        }
      ],
      "message_type": "syscall",
      "sequence": 406,
      "result": "success",
      "data": {
        "exit": "0",
        "a0": "55a151eef970",
        "argc": "9",
        "a1": "55a151ec9de0",
        "a2": "55a151ece9a0",
        "tty": "tty1",
        "a3": "8",
        "syscall": "execve",
        "arch": "x86_64"
      },
      "session": "1",
      "summary": {
        "how": "/sbin/xtables-multi",
        "actor": {
          "secondary": "root",
          "primary": "xxxxxxxxx"
        },
        "object": {
          "primary": "/sbin/iptables",
          "type": "file"
        }
      }
    },
    "process": {
      "executable": "/sbin/xtables-multi",
      "working_directory": "/home/xxxxxxxxx",
      "args": [
        "iptables",
        "-A",
        "INPUT",
        "-p",
        "tcp",
        "--dport",
        "80",
        "-j",
        "DROP"
      ],
      "pid": 2143,
      "ppid": 2025,
      "title": "iptables -A INPUT -p tcp --dport 80 -j DROP",
      "name": "iptables"
    },
    "tags": [
      "exec"
    ],
    "agent": {
      "type": "auditbeat",
      "ephemeral_id": "xxxxxxxxx",
      "hostname": "dmz_server",
      "id": "xxxxxxxxx",
      "version": "7.4.2"
    },
    "ecs": {
      "version": "1.1.0"
    },
    "service": {
      "type": "auditd"
    }
  },
  "fields": {
    "@timestamp": [
      "2020-01-25T15:09:45.362Z"
    ]
  },
  "highlight": {
    "process.name": [
      "@kibana-highlighted-field@iptables@/kibana-highlighted-field@"
    ],
    "host.name": [
      "@kibana-highlighted-field@dmz_server@/kibana-highlighted-field@"
    ]
  },
  "sort": [
    1579964985362
  ]
}
iptables-setsockopt
{
  "_index": "auditbeat-7.4.2-20xx.xx.xx-000001",
  "_type": "_doc",
  "_id": "xxxxxxxxxxxxxxxxxxxxxxx",
  "_version": 1,
  "_score": null,
  "_source": {
    "@timestamp": "2020-01-25T15:09:45.438Z",
    "process": {
      "pid": 2143,
      "ppid": 2025,
      "title": "iptables -A INPUT -p tcp --dport 80 -j DROP",
      "name": "iptables",
      "executable": "/sbin/xtables-multi"
    },
    "tags": [
      "audit-iptables"
    ],
    "auditd": {
      "data": {
        "syscall": "setsockopt",
        "a1": "0",
        "arch": "x86_64",
        "exit": "0",
        "table": "filter",
        "a0": "4",
        "tty": "tty1",
        "a3": "558343597f70",
        "family": "2",
        "a2": "40",
        "entries": "4"
      },
      "session": "1",
      "summary": {
        "actor": {
          "primary": "xxxxxxxxx",
          "secondary": "root"
        },
        "object": {
          "type": "firewall",
          "primary": "filter"
        },
        "how": "/sbin/xtables-multi"
      },
      "message_type": "netfilter_cfg",
      "sequence": 413,
      "result": "success"
    },
    "ecs": {
      "version": "1.1.0"
    },
    "service": {
      "type": "auditd"
    },
    "event": {
      "outcome": "success",
      "module": "auditd",
      "category": "configuration",
      "action": "loaded-firewall-rule-to"
    },
    "user": {
      "name": "root",
      "group": {
        "id": "0",
        "name": "root"
      },
      "effective": {
        "id": "0",
        "name": "root",
        "group": {
          "name": "root",
          "id": "0"
        }
      },
      "id": "0",
      "filesystem": {
        "group": {
          "name": "root",
          "id": "0"
        },
        "name": "root",
        "id": "0"
      },
      "saved": {
        "id": "0",
        "group": {
          "name": "root",
          "id": "0"
        },
        "name": "root"
      },
      "audit": {
        "id": "1000",
        "name": "xxxxxxxxx"
      }
    },
    "agent": {
      "hostname": "dmz_server",
      "id": "xxxxxxxxx",
      "version": "7.4.2",
      "type": "auditbeat",
      "ephemeral_id": "xxxxxxxxx"
    },
    "host": {
      "hostname": "dmz_server",
      "architecture": "x86_64",
      "os": {
        "kernel": "4.15.0-74-generic",
        "codename": "bionic",
        "platform": "ubuntu",
        "version": "18.04.1 LTS (Bionic Beaver)",
        "family": "debian",
        "name": "Ubuntu"
      },
      "id": "xxxxxxxxx",
      "containerized": false,
      "name": "dmz_server"
    }
  },
  "fields": {
    "@timestamp": [
      "2020-01-25T15:09:45.438Z"
    ]
  },
  "highlight": {
    "process.name": [
      "@kibana-highlighted-field@iptables@/kibana-highlighted-field@"
    ],
    "host.name": [
      "@kibana-highlighted-field@dmz_server@/kibana-highlighted-field@"
    ]
  },
  "sort": [
    1579964985438
  ]
}
apache2-execv
{
  "_index": "auditbeat-7.4.2-20xx.xx.xx-000001",
  "_type": "_doc",
  "_id": "xxxxxxxxxxxxxxxxxxxxxxx",
  "_version": 1,
  "_score": null,
  "_source": {
    "@timestamp": "2020-01-25T15:05:43.626Z",
    "event": {
      "outcome": "success",
      "module": "auditd",
      "category": "audit-rule",
      "action": "executed"
    },
    "tags": [
      "exec"
    ],
    "agent": {
      "type": "auditbeat",
      "ephemeral_id": "xxxxxxxxx",
      "hostname": "dmz_server",
      "id": "xxxxxxxxx",
      "version": "7.4.2"
    },
    "user": {
      "name": "root",
      "filesystem": {
        "name": "root",
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0"
      },
      "saved": {
        "id": "0",
        "group": {
          "name": "root",
          "id": "0"
        },
        "name": "root"
      },
      "group": {
        "id": "0",
        "name": "root"
      },
      "effective": {
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0",
        "name": "root"
      },
      "id": "0"
    },
    "process": {
      "ppid": 2037,
      "title": "/usr/sbin/apache2 -k start",
      "name": "apache2",
      "executable": "/usr/sbin/apache2",
      "working_directory": "/",
      "args": [
        "/usr/sbin/apache2",
        "-k",
        "start"
      ],
      "pid": 2061
    },
    "file": {
      "mode": "0755",
      "uid": "0",
      "gid": "0",
      "owner": "root",
      "group": "root",
      "path": "/usr/sbin/apache2",
      "device": "00:00",
      "inode": "394088"
    },
    "auditd": {
      "sequence": 345,
      "result": "success",
      "data": {
        "syscall": "execve",
        "arch": "x86_64",
        "a2": "558c84c2d698",
        "a1": "558c84c2d678",
        "a0": "558c84c2d610",
        "tty": "(none)",
        "a3": "7fb2be979810",
        "argc": "3",
        "exit": "0"
      },
      "summary": {
        "actor": {
          "primary": "unset",
          "secondary": "root"
        },
        "object": {
          "primary": "/usr/sbin/apache2",
          "type": "file"
        },
        "how": "/usr/sbin/apache2"
      },
      "paths": [
        {
          "mode": "0100755",
          "ouid": "0",
          "inode": "394088",
          "cap_fi": "0000000000000000",
          "cap_fp": "0000000000000000",
          "cap_fver": "0",
          "dev": "08:02",
          "item": "0",
          "name": "/usr/sbin/apache2",
          "nametype": "NORMAL",
          "cap_fe": "0",
          "rdev": "00:00",
          "ogid": "0"
        },
        {
          "cap_fver": "0",
          "inode": "136740",
          "item": "1",
          "ogid": "0",
          "ouid": "0",
          "name": "/lib64/ld-linux-x86-64.so.2",
          "nametype": "NORMAL",
          "rdev": "00:00",
          "cap_fe": "0",
          "cap_fi": "0000000000000000",
          "cap_fp": "0000000000000000",
          "dev": "08:02",
          "mode": "0100755"
        }
      ],
      "message_type": "syscall"
    },
    "service": {
      "type": "auditd"
    },
    "ecs": {
      "version": "1.1.0"
    },
    "host": {
      "os": {
        "platform": "ubuntu",
        "version": "18.04.1 LTS (Bionic Beaver)",
        "family": "debian",
        "name": "Ubuntu",
        "kernel": "4.15.0-74-generic",
        "codename": "bionic"
      },
      "id": "xxxxxxxxx",
      "containerized": false,
      "hostname": "dmz_server",
      "architecture": "x86_64",
      "name": "dmz_server"
    }
  },
  "fields": {
    "@timestamp": [
      "2020-01-25T15:05:43.626Z"
    ]
  },
  "highlight": {
    "process.name": [
      "@kibana-highlighted-field@apache2@/kibana-highlighted-field@"
    ],
    "auditd.data.syscall": [
      "@kibana-highlighted-field@execve@/kibana-highlighted-field@"
    ],
    "host.name": [
      "@kibana-highlighted-field@dmz_server@/kibana-highlighted-field@"
    ]
  },
  "sort": [
    1579964743626
  ]
}
apache2-listen
{
  "_index": "auditbeat-7.4.2-20xx.xx.xx-000001",
  "_type": "_doc",
  "_id": "xxxxxxxxxxxxxxxxxxxxxxx",
  "_version": 1,
  "_score": null,
  "_source": {
    "@timestamp": "2020-01-25T15:05:43.898Z",
    "agent": {
      "type": "auditbeat",
      "ephemeral_id": "xxxxxxxxx",
      "hostname": "dmz_server",
      "id": "xxxxxxxxx",
      "version": "7.4.2"
    },
    "service": {
      "type": "auditd"
    },
    "user": {
      "id": "0",
      "group": {
        "name": "root",
        "id": "0"
      },
      "effective": {
        "id": "0",
        "group": {
          "name": "root",
          "id": "0"
        },
        "name": "root"
      },
      "name": "root",
      "filesystem": {
        "id": "0",
        "group": {
          "name": "root",
          "id": "0"
        },
        "name": "root"
      },
      "saved": {
        "id": "0",
        "group": {
          "id": "0",
          "name": "root"
        },
        "name": "root"
      }
    },
    "tags": [
      "audit-iptables"
    ],
    "auditd": {
      "result": "success",
      "data": {
        "a2": "1c",
        "a0": "4",
        "syscall": "listen",
        "a1": "1ff",
        "exit": "0",
        "tty": "(none)",
        "arch": "x86_64",
        "a3": "1f"
      },
      "summary": {
        "actor": {
          "secondary": "root",
          "primary": "unset"
        },
        "object": {
          "type": "socket"
        },
        "how": "/usr/sbin/apache2"
      },
      "message_type": "syscall",
      "sequence": 380
    },
    "event": {
      "category": "audit-rule",
      "action": "listen-for-connections",
      "outcome": "success",
      "module": "auditd"
    },
    "process": {
      "name": "apache2",
      "executable": "/usr/sbin/apache2",
      "pid": 2061,
      "ppid": 2037,
      "title": "/usr/sbin/apache2 -k start"
    },
    "ecs": {
      "version": "1.1.0"
    },
    "host": {
      "containerized": false,
      "name": "dmz_server",
      "hostname": "dmz_server",
      "architecture": "x86_64",
      "os": {
        "platform": "ubuntu",
        "version": "18.04.1 LTS (Bionic Beaver)",
        "family": "debian",
        "name": "Ubuntu",
        "kernel": "4.15.0-74-generic",
        "codename": "bionic"
      },
      "id": "xxxxxxxxx"
    }
  },
  "fields": {
    "@timestamp": [
      "2020-01-25T15:05:43.898Z"
    ]
  },
  "highlight": {
    "process.name": [
      "@kibana-highlighted-field@apache2@/kibana-highlighted-field@"
    ],
    "auditd.data.syscall": [
      "@kibana-highlighted-field@listen@/kibana-highlighted-field@"
    ],
    "host.name": [
      "@kibana-highlighted-field@dmz_server@/kibana-highlighted-field@"
    ]
  },
  "sort": [
    1579964743898
  ]
}
apache2-accept4
{
  "_index": "auditbeat-7.4.2-20xx.xx.xx-000001",
  "_type": "_doc",
  "_id": "xxxxxxxxxxxxxxxxxxxxxxx",
  "_version": 1,
  "_score": null,
  "_source": {
    "@timestamp": "2020-01-25T15:08:50.143Z",
    "event": {
      "category": "audit-rule",
      "action": "accepted-connection-from",
      "outcome": "success",
      "module": "auditd"
    },
    "process": {
      "title": "/usr/sbin/apache2 -k start",
      "name": "apache2",
      "executable": "/usr/sbin/apache2",
      "pid": 2067,
      "ppid": 2064
    },
    "network": {
      "direction": "incoming"
    },
    "host": {
      "architecture": "x86_64",
      "os": {
        "codename": "bionic",
        "platform": "ubuntu",
        "version": "18.04.1 LTS (Bionic Beaver)",
        "family": "debian",
        "name": "Ubuntu",
        "kernel": "4.15.0-74-generic"
      },
      "id": "xxxxxxxxx",
      "containerized": false,
      "hostname": "dmz_server",
      "name": "dmz_server"
    },
    "ecs": {
      "version": "1.1.0"
    },
    "auditd": {
      "sequence": 400,
      "result": "success",
      "data": {
        "a0": "4",
        "a3": "80000",
        "a2": "7f583f7e5cf0",
        "arch": "x86_64",
        "socket": {
          "family": "ipv6",
          "port": "50131",
          "addr": "192.168.1.1"
        },
        "tty": "(none)",
        "a1": "7f583f7e5d10",
        "syscall": "accept4",
        "exit": "12"
      },
      "summary": {
        "actor": {
          "primary": "unset",
          "secondary": "www-data"
        },
        "object": {
          "primary": "192.168.1.1",
          "secondary": "50131",
          "type": "socket"
        },
        "how": "/usr/sbin/apache2"
      },
      "message_type": "syscall"
    },
    "service": {
      "type": "auditd"
    },
    "user": {
      "name": "www-data",
      "effective": {
        "group": {
          "id": "33",
          "name": "www-data"
        },
        "name": "www-data",
        "id": "33"
      },
      "saved": {
        "group": {
          "id": "33",
          "name": "www-data"
        },
        "id": "33",
        "name": "www-data"
      },
      "filesystem": {
        "name": "www-data",
        "id": "33",
        "group": {
          "id": "33",
          "name": "www-data"
        }
      },
      "id": "33",
      "group": {
        "id": "33",
        "name": "www-data"
      }
    },
    "source": {
      "port": "50131",
      "ip": "192.168.1.1"
    },
    "tags": [
      "audit-iptables"
    ],
    "agent": {
      "hostname": "dmz_server",
      "id": "xxxxxxxxx",
      "version": "7.4.2",
      "type": "auditbeat",
      "ephemeral_id": "xxxxxxxxx"
    }
  },
  "fields": {
    "@timestamp": [
      "2020-01-25T15:08:50.143Z"
    ]
  },
  "highlight": {
    "process.name": [
      "@kibana-highlighted-field@apache2@/kibana-highlighted-field@"
    ],
    "auditd.data.syscall": [
      "@kibana-highlighted-field@accept4@/kibana-highlighted-field@"
    ],
    "host.name": [
      "@kibana-highlighted-field@dmz_server@/kibana-highlighted-field@"
    ]
  },
  "sort": [
    1579964930143
  ]
}
python3-http.server-execv
{
  "_index": "auditbeat-7.4.2-20xx.xx.xx-000001",
  "_type": "_doc",
  "_id": "xxxxxxxxxxxxxxxxxxxxxxx",
  "_version": 1,
  "_score": null,
  "_source": {
    "@timestamp": "2020-01-25T15:14:00.413Z",
    "event": {
      "category": "audit-rule",
      "action": "executed",
      "outcome": "success",
      "module": "auditd"
    },
    "user": {
      "audit": {
        "id": "1000",
        "name": "xxxxxxxxx"
      },
      "name": "root",
      "id": "0",
      "group": {
        "id": "0",
        "name": "root"
      },
      "filesystem": {
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0",
        "name": "root"
      },
      "effective": {
        "id": "0",
        "group": {
          "id": "0",
          "name": "root"
        },
        "name": "root"
      },
      "saved": {
        "id": "0",
        "name": "root",
        "group": {
          "id": "0",
          "name": "root"
        }
      }
    },
    "process": {
      "ppid": 2025,
      "title": "python3 -m http.server 8000",
      "name": "python3",
      "executable": "/usr/bin/python3.6",
      "working_directory": "/home/xxxxxxxxx",
      "args": [
        "python3",
        "-m",
        "http.server",
        "8000"
      ],
      "pid": 2167
    },
    "agent": {
      "hostname": "dmz_server",
      "id": "xxxxxxxxx",
      "version": "7.4.2",
      "type": "auditbeat",
      "ephemeral_id": "xxxxxxxxx"
    },
    "ecs": {
      "version": "1.1.0"
    },
    "host": {
      "os": {
        "platform": "ubuntu",
        "version": "18.04.1 LTS (Bionic Beaver)",
        "family": "debian",
        "name": "Ubuntu",
        "kernel": "4.15.0-74-generic",
        "codename": "bionic"
      },
      "id": "xxxxxxxxx",
      "containerized": false,
      "name": "dmz_server",
      "hostname": "dmz_server",
      "architecture": "x86_64"
    },
    "tags": [
      "exec"
    ],
    "service": {
      "type": "auditd"
    },
    "auditd": {
      "message_type": "syscall",
      "sequence": 415,
      "result": "success",
      "data": {
        "arch": "x86_64",
        "a2": "55a151ece9a0",
        "tty": "tty1",
        "a1": "55a151ee9c70",
        "a3": "8",
        "a0": "55a151eef970",
        "exit": "0",
        "argc": "4",
        "syscall": "execve"
      },
      "session": "1",
      "summary": {
        "actor": {
          "primary": "xxxxxxxxx",
          "secondary": "root"
        },
        "object": {
          "primary": "/usr/bin/python3",
          "type": "file"
        },
        "how": "python3"
      },
      "paths": [
        {
          "nametype": "NORMAL",
          "rdev": "00:00",
          "cap_fp": "0000000000000000",
          "dev": "08:02",
          "inode": "131352",
          "item": "0",
          "name": "/usr/bin/python3",
          "ogid": "0",
          "ouid": "0",
          "cap_fe": "0",
          "cap_fi": "0000000000000000",
          "cap_fver": "0",
          "mode": "0100755"
        },
        {
          "cap_fe": "0",
          "cap_fi": "0000000000000000",
          "cap_fver": "0",
          "mode": "0100755",
          "name": "/lib64/ld-linux-x86-64.so.2",
          "nametype": "NORMAL",
          "rdev": "00:00",
          "cap_fp": "0000000000000000",
          "dev": "08:02",
          "inode": "136740",
          "item": "1",
          "ogid": "0",
          "ouid": "0"
        }
      ]
    },
    "file": {
      "group": "root",
      "path": "/usr/bin/python3",
      "device": "00:00",
      "inode": "131352",
      "mode": "0755",
      "uid": "0",
      "gid": "0",
      "owner": "root"
    }
  },
  "fields": {
    "@timestamp": [
      "2020-01-25T15:14:00.413Z"
    ]
  },
  "highlight": {
    "process.name": [
      "@kibana-highlighted-field@python3@/kibana-highlighted-field@"
    ],
    "auditd.data.syscall": [
      "@kibana-highlighted-field@execve@/kibana-highlighted-field@"
    ],
    "host.name": [
      "@kibana-highlighted-field@dmz_server@/kibana-highlighted-field@"
    ]
  },
  "sort": [
    1579965240413
  ]
}
python3-http.server-listen
{
  "_index": "auditbeat-7.4.2-20xx.xx.xx-000001",
  "_type": "_doc",
  "_id": "xxxxxxxxxxxxxxxxxxxxxxx",
  "_version": 1,
  "_score": null,
  "_source": {
    "@timestamp": "2020-01-25T15:14:00.557Z",
    "auditd": {
      "sequence": 427,
      "result": "success",
      "data": {
        "a0": "3",
        "a1": "5",
        "a3": "9",
        "a2": "ffffffff",
        "arch": "x86_64",
        "syscall": "listen",
        "exit": "0",
        "tty": "tty1"
      },
      "session": "1",
      "summary": {
        "actor": {
          "primary": "xxxxxxxxx",
          "secondary": "root"
        },
        "object": {
          "type": "socket"
        },
        "how": "python3"
      },
      "message_type": "syscall"
    },
    "host": {
      "containerized": false,
      "hostname": "dmz_server",
      "name": "dmz_server",
      "architecture": "x86_64",
      "os": {
        "family": "debian",
        "name": "Ubuntu",
        "kernel": "4.15.0-74-generic",
        "codename": "bionic",
        "platform": "ubuntu",
        "version": "18.04.1 LTS (Bionic Beaver)"
      },
      "id": "xxxxxxxxx"
    },
    "agent": {
      "hostname": "dmz_server",
      "id": "xxxxxxxxx",
      "version": "7.4.2",
      "type": "auditbeat",
      "ephemeral_id": "xxxxxxxxx"
    },
    "service": {
      "type": "auditd"
    },
    "event": {
      "category": "audit-rule",
      "action": "listen-for-connections",
      "outcome": "success",
      "module": "auditd"
    },
    "tags": [
      "audit-iptables"
    ],
    "user": {
      "filesystem": {
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0",
        "name": "root"
      },
      "id": "0",
      "saved": {
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0",
        "name": "root"
      },
      "name": "root",
      "effective": {
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0",
        "name": "root"
      },
      "audit": {
        "id": "1000",
        "name": "xxxxxxxxx"
      },
      "group": {
        "id": "0",
        "name": "root"
      }
    },
    "process": {
      "pid": 2167,
      "ppid": 2025,
      "title": "python3 -m http.server 8000",
      "name": "python3",
      "executable": "/usr/bin/python3.6"
    },
    "ecs": {
      "version": "1.1.0"
    }
  },
  "fields": {
    "@timestamp": [
      "2020-01-25T15:14:00.557Z"
    ]
  },
  "highlight": {
    "process.name": [
      "@kibana-highlighted-field@python3@/kibana-highlighted-field@"
    ],
    "auditd.data.syscall": [
      "@kibana-highlighted-field@listen@/kibana-highlighted-field@"
    ],
    "host.name": [
      "@kibana-highlighted-field@dmz_server@/kibana-highlighted-field@"
    ]
  },
  "sort": [
    1579965240557
  ]
}
python3-http.server-accept4
{
  "_index": "auditbeat-7.4.2-20xx.xx.xx-000001",
  "_type": "_doc",
  "_id": "xxxxxxxxxxxxxxxxxxxxxxx",
  "_version": 1,
  "_score": null,
  "_source": {
    "@timestamp": "2020-01-25T15:16:48.105Z",
    "service": {
      "type": "auditd"
    },
    "user": {
      "name": "root",
      "id": "0",
      "filesystem": {
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0",
        "name": "root"
      },
      "saved": {
        "name": "root",
        "group": {
          "id": "0",
          "name": "root"
        },
        "id": "0"
      },
      "effective": {
        "id": "0",
        "group": {
          "id": "0",
          "name": "root"
        },
        "name": "root"
      },
      "group": {
        "id": "0",
        "name": "root"
      },
      "audit": {
        "id": "1000",
        "name": "xxxxxxxxx"
      }
    },
    "host": {
      "name": "dmz_server",
      "os": {
        "version": "18.04.1 LTS (Bionic Beaver)",
        "family": "debian",
        "name": "Ubuntu",
        "kernel": "4.15.0-74-generic",
        "codename": "bionic",
        "platform": "ubuntu"
      },
      "id": "xxxxxxxxx",
      "containerized": false,
      "hostname": "dmz_server",
      "architecture": "x86_64"
    },
    "auditd": {
      "data": {
        "exit": "4",
        "a3": "80000",
        "tty": "tty1",
        "a1": "7fffa64c95e0",
        "socket": {
          "port": "50259",
          "family": "ipv4",
          "addr": "192.168.1.1"
        },
        "syscall": "accept4",
        "a2": "7fffa64c95bc",
        "a0": "3",
        "arch": "x86_64"
      },
      "session": "1",
      "summary": {
        "actor": {
          "primary": "xxxxxxxxx",
          "secondary": "root"
        },
        "object": {
          "type": "socket",
          "primary": "192.168.1.1",
          "secondary": "50259"
        },
        "how": "python3"
      },
      "message_type": "syscall",
      "sequence": 489,
      "result": "success"
    },
    "tags": [
      "audit-iptables"
    ],
    "event": {
      "category": "audit-rule",
      "action": "accepted-connection-from",
      "outcome": "success",
      "module": "auditd"
    },
    "process": {
      "pid": 2191,
      "ppid": 2025,
      "title": "python3 -m http.server 8000",
      "name": "python3",
      "executable": "/usr/bin/python3.6"
    },
    "source": {
      "ip": "192.168.1.1",
      "port": "50259"
    },
    "ecs": {
      "version": "1.1.0"
    },
    "agent": {
      "hostname": "dmz_server",
      "id": "xxxxxxxxx",
      "version": "7.4.2",
      "type": "auditbeat",
      "ephemeral_id": "xxxxxxxxx"
    },
    "network": {
      "direction": "incoming"
    }
  },
  "fields": {
    "@timestamp": [
      "2020-01-25T15:16:48.105Z"
    ]
  },
  "highlight": {
    "process.name": [
      "@kibana-highlighted-field@python3@/kibana-highlighted-field@"
    ],
    "auditd.data.syscall": [
      "@kibana-highlighted-field@accept4@/kibana-highlighted-field@"
    ],
    "host.name": [
      "@kibana-highlighted-field@dmz_server@/kibana-highlighted-field@"
    ]
  },
  "sort": [
    1579965408105
  ]
}
0
0
0

Register as a new user and use Qiita more conveniently

  1. You get articles that match your needs
  2. You can efficiently read back useful information
  3. You can use dark theme
What you can do with signing up
Sign upLogin
0
0

Delete article

Deleted articles cannot be recovered.

Draft of this article would be also deleted.

Are you sure you want to delete this article?
