@startuml
left to right direction
actor "システム管理者" as Admin
actor "共通認証システム" as AuthSystem

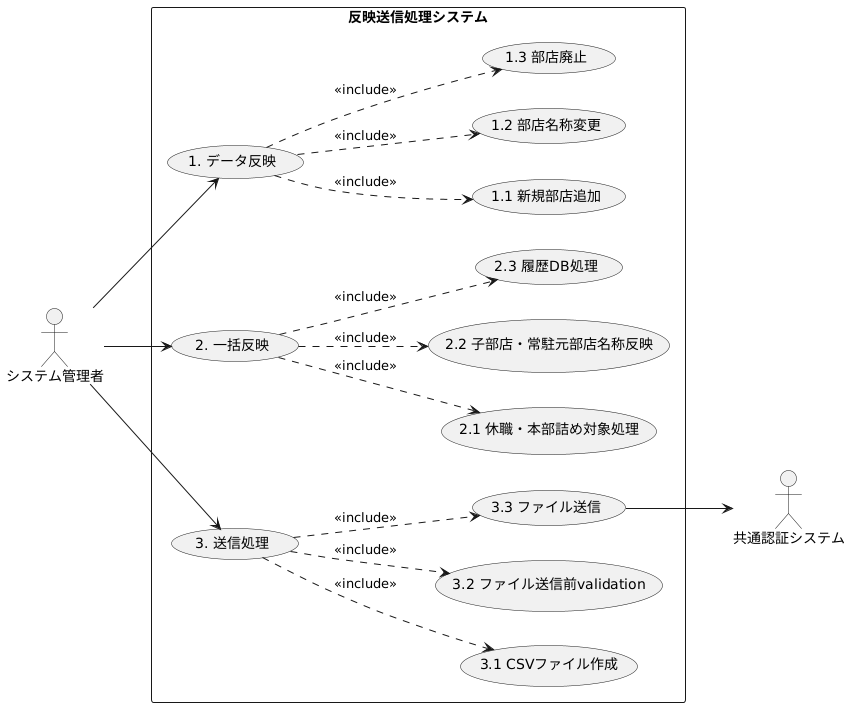

rectangle "反映送信処理システム" {
usecase "1. データ反映" as UC1
usecase "1.1 新規部店追加" as UC1_1
usecase "1.2 部店名称変更" as UC1_2
usecase "1.3 部店廃止" as UC1_3
usecase "2. 一括反映" as UC2
usecase "2.1 休職・本部詰め対象処理" as UC2_1
usecase "2.2 子部店・常駐元部店名称反映" as UC2_2
usecase "2.3 履歴DB処理" as UC2_3
usecase "3. 送信処理" as UC3
usecase "3.1 CSVファイル作成" as UC3_1
usecase "3.2 ファイル送信前validation" as UC3_2
usecase "3.3 ファイル送信" as UC3_3
}
Admin --> UC1
Admin --> UC2
Admin --> UC3
UC1 ..> UC1_1 : <>
UC1 ..> UC1_2 : <>
UC1 ..> UC1_3 : <>
UC2 ..> UC2_1 : <>
UC2 ..> UC2_2 : <>
UC2 ..> UC2_3 : <>
UC3 ..> UC3_1 : <>
UC3 ..> UC3_2 : <>
UC3 ..> UC3_3 : <>
UC3_3 --> AuthSystem
@enduml
