覚書 BlenderでVoxelとRigfyをFBXでエクスポートしてUnityに取り込む

Posted at

完全な覚書

前提条件
・MagicaVoxelですでにモデルは作った
・Rigfyのボーンをモデルに合わせた

自分の場合は別のアーマチュアにモデルが紐づいている状態、これを新しいBornHmdに紐づける

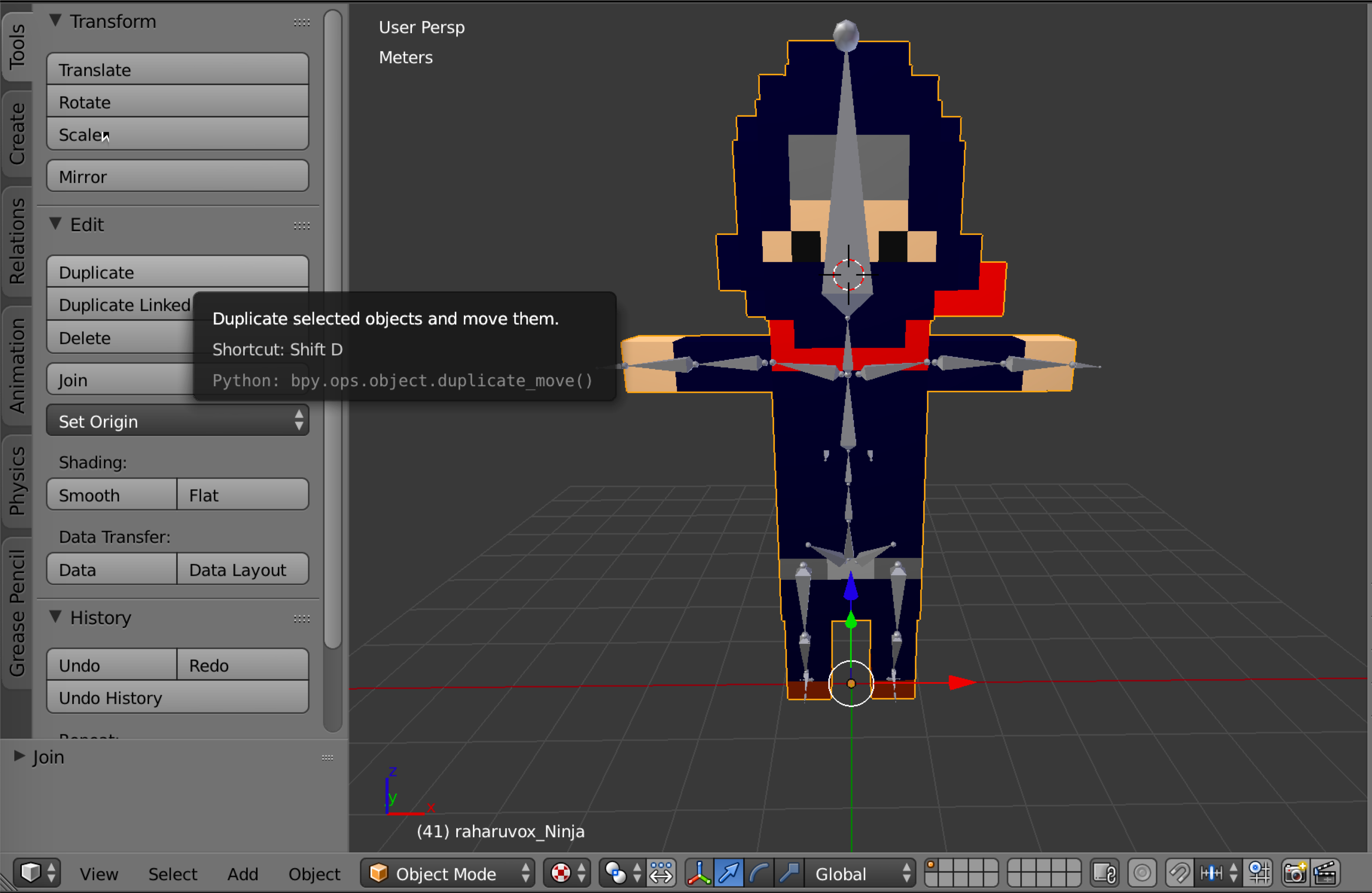

モデルを選択し、オブジェクトモードで複製


複製が出来上がったがまだ旧アーマチュアと紐づいている

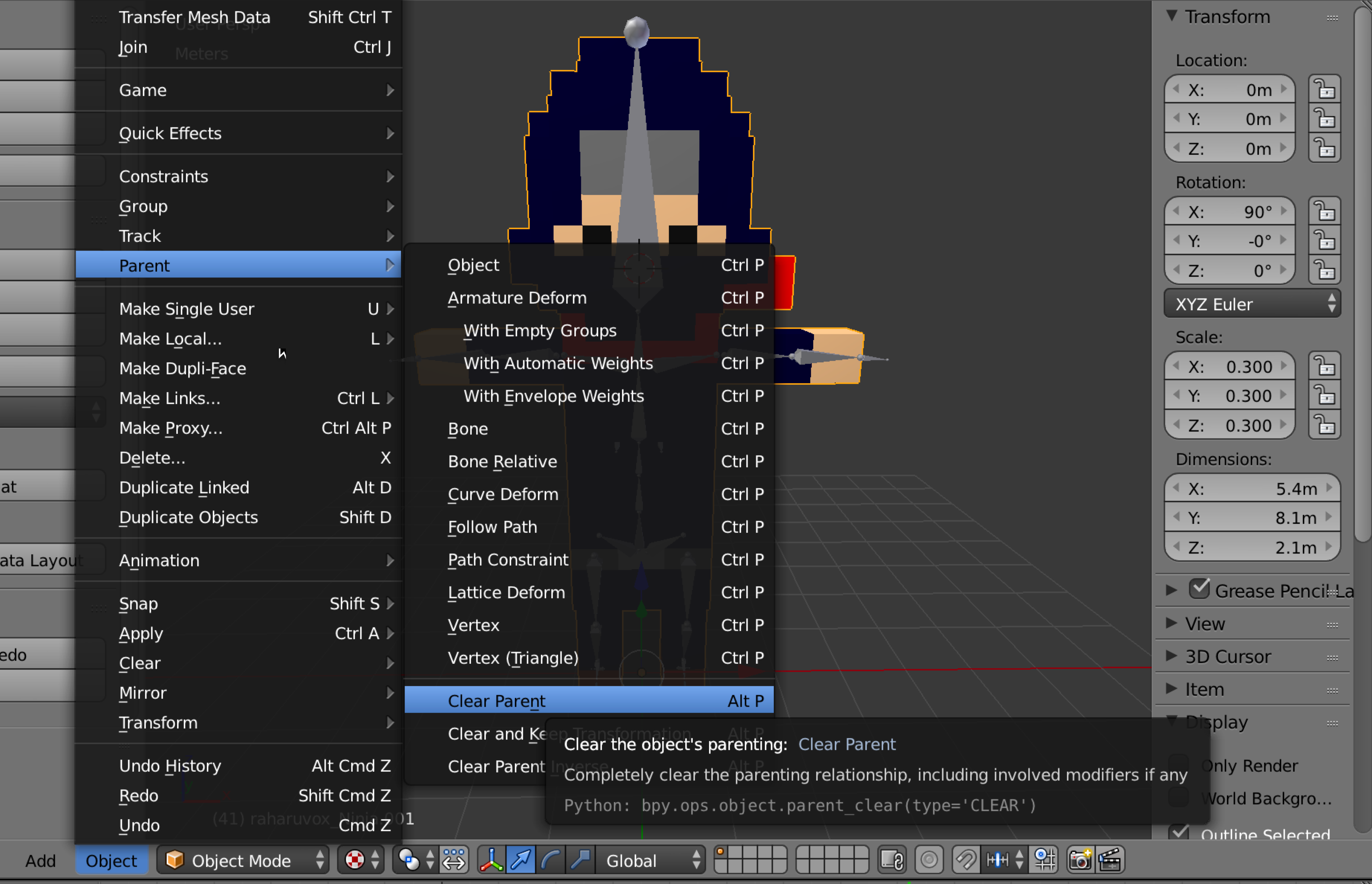

旧アーマチュアと親子関係を解消


これで外れた

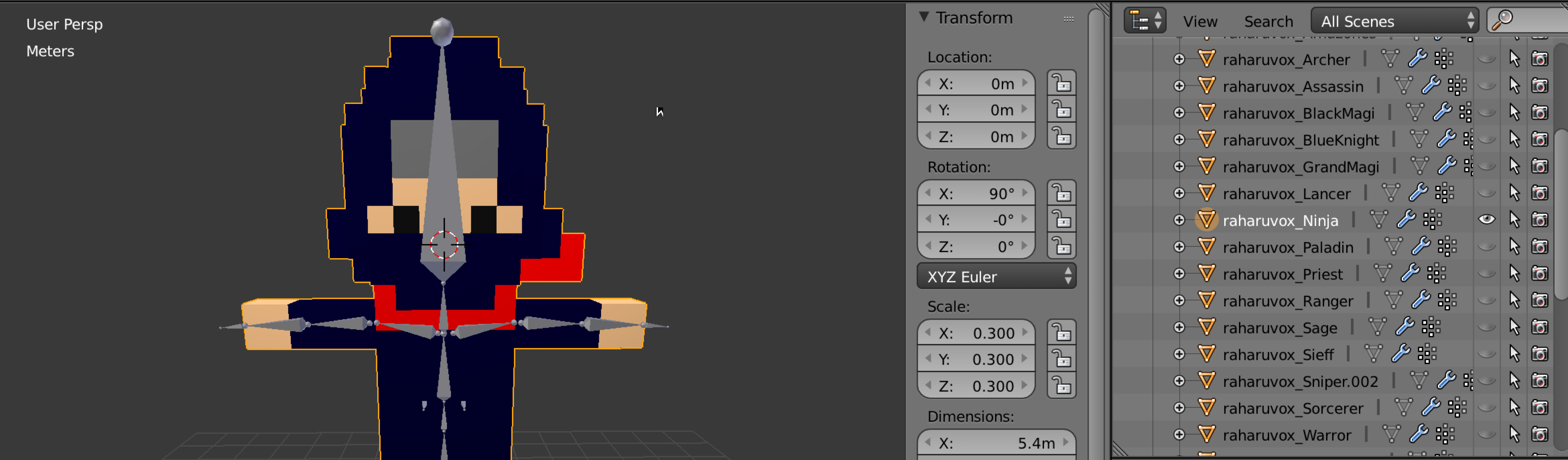

名前とかをわかりやすく(必要ならば)


オブジェクトモードでモデル>ボーンの順番で選択

shiftを押しながら選択すると複数選択できる、順番が大切

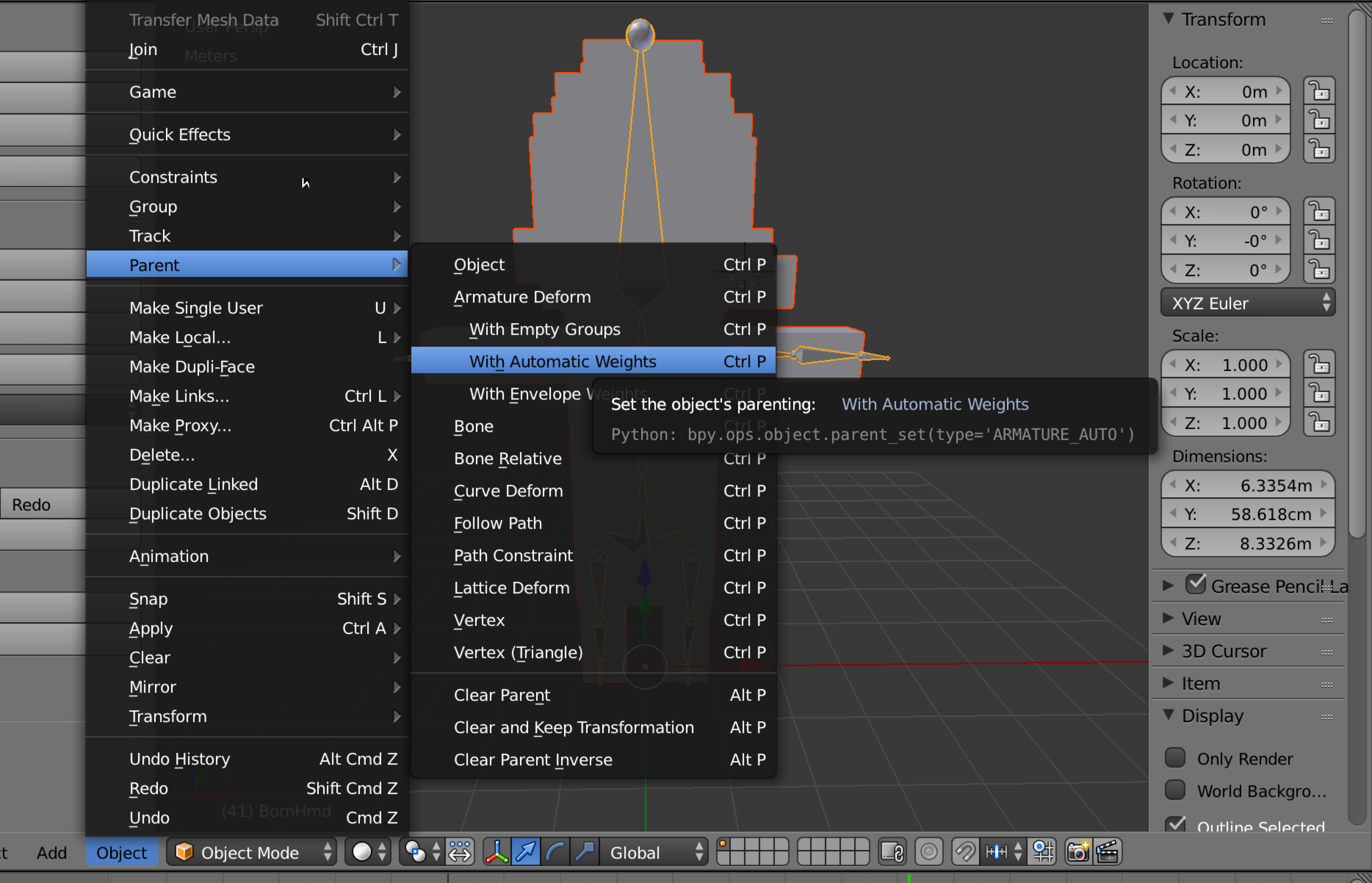

新しいアーマチュアと親子関係になる


すぐにこの画面が出るので自動ウェイトを選択する

BornHmdの子として登録された

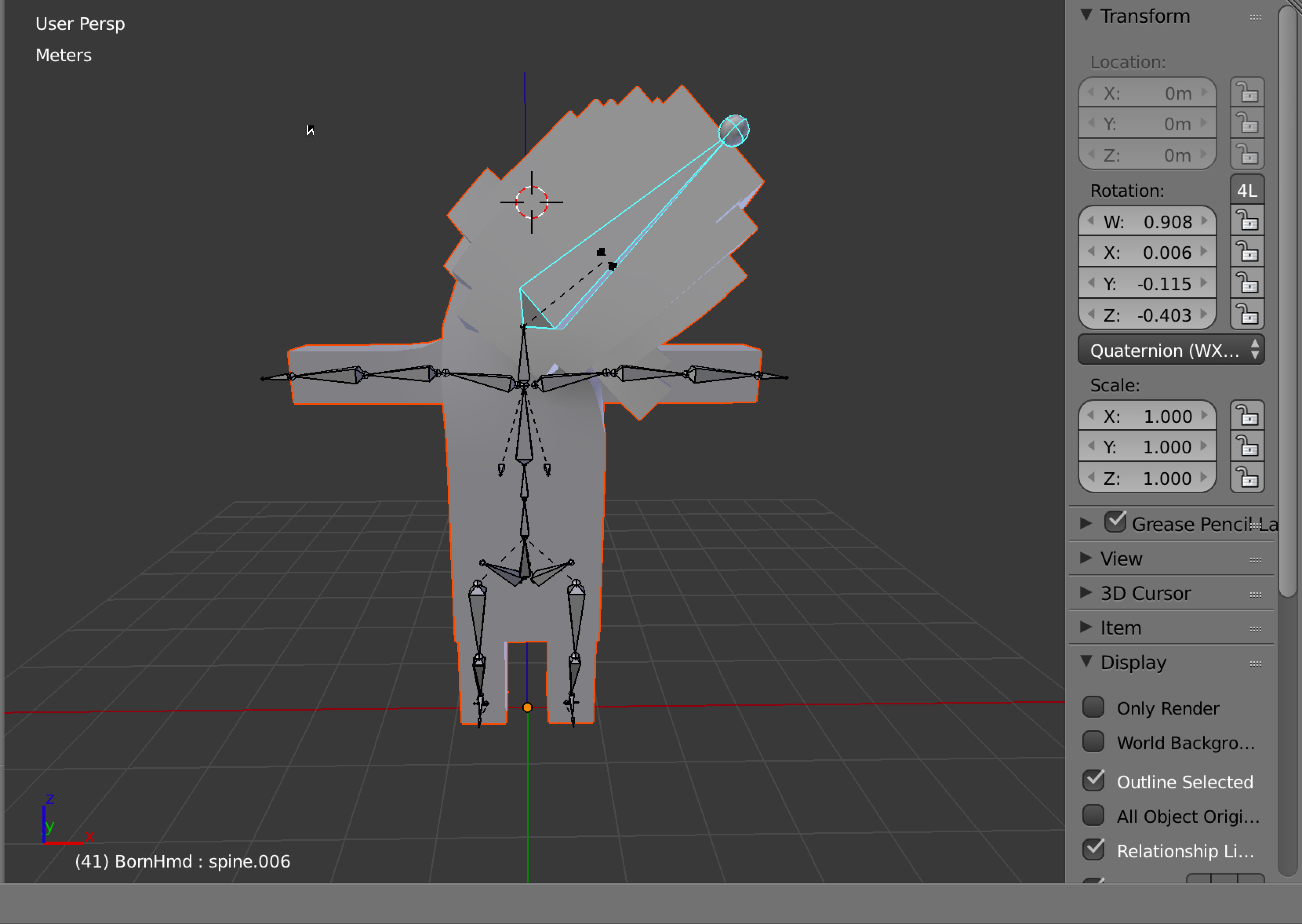

ポーズモードに変更し、ボーンにウェイトが乗っているか確認

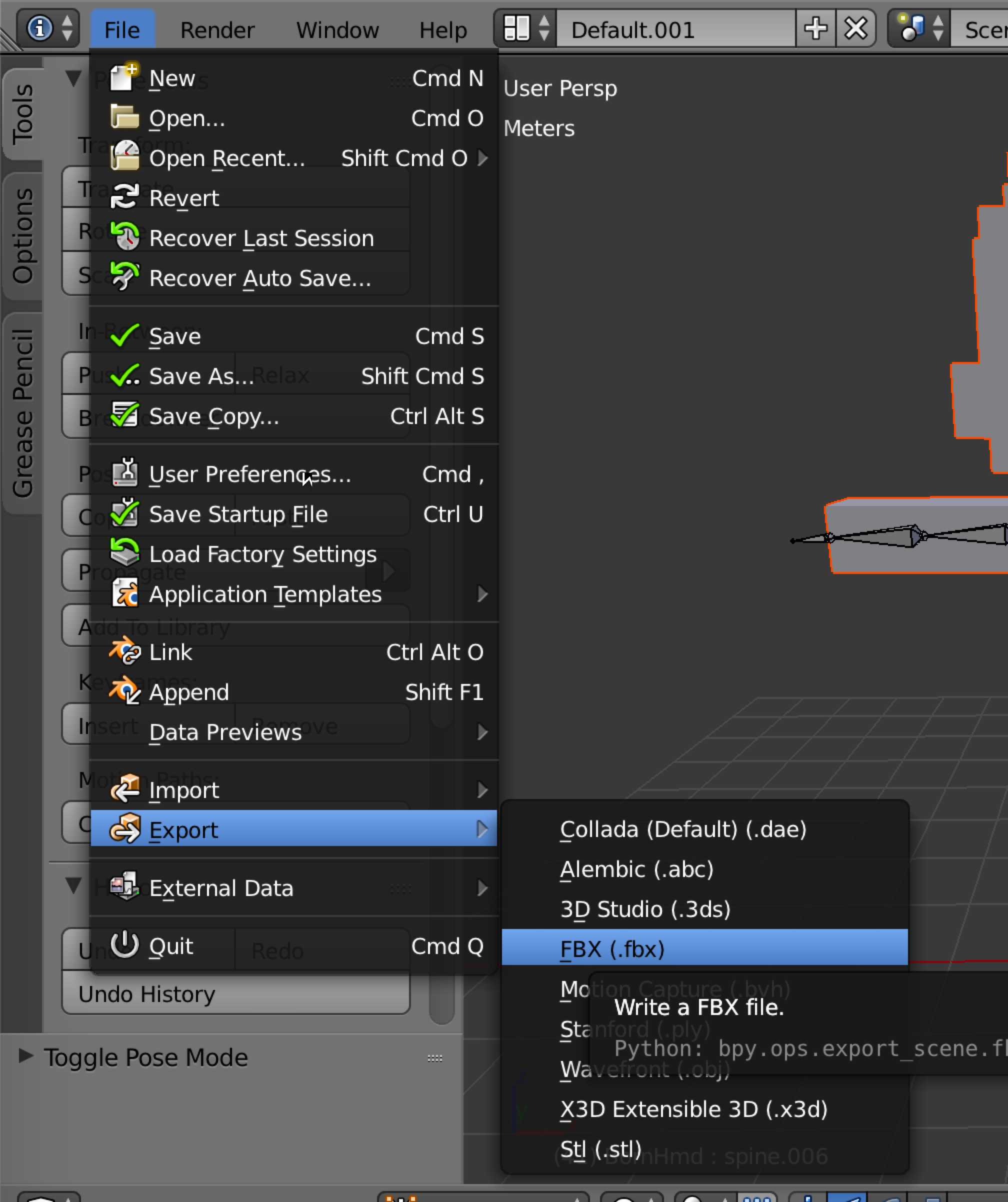

FBXでエクスポート


設定周り


Unityに持っていく


ボーンやアーマチュアがエクスポートされない場合はJoinを試してみる.

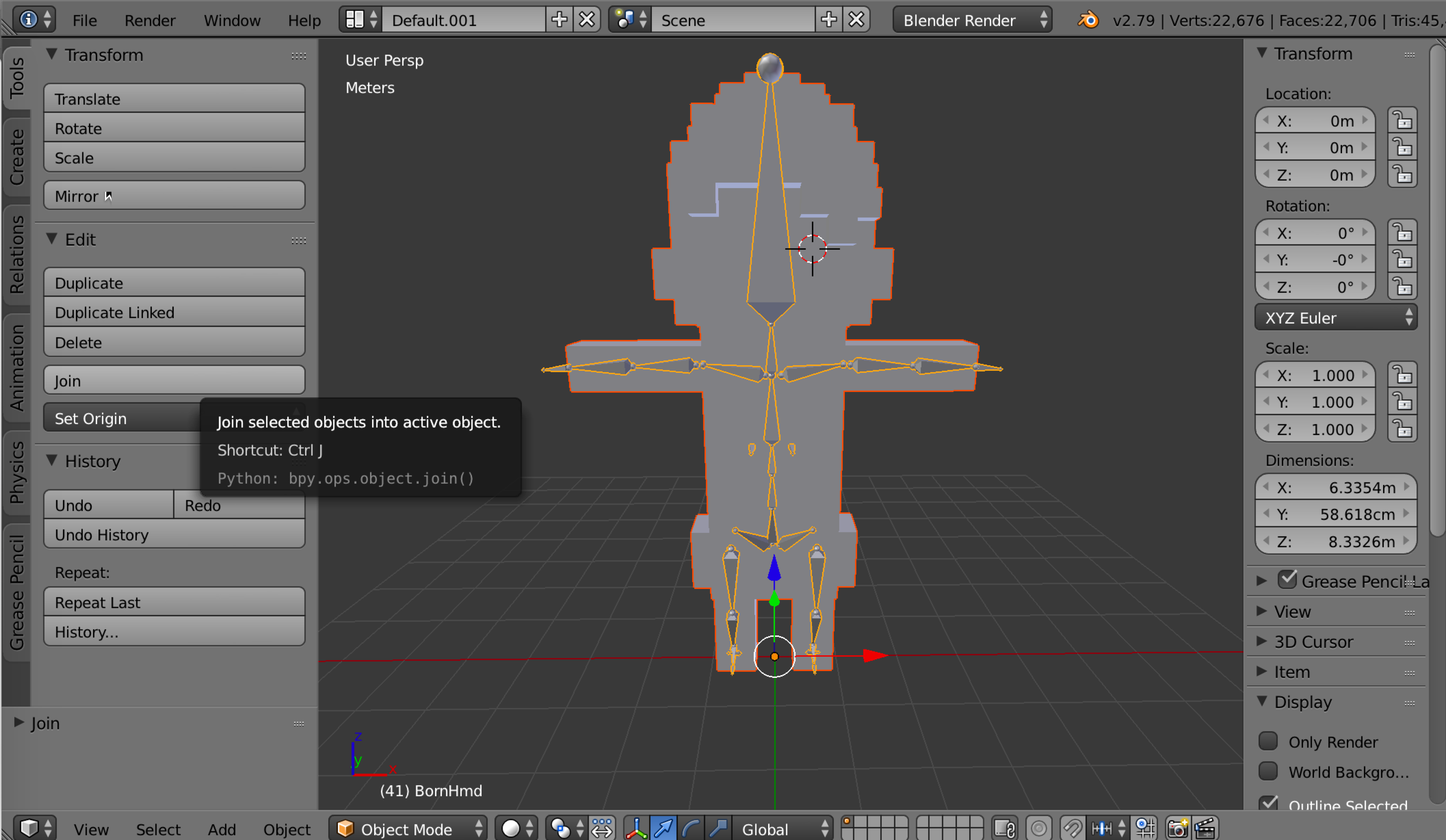

オブジェクトモードでモデル>ボーンの順番で選択し、Join(Cntl + j)


ちょっと最近暇つぶしに昔の資産を引っ張りだしていたりする
