Step Functions で パラレル実行するジョブごとにリトライ

Posted at

ググってもあまり情報でなかったのでやってみました。

ParallelのBranchのStateごとにretry書くことはできます。
マニュアルだとTypeがTaskかParallelにだけRetryが書けるとかいてあり分かりづらいですが、Parallelの中のTaskかParallelのTypeであればretryが書けます。言葉ではわかりずらいので以下のように失敗するLambda関数を一つ用意して以下をコピペして実行する(ベースはParallelのブループリントです)

{
  "Comment": "An example of the Amazon States Language using a parallel state to execute two branches at the same time.",
  "StartAt": "Parallel",
  "States": {
    "Parallel": {
      "Type": "Parallel",
      "Next": "Final State",
      "Branches": [
        {
          "StartAt": "Wait 20s",
          "States": {
            "Wait 20s": {
              "Type": "Task",
              "End": true,
              "Resource": "arn:aws:lambda:ap-northeast-1:xxxxxxxxxxxx:function:test-lambda",
              "ResultPath": "$.chkcount",
              "Retry": [{
                "ErrorEquals": ["States.ALL"],
                "IntervalSeconds": 5,
                "MaxAttempts": 5,
                "BackoffRate": 2.0
               }]
            }
          }
        },
        {
          "StartAt": "Pass",
          "States": {
            "Pass": {
              "Type": "Pass",
              "Next": "Wait 10s"
            },
            "Wait 10s": {
              "Type": "Wait",
              "Seconds": 10,
              "End": true

            }
          }
        }

      ]
    },

    "Final State": {
      "Type": "Pass",
      "End": true
    }
  }
}

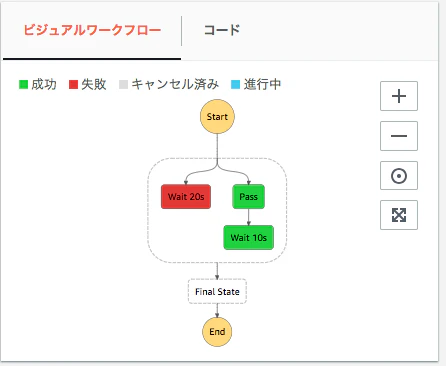

結果はこのような形でFailしているのがわかります。

スクリーンショット 0030-06-15 22.02.39.png

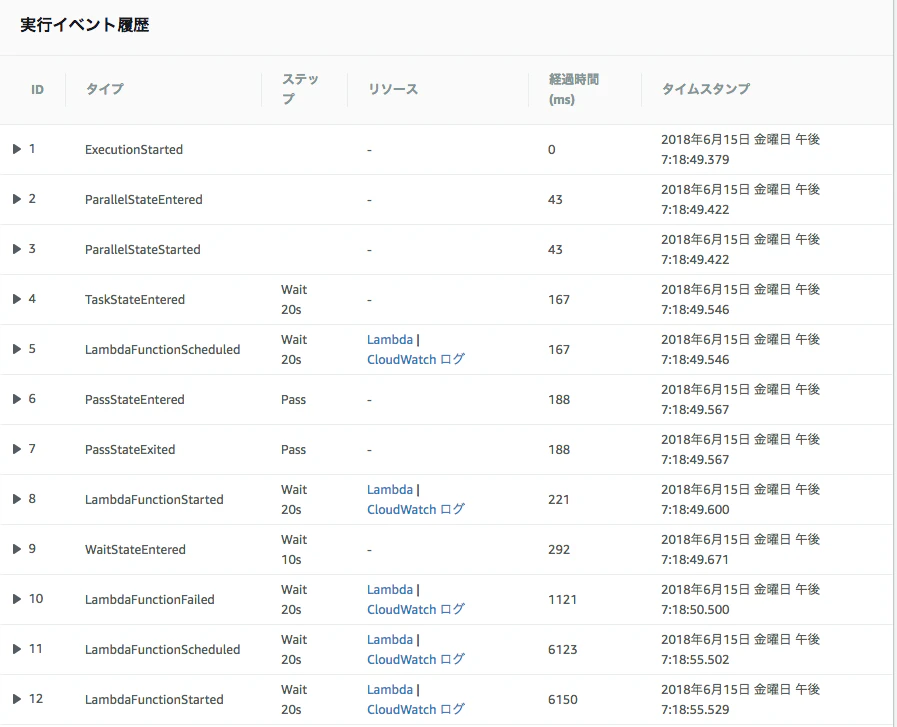

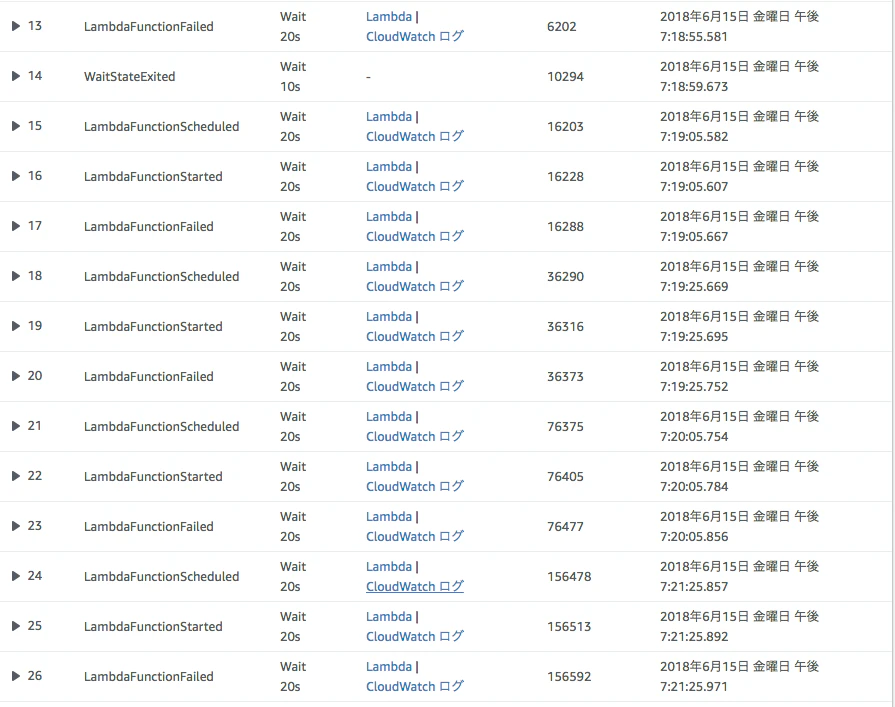

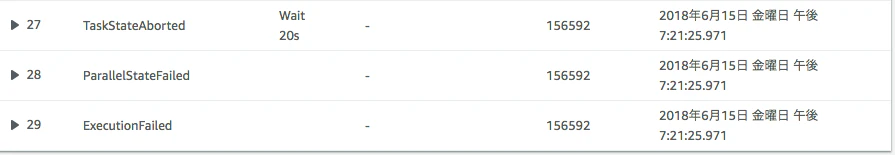

実行の履歴を見るとLambdaが6回Failしているのがわかります。つまり5回リトライされ6回目のFailでParallelStateFailになりパラレル処理全体のFailになったことがわかります

スクリーンショット 0030-06-15 22.02.51.png

スクリーンショット 0030-06-15 22.03.04.png

スクリーンショット 0030-06-15 22.03.11.png
