Raspberry Pi IotボードMCP3004 ver. GPIO割付け一覧

Posted at


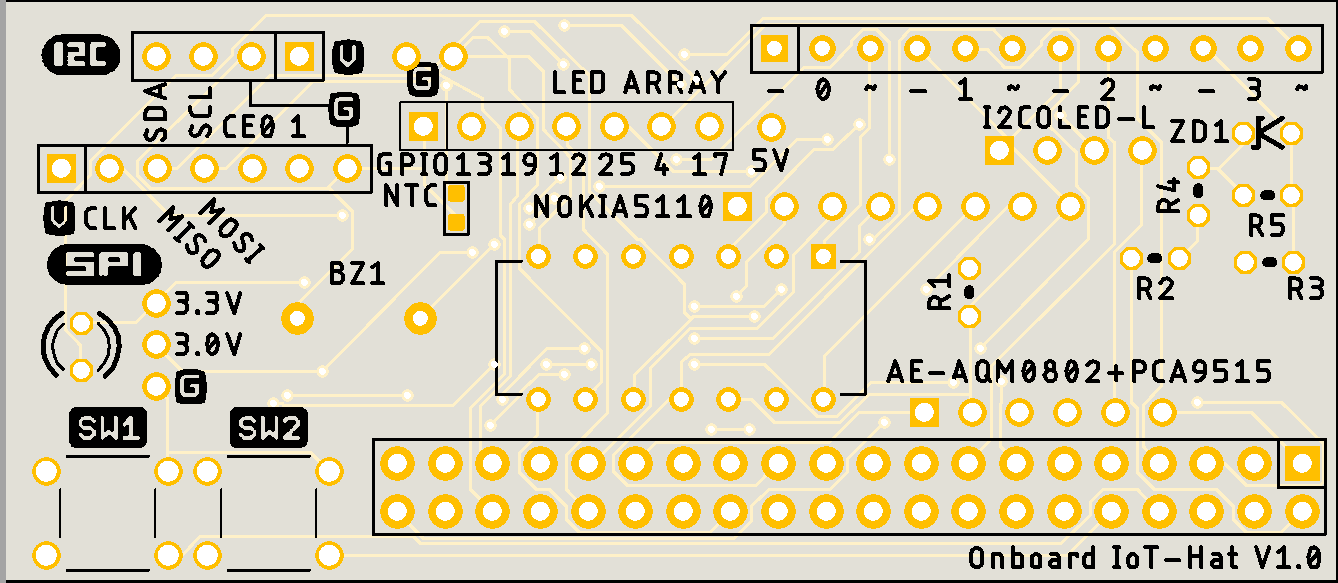

####Raspberry Pi

GPIO# Parts function assign/memo
GPIO7 MCP3004 C̅S̅ SPI
GPIO9 MCP3004 DOUT SPI
GPIO10 MCP3004 DIN SPI
GPIO11 MCP3004 CLK SPI
GPIO14 SW1 汎用 押すとLOW *1
GPIO15 SW2 汎用 押すとLOW *1
GPIO20 Sensor#0-Power 3.3V *2
GPIO21 Sensor#1-Power 3.3V *2
GPIO22 Sensor#2-Power 3.3V *2
GPIO23 Sensor#3-Power 3.3V *2
GPIO27 ブザー

*1 プルアップしていない(ソフトウェアでプルアップ必要)
*2 Highにするとセンサーに3.3Vが供給される

####MCP3004 (10bit 4ch ADコンバータ)

Function 2 3
ADC0 センサ入力#0 GPIO20で電源供給
ADC1 センサ入力#1 GPIO21で電源供給
ADC2 センサ入力#2 GPIO22で電源供給
ADC3 センサ入力#3またはサーミスタ センサ入力時はGPIO23で電源供給


###ADC-CON

Pin Function Memo
1 GND
2 GPIO20
3 ADC0 MCP3004
4 GND
5 GPIO21
6 ADC1 MCP3004
7 GND
8 GPIO22
9 ADC2 MCP3004
10 GND
11 GPIO23/バッテリー電圧 BAT-DELECTで切り替え
12 ADC3/サーミスタ ADC3/NTC-SELECTで切り替え

###サーミスタ NCP18XH103F03RB

投稿メモ
2021/2/20 初版・・・これからプログラムを作るので検証していない状態
