こんにちは。
株式会社クラスアクト インフラストラクチャ事業部の大塚です。
今回はSAMについて実際に試してみたいと思います。
最近DVAの取得の為勉強しているのですが、割と見るので触っておきます。
参考サイトは公式より
SAMとは
AWS SAM（Serverless Application Model）は、AWSが提供するフレームワークで、サーバーレスアプリケーションの開発、デプロイ、管理を簡素化するために設計されています。SAMを使用することで、開発者はAWS Lambda、API Gateway、DynamoDBなどのサーバーレスリソースを簡単に定義し、デプロイすることができます。

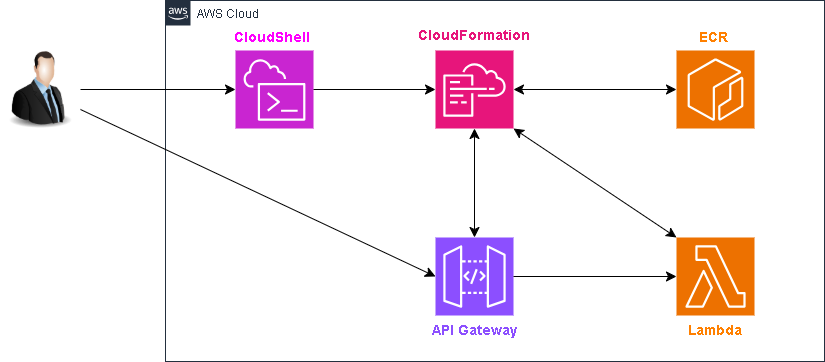

環境イメージ
今回はCloudShellでSAM関連の操作を行い、デプロイしていきたいと思います。
構築

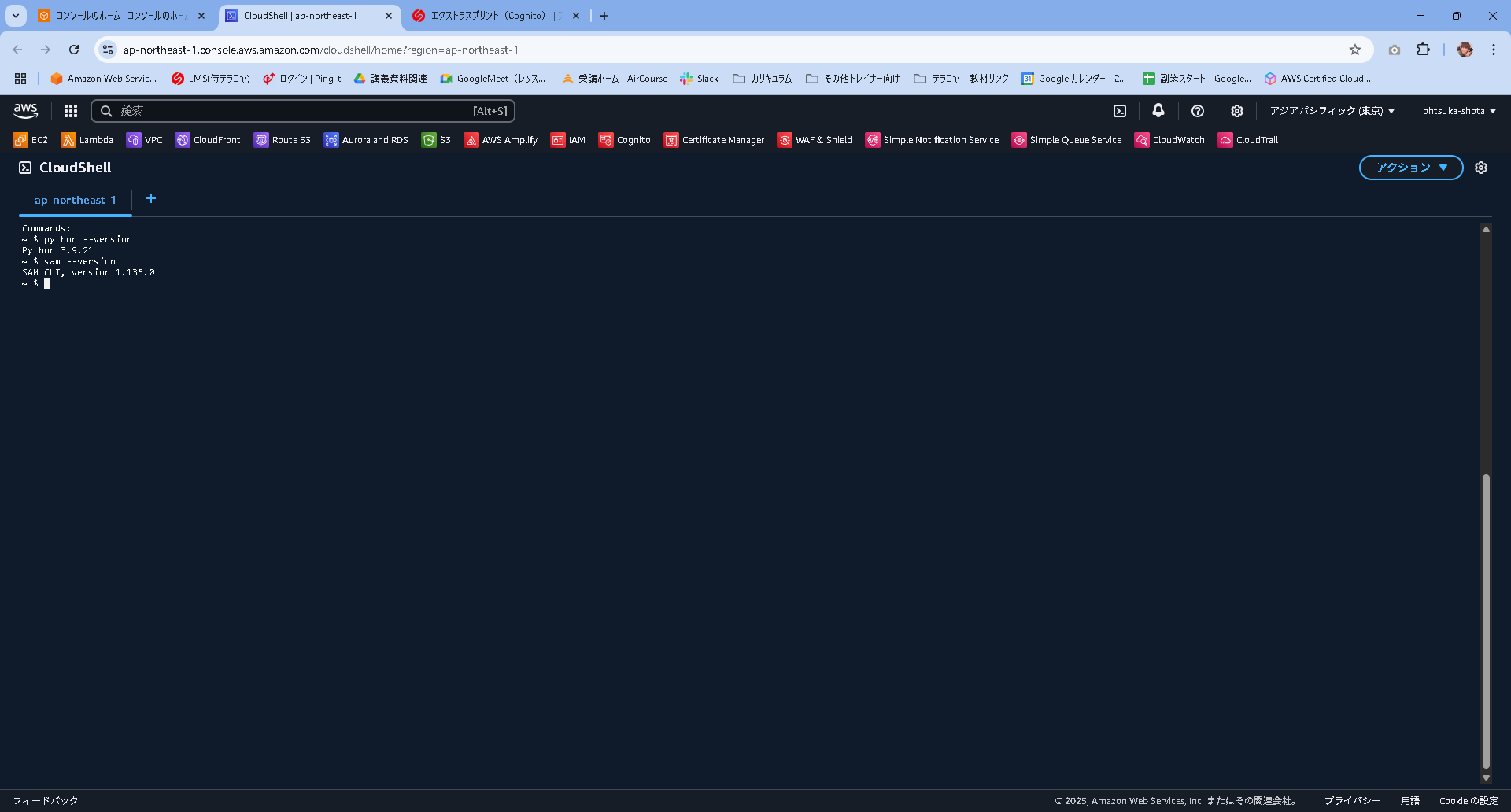

AWS CloudShellで色々試してみます。pythonとsam-cliのバージョンを確認します。
Commands:
~ $ python --version
Python 3.9.21
~ $ sam --version
SAM CLI, version 1.136.0
sam initコマンドを実行してCloudShellのローカルにプロジェクトを作成します。
コンソール上にpython3.13で良いかと出力されますが、ローカルはpython3.9なので、合わせます。
~ $ sam init
SAM CLI now collects telemetry to better understand customer needs.
You can OPT OUT and disable telemetry collection by setting the
environment variable SAM_CLI_TELEMETRY=0 in your shell.
Thanks for your help!
Learn More: https://docs.aws.amazon.com/serverless-application-model/latest/developerguide/serverless-sam-telemetry.html
You can preselect a particular runtime or package type when using the `sam init` experience.
Call `sam init --help` to learn more.
Which template source would you like to use?
1 - AWS Quick Start Templates
2 - Custom Template Location
Choice: 1
Choose an AWS Quick Start application template
1 - Hello World Example
2 - Data processing
3 - Hello World Example with Powertools for AWS Lambda
4 - Multi-step workflow
5 - Scheduled task
6 - Standalone function
7 - Serverless API
8 - Infrastructure event management
9 - Lambda Response Streaming
10 - GraphQLApi Hello World Example
11 - Full Stack
12 - Lambda EFS example
13 - Serverless Connector Hello World Example
14 - Multi-step workflow with Connectors
15 - DynamoDB Example
16 - Machine Learning
Template: 1
Use the most popular runtime and package type? (python3.13 and zip) [y/N]: N
Which runtime would you like to use?
1 - dotnet8
2 - dotnet6
3 - go (provided.al2)
4 - go (provided.al2023)
5 - graalvm.java11 (provided.al2)
6 - graalvm.java17 (provided.al2)
7 - java21
8 - java17
9 - java11
10 - java8.al2
11 - nodejs22.x
12 - nodejs20.x
13 - nodejs18.x
14 - python3.9
15 - python3.13
16 - python3.12
17 - python3.11
18 - python3.10
19 - ruby3.4
20 - ruby3.3
21 - ruby3.2
22 - rust (provided.al2)
23 - rust (provided.al2023)
Runtime: 14
What package type would you like to use?
1 - Zip
2 - Image
Package type: 2
Based on your selections, the only dependency manager available is pip.
We will proceed copying the template using pip.
Would you like to enable X-Ray tracing on the function(s) in your application? [y/N]: y
X-Ray will incur an additional cost. View https://aws.amazon.com/xray/pricing/ for more details
Would you like to enable monitoring using CloudWatch Application Insights?
For more info, please view https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/cloudwatch-application-insights.html [y/N]: y
AppInsights monitoring may incur additional cost. View https://docs.aws.amazon.com/AmazonCloudWatch/latest/monitoring/appinsights-what-is.html#appinsights-pricing for more details
Would you like to set Structured Logging in JSON format on your Lambda functions? [y/N]: y
Structured Logging in JSON format might incur an additional cost. View https://docs.aws.amazon.com/lambda/latest/dg/monitoring-cloudwatchlogs.html#monitoring-cloudwatchlogs-pricing for more details
Project name [sam-app]:
Cloning from https://github.com/aws/aws-sam-cli-app-templates (process may take a moment)
-----------------------
Generating application:
-----------------------
Name: sam-app
Base Image: amazon/python3.9-base
Architectures: x86_64
Dependency Manager: pip
Output Directory: .
Configuration file: sam-app/samconfig.toml
Next steps can be found in the README file at sam-app/README.md
Commands you can use next
=========================
[*] Create pipeline: cd sam-app && sam pipeline init --bootstrap
[*] Validate SAM template: cd sam-app && sam validate
[*] Test Function in the Cloud: cd sam-app && sam sync --stack-name {stack-name} --watch
SAM CLI update available (1.139.0); (1.136.0 installed)
To download: https://docs.aws.amazon.com/serverless-application-model/latest/developerguide/serverless-sam-cli-install.html
カレントディレクトリに様々なフォルダが作成されていることがわかる。
~ $ ls -ltR
.:
total 4
drwxr-xr-x. 5 cloudshell-user cloudshell-user 4096 May 31 06:18 sam-app
./sam-app:
total 28
-rw-r--r--. 1 cloudshell-user cloudshell-user 682 May 31 06:18 samconfig.toml
-rw-r--r--. 1 cloudshell-user cloudshell-user 2495 May 31 06:18 template.yaml
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 events
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 hello_world
drwxr-xr-x. 3 cloudshell-user cloudshell-user 4096 May 31 06:18 tests
-rw-r--r--. 1 cloudshell-user cloudshell-user 0 May 31 06:18 __init__.py
-rw-r--r--. 1 cloudshell-user cloudshell-user 6870 May 31 06:18 README.md
./sam-app/events:
total 4
-rw-r--r--. 1 cloudshell-user cloudshell-user 2092 May 31 06:18 event.json
./sam-app/hello_world:
total 12
-rw-r--r--. 1 cloudshell-user cloudshell-user 892 May 31 06:18 app.py
-rw-r--r--. 1 cloudshell-user cloudshell-user 250 May 31 06:18 Dockerfile
-rw-r--r--. 1 cloudshell-user cloudshell-user 0 May 31 06:18 __init__.py
-rw-r--r--. 1 cloudshell-user cloudshell-user 8 May 31 06:18 requirements.txt
./sam-app/tests:
total 4
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 unit
-rw-r--r--. 1 cloudshell-user cloudshell-user 0 May 31 06:18 __init__.py
./sam-app/tests/unit:
total 4
-rw-r--r--. 1 cloudshell-user cloudshell-user 2535 May 31 06:18 test_handler.py
-rw-r--r--. 1 cloudshell-user cloudshell-user 0 May 31 06:18 __init__.py
以下のファイルが重要とのこと。
- hello_world/app.py – Lambda 関数コードが含まれます。
- hello_world/requirements.txt – Lambda 関数に必要な Python 依存関係が含まれます。
samconfig.toml – で使用されるデフォルトのパラメータを保存するアプリケーションの設定ファイル AWS SAMCLI。 - template.yaml – アプリケーションインフラストラクチャコードを含む AWS SAM テンプレート。
実際のファイルを見てみる。
app.pyはLambdaでよく見るもの。
app.py
import json
# import requests
def lambda_handler(event, context):
"""Sample pure Lambda function
Parameters
----------
event: dict, required
API Gateway Lambda Proxy Input Format
Event doc: https://docs.aws.amazon.com/apigateway/latest/developerguide/set-up-lambda-proxy-integrations.html#api-gateway-simple-proxy-for-lambda-input-format
context: object, required
Lambda Context runtime methods and attributes
Context doc: https://docs.aws.amazon.com/lambda/latest/dg/python-context-object.html
Returns
------
API Gateway Lambda Proxy Output Format: dict
Return doc: https://docs.aws.amazon.com/apigateway/latest/developerguide/set-up-lambda-proxy-integrations.html
"""
# try:
# ip = requests.get("http://checkip.amazonaws.com/")
# except requests.RequestException as e:
# # Send some context about this error to Lambda Logs
# print(e)
# raise e
return {
"statusCode": 200,
"body": json.dumps({
"message": "hello world",
# "location": ip.text.replace("\n", "")
}),
}
Dockerfileの中身
FROM public.ecr.aws/lambda/python:3.9
COPY requirements.txt ./
RUN python3.9 -m pip install -r requirements.txt -t .
COPY app.py ./
# Command can be overwritten by providing a different command in the template directly.
CMD ["app.lambda_handler"]
template.yamlの中身。
SAMはCFNの拡張のようなので似ていますね。
template.yaml
AWSTemplateFormatVersion: '2010-09-09'
Transform: AWS::Serverless-2016-10-31
Description: >
python3.11
Sample SAM Template for sam-app
# More info about Globals: https://github.com/awslabs/serverless-application-model/blob/master/docs/globals.rst
Globals:
Function:
Timeout: 3
Tracing: Active
# You can add LoggingConfig parameters such as the Logformat, Log Group, and SystemLogLevel or ApplicationLogLevel. Learn more here https://docs.aws.amazon.com/serverless-application-model/latest/developerguide/sam-resource-function.html#sam-function-loggingconfig.
LoggingConfig:
LogFormat: JSON
Api:
TracingEnabled: true
Resources:
HelloWorldFunction:
Type: AWS::Serverless::Function # More info about Function Resource: https://github.com/awslabs/serverless-application-model/blob/master/versions/2016-10-31.md#awsserverlessfunction
Properties:
PackageType: Image
Architectures:
- x86_64
Events:
HelloWorld:
Type: Api # More info about API Event Source: https://github.com/awslabs/serverless-application-model/blob/master/versions/2016-10-31.md#api
Properties:
Path: /hello
Method: get
Metadata:
Dockerfile: Dockerfile
DockerContext: ./hello_world
DockerTag: python3.11-v1
ApplicationResourceGroup:
Type: AWS::ResourceGroups::Group
Properties:
Name:
Fn::Sub: ApplicationInsights-SAM-${AWS::StackName}
ResourceQuery:
Type: CLOUDFORMATION_STACK_1_0
ApplicationInsightsMonitoring:
Type: AWS::ApplicationInsights::Application
Properties:
ResourceGroupName:
Ref: ApplicationResourceGroup
AutoConfigurationEnabled: 'true'
Outputs:
# ServerlessRestApi is an implicit API created out of Events key under Serverless::Function
# Find out more about other implicit resources you can reference within SAM
# https://github.com/awslabs/serverless-application-model/blob/master/docs/internals/generated_resources.rst#api
HelloWorldApi:
Description: API Gateway endpoint URL for Prod stage for Hello World function
Value: !Sub "https://${ServerlessRestApi}.execute-api.${AWS::Region}.amazonaws.com/Prod/hello/"
HelloWorldFunction:
Description: Hello World Lambda Function ARN
Value: !GetAtt HelloWorldFunction.Arn
HelloWorldFunctionIamRole:
Description: Implicit IAM Role created for Hello World function
Value: !GetAtt HelloWorldFunctionRole.Arn
sam buildを実行してサーバーレスアプリケーションのソースコードをビルドして、デプロイ可能な状態にするためのプロセスを実行する
sam-app $ sam build
Building codeuri: /home/cloudshell-user/sam-app runtime: None architecture: x86_64 functions: HelloWorldFunction
Building image for HelloWorldFunction function
Setting DockerBuildArgs for HelloWorldFunction function
Step 1/5 : FROM public.ecr.aws/lambda/python:3.9
3.9: Pulling from lambda/python
c37dca5e3df2: Pull complete
51d480c7355c: Pull complete
ec5820170ae2: Pull complete
e2ef3e53683d: Pull complete
0147022c5310: Pull complete
37ab31843e2e: Pull complete
Status: Downloaded newer image for public.ecr.aws/lambda/python:3.9 ---> ff8a64315668
Step 2/5 : COPY requirements.txt ./
---> 66dcc21373ca
Step 3/5 : RUN python3.9 -m pip install -r requirements.txt -t .
---> Running in 97c05d12e067
Collecting requests
Downloading requests-2.32.3-py3-none-any.whl (64 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 64.9/64.9 kB 6.7 MB/s eta 0:00:00
Collecting certifi>=2017.4.17
Downloading certifi-2025.4.26-py3-none-any.whl (159 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 159.6/159.6 kB 22.1 MB/s eta 0:00:00
Collecting urllib3<3,>=1.21.1
Downloading urllib3-2.4.0-py3-none-any.whl (128 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 128.7/128.7 kB 21.1 MB/s eta 0:00:00
Collecting charset-normalizer<4,>=2
Downloading charset_normalizer-3.4.2-cp39-cp39-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (149 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 149.5/149.5 kB 20.4 MB/s eta 0:00:00
Collecting idna<4,>=2.5
Downloading idna-3.10-py3-none-any.whl (70 kB)
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 70.4/70.4 kB 10.5 MB/s eta 0:00:00
Installing collected packages: urllib3, idna, charset-normalizer, certifi, requests
Successfully installed certifi-2025.4.26 charset-normalizer-3.4.2 idna-3.10 requests-2.32.3 urllib3-2.4.0
WARNING: Running pip as the 'root' user can result in broken permissions and conflicting behaviour with the system package manager. It is recommended to use a virtual environment instead: https://pip.pypa.io/warnings/venv
[notice] A new release of pip is available: 23.0.1 -> 25.1.1
[notice] To update, run: pip install --upgrade pip
---> Removed intermediate container 97c05d12e067
---> c4712120b9e8
Step 4/5 : COPY app.py ./
---> ea57a620d81a
Step 5/5 : CMD ["app.lambda_handler"]
---> Running in 8b12ea89e520
---> Removed intermediate container 8b12ea89e520
---> 7b20b931f608
Successfully built 7b20b931f608
Successfully tagged helloworldfunction:python3.9-v1
Build Succeeded
Built Artifacts : .aws-sam/build
Built Template : .aws-sam/build/template.yaml
Commands you can use next
=========================
[*] Validate SAM template: sam validate
[*] Invoke Function: sam local invoke
[*] Test Function in the Cloud: sam sync --stack-name {{stack-name}} --watch
[*] Deploy: sam deploy --guided
buildというディレクトリが、隠しディレクト配下に存在していますね。
sam-app $ ls -ltaR
.:
total 44
drwxr-xr-x. 3 cloudshell-user cloudshell-user 4096 May 31 06:20 .aws-sam
drwxr-xr-x. 6 cloudshell-user cloudshell-user 4096 May 31 06:20 .
-rw-r--r--. 1 cloudshell-user cloudshell-user 682 May 31 06:18 samconfig.toml
-rw-r--r--. 1 cloudshell-user cloudshell-user 2495 May 31 06:18 template.yaml
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 events
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 hello_world
drwxr-xr-x. 3 cloudshell-user cloudshell-user 4096 May 31 06:18 tests
-rw-r--r--. 1 cloudshell-user cloudshell-user 3730 May 31 06:18 .gitignore
-rw-r--r--. 1 cloudshell-user cloudshell-user 0 May 31 06:18 __init__.py
-rw-r--r--. 1 cloudshell-user cloudshell-user 6870 May 31 06:18 README.md
drwxrwxrwx. 7 cloudshell-user cloudshell-user 4096 May 31 06:18 ..
./.aws-sam:
total 16
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:23 build
drwxr-xr-x. 3 cloudshell-user cloudshell-user 4096 May 31 06:20 .
-rw-r--r--. 1 cloudshell-user cloudshell-user 395 May 31 06:20 build.toml
drwxr-xr-x. 6 cloudshell-user cloudshell-user 4096 May 31 06:20 ..
./.aws-sam/build:
total 12
-rw-r--r--. 1 cloudshell-user cloudshell-user 1720 May 31 06:23 template.yaml
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:23 .
drwxr-xr-x. 3 cloudshell-user cloudshell-user 4096 May 31 06:20 ..
./events:
total 12
drwxr-xr-x. 6 cloudshell-user cloudshell-user 4096 May 31 06:20 ..
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 .
-rw-r--r--. 1 cloudshell-user cloudshell-user 2092 May 31 06:18 event.json
./hello_world:
total 20
drwxr-xr-x. 6 cloudshell-user cloudshell-user 4096 May 31 06:20 ..
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 .
-rw-r--r--. 1 cloudshell-user cloudshell-user 892 May 31 06:18 app.py
-rw-r--r--. 1 cloudshell-user cloudshell-user 250 May 31 06:18 Dockerfile
-rw-r--r--. 1 cloudshell-user cloudshell-user 0 May 31 06:18 __init__.py
-rw-r--r--. 1 cloudshell-user cloudshell-user 8 May 31 06:18 requirements.txt
./tests:
total 12
drwxr-xr-x. 6 cloudshell-user cloudshell-user 4096 May 31 06:20 ..
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 unit
drwxr-xr-x. 3 cloudshell-user cloudshell-user 4096 May 31 06:18 .
-rw-r--r--. 1 cloudshell-user cloudshell-user 0 May 31 06:18 __init__.py
./tests/unit:
total 12
drwxr-xr-x. 2 cloudshell-user cloudshell-user 4096 May 31 06:18 .
-rw-r--r--. 1 cloudshell-user cloudshell-user 2535 May 31 06:18 test_handler.py
drwxr-xr-x. 3 cloudshell-user cloudshell-user 4096 May 31 06:18 ..
-rw-r--r--. 1 cloudshell-user cloudshell-user 0 May 31 06:18 __init__.py
SAMテンプレートの検証を以下のコマンドで実行する
問題なさそう。
sam-app $ sam validate
/home/cloudshell-user/sam-app/template.yaml is a valid SAM Template
ローカル環境で関数を呼び出してみる
ステータスコードが200のものが返ってきているので問題なさそう
内部的にはdockerコンテナを使っているっぽい。
sam-app $ sam local invoke
Invoking Container created from helloworldfunction:python3.9-v1
Local image was not found.
Removing rapid images for repo helloworldfunction
Building image.................
Using local image: helloworldfunction:rapid-x86_64.
START RequestId: 583a857e-a9c4-4c21-980d-6a74dc7aec2a Version: $LATEST
END RequestId: b6496145-fbff-42c1-9c2c-e5651ddd3882
REPORT RequestId: b6496145-fbff-42c1-9c2c-e5651ddd3882 Init Duration: 0.06 ms Duration: 181.98 ms Billed Duration: 182 ms Memory Size: 128 MB Max Memory Used: 128 MB
{"statusCode": 200, "body": "{\"message\": \"hello world\"}"}
デプロイしていく。
sam-app $ sam deploy --guided
Configuring SAM deploy
======================
Looking for config file [samconfig.toml] : Found
Reading default arguments : Success
Setting default arguments for 'sam deploy'
=========================================
Stack Name [sam-app]:
AWS Region [ap-northeast-1]:
#Shows you resources changes to be deployed and require a 'Y' to initiate deploy
Confirm changes before deploy [Y/n]: Y
#SAM needs permission to be able to create roles to connect to the resources in your template
Allow SAM CLI IAM role creation [Y/n]: Y
#Preserves the state of previously provisioned resources when an operation fails
Disable rollback [y/N]: Y
HelloWorldFunction has no authentication. Is this okay? [y/N]: Y
Save arguments to configuration file [Y/n]: Y
SAM configuration file [samconfig.toml]:
SAM configuration environment [default]:
Looking for resources needed for deployment:
Creating the required resources...
Successfully created!
Managed S3 bucket: aws-sam-cli-managed-default-samclisourcebucket-59fn6v7fk3f4
A different default S3 bucket can be set in samconfig.toml and auto resolution of buckets turned off by setting resolve_s3=False
Parameter "stack_name=sam-app" in [default.deploy.parameters] is defined as a global parameter [default.global.parameters].
This parameter will be only saved under [default.global.parameters] in /home/cloudshell-user/sam-app/samconfig.toml.
Saved arguments to config file
Running 'sam deploy' for future deployments will use the parameters saved above.
The above parameters can be changed by modifying samconfig.toml
Learn more about samconfig.toml syntax at
https://docs.aws.amazon.com/serverless-application-model/latest/developerguide/serverless-sam-cli-config.html
44ea107c8fcb: Pushed
68647e94abbd: Pushed
1076fda1b422: Pushed
b07d597978b2: Pushed
494fc5cd1f64: Pushed
6a9b57324378: Pushed
887ce20b74f9: Pushed
6b2a0fd03dc9: Pushed
f4b46dc2d7e0: Pushed
helloworldfunction-7b20b931f608-python3.9-v1: digest: sha256:92b218f0c57d24058b32b2c6ad2488360ad673620657c770928e7dc7f7d0074f size: 2206
Deploying with following values
===============================
Stack name : sam-app
Region : ap-northeast-1
Confirm changeset : True
Disable rollback : True
Deployment image repository :
{
"HelloWorldFunction": "535002847634.dkr.ecr.ap-northeast-1.amazonaws.com/samapp7427b055/helloworldfunction19d43fc4repo"
}
Deployment s3 bucket : aws-sam-cli-managed-default-samclisourcebucket-59fn6v7fk3f4
Capabilities : ["CAPABILITY_IAM"]
Parameter overrides : {}
Signing Profiles : {}
Initiating deployment
=====================
HelloWorldFunction has no authentication.
Uploading to sam-app/7dc3b9c67dd341b2d4aa4c79ae1614e9.template 1954 / 1954 (100.00%)
Waiting for changeset to be created..
CloudFormation stack changeset
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Operation LogicalResourceId ResourceType Replacement
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
+ Add ApplicationInsightsMonitoring AWS::ApplicationInsights::Application N/A
+ Add ApplicationResourceGroup AWS::ResourceGroups::Group N/A
+ Add HelloWorldFunctionHelloWorldPermissionProd AWS::Lambda::Permission N/A
+ Add HelloWorldFunctionRole AWS::IAM::Role N/A
+ Add HelloWorldFunction AWS::Lambda::Function N/A
+ Add ServerlessRestApiDeployment47fc2d5f9d AWS::ApiGateway::Deployment N/A
+ Add ServerlessRestApiProdStage AWS::ApiGateway::Stage N/A
+ Add ServerlessRestApi AWS::ApiGateway::RestApi N/A
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Changeset created successfully. arn:aws:cloudformation:ap-northeast-1:535002847634:changeSet/samcli-deploy1748675337/5fcb0b9d-071d-4f4c-8b77-d82ddcc9f1db
Previewing CloudFormation changeset before deployment
======================================================
Deploy this changeset? [y/N]: y
2025-05-31 07:09:09 - Waiting for stack create/update to complete
CloudFormation events from stack operations (refresh every 5.0 seconds)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
ResourceStatus ResourceType LogicalResourceId ResourceStatusReason
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CREATE_IN_PROGRESS AWS::CloudFormation::Stack sam-app User Initiated
CREATE_IN_PROGRESS AWS::IAM::Role HelloWorldFunctionRole -
CREATE_IN_PROGRESS AWS::ResourceGroups::Group ApplicationResourceGroup -
CREATE_IN_PROGRESS AWS::ResourceGroups::Group ApplicationResourceGroup Resource creation Initiated
CREATE_IN_PROGRESS AWS::IAM::Role HelloWorldFunctionRole Resource creation Initiated
CREATE_COMPLETE AWS::ResourceGroups::Group ApplicationResourceGroup -
CREATE_IN_PROGRESS AWS::ApplicationInsights::Application ApplicationInsightsMonitoring -
CREATE_IN_PROGRESS AWS::ApplicationInsights::Application ApplicationInsightsMonitoring Resource creation Initiated
CREATE_COMPLETE AWS::IAM::Role HelloWorldFunctionRole -
CREATE_IN_PROGRESS AWS::Lambda::Function HelloWorldFunction -
CREATE_IN_PROGRESS AWS::Lambda::Function HelloWorldFunction Resource creation Initiated
CREATE_COMPLETE AWS::Lambda::Function HelloWorldFunction -
CREATE_IN_PROGRESS AWS::ApiGateway::RestApi ServerlessRestApi -
CREATE_IN_PROGRESS AWS::ApiGateway::RestApi ServerlessRestApi Resource creation Initiated
CREATE_COMPLETE AWS::ApiGateway::RestApi ServerlessRestApi -
CREATE_IN_PROGRESS AWS::Lambda::Permission HelloWorldFunctionHelloWorldPermissionProd -
CREATE_IN_PROGRESS AWS::ApiGateway::Deployment ServerlessRestApiDeployment47fc2d5f9d -
CREATE_IN_PROGRESS AWS::Lambda::Permission HelloWorldFunctionHelloWorldPermissionProd Resource creation Initiated
CREATE_IN_PROGRESS AWS::ApiGateway::Deployment ServerlessRestApiDeployment47fc2d5f9d Resource creation Initiated
CREATE_COMPLETE AWS::Lambda::Permission HelloWorldFunctionHelloWorldPermissionProd -
CREATE_COMPLETE AWS::ApiGateway::Deployment ServerlessRestApiDeployment47fc2d5f9d -
CREATE_IN_PROGRESS AWS::ApiGateway::Stage ServerlessRestApiProdStage -
CREATE_IN_PROGRESS AWS::ApiGateway::Stage ServerlessRestApiProdStage Resource creation Initiated
CREATE_COMPLETE AWS::ApiGateway::Stage ServerlessRestApiProdStage -
CREATE_COMPLETE AWS::ApplicationInsights::Application ApplicationInsightsMonitoring -
CREATE_COMPLETE AWS::CloudFormation::Stack sam-app -
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CloudFormation outputs from deployed stack
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Outputs
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Key HelloWorldFunctionIamRole
Description Implicit IAM Role created for Hello World function
Value arn:aws:iam::535002847634:role/sam-app-HelloWorldFunctionRole-BPPukNpb4kDk
Key HelloWorldApi
Description API Gateway endpoint URL for Prod stage for Hello World function
Value https://hm3erxpyel.execute-api.ap-northeast-1.amazonaws.com/Prod/hello/
Key HelloWorldFunction
Description Hello World Lambda Function ARN
Value arn:aws:lambda:ap-northeast-1:535002847634:function:sam-app-HelloWorldFunction-qMbhe0y6Qdap
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Successfully created/updated stack - sam-app in ap-northeast-1

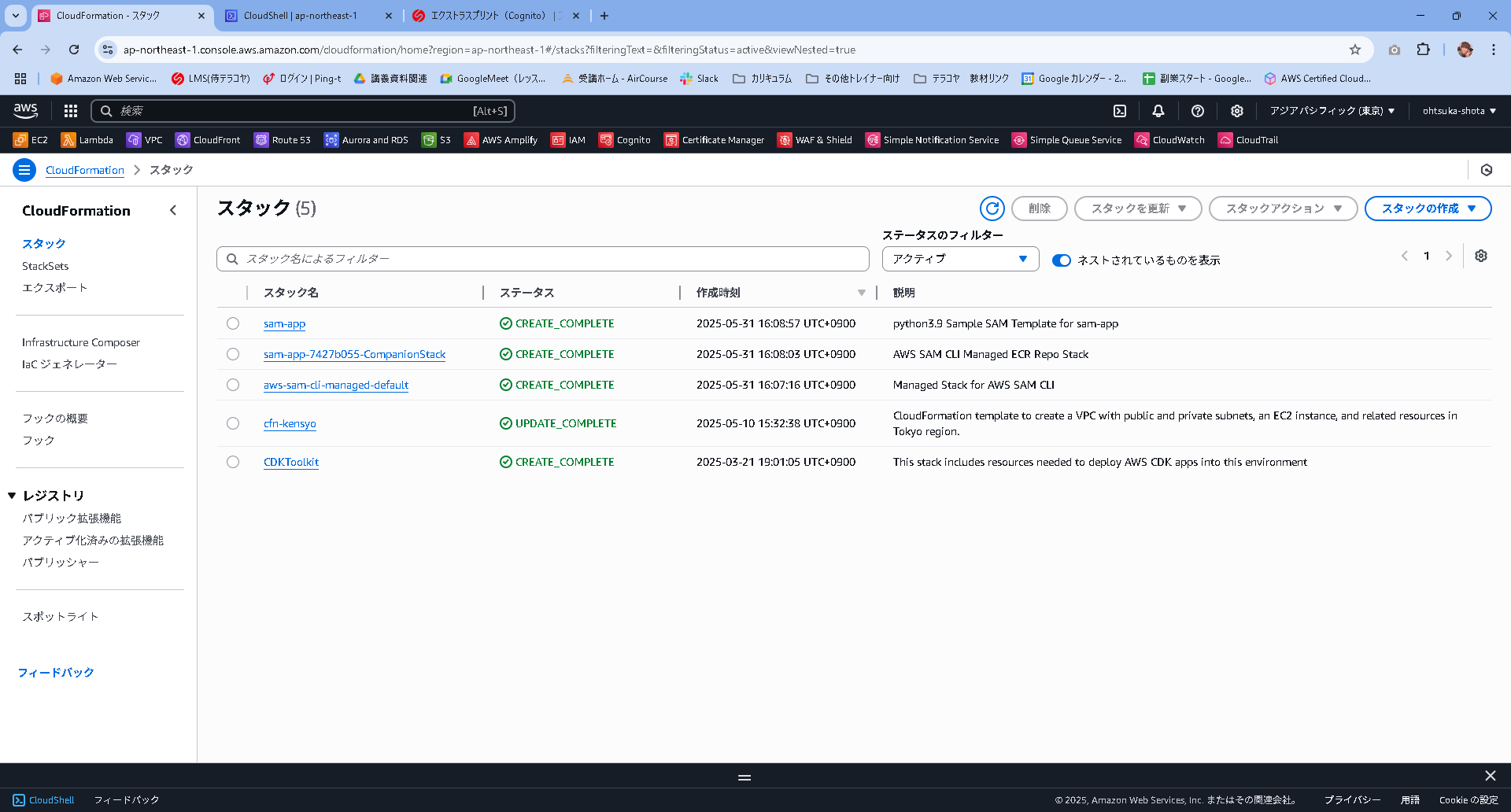

マネコンでCFNのスタックを見てみると、SAMでデプロイしたものが表示されている。

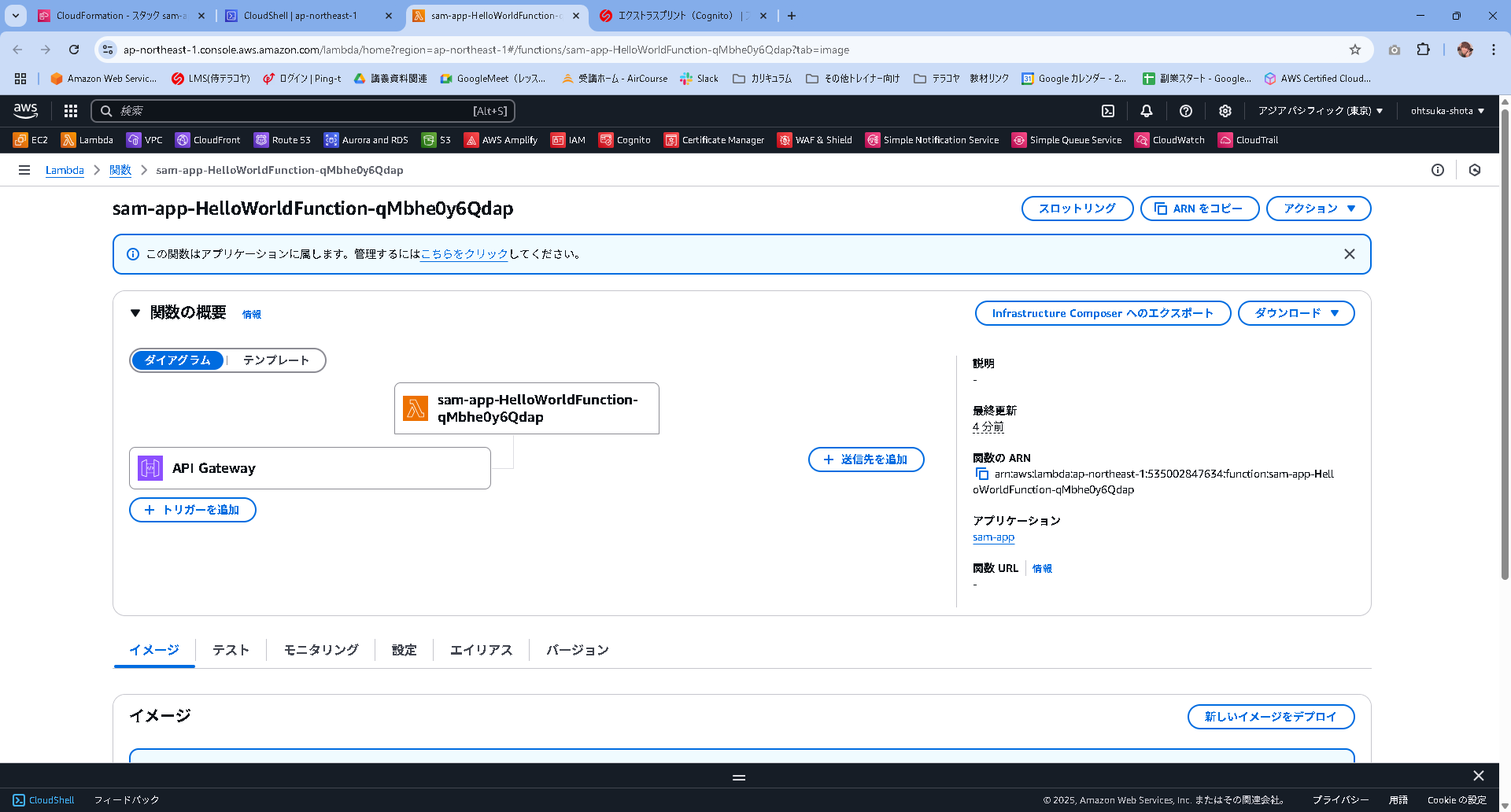

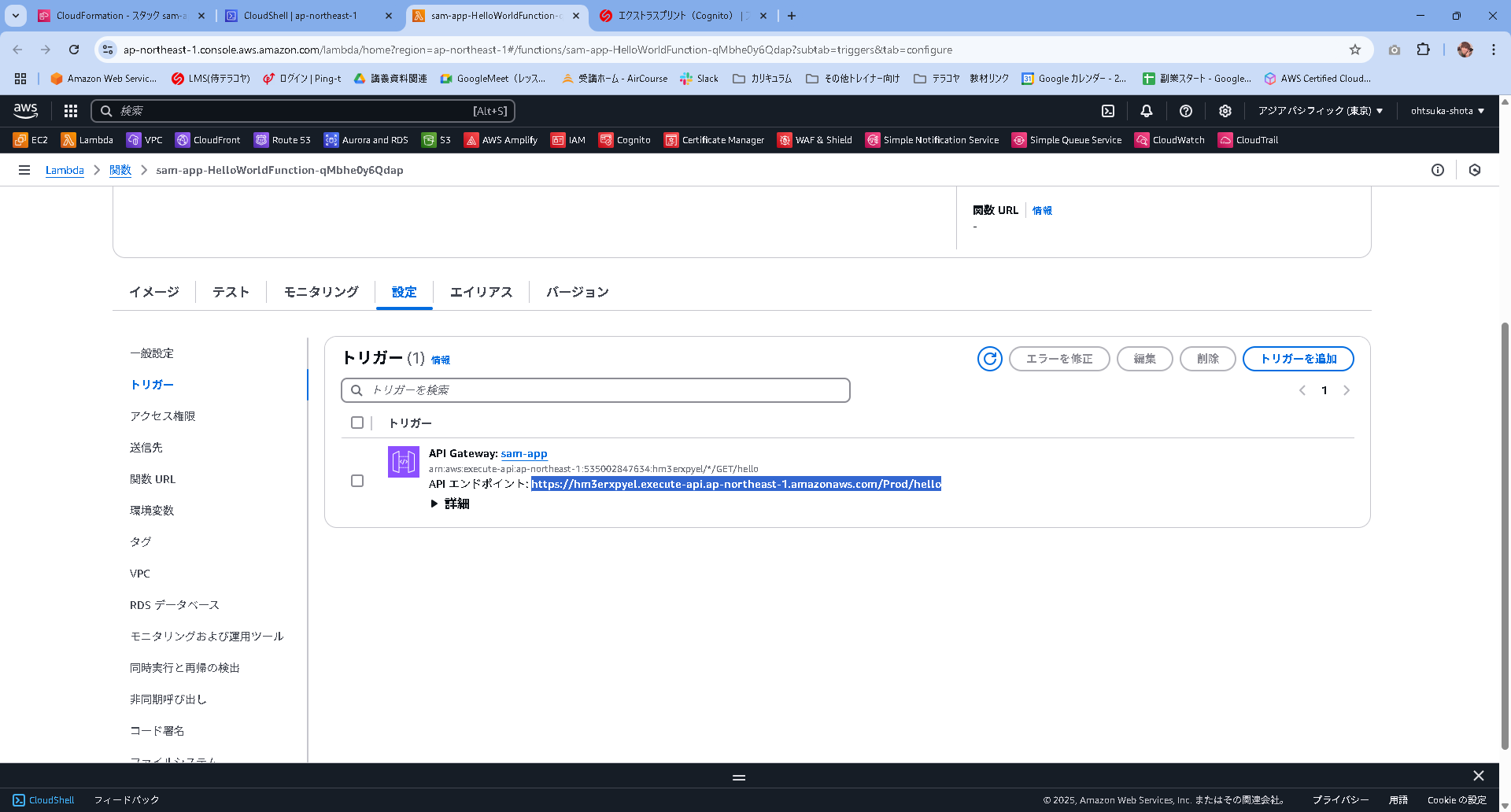

LambdaもAPIゲートウェイに紐づいた状態でデプロイされている。

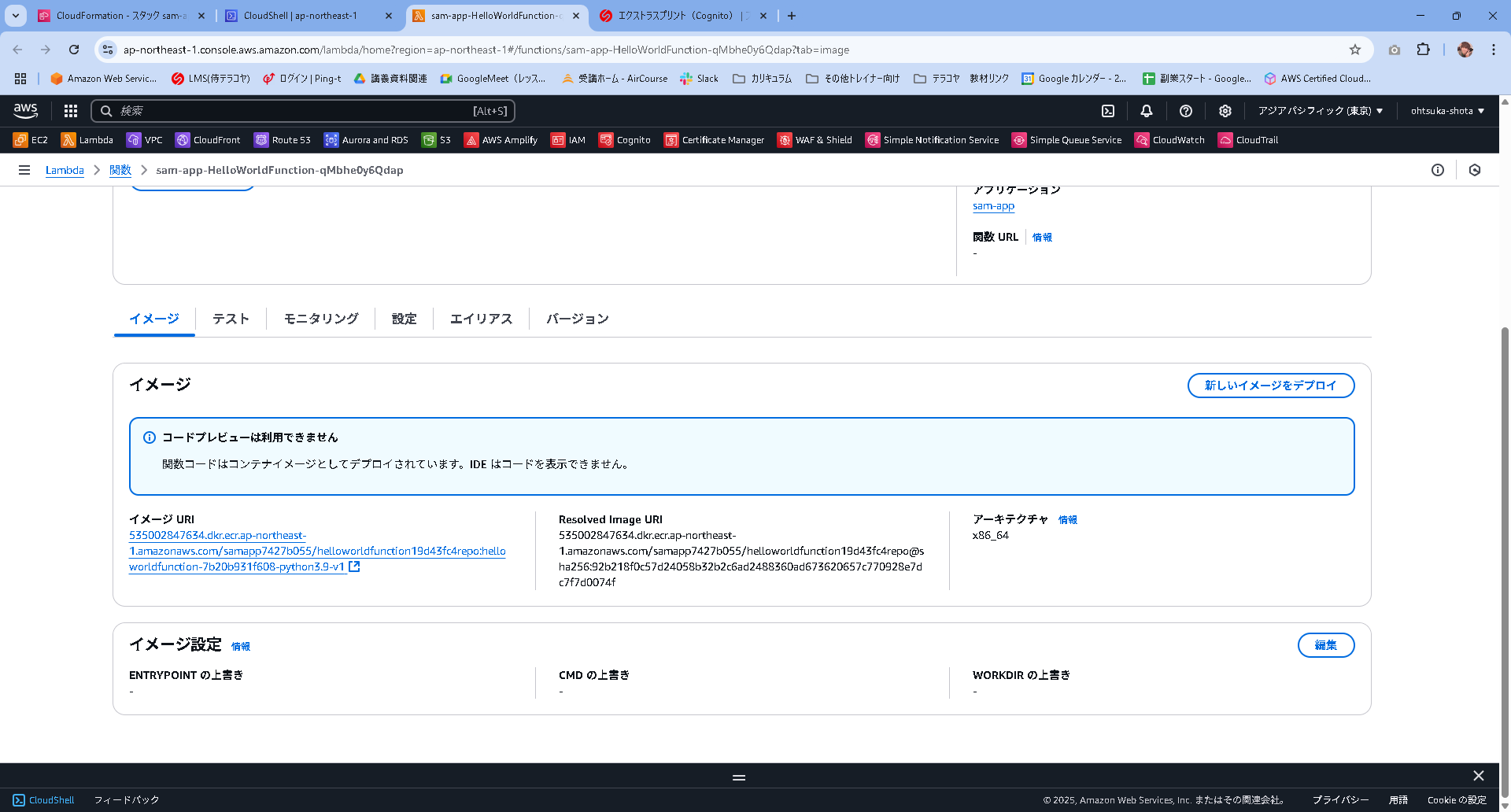

SAMでデプロイしている為、Lambdaのコードはここでは見れない様子。

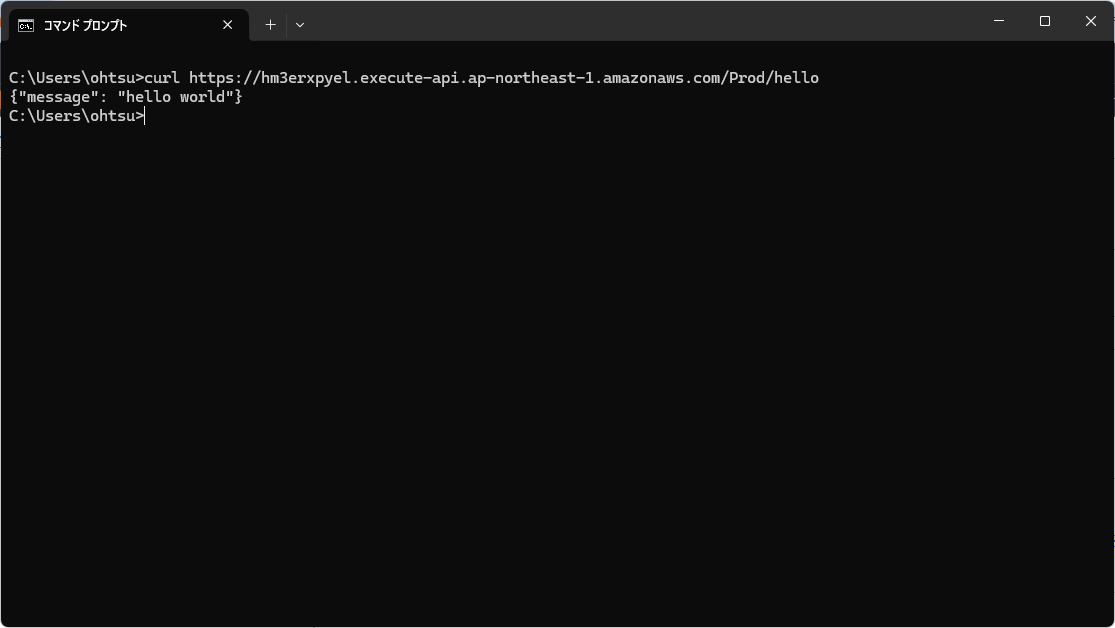

APIを叩いてみる。問題なさそう。

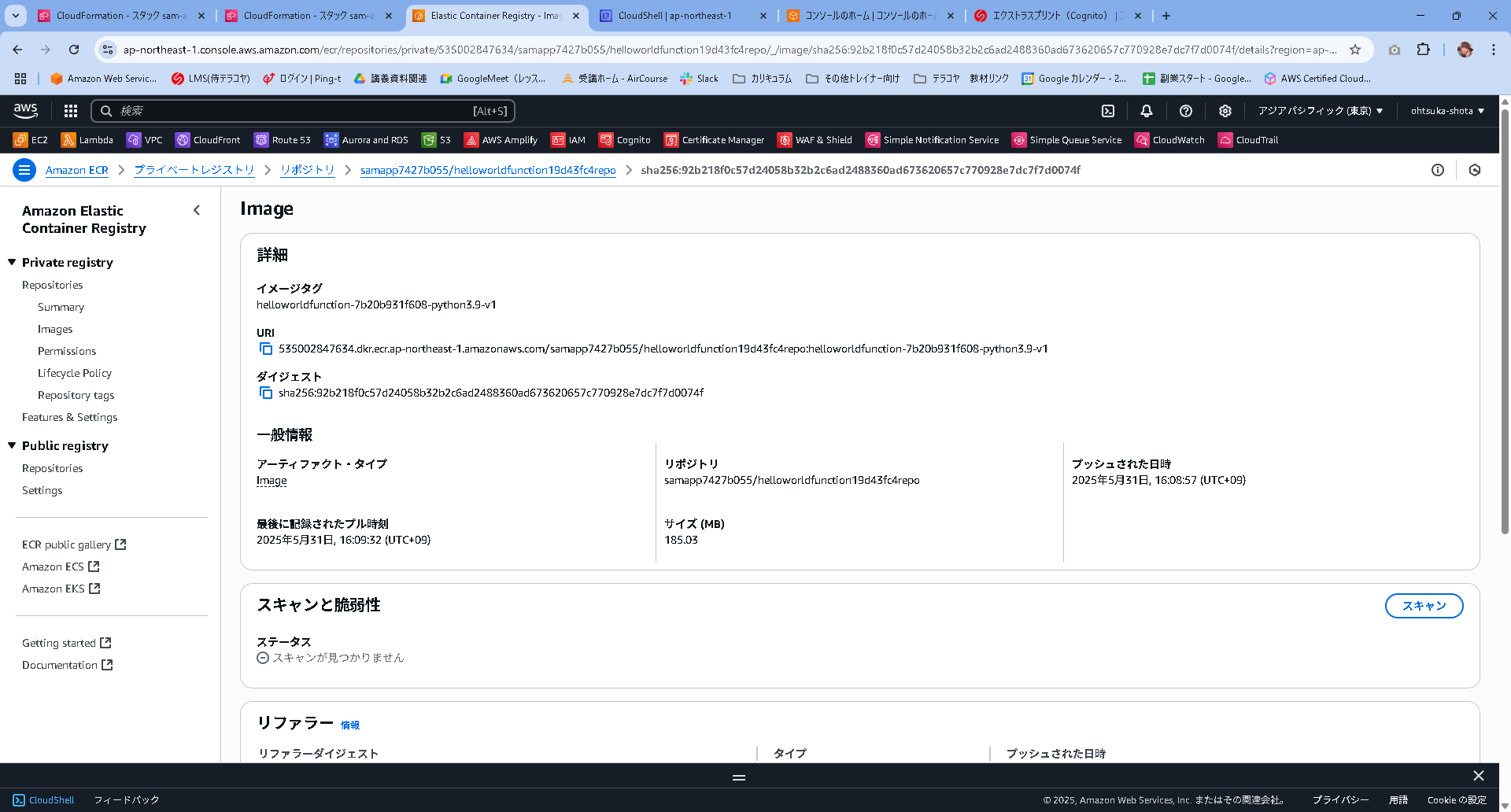

ECRにリポジトリを作ってコンテナイメージをプッシュしていることもわかる。このイメージを使ってLambda関数がデプロイされている。

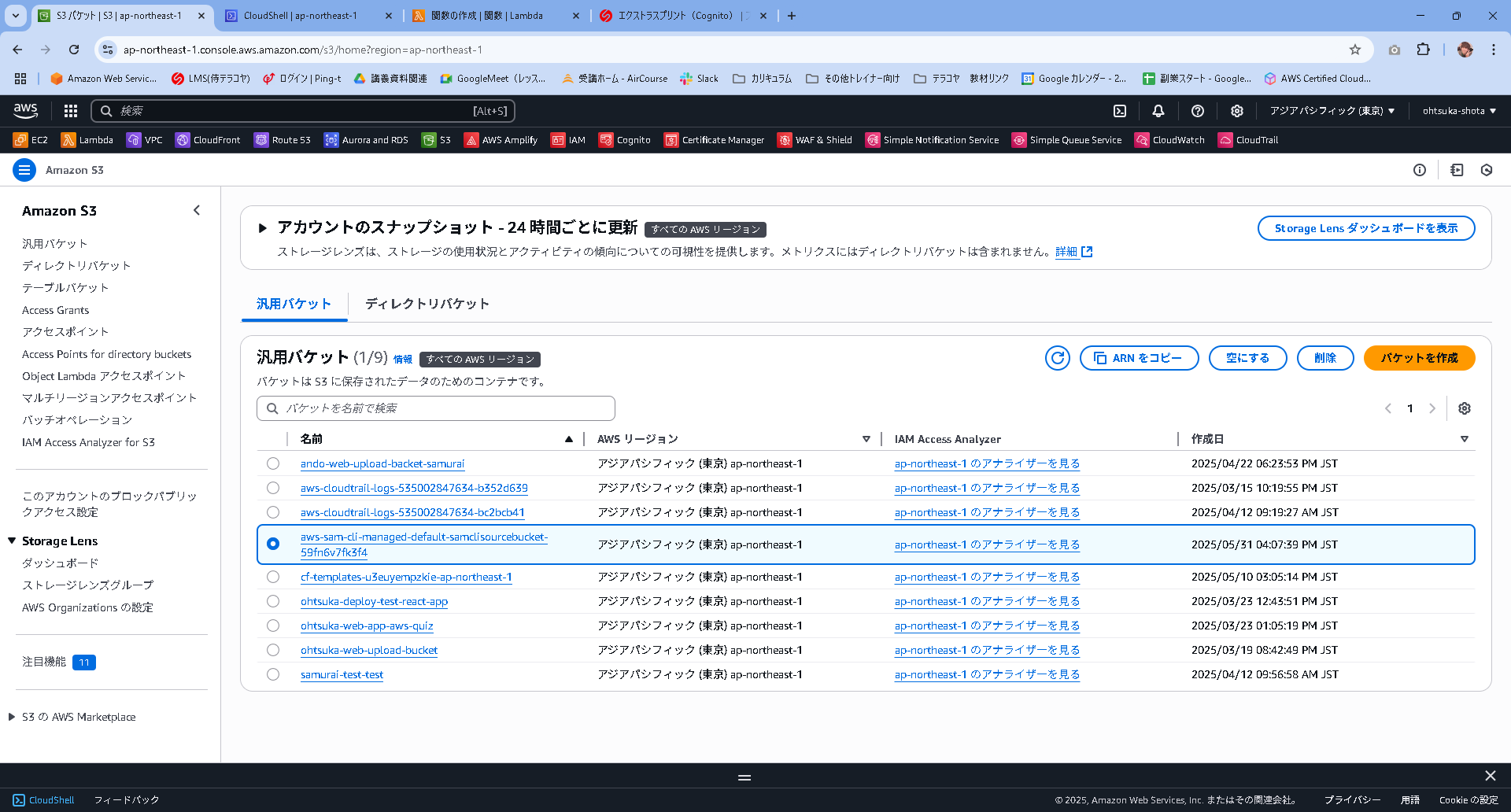

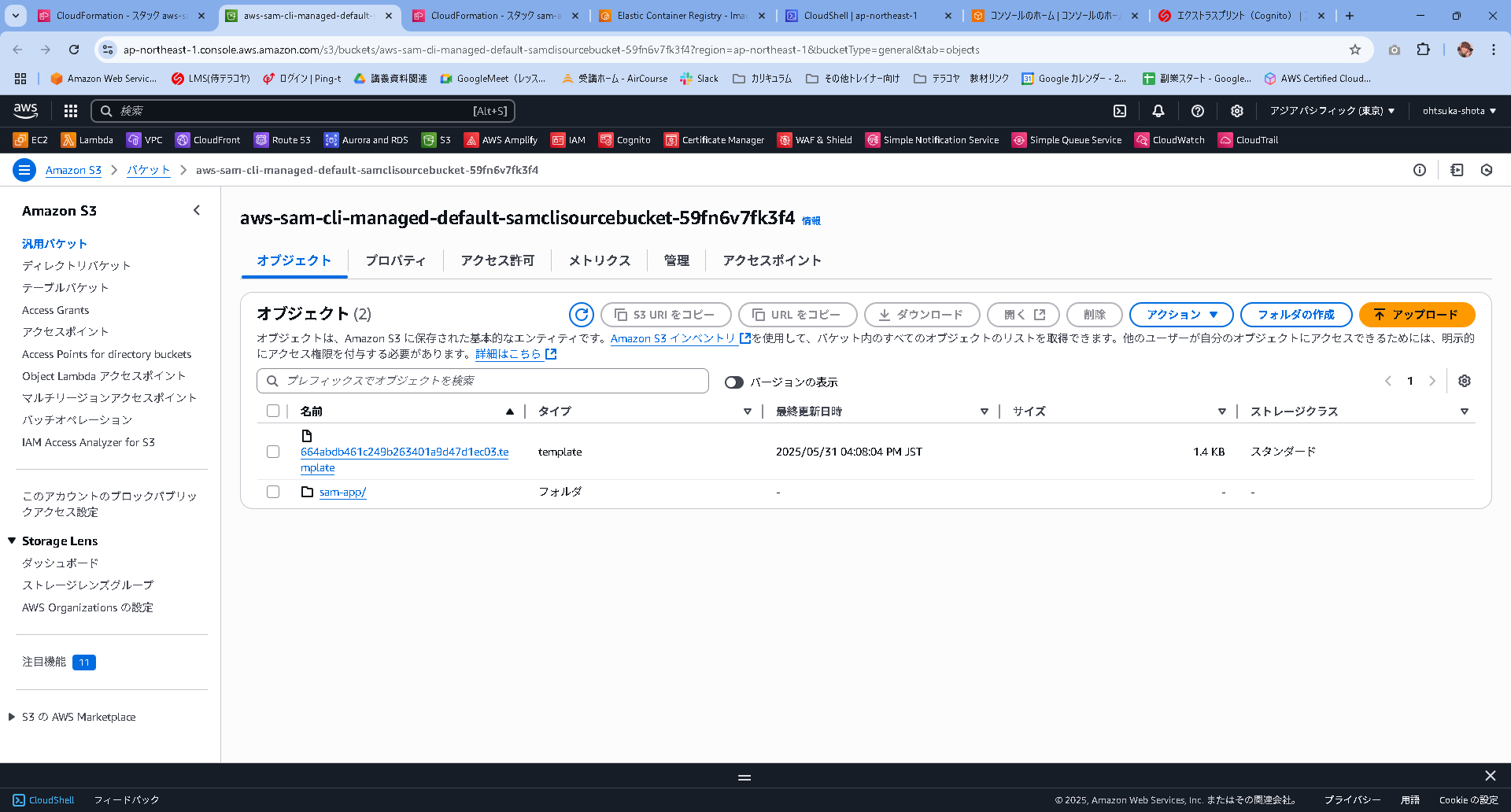

S3にデプロイパッケージやバージョン管理のための配置をしていることもわかる。
削除するためには以下のコマンドを実行する。
S3バケットが削除できていないようす。
sam-app $ sam delete --stack-name sam-app
Are you sure you want to delete the stack sam-app in the region ap-northeast-1 ? [y/N]: y
Found ECR Companion Stack sam-app-7427b055-CompanionStack
Do you want to delete the ECR companion stack sam-app-7427b055-CompanionStack in the region ap-northeast-1 ? [y/N]: y
ECR repository samapp7427b055/helloworldfunction19d43fc4repo may not be empty. Do you want to delete the repository and all the images in it ? [y/N]: y
- Deleting ECR repository samapp7427b055/helloworldfunction19d43fc4repo
- Deleting ECR Companion Stack sam-app-7427b055-CompanionStack
- Deleting Cloudformation stack sam-app
Warning: Cannot resolve s3 bucket information from command options , local config file or cloudformation template. Please use --s3-bucket next time and delete s3 files manually if required.
Deleted successfully

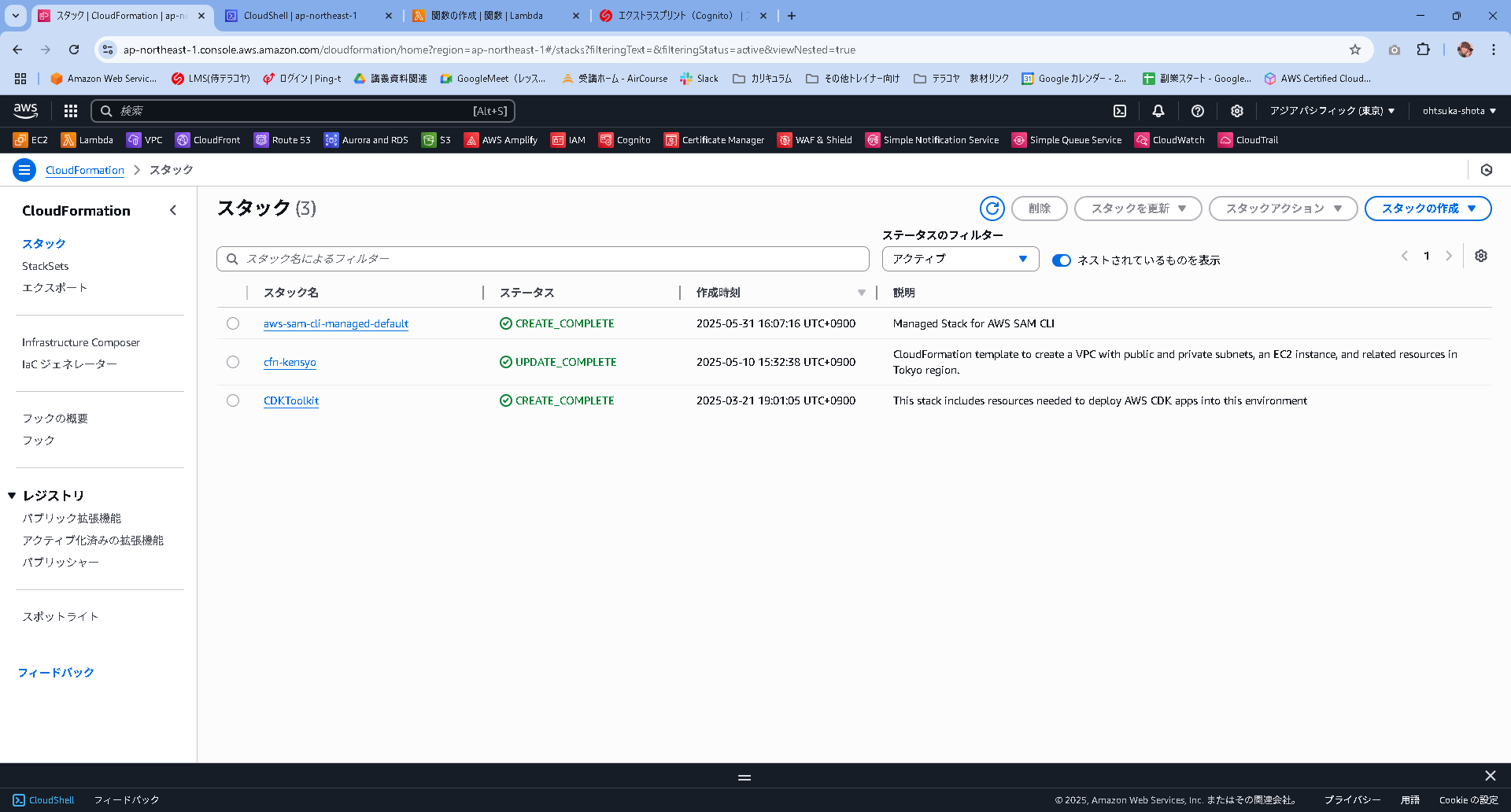

CFNやS3を見てみると確かに残っているように見えるので、こちらから削除しておく
