こんにちは
株式会社クラスアクト インフラストラクチャ事業部の大塚です。
一年ほど前に、勉強の為にWindowsのイベントログをCloudWatch Logsにアップロードする手順を確認しました。
今回はRHELで同様の事をする環境を作ってみたいと思います。
環境イメージ
構築手順
まず、RHELのEC2に対してアタッチするIAMロールを作成してきたいと思います。
本来であれば権限は絞るべきですが、今回はCloudWatchFullAccessV2を選択して次へ
名前をkensyo-cloudwatchlogsとしてロールを作成を押下します。
IAMロールが作成できたことを確認します。
RHELのEC2を雑に作っていきます。
作成したEC2に先ほど用意したIAMロールをアタッチします。
EC2インスタンスにSSHで接続し、CloudWatch AgentのRPMパッケージをダウンロードして、直接インストールを行っています。
[ec2-user@ip-192-168-100-7 ~]$ sudo su -
[root@ip-192-168-100-7 ~]# yum update
[root@ip-192-168-100-7 ~]# yum -y install wget
[root@ip-192-168-100-7 ~]# uname -m
x86_64
[root@ip-192-168-100-7 ~]# wget https://amazoncloudwatch-agent.s3.amazonaws.com/redhat/amd64/latest/amazon-cloudwatch-agent.rpm
[root@ip-192-168-100-7 ~]# ls
amazon-cloudwatch-agent.rpm
[root@ip-192-168-100-7 ~]# rpm -U ./amazon-cloudwatch-agent.rpm
設定ファイル（config.json）を新規で作成し、/opt/aws/amazon-cloudwatch-agent/etc/に配置します。
[root@ip-192-168-100-7 ~]# cd /opt/aws/amazon-cloudwatch-agent/etc
[root@ip-192-168-100-7 etc]# ls
amazon-cloudwatch-agent.d common-config.toml
[root@ip-192-168-100-7 etc]# vi config.json
[root@ip-192-168-100-7 etc]# cat config.json
{
"agent": {
"metrics_collection_interval": 60,
"run_as_user": "cwagent"
},
"metrics": {
"append_dimensions": {
"InstanceId": "${aws:InstanceId}"
},
"metrics_collected": {
"cpu": {
"measurement": [
"usage_idle",
"usage_iowait",
"usage_user",
"usage_system"
],
"metrics_collection_interval": 60,
"resources": [
"*"
]
},
"mem": {
"measurement": [
"mem_used_percent"
],
"metrics_collection_interval": 60
}
}
},
"logs": {
"logs_collected": {
"files": {
"collect_list": [
{
"file_path": "/var/log/messages",
"log_group_name": "rhel-test-varlogmessages",
"log_stream_name": "{instance_id}",
"timezone": "UTC"
},
{
"file_path": "/var/log/secure",
"log_group_name": "rhel-test-varlogsecure",
"log_stream_name": "{instance_id}",
"timezone": "UTC"
},
{
"file_path": "/var/log/cron",
"log_group_name": "rhel-test-varlogcron",
"log_stream_name": "{instance_id}",
"timezone": "UTC"
},
{
"file_path": "/var/log/audit/audit.log",
"log_group_name": "rhel-test-varaudit",
"log_stream_name": "{instance_id}",
"timezone": "UTC"
},
{
"file_path": "/var/log/dnf.log",
"log_group_name": "rhel-test-vardnf",
"log_stream_name": "{instance_id}",
"timezone": "UTC"
},
{
"file_path": "/var/log/maillog",
"log_group_name": "rhel-test-varmaillog",
"log_stream_name": "{instance_id}",
"timezone": "UTC"
},
{
"file_path": "/var/log/cloud-init-output.log",
"log_group_name": "rhel-test-varcloud-init",
"log_stream_name": "{instance_id}",
"timezone": "UTC"
},
{
"file_path": "/var/log/wtmp",
"log_group_name": "rhel-test-varwtmp",
"log_stream_name": "{instance_id}",
"timezone": "UTC"
}
]
}
},
"log_stream_name": "rhel-test-cloudwatch-logs",
"force_flush_interval": 5
}
}
CloudWatch Agentの起動
-a fetch-configは設定を取得し、-sはエージェントを起動するオプション。
※config.jsonを書き換えた時は、そのconfigを反映させるためにもこのコマンドを使うっぽい。
[root@ip-192-168-100-7 etc]# /opt/aws/amazon-cloudwatch-agent/bin/amazon-cloudwatch-agent-ctl -a fetch-config -s -c file:/opt/aws/amazon-cloudwatch-agent/etc/config.json
****** processing amazon-cloudwatch-agent ******
I! Trying to detect region from ec2 D! [EC2] Found active network interface I! imds retry client will retry 1 timesSuccessfully fetched the config and saved in /opt/aws/amazon-cloudwatch-agent/etc/amazon-cloudwatch-agent.d/file_config.json.tmp
Start configuration validation...
2025/05/10 01:37:57 Reading json config file path: /opt/aws/amazon-cloudwatch-agent/etc/amazon-cloudwatch-agent.d/file_config.json.tmp ...
2025/05/10 01:37:57 I! Valid Json input schema.
2025/05/10 01:37:57 D! ec2tagger processor required because append_dimensions is set
2025/05/10 01:37:57 Configuration validation first phase succeeded
I! Detecting run_as_user...
I! Trying to detect region from ec2
D! [EC2] Found active network interface
I! imds retry client will retry 1 times
/opt/aws/amazon-cloudwatch-agent/bin/amazon-cloudwatch-agent -schematest -config /opt/aws/amazon-cloudwatch-agent/etc/amazon-cloudwatch-agent.toml
Configuration validation second phase succeeded
Configuration validation succeeded
amazon-cloudwatch-agent has already been stopped
Created symlink /etc/systemd/system/multi-user.target.wants/amazon-cloudwatch-agent.service → /etc/systemd/system/amazon-cloudwatch-agent.service.
CloudWatch Agentのステータスを確認します。
※systemctl status amazon-cloudwatch-agentでも可
[root@ip-192-168-100-7 etc]# /opt/aws/amazon-cloudwatch-agent/bin/amazon-cloudwatch-agent-ctl -a status
{
"status": "running",
"starttime": "2025-05-10T01:37:58+00:00",
"configstatus": "configured",
"version": "1.300055.0b1095"
}

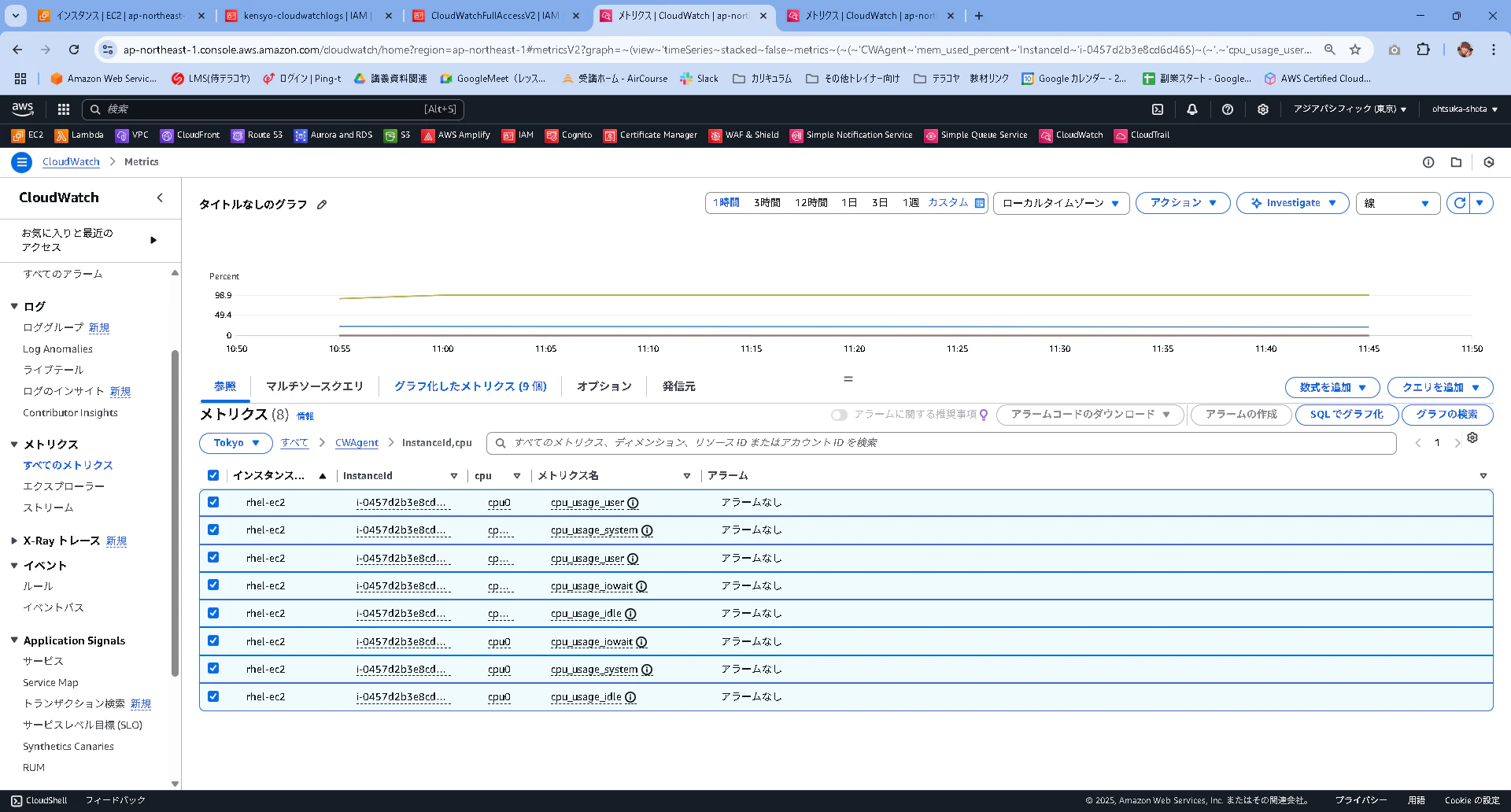

雑な確認ですが、CloudWatchに出力されていますね。以上
