sketchupでruby その18

概要

sketchupでrubyやってみた。
練習問題やってみた。

練習問題

面だけで、球を作れ。

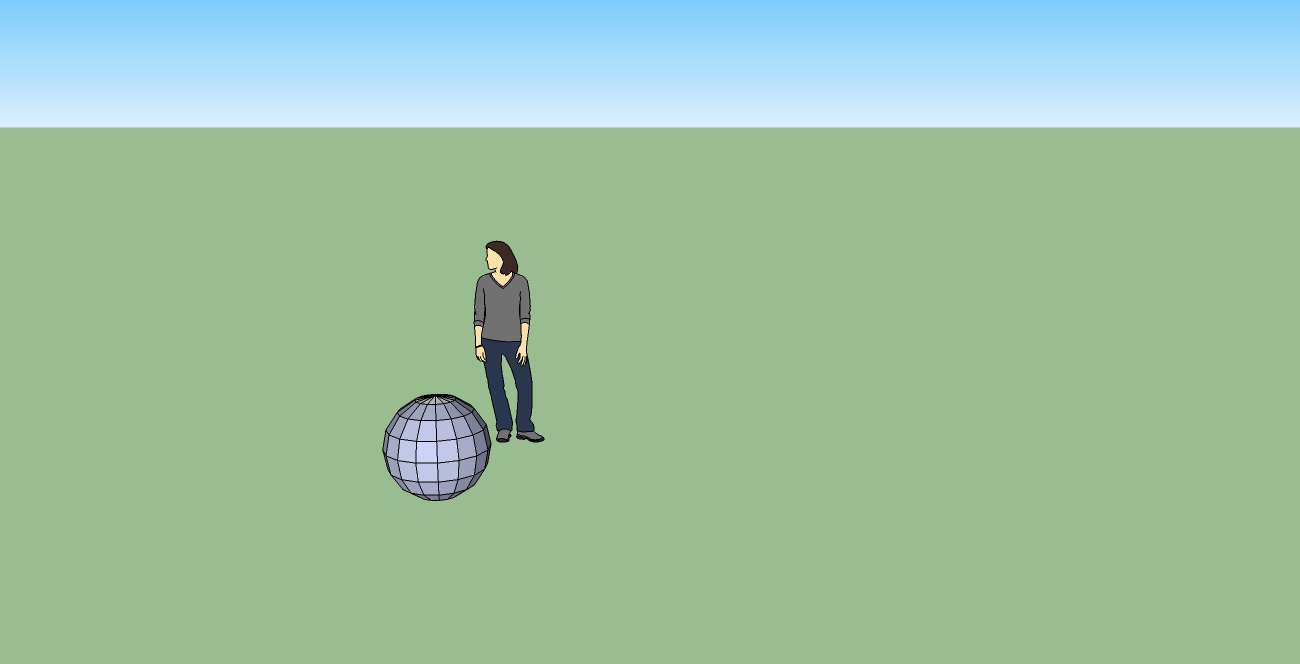

写真

サンプルコード

def tama
   p1 = Geom::Point3d.new 0, 0, 0
   p2 = Geom::Point3d.new 10, 10, 10
   entities = Sketchup.active_model.entities
   radius = p2.distance(p1)
   dtheta = dphi = 360.0 / 16
   -90.step(90, dtheta) do |theta|
      0.step(360, dphi) do |phi|
         group = entities.add_group
         pts = []
         x = radius * Math::cos(theta.degrees) * Math::cos(phi.degrees)
         y = radius * Math::cos(theta.degrees) * Math::sin(phi.degrees)
         z = radius * Math::sin(theta.degrees)
         pts << (p1 + [x, y, z])
         x = radius * Math::cos((theta + dtheta).degrees) * Math::cos(phi.degrees)
         y = radius * Math::cos((theta + dtheta).degrees) * Math::sin(phi.degrees)
         z = radius * Math::sin((theta + dtheta).degrees)
         pts << (p1 + [x, y, z])
         x = radius * Math::cos((theta + dtheta).degrees) * Math::cos((phi + dphi).degrees)
         y = radius * Math::cos((theta + dtheta).degrees) * Math::sin((phi + dphi).degrees)
         z = radius * Math::sin((theta + dtheta).degrees)
         pts << (p1 + [x, y, z])
         if theta > -90 && theta < 90
            x = radius * Math::cos(theta.degrees) * Math::cos((phi + dphi).degrees)
            y = radius * Math::cos(theta.degrees) * Math::sin((phi + dphi).degrees)
            z = radius * Math::sin(theta.degrees)
            pts << (p1 + [x, y, z])
         end
         begin
            group.entities.add_face pts
            rescue
         end
      end
   end
end

以上。
